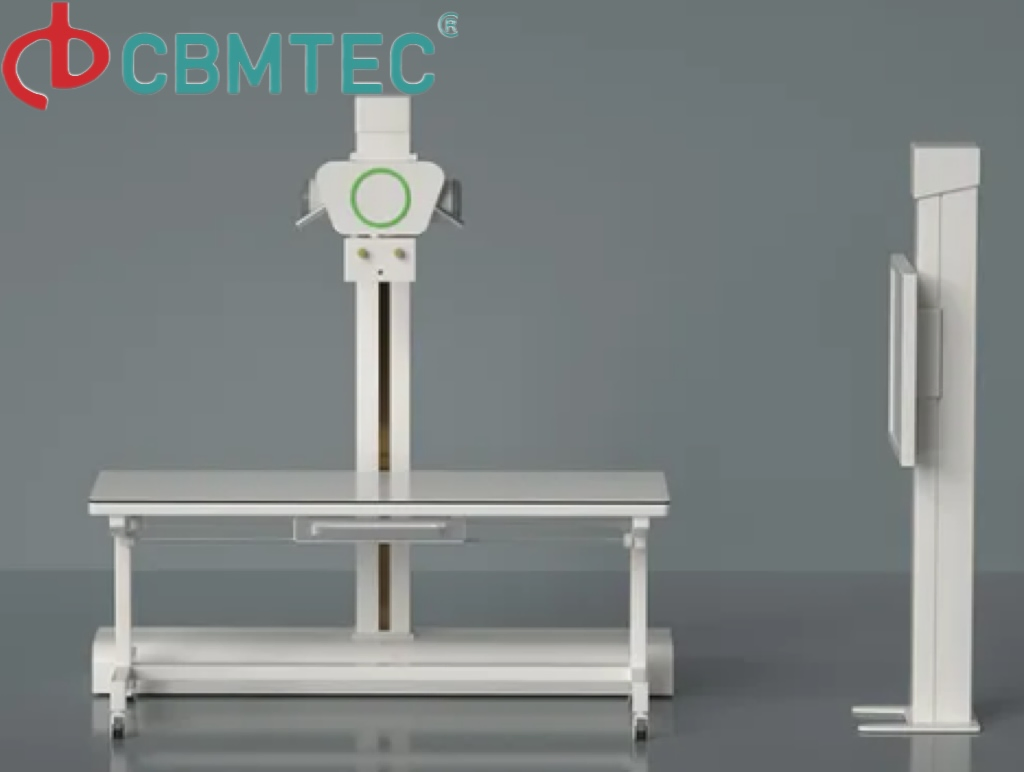

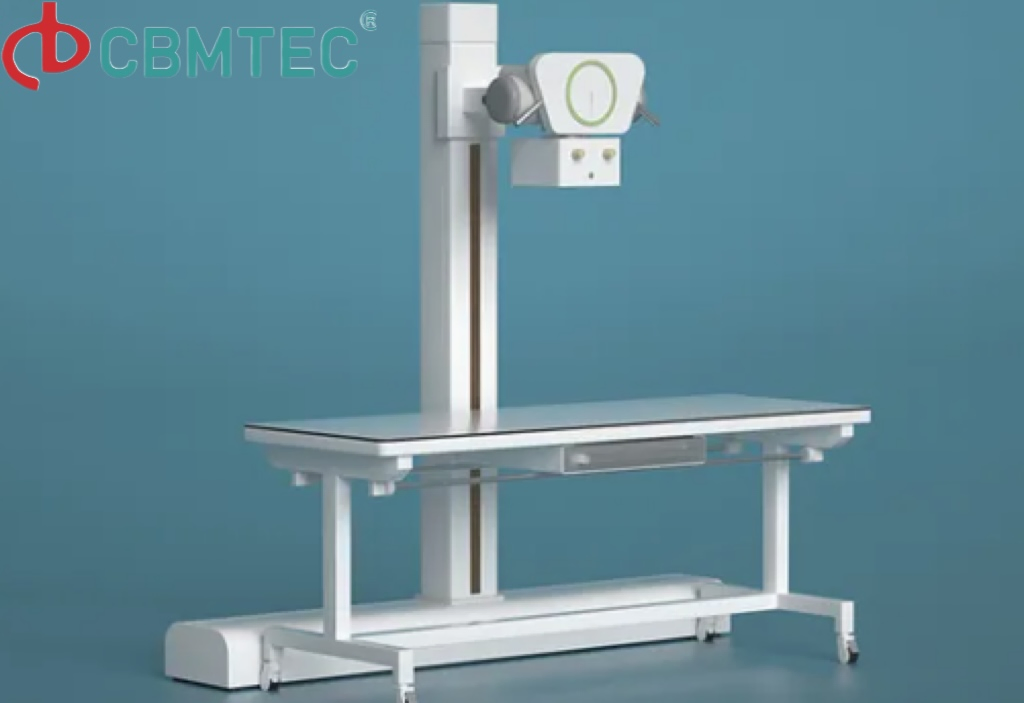

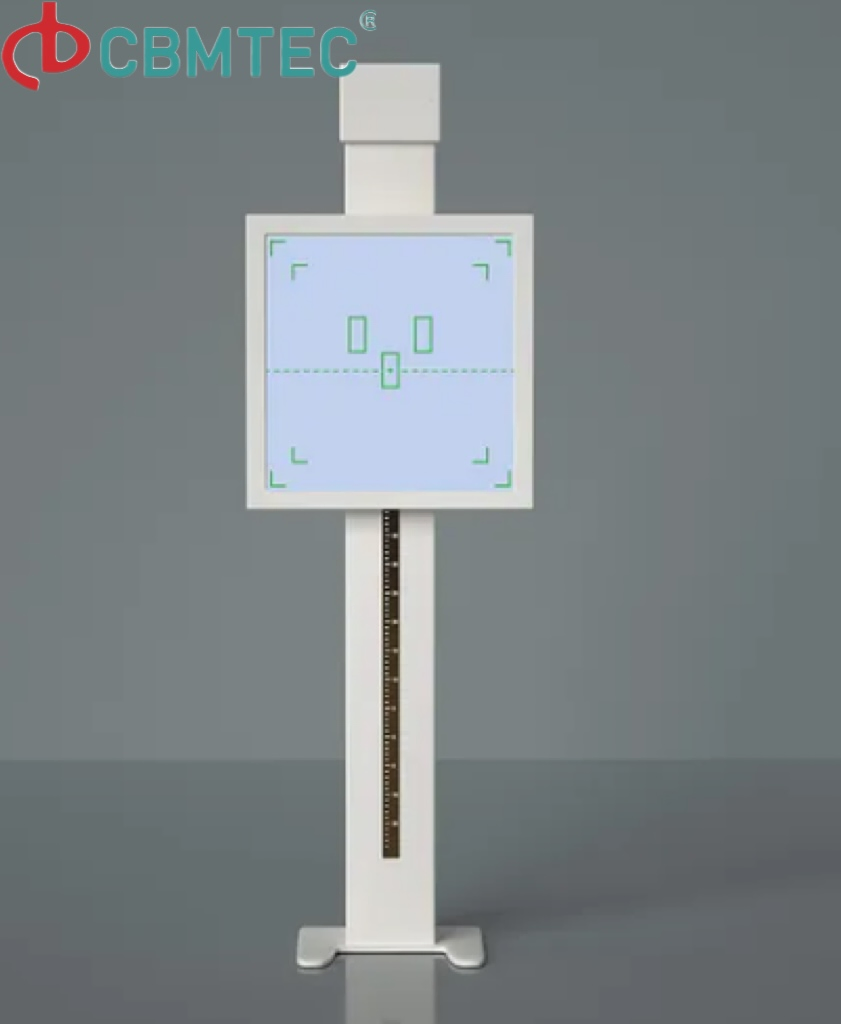

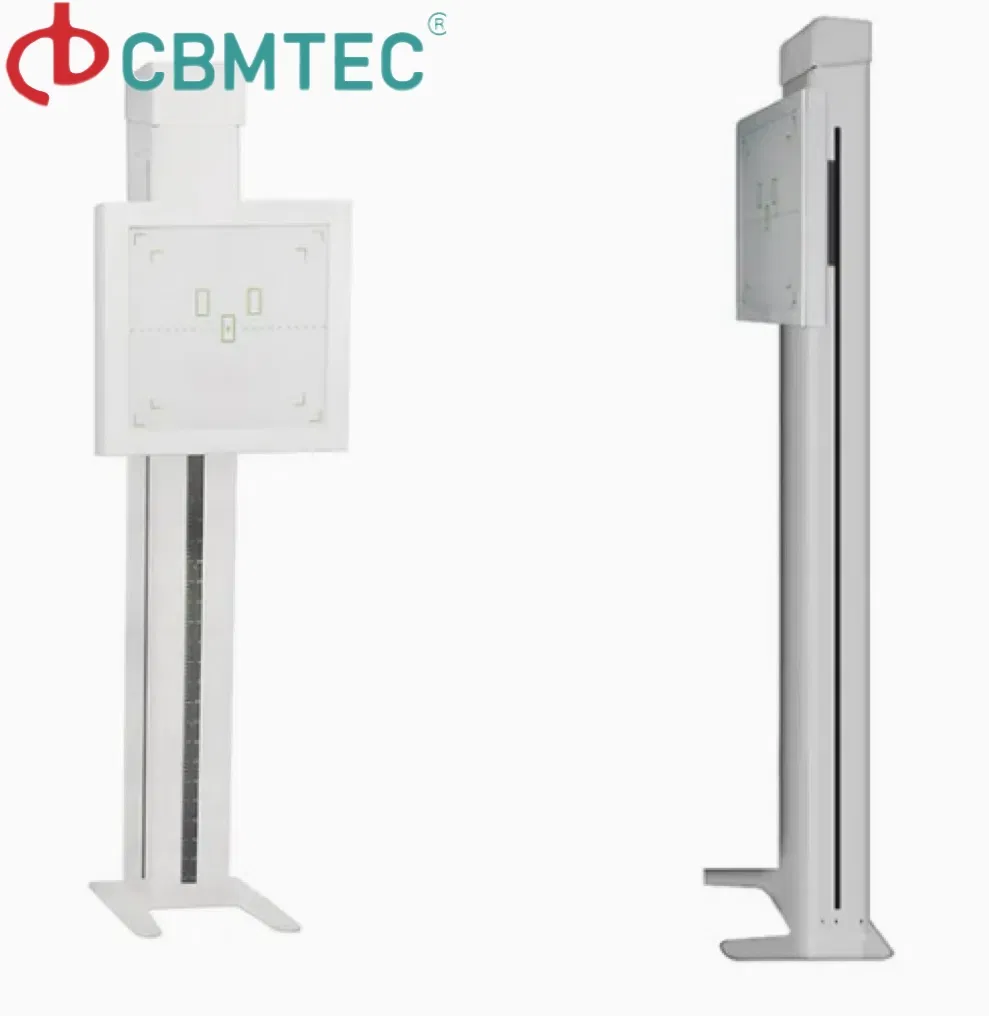

Advanced Veterinary Dental X-ray Imaging System with Wall-Mounted Control
Advanced Veterinary Dental X-ray Imaging System with Wall-Mounted Control
Advanced Veterinary Dental X-ray Imaging System with Wall-Mounted Control
Advanced Veterinary Dental X-ray Imaging System with Wall-Mounted Control
Advanced Veterinary Dental X-ray Imaging System with Wall-Mounted Control
1 / 5
Advanced Veterinary Dental X-ray Imaging System with Wall-Mounted Control
Advanced Veterinary Dental X-ray Imaging System with Wall-Mounted Control
Advanced Veterinary Dental X-ray Imaging System with Wall-Mounted Control
Advanced Veterinary Dental X-ray Imaging System with Wall-Mounted Control
Advanced Veterinary Dental X-ray Imaging System with Wall-Mounted Control

Advanced Veterinary Dental X-ray Imaging System with Wall-Mounted Control

Customization: Available
Condition: New
Certification: CE
Send Inquiry

Product Description

📋 Basic Information
Model NO.
Standard
Application
Adult
Nature
Specialized Equipment
Material
Metal
Focal Point
0.6 mm / 1.2 mm
Target Angle
12
Anode Heat Capacity
300 Khu
Kv
150 Kv
Filter out
2.4 mm Al
Fluoroscopy
40 ~ 150 Kv
Power Supply
380 VAC
Power
65 Kw
Photography
10 ~ 1000 Ma
Transport Package
Wooden Box
Origin
China

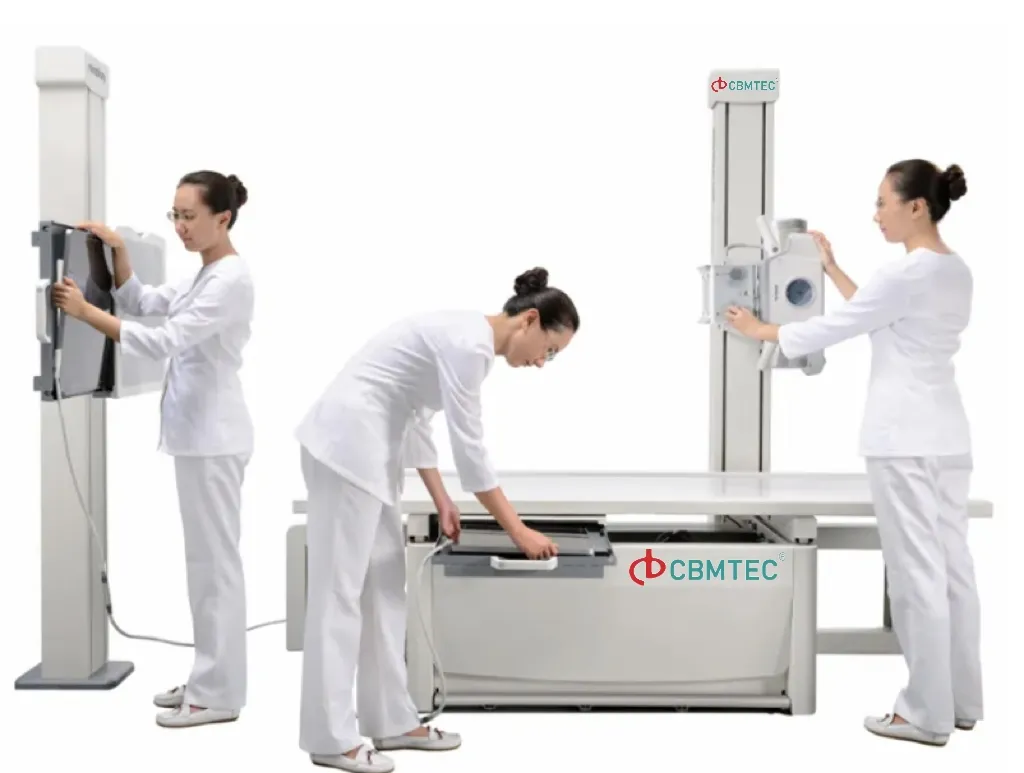

Digital X-ray Imaging System

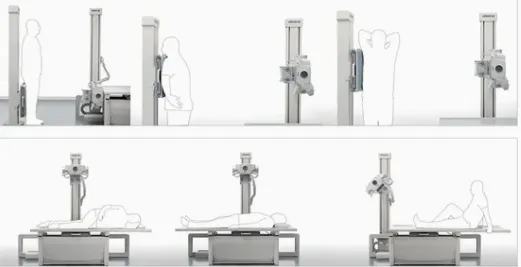

X-ray System View

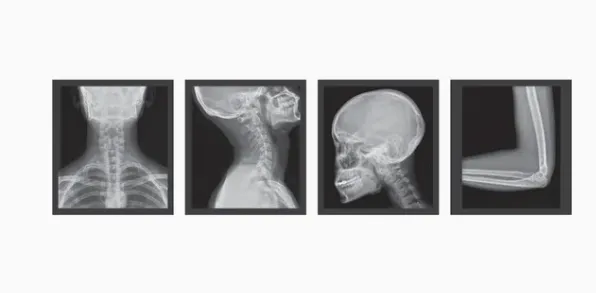

X-ray Control Unit
💡 Product Description
Hospital Imaging DR X-Ray Machine System Medical 50kw High Frequency Digital X-ray Equipment for Radiography

This high-frequency digital radiography system is designed for professional medical imaging, featuring advanced components for high-precision diagnostic results.

⚙️ Key Features
High Frequency High Voltage X-ray Generator
X-ray Tube Assembly
Advanced Collimator
Digital Detector Rayence 1717SGC/SCC
Durable DR Machine Frame
Radiography Table
Computer and LCD DCSM1F/ML2002
Synchronous Control Box
High Voltage Cable 75kV (8m)
Grid (Brand:JPI) 100cm and 180cm
📊 Technical Specifications

Generator Specification:

PowerAC380V ± 38V
Radiography Tube Voltage40kV ~ 150kV
Radiography Tube Current10mA ~ 630mA
Time Range2ms ~ 6300ms
Allowed Internal Resistance380V: 0.5Ω
Working Frequency≥30kHz

Tube Specification:

Focus0.6mm/1.2mm
Rotating Speed2800rpm
Peek Tube Voltage150kV
Small Focus Power20kW
Large Focus Power50kW

Flat Panel Detector Specification:

Scanning Area17 × 17 inches
Spatial Resolution≥ 3.9lp/mm
Total Pixel Matrix3328 (h) × 3328 (v)
Pixel Pitch127 μm
Image Preview Time≤ 2s
🖼️ Product Show

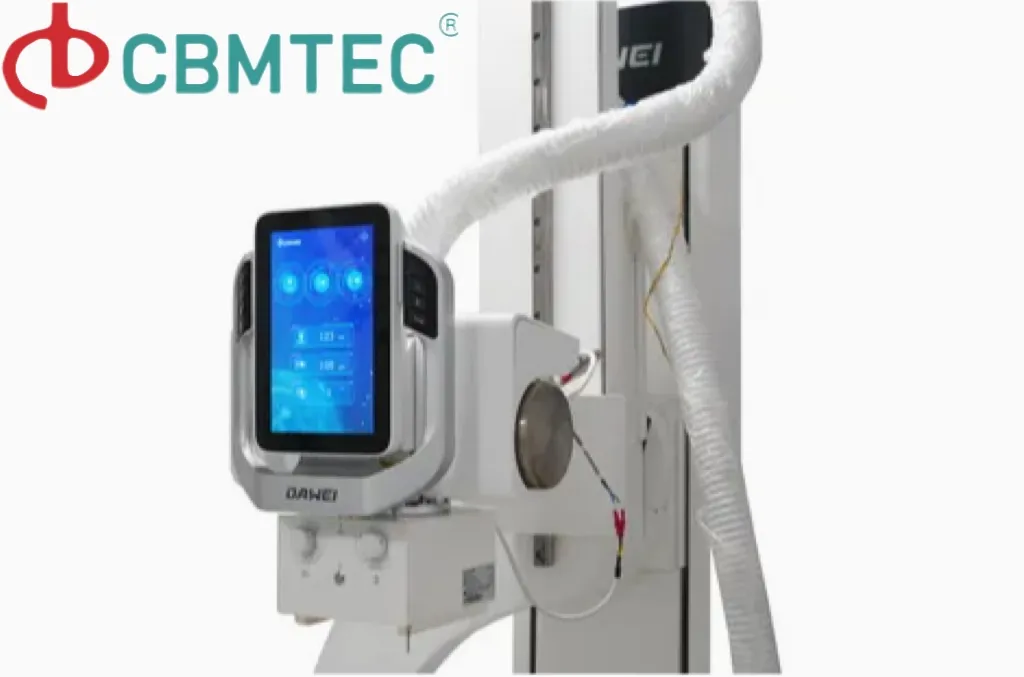

X-ray Product Show 1
X-ray Product Show 2

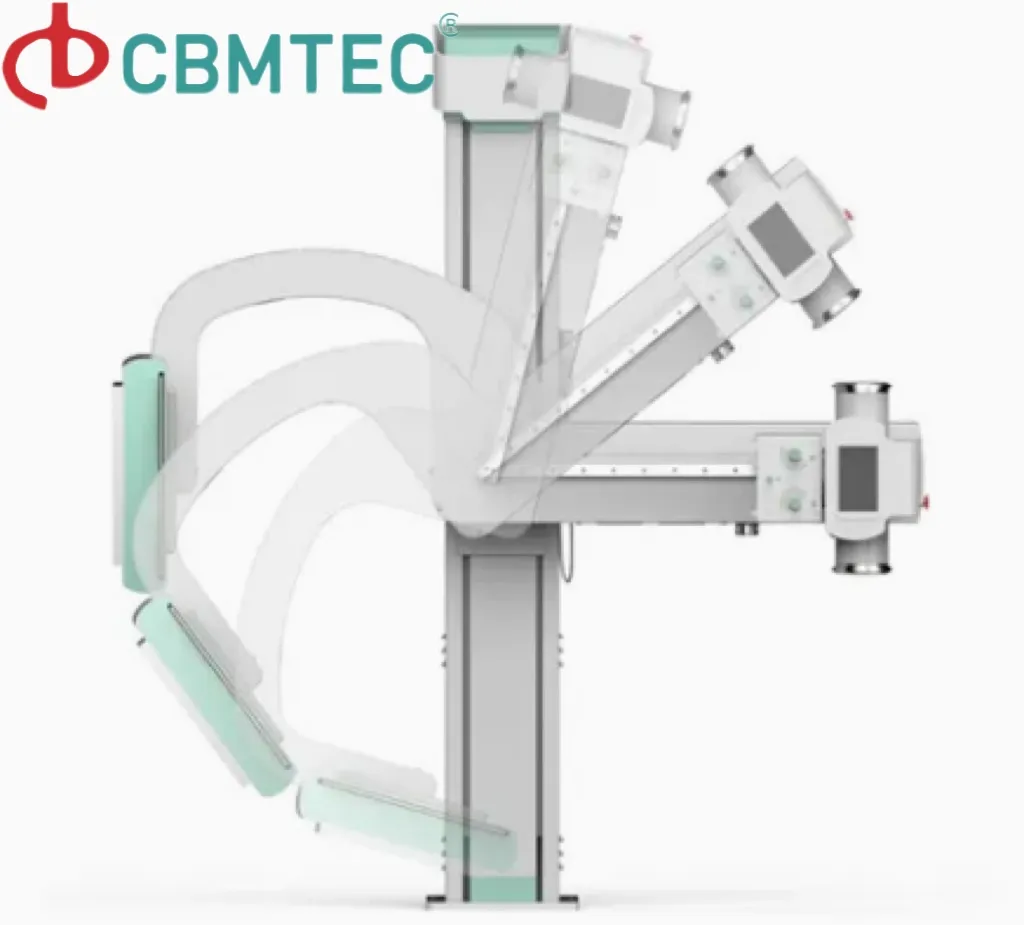

X-ray Product Show 3

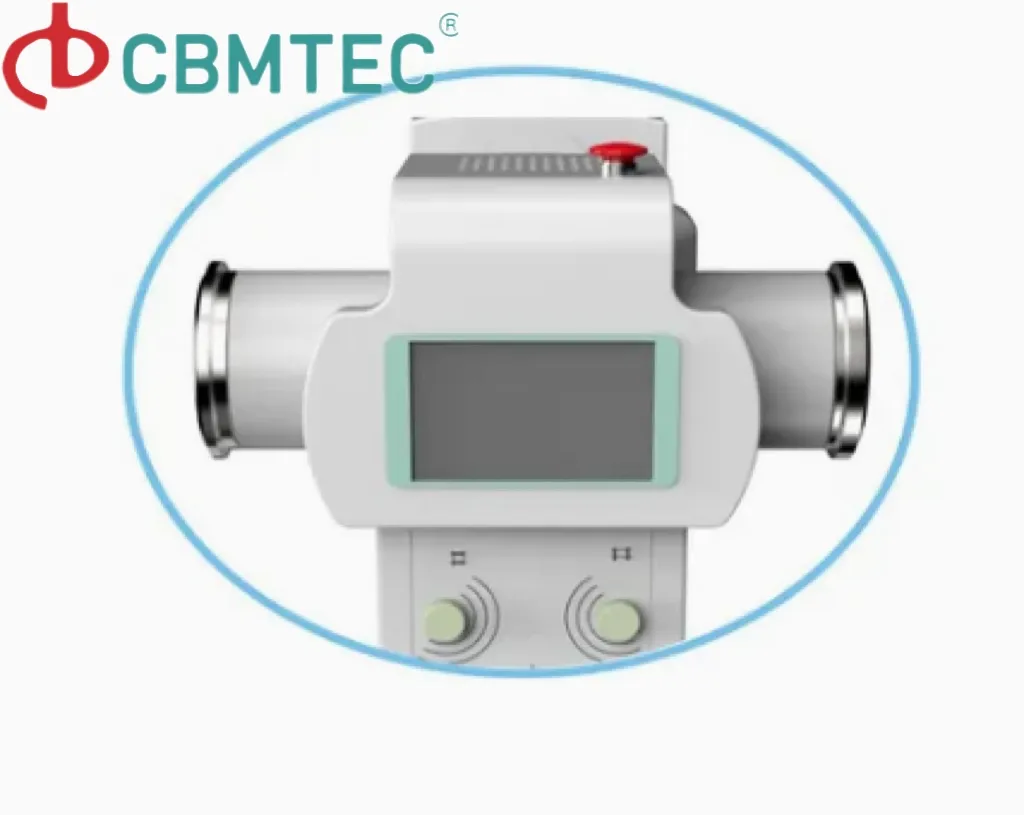

X-ray Product Show 4

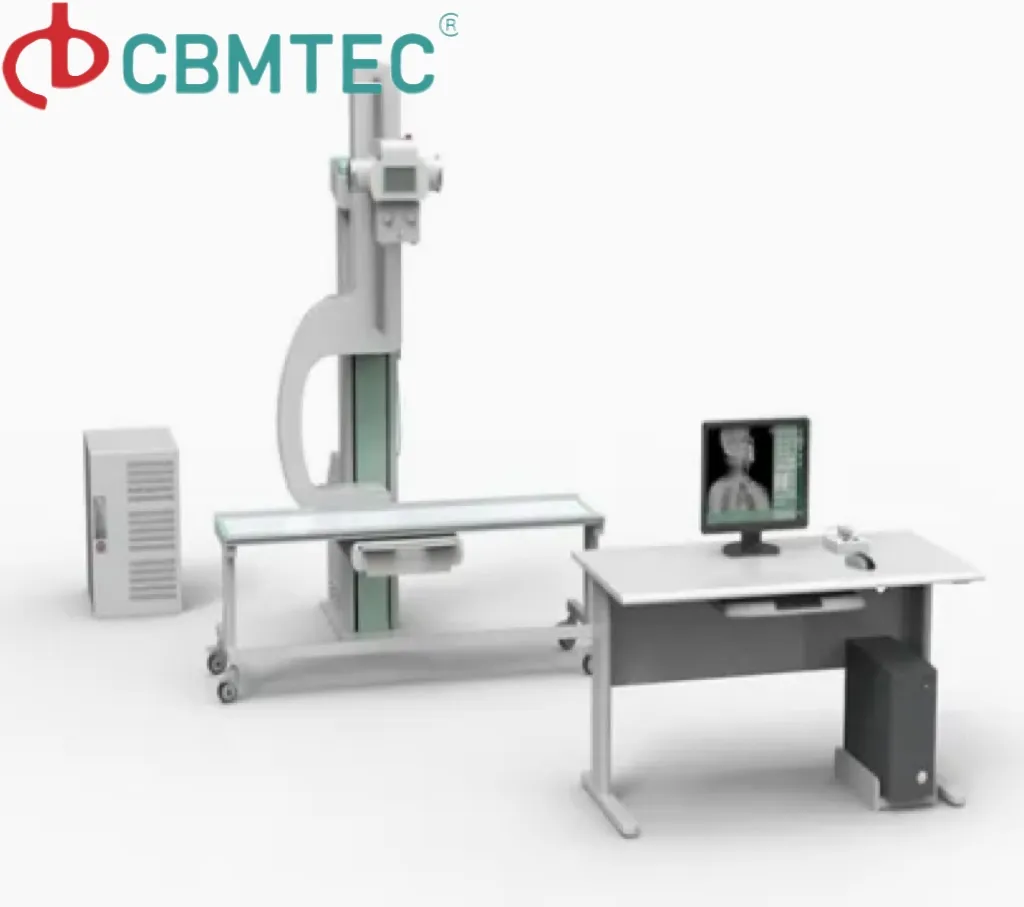

X-ray Product Show 5

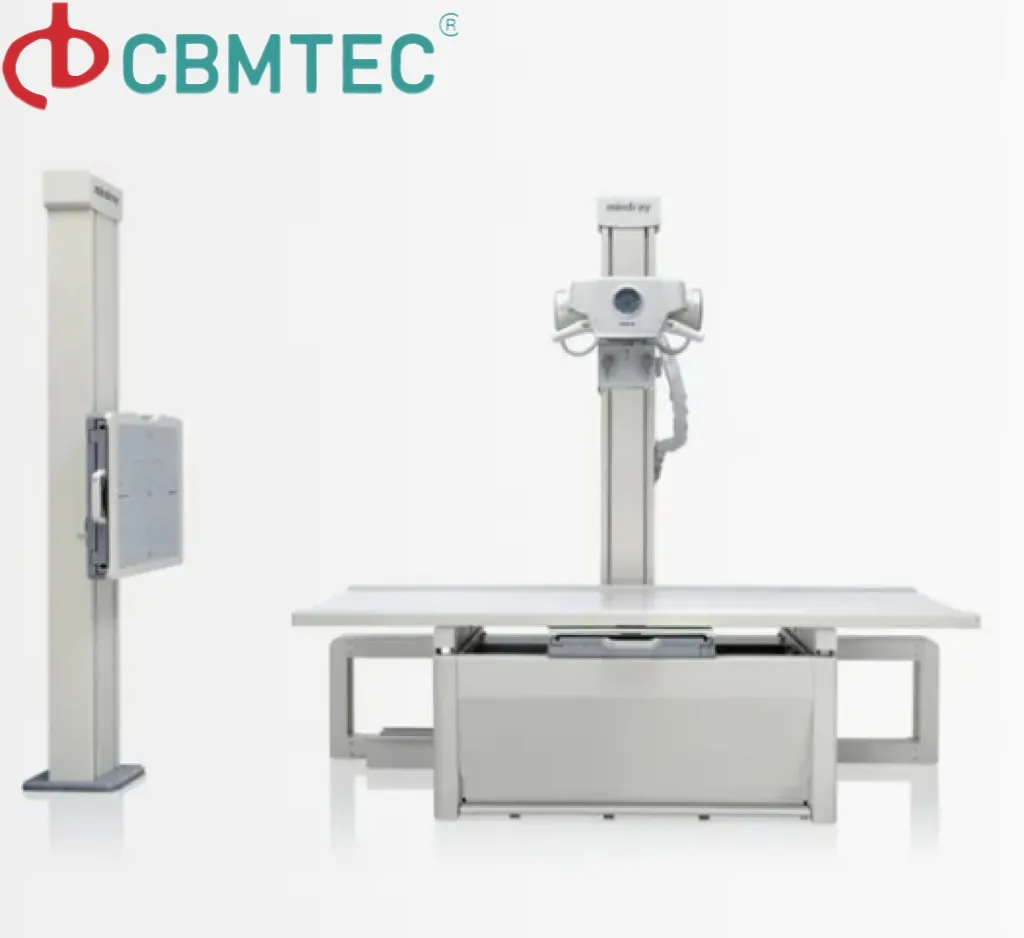

X-ray Product Show 6
📦 Packing & Logistics
Packing Details
Shipping Info 1

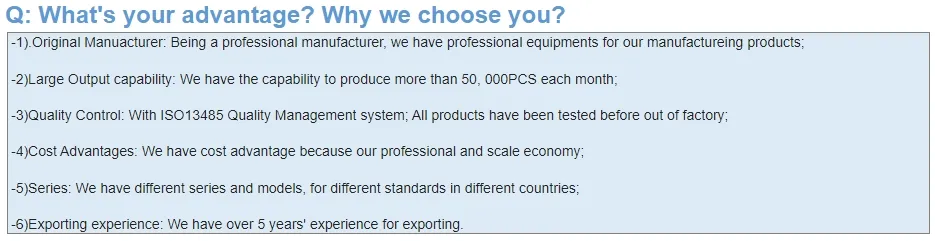

Shipping Info 2
🏛️ Exhibition
Equipment Exhibition
Frequently Asked Questions
Q1: What is the maximum voltage capacity of this DR X-ray machine?
A: The radiography tube voltage ranges from 40kV to 150kV, providing high-frequency penetration for various medical imaging needs.
Q2: What is the size of the digital flat panel detector?
A: The detector provides a large scanning area of 17 × 17 inches, suitable for full-body imaging applications.
Q3: How long does it take to preview an image after exposure?
A: The system is highly efficient, with an image preview time of no more than 2 seconds.
Q4: What are the focal point options for the X-ray tube?
A: The equipment features dual focal points of 0.6mm and 1.2mm to balance between high resolution and high power requirements.
Q5: What kind of power supply is required for installation?
A: The system requires a standard industrial power supply of AC 380V ± 38V at 50Hz/60Hz.
Q6: How is the equipment protected during international shipping?
A: The machine is securely packed in a reinforced wooden box to ensure safety and prevent damage during transport.
