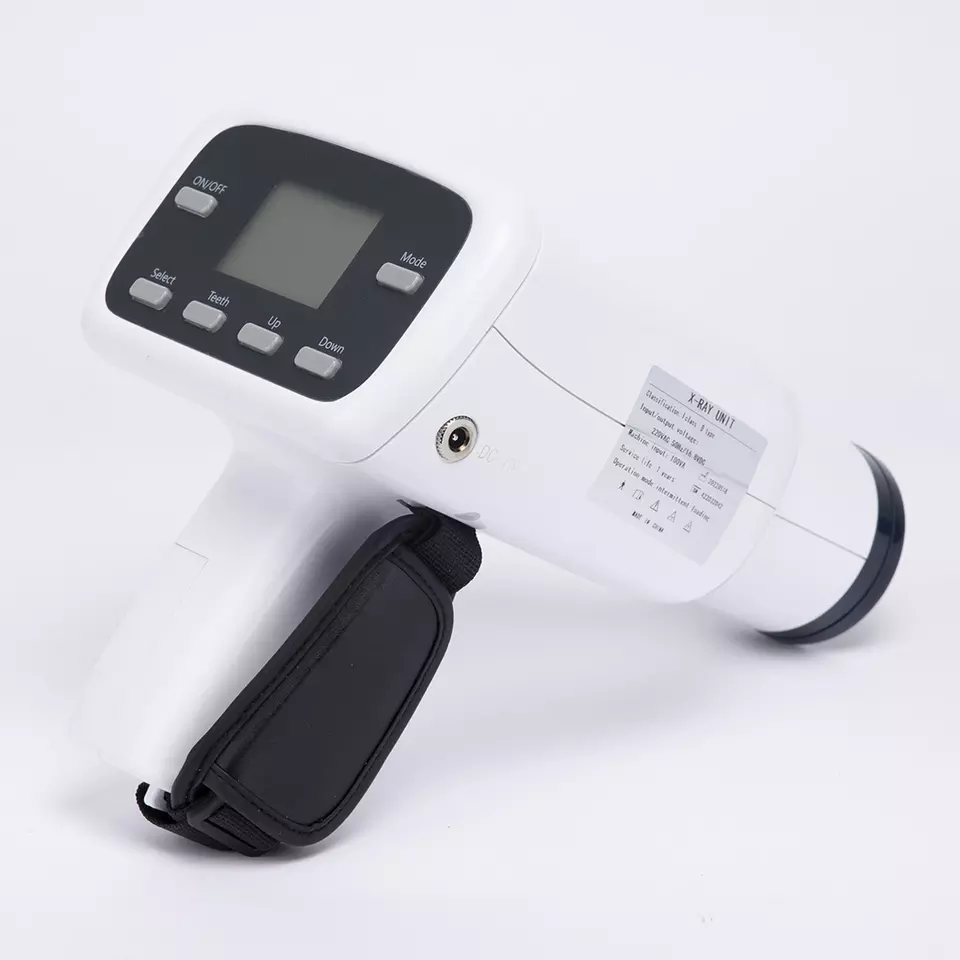

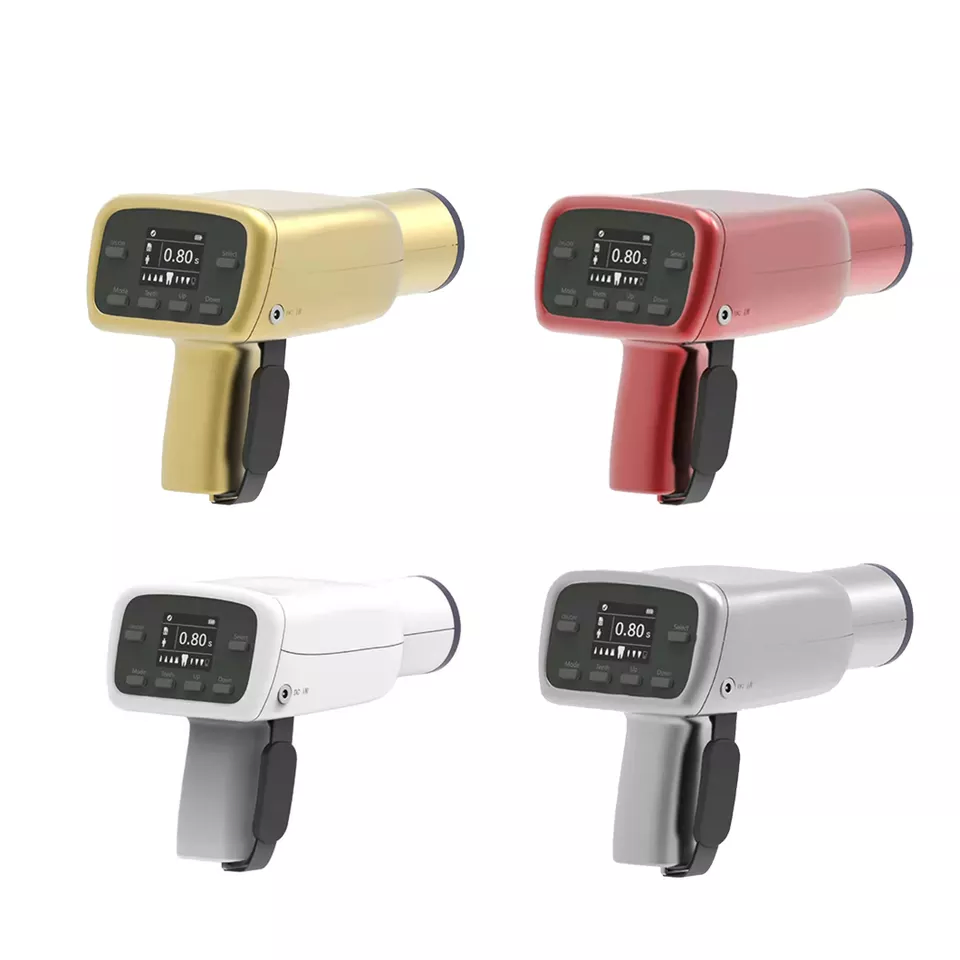

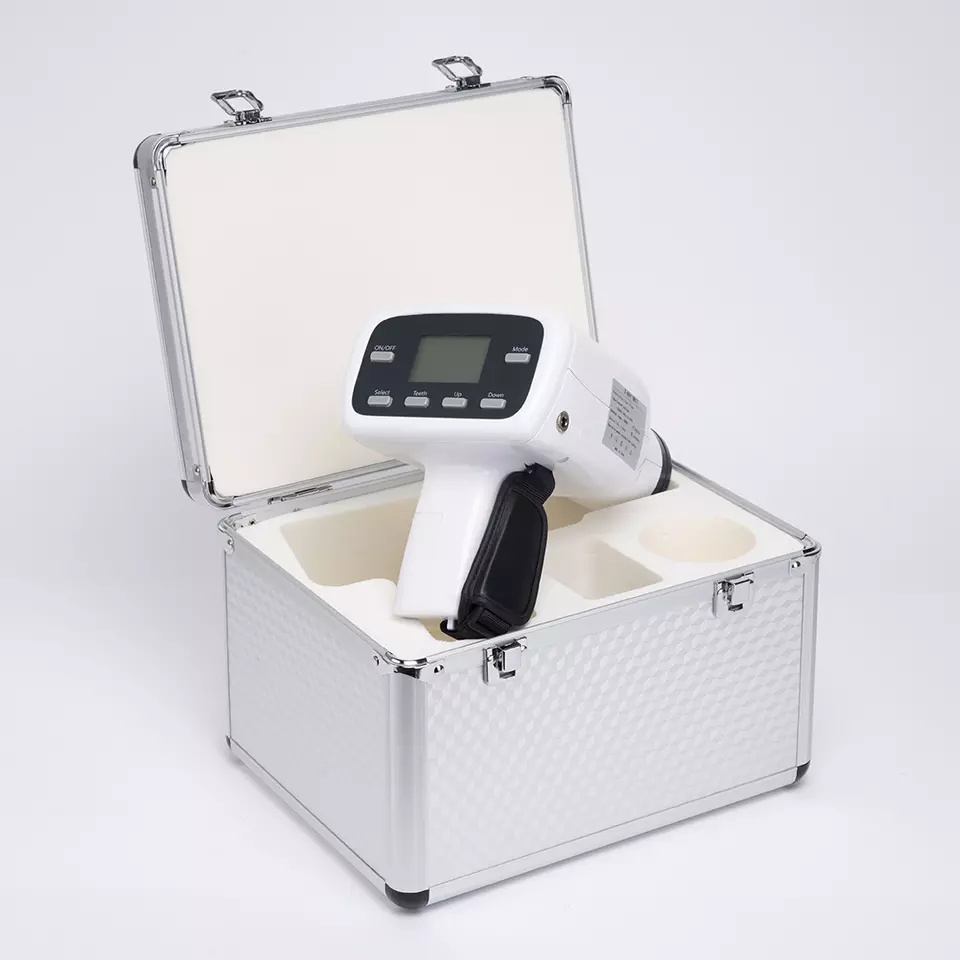

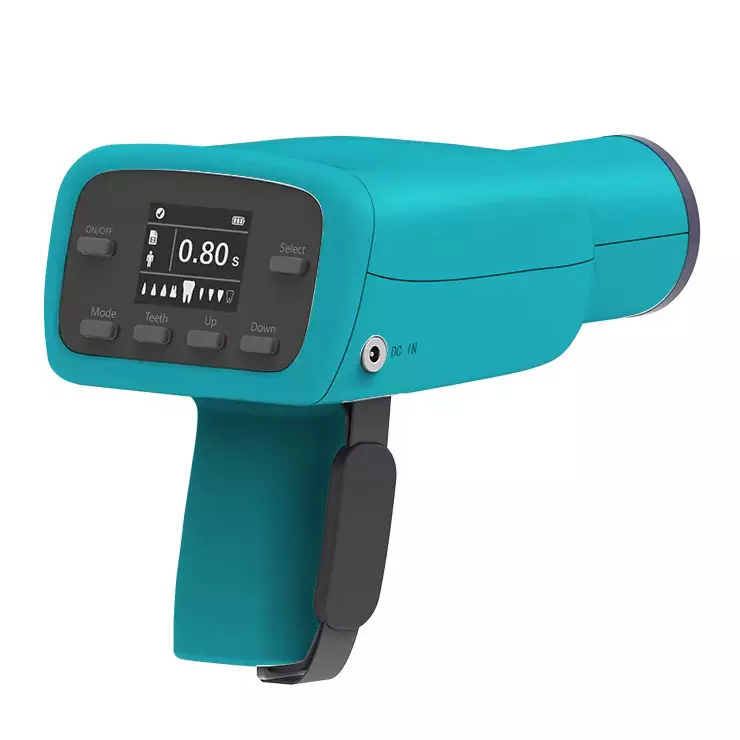

Am-8p Digital Dental Xray Machine Portable Portable Vet Veterinary Dental Unit
Am-8p Digital Dental Xray Machine Portable Portable Vet Veterinary Dental Unit
Am-8p Digital Dental Xray Machine Portable Portable Vet Veterinary Dental Unit
Am-8p Digital Dental Xray Machine Portable Portable Vet Veterinary Dental Unit
Am-8p Digital Dental Xray Machine Portable Portable Vet Veterinary Dental Unit
1 / 5
Am-8p Digital Dental Xray Machine Portable Portable Vet Veterinary Dental Unit
Am-8p Digital Dental Xray Machine Portable Portable Vet Veterinary Dental Unit
Am-8p Digital Dental Xray Machine Portable Portable Vet Veterinary Dental Unit
Am-8p Digital Dental Xray Machine Portable Portable Vet Veterinary Dental Unit
Am-8p Digital Dental Xray Machine Portable Portable Vet Veterinary Dental Unit

Am-8p Digital Dental Xray Machine Portable Portable Vet Veterinary Dental Unit

Customization: Available
Applicable Departments: Oral Rehabilitation Department
Certification: ISO, CE
Send Inquiry

Product Description

◈ Basic Information
Model NO.
AM-8P
Type
Dental Unit
Material
Acrylic
Usage
Dentist Working Partner
Warranty
1 Year
Power Source
Machinery
Quality Certification
CE
Power Supply
220V+10% 50Hz
Name
Portable X Ray Unit
Instrument Classification
Class I
Frequency
30kHz
Application
Dental Area
Power
60W
Specification
CE, ISO
◈ Product Display

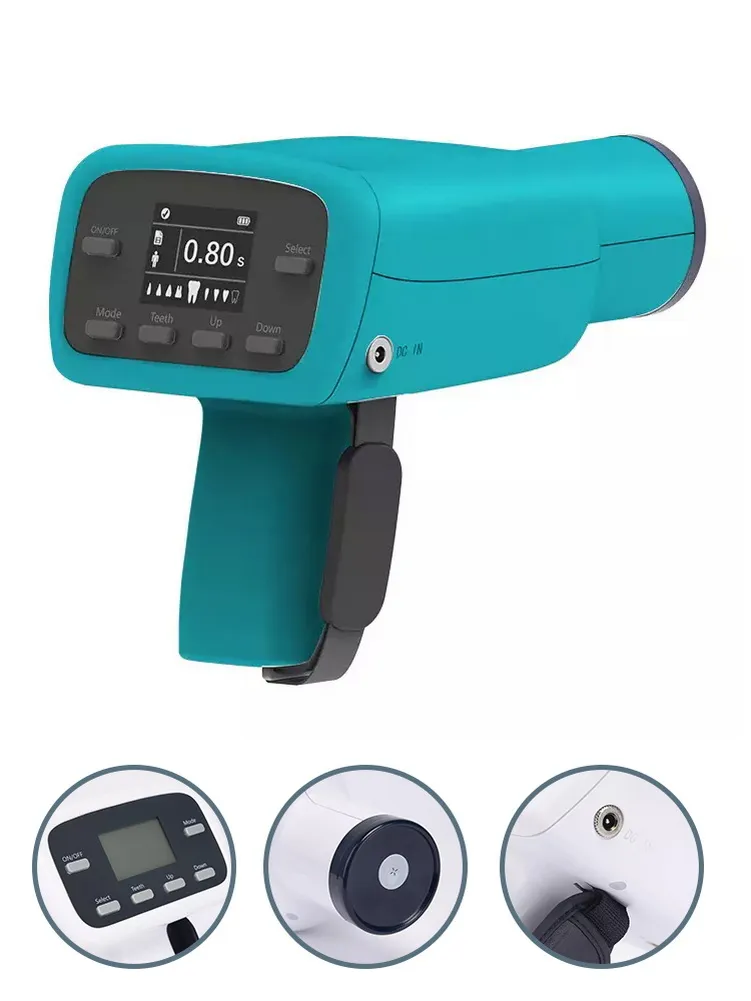

Portable Dental Xray Unit Display
◈ Product Specifications
NamePortable X Ray Unit
Model NumberAM-8P
Power SourceMachinery
Warranty1 Year
MaterialAcrylic
Quality CertificationCE
ApplicationDental Area
Power60W
Frequency30KHz
Radiation leakage<20μgy/h
Tube voltage65KV
Tube current0.2MA
Time of exposure0.1-1.8s continuously adjustable
Focus-skin distance>20cm
OutputDC24V 8000mAh
Weight2.5kg
◈ Key Features
✔ 1. The tube voltage frequency is 30 KHz with a tube current of 0.2 MA. Radiation scope at a 24-degree angle within 1.2 meters.
✔ 2. Equipped with Toshiba 0.3mm x 0.3mm micro-focus tube.
✔ 3. No protective operation room is needed for installation.
✔ 4. Flexible adjustment of position and angle for the handpiece.
✔ 5. Compact volume and lightweight (2.5kg) for high portability.
✔ 6. Adjustable exposure time with high-focus imaging and high contrast.
✔ 7. Superior radiation-shield protection in the tube head ensures zero radial index and safety.
✔ 8. Compatible with sensors for non-film inspection and storage.
◈ Detail Images

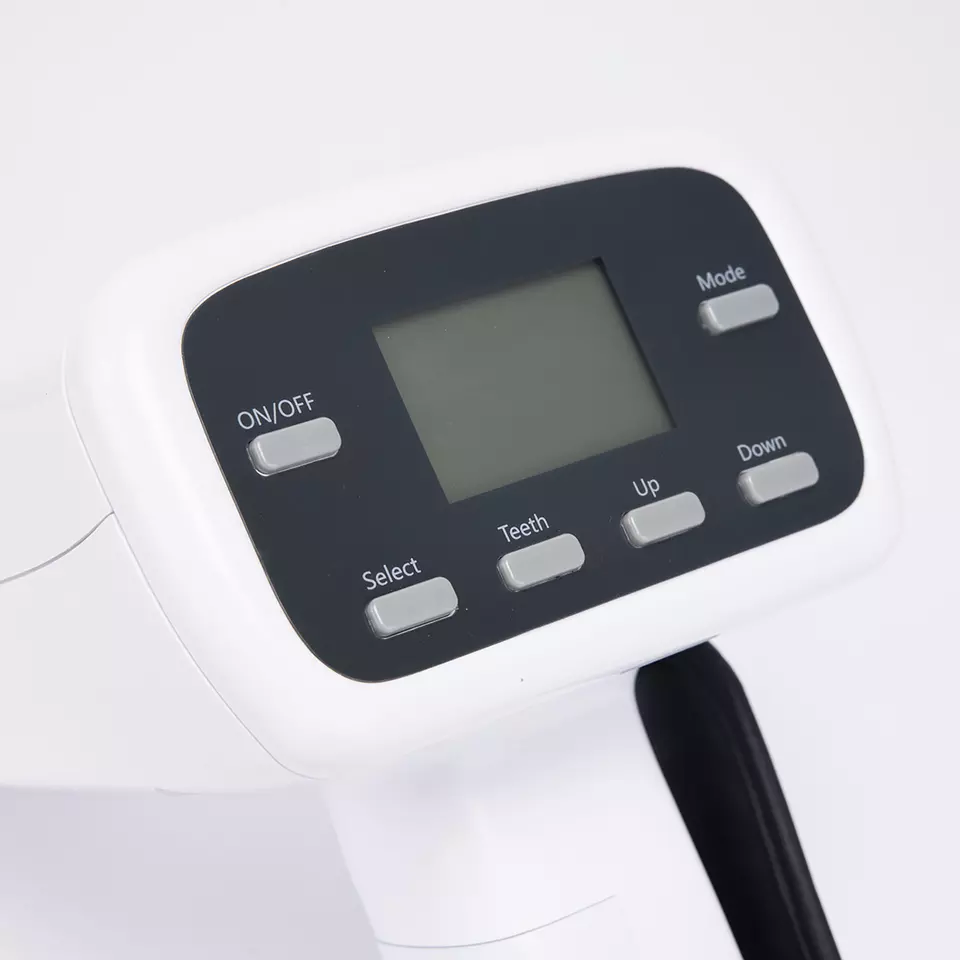

Digital Dental Xray Machine Detail

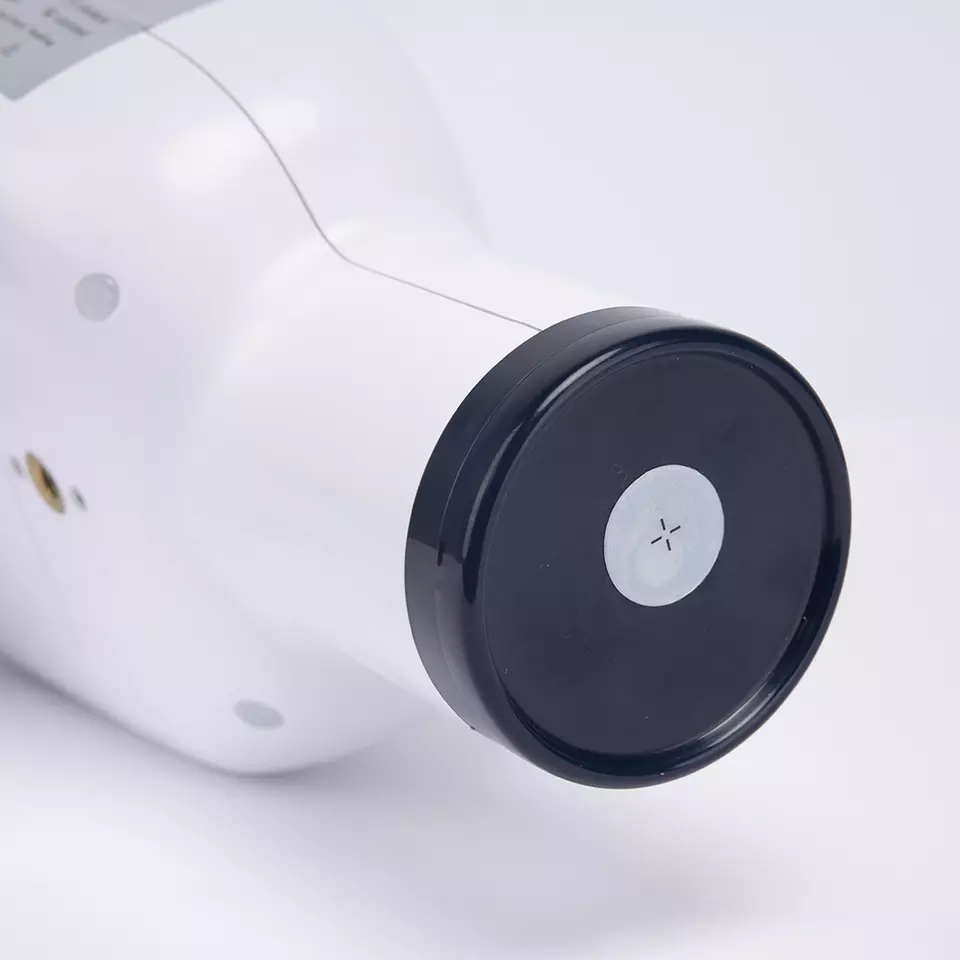

Dental Unit Parts Dental Xray Operation
◈ Application Scope

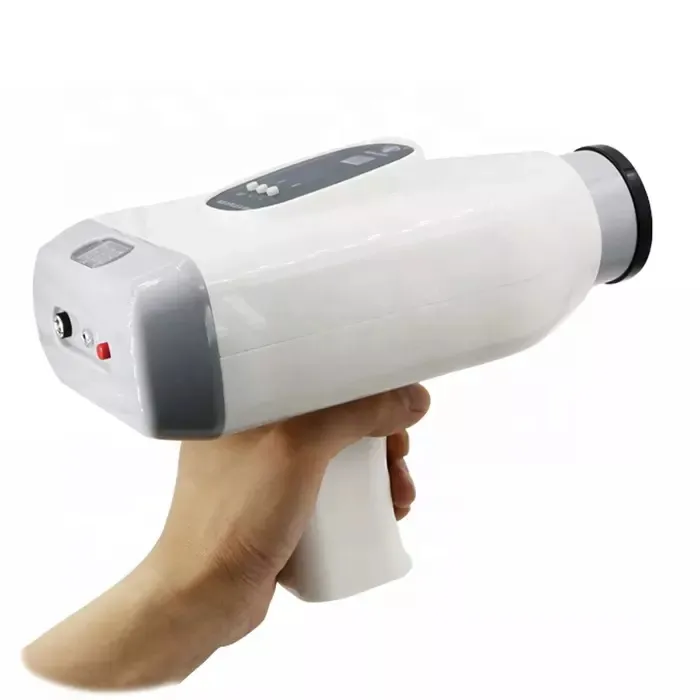

Dental Unit Application
◈ Professional Standards & Production
Quality Control 1 Quality Control 2 Quality Control 3
Production Line 1 Production Line 2
◈ Frequently Asked Questions
Q1: Is this portable X-ray unit safe for the operator?
A: Yes, the tube head is equipped with excellent radiation-shield protection. Tests have shown that the radial index is zero, ensuring guaranteed safety during operation.
Q2: Do I need a lead-lined room for installation?
A: No, one of the primary advantages of this unit is that no protective operation room is required when installing the complete machine.
Q3: What type of X-ray tube does the AM-8P use?
A: The unit utilizes a high-quality Toshiba 0.3mm x 0.3mm micro-focus tube for high contrast and precise imaging.
Q4: How portable is the unit?
A: The unit is designed for convenience; it is compact in volume and weighs only 2.5kg, making it very easy to carry between different working areas.
Q5: Can this machine be used with digital sensors?
A: Yes, non-film inspection and digital storage can be realized when used in conjunction with a compatible dental sensor.
Q6: What are the power requirements and tube specifications?
A: It operates on a 220V±10% 50Hz power supply, features a tube voltage of 65KV, and a tube current of 0.2MA with a 30KHz frequency.
