01Assemble the table-board onto the base and secure with the pin.
02When using the tray, ensure the screw is firmly tightened.
03To raise: Step on the pedal gently. To lower: Press pedal to the lowest point and apply light pressure to the board.
04Adjust the tilting angle by circumgyrating the manual handwheel.
05Lock the 4 supporting screws to the ground for stability; unlock for caster mobility.
06Fix the slide bar in place before fastening the animal. Use side pipes for pothooks if required.
Frequently Asked Questions

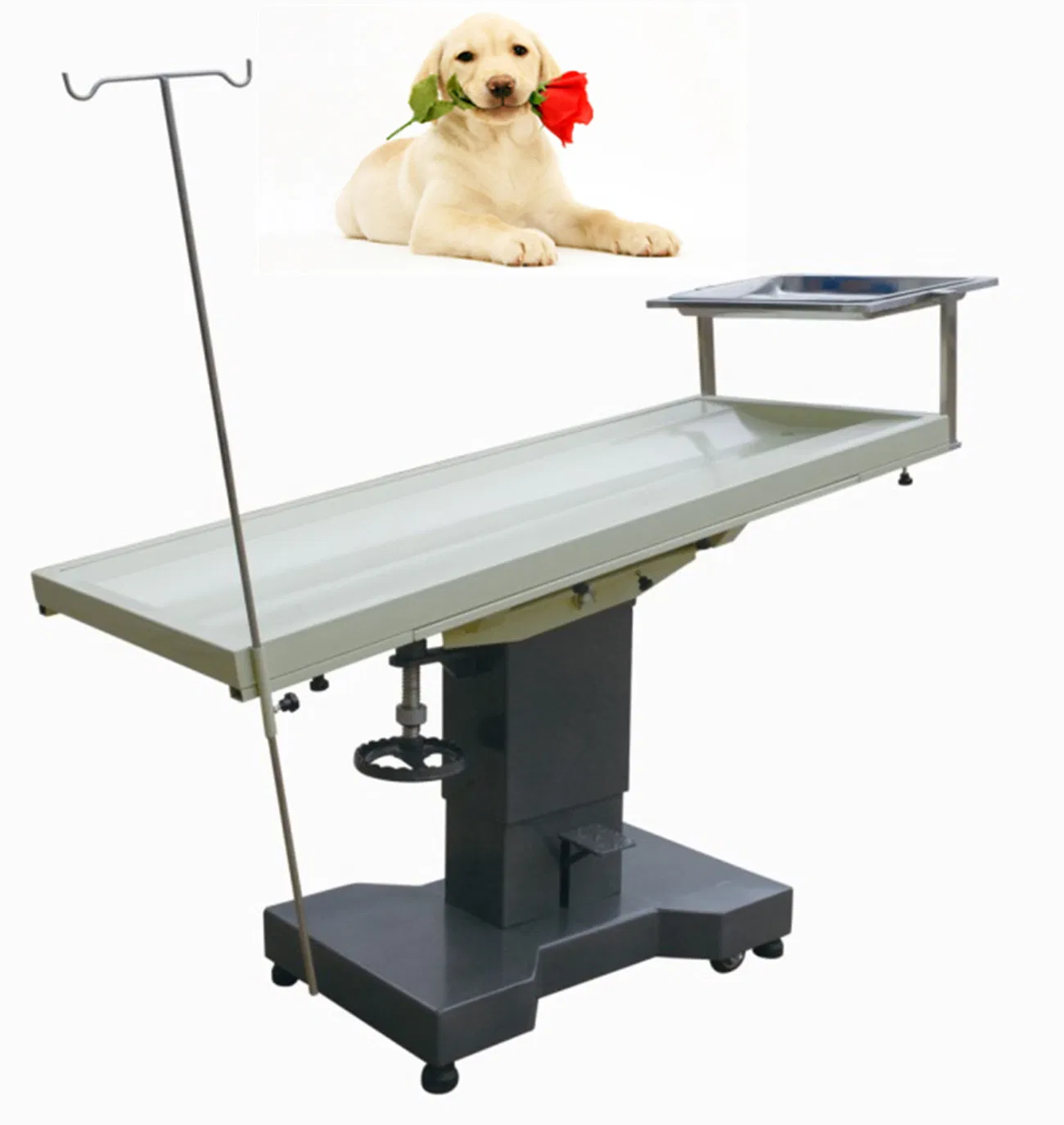

What is the height adjustment range of the DWV table?
The table height can be adjusted from 820mm to 930mm using a hydraulic foot pedal.
Can the table top be tilted for specific surgeries?
Yes, the table features a V-top design that adjusts from 0 to 45°, and it can tilt ±15° to the left or right.
What material is used for the table construction?
The standard model uses A3 armor plate materials. A stainless steel table top and filter are available as optional upgrades.
How long is the warranty period?
The product comes with a 12-month (one year) warranty covering quality-related issues.
What is the maintenance requirement for the hydraulic system?
It is recommended to lubricate the copper bars in the hydraulic-lift pedal every half month to ensure smooth operation.
Is the table mobile or fixed?
The table is equipped with casters for flexibility. It also includes 4 supporting screws that can be locked to the ground for stability during surgery.
