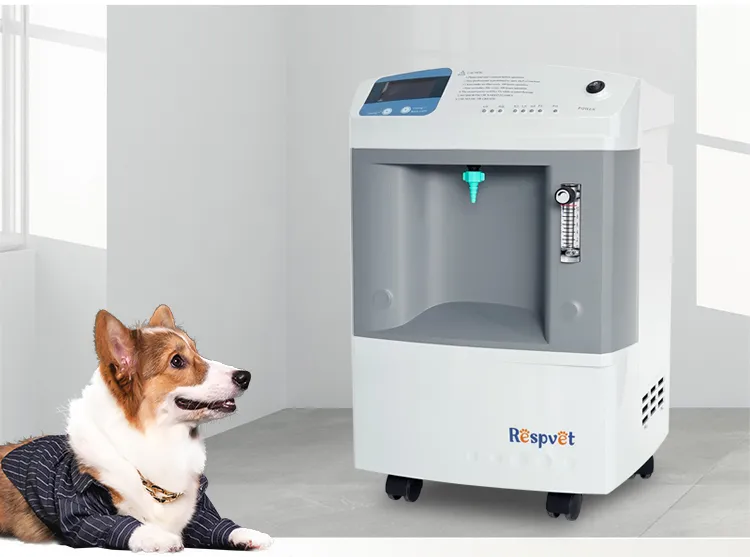

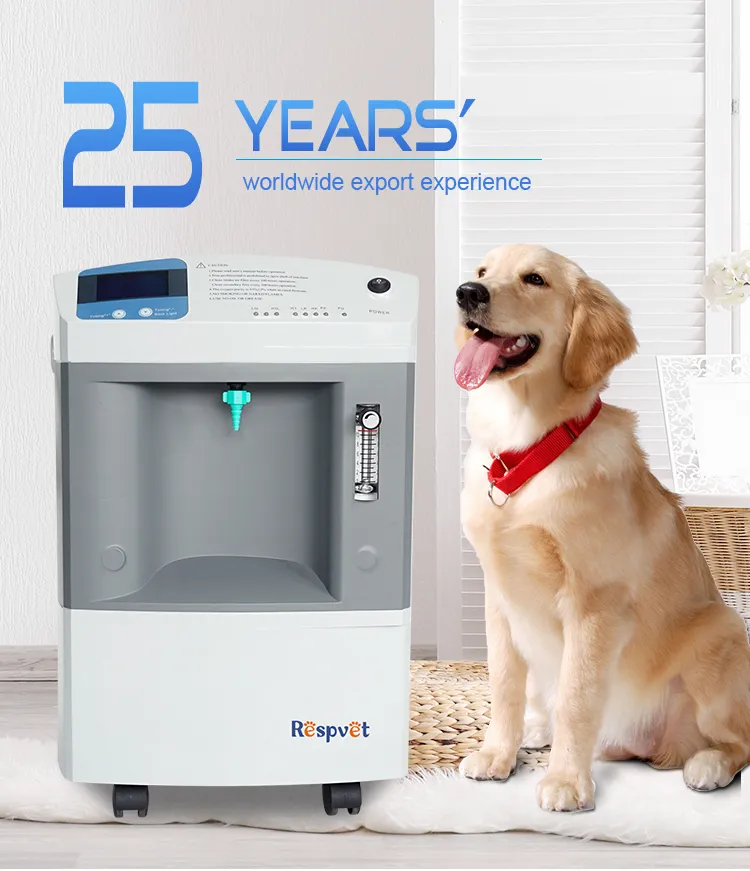

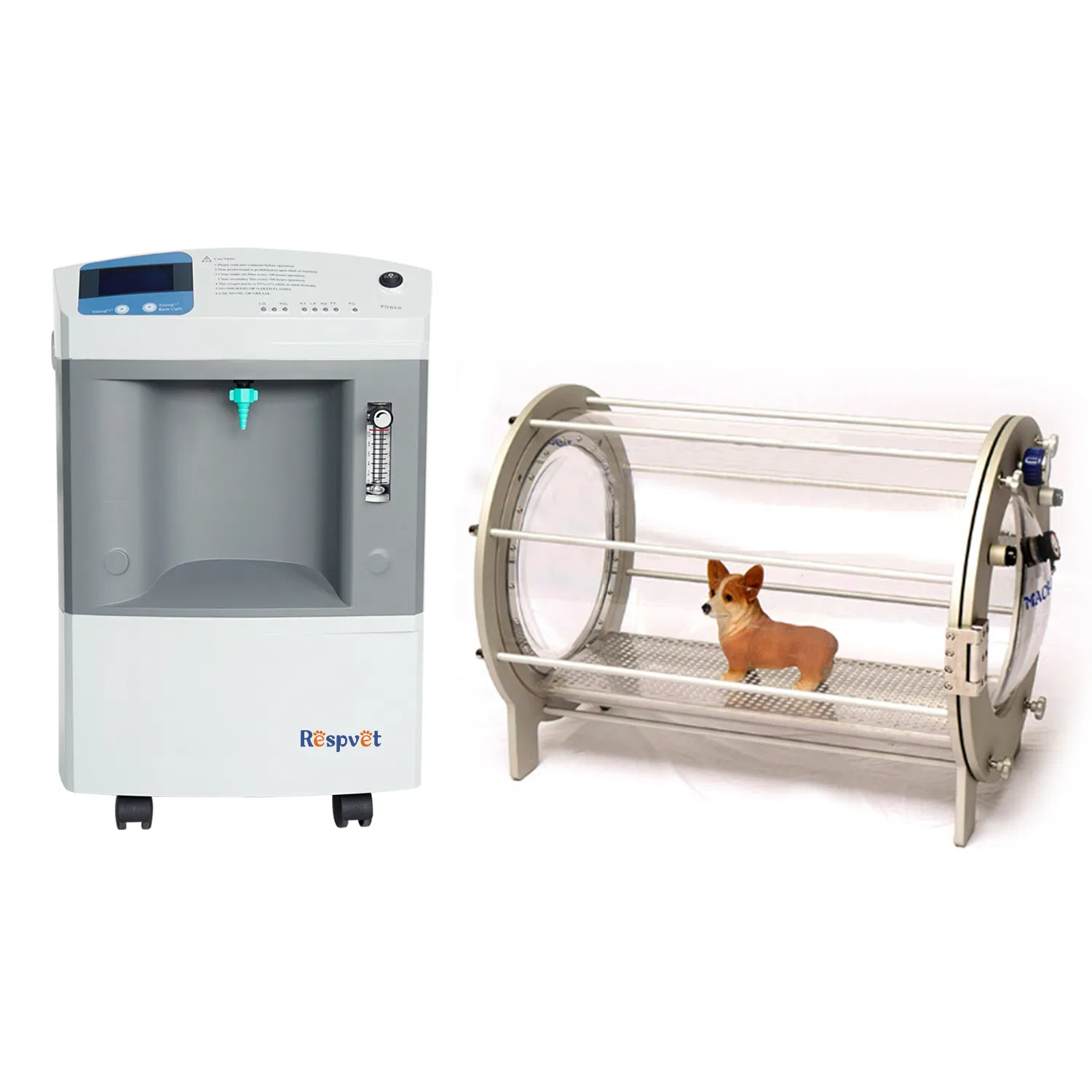

Longfian 93% High purity 10L animal medical veterinary oxygen concentrator connected to chamber

1 / 5

Longfian 93% High purity 10L animal medical veterinary oxygen concentrator connected to chamber

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Technical Specifications

Model NO.

JAY-10

Breathing Pattern

Auto-Control

Control Method

Electronic Control

Power

≤880W

Flow Rate

0.5-10L/Min

Sound Level

≤50dB

Net Weight

27kgs

Oxygen Purity

93%+-3%

Outlet Pressure

0.04-0.07Mpa

Voltage

110V/220V/230V

Warranty

15 Months

Certification

CE ISO13485

High Purity Veterinary Oxygen Solutions

In recent years, PSA oxygen concentrators have become more popular in veterinary anaesthesia and oxygen therapy, and they have almost become standard equipment in pet hospitals. The features of the oxygen concentrator including convenient to move, flowrate adjustable, high purity (93%+-3%) oxygen continuous supply, quiet oxygen inhalation of animals, nebulization therapy, ICU or oxygen source for oxygen chamber and anaesthesia.

Animal medical veterinary oxygen concentrator

PSA WORKING PRINCIPLE

An Oxygen Concentrator utilizes the basic principle of Pressure Swing Adsorption (PSA) to deliver 90-96% pure oxygen. Air contains 21% Oxygen, 78% Nitrogen, and 1% other trace gases. PSA process utilizes the ability of Zeolite Molecular Sieve to absorb nitrogen to separate the oxygen from air.

Detailed Parameters

Feature	Specification
Model	JAY-10
Flow Rate	0.5-10LPM
Purity	93% (±3%)
Outlet Pressure	0.04-0.07MPA
Sound Level	≤50db
Power Consumption	≤880W
LCD Display	Switch times, Operating pressure, Present Working Time, Accumulating Time, presetting Time from 10mins to 40hours

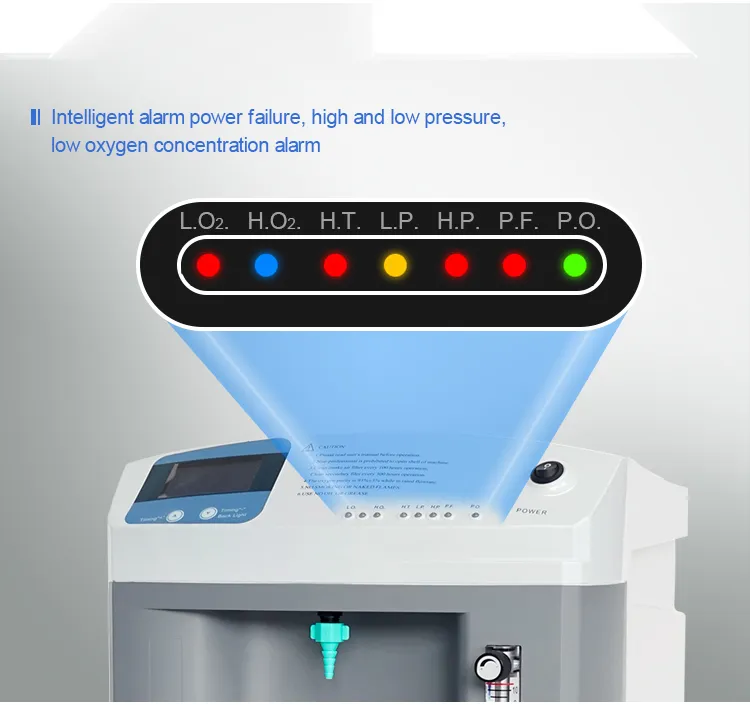

Alarm	Power failure alarm, High & Low pressure alarm, Low oxygen concentration alarm
Net Weight	27KG
Size	365x375x600mm

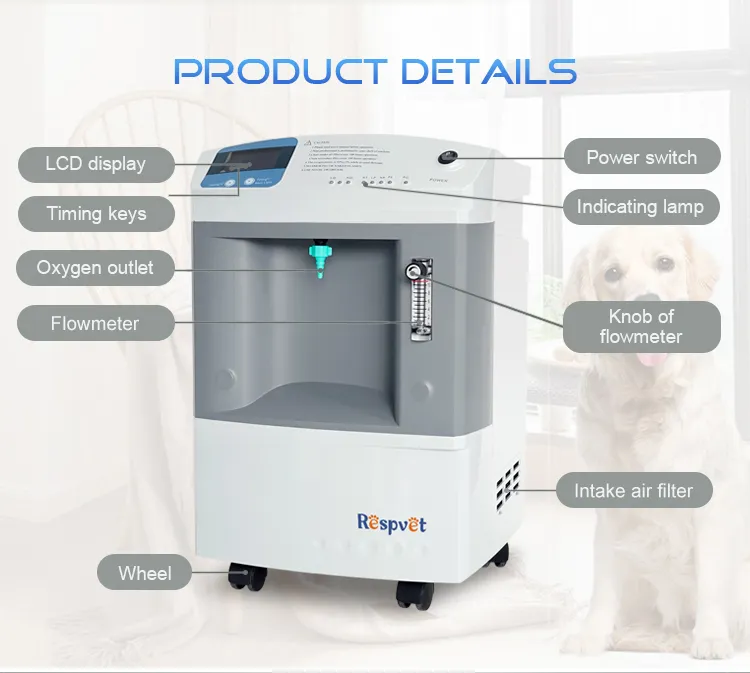

Key Product Features

Medical grade oxygen concentration above 90% for clinical safety.
Innovative cooling technology designed to ensure 24/7/365 continuous operation.
Four flexible castors with two brakes, making it easy to move or situate in any direction.
User-friendly operation functions with an easy-to-read LCD display for monitoring.

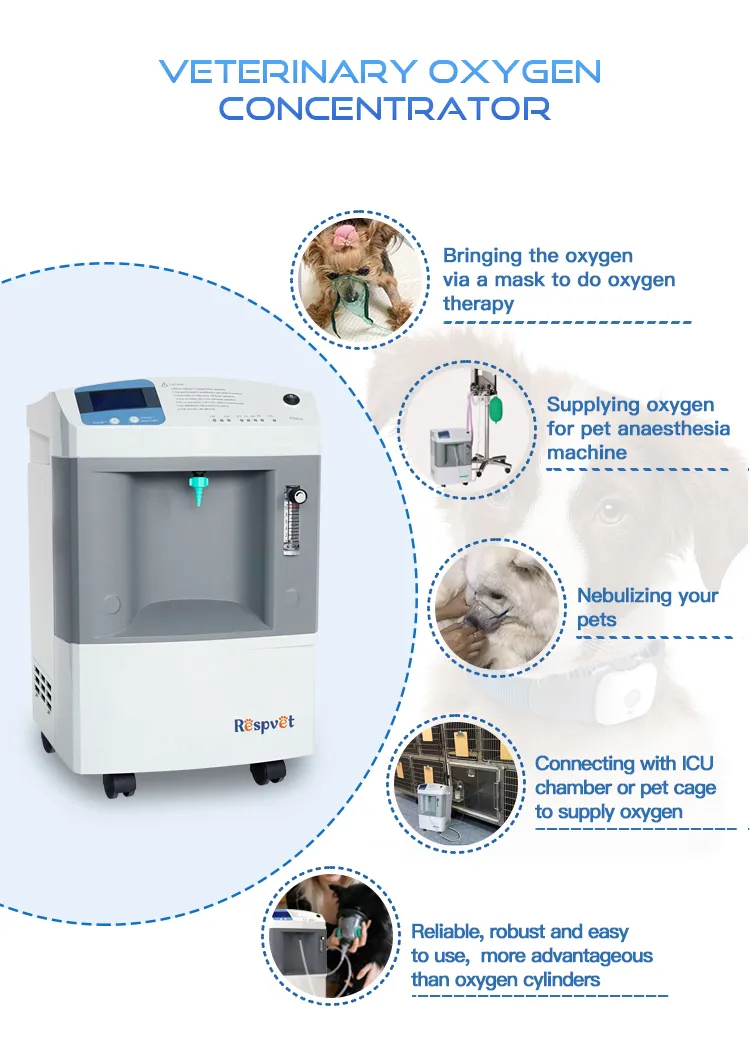

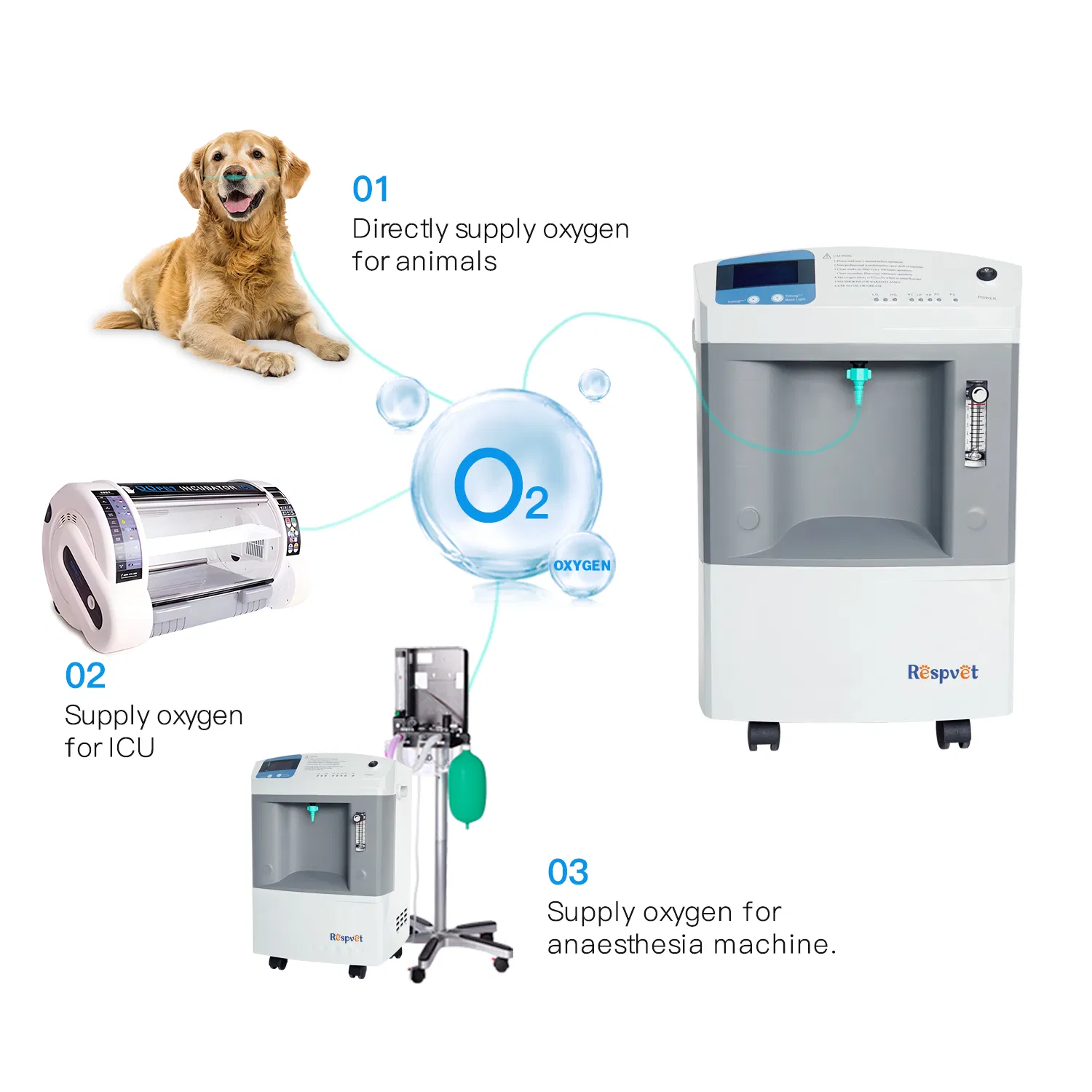

Versatile Clinical Applications

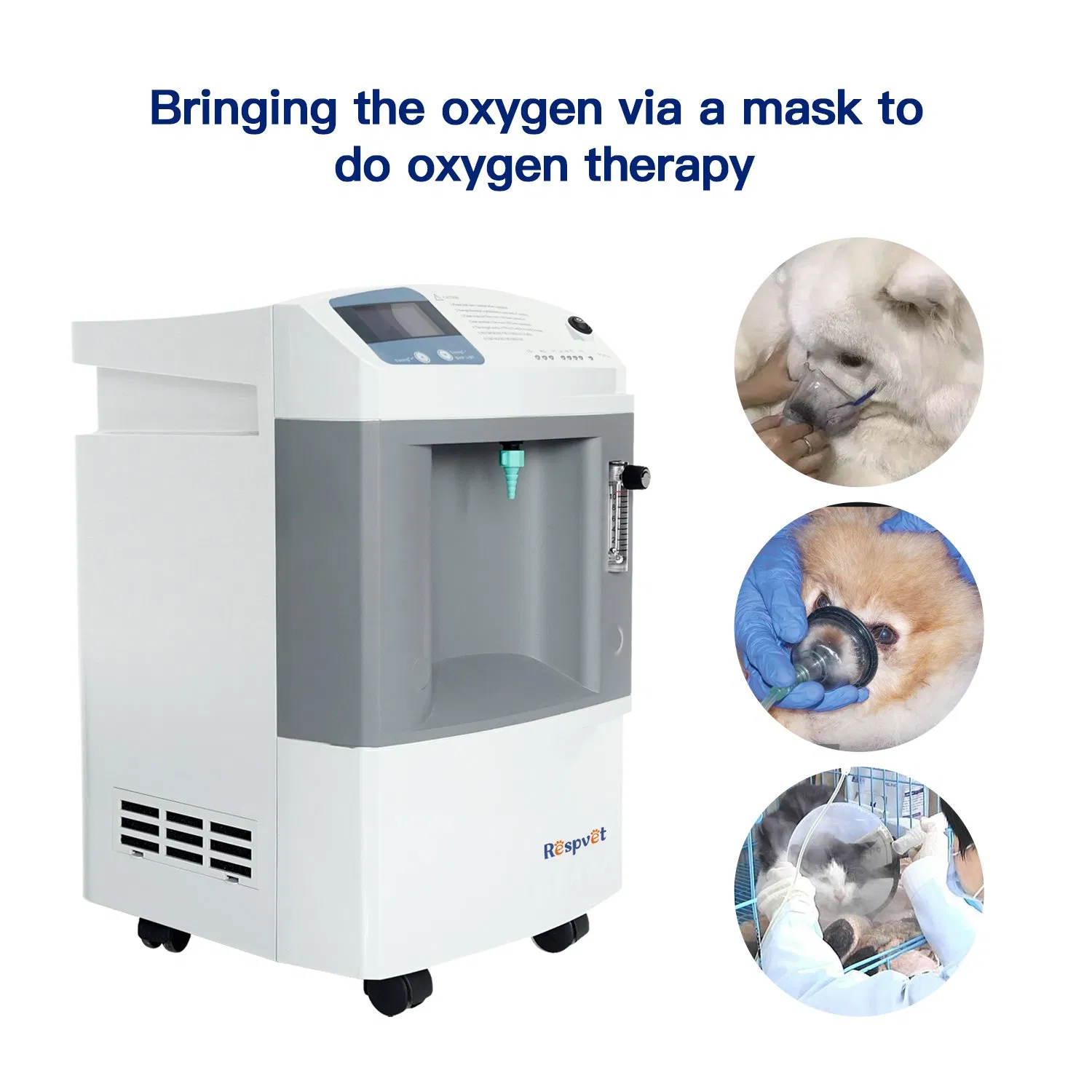

Oxygen therapy: Animals can inhale oxygen directly through a mask connected to the concentrator for respiratory treatment.
Nebulizer function: Equipped with nebulizer capability for comprehensive animal respiratory therapy.

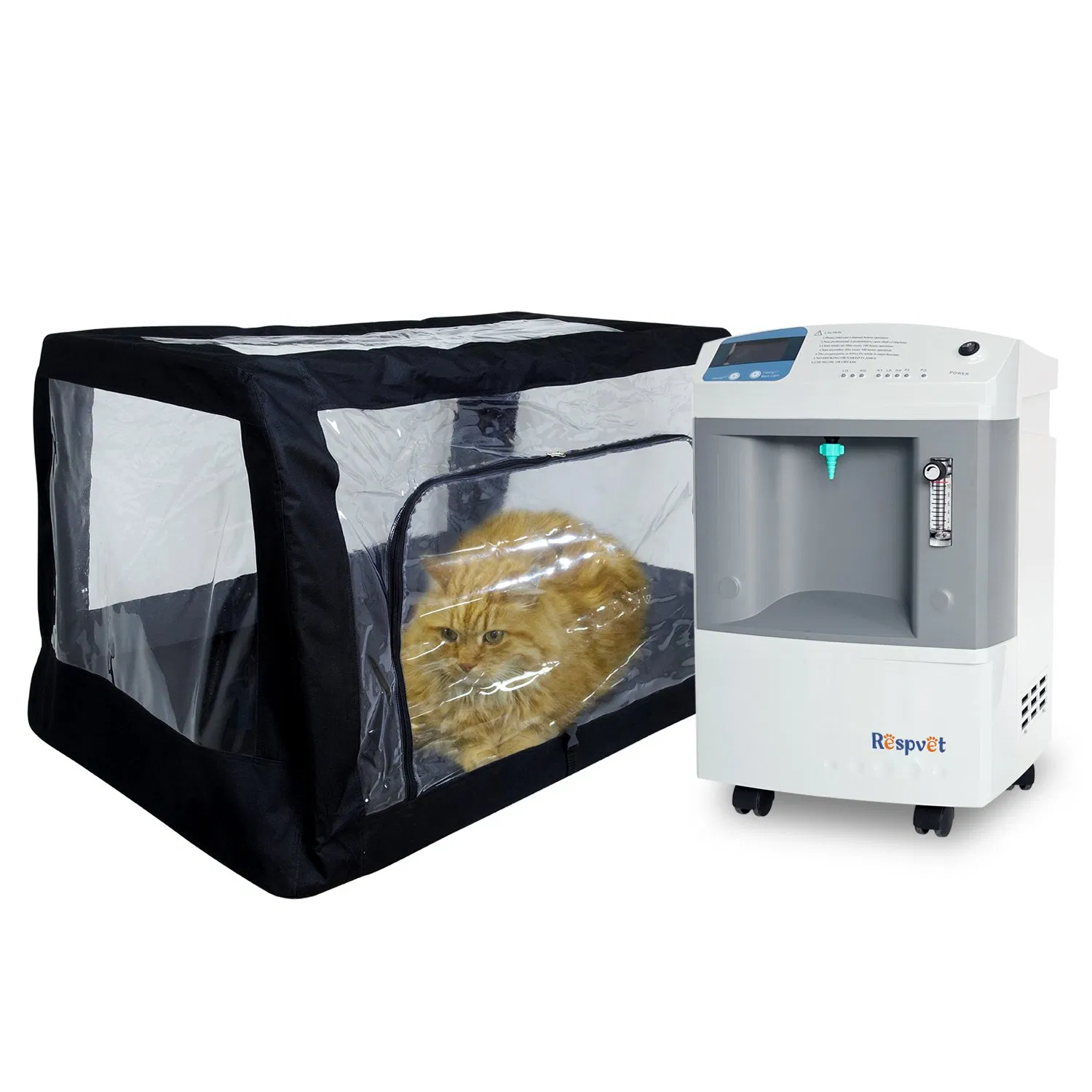

ICU and Oxygen Chamber: Provides a steady, continuous oxygen source to critical care units or oxygen chambers.

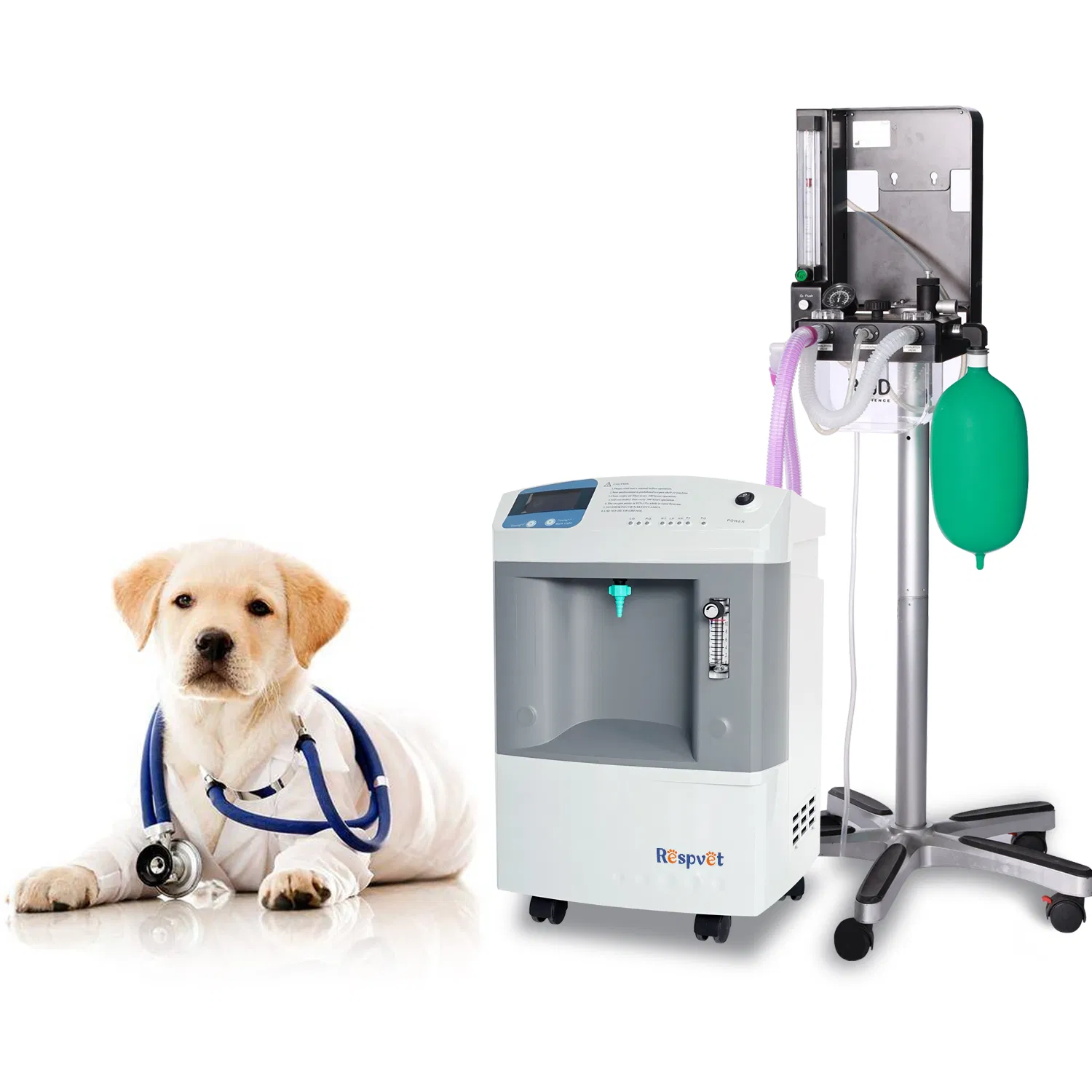

Anaesthesia: Delivers a stable oxygen source to anaesthesia machines during surgery, ensuring smooth procedures.

Clinical application of oxygen concentrator

Quality Assurance & Global Recognition

Our products comply with the ISO13485 quality management system, with models obtaining CE and FDA certificates. We have been awarded 28 invention and design patents and have completed registrations in 36 countries for import permits.

Frequently Asked Questions

What is the oxygen purity level of the JAY-10 model?

The JAY-10 provides high-purity medical grade oxygen at a concentration of 93% (±3%), suitable for various veterinary clinical requirements.

Can this machine operate continuously for long periods?

Yes. It features innovative cooling technology specifically designed to ensure stable 24/7/365 operation without overheating.

What safety alarms are included in the device?

The unit is equipped with a comprehensive alarm system, including power failure alerts, high/low pressure alarms, and low oxygen concentration warnings.

Is the oxygen concentrator easy to move within a hospital?

Absolutely. The device is designed with four flexible castors and two brakes, allowing for easy transport and secure positioning in any direction.

What functions are shown on the LCD display?

The clear LCD display provides real-time data on switch times, operating pressure, present working time, total accumulating time, and a preset timer ranging from 10 minutes to 40 hours.

Can it be used for nebulization therapy?

Yes, this oxygen concentrator can be equipped with a nebulizer function, allowing it to perform dual roles for animal oxygen therapy and nebulizer treatment.
