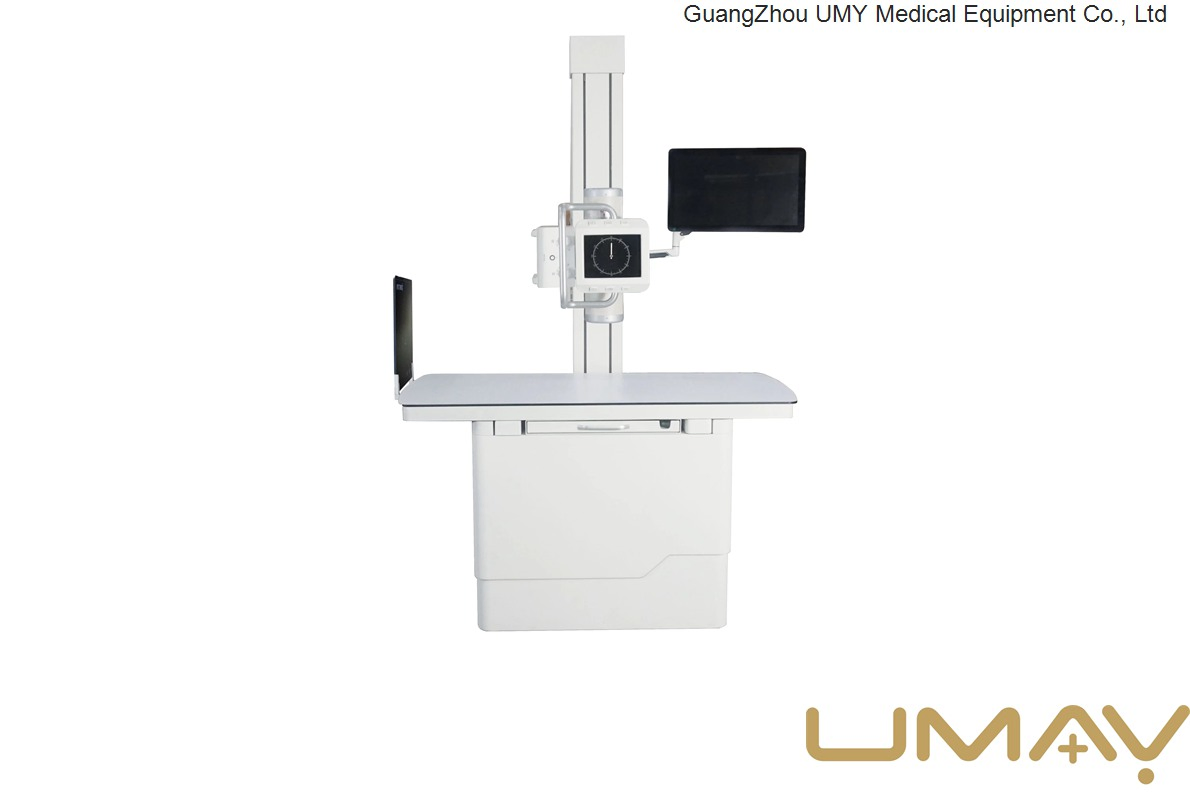

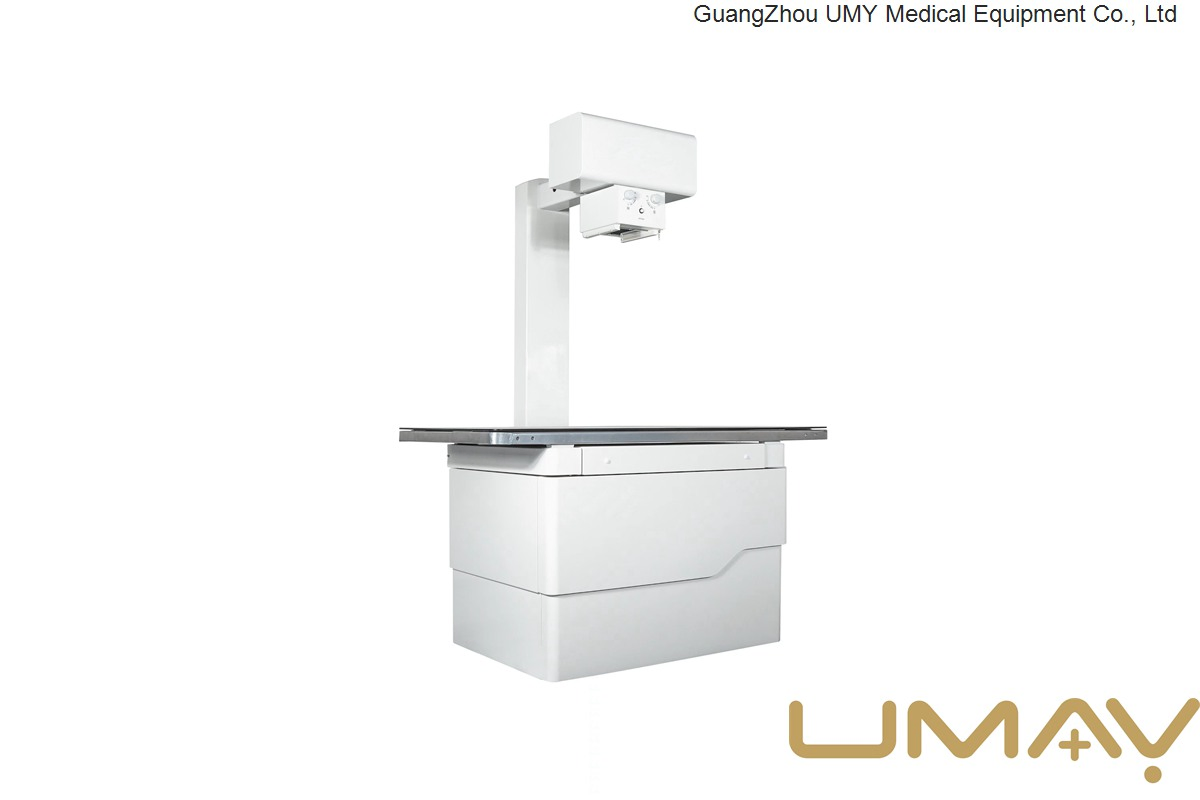

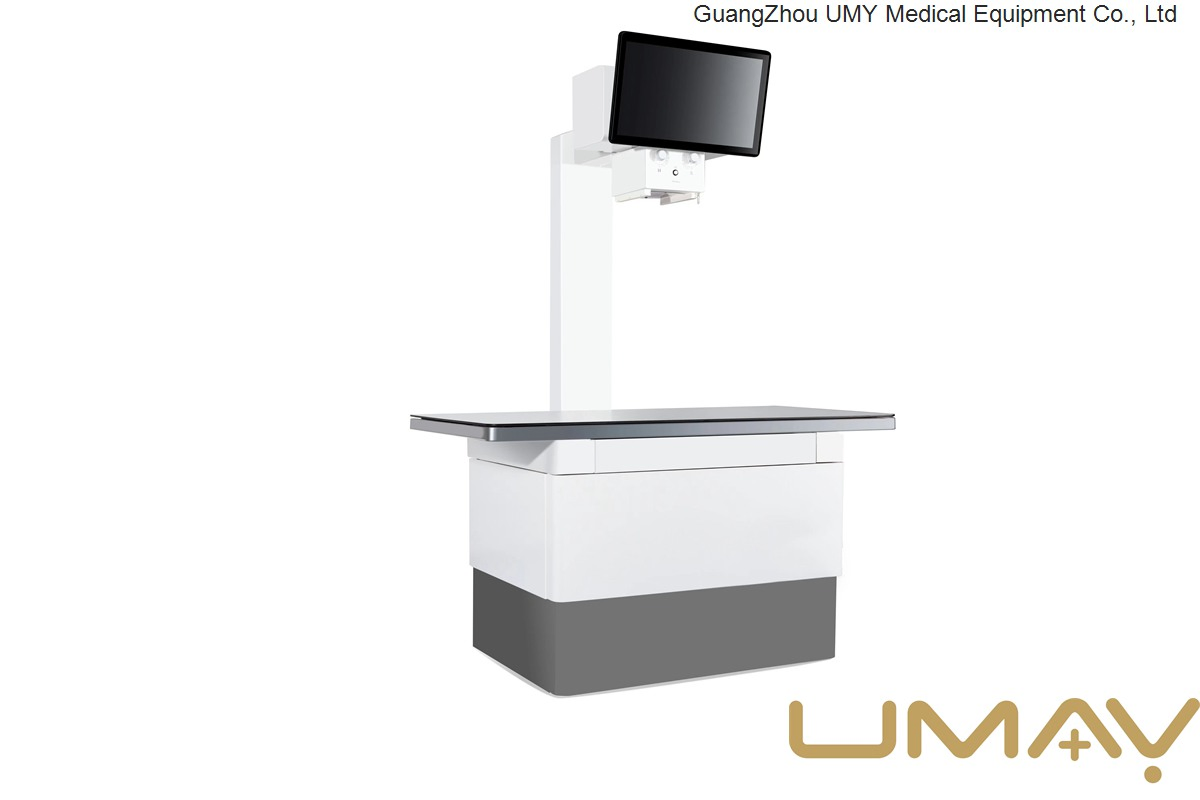

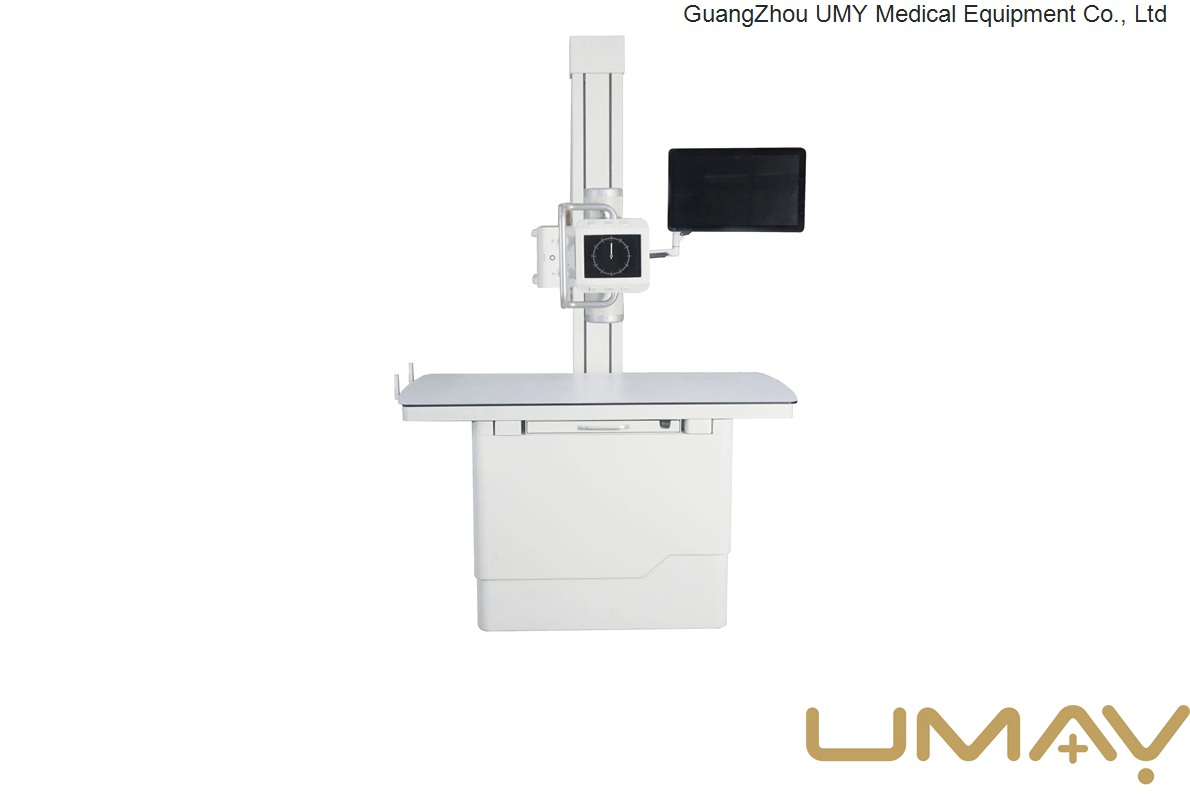

Professional Pet X-ray Imaging System for Veterinary Practices
Professional Pet X-ray Imaging System for Veterinary Practices
Professional Pet X-ray Imaging System for Veterinary Practices
Professional Pet X-ray Imaging System for Veterinary Practices
Professional Pet X-ray Imaging System for Veterinary Practices
1 / 5
Professional Pet X-ray Imaging System for Veterinary Practices
Professional Pet X-ray Imaging System for Veterinary Practices
Professional Pet X-ray Imaging System for Veterinary Practices
Professional Pet X-ray Imaging System for Veterinary Practices
Professional Pet X-ray Imaging System for Veterinary Practices

Professional Pet X-ray Imaging System for Veterinary Practices

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋
Basic Information
Certification
CE, FDA, EEC, MSDS, ISO13485
Group
Middle-aged and Old
Maximum Voltage
125kv
Size Focus
0.5/1.0 mm
Thermal Capacity
140K Hu
Anode Input Power
Small 10kw / Large 30kw
Input Voltage
110/220VAC/10A
Output Power
32kw
Kv Range
40-125kv
Ma Range
10-400mA
Exposure Time
0.001-6.3s
Scintillator
a-Si Cesium Iodide Csi
Image Size
43×43cm (3072×3072)
Production Capacity
50000
📷
Product Overview
Professional Pet X-ray Imaging System Veterinary X-ray System
Imaging Detail 1

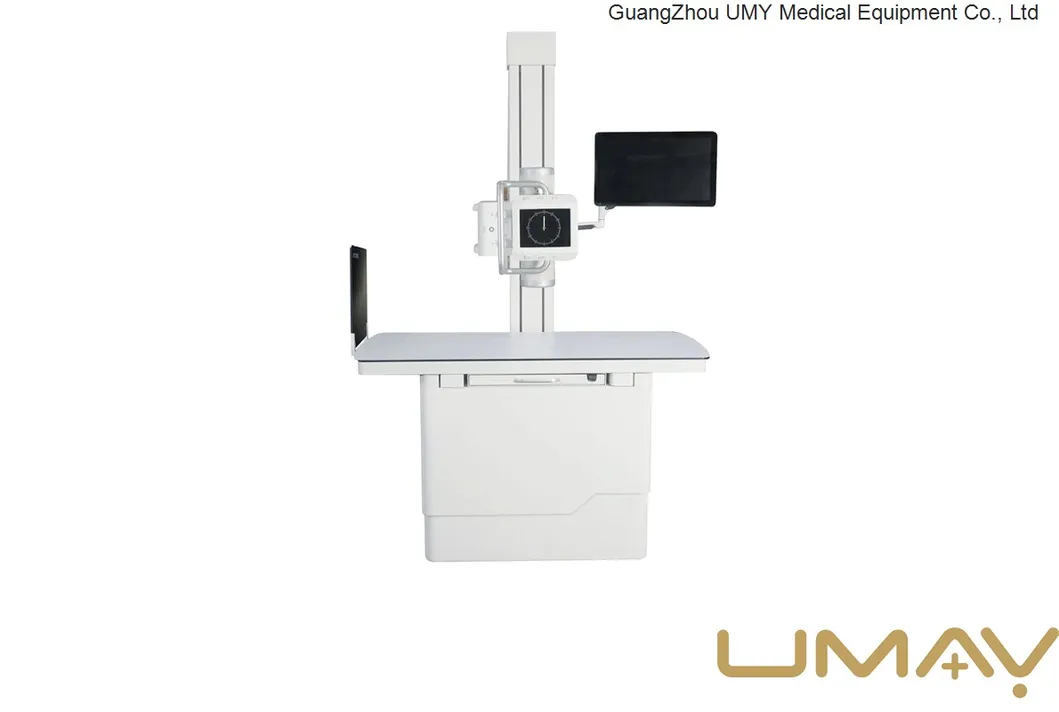

Imaging Detail 2
Imaging Detail 3
Imaging Detail 4

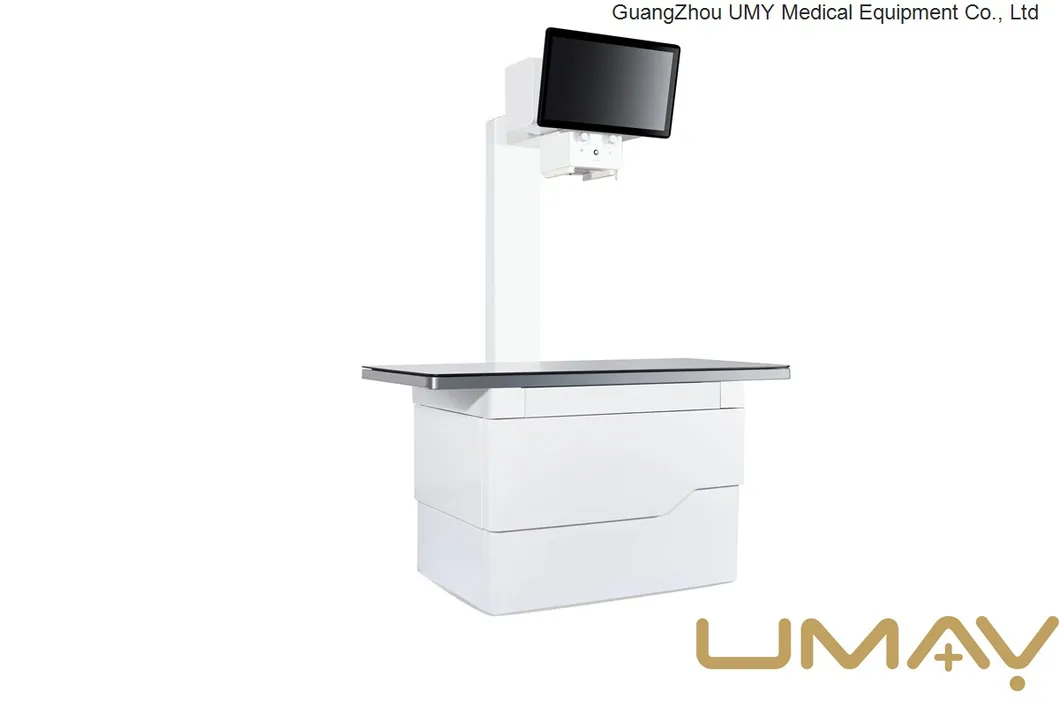

Imaging Detail 5
Imaging Detail 6
⚙️
Technical Specifications
High Voltage Generator
Input Power Voltage110/220VAC/10A
Maximum Output Power32KW
KV Range40~125KV±(1%+1KV)
mA Range10~400MA±(1%+1KV)
Exposure Time0.001-6.3s
X-ray Tube
Maximum Voltage125KV
Size Focus0.5/1.0 mm
Thermal Capacity140k HU
Anode Input PowerSmall focus 10KW / Large focus 30KW
Flat Panel Detector
ScintillatorAmorphous silicon a-Si Cesium Iodide CsI
Image Size / Pixel Matrix43×43cm / 3072×3072
Pixel Pitch139μm
A/D Conversion16bit
Spatial Resolution3.6 LP/mm
Installation Requirements
Power Supply110/220VAC, +/-10%, Grounding ≥ 4mm²
Minimum Door Width65cm
Minimum Room Size2m * 1.5m
Product Specification
Weight180KG
Dimensions195cm * 140cm * 90cm
System Dimensions System Setup
❓
Frequently Asked Questions
What certifications does this X-ray system hold?
The system is fully compliant with international standards, holding CE, FDA, EEC, MSDS, and ISO13485 certifications.
What is the imaging quality of the flat panel detector?
It uses an Amorphous Silicon a-Si Cesium Iodide (CsI) scintillator with a 3072×3072 pixel matrix and 139μm pixel pitch, providing high-resolution 16-bit images.
What are the power and space requirements for installation?
The system requires a 110/220VAC power supply. For installation, a minimum room size of 2m*1.5m and a door width of at least 65cm are required.
Does the system support different focus sizes?
Yes, the X-ray tube features dual focus sizes of 0.5mm and 1.0mm to accommodate different diagnostic needs.
What is the maximum output power of the generator?
The high voltage generator provides a maximum output power of 32KW with a KV range of 40 to 125KV.
What is the thermal capacity of the X-ray tube?
The X-ray tube has a high thermal capacity of 140K HU, ensuring durability during frequent use.
