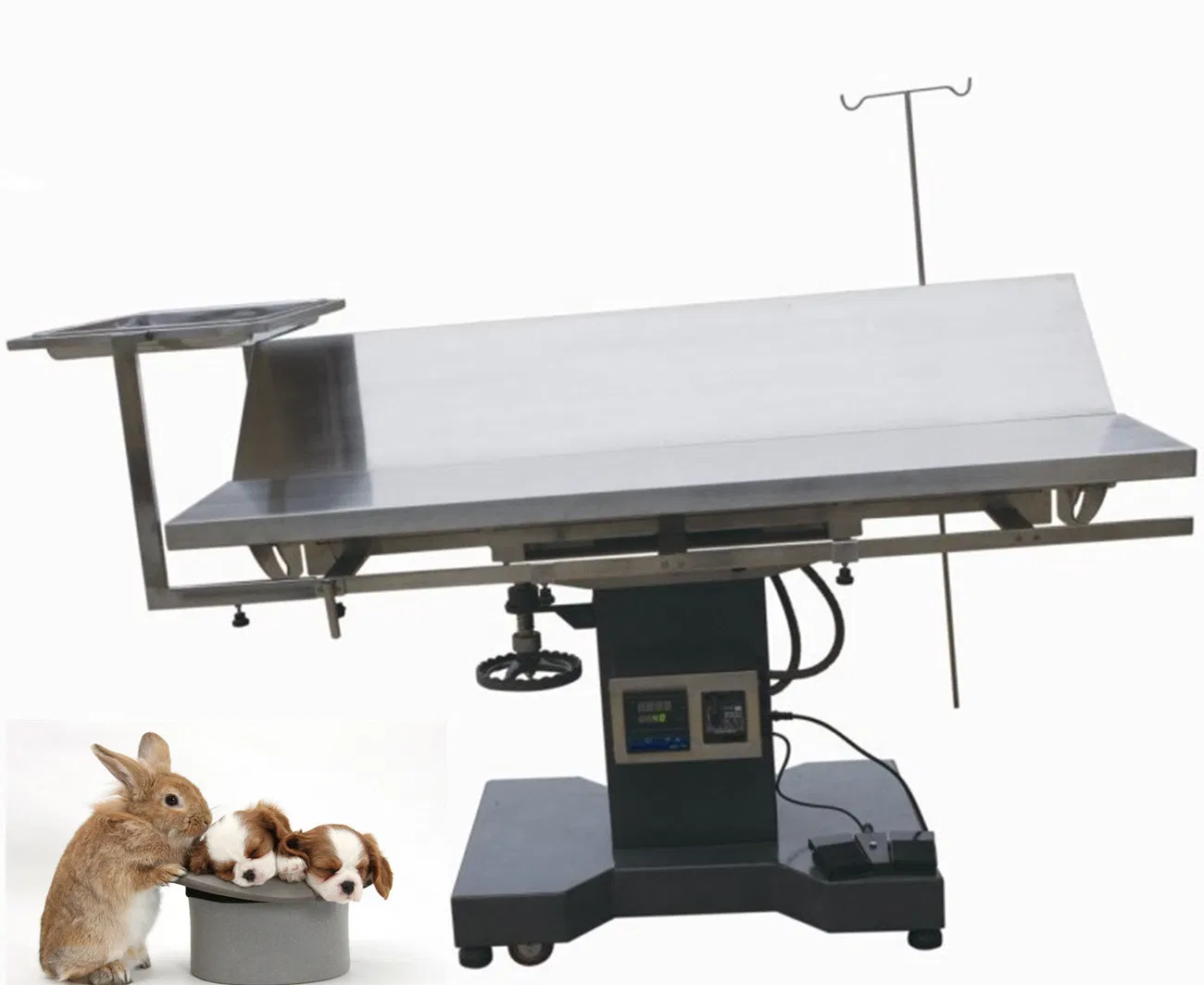

🩺 Veterinary Operating Table Overview
Model: DWX-MF / DWV-IIDD (Electric)
- Premium Material: Top made with Stainless Steel to prevent corrosion, rust, and withstand high temperatures.
- Integrated Drainage: Designed with a built-in drain for surgical efficiency.
- Therapeutic Heating: Helps prevent Hypothermia during small animal surgeries with controlled heating (Indoor temp to 50°C).
- Multi-Axis Tilting: 15 degrees left-and-right (machine control) and 45 degrees front-and-back (manual).
- Stable Base: A3 armor plate base with convenient chain wheel movement.
- Adjustable Dimensions: Top size 1400 x 650mm; Height range 760-1060mm.
- Ventilation Support: Optional detachable filter available.
⚙️ Installation & Use Instructions
1. Secure the table-board onto the base using the provided pin before use.
2. Ensure the tray screws are fully tightened during use.
3. Use the foot pedal to adjust height: step gently to rise; step to lowest and press table to lower.
4. Use the handwheel to operate the tilting mechanism.
5. Lock the 4 supporting screws to the ground for assembly; unlock for wheel flexibility.
6. Fix the slide bar correctly before fastening the animal. Side pipes are available for pothooks.
7. Stop pressing the pedal if strong resistance is encountered during movement.
8. Always clean the table-board thoroughly after every procedure.
🛠️ Maintenance & Overhaul
- Warranty lasts for one year.
- Quality problems are eligible for exchange; improper use is excluded from standard warranty.
- Apply lube to copper bars in the hydraulic-lift pedal every half month.
- Handle with care during assembly, disassembly, and delivery.
| MOQ | 1 SET |
| WARRANTY | 12 MONTHS |
Frequently Asked Questions
What materials are used for the table top?
The top is constructed from high-quality Stainless Steel, which provides excellent resistance to corrosion, rust, and high temperatures.
Does this table include a heating function?
Yes, the table features a heated top to help prevent hypothermia in small animals during surgery, with a temperature range up to 50 degrees Celsius.
How is the table height adjusted?
The height is adjusted using a hydraulic foot pedal system. Stepping gently allows the table to go up, while pressing down at the lowest setting allows it to lower.
What are the tilting capabilities of the table?
The table can tilt 15 degrees left and right via machine control, and up to 45 degrees front and back through manual operation.
How often should maintenance be performed?
The hydraulic-lift pedal's copper bars should be lubricated every half a month to ensure smooth operation.
Is the base mobile or fixed?
The base features an A3 armor plate with casters for flexibility. For stability during surgery, 4 supporting screws can be locked to the ground.
