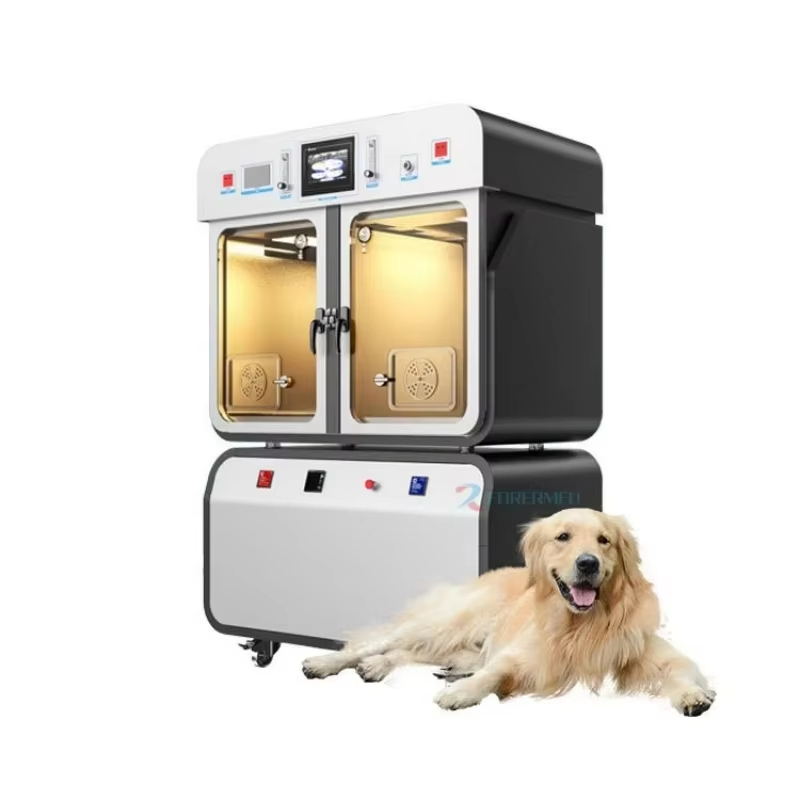

ICU Hospital Stainless Steel Pet Cage Veterinary ICU Cage Veterinary Oxygen Cage

Customization: Available
Place of Origin: Henan, China
Brand Name: Forermed

Product Description

Overview & Basic Info

Model NO.:YJ-ICU02
Power Source:Electric
Shelf Life:1 Year
Certification:CE
Classification:Class II
Product Name:Vet ICU Cages
Display:Pointer Membrane Resistance Type
Consumption:0.8kw - 1.6kw
Standard Access.:Infusion Rack

Product Description

Luxury Stainless Steel Pet Clinic Veterinary Oxygen Cage
This advanced medical unit is more than just an oxygen cage; it is a comprehensive life support system designed for clinical assistance. It provides an oxygen-enriched environment with precise atmospheric controls. The system continuously removes CO2 while managing humidity and temperature to ensure optimal patient care.

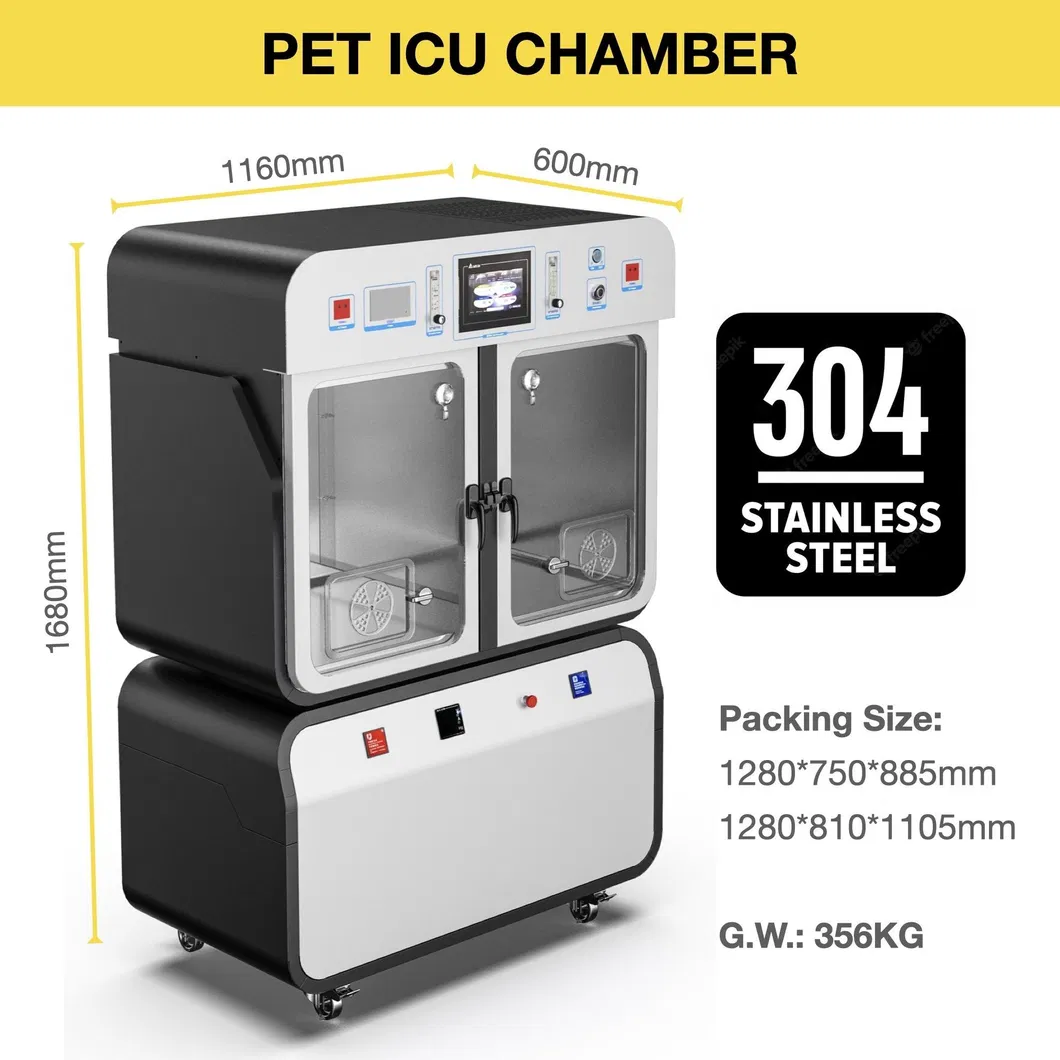

Veterinary ICU Cage View 1
Veterinary ICU Cage View 2
!
Advanced Monitoring: High-precision sensors allow for real-time tracking of climate and oxygen levels, ensuring maximum safety for animals undergoing treatment.

Key Features

1
3D Balanced Temperature Control: A circulation system wrapped around the inner wall ensures temperature is balanced everywhere (15-38°C) with an error margin of only 0.5°C.
2
Oxygen Chamber Technology: Automatic independent cabin supply with a high-precision oxidation sensor. Controls oxygen levels from 21% to 55% with medical-grade accuracy.
3
Medical Grade Air Purification: High-concentration negative ion injection (up to 3.6 million/cm³) eliminates bacteria, viruses, and odors while improving animal immunity.

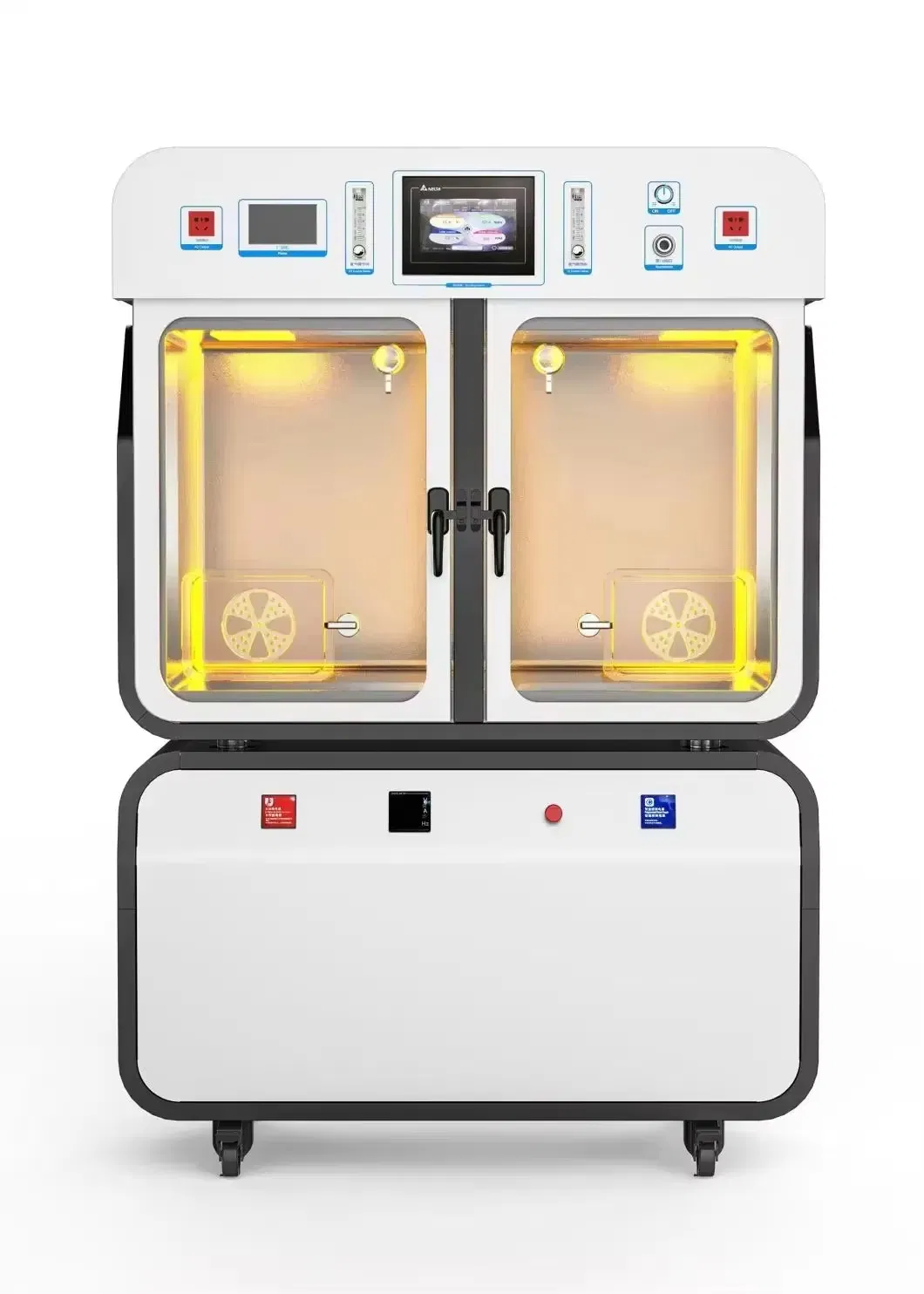

Cage Dimension Drawing

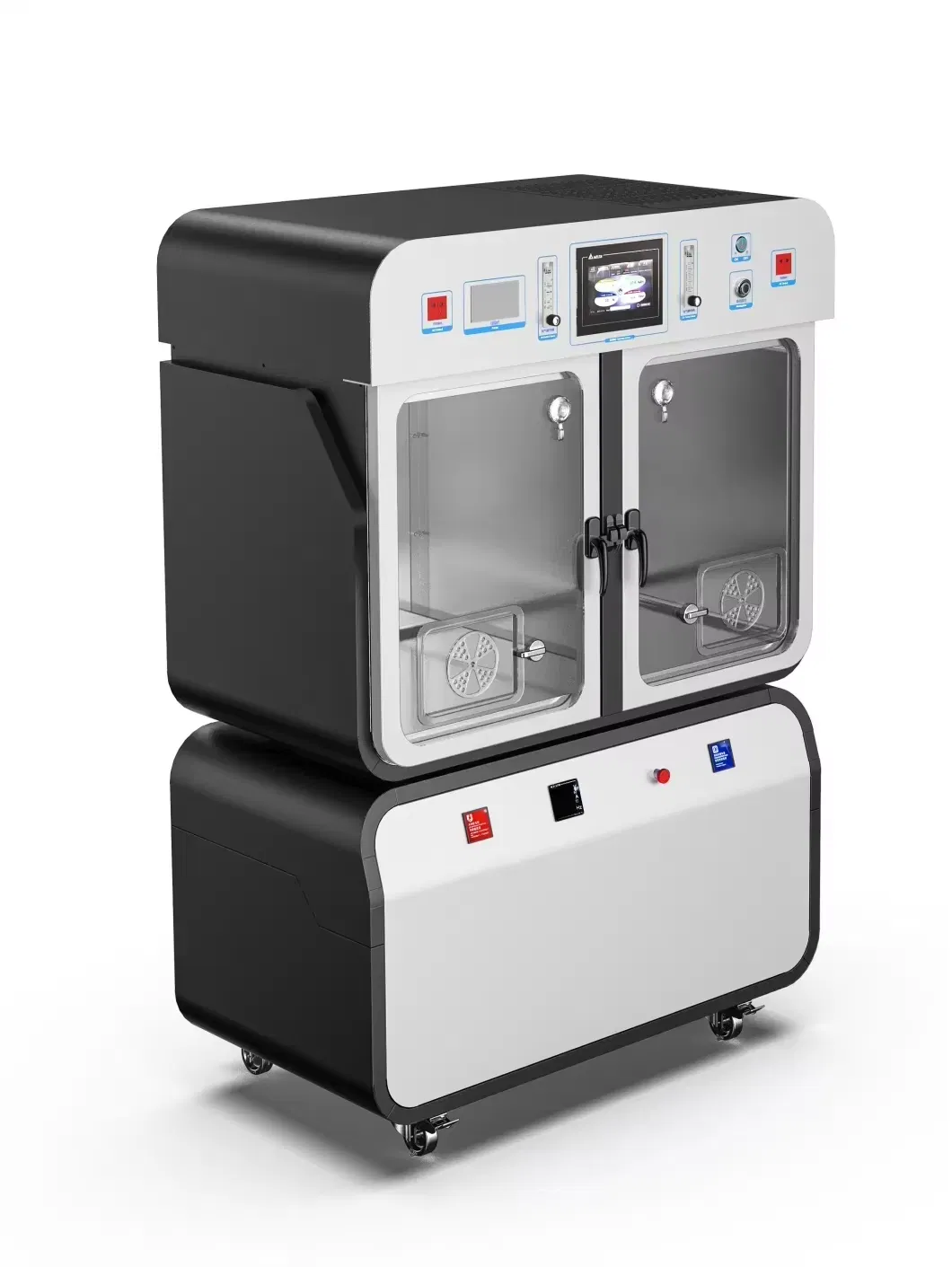

Internal Mechanism
4
Sterilization & Lighting: Features a 254nm UV sterilization system and a three-effect lighting system, including blue light therapy (425-475nm) to inhibit inflammation and aid neurological recovery.

Technical Parameters

Parameter Specification

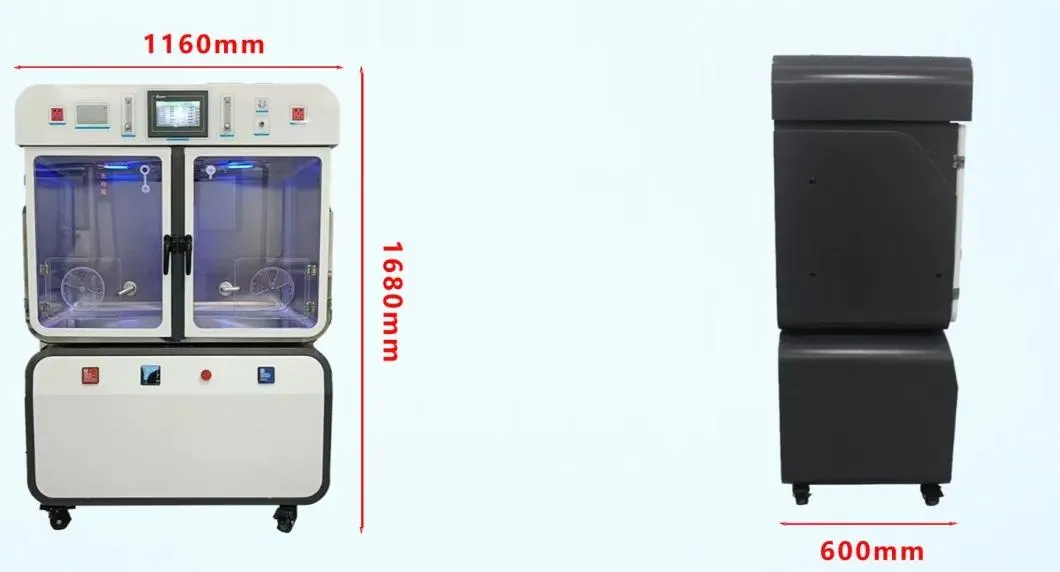

Dimension (LxWxH)1160mm x 650mm x 1670mm
Touch Screen8.4-inch Multi-touch Color Screen
WeightApprox. 236KG
Oxygen Concentration21~60%, accuracy 1%
Temperature Range15~38°C (±0.5°C)
CO2 PurifierBuilt-in medical CO2 efficient purifier
Nebulizer Rate≥ 0.2ml/min
DehumidificationAutomatic (Levels: 30% - 50%)
Power SupplyAC100V/220V 50/60HZ

Detailed View

Front Detail

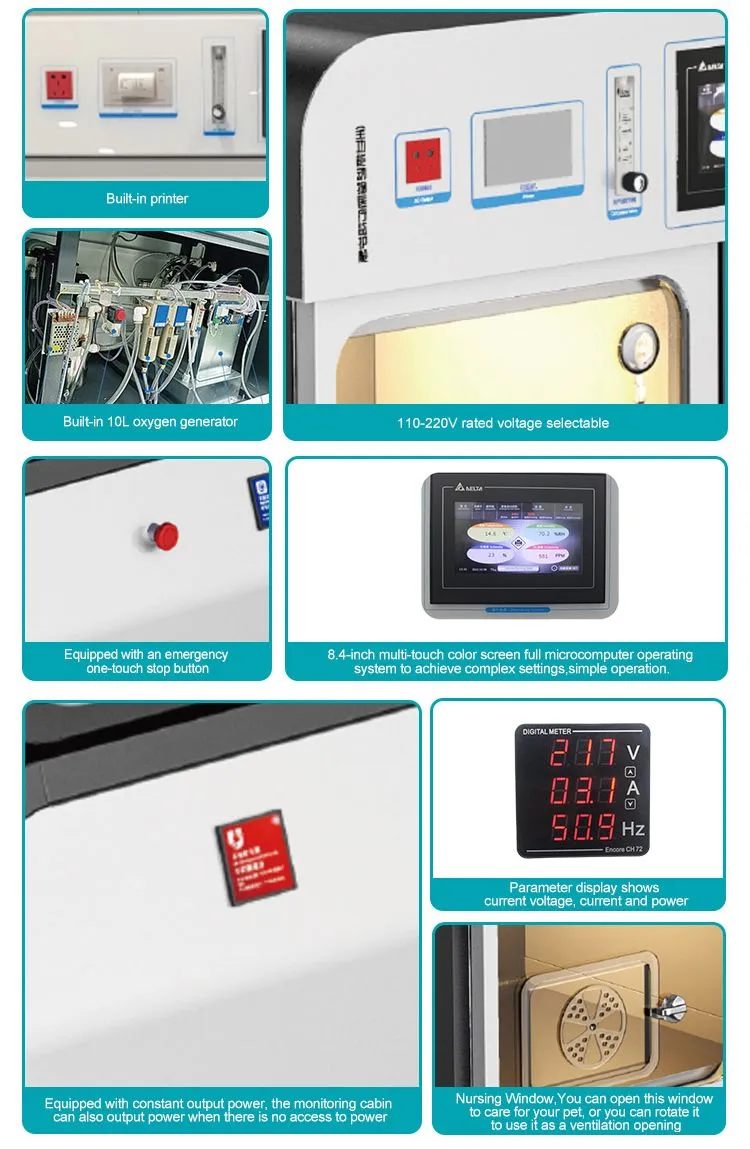

Interface Detail
Component Detail
Functional View

Frequently Asked Questions

What is the primary use of the Vet ICU Oxygen Cage?
It is designed for pets requiring extraordinary life support, providing a controlled environment for oxygen therapy, temperature regulation, and humidity management.
How accurate is the temperature control?
The cage uses a 3D balanced circulation system with an accuracy of ±0.5°C within a range of 15°C to 38°C.
Can it remove Carbon Dioxide automatically?
Yes, it features a built-in medical CO2 efficient purifier and an automatic removal device to ensure the air stays safe for the patient.
Is the cage easy to clean and maintain?
The interior is constructed from seamless stainless steel, which prevents dirt accumulation and makes disinfection straightforward.
Does the unit include a nebulizer?
Yes, the unit includes a medical nebulizer with an atomization rate of ≥0.2ml/min for respiratory treatments.
What safety alarms are included?
The system includes warnings for abnormal oxygen/CO2 concentrations, temperature deviations, sensor failures, and emergency hatch status.
