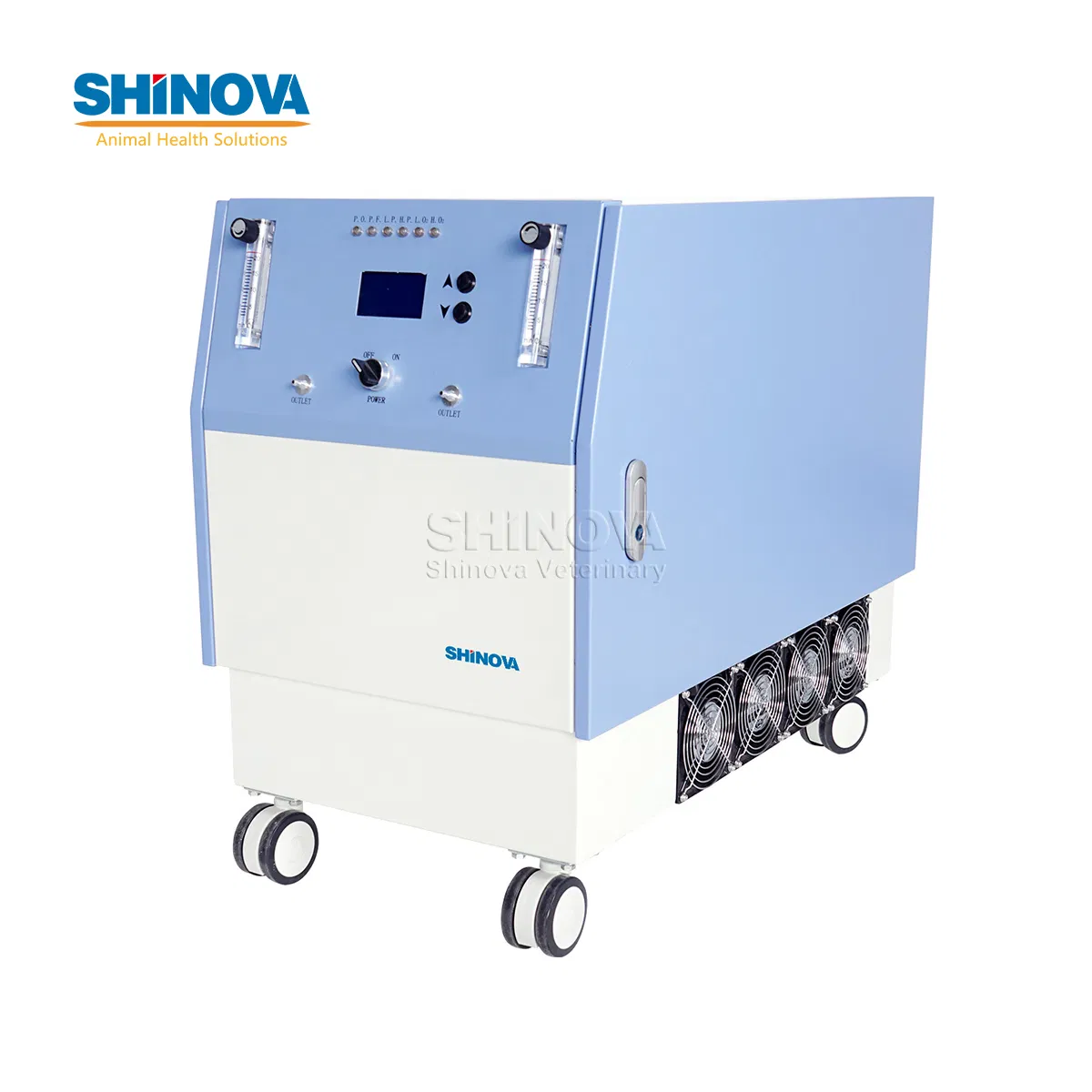

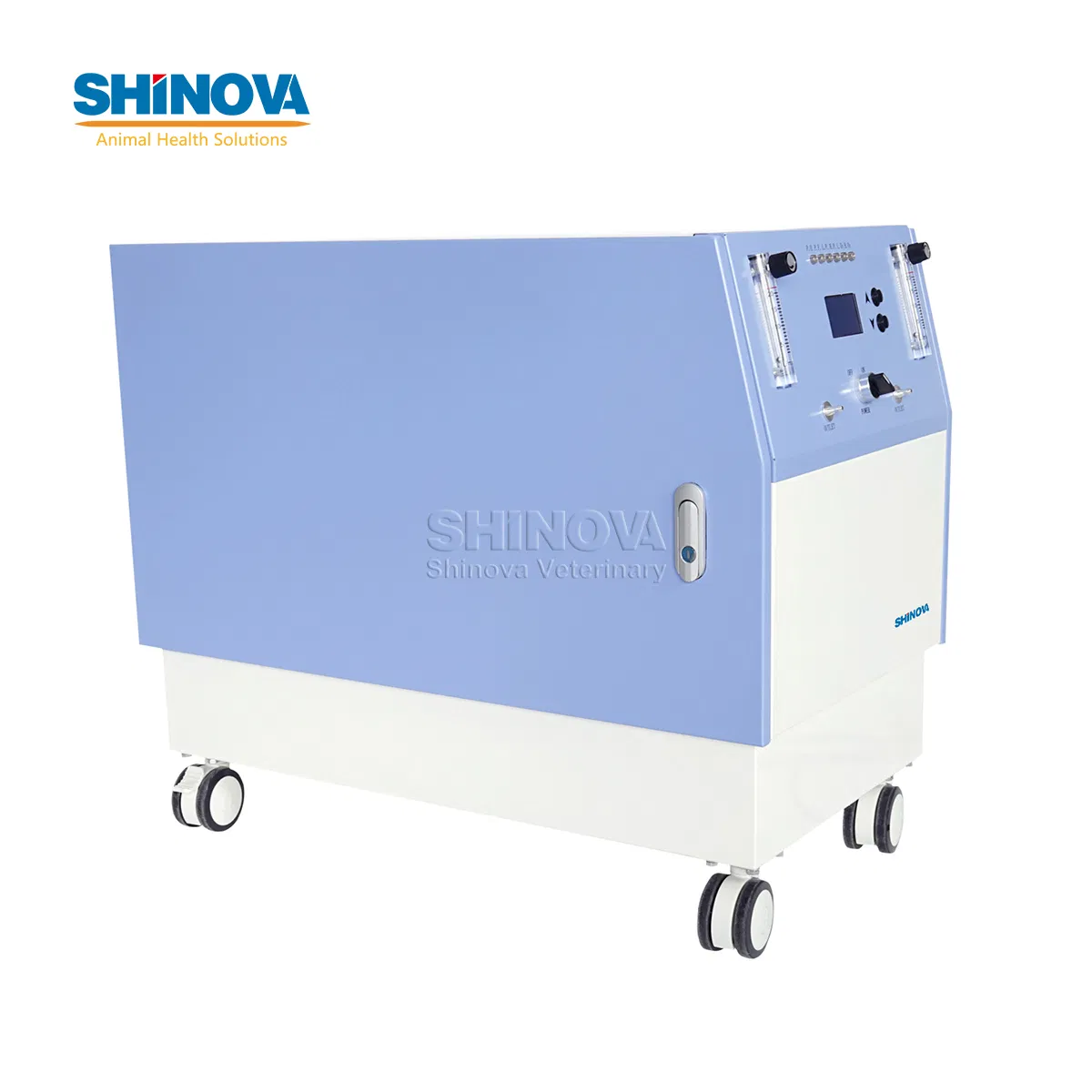

Veterinary 0-20lpm Veterinary Oxygen Concentrator (SOC-20)

1 / 5

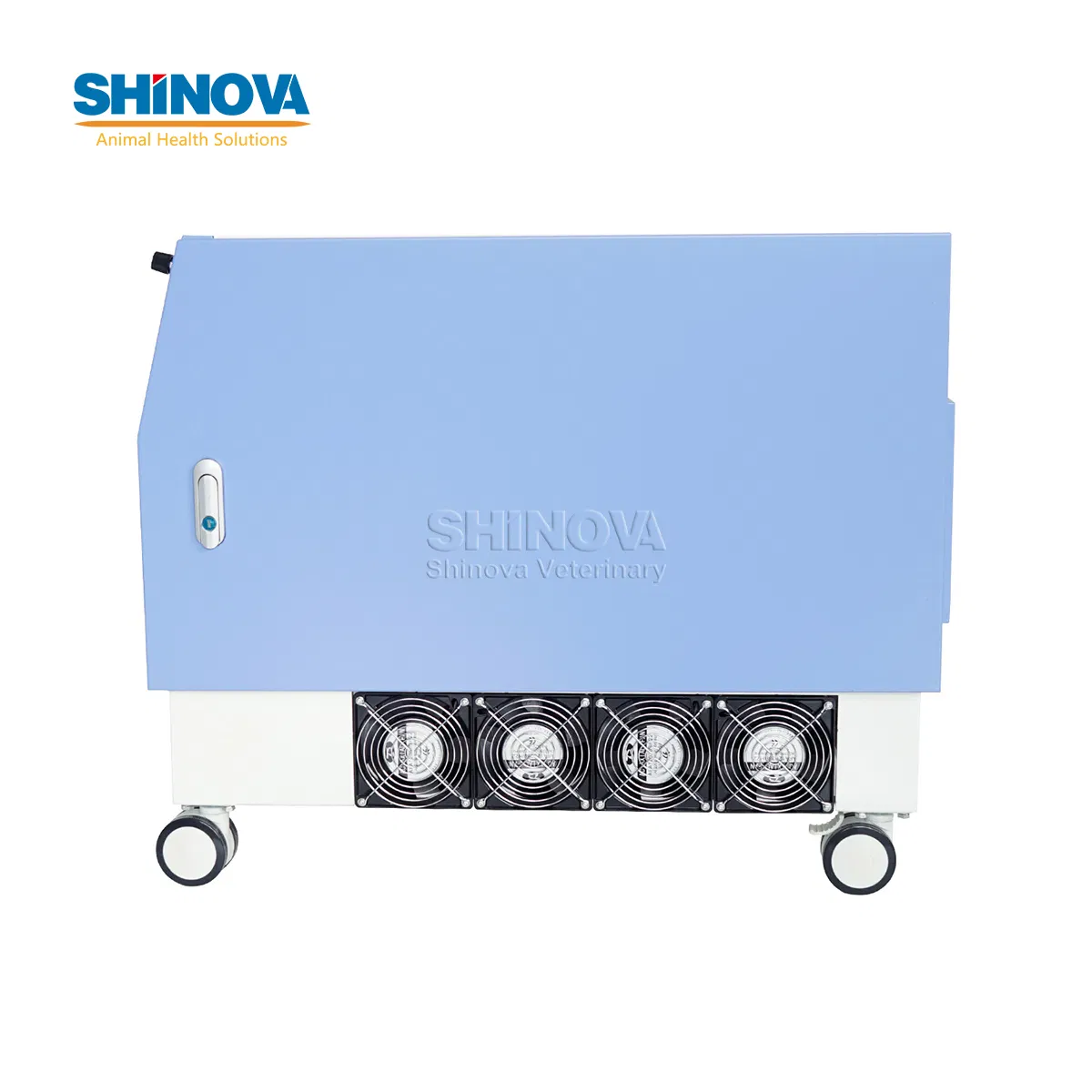

Veterinary 0-20lpm Veterinary Oxygen Concentrator (SOC-20)

Customization:	Available
Application:	Home, Medical Institution, Veterinary Hospital
Scale:	Medium

Send Inquiry

Product Description

Basic Info.

Model NO.SOC-20

Voltage220V

TypeVeterinary Critical Care

Power Consumption1100W

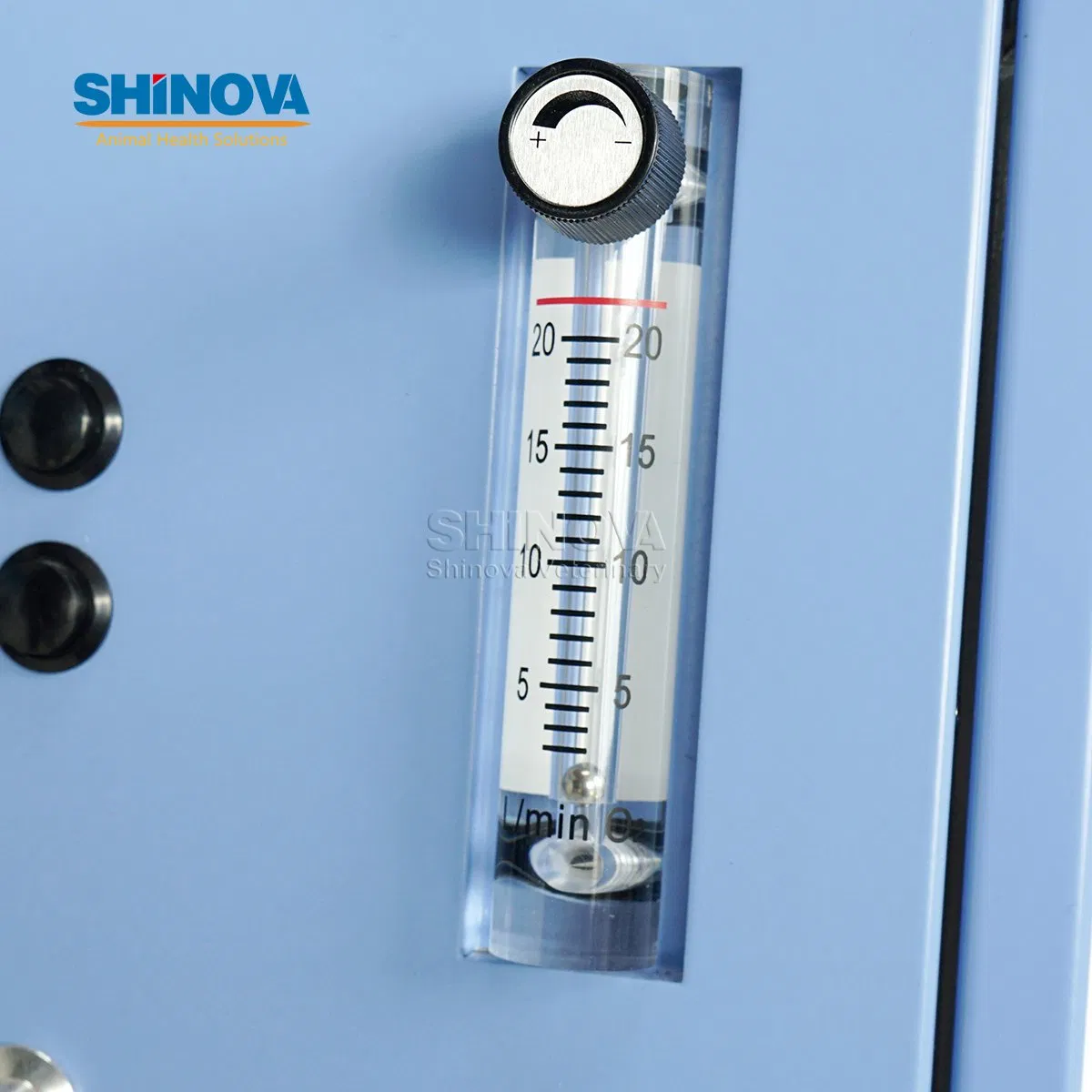

Flow Rate0-20lpm

Transport Packageby Air or by Sea

Specification44*44*65 0.126

OriginChina

HS Code8419601900

Production Capacity5000

★

Product Description

Veterinary Oxygen Concentrator

Model: SOC-15, SOC-20, SOC-30, SOC-40, SOC-60

Main Applications:

Industrial use such as welding, glass cutting.
Fish farming, aquaculture.
Oxygen supply for ozone generator.
Oxygen cylinder filling system.

Model	SOC-15	SOC-20	SOC-30	SOC-40	SOC-60
Flow Rate	0-15 LPM	0-20 LPM	0-30 LPM	0-40 LPM	0-60 LPM
Purity	93% (+3%)
Outlet Pressure	0.04-0.07MPA (6-10PSI)
Sound Level	≤60db
Power Consumption	≤850W	≤1100W	1650W	2200W	3300W

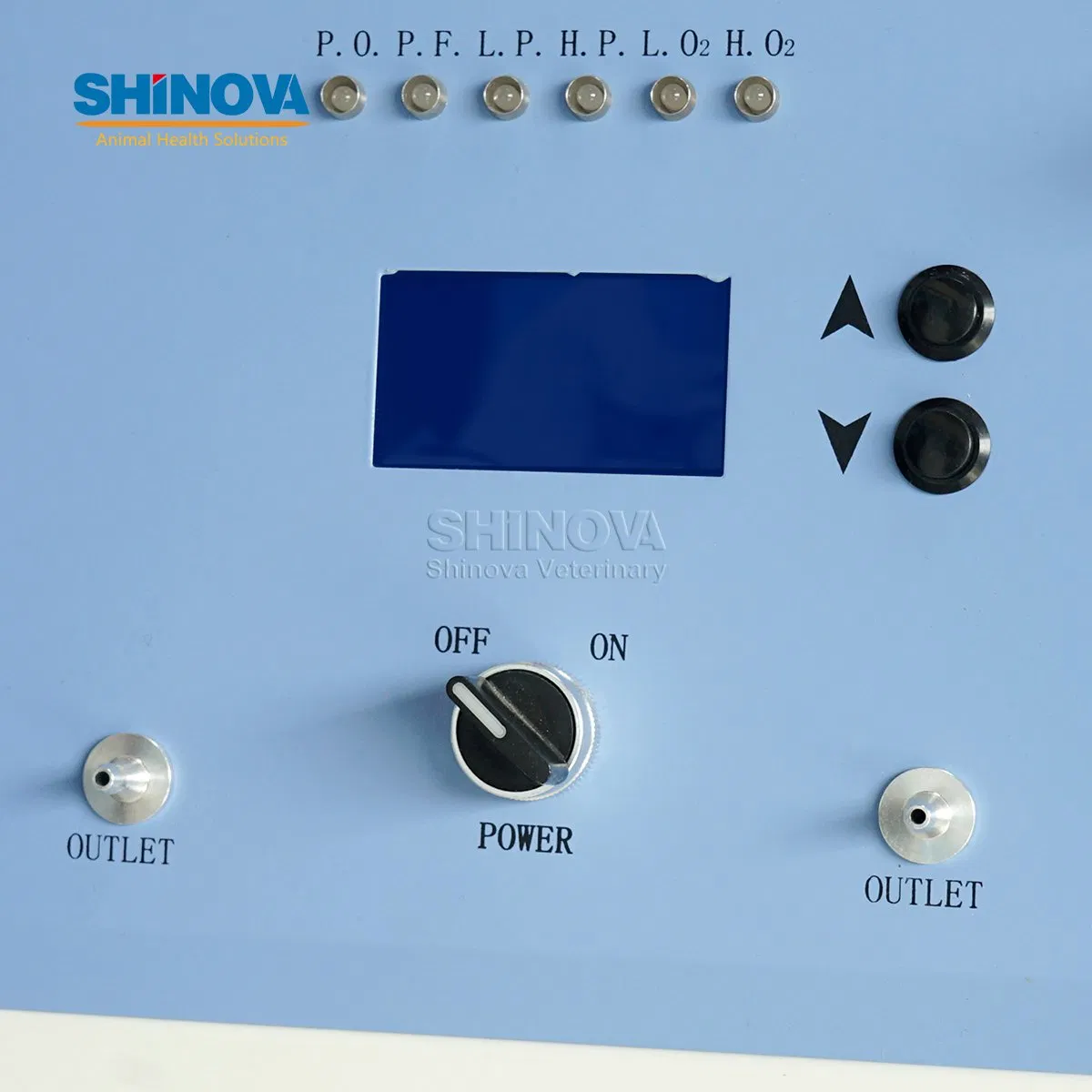

LCD Display	Switch times, operating pressure, present working time, accumulated working time
Net Weight	90Kgs	95Kgs	140Kgs	160Kgs	245Kgs
Alarm	Low purity alarm, High & low pressure alarm, Power failure alarm
Size (mm)	680x500x1580	680x500x1580	860x630x1580	860x630x1580	860x630x2120

FAQ

What is the oxygen purity level of these concentrators?

All models in the SOC series provide a high oxygen purity of 93% (±3%), ensuring reliable performance for medical and industrial applications.

What safety features are included in the SOC series?

The devices are equipped with multiple alarm systems, including a low purity alarm, high and low pressure alarms, and a power failure alarm for maximum safety.

What information does the LCD screen display?

The built-in LCD display shows switch times, current operating pressure, present working time, and accumulated total working time for easy monitoring.

Are these units suitable for non-veterinary uses?

Yes, besides veterinary critical care, they are suitable for industrial use (welding, glass cutting), fish farming, aquaculture, and oxygen cylinder filling systems.

How noisy is the device during operation?

The sound level of the SOC series is maintained at ≤60db, making it relatively quiet for high-capacity equipment.

What are the power requirements for the SOC-20 model?

The SOC-20 model operates at 220V with a power consumption of approximately ≤1100W.
