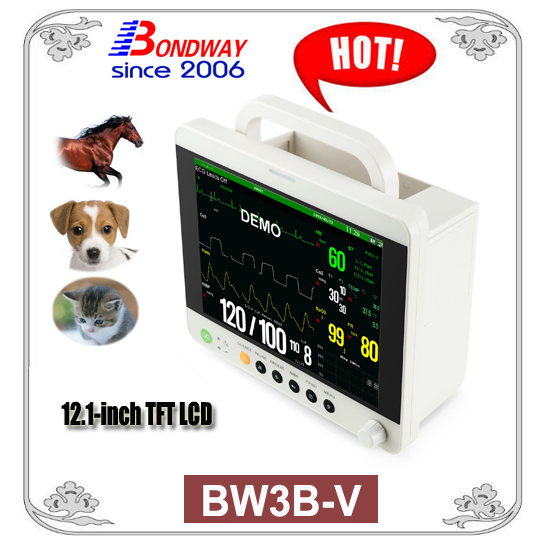

12.1 Inch TFT Large Screen Veterinary Patient Monitor, Veterinary Clinic Instrument, Bw3b-V

1 / 5

12.1 Inch TFT Large Screen Veterinary Patient Monitor, Veterinary Clinic Instrument, Bw3b-V

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

ℹ

Basic Information

Model NO.

BW3B-V

Certification

ISO13485

Standard Parameter

ECG, NIBP, SpO2, Temp, Pulse Rate

Transport Package

Carton Box

Specification

ISO13485

Origin

China

HS Code

90181930

Production Capacity

10000PCS/Year

🐾

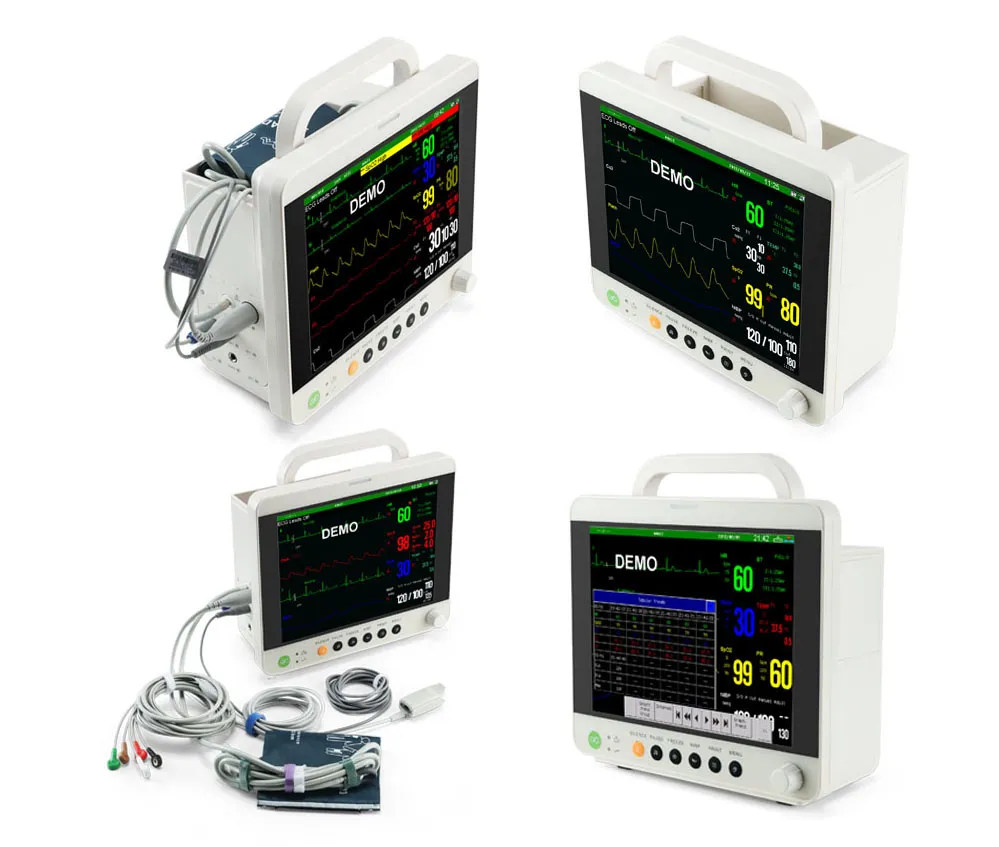

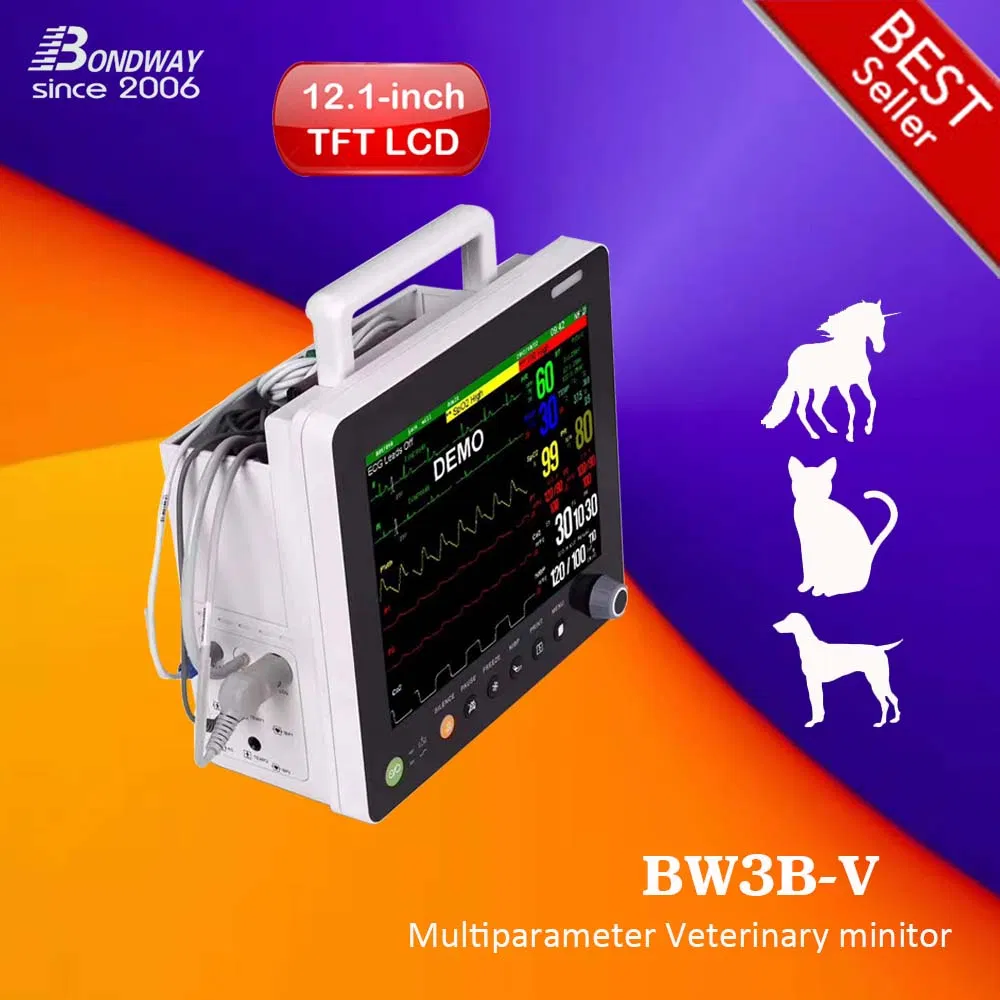

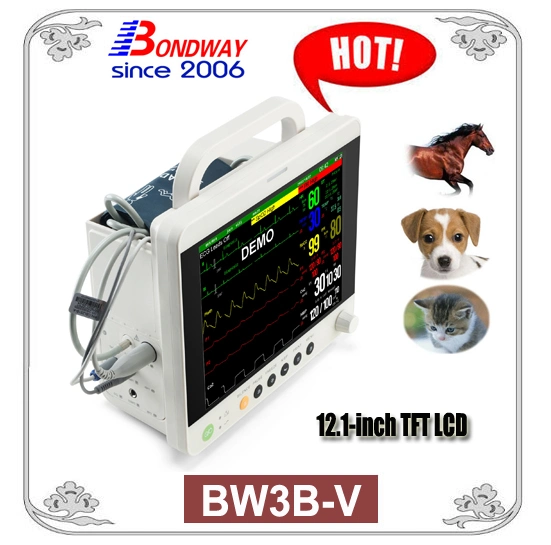

Multiparameter Veterinary Monitor

Model No: BW3B-V - High-performance patient monitoring solution designed specifically for veterinary clinical environments.

★

Key Features

Attractive streamline outline design, portable, compact and lightweight

12.1" color TFT LCD display for clear data visualization

Multi-language support: English, Spanish, Portuguese, Chinese, French, German

Big Font Display mode for long-distance observation

ST segment Analysis and Apnea Alarm functions

Drug Dose Calculation and OXCRG Software included

72-hour tabular and graphic trends data storage

High energy Li-ion battery for transport and power-down backup

Networking Capability: WAN communication for central monitoring

Stable Linux Operation System

External VGA display and printer support

Dynamic Monitoring of blood pressure

Intelligent audio and visual alarms

Application: Horses, Cats, Dogs or Similar Sized Animals

Optional Pacemaker detection and Arrhythmia Analysis

⚙

Technical Specifications

ECG

Input	5 lead ECG cable (Lead I, II, III)
Gain (mm/Mv)	1/4, 1/2, 1, 2, 4
Sweep speed	12.5, 25, 50 mm/sec
Heart rate range	0-350 BPM (Accuracy: ± 1%)
Protection	Against electrosurgical interference and defibrillation

NIBP

Method	Automatic Oscillometric
Operation Modes	Manual / Automatic / Continuous
Measurement Range	10-285 mmHg (Systolic, Diastolic, Mean)
Accuracy	± 3mmHg or 2%

SpO2 & Pulse Rate

SpO2 Range	0 - 100 %
Pulse Rate Range	25 ~ 400 BPM
Accuracy	Horse/Dog: ± 2%; Cat: ± 3% (at 70-100%)

Temperature & Respiration

Temp Range	25 ~ 45 °C / 77 ~ 113 °F (Accuracy: ± 0.2°C)
Resp Method	Impedance (0 - 120 BPM)
Resp Accuracy	± 1 BMP or 5%

Power & Safety

Power Requirement	98~260 V AC, 50/60Hz (≤ 80VA)
Safety Standards	GB9706.1, IEC 60601-1, UL 544

Frequently Asked Questions

What types of animals is the BW3B-V monitor suitable for?

It is specifically designed for veterinary use, suitable for horses, dogs, cats, and other similar-sized animals.

What are the display specifications of this monitor?

The device features a high-resolution 12.1" color TFT LCD display with a Big Font mode for clear visibility.

How long can the system store monitoring data?

The monitor provides up to 72 hours of tabular and graphic trend storage and data recall.

Can this veterinary monitor be connected to a network?

Yes, it has WAN communication capabilities, allowing it to network with a central monitoring system for long-distance diagnosis and maintenance.

What parameters are measured as standard?

Standard parameters include ECG, NIBP, SpO2, Temperature, Respiration, and Pulse Rate.

Does the monitor work during power outages?

Yes, it is equipped with a high-energy Li-ion battery designed for short-term transport and temporary power-down situations.
