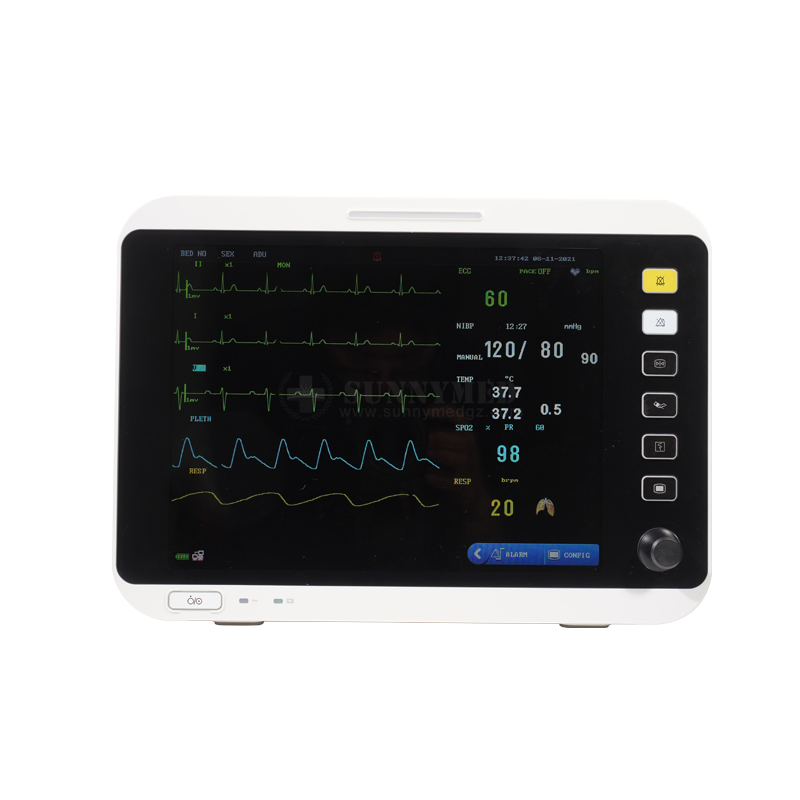

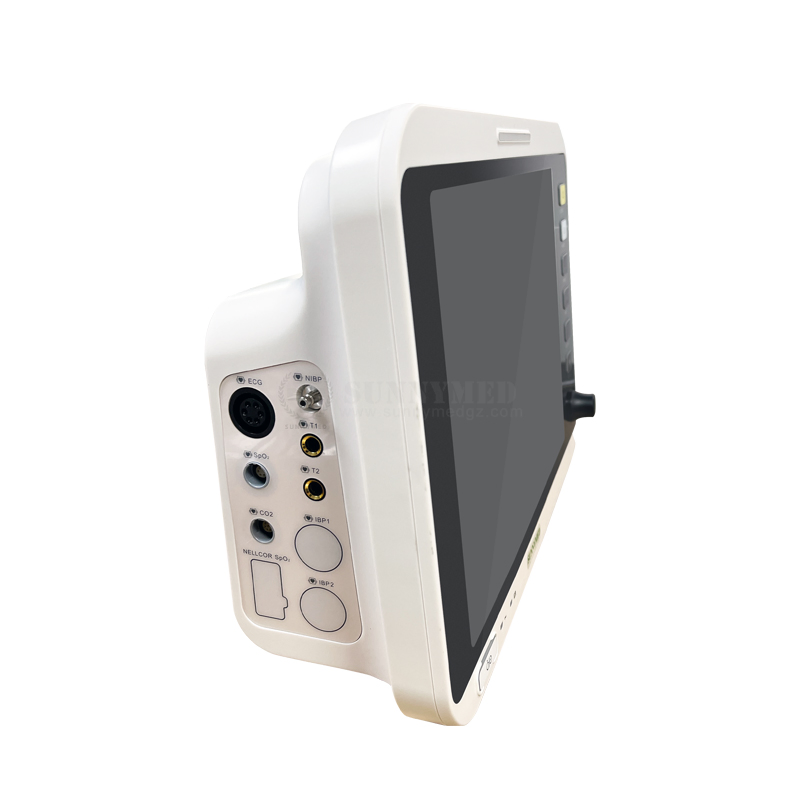

Sy-C005V-1 Good Price Medical Veterinary Instrument Animal Cardiac Patient Monitor
Sy-C005V-1 Good Price Medical Veterinary Instrument Animal Cardiac Patient Monitor
Sy-C005V-1 Good Price Medical Veterinary Instrument Animal Cardiac Patient Monitor
Sy-C005V-1 Good Price Medical Veterinary Instrument Animal Cardiac Patient Monitor
Sy-C005V-1 Good Price Medical Veterinary Instrument Animal Cardiac Patient Monitor
1 / 5
Sy-C005V-1 Good Price Medical Veterinary Instrument Animal Cardiac Patient Monitor
Sy-C005V-1 Good Price Medical Veterinary Instrument Animal Cardiac Patient Monitor
Sy-C005V-1 Good Price Medical Veterinary Instrument Animal Cardiac Patient Monitor
Sy-C005V-1 Good Price Medical Veterinary Instrument Animal Cardiac Patient Monitor
Sy-C005V-1 Good Price Medical Veterinary Instrument Animal Cardiac Patient Monitor

Sy-C005V-1 Good Price Medical Veterinary Instrument Animal Cardiac Patient Monitor

Customization: Available
Classification: Imaging Diagnostic Equipment
Certification: CE
Send Inquiry

Product Description

i Basic Information
Model NO.
SY-C005V-1
Monitor Size
12.1 Inch
Standard Parameters
SpO2, NIBP, Resp, ECG, Temp, Pr
Optional Parameters
Etco2, IBP, Bis, Co etc
Usage
Bedside / ICU
Power Supply
Li-Battery
Production Capacity
200 Set/Month
Origin
China

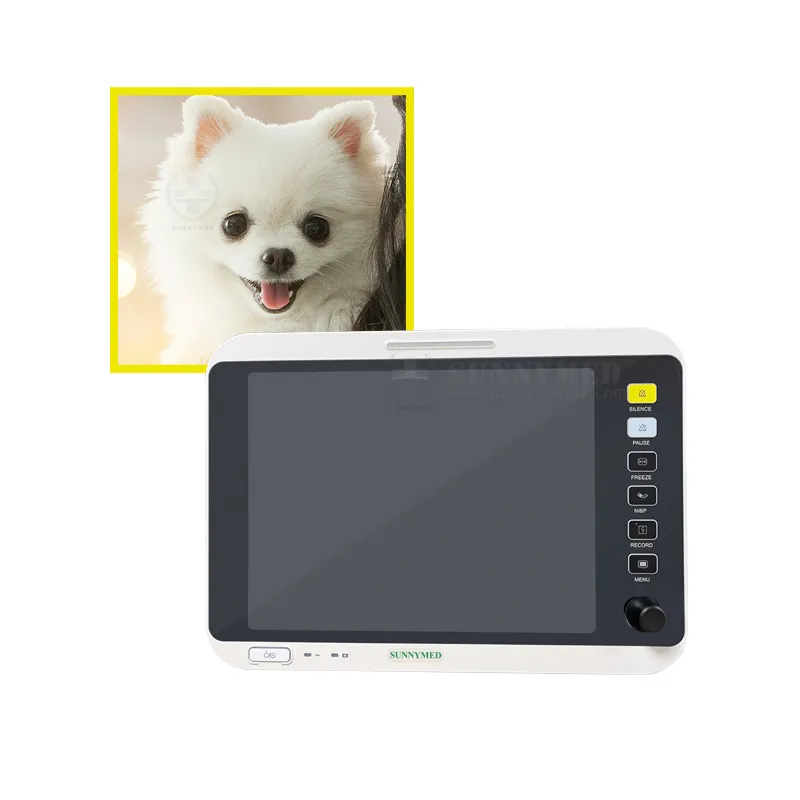

SY-C005V-1 Veterinary Patient Monitor
★ Product Description

SY-C005V-1 Medical Veterinary Patient Monitor

✔ 12.1-inch high-resolution color TFT LCD display.
✔ Thinner and lighter design, convenient and portable for users.
✔ Real-time S-T segment analysis and pacemaker detection.
✔ Various interfaces: standard screen, trend screen, oxy CRG, big front screen.
✔ 3-level audio/visual alarms with efficient interference resistance.
✔ Data storage: 400 groups NIBP, 6000s ECG waveform, 60 alarm events, 7-day trend chart.
✔ Built-in rechargeable lithium battery with 2-hour endurance.
📋 Technical Specifications
ECG NIBP
Input 3/5 wire ECG cable Test method Oscillometer
Gain selection *0.25, *0.5, *1, *2, Auto Measurement type Systolic, Diastolic, Mean
Heart rate range 15-300bpm Accuracy ±2% or ±2mmHg
SPO2 Temperature (2-Channel)
Measurement range 0-100% Range 0-50ºC
Accuracy ±2% (70%-100%) Accuracy ±0.1ºC
Respiration (Impedance & Nasal Tube)
Measurement range 0-150rpm
Accuracy ±1rpm or ±5%

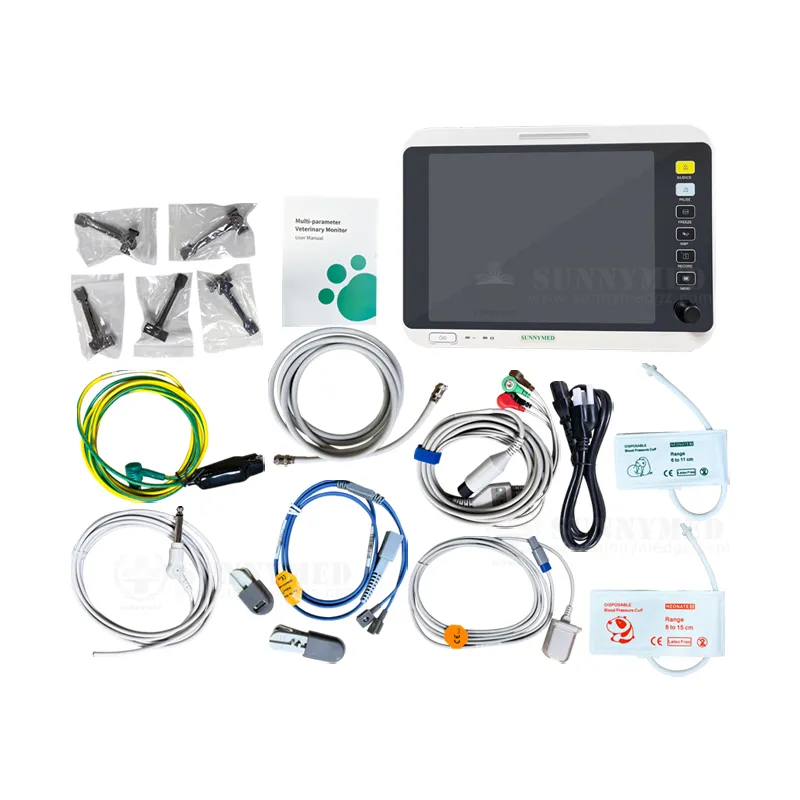

✚ Standard & Optional Accessories

Standard Accessories:

  • NIBP cuff & tube
  • ECG cable & electrodes
  • SpO2 sensor
  • TEMP probe
  • Lithium-ion battery
  • Power cable

Optional Accessories:

  • IBP / CO2
  • Nellcor SpO2
  • Internal Printer
📷 Detailed Photos

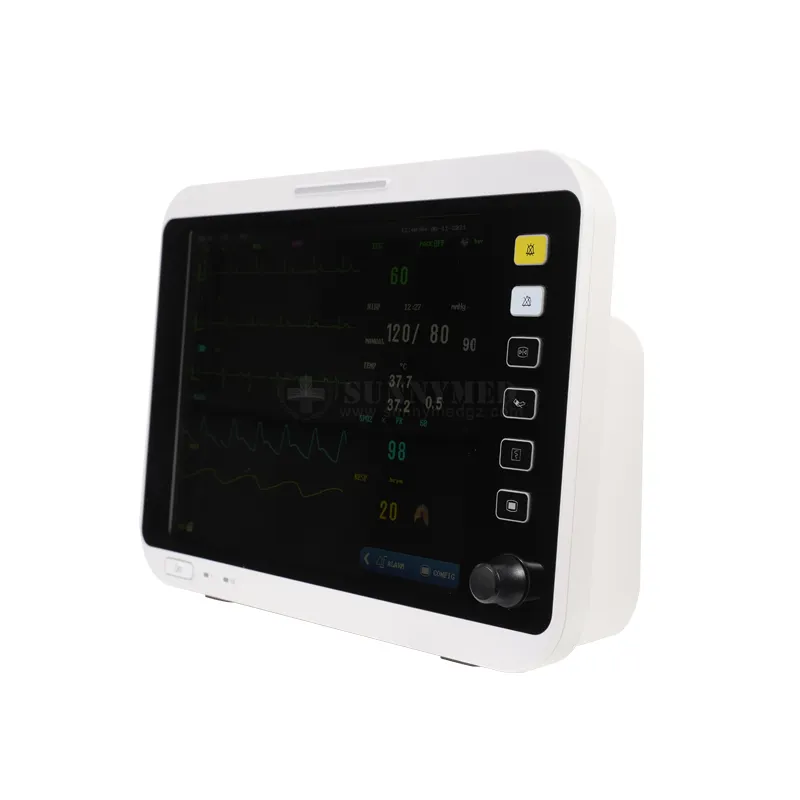

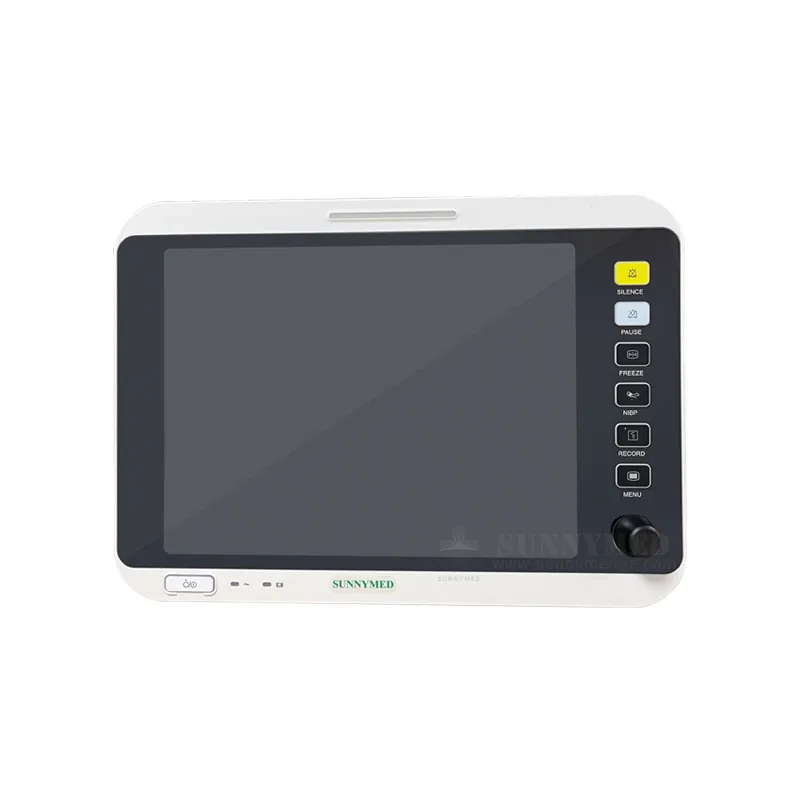

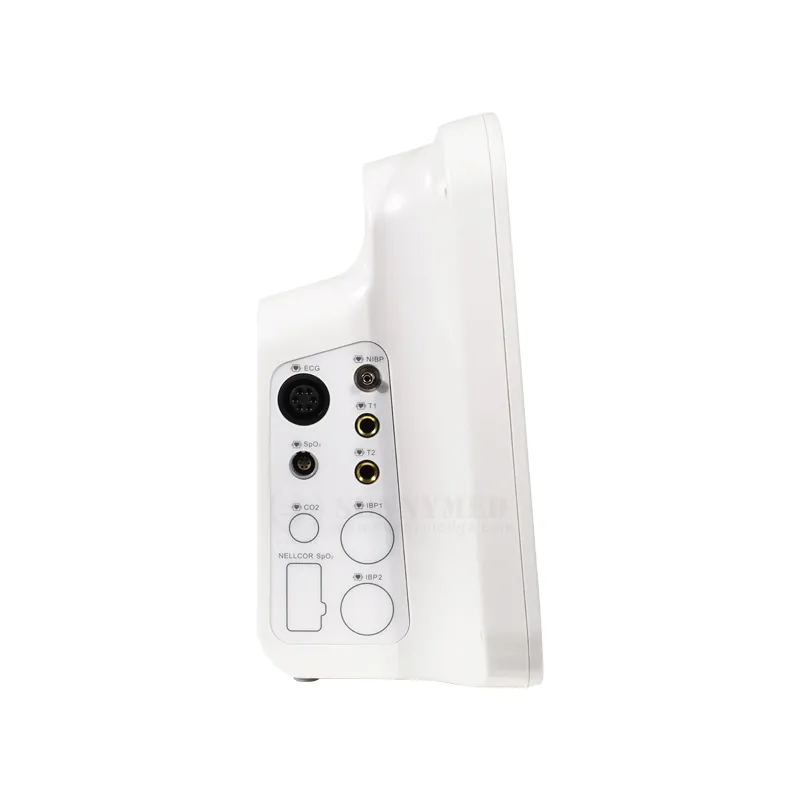

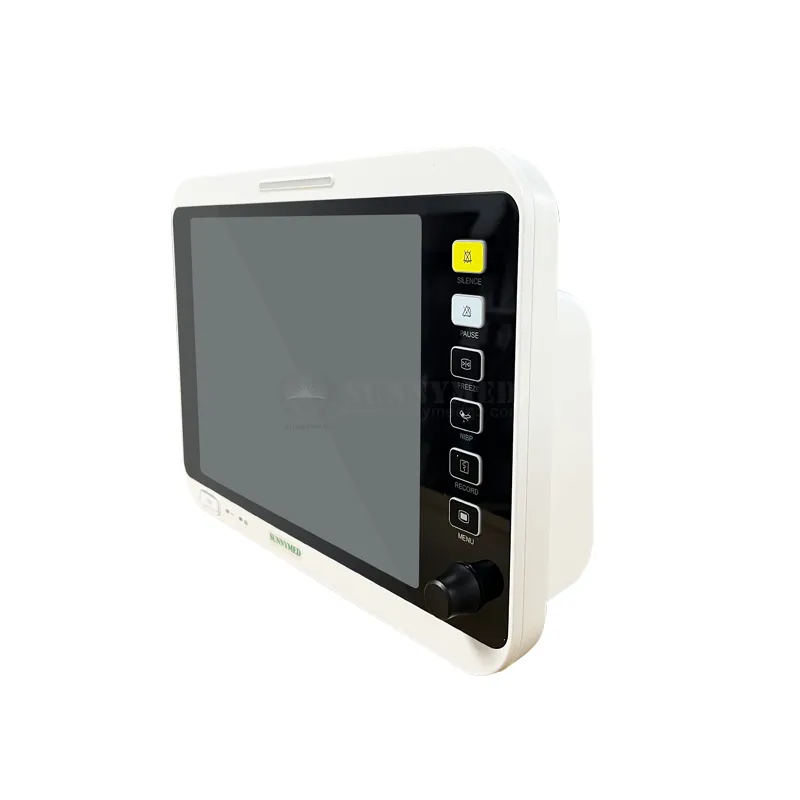

Veterinary Monitor Detail 1 Veterinary Monitor Detail 2 Veterinary Monitor Detail 3 Veterinary Monitor Detail 4 Veterinary Monitor Detail 5 Veterinary Monitor Detail 6
🏢 Overview & Quality Control
Profile 1 Profile 2 Profile 3 Profile 4 Profile 5
Frequently Asked Questions
Q1: What is the screen size and display type? A1: The monitor features a 12.1-inch high-resolution color TFT LCD display for clear viewing of vital signs.
Q2: Which vital parameters are monitored as standard? A2: Standard parameters include SpO2, NIBP, Respiration, ECG, Temperature, and Pulse Rate (PR).
Q3: Does the monitor support rechargeable battery use? A3: Yes, it comes with a built-in rechargeable lithium battery that provides approximately 2 hours of working time.
Q4: Can this monitor be used for critical care in veterinary clinics? A4: Absolutely. It is designed for Bedside and ICU usage, providing real-time S-T segment analysis and 3-level audio/visual alarms.
Q5: Is it possible to upgrade with CO2 or IBP parameters? A5: Yes, Etco2, IBP, BIS, and Cardiac Output (CO) are available as optional parameters to suit specialized medical needs.
Q6: How much data can the device store for recall? A6: The device can store up to 400 groups of NIBP lists, 6000 seconds of ECG waveforms, and 7 days of trend charts.
