8-Inch Multi-Display Mode Vital Veterinary ECG Vet Patient Monitor for Vet Hospital Clinc

1 / 4

8-Inch Multi-Display Mode Vital Veterinary ECG Vet Patient Monitor for Vet Hospital Clinc

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

Basic Specifications

Model NO.:F4

Certification:CE, FDA

Group:Vet

Screen:8 Inch

Dimension:175mm*210mm*80mm

Weight:1.35kg

Working Time:5.5 Hours

Transport Package:Wooden Export Package

Specification:CE, ISO

Origin:China

HS Code:9018193010

Production Capacity:500 Sets/Month

Product Description

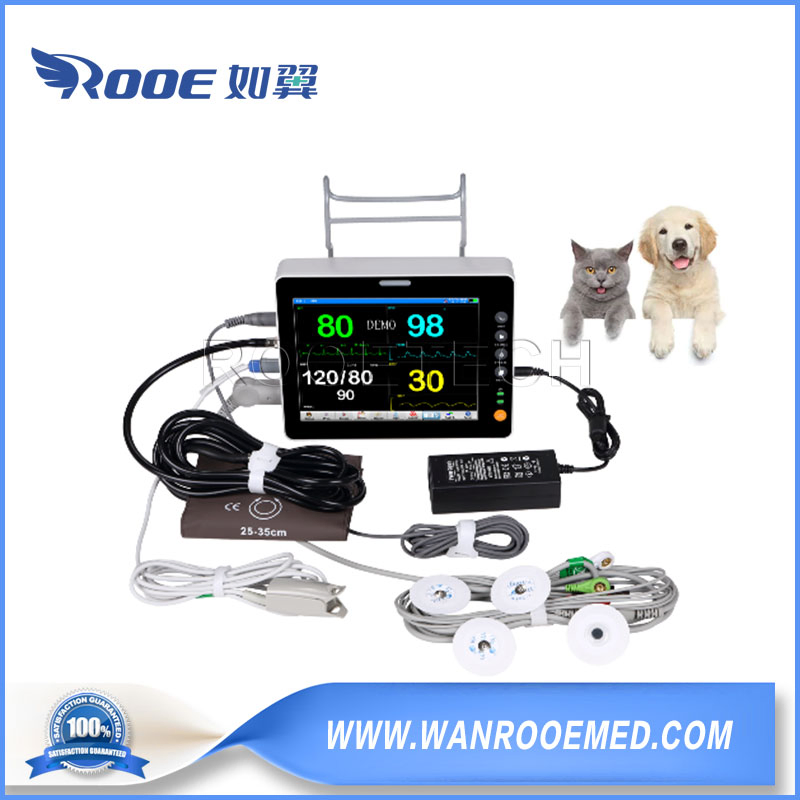

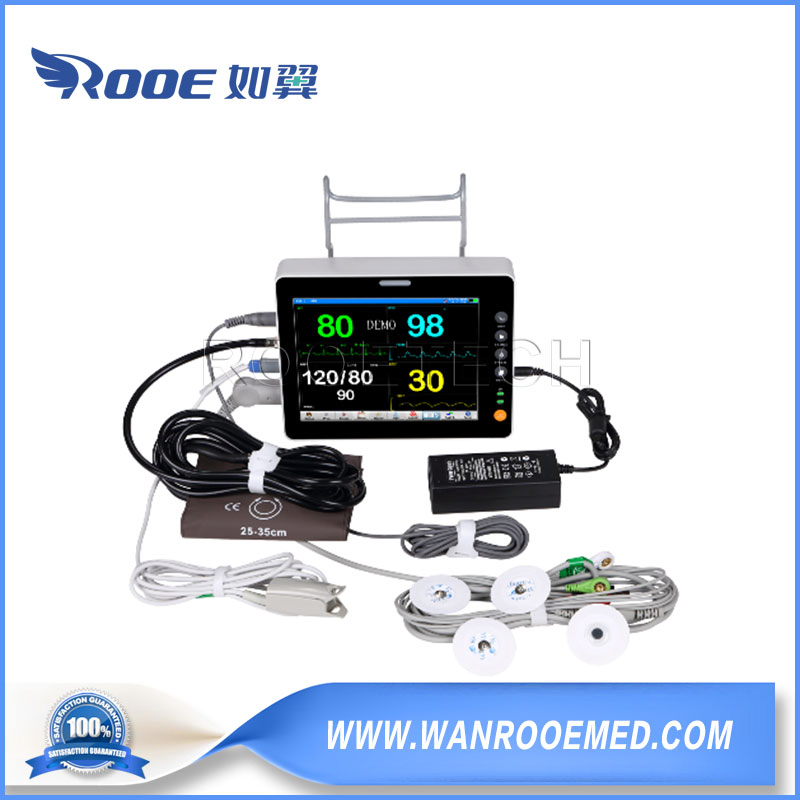

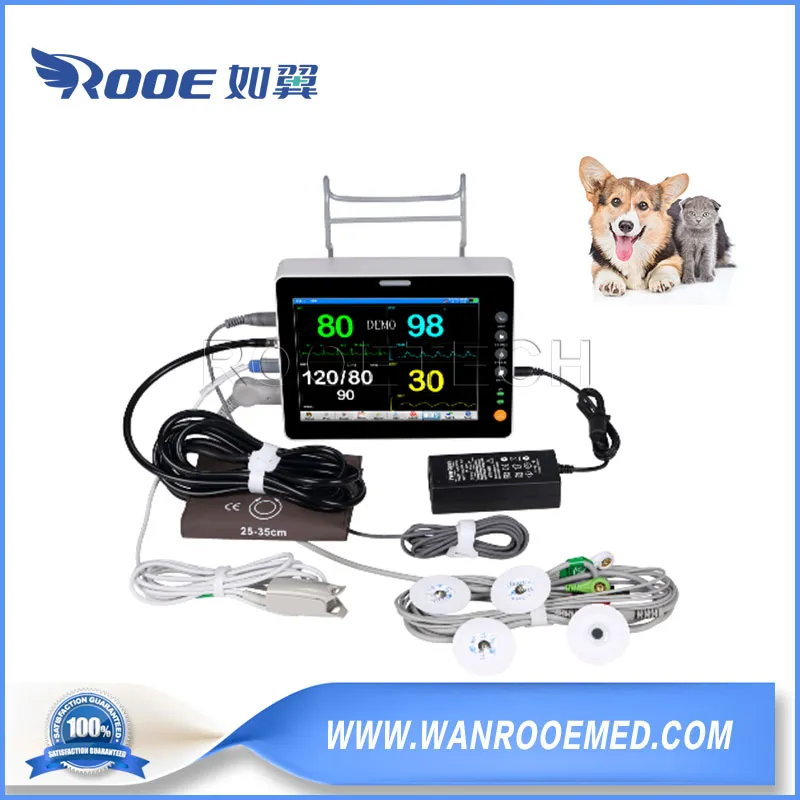

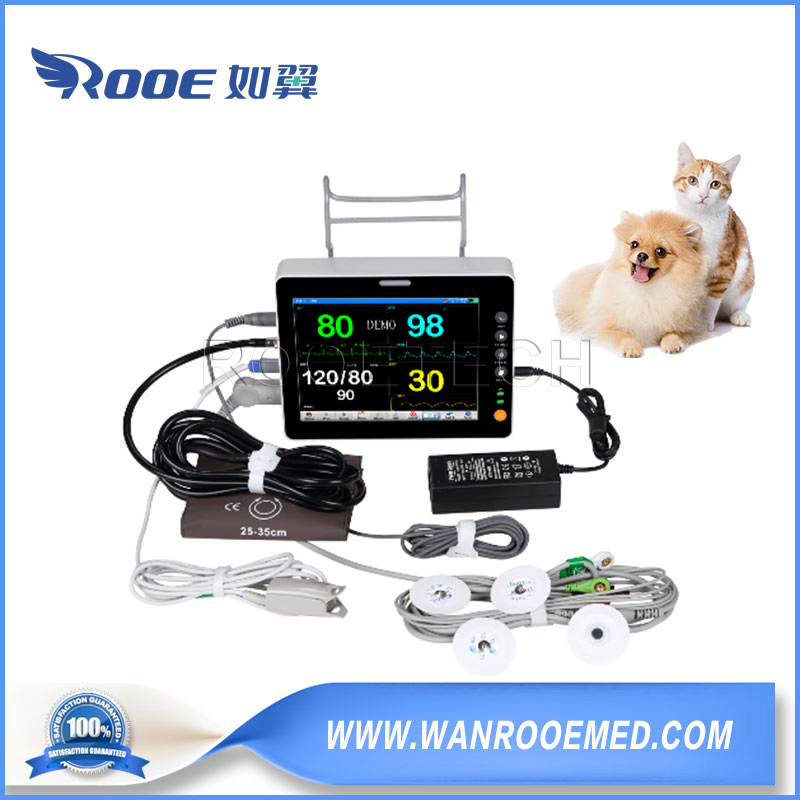

8-Inch Multi-display Mode Vital Veterinary ECG Vet Patient Monitor for Vet Hospital Clinic

Body & Display

8.0 inch high-brightness TFT LED
Support display maximum 8 waveforms
Support 6 channel ECG waveform display simultaneously

Storage Capabilities

Support storage of 168 hours trend table and graph review
100 minutes waveform review
500 groups NIBP review
100 hours of parameter alarm events review and associated parameters

Advanced Alarm System

Three-level acousto-optic alarm
Sensor-off and Paper out alarm
Support alarm review and alarm pause

Operating System

Multi-display mode: standard interface, big font, OxyCRG, trend graph, NIBP review and full leads ECG interface
NIBP self-test mode: overpressure, static pressure, and air leakage tests
15 types of Arrhythmia analysis, real-time S-T segment analysis, and pacemaker detection
Drug calculation and titration table
Support multi-language display and online software upgrading

Interface & Sockets

ECG / SPO2 / NIBP
TEMP 1 & TEMP 2
Mainstream / Sidestream EtCO2

Technical Parameters

Parameter	Details
Dimension	175mm210mm80mm
Weight	1.35kg (excluding accessories)
Power Supply	Adapter: Output 13-20V DC, 5A; AC100~240V, 50/60HZ
Lithium Battery	14.8V/2200mAh (≥500 Charge Cycles)
Working Time	5.5 hours
Standard Config	8 inch LED, 3/5 Lead ECG, NIBP, SpO2, Pulse Rate, Temperature, Respiration
Optional Config	EtCO2 (Mainstream/Sidestream/Microstream)

Frequently Asked Questions

Q1: What is the battery life of the F4 Veterinary Monitor? A: The device is equipped with a 2200mAh lithium battery that supports up to 5.5 hours of continuous working time.

Q2: Can the monitor display multiple ECG waveforms? A: Yes, it supports the simultaneous display of up to 6 channel ECG waveforms on its 8-inch high-brightness screen.

Q3: Does the monitor support EtCO2 monitoring? A: EtCO2 monitoring (Mainstream, Sidestream, or Microstream) is available as an optional configuration.

Q4: What data storage capabilities does the device have? A: It can store 168 hours of trend tables/graphs, 100 minutes of waveform review, and 500 groups of NIBP data.

Q5: Is the device portable for clinic use? A: Absolutely. It weighs only 1.35kg and has a compact dimension of 175mm*210mm*80mm, making it highly portable.

Q6: What display modes are available? A: It offers various modes including Standard Interface, Big Font, OxyCRG, Trend Graph, NIBP Review, and Full Leads ECG interface.
