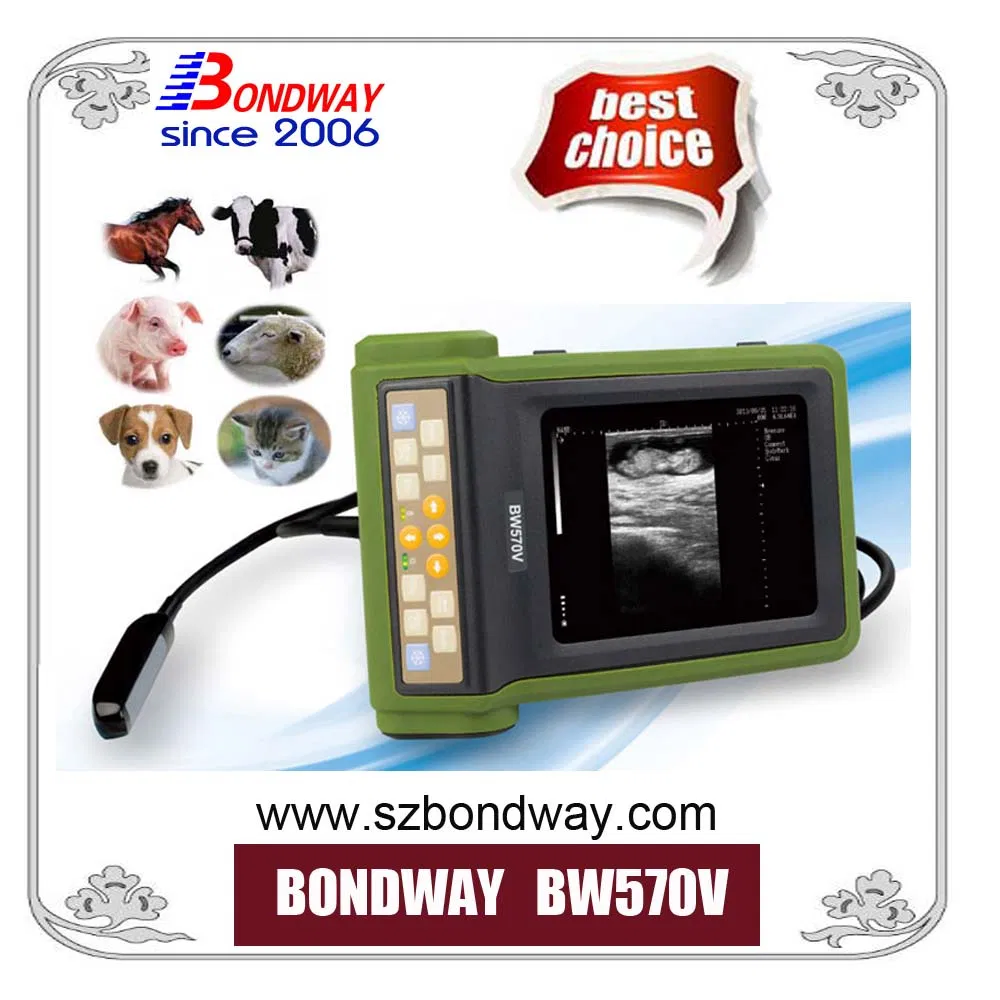

Bondway Bw570V Medical Supply Veterinary Ultrasound Scanner Vet Reproduction Ultrasonic Imaging System
Bondway Bw570V Medical Supply Veterinary Ultrasound Scanner Vet Reproduction Ultrasonic Imaging System
Bondway Bw570V Medical Supply Veterinary Ultrasound Scanner Vet Reproduction Ultrasonic Imaging System
Bondway Bw570V Medical Supply Veterinary Ultrasound Scanner Vet Reproduction Ultrasonic Imaging System
Bondway Bw570V Medical Supply Veterinary Ultrasound Scanner Vet Reproduction Ultrasonic Imaging System
1 / 5
Bondway Bw570V Medical Supply Veterinary Ultrasound Scanner Vet Reproduction Ultrasonic Imaging System
Bondway Bw570V Medical Supply Veterinary Ultrasound Scanner Vet Reproduction Ultrasonic Imaging System
Bondway Bw570V Medical Supply Veterinary Ultrasound Scanner Vet Reproduction Ultrasonic Imaging System
Bondway Bw570V Medical Supply Veterinary Ultrasound Scanner Vet Reproduction Ultrasonic Imaging System
Bondway Bw570V Medical Supply Veterinary Ultrasound Scanner Vet Reproduction Ultrasonic Imaging System

Bondway Bw570V Medical Supply Veterinary Ultrasound Scanner Vet Reproduction Ultrasonic Imaging System

Customization: Available
Type: Veterinary Ultrasound
Brandname: Bondway
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
BW570V
Description
Handheld Digital Veterinary Ultrasound Scanner
LED Display
5.7 Inch High Resolution
Sunshade
3-Level Sunvisor for Outdoor Reading
Power Source
AC & Rechargeable Lithium Battery
Net Weight
1.1kg
Case
Rugged Handcarry Case
Warranty
18 Months
Maintenance
Lifelong Maintenance Service
Capacity
10,000 PCS Per Year
Dimensions
212mm*154mm*58mm
HS Code
90181210
★

DIGITAL Portable Veterinary Ultrasound Scanner

BW570V is one of the best-selling veterinary ultrasounds. It has been exported to over 110 countries and is highly popular in regions like North America, Europe, and Australia. This machine is particularly specialized for reproduction imaging of large animals like equine and bovine.
Veterinary Ultrasound Scanner
Vet Reproduction Imaging
Ultrasound Imaging System
⚙

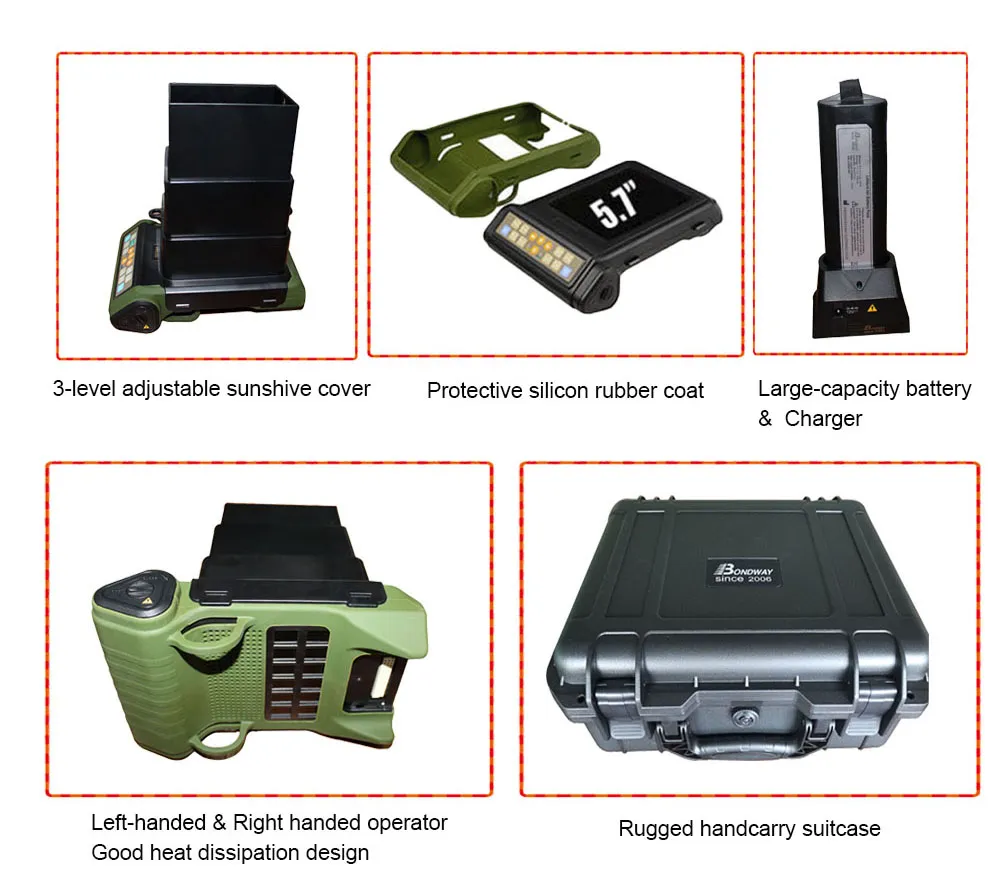

Standard Configuration

  • Main unit with 5.7-inch LED display (high contrast, high brightness)
  • 4.0/5.0/6.5/7.5MHz transrectal linear probe
  • Internal rechargeable lithium battery (360-minute operation)
  • Charger and Power adapter
  • Sunshine Cover
  • Black plastic suitcase
  • Operation Manual
  • Protective silicon coat
Probe and Display
Device Components
✚

Applications & Benefits

Primary Applications

  • Pregnancy diagnosis for Equine, Swine, Bovine, Ovine, Canine, Feline
  • Diagnosis of animals' uteri and fetus condition
  • Automatic backfat and lean percentage calculation

Key Benefits

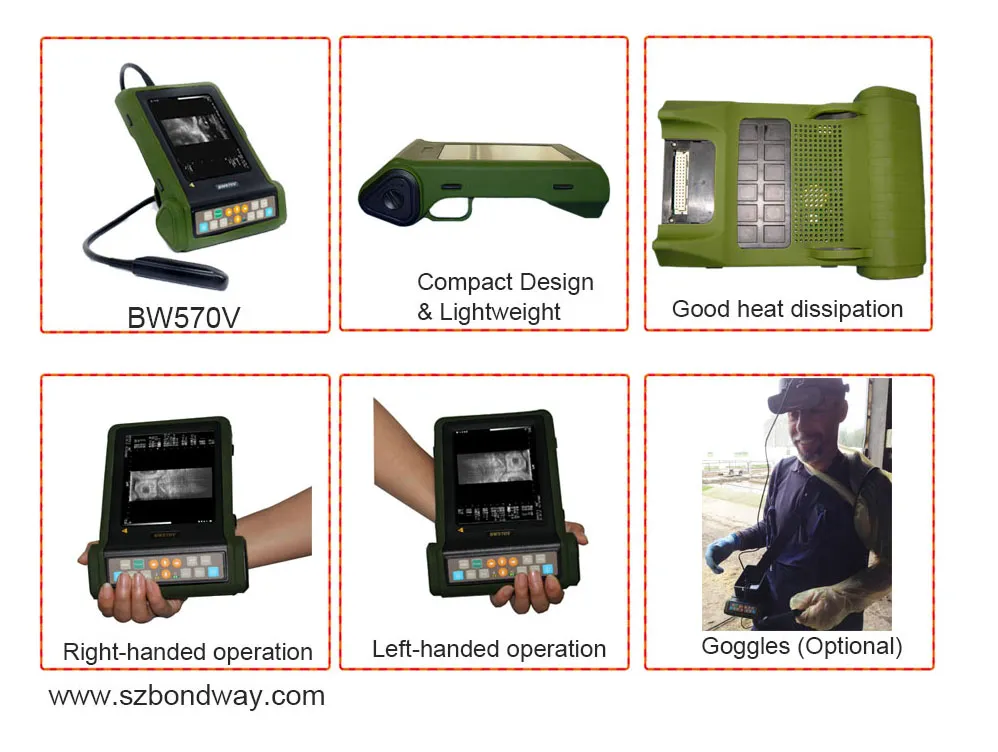

  • Compact design: only 1.1kg
  • Splash-proof and dust-proof soft rubber coat
  • Multiple carrying methods: hand-held, chest hanging, waist hanging
  • 6-hour battery life (5200mAh)
  • One-key USB archiving and software upgrades
Clinical Application
Diagnostic Benefits
📊

Technical Parameters

01Display: 5.7" high resolution LED, wide viewing angle
02Body Marks: 27 kinds (Bovine, Canine, Equine, Feline, Cardio, Swine, etc.)
03Display Modes: B, 2B, 4B, B/M, M
04Gain/Contrast: 0-127dB / 27-90dB
05Magnification: 8 steps (0.8 to 3.0)
06Storage: 100-image permanent storage, 256-frame cineloop
07Measurements: Distance, area, volume, heart rate, EDD/GA for multiple species
08Grid: 6 types of grid measurements for accurate assessment
Technical Interface
Imaging Performance
Device Portability
?

Frequently Asked Questions

Which animals can the BW570V be used for?
It is designed for pregnancy diagnosis and reproductive imaging in Equine, Swine, Bovine, Ovine, Canine, Feline, and even Llamas.
How long does the battery last on a single charge?
The built-in high-capacity 5200mAh lithium battery supports up to 360 minutes (6 hours) of continuous operation.
Is the screen visible during outdoor use?
Yes, it features a 5.7-inch high-brightness, high-contrast LED display and includes a 3-level sunshine cover specifically for outdoor visibility.
What is the weight and portability of the device?
The unit is extremely light, weighing only 1.1kg. It offers multiple holding methods including hand-held, chest hanging, and waist hanging to reduce operator fatigue.
Does the system support image storage and printing?
Yes, it has 100-image permanent storage and a USB port for archiving. It can also connect to a color laser printer to print images and reports directly.
What is the warranty period for the BW570V?
The product comes with an 18-month warranty and chargeable lifelong maintenance services.
