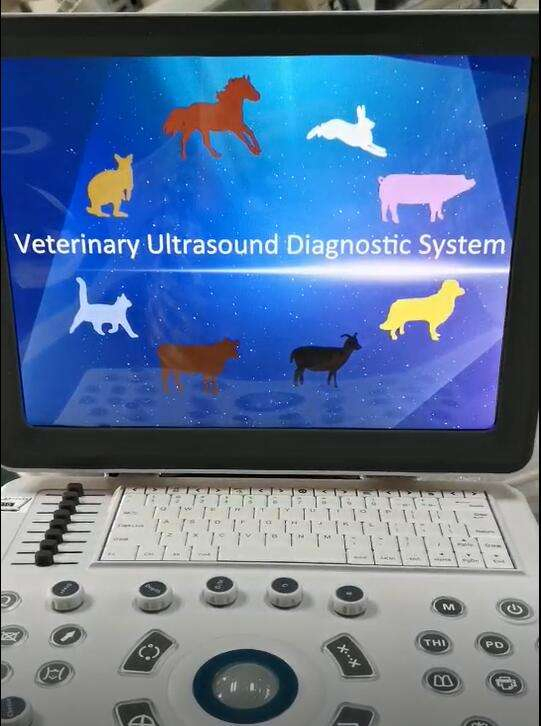

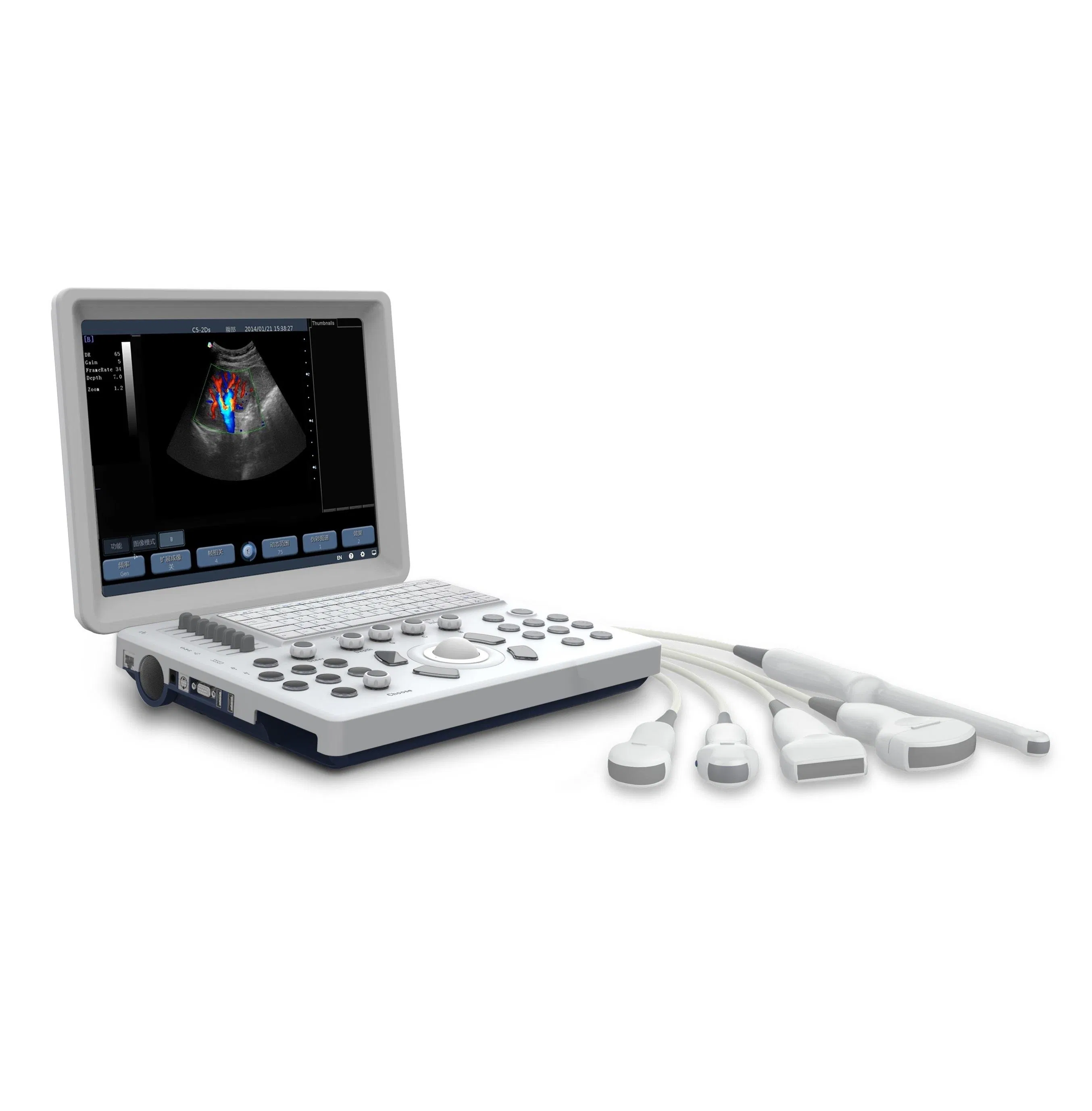

Veterinary Full Digital Color Doppler Ultrasound Diagnostic System

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: Ultrasound Scanner

Product Description

📋 Basic Specifications
Model
AM-400CV
Certification
CE, Class II
Power Source

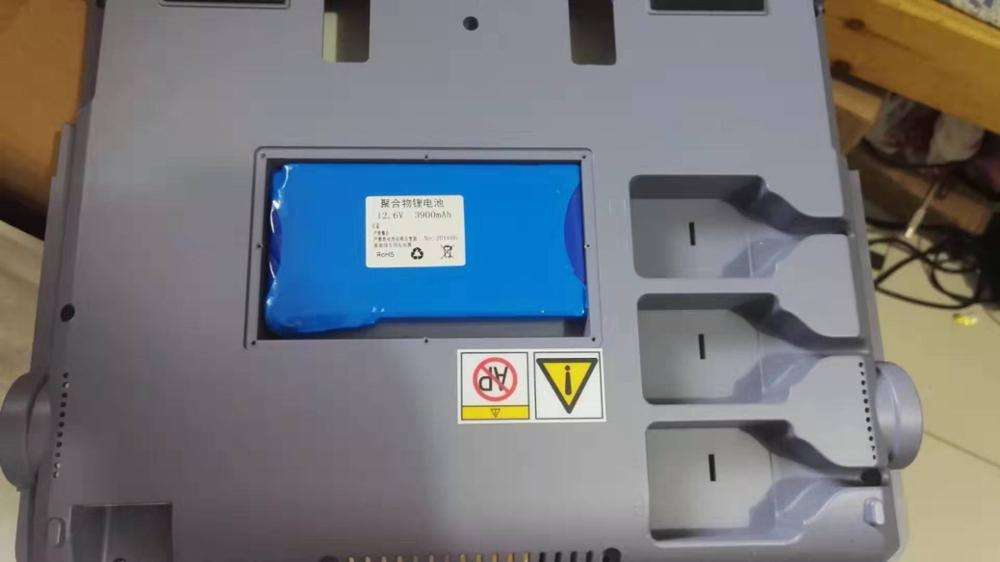

Electric (15600mA Lithium Battery)
Display
15 Inch LED Monitor
Storage
120g Memory / 1200 Frames Cine Loop
Display Mode
2B, 4B, M, B/M, B/C, B/D, B/C/D, PDI
Probe Elements
128 Elements
Material
Metal, Plastic, Steel
🔍 Product Description

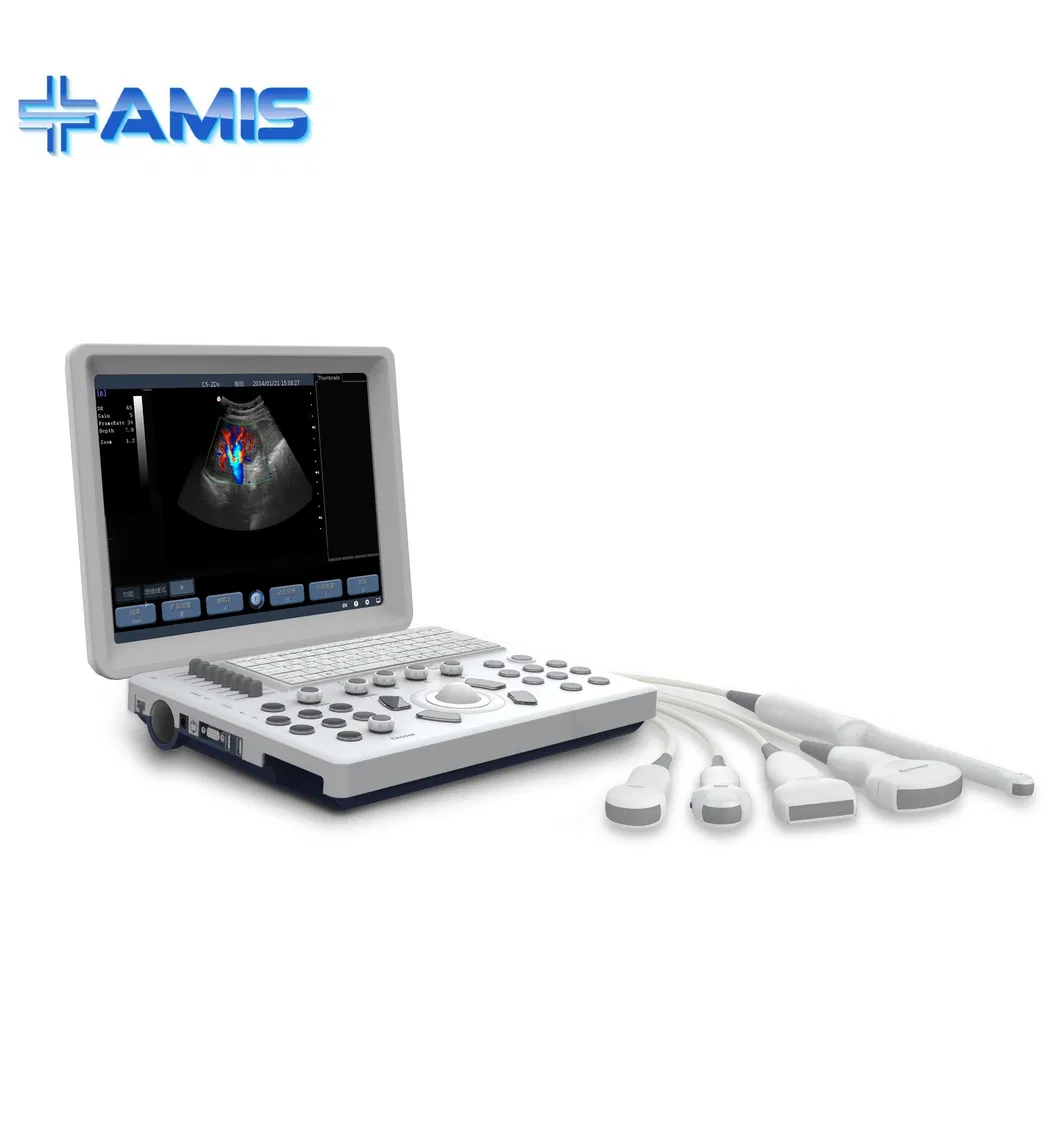

Full Digital Color Doppler Ultrasound System
Cost-Effective Color Doppler System
The AM-400C offers high-quality color Doppler imaging combined with ergonomic design, powerful data management, and ideal portability for various medical environments.
  • 15″ high-resolution LED display
  • Up to 120 minutes of battery life
  • One-key image optimization technology
  • Versatile port options: 2 USB, 1 HDMI, 1 S-Video out
  • Multiple measurement & calculation software packages
⚙️ Technical Parameters
Signal Processing Full-digital beam forming, dynamic filter, real-time receiving focusing, spectral processing, CFM processing, and dynamic aperture in all fields.
Image Processing THI, Smoothing function, Edge enhancement, One-key optimization, Wall filter adjustable, PRF adjustable, IZoom (Full screen), I-Image, Speckle Noise Reduction (Iclear).

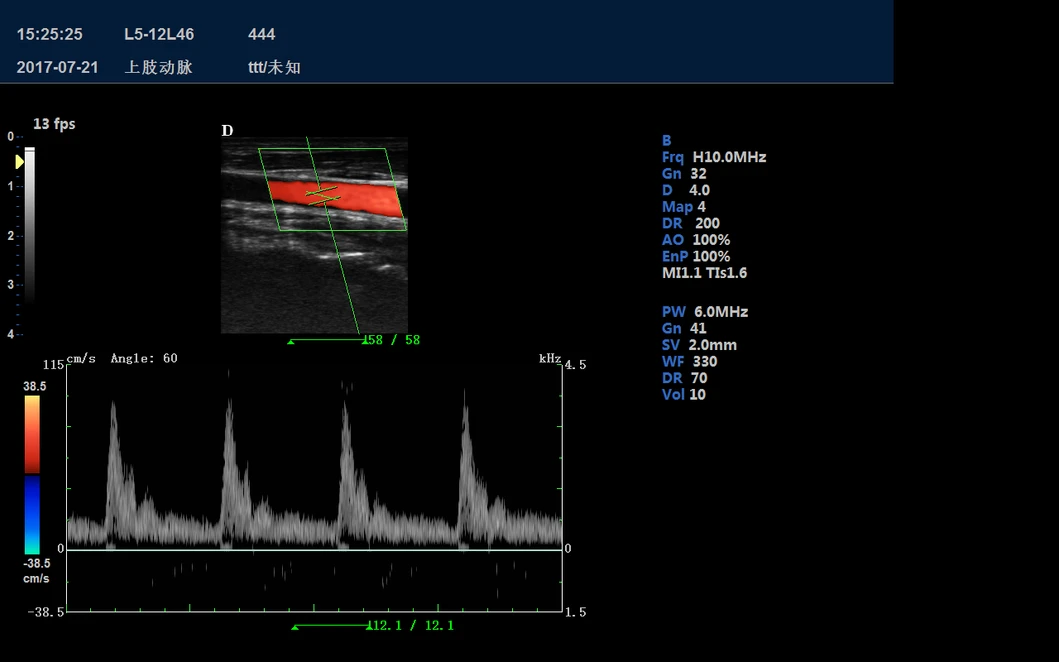

Measurement Packages ABD, OB, Pelvic, Urology, Cardiac, Small Parts, Vascular, MSK. Normal measurement includes Volume, Area Trace, Angle, MHR, D Trace, etc.

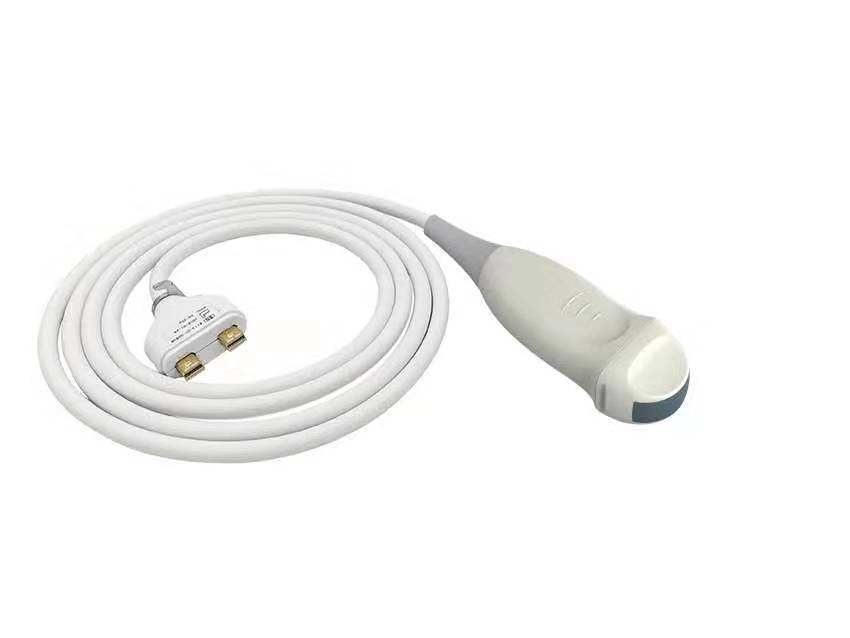

Standard Configuration Main unit, 15'' LED display, Convex probe (3.5MHz), Linear probe (7.5MHz), 2 Probe connectors, SSD Hard disk.
🧬 Probe Configuration

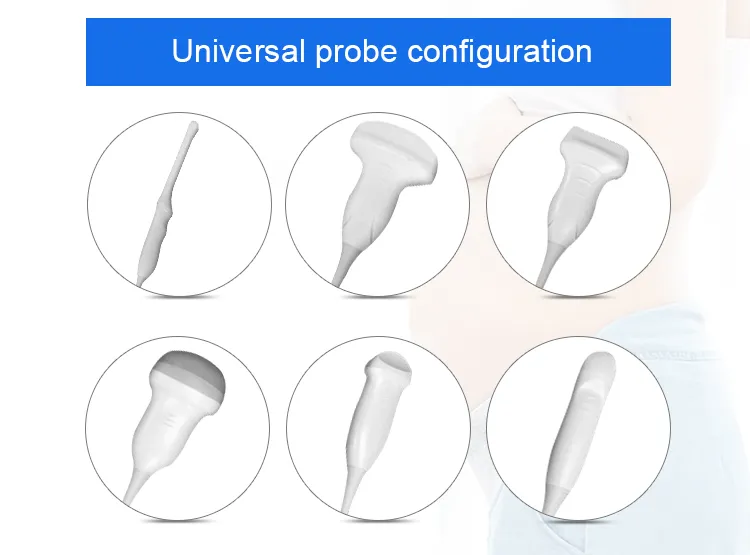

Ultrasound Probes
Optional Probes • 6.5MHz Trans-vaginal Probe
• 3.0MHz Phased Array Probe

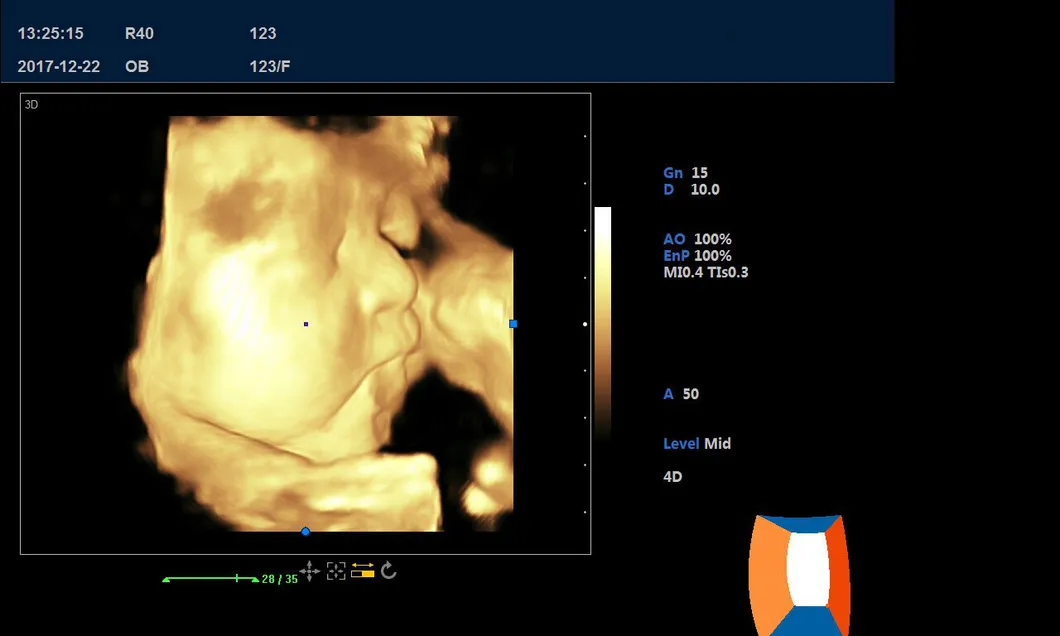

• 4D Volume Probe
• Micro-convex Probe (R11/R20)
🖼️ Clinical Applications

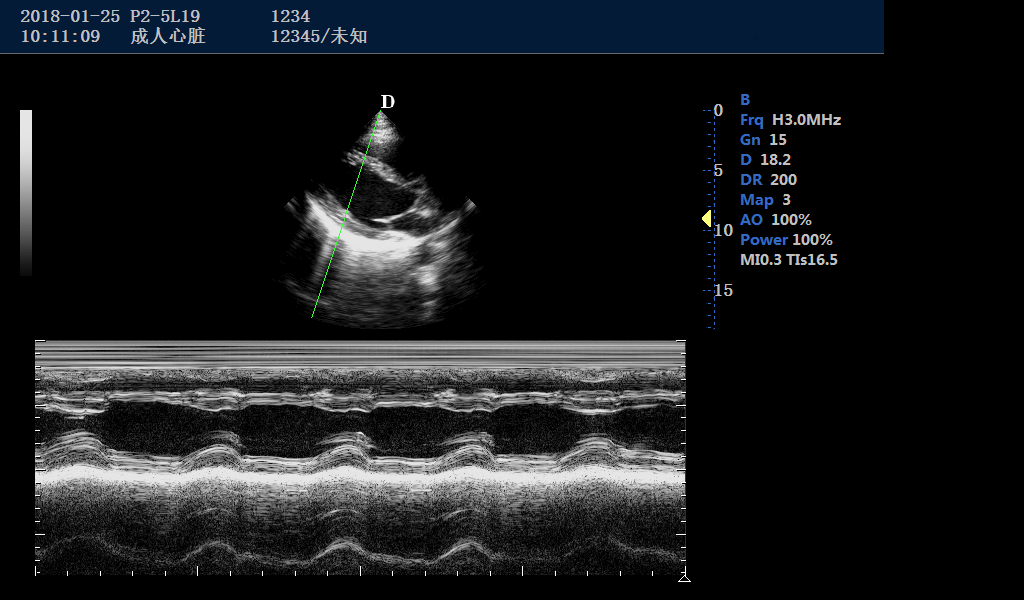

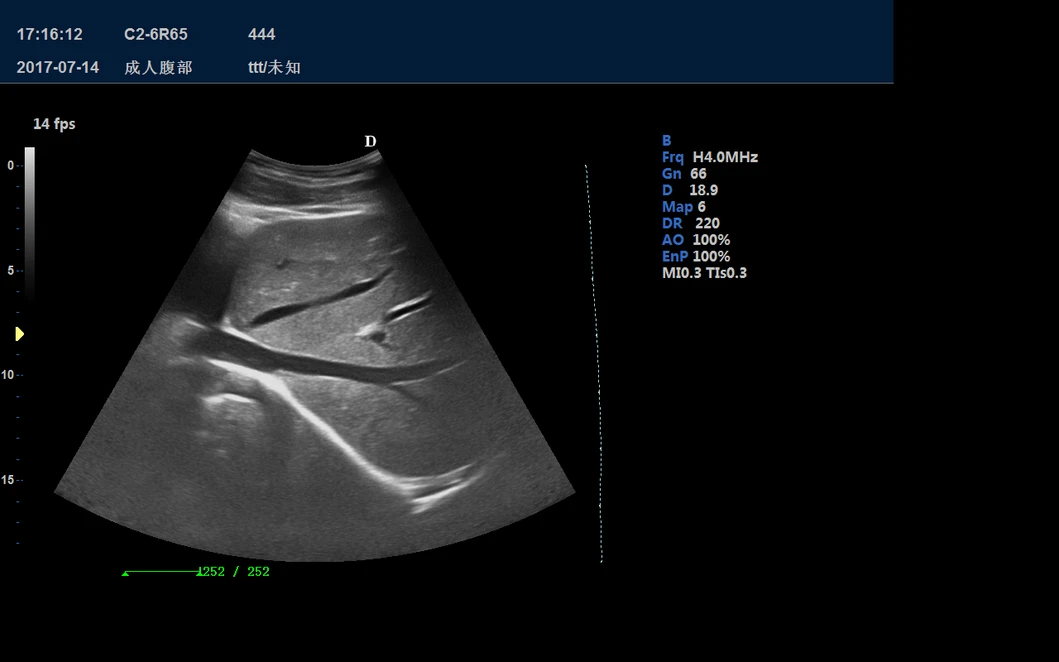

Scope of Application: Abdominal, Urology, OB&GYN, Paediatrics, Small Organs, Musculoskeletal, and Cardiology.
📦 Packing & Shipping
Packaging Details

Packing details: Elegant protective suitcase and standard export carton. Custom packaging solutions are available upon request to ensure safe transportation.

Frequently Asked Questions
Q1 What is the minimum order quantity (MOQ)?
The MOQ varies depending on the specific product selected. For this ultrasound system, please contact our sales team for detailed terms.
Q2 Can I customize the device with my own logo?
Yes, OEM services are available for most models. We can integrate your logo into the system or on the outer casing after consultation.
Q3 How long does the shipping and delivery take?
Once order and payment are confirmed, we typically process and ship within 5 working days. Total transit time depends on the shipping method and destination.
Q4 What kind of warranty do you provide?
We offer a standard 12-month warranty for the main unit. Accessories may have different warranty periods. Online technical support is also provided.
Q5 Is there any training provided for the equipment?
We provide online guides for installation and commissioning, as well as video tutorials for maintenance to help train your technical staff.
Q6 Are the products certified for international use?
Yes, the products are CE and ISO certified, ensuring they meet the required quality and safety standards for global medical healthcare industries.
