Product Description
Introduction

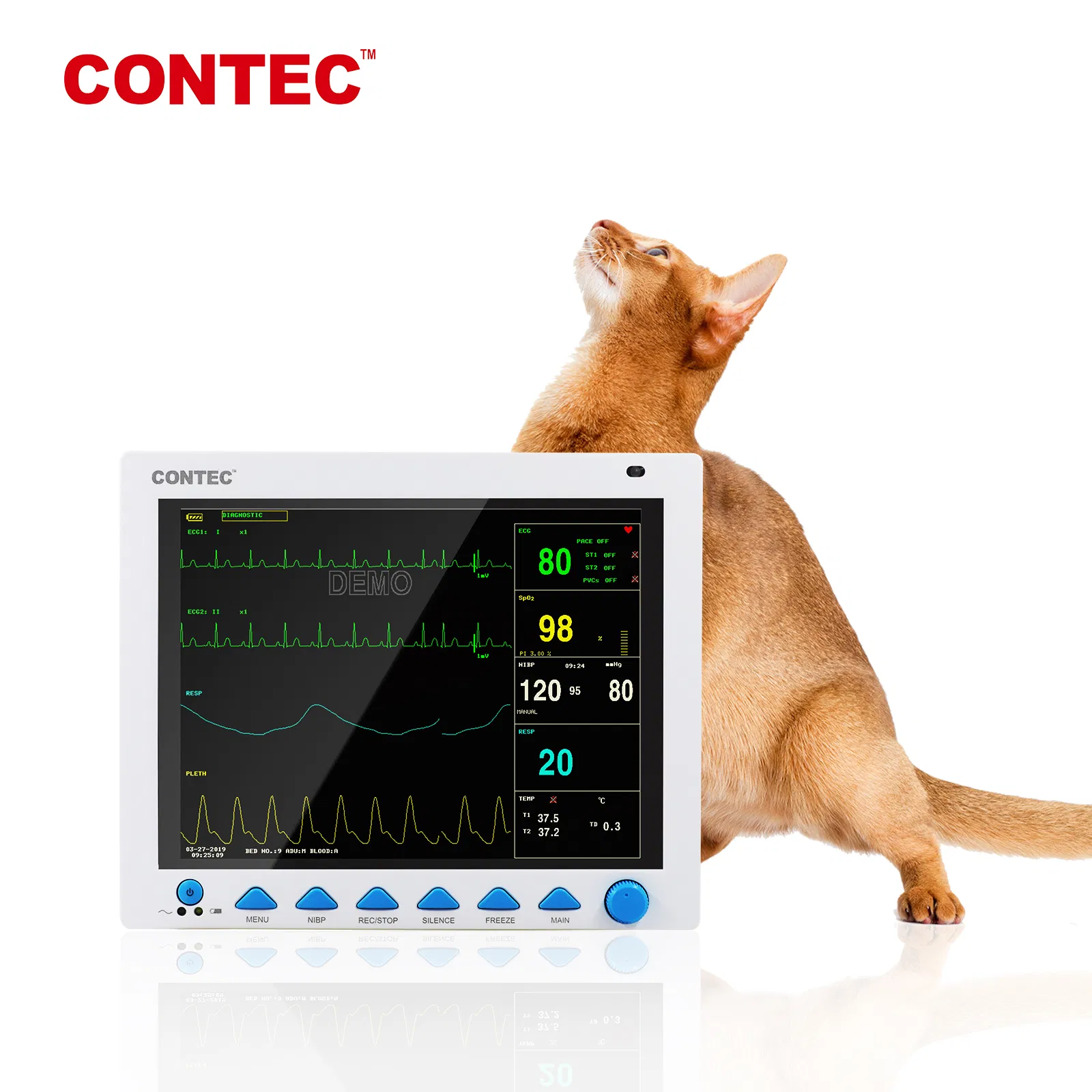

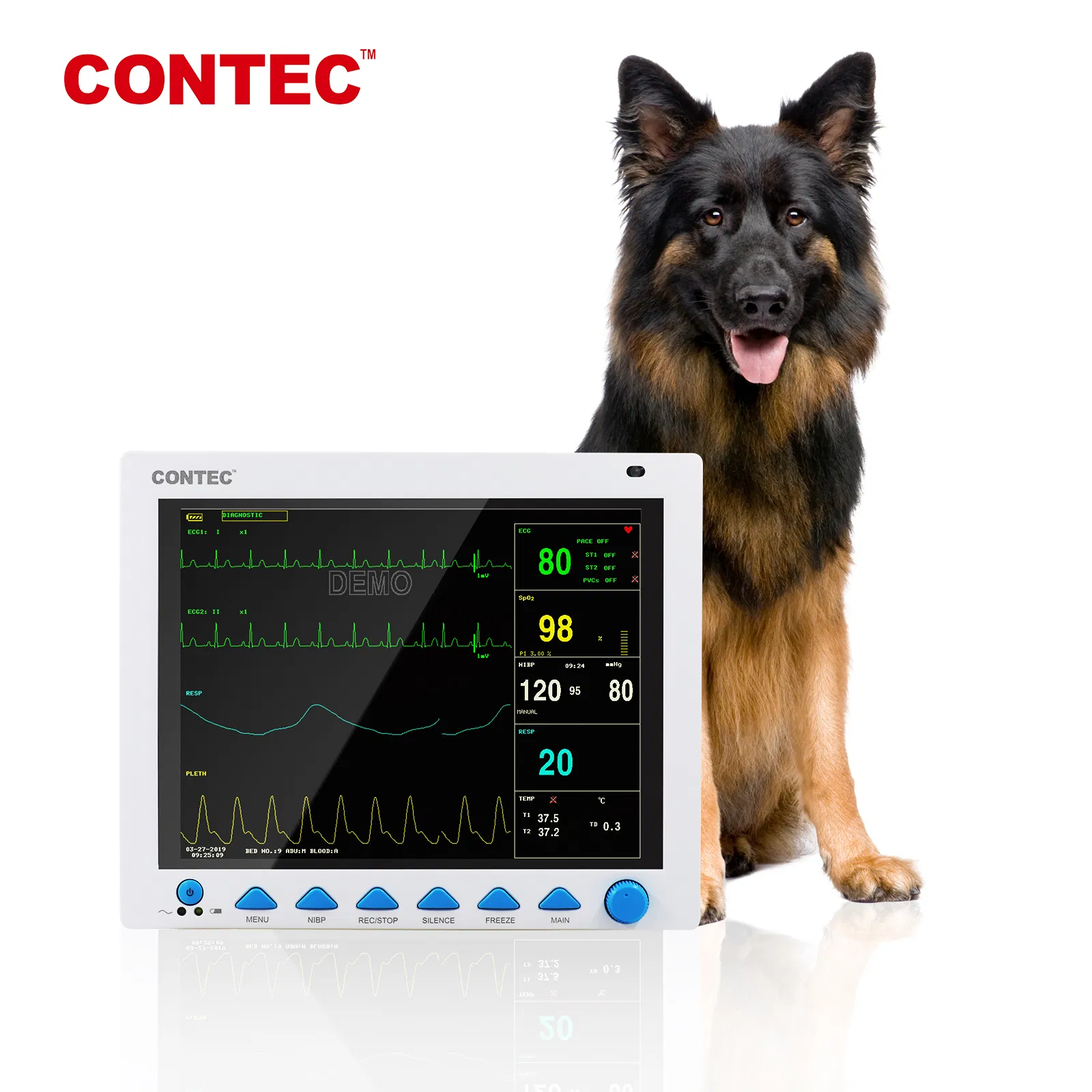

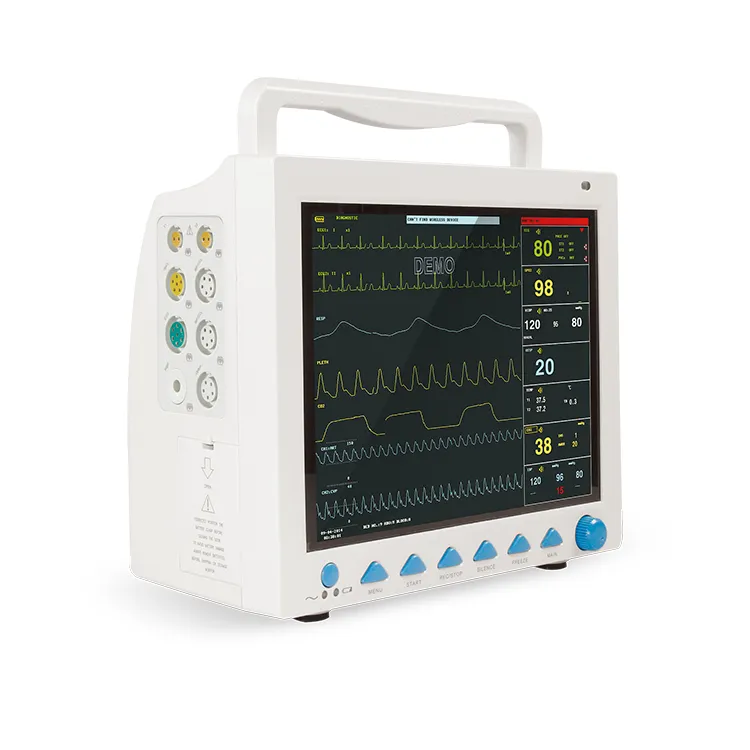

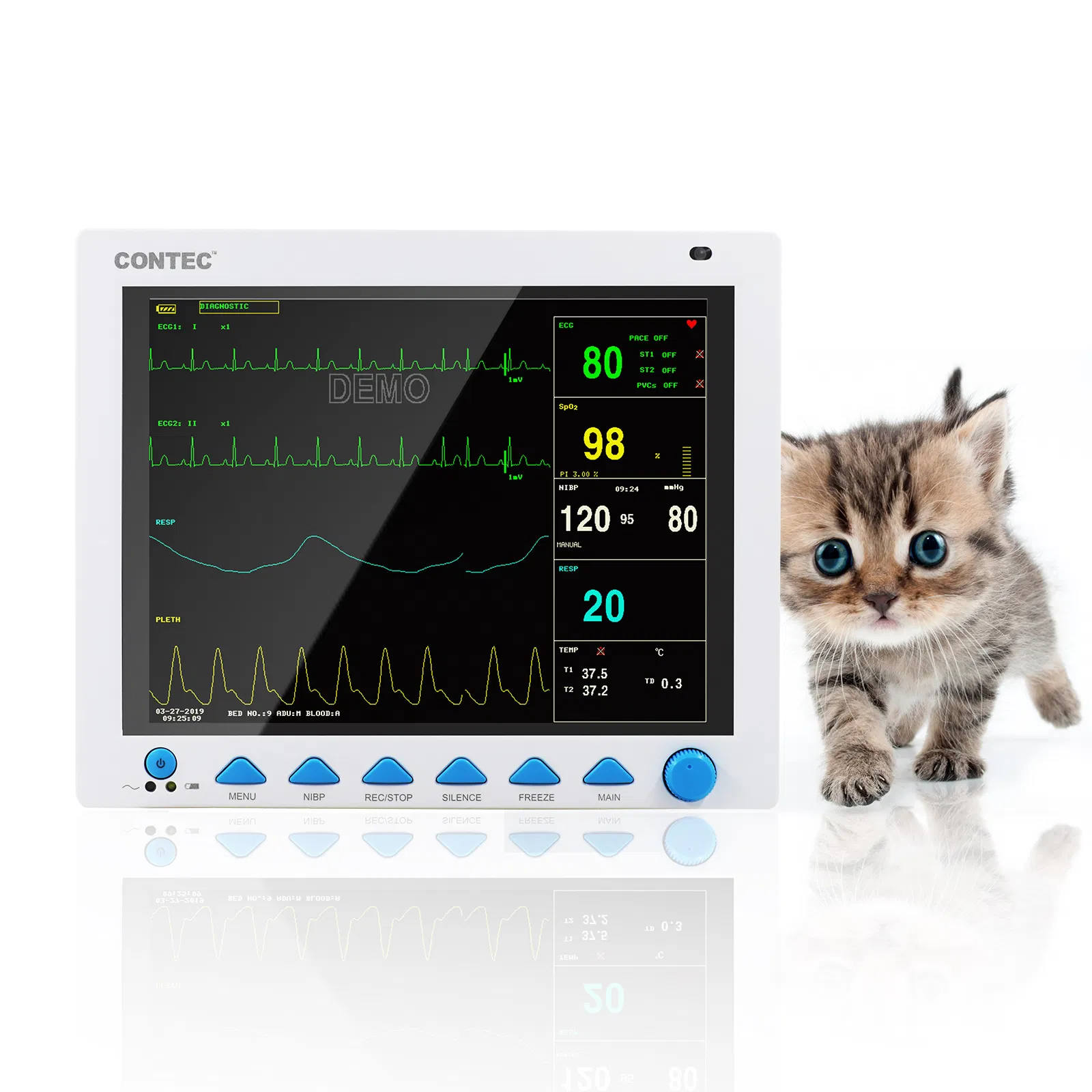

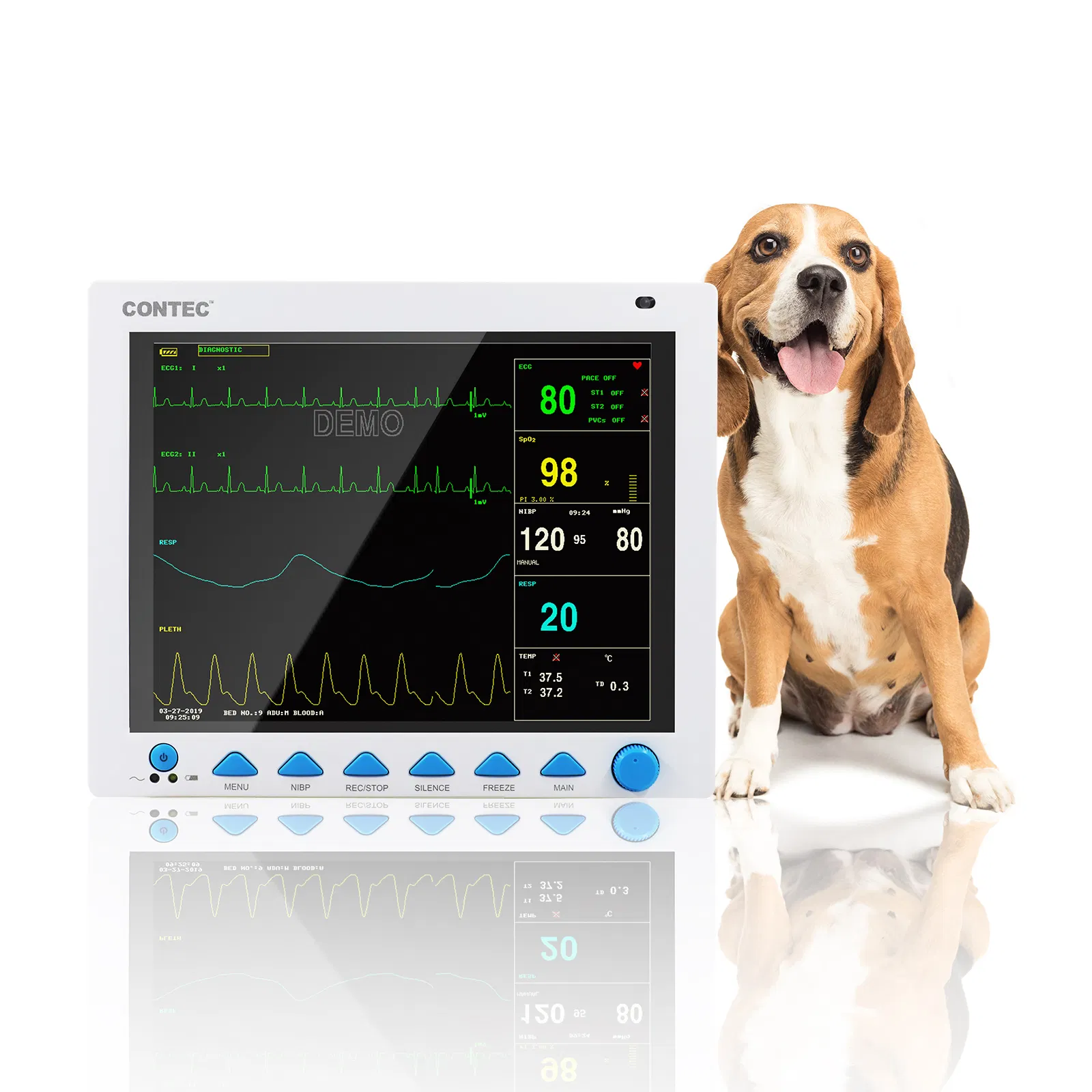

The CMS8000VET Veterinary Monitor has abundant monitoring functions and can be used for monitoring of cat, dog and other animals. It adopts 100-240V~, 50/60Hz for power supply, 12.1'' TFT color LCD for displaying real-time data and waveform, and up to 8-channel waveform and all monitoring parameters can be displayed simultaneously. It can be connected to the central monitoring system via wired/wireless network.
This device monitors parameters such as ECG, RESP, NIBP, SpO2 and dual-channel TEMP. It integrates measurement, display, and recorder into one compact and portable equipment with a built-in replaceable battery.
Standard Functions
- ECG: Heart rate (HR), ECG waveform, Arrhythmia and ST-segment analysis
- RESP: Respiration rate (RR), Respiration waveform
- SpO2: Oxygen saturation (SpO2), Plethysmogram (PLETH) waveform, Pulse rate (PR)
- NIBP: Systolic, Diastolic, and Mean pressure
- TEMP: Dual-channel monitoring (T1, T2, TD)
- Additional: Audible/visual alarms, trend data storage, drug concentration calculation
Key Features
- 12.1'' TFT color LCD with multi-language interface support
- Fanless design for quiet, energy-saving, and clean operation
- Standard interface with OxyCRG, trend charts, and big character display
- Digital SpO2 technology with anti-motion and anti-ambient light interference
- NIBP measurement modes: Manual, AUTO, and STAT (storage for 4800 groups)
- Built-in rechargeable lithium battery for uninterrupted monitoring
- Anti-high frequency surgical unit and defibrillation-proof protection
Technical Performance
ECG Lead Mode: 3-lead or 5-lead (I, II, III, aVR, aVL, aVF, V)
HR Range: 15~350bpm (Accuracy: ±1% or ±1bpm)
Respiration Range: 0~150rpm (Accuracy: ±2 rpm)
NIBP Range: 10 ~ 270 mmHg (Oscillometry Method)
SpO2 Range: 0 ~ 100% (Accuracy: 70%~100%: ±2%)
TEMP Range: 0 ~ 50℃ (Dual-channel)
Frequently Asked Questions
What animals can be monitored with this device?
The CMS8000VET is designed for monitoring a wide range of animals, including cats, dogs, and other small to medium-sized animals.
What is the screen size and display capability?
It features a 12.1-inch TFT color LCD that can display up to 8 channels of waveforms and all monitoring parameters simultaneously.
Can the monitor be used during surgery?
Yes, it is designed with anti-high frequency surgical unit protection and is defibrillation-proof, making it suitable for surgical environments.
Does it support portable use?
Yes, the device is compact, weighs less than 3.0 kg, and includes a built-in rechargeable lithium battery for mobile monitoring.
How many languages does the interface support?
The monitor supports multiple languages including English, French, German, Italian, Russian, Portuguese, Spanish, Turkish, Polish, and more.
What parameters are included in the standard configuration?
Standard parameters include ECG, Respiration (RESP), SpO2, Pulse Rate (PR), NIBP, and dual-channel Temperature (TEMP).
