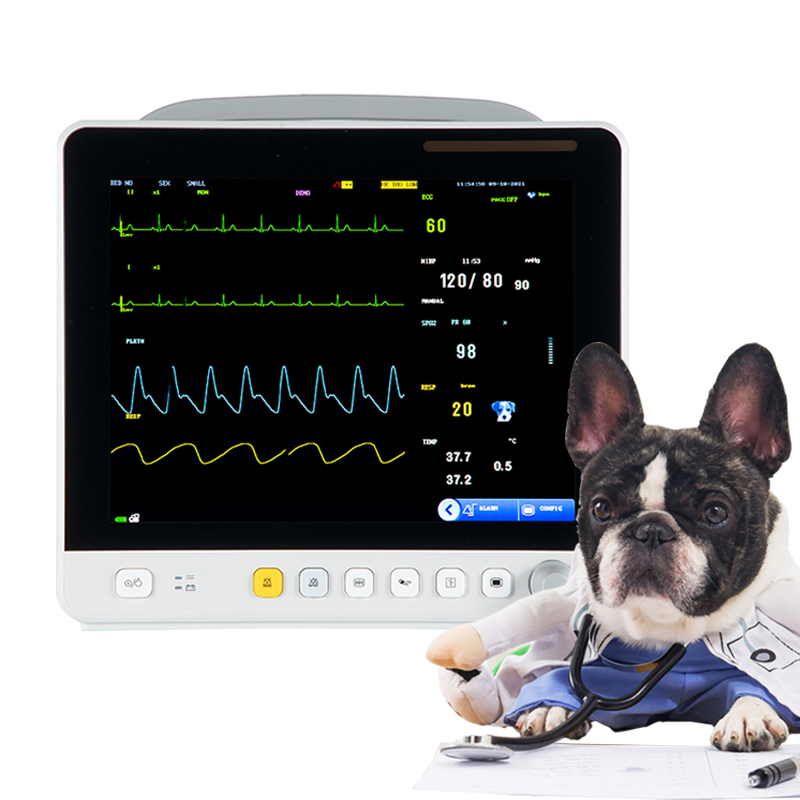

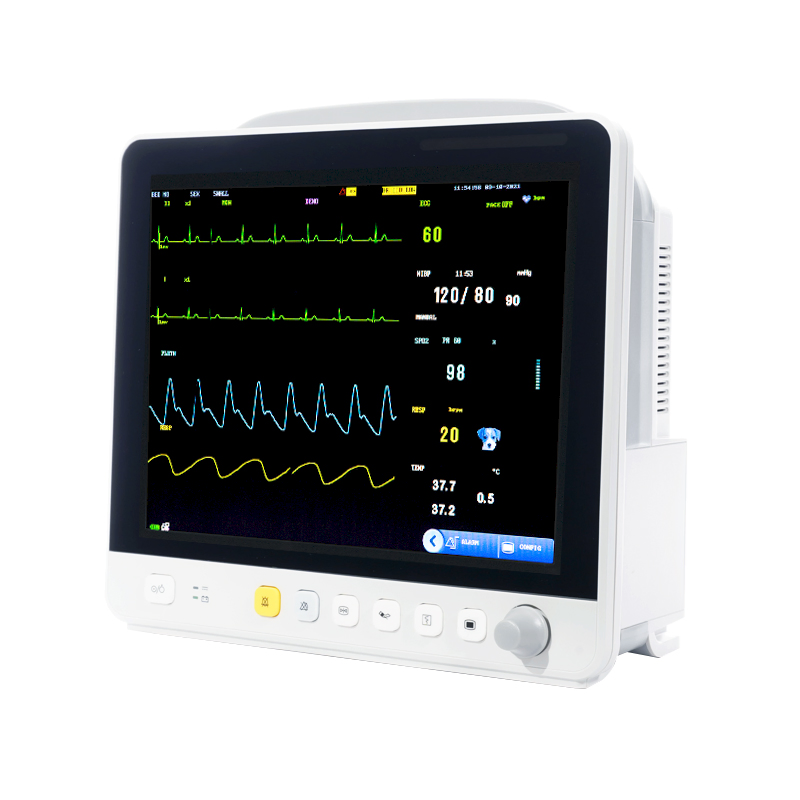

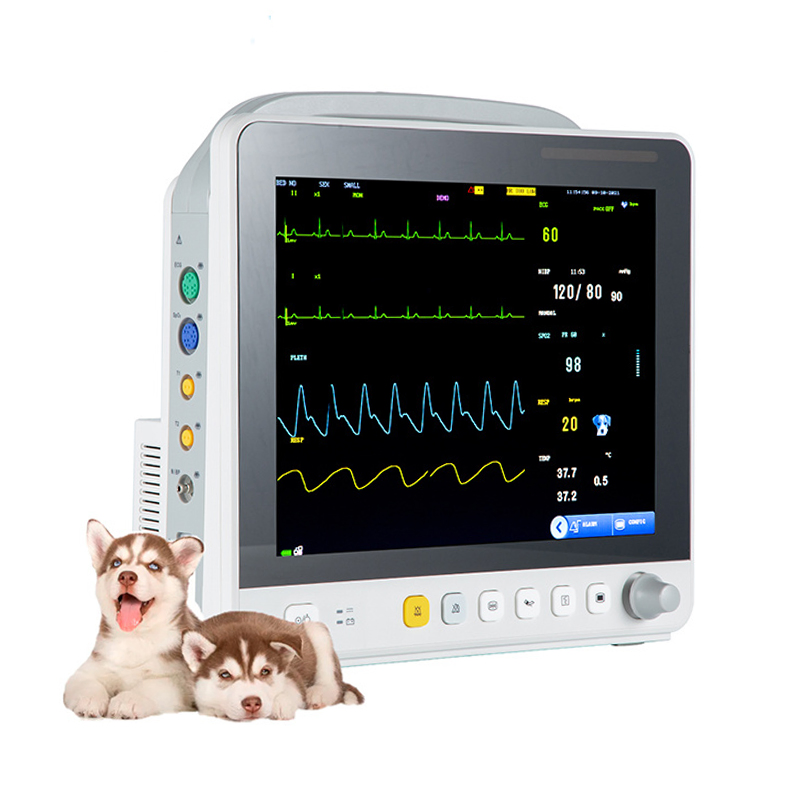

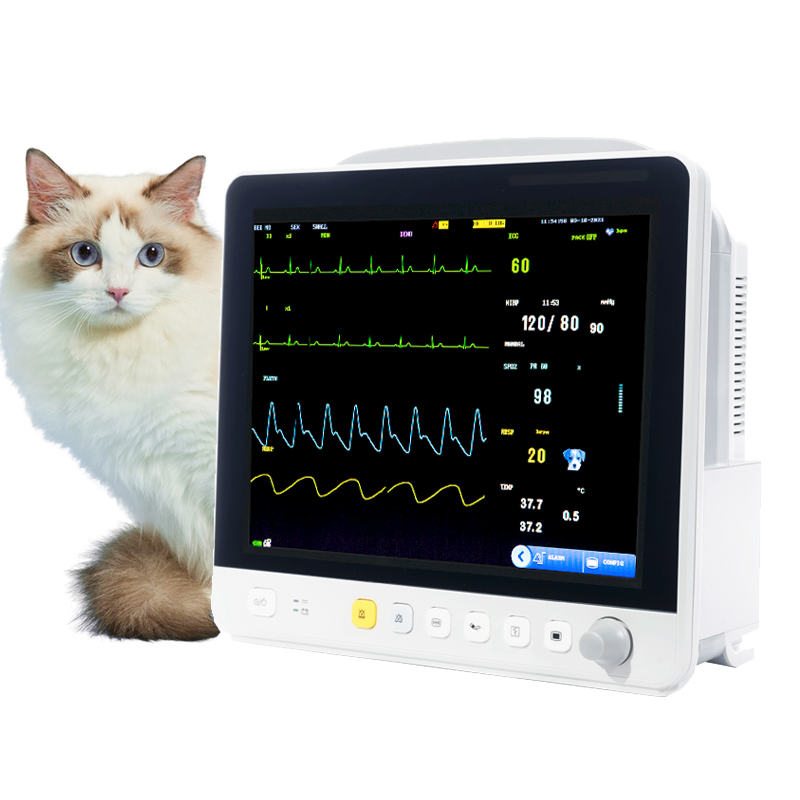

Mindray Vet Patient Monitor for Veterinary Animal Hospital

1 / 5

Mindray Vet Patient Monitor for Veterinary Animal Hospital

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.	WMVPM-12
Certification	CE, MSDS, ISO13485
Application	Veterinary Use
Transport Package	Paper Box
Origin	China
Production Capacity	50,000 PCS/Year

Product Gallery

Key Features

✓ Full monitoring: ECG, Heart Rate, Respiration, Blood Oxygen, Blood Pressure, Temperature.
✓ High-capacity 4000mAh built-in lithium battery (customizable).
✓ 12.1-inch high-brightness color LCD display.
✓ High sensitivity SpO2 detection with weak pulse support.

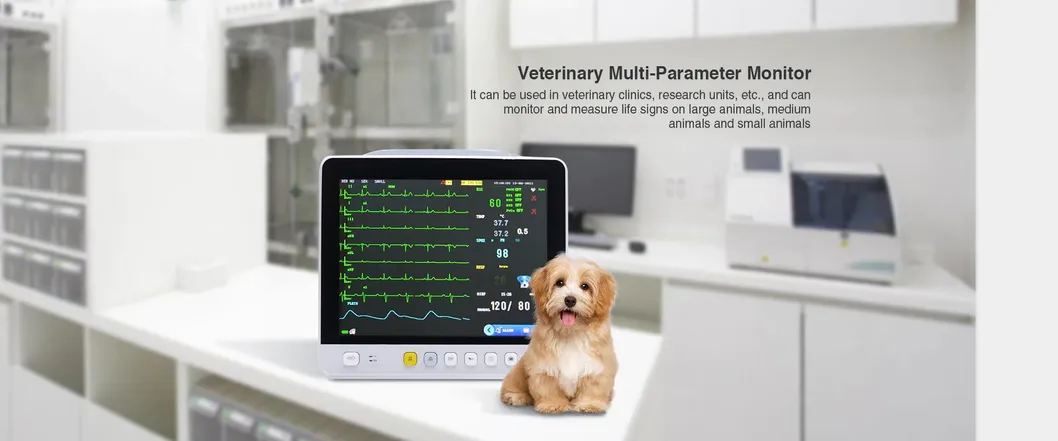

✓ Versatile application for animals of various sizes.

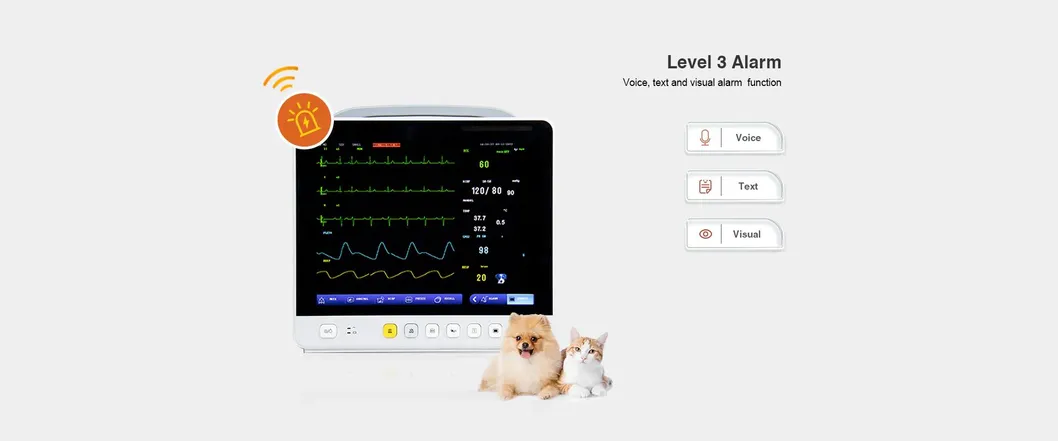

✓ Quick-set alarms and network monitoring system support.
✓ Optional ETCO2, dual-channel IBP, touch screen, and printer recorder.

Technical Performance

ECG & Heart Rate

Lead Mode: 3-lead or 5-lead | Gain: 2.5mm/mV to 40mm/mV | HR Range: 15~350 bpm | Accuracy: ±1% | ST-segment analysis & Arrhythmia detection included.

NIBP (Non-Invasive Blood Pressure)

Method: Oscillometry | Modes: Manual/AUTO/STAT | Range: 10 ~ 270 mmHg | Over-pressure protection for Adult, Pediatric, and Neonatal modes.

SpO2 & RESP

SpO2 Range: 0 ~ 100% (Accuracy ±2% for 70-100%) | Respiration Rate: 0~150 rpm | Apnea Alarm: 10~40s.

Optional Modules

EtCO2: Sidestream/Mainstream (0~150mmHg) | IBP: Dual-channel (ART, PA, CVP, etc.).

Product Details

Product Name	Portable Veterinary Monitor
SKU	VE12
Size	383530cm
Material	Medical Grade Plastic

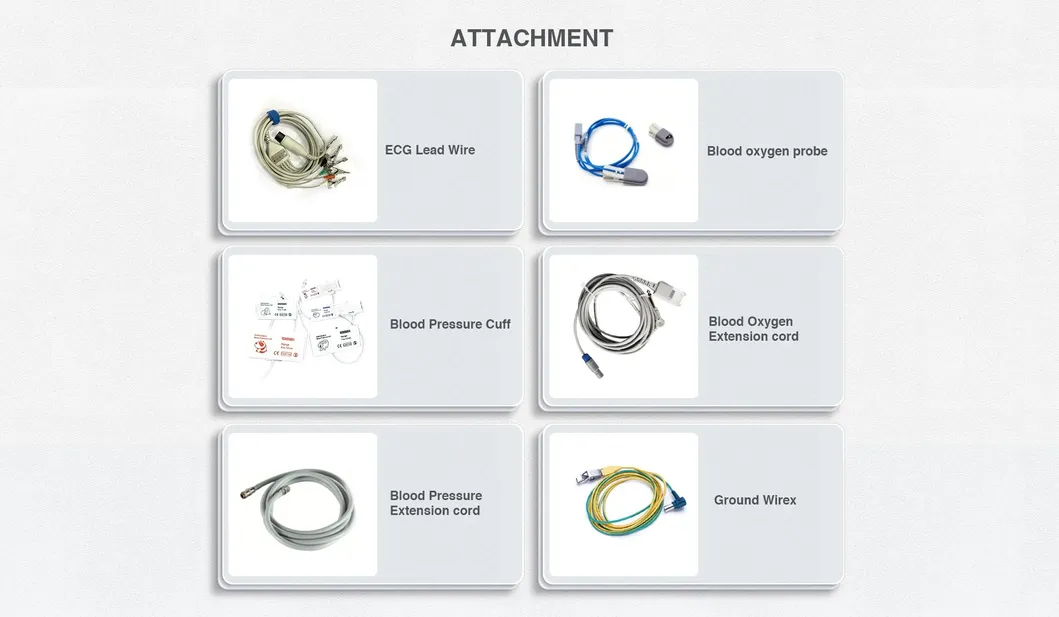

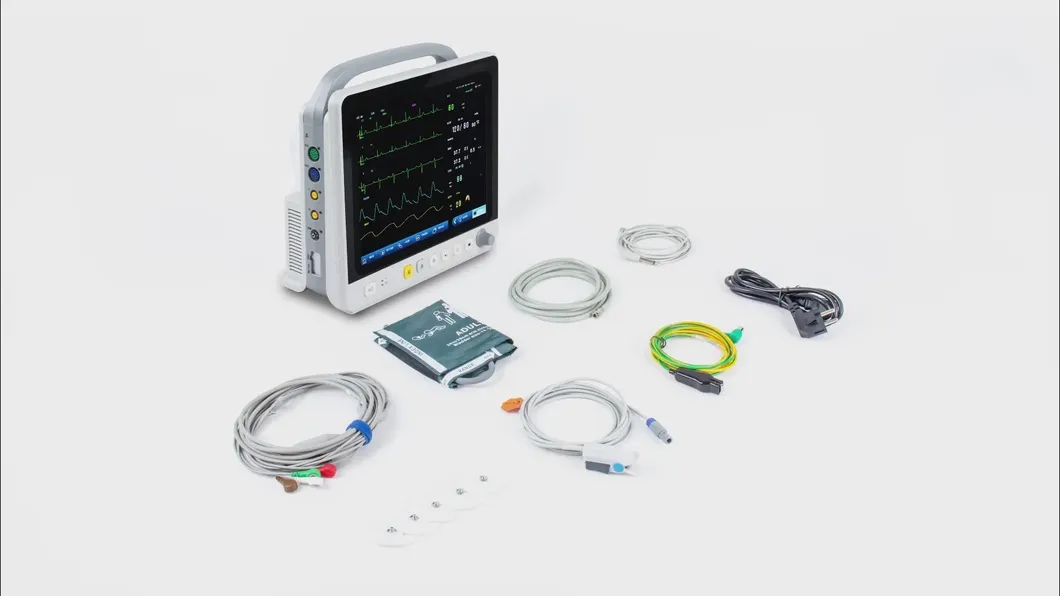

Standard Accessories	SpO2 probes (x2), BP cuffs (x2), extension tube, ECG lead wire, Temp sensor, Power cord, Battery, Manual.
Delivery	Sea, Air, and Express (15-45 Days)

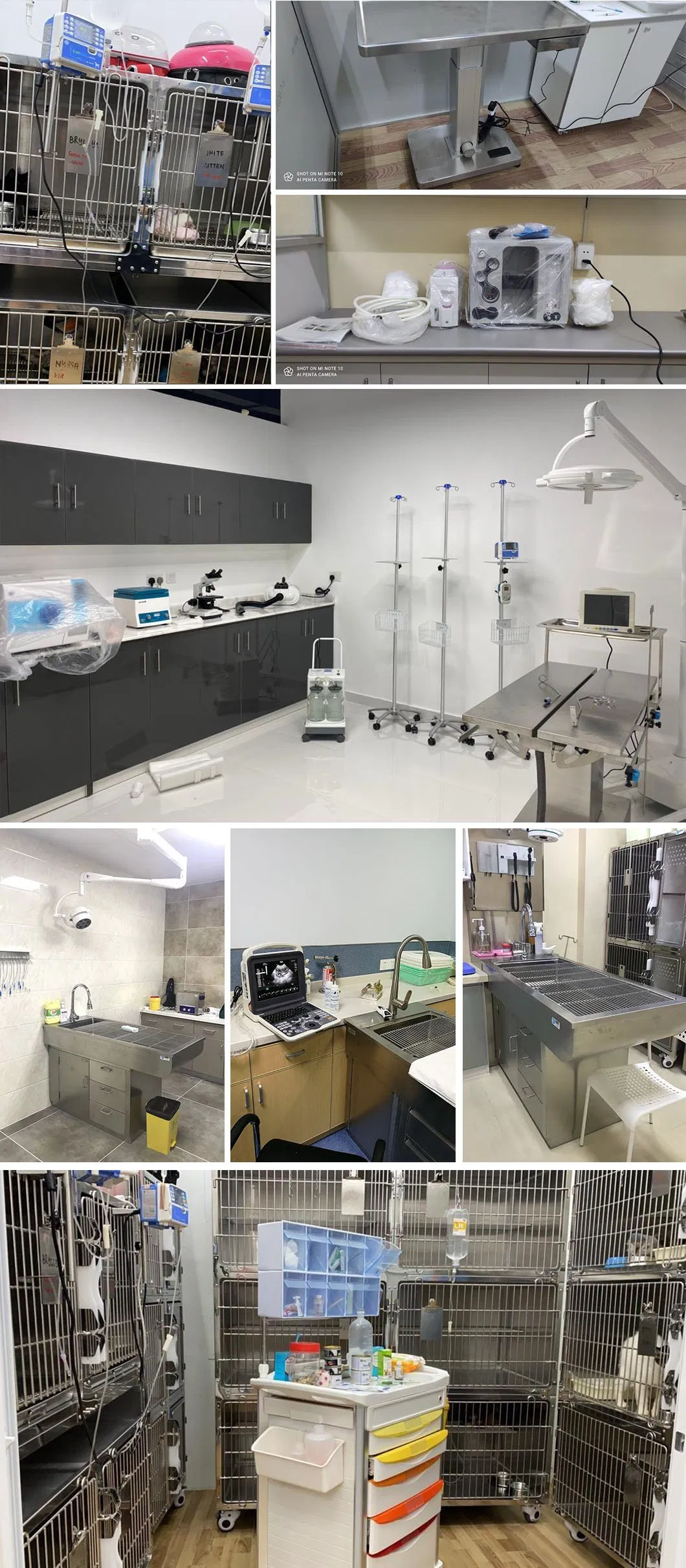

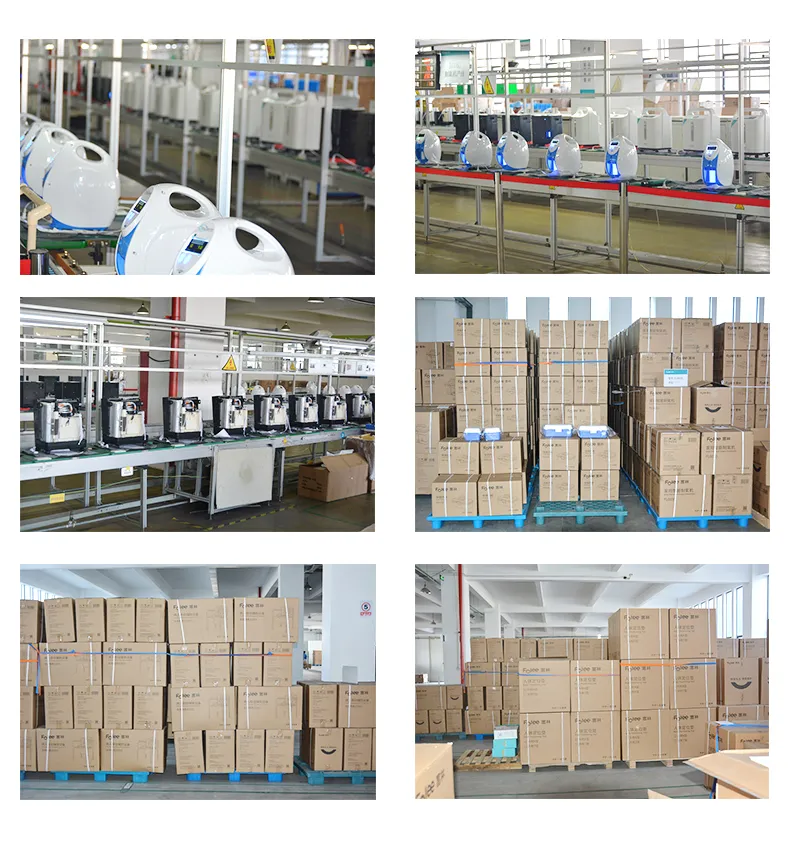

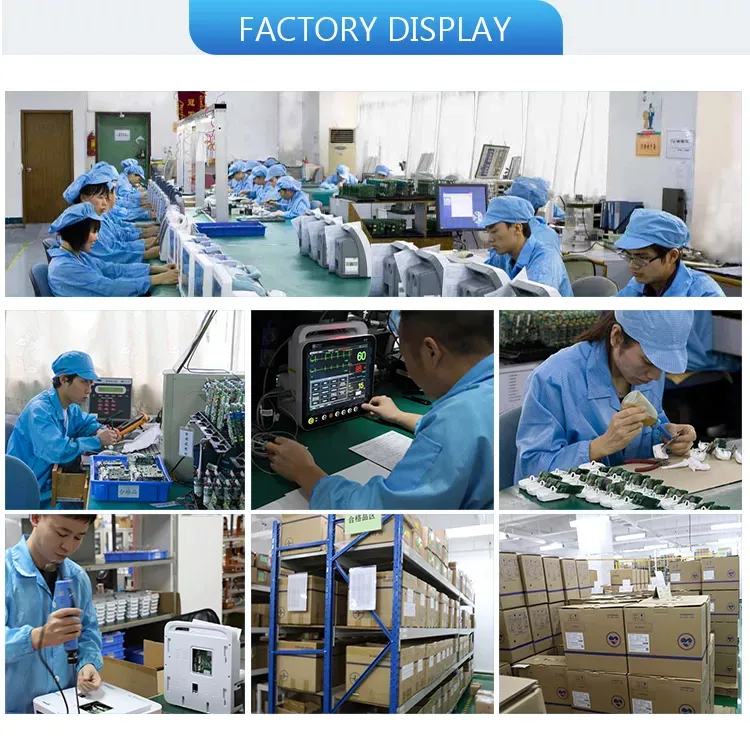

Applications & Manufacturing

Frequently Asked Questions

Q1: Which animals can this monitor be used for? A: The monitor is designed with adjustable settings and different cuff sizes to accommodate animals of various sizes, from small pets to larger livestock.

Q2: Does the monitor have an internal battery? A: Yes, it comes with a built-in 4000mAh lithium battery, allowing for portable use during transport or in case of power outages. The capacity can be further increased upon request.

Q3: What are the standard monitoring parameters? A: The standard unit monitors ECG, Respiration (RESP), Oxygen Saturation (SpO2), Pulse Rate (PR), Non-Invasive Blood Pressure (NIBP), and Dual-channel Temperature (TEMP).

Q4: Can this device connect to a hospital network? A: Yes, it supports network connections to set up a centralized monitoring network system for better patient management.

Q5: Are there optional upgrades available? A: Yes, you can add EtCO2 (Sidestream or Mainstream), dual-channel IBP, a touch screen interface, and a built-in thermal recorder.

Q6: What safety certifications does the device hold? A: The device is fully certified with CE, MSDS, and ISO13485 standards, ensuring it meets international medical quality requirements.
