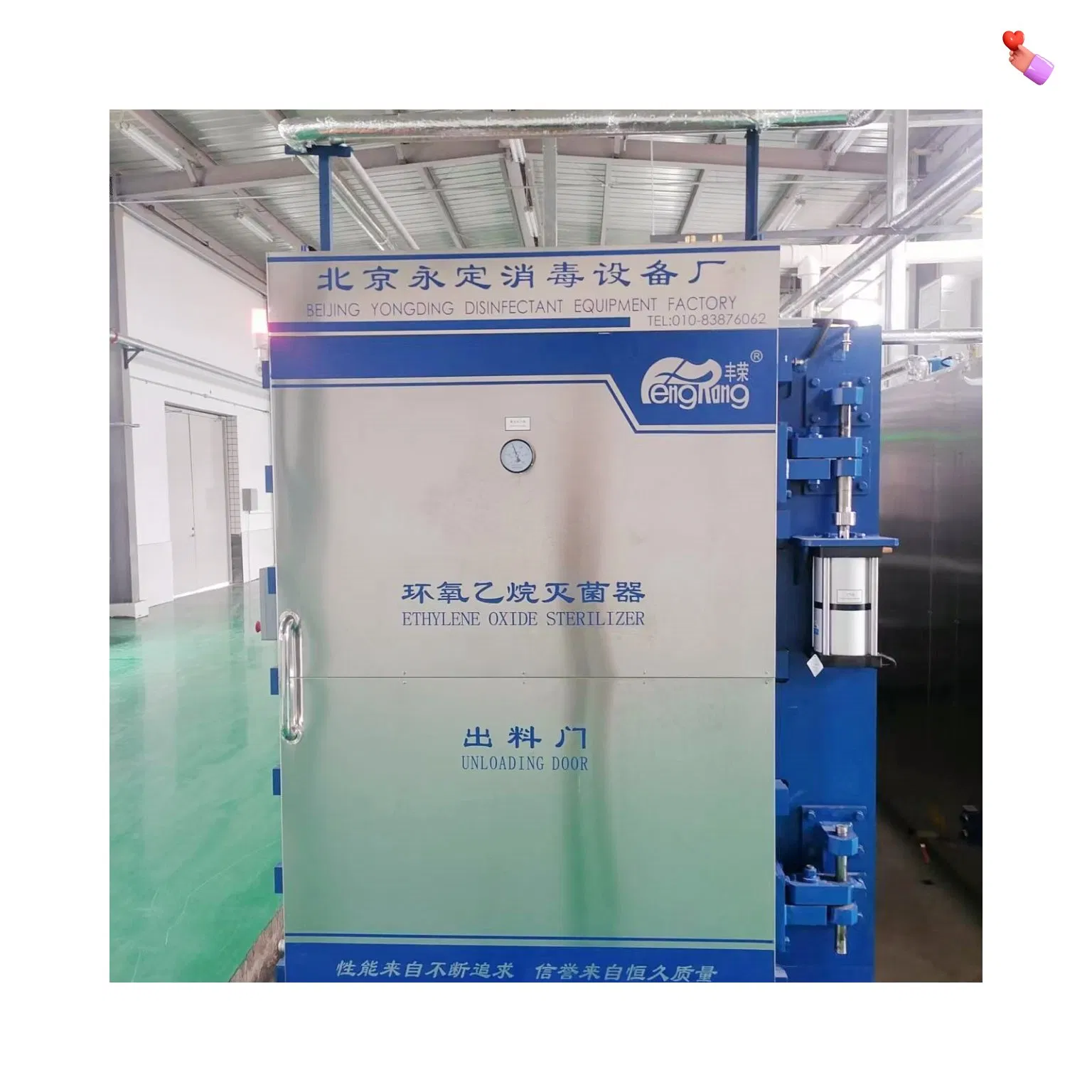

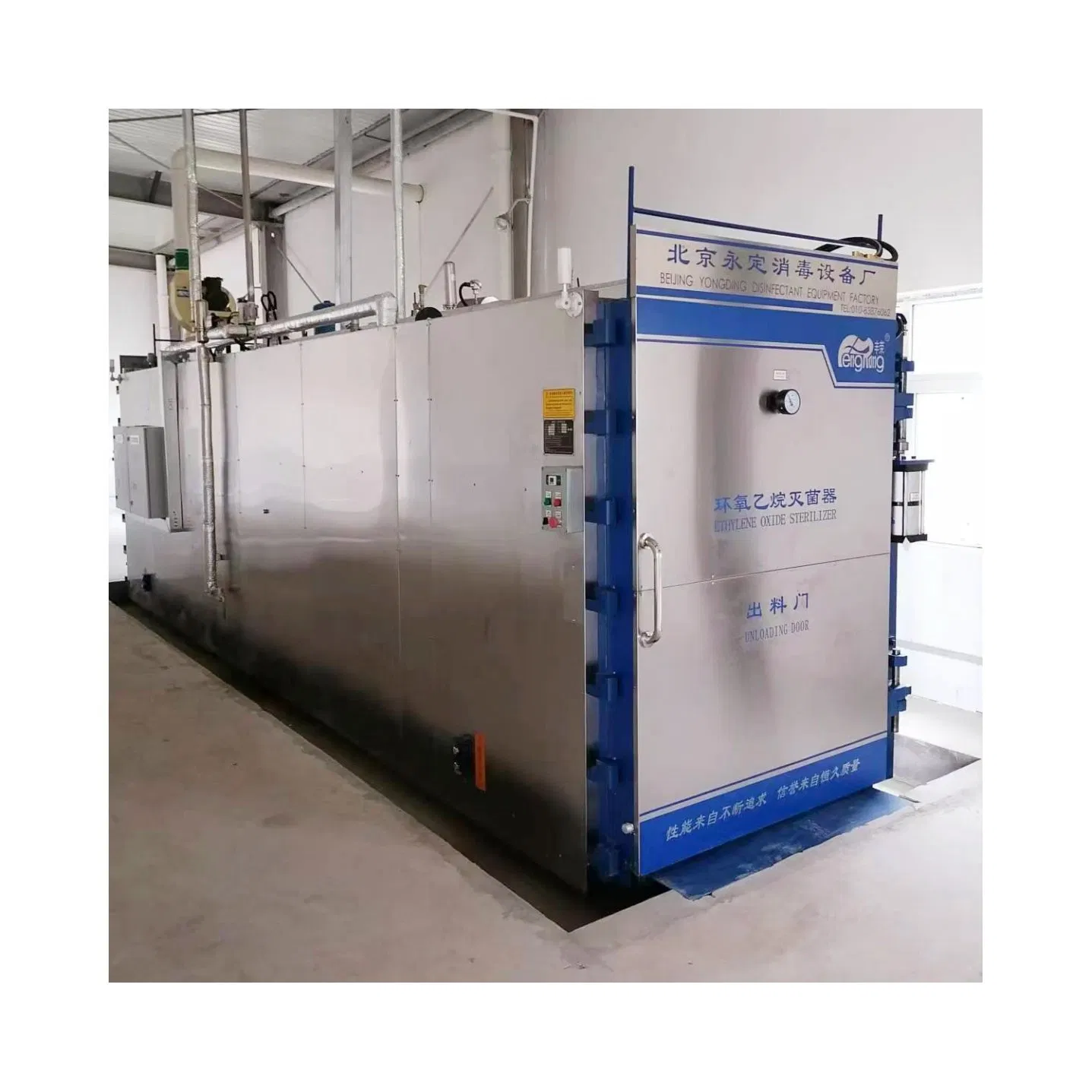

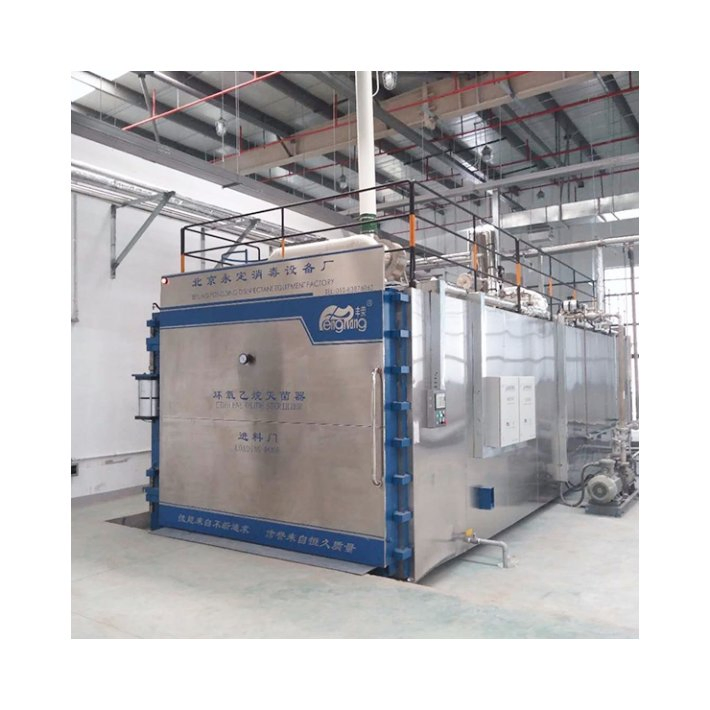

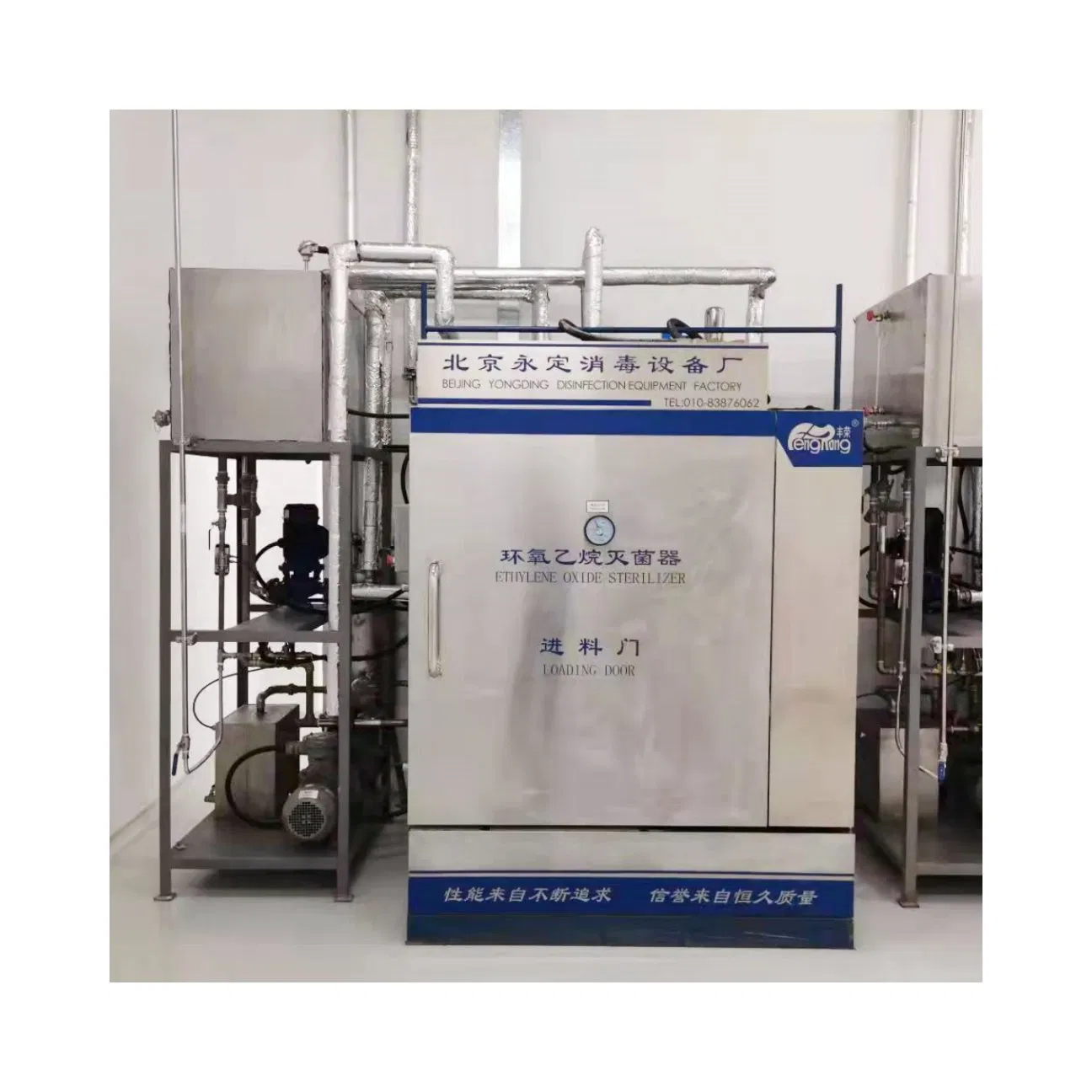

Personalized Custom Ethylene Oxide Sterilizer for Veterinary Instruments
Personalized Custom Ethylene Oxide Sterilizer for Veterinary Instruments
Personalized Custom Ethylene Oxide Sterilizer for Veterinary Instruments
Personalized Custom Ethylene Oxide Sterilizer for Veterinary Instruments
Personalized Custom Ethylene Oxide Sterilizer for Veterinary Instruments
1 / 5
Personalized Custom Ethylene Oxide Sterilizer for Veterinary Instruments
Personalized Custom Ethylene Oxide Sterilizer for Veterinary Instruments
Personalized Custom Ethylene Oxide Sterilizer for Veterinary Instruments
Personalized Custom Ethylene Oxide Sterilizer for Veterinary Instruments
Personalized Custom Ethylene Oxide Sterilizer for Veterinary Instruments

Personalized Custom Ethylene Oxide Sterilizer for Veterinary Instruments

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋

Basic Information

Certification
CE, ISO13485
Electric Tension
380V
LCD Display
With LCD Display
Material
Stainless Steel
Nominal Volume
10m³
Weight
7000kg
Inner Material
SUS 304
Door Type
Revolving Door
🔬

Product Description

Personalized Custom Ethylene Oxide Sterilizer for Veterinary Instruments

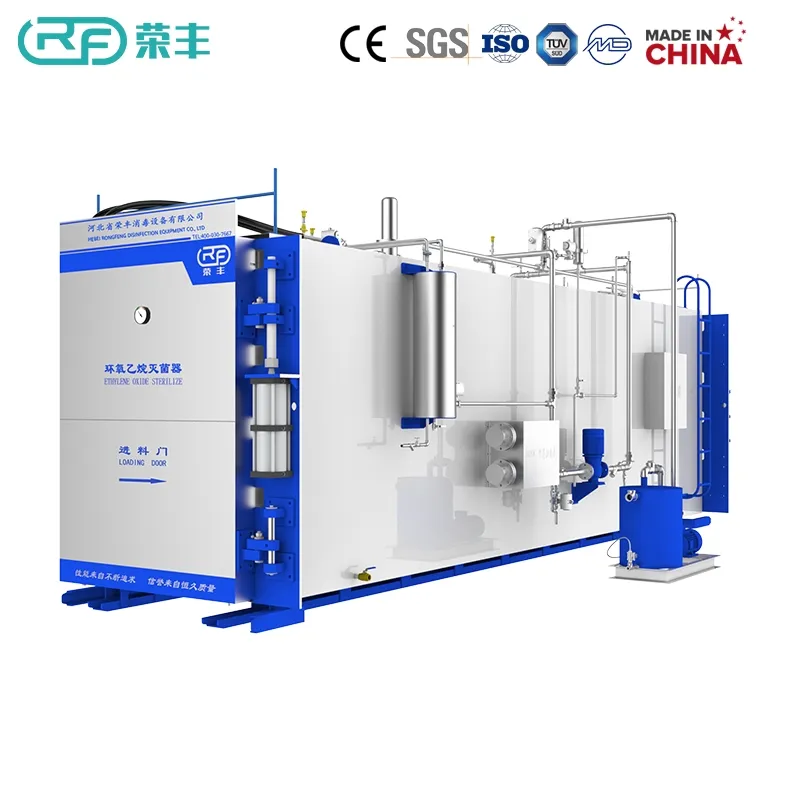

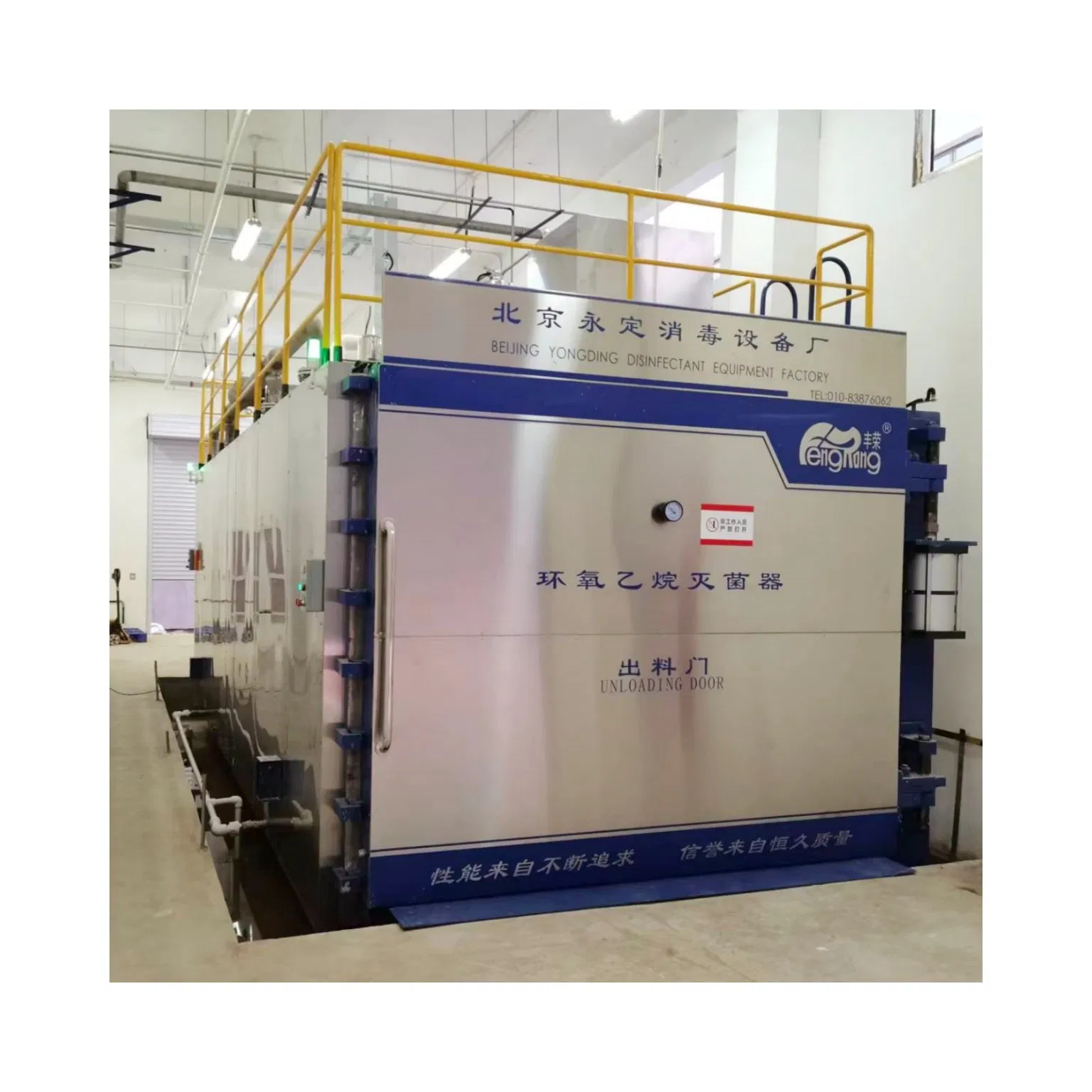

Ethylene Oxide Sterilizer Main View
  • Chamber structure: The main body of the chamber is welded by the liner, door frame, heating water jacket, covered by heat preservation layer and outer plate.
  • Heating method: Hexahedron heating method and combine the grouping and adjustable way to guarantee the heating rate and temperature uniformity.
  • Components, pipes and accessories: All pipes, which would connect ethylene oxide gas are made of stainless steel 304, and all of the sealing gaskets and seals which would connect EO gas are made of silicone rubber.
  • Sealing door: The door of the sterilization cabinet performs revolving movement under the action of the cylinder, and the single door moves pneumatically; the door is sealed with an inflatable silicone rubber sealing ring; it is equipped with a check valve that cuts off power and air to prevent leakage.
Parameter/Model HMQ-10
Inner size (L×W×H) 4400*1350*1700mm
Nominal volume 10m³
G.W 7000kg
Voltage/power 380v/50Hz
Working temperature 30-60ºC
Outer material SUS 304
Door type Revolving door
Vacuum degree -80-+80kpa
🖼️

Technical Display

Technical Specification 1

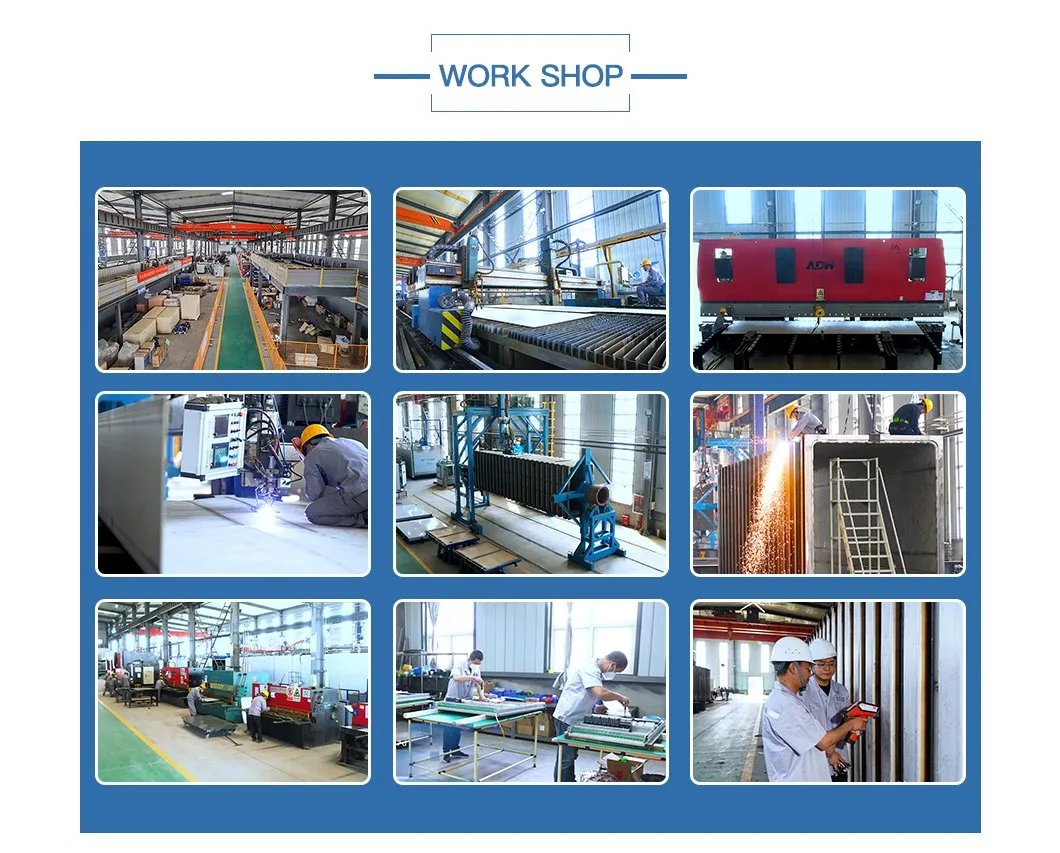

Technical Specification 2
Technical Specification 3
Technical Specification 4
Technical Specification 5
Technical Specification 6
❓

Frequently Asked Questions

Are you a manufacturer or trader?
We are the direct factory, covering an area of 20,000 square meters, with 15 technical engineers, 28 person of after-sales service teams, and 85 workshop workers.
Can you provide the overseas service?
Yes, after machine arrive your factory, we will arrange engineer go to install the machine and train the operators.
Can we visit the factory?
Of course, we highly welcome clients come to our factory, it will be our great honor to meet you.
How can you guarantee the quality?
100% qualified products before delivery. The clients can inspect the product at our factory. 1 year warranty, lifetime provide the spare parts.
What's payment terms that your company support?
T/T, LC AND WESTERN UNION.
Do you support customized service?
Yes, of course, we can design and manufacture the equipment according to your request.
