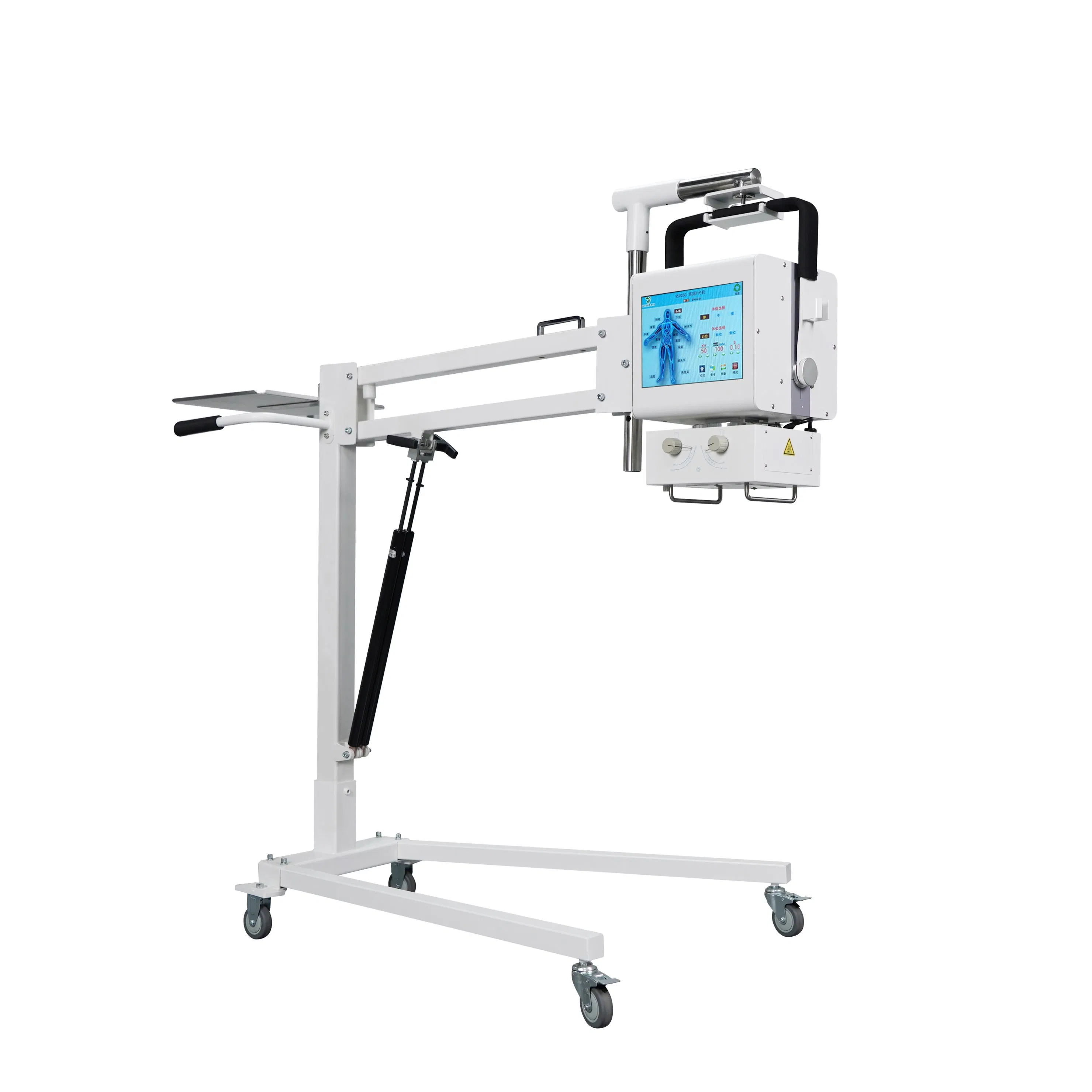

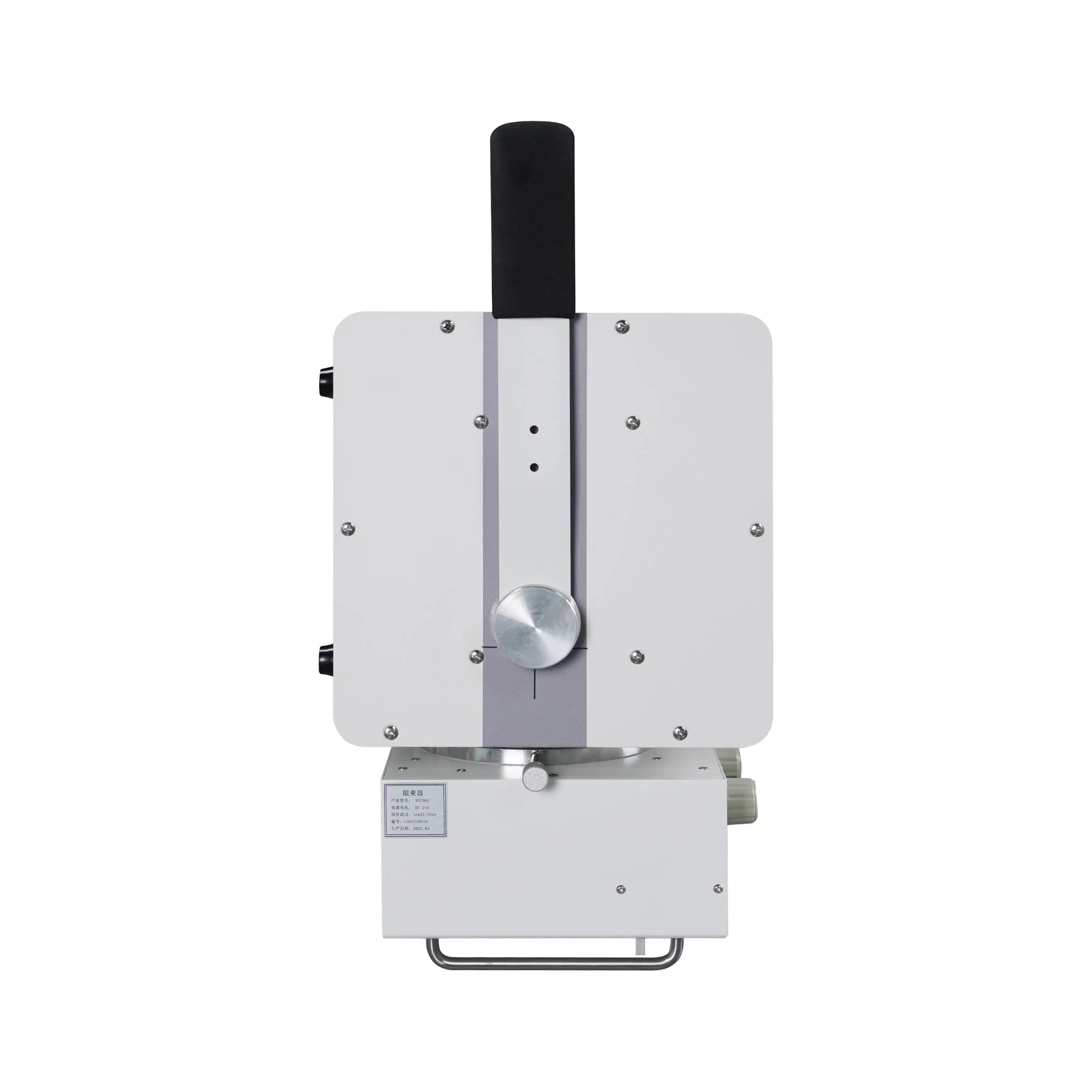

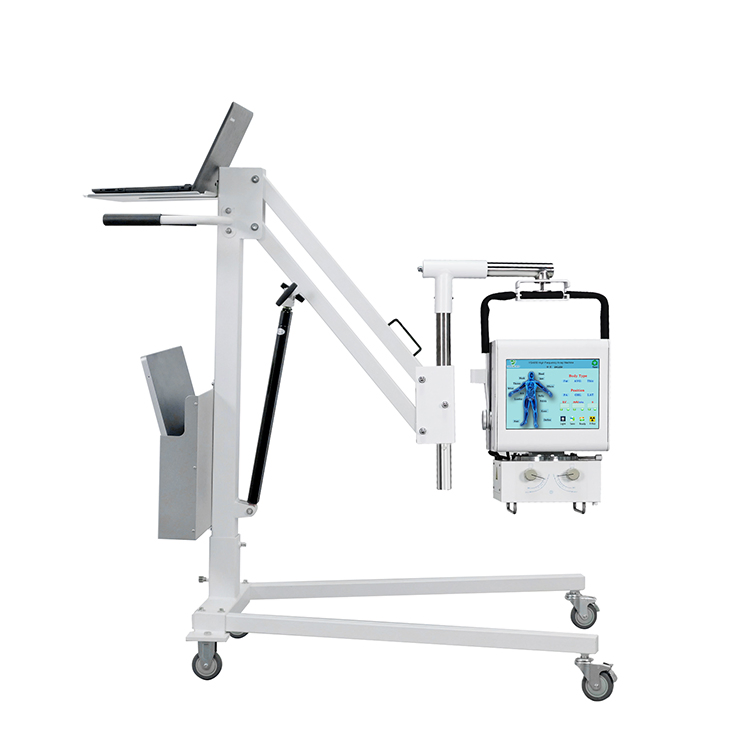

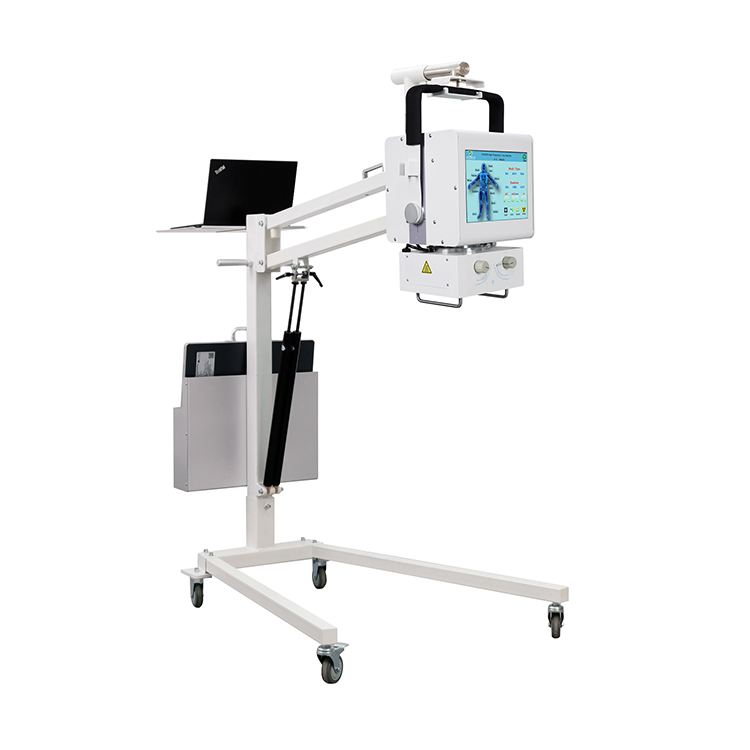

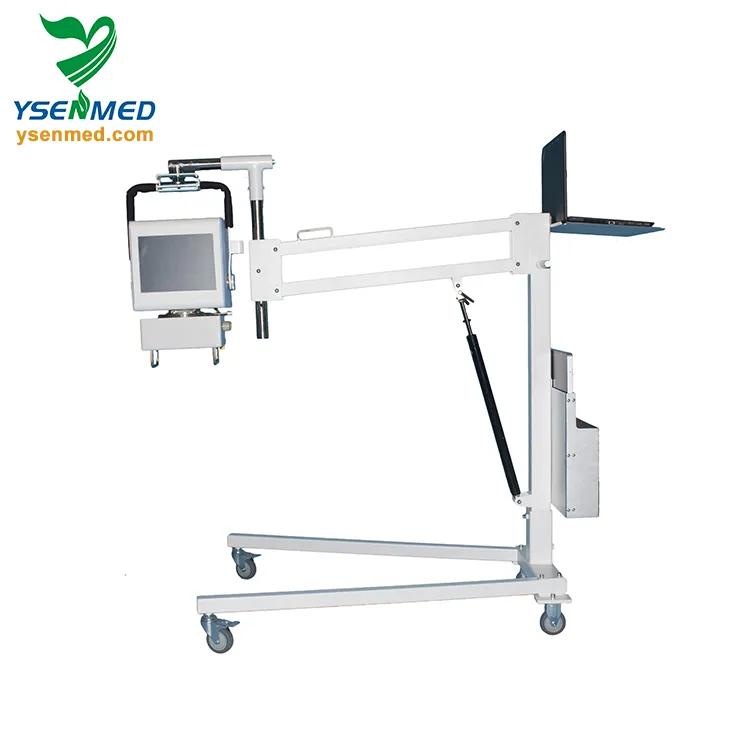

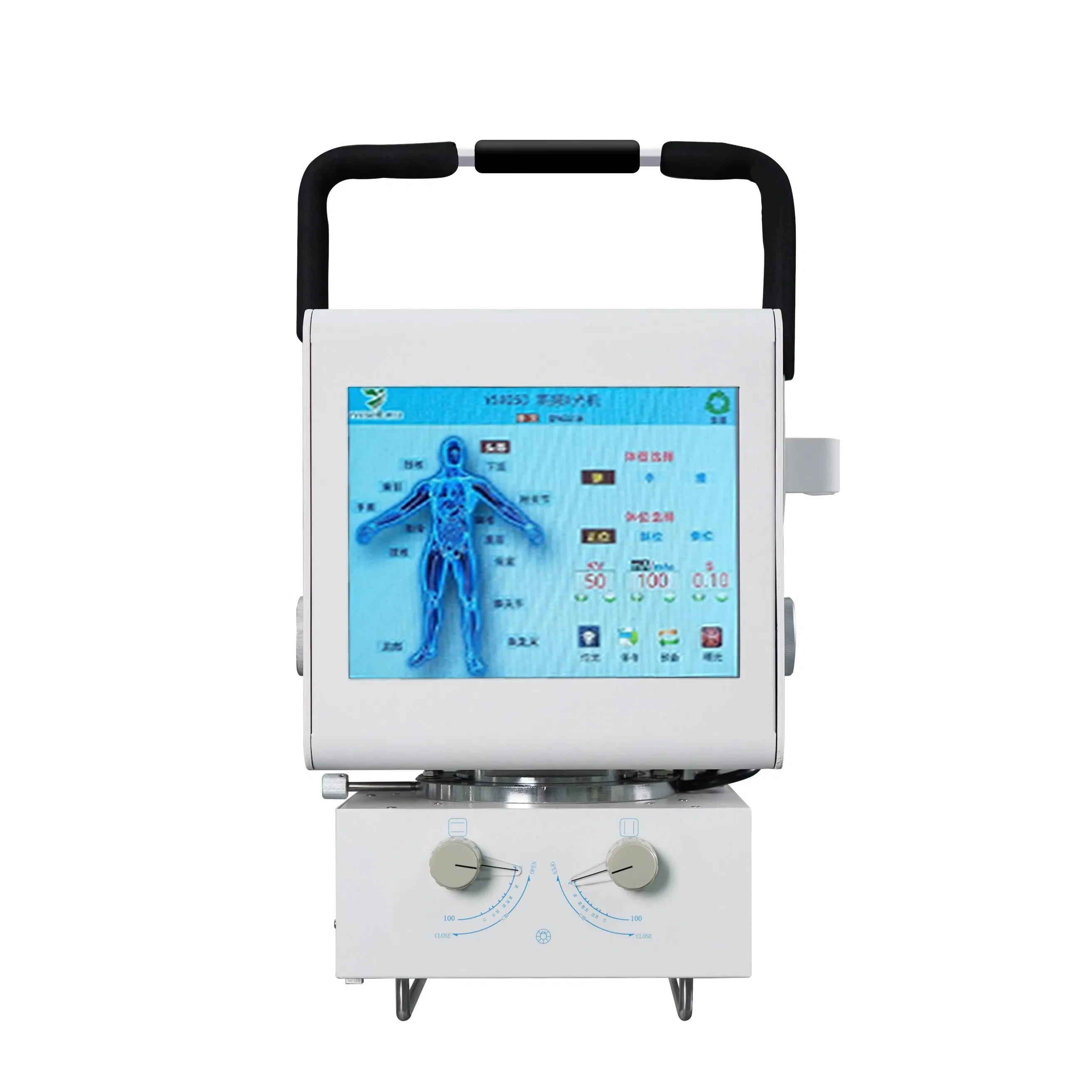

Medical Equipment 5kw Portable Digital X-ray Veterinary Device

1 / 5

Medical Equipment 5kw Portable Digital X-ray Veterinary Device

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment

Send Inquiry

Product Description

🔹 Basic Info.

Model NO. YSX050-C

Certification ISO13485

Group All

Name Medical X-ray Equipment

Output Power 5kw

Application Radiography Department

Warranty 1 Year

Generator Frequency 30kHz

Feature Mobile

Package Wooden Case

Exposure Time 0.01~6.3s

Input Voltage 220±10%

Detector Size 14*17/17*17 Inch

Production Capacity 150 Sets/Month for Portable X-ray

📋 Product Description

Medical product 5KW portable x ray equipment

Model: YSX050-C

Model Specifications	YSX050-C
Power	5KW
Voltage	220V
Power supply	Single phase 220V/50HZ; wire diameter >4mm², internal resistance <0.5Ω
mA	32-100 mA
mAs	0.32--315mAs, stepping by R'10
KV	40-110KV, stepping by 1KV
Exposure time	0.01~6.3s
Focus	0.60.6mm/1.81.8mm, dual focus
Heat capacity	42KHU
Generator frequency	30Khz
Detector size	1417/1717 inch
Pixel	140um
A/D conversion	16bits
Spatial resolution	3.6lp/mm
Diagnostic software	Professional medical software
Workstation	Intel i5 processor, 8G memory, 128G SSD+1TB HDD, Monitor, WIN10/WIN7

🖼️ Product Gallery

❓ Frequently Asked Questions

What is the output power of the YSX050-C portable X-ray unit?

The YSX050-C features a high-frequency output power of 5kW, making it suitable for various radiography needs in a portable format.

Can this X-ray equipment be moved easily?

Yes, it is specifically designed with a mobile feature, allowing for flexible use across different hospital departments or field environments.

What are the available detector sizes for this digital system?

The system supports professional digital detectors in both 14*17 inch and 17*17 inch sizes to accommodate different diagnostic requirements.

What kind of workstation is included with the equipment?

The workstation includes an Intel i5 processor, 8G RAM, a hybrid 128G SSD + 1TB HDD storage system, and professional medical imaging software compatible with Windows 10 or Windows 7.

What is the exposure time range and focus specification?

The exposure time ranges from 0.01 to 6.3 seconds. It utilizes a dual-focus system (0.6*0.6mm and 1.8*1.8mm) to ensure high-quality imaging precision.

What type of packaging is used for international transport?

The product is secured in a standard export wooden case to ensure maximum protection during transit.
