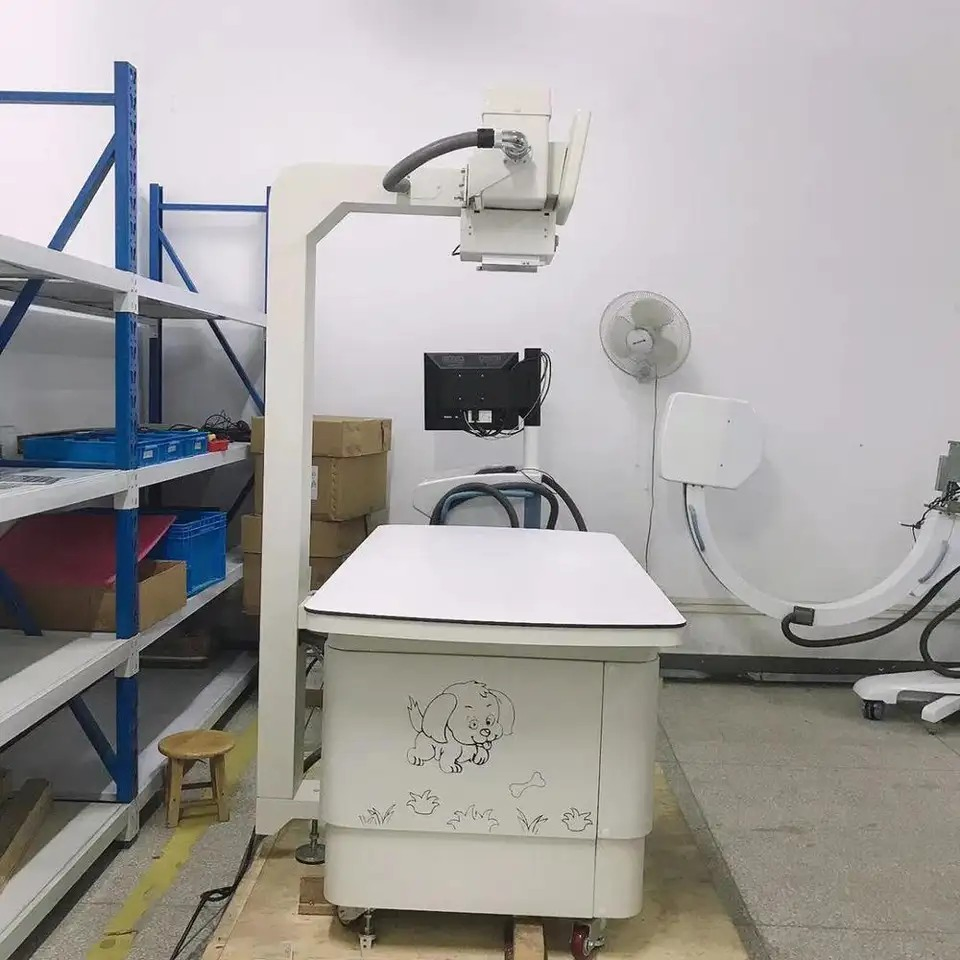

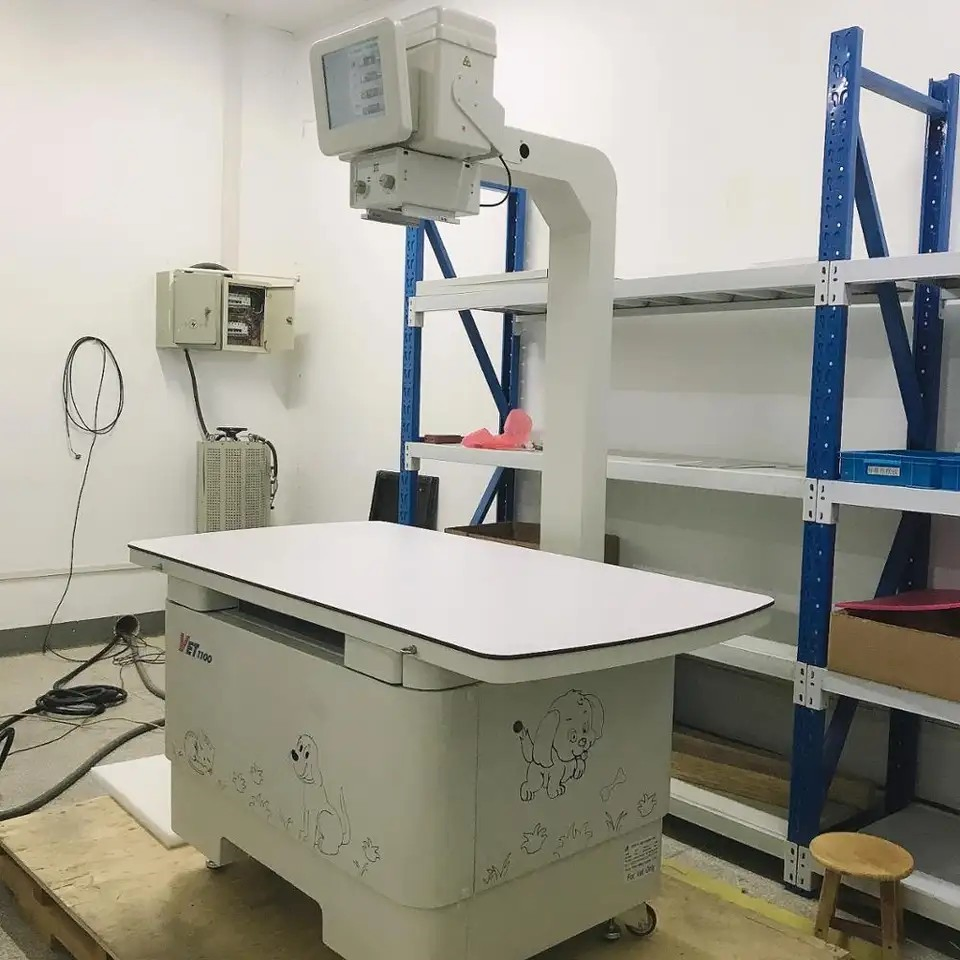

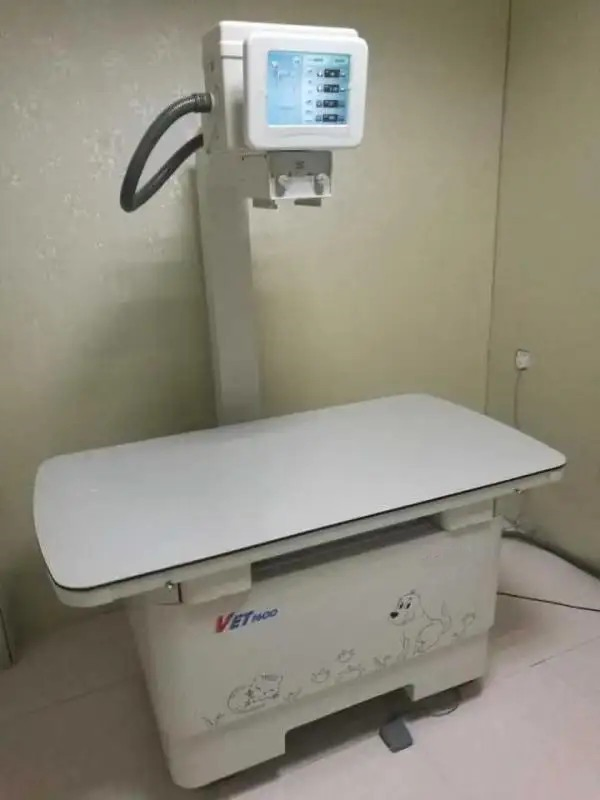

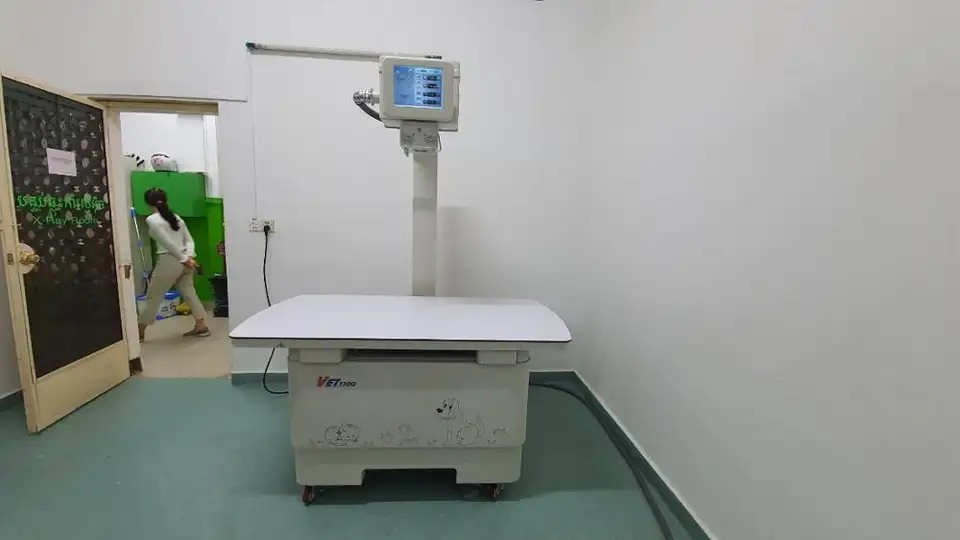

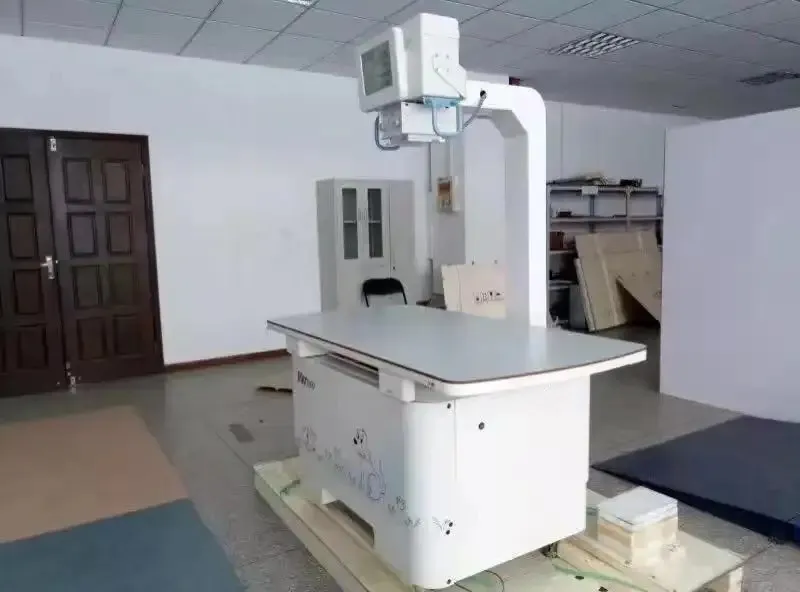

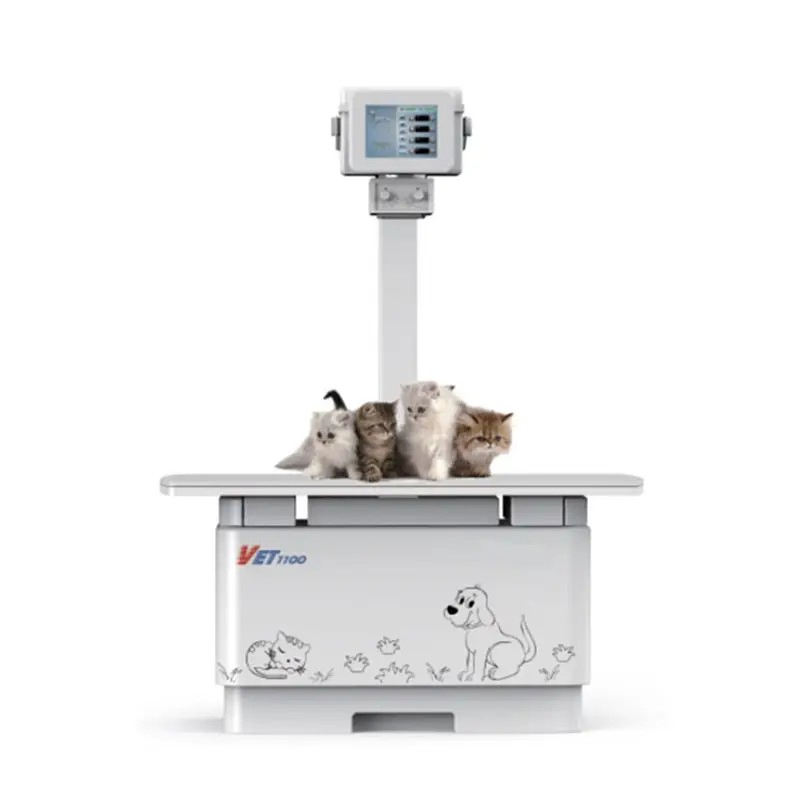

JRVET1100 Vet Digital Radiography System - Veterinary X-ray Equipment for Medical Animal Diagnosis

1. Main Application

The JRVET1100 is a digital high-frequency X-ray radiography system specifically designed for veterinary use. It is ideal for pet hospital radiology rooms and pet clinics, catering to the radiography requirements of animals with various body types.

2. Technical Parameters

• Output power: 4.5KW | Main inverter frequency: ≥40kHz
• X-ray tube: XD6C-0.55, 4/125
• Tube voltage: 40kV ~ 120kV
• Tube current: 20mA ~ 100mA
• Exposure method: Wire control / Remote control
• Console: User-friendly Touch screen console

3. Digital Imaging System

• Flat panel detector: 1717M (A-si Type)
• Valid size: 17" x 17" inch | Pixel pitch: 139um
• Resolution: 3.6lp/mm | Pixel matrix: 3072 x 3072
• A/D conversion: 14 bits

4. Mechanical Parameters

• Table length: 1520mm ±5%
• Complete machine height: 1900mm ±5%
• Table horizontal movement: 400mm ±5%
• Table transverse movement: 200mm ±5%

• High-frequency inverter technology for stable X-ray quality and clear contrast.
• Microcomputer real-time control for precise dose accuracy and high repeatability.
• True color display with built-in protection for overvoltage, overcurrent, and overheating.
• Preset multiple radiography programs with customizable saving options.
• High-quality mono-block X-ray generator to reduce radiation for environment and operator safety.
• Supports DICOM 3.0 standard for professional image processing and report output.
• Barcode scanner support for efficient patient information input.
