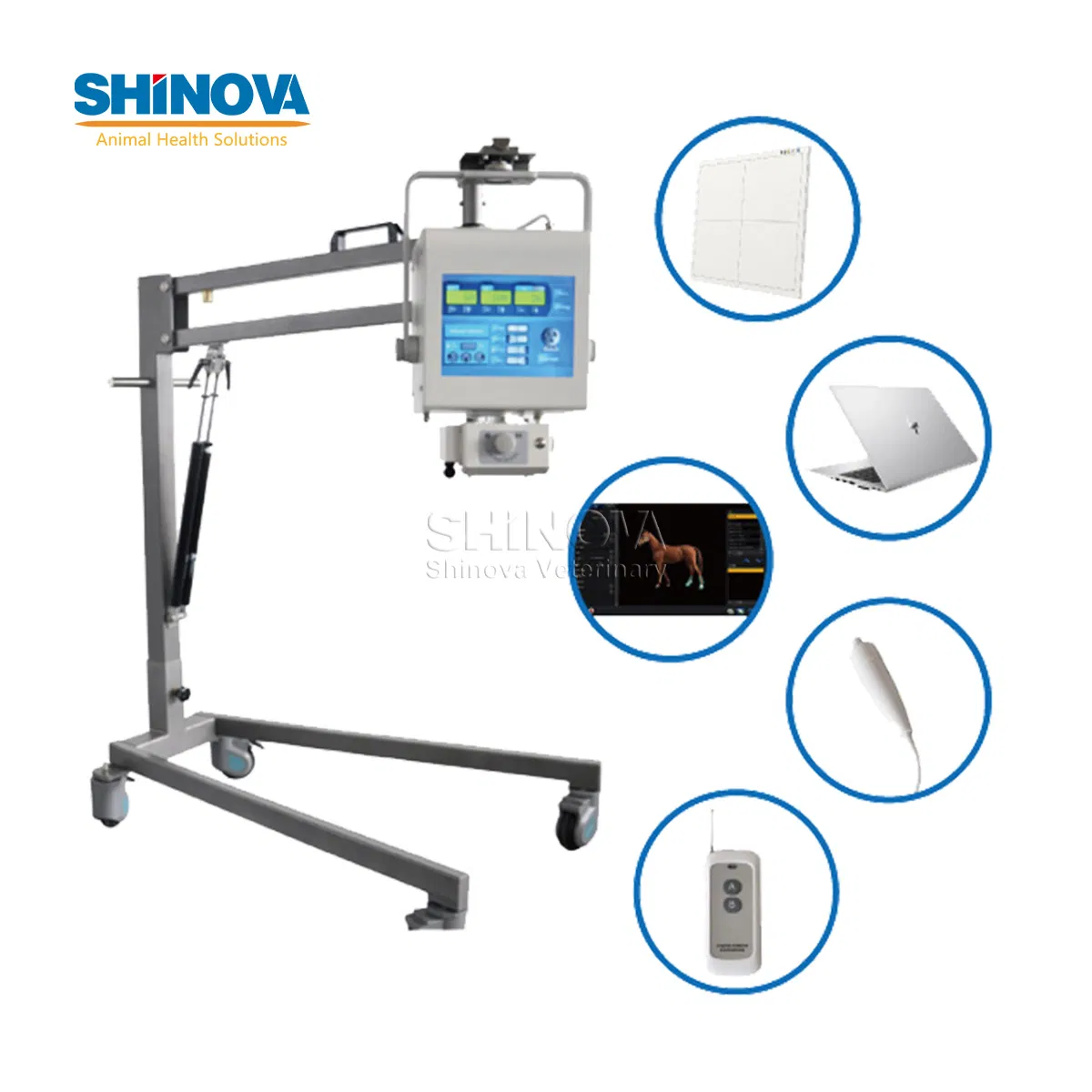

High Quality Medical Equipment Portable Veterinary Digital X-ray (DR) (DR-40V)
High Quality Medical Equipment Portable Veterinary Digital X-ray (DR) (DR-40V)
High Quality Medical Equipment Portable Veterinary Digital X-ray (DR) (DR-40V)
High Quality Medical Equipment Portable Veterinary Digital X-ray (DR) (DR-40V)
High Quality Medical Equipment Portable Veterinary Digital X-ray (DR) (DR-40V)
1 / 5
High Quality Medical Equipment Portable Veterinary Digital X-ray (DR) (DR-40V)
High Quality Medical Equipment Portable Veterinary Digital X-ray (DR) (DR-40V)
High Quality Medical Equipment Portable Veterinary Digital X-ray (DR) (DR-40V)
High Quality Medical Equipment Portable Veterinary Digital X-ray (DR) (DR-40V)
High Quality Medical Equipment Portable Veterinary Digital X-ray (DR) (DR-40V)

High Quality Medical Equipment Portable Veterinary Digital X-ray (DR) (DR-40V)

Customization: Available
Type: Digital X-ray
Transport Package: by Air or by Sea
Send Inquiry

Product Description

Basic Information
Model NO. DR-40LV
Specification 0.25
Origin China
HS Code 9022140090
Packaging & Delivery
Package Size 2.00cm * 2.00cm * 2.00cm
Gross Weight 22.000kg
Product Overview

Applicable Scope:

This 4kW digital portable high frequency X-ray machine is designed for medical diagnosis, specifically for human limbs checking. It is exceptionally well-suited for use in mobile environments, battlefield medical units, playgrounds, pet clinics, and rescue operations.

Key Characteristics:

  • Deft and concise design for maximum portability.
  • Features a 6-period digital LED display for clear monitoring.
  • Includes 48 types of presupposed anatomy memory pattern choices for efficient operation.
Technical Specifications
Model DR-40V
Input Power Voltage: AC220V ± 22V, Frequency: 50/60 Hz±1Hz; Power capacity: ≥5kVA; Inner resistance≤0.5Ω
Max Output Power P = 110kV × 36mA = 4kW
Nominal Power 100kV, 40mA, 0.1s, 4kW
Frequency ≥40kHz
KV Range 40kV ~ 110kV (1 kV steps)
mA Range 36mA ~ 70mA
mAs Range 1mAs - 200mAs
X-ray Tube Focus: 0.6/1.5mm; Anode heating capacity: 76kHU
Weight / Size 18kg / 290×260×230 mm
Accessories Machine stand, carry suitcase
Product Visuals

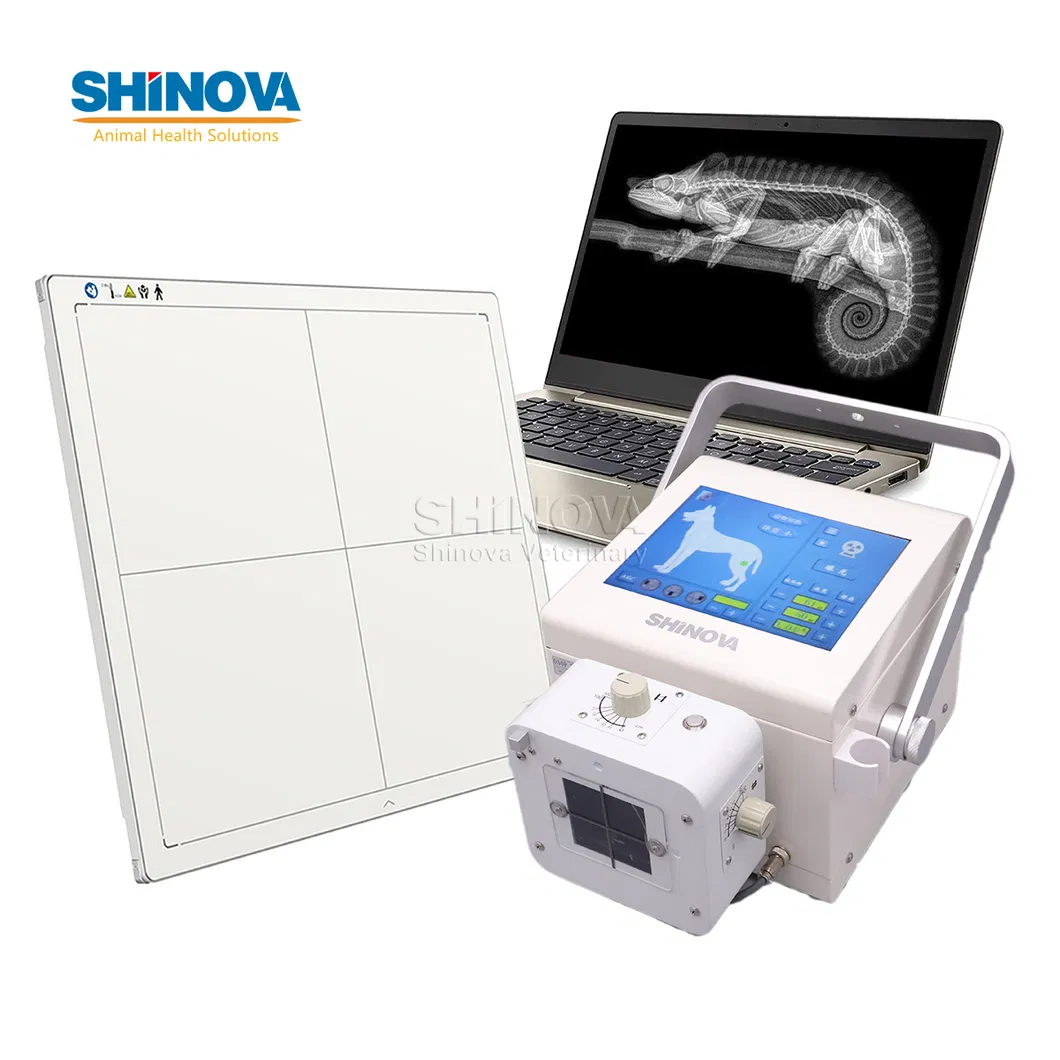

Portable X-ray Main
Detail 1
Detail 2
Detail 3
Application
Components
Setup
Display
Frequently Asked Questions
What is the primary use of the DR-40LV X-ray machine?
It is designed for human limb diagnosis and is highly suitable for portable applications like field hospitals, sports grounds, and pet clinics.
How many preset programs does the machine offer?
The system comes with 48 different presupposed anatomy memory patterns for quick and easy setup.
What is the total weight and portability of the unit?
The machine itself weighs approximately 18kg and comes with a dedicated carry suitcase for easy transportation.
Can the kV settings be adjusted precisely?
Yes, the kV adjusting range is from 40kV to 110kV, with a continuous adjustment step of 1 kV.
What are the power requirements for operation?
It requires a standard AC220V ± 22V input at 50/60 Hz, with a power capacity of at least 5kVA.
What focus sizes does the X-ray tube have?
The X-ray tube features a dual focus design of 0.6mm and 1.5mm.
