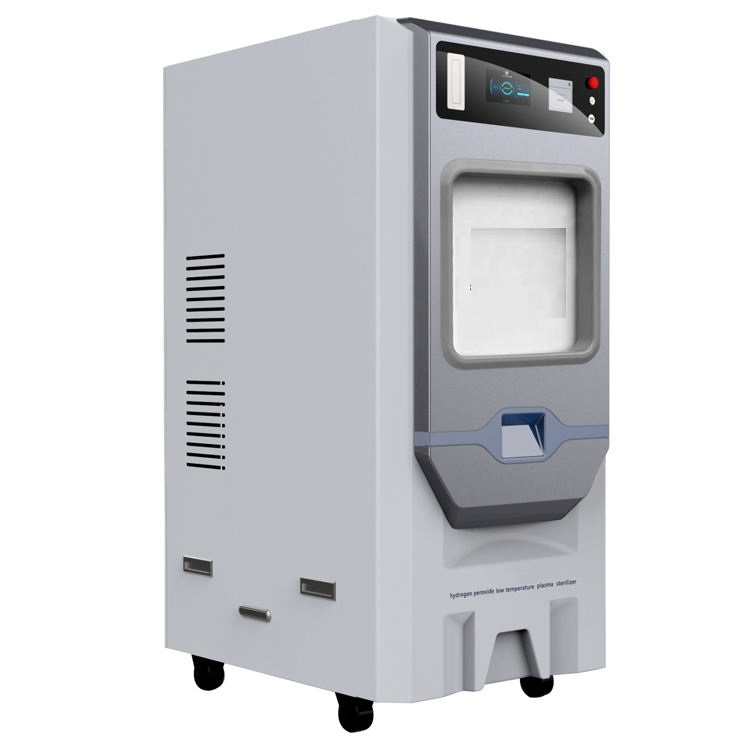

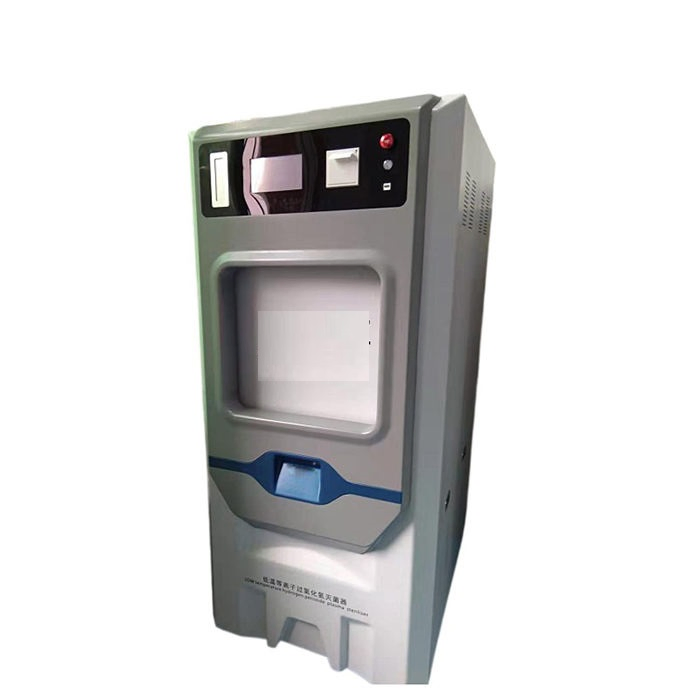

SD-Dz Low-Temperature Plasma Sterilizer for Veterinary Clinics, Hospitals, and Laboratory Applications

Customization: Available
Theory: H2O2
Type: Gas Sterilization Equipments

Product Description

Basic Information
Model NO.
SD-DZ
Certification
CE, FDA, EEC, ISO13485
Material
Stainless Steel
Sterilizing Temp
50 Degree C
LCD Display
With LCD Display
Control System
PLC Intelligent Control
Sterilize Agent
60% H2O2 Solution
Chamber Material
Aluminum / Stainless Steel
Printer
Built-in Micro Printer
Power Supply
220V / 2.75kw
Product Description
High Quality Low Temperature Hydrogen Peroxide Plasma Sterilizer

The hydrogen peroxide low-temp plasma sterilizer is designed for both metal and non-metal medical devices. By diffusing hydrogen peroxide into the chamber and stimulating it into a plasma state, it ensures rapid sterilization without toxic residues. All stages occur in a dry, low-temperature environment, protecting instruments sensitive to heat or water vapor, including complex parts like hemostatic forceps hinges.

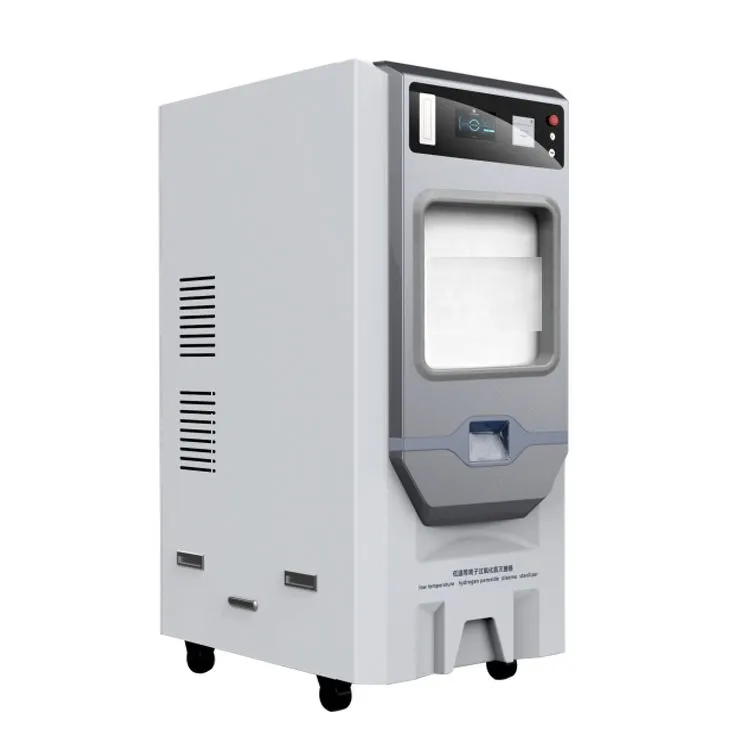

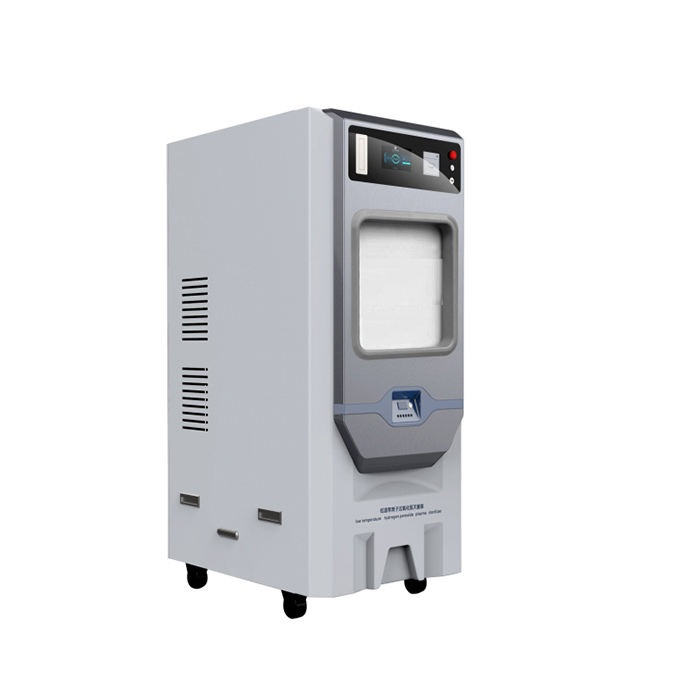

Plasma Sterilizer Unit

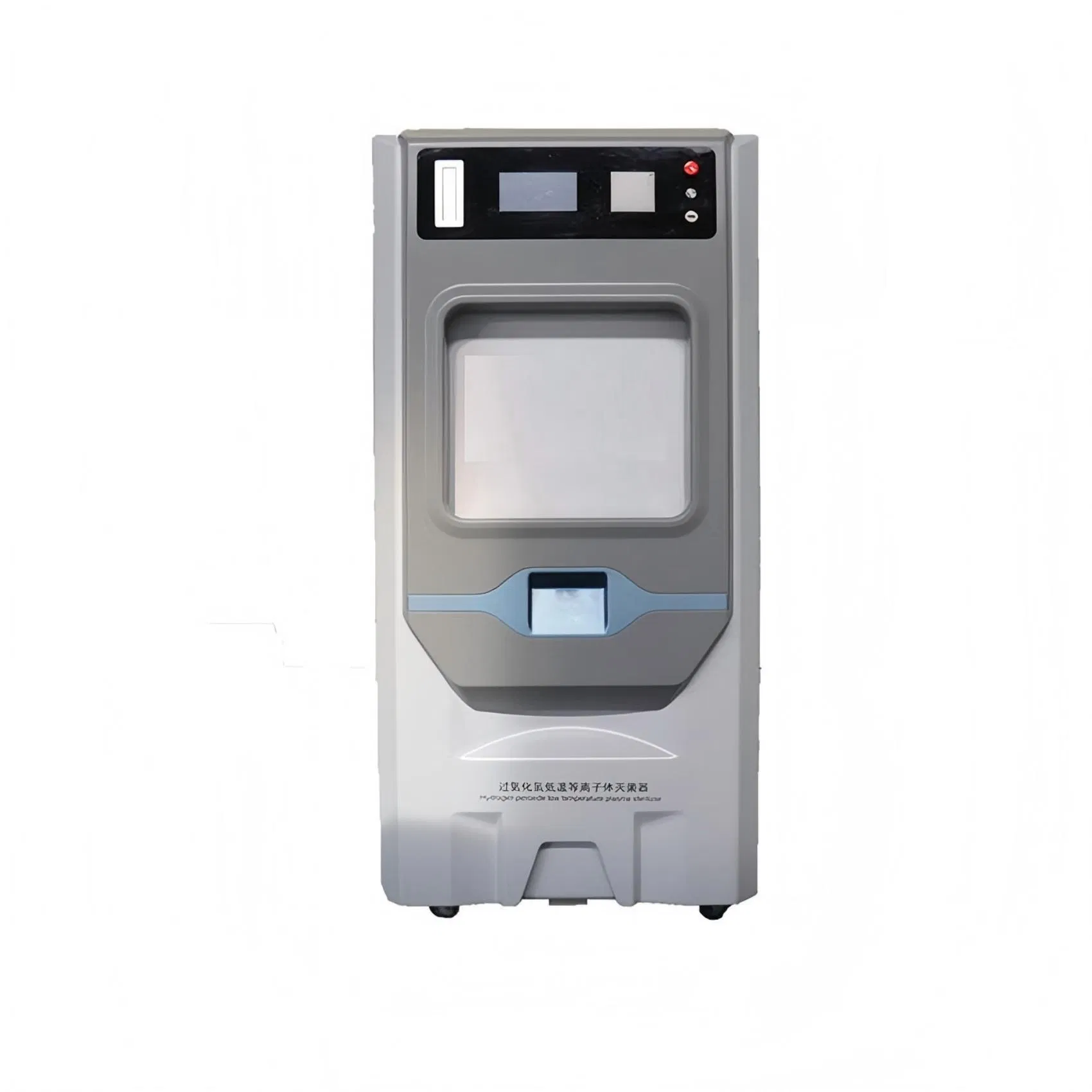

Sterilizer Detail
Core Features
  • Automatic System: Mandril-drive auto overhead door with reliable sealing and safety lock.
  • Intelligent Control: Siemens PLC with a 7-inch color touch screen displaying pressure, temperature, and alarm status.
  • Efficient Cycles: Short cycle (approx. 35 min) and Long cycle (approx. 55 min).
  • Safe Environment: Operates at 50 ºC ± 5 ºC, ensuring protection for delicate materials.
  • Data Management: Built-in thermal printer for real-time data and USB interface for historical downloads.
Technical Specifications
Models SD-DZ 100 SD-DZ 130 SD-DZ 220
Chamber Volume100 Liters130 Liters190 Liters
Construction5052 Aluminium / Stainless Steel
Processing TempBelow 55°C
Control SystemSiemens PLC
Display7" Touch Screen
Cycle TimeShort (30-35 min) / Long (50-55 min)
Data StorageMemory Card & USB
AlarmDoor Lock, Power Failure, Temp Range, Vacuum & Pressure
Visual Presentation & Quality Assurance

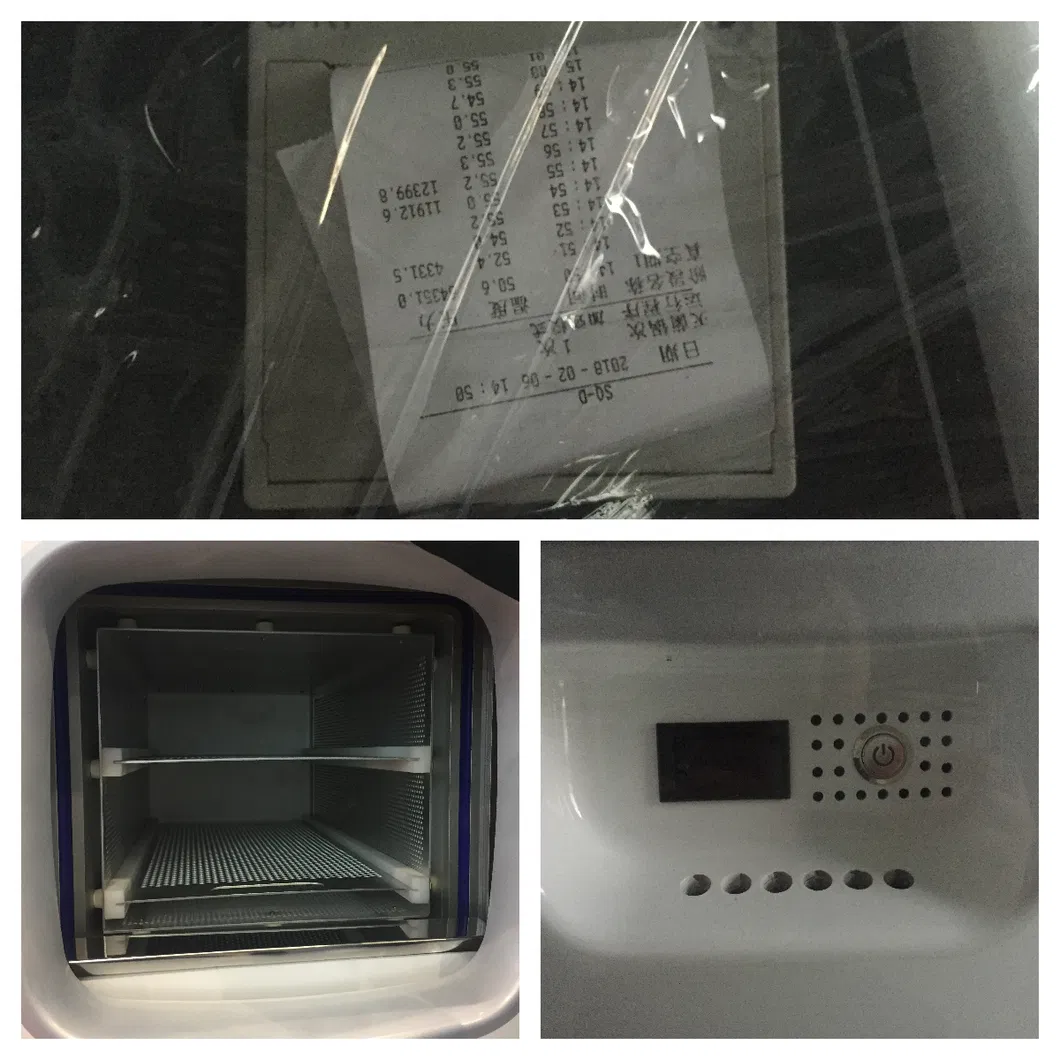

Detailed View
Packaging

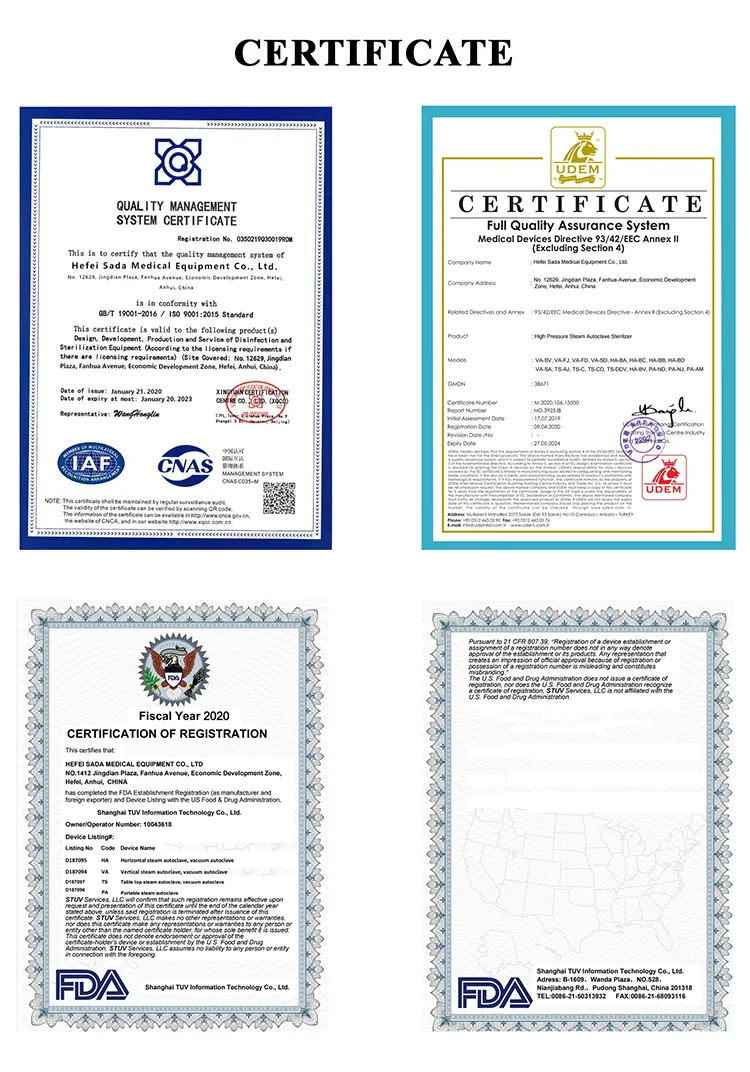

Certification 1

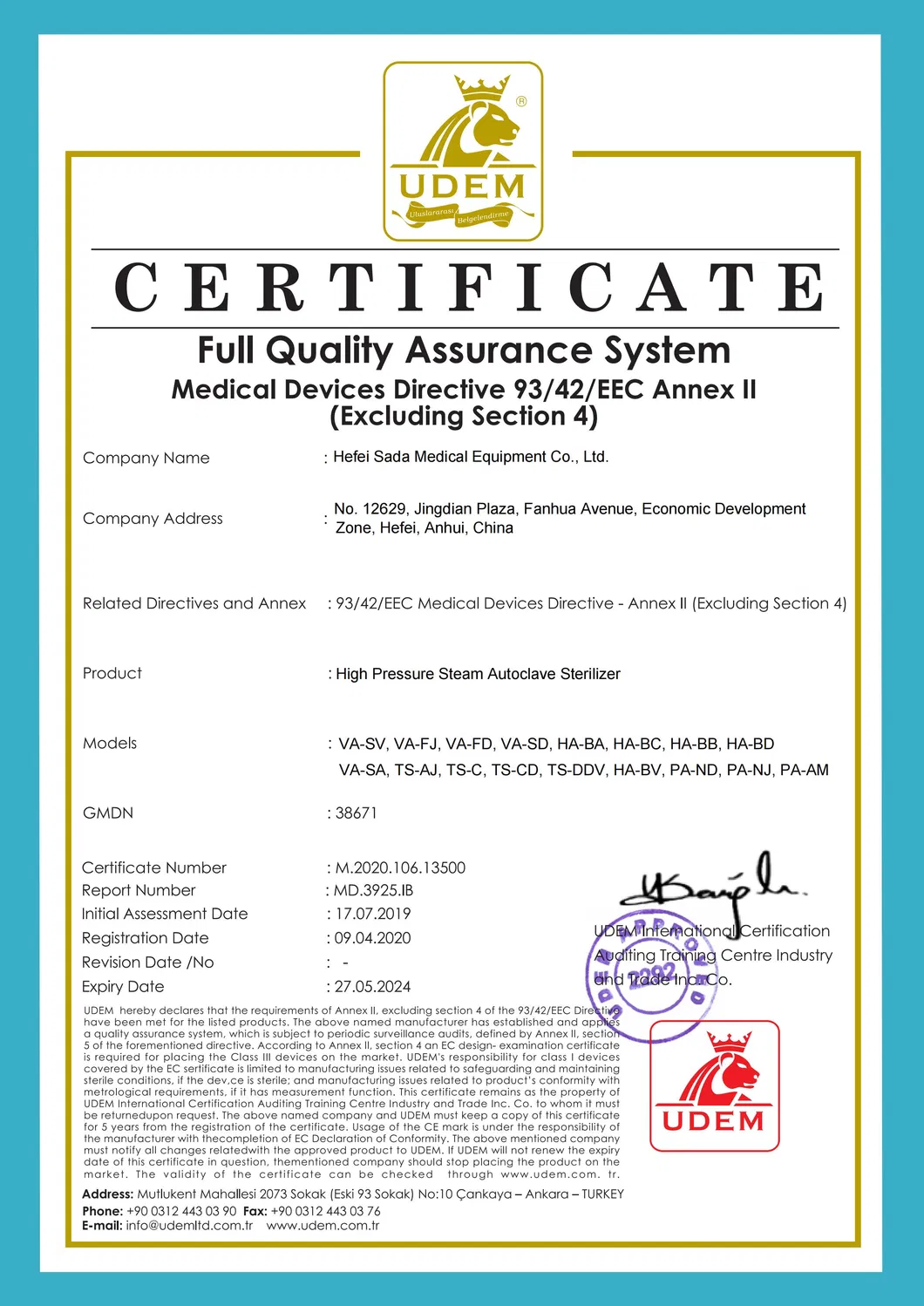

Certification 2
Professional Manufacturer Profile

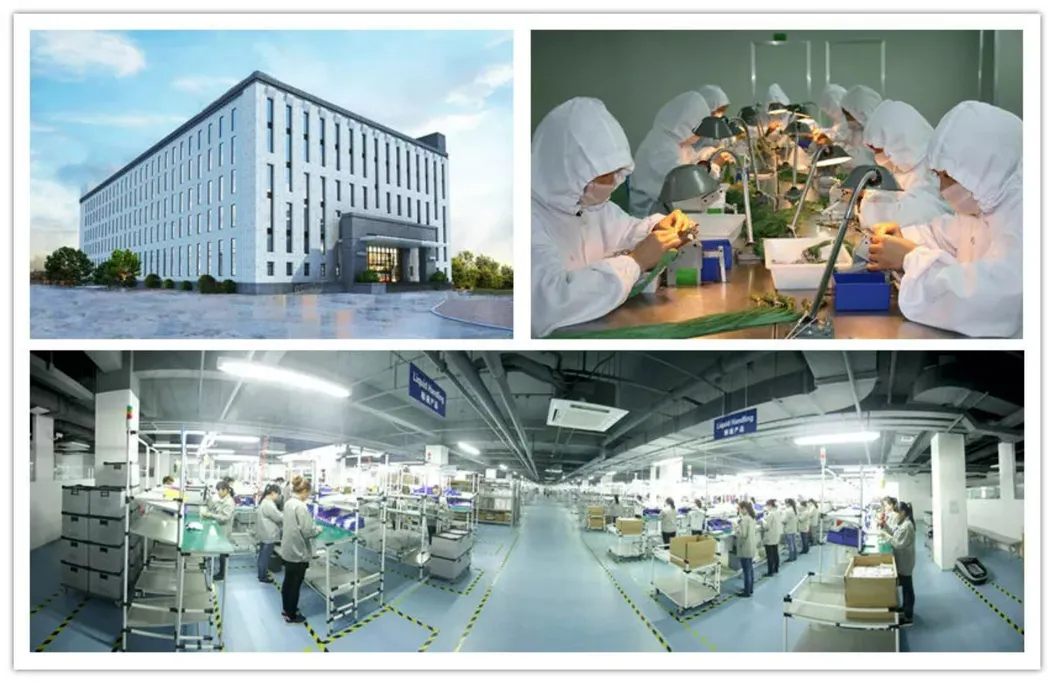

Factory View

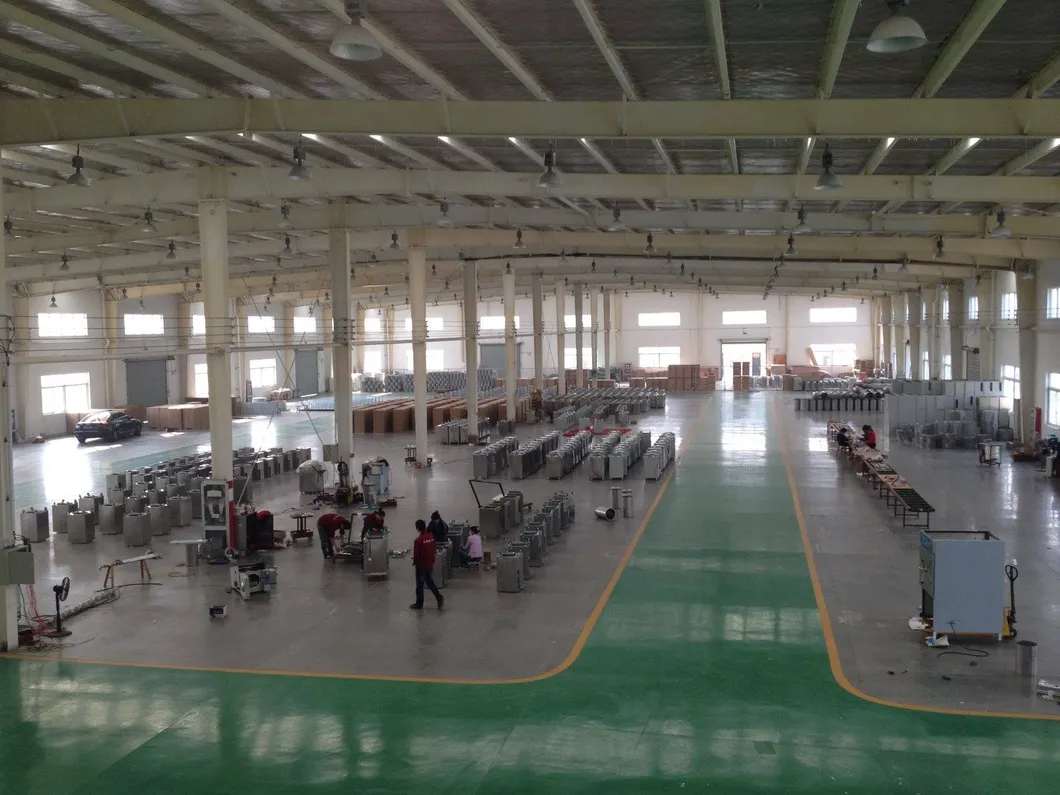

Workplace

With more than 10 years of experience since 2012, we are a professional sterilization equipment manufacturer and leading supplier. We provide one-stop services for medical sterilizers, serving over 1000 hospitals, clinics, and research institutions worldwide. Our primary markets include Southeast Asia, South America, Africa, and Western Europe. We offer a 2-year warranty and provide online training for our medical devices, supporting both OEM and ODM services with a strong R&D and technical team.

Frequently Asked Questions
Q: What is the main sterilization agent used in this machine?
A: The machine uses a 60% Hydrogen Peroxide (H2O2) solution as the primary sterilizing agent.
Q: Is it safe for heat-sensitive medical instruments?
A: Yes, it is specifically designed for low-temperature sterilization (approx. 50°C), making it ideal for instruments sensitive to heat and moisture.
Q: How long does a standard sterilization cycle take?
A: It offers a short cycle for normal sterilization (approx. 35 mins) and a long cycle for enhanced sterilization (approx. 55 mins).
Q: What kind of control system is integrated?
A: It features a high-end Siemens PLC intelligent control system with a user-friendly 7-inch color touch screen.
Q: Does the equipment support data recording?
A: Yes, it includes a built-in thermal printer for real-time data printing and a USB interface for downloading historical sterilization records.
Q: What is the warranty period for this equipment?
A: We offer a 2-year warranty for all products along with lifetime technical support and spare parts availability.
