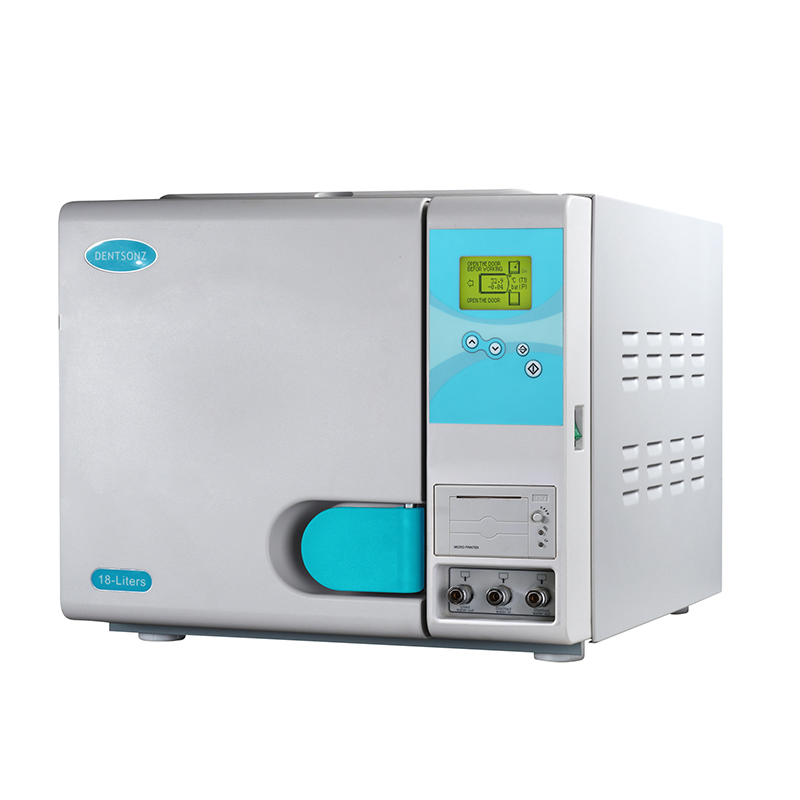

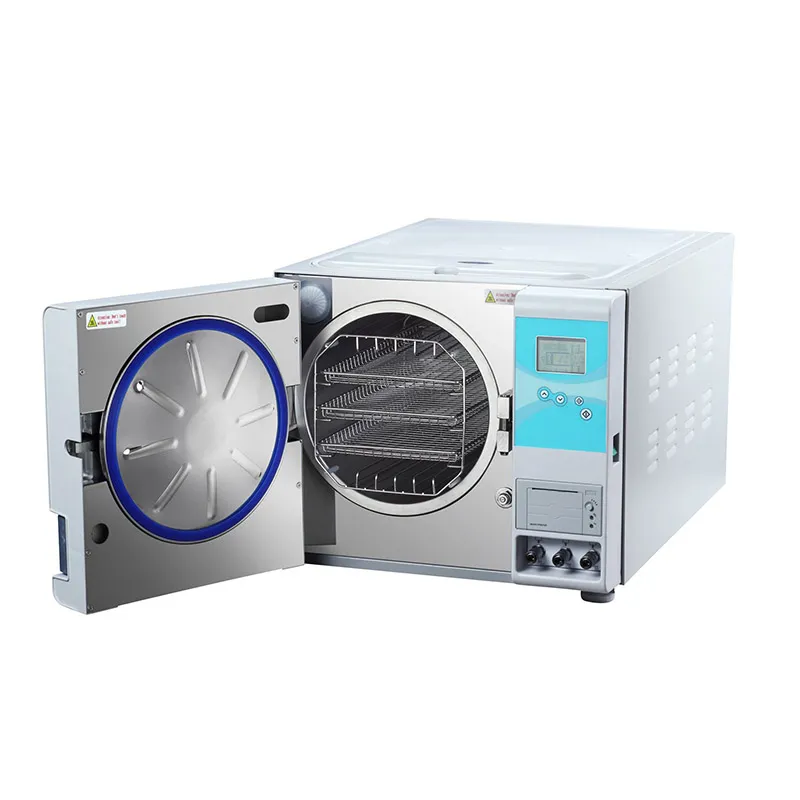

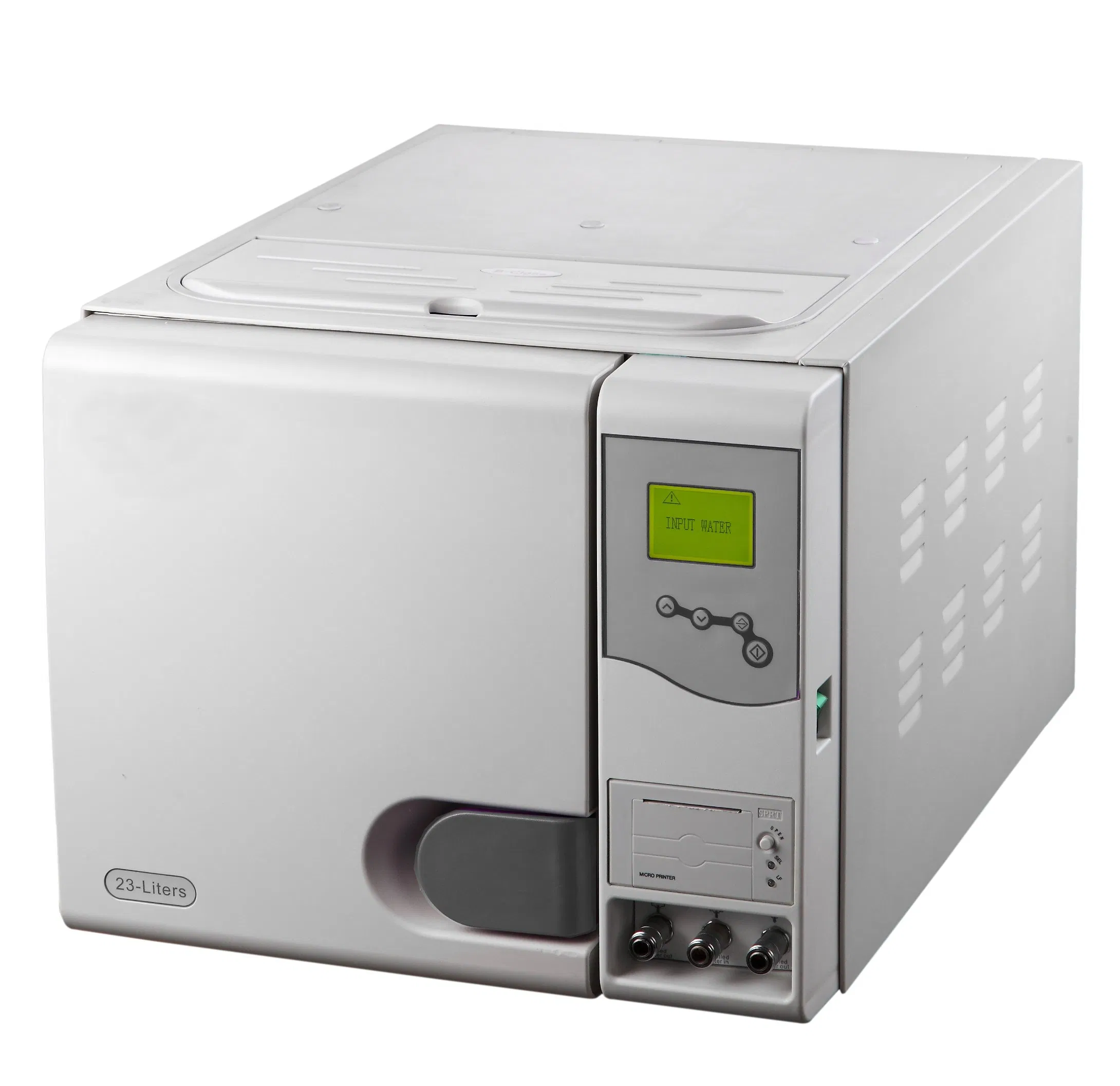

23L Table Top LCD Display Steam Sterilizer Class B Buit in Printer Dental Autoclave

Customization: Available
Theory: Autoclave
Type: Pressure Steam Sterilization Equipments

Product Description

Basic Information
Model NO.
Z-CLAVE IIB
Certification
CE, ISO13485
Electric Tension
220V

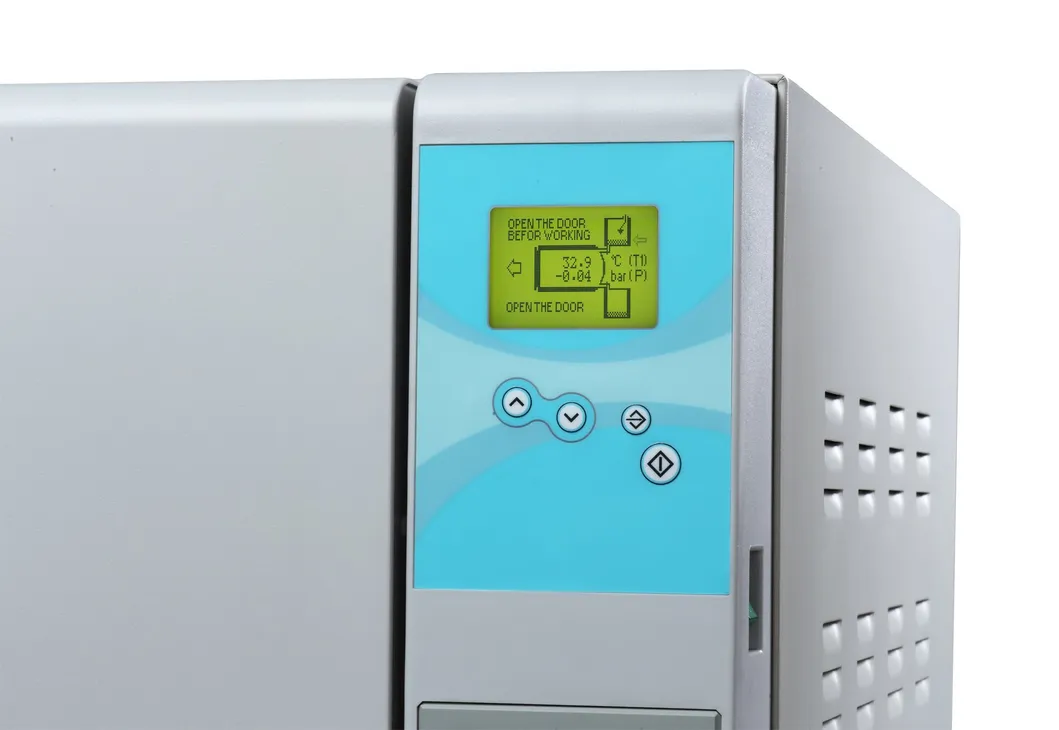

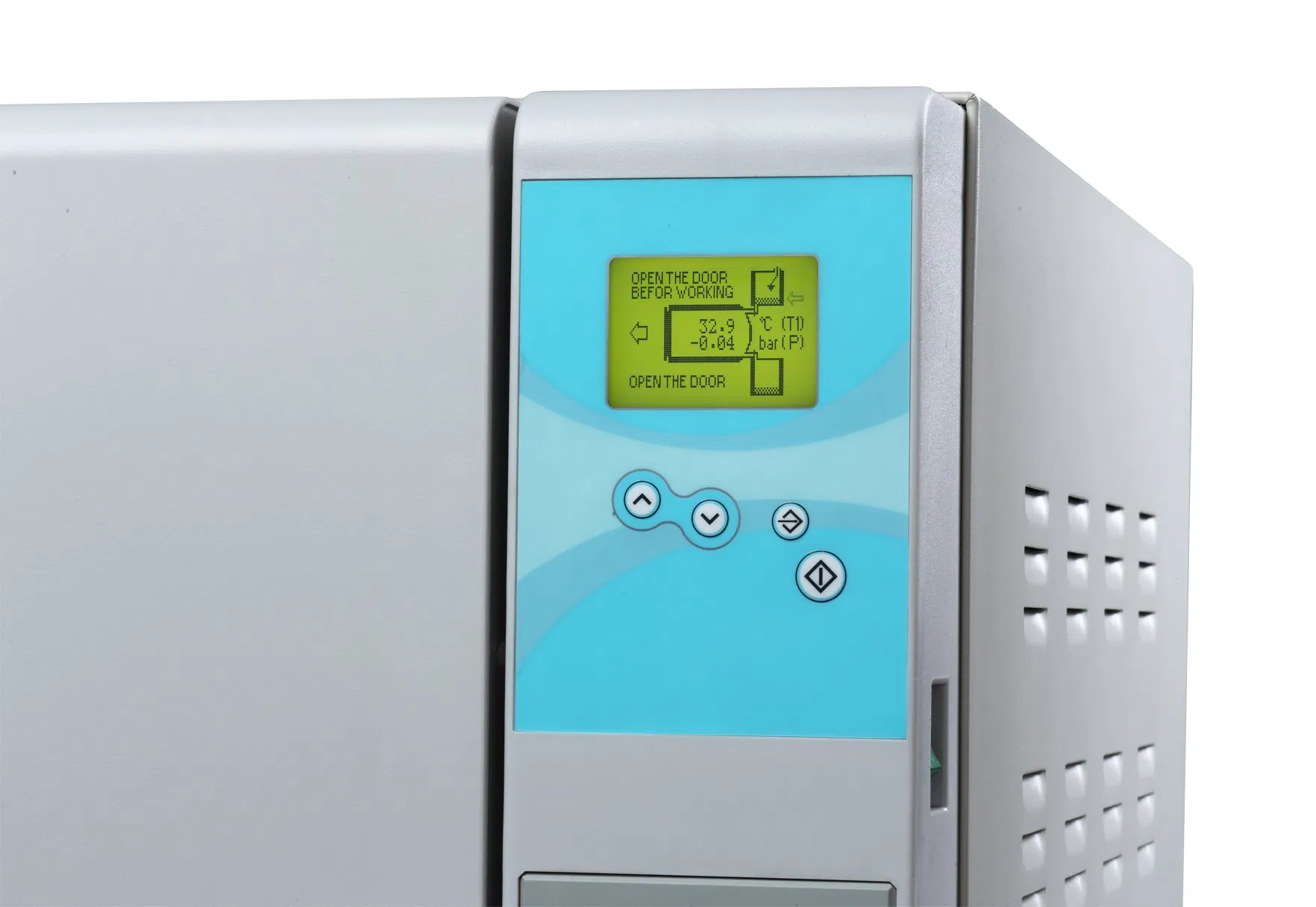

LCD Display
With LCD Display
Alarm System
Ultra High Temperature Alarm
Chamber Material
Stainless Steel 304
Sterilization Standard
Class B
Temperature
121 & 134 Degree
Application
Surgical, Dental, Beauty, Tattoo, Veterinary
Drying System
Vacuum Drying System
Capacity
18 & 23L
HS Code
841920000
Product Description & Features
Key Features of Z-CLAVE IIB Series
Feature Specifications
Sterilization ClassCLASS B
Temperature Range121ºC & 134ºC
Special ProgramsHIV, HBV long-sterilization program
Drying SystemVacuum drying system
Testing SystemBowie&Dick, Vacuum, Helix Test
Control PrecisionTemp: 0.1ºC, Pressure: 0.1Kpa
Safety SystemRelief valve, Hand lock door, Overload protection
Water SupplyBuilt-in 3.5L or 4L tank, easy to clean
Noise Level<50db
Available ColorsPurple, Green, Grey
Sterilization Programs
Program Temp. Pres. Vacuum Times Sterilization Time Drying Time
UNPACKED134ºC204kPa14 min9 min
PACKED134ºC204kPa35 min9 min
PRION134ºC204kPa318 min9 min
RUBBER121ºC104kPa120 min9 min
TEXTILE121ºC104kPa320 min18 min
LIQUID121ºC104kPa030 min1 min
USER-DEFINED134ºC204kPa1-34 min+3 min+
Model List
Model Voltage/Power Chamber (mm) External Size (mm) Packing Size (mm) Weight (kg)
Z-CLAVE IIB 18220V/1700WΦ245×360560×450×400660×525×49547
Z-CLAVE IIB 23220V/1700WΦ245×470675×450×400770×525×49553

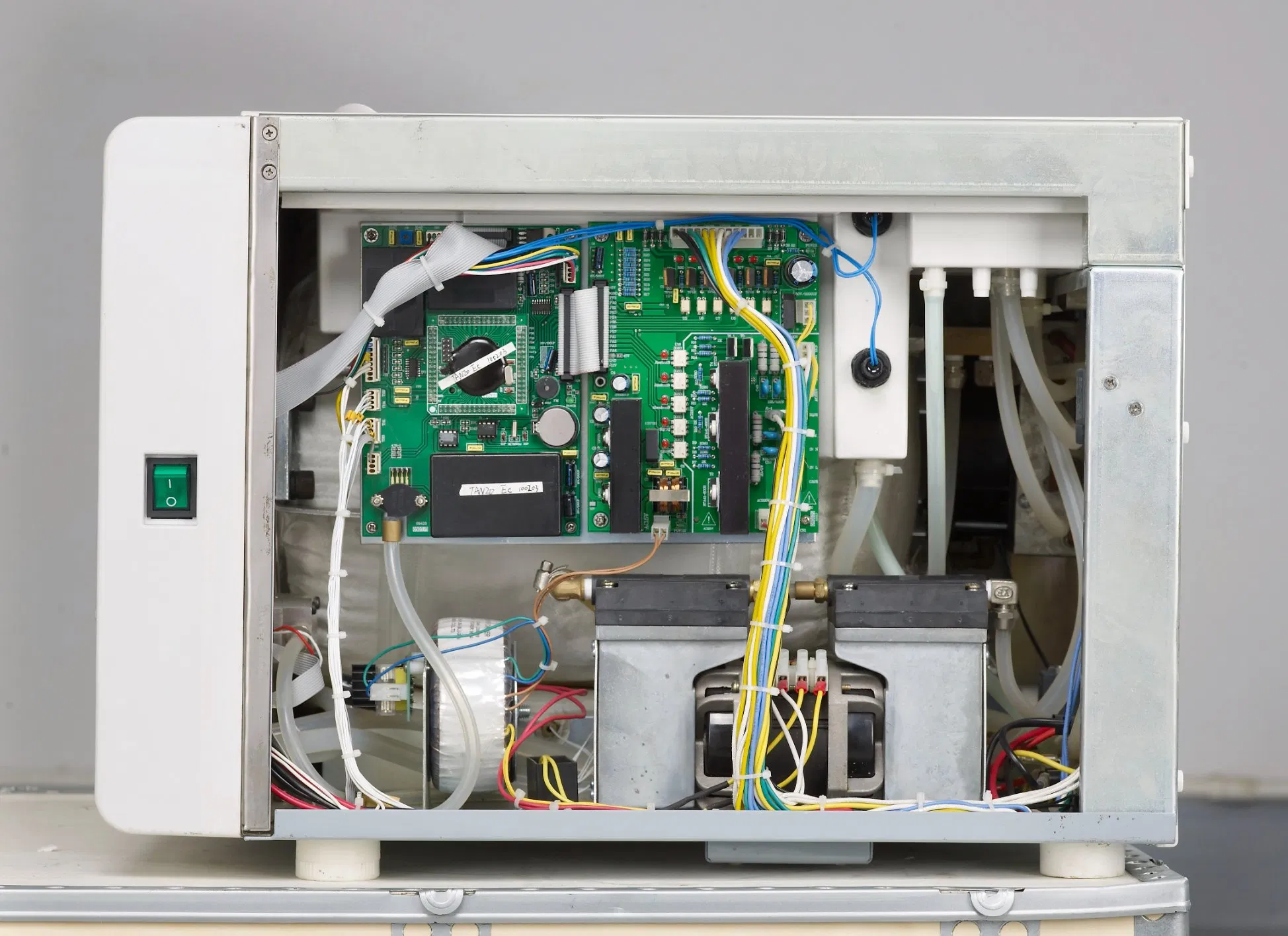

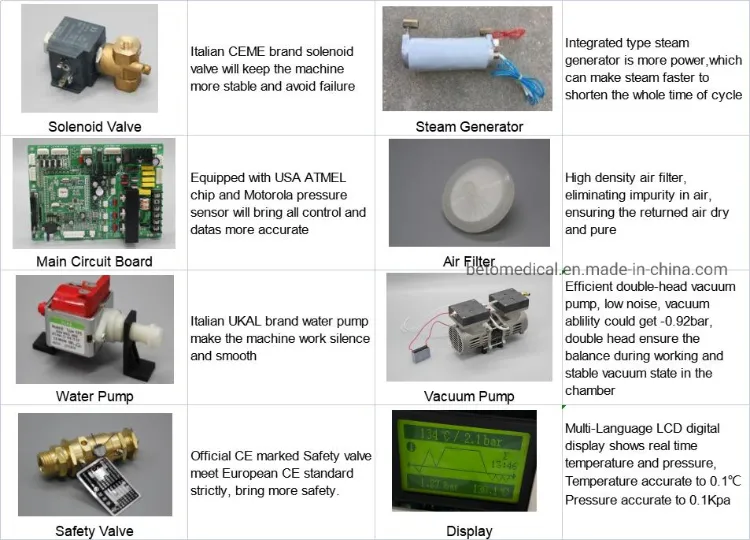

Main Components
Dental Autoclave Parts
Application Fields

This high-precision steam sterilizer is widely used in:

Dental Clinics, Hospitals, First-aid Stations, Laboratories, Veterinary Hospitals, Beauty Salons, and Tattoo Houses.
Compliance & Standards
Directive/Standard Description
MDD 93/42/EECMedical Device Directive
PED 97/23/ECPressure Equipment Directive
EN 13060Small steam sterilizers
ISO 13485Medical device - Quality management systems
Professional Workshop

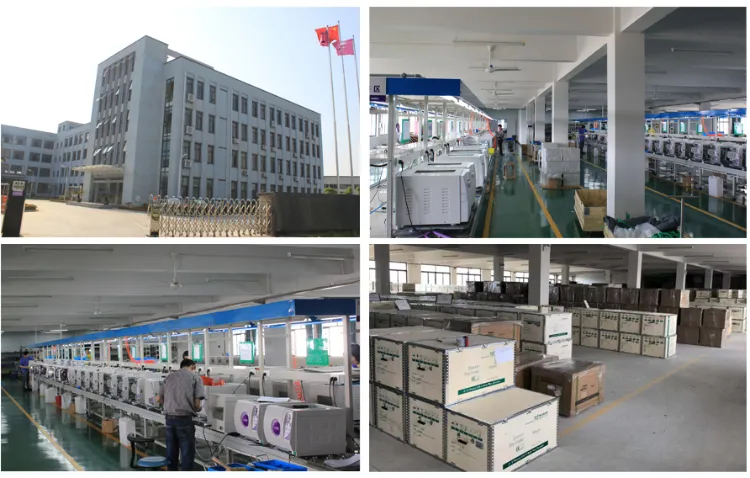

Production Line

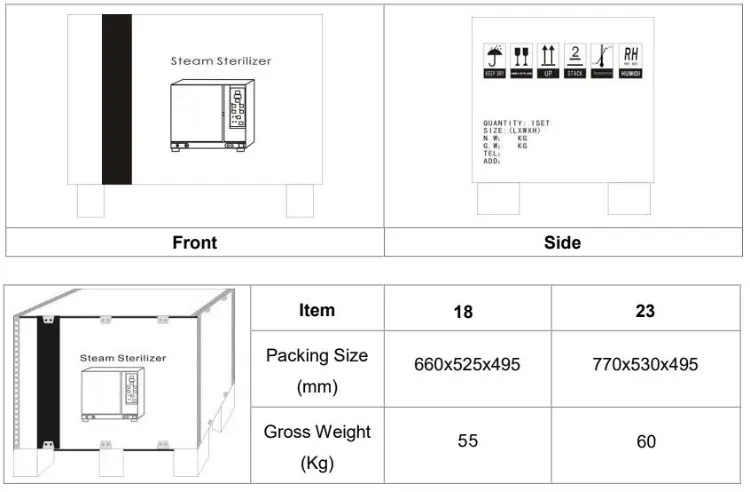

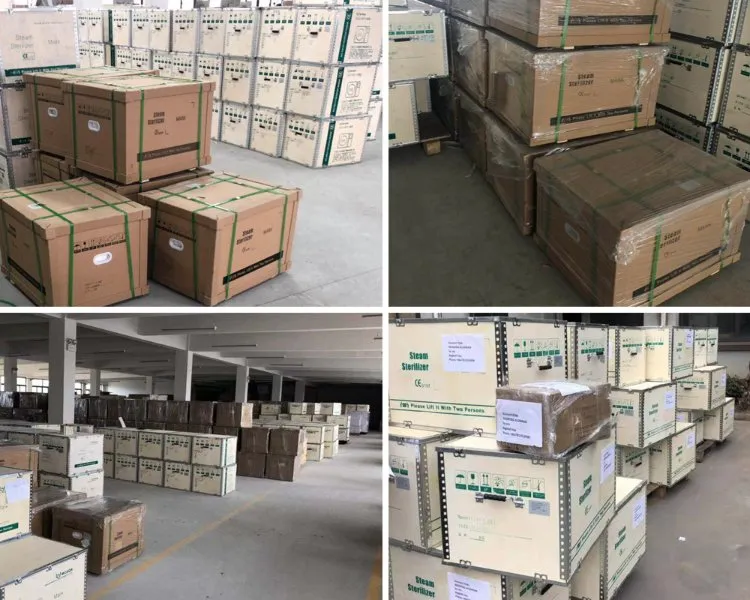

Packaging & Shipping
Logistics
Frequently Asked Questions
What is the estimated delivery time?
Products are produced according to specific orders, the delivery period is usually 15-30 days. Our current production capacity is 1500 units per month.
How is the quality assurance handled?
We offer a 2-year warranty starting from the date of shipment. If the machine encounters problems during this period, we provide free spare parts for replacement. Free spare parts are also provided for service backup on orders exceeding 5 units.
How competitive are your prices?
With over 20 years of experience in this field, we provide top-quality products at competitive prices. We have established a strong reputation across Europe, Africa, the Middle East, Asia, and South America.
Why do prices vary for similar-looking models?
Prices depend heavily on material quality and quality control standards. While some products may look identical, those using inferior materials or less rigorous testing are often cheaper but lack long-term reliability.
What are the available payment terms?
We accept T/T in advance, L/C, Western Union, PayPal, and MoneyGram.
Which shipping options are available?
We work with major lines including MAERSK, PIL, COSCO, APL, and couriers like DHL, EMS, TNT, and UPS. Shipping options can be prioritized based on the buyer's preference and schedule requirements.
