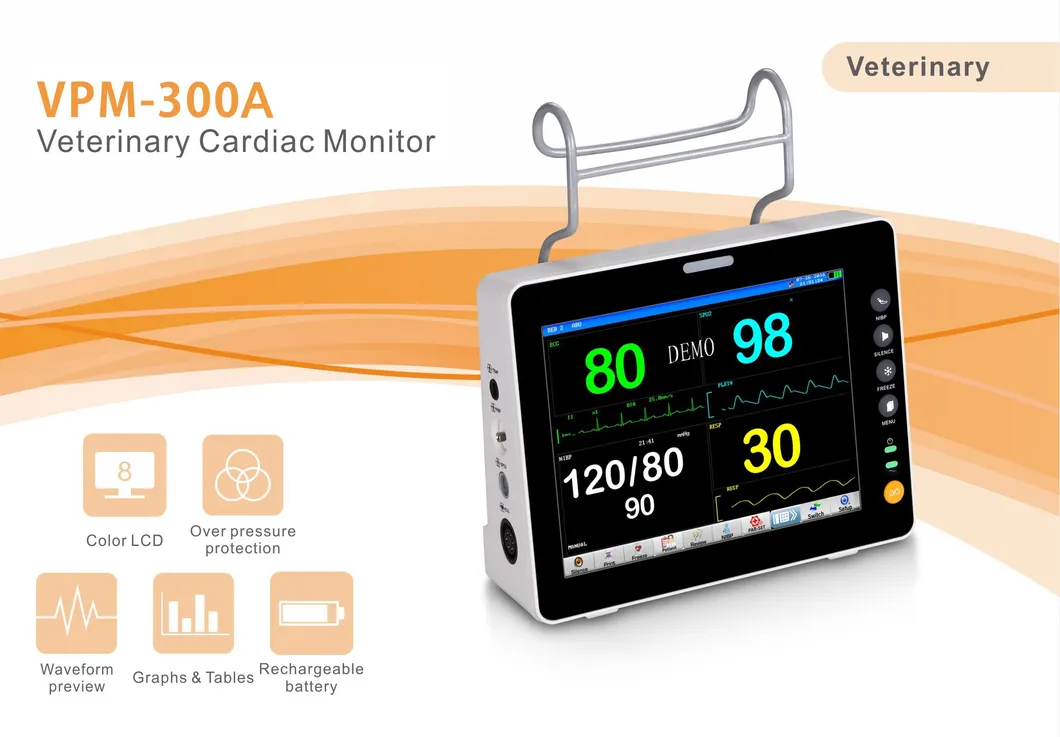

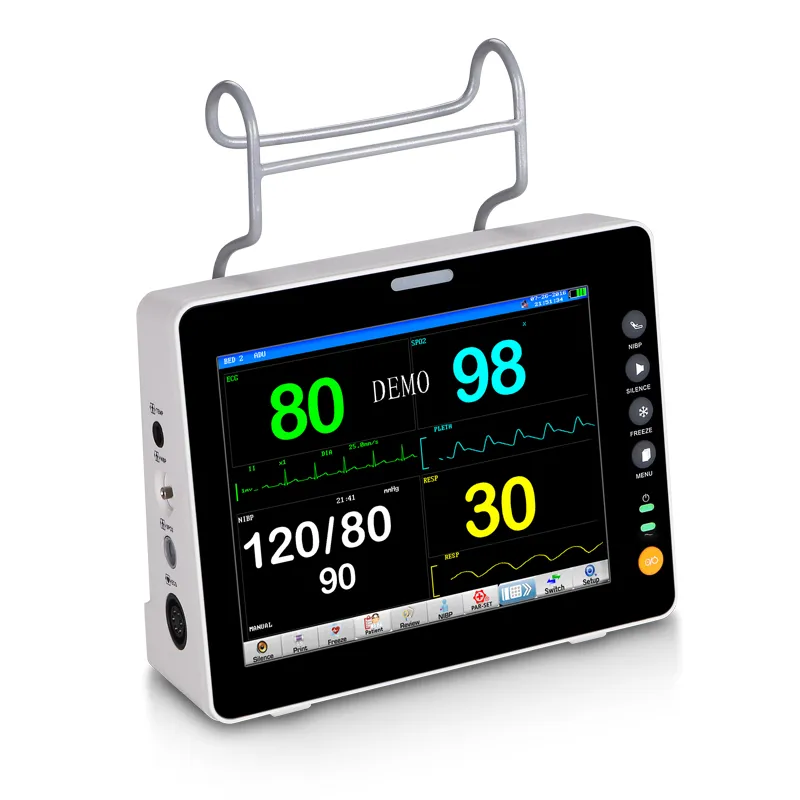

Veterinary Product 8inch Multi Parameter Patient Monitor for Pet Clinic

1 / 5

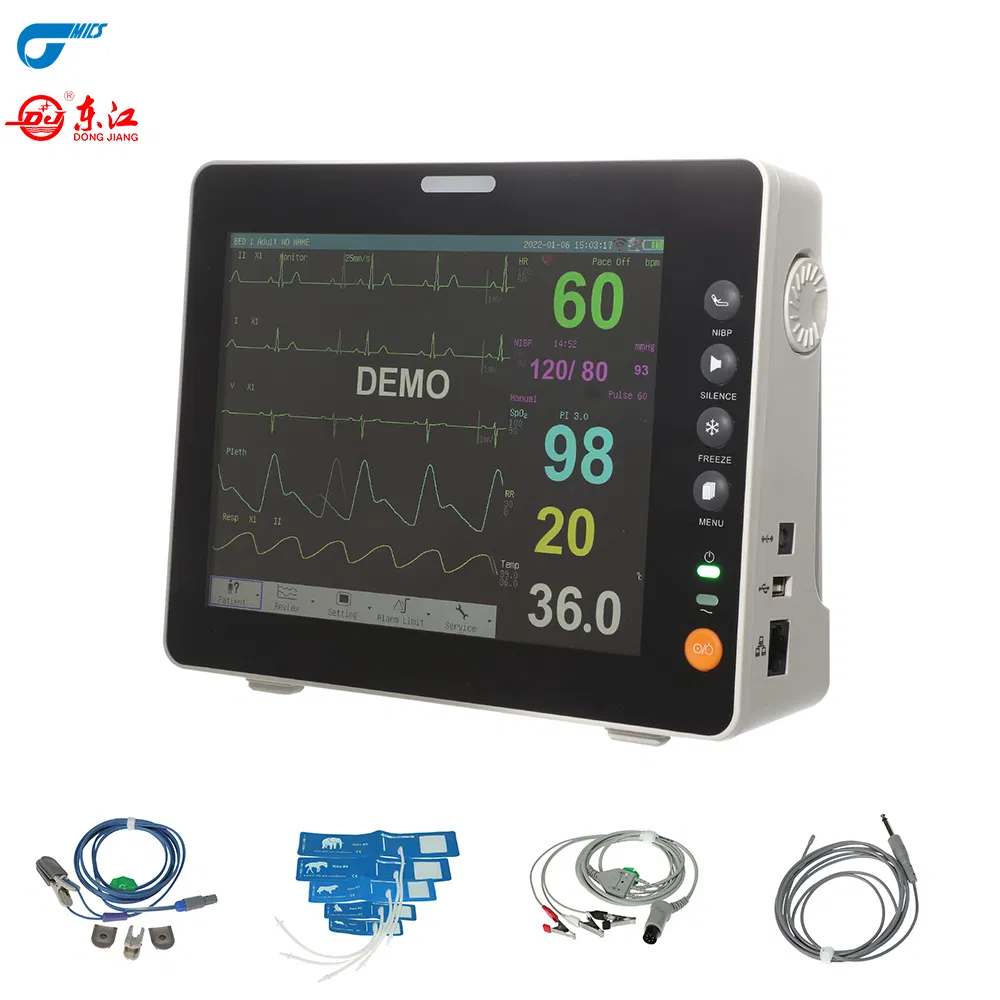

Veterinary Product 8inch Multi Parameter Patient Monitor for Pet Clinic

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

VPM-300A

Certification

ISO13485

Product

Veterinary Patient Monitor

Screen

8 Inch TFT LCD

Warranty

1 Year

Power Supply

Built-in Battery

After-Sale

Online Technical Support

Package

Carton

Specification

25*27*20cm

★

Product Description

Key Features

8 inch high brightness (800x600) colorful TFT LCD
Simultaneous display of 7 lead ECG waveform
Indented menu layout to maximize display space
Protection against defibrillation and ESU interference
New SPO2 technology to assure precise measurement
ST segment arrhythmia analysis in real time
Able to analyze 15 kinds of drug level
168 hour graphic and tabular trend with data storage
High efficient power management (fanless design)
Networking capacity for up to 66 beds
750 group NIBP data for recall and display

Standard Configuration: ECG, NIBP, SpO2, PR, RESP., TEMP., HR
Optional Configuration: 1/2/4 IBP, EtCO2, multi gas, CO, 12 lead ECG, thermal recorder, touch screen, WiFi, HDMI, USB, VGA

⚙

Technical Parameters

ECG Monitoring

Lead Mode: 5 Leads (RA, LA, LL, RL, V)
Lead Selection: I, II, III, avR, avL, avF, V
Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, auto
HR Range: 15 ~ 350 bpm
Accuracy: ±1% or ±1 bpm
ST Range: -2.0 ~ +2.0 mV

SpO2 & Pulse Rate

Measurement Range: 0 ~ 100%
Resolution: 1%
Accuracy: 70% ~ 100%: ±2%
Pulse Rate Range: 20 ~ 250 bpm
Pulse Accuracy: ±3 bpm
Update Interval: Approx. 1 second

NIBP (Non-Invasive Blood Pressure)

Method: Oscillometric
Modes: Manual, Auto, STAT
Adult Mode Range: SYS: 40 ~ 280 mmHg / DIA: 10 ~ 220 mmHg
Neonatal Mode Range: SYS: 40 ~ 135 mmHg / DIA: 10 ~ 100 mmHg
Accuracy: Max Mean Error ±5 mmHg

Respiration & Temperature

Resp. Method: Impedance between RA-LL
Resp. Range: 0 ~ 150 rpm (Ped/Neo)
Temp. Channel: 1 Channel
Temp. Range: 0 ~ 50 °C
Temp. Accuracy: ±0.1 °C

📦

Packaging & Shipping

Product Dimensions: 212mm × 172mm × 80mm
Weight: 2.0 Kg

• 1* VPM-300A Patient Monitor

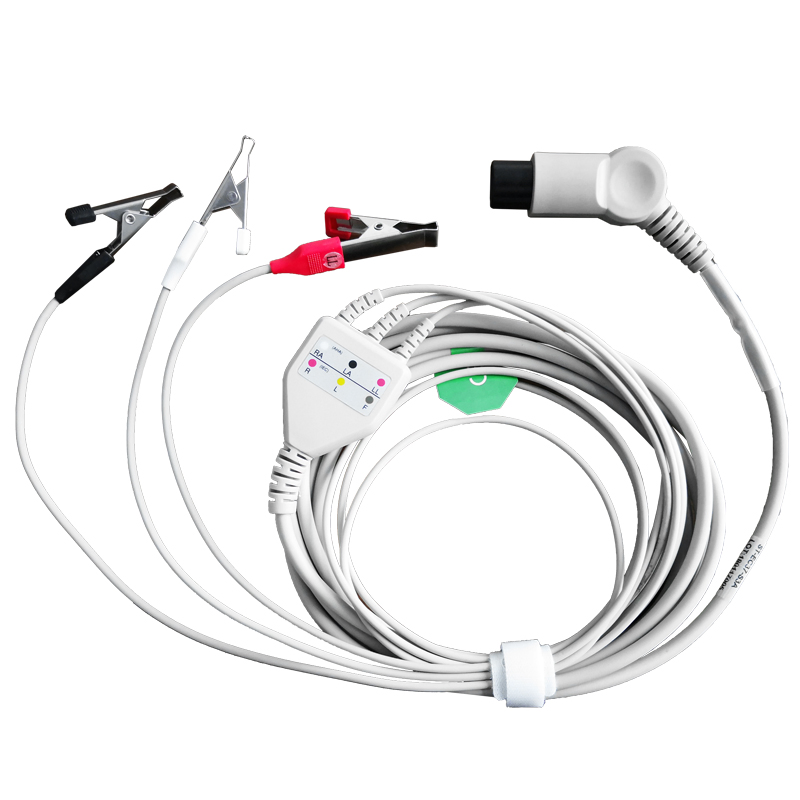

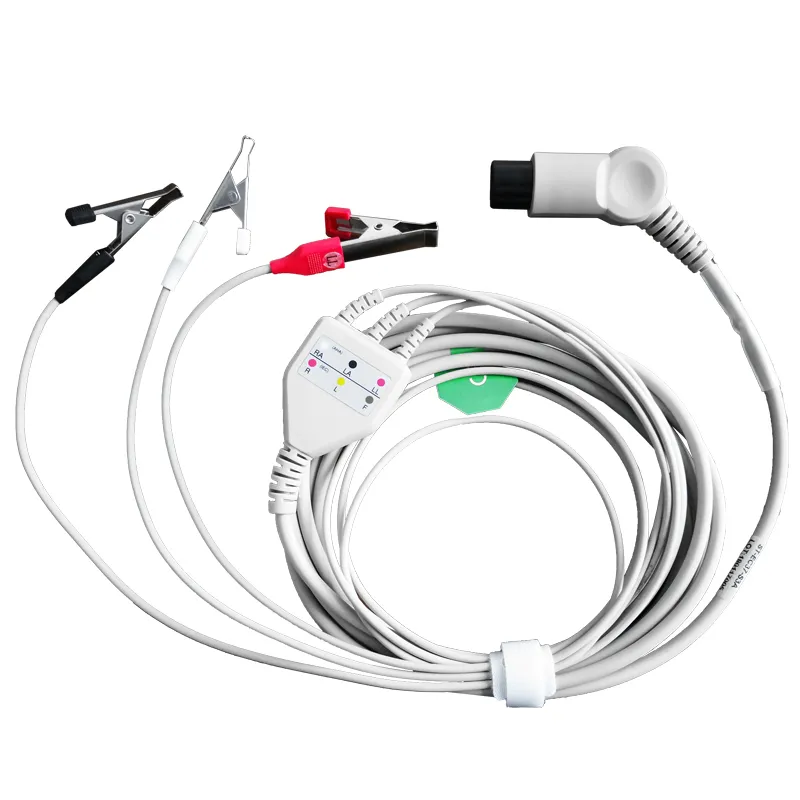

• 1* ECG Cable (3 Lead)
• 1* ECG Electrodes
• 1* SPO2 Sensor

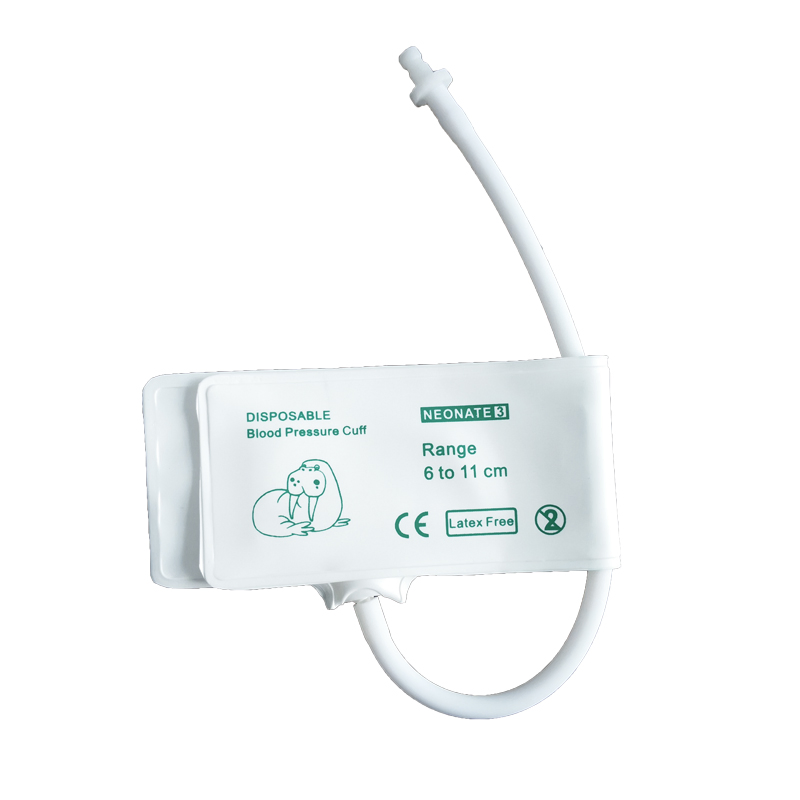

• 1* NIBP Cuff
• 1* Extension tube
• 1* Power Wire
• 1* Grounding cable
• 1* User manual
• 1* Warranty & Certificate

📁

Gallery

Frequently Asked Questions

What parameters are included in the standard setup?

The standard configuration includes vital monitoring for ECG, NIBP, SpO2, Pulse Rate (PR), Respiration (RESP), Temperature (TEMP), and Heart Rate (HR).

Is the monitor screen easy to read in bright clinics?

Yes, it features an 8-inch high-brightness colorful TFT LCD with an 800x600 resolution, designed for clear visibility even in well-lit environments.

Does the device store historical data?

The monitor provides 168 hours of graphic and tabular trend storage, plus memory for 750 groups of NIBP data for recall.

Is the monitor safe to use with surgical equipment?

Absolutely. It is built with professional protection against interference from defibrillation and Electrosurgical Units (ESU).

Can I use this for small neonatal animals and large animals?

Yes, the VPM-300A includes specific monitoring modes for Adult, Pediatric, and Neonatal patients to ensure measurement accuracy across different sizes.

Does the monitor require a constant plug-in power source?

No, it comes with a high-efficiency built-in battery, allowing for mobile use and operation during power transitions.
