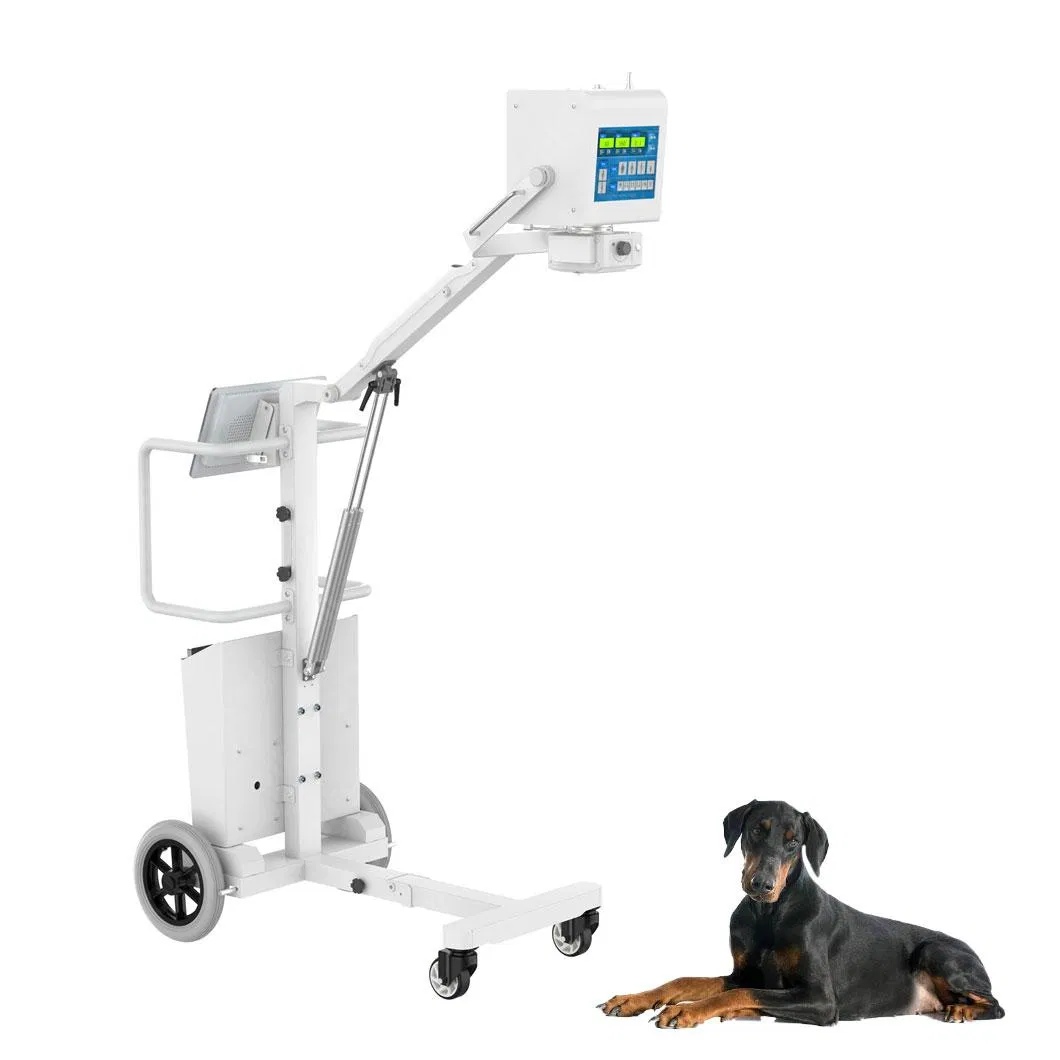

Veterinary Medical High Frequency X Ray Radiography Car Portable Diagnostic Equipment

1 / 5

Veterinary Medical High Frequency X Ray Radiography Car Portable Diagnostic Equipment

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

🔹 Basic Info.

Model NO. WMDR-001

Transport Package Paper Box

Origin China

Production Capacity 50000PCS/Year

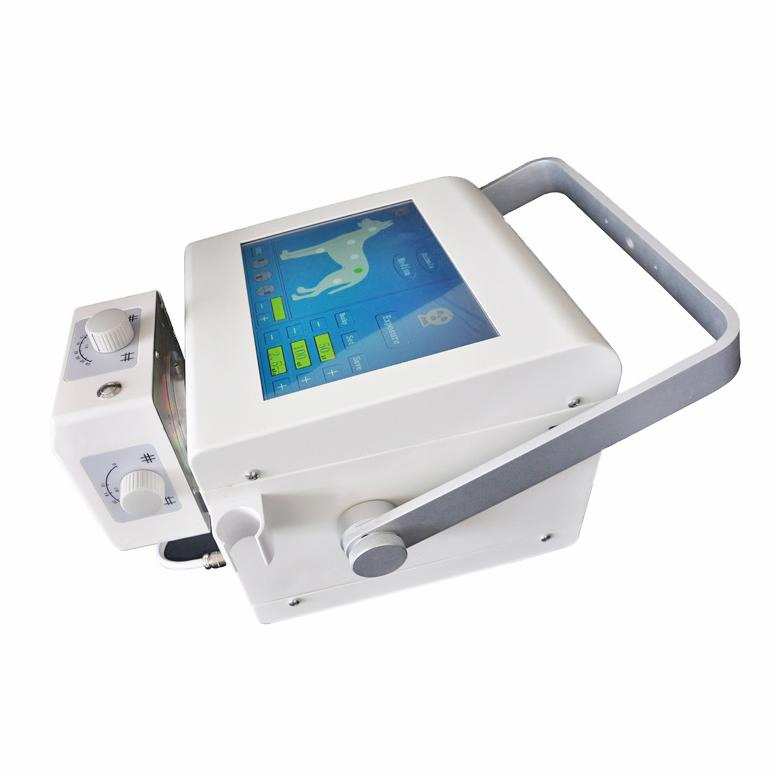

📷 Products Pictures

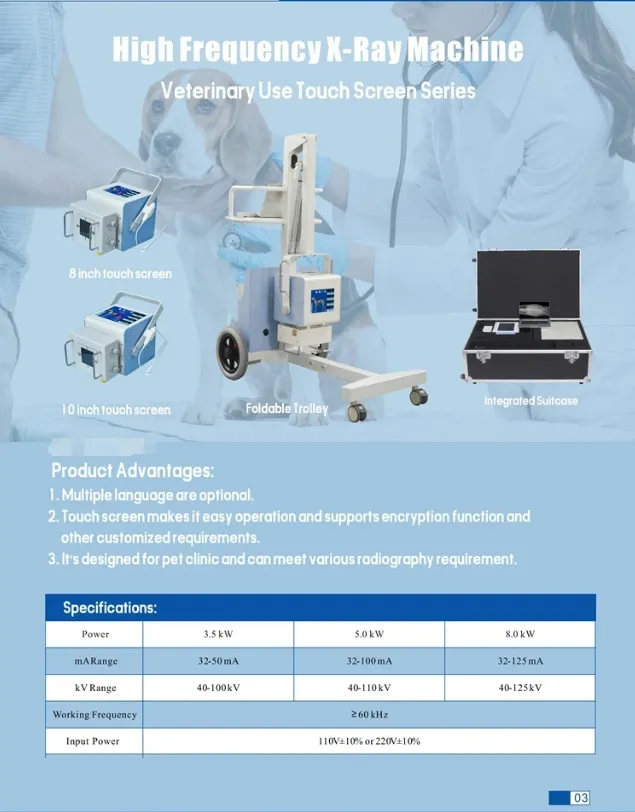

⚙️ Technical Specifications

Model	DR-M100A & DR-M100AV
Input power	Voltage: AC220V±22V Frequency: 50/60Hz±1Hz
Maximum output power	5kW
Nominal power	AC 220V, 50Hz
kV adjusting range	40kV~110kV, Continuous adjustment step 1 kV
mA adjusting range	20mA~100mA
mAs adjusting range	0.2mAs~200mAs, shifted adjustment.
s adjusting range	10~4000ms
X-ray tube	Focus: 0.5/1.6mm; Anode heat capacity: 240kHU
Wire Flat Panel Detector 17X17inch	Scintillator: CsI Direct Deposit; Pixel Pitch: 139; Limit resolution: Max.3.6LP/mm; Pixels: 3072*3072
Laptop	CPU: Intel Core i5; Memory capacity: 4GB; Screen size: 14 inch
X-ray machine size	290×265×230mm
Weight	19kg

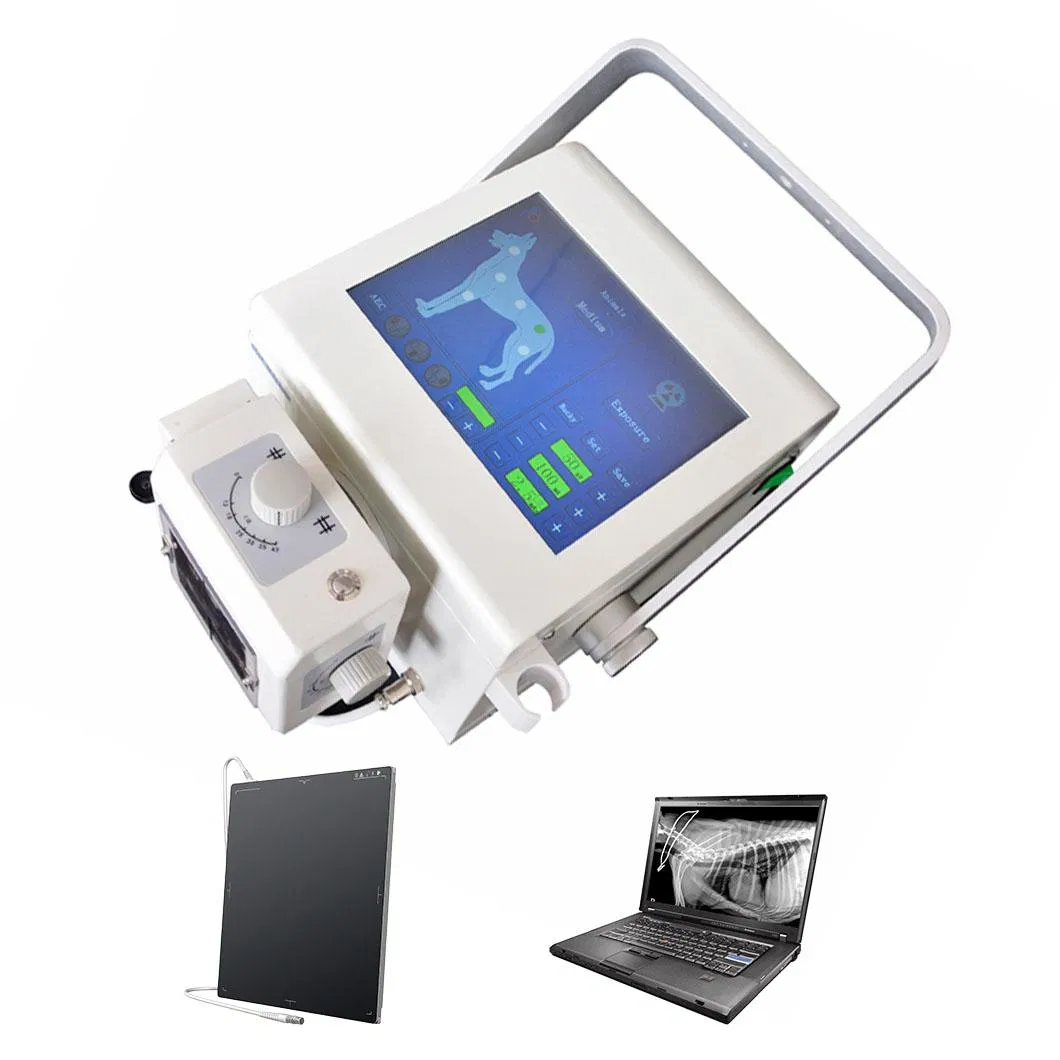

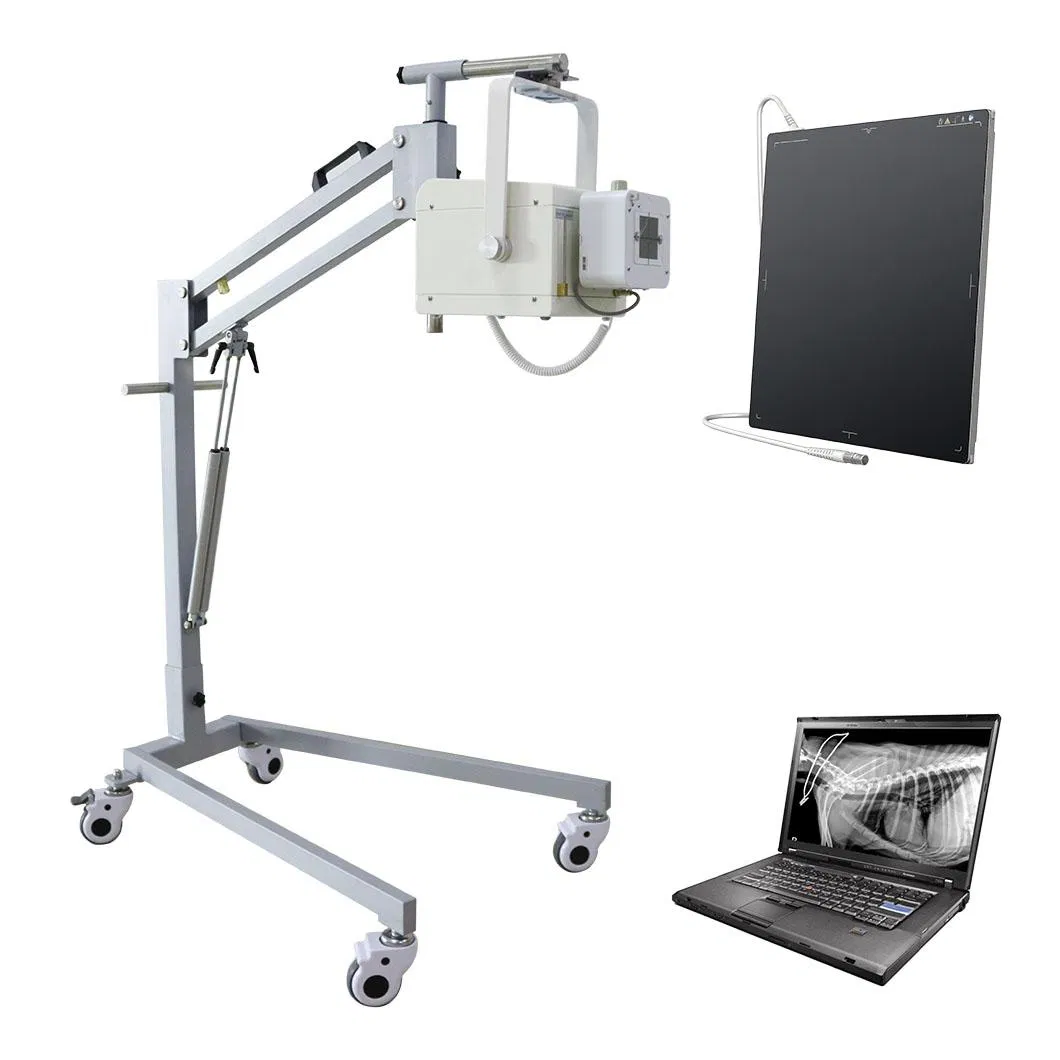

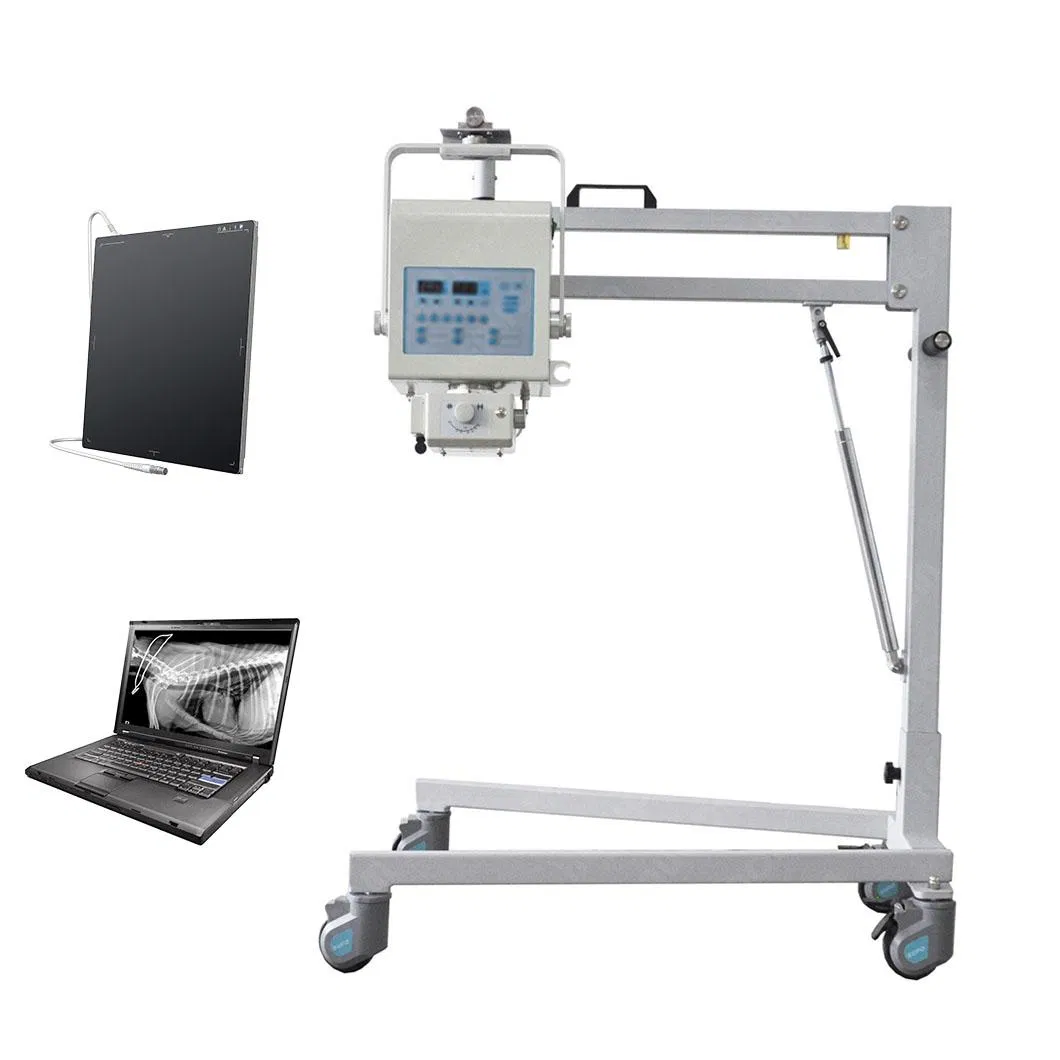

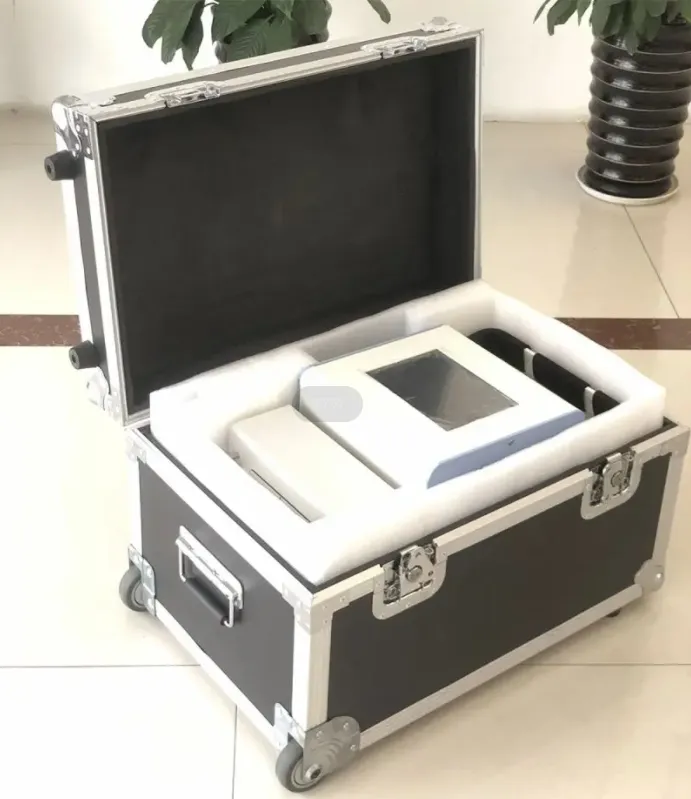

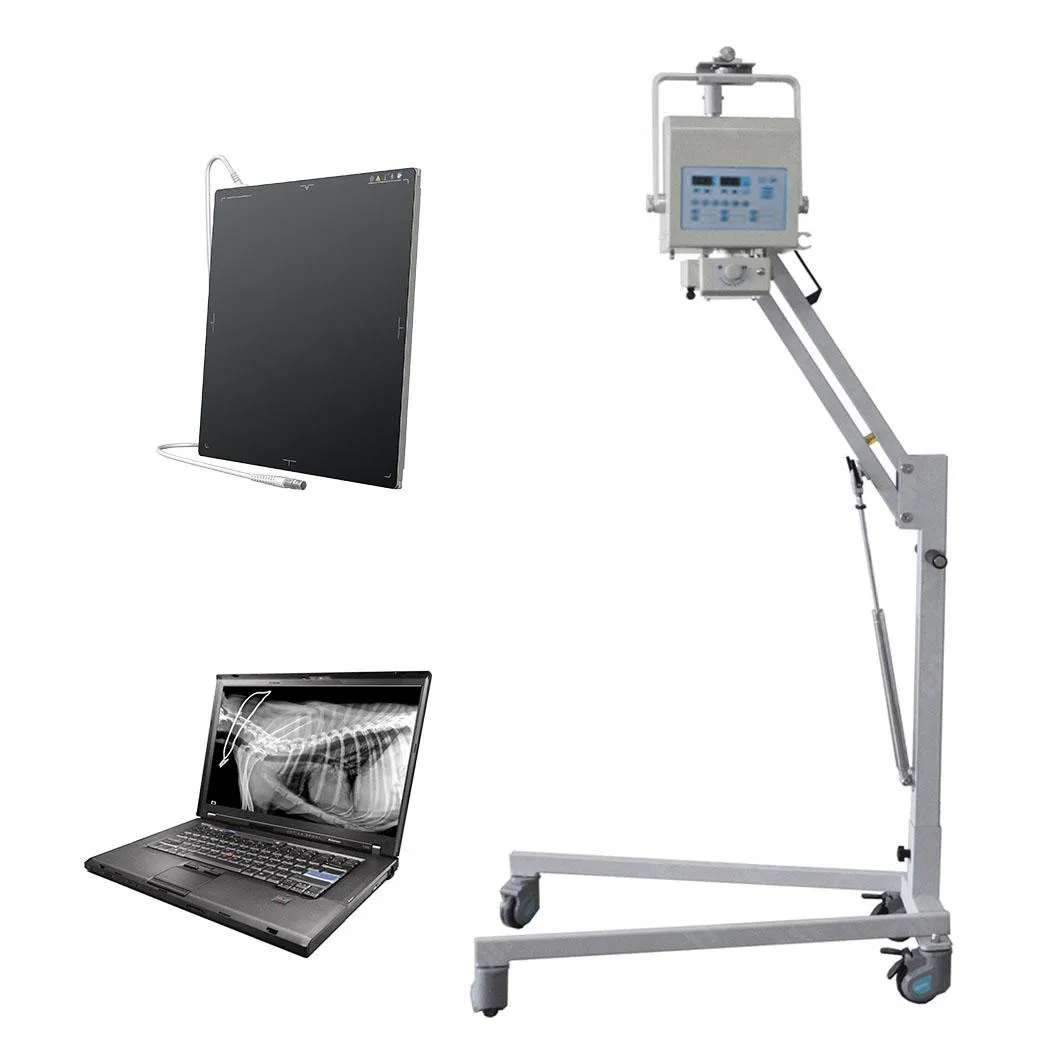

Standard Configuration	Hand switch, remote control, detector, computer & LCD, suitcase, moveable stand

📜 Certificates

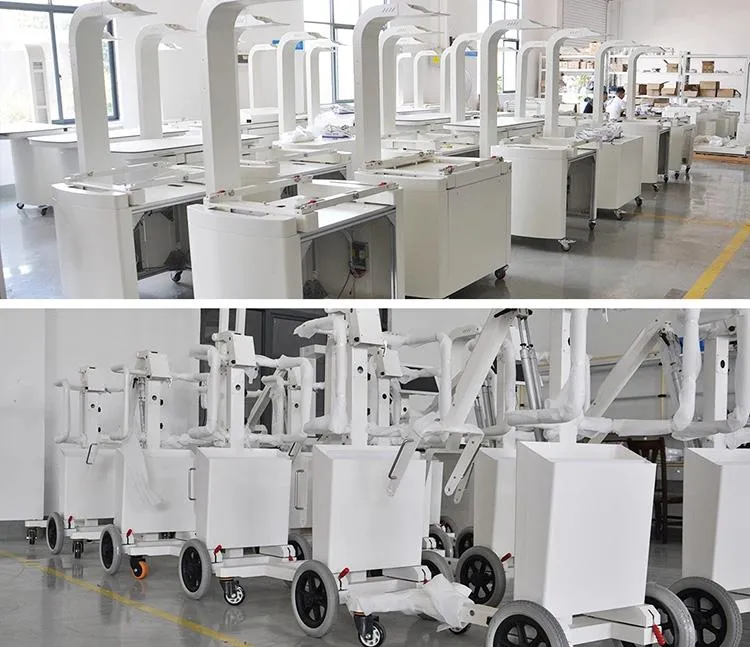

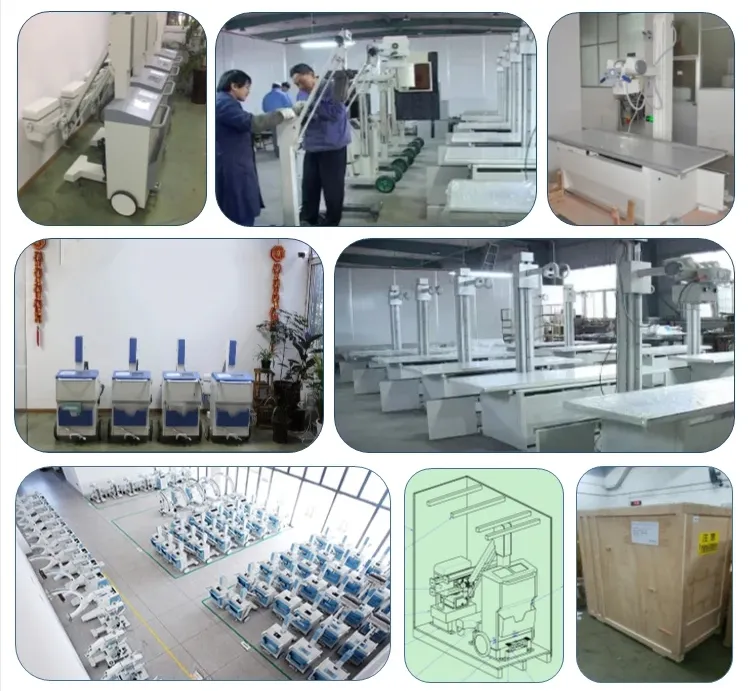

🏭 Factory Overview

Founded in 2010, the company has developed into a professional supplier of medical and veterinary equipment. The full range of products includes infusion & syringe pumps, Ultrasound, Anesthesia Machines, Ventilators, Patient monitors, and Stainless steel cages. With a quality management system according to ISO, quality is always the first concern. Products are shipped worldwide, including Europe, Middle East, Africa, South America, and Asia.

🏢 Exhibition

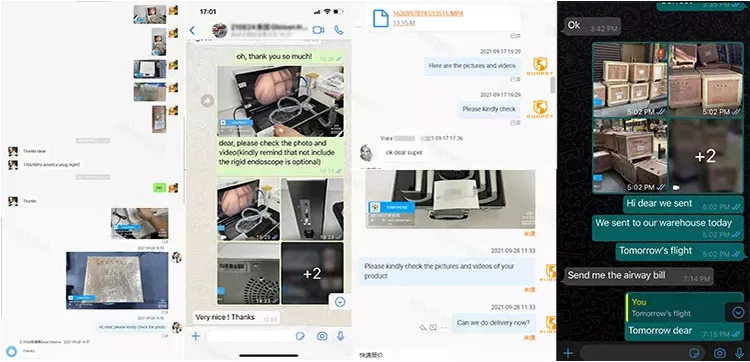

💬 Customer Feedback

🔗 Related Products

❓ Frequently Asked Questions

What is the output power of this portable X-ray machine?

The WMDR-001 model features a high-frequency output with a maximum power of 5kW, ensuring clear diagnostic imaging for veterinary use.

Is the Flat Panel Detector wireless or wired?

This specific configuration includes a 17x17 inch Wire Flat Panel Detector with a CsI Direct Deposit scintillator for high-resolution results.

What is the weight of the X-ray unit?

The main X-ray machine is highly portable, weighing only 19kg, making it suitable for both clinic and field diagnostics.

Does the system come with a computer?

Yes, the standard configuration includes a high-performance laptop (Intel Core i5, 4GB RAM) for immediate image processing and display.

What animals can be diagnosed with this equipment?

It is designed for veterinary medical use, suitable for a wide range of animals including pets (cats, dogs) and other small to medium-sized livestock.

What is the adjustment range for kV and mA?

The kV range is adjustable from 40kV to 110kV (1kV steps), and the mA range spans from 20mA to 100mA for precise exposure control.
