Veterinary Vertical Sterilizer with Drying System Vertical Internal Circulation

Customization: Available
Working Temperature: 134ºC
Working Pressure: 0.22MPa

Product Description

Basic Information
Model NO.
MS-V35HM
Temp. Adjustment
40-134ºC
Power
380V 50Hz 12kw
Transport Package
Carton
Origin
China
Production Capacity
5000PCS/Year
Packaging & Delivery
Package Size
1.00cm * 1.00cm * 1.00cm
Gross Weight
11.000kg
Product Description

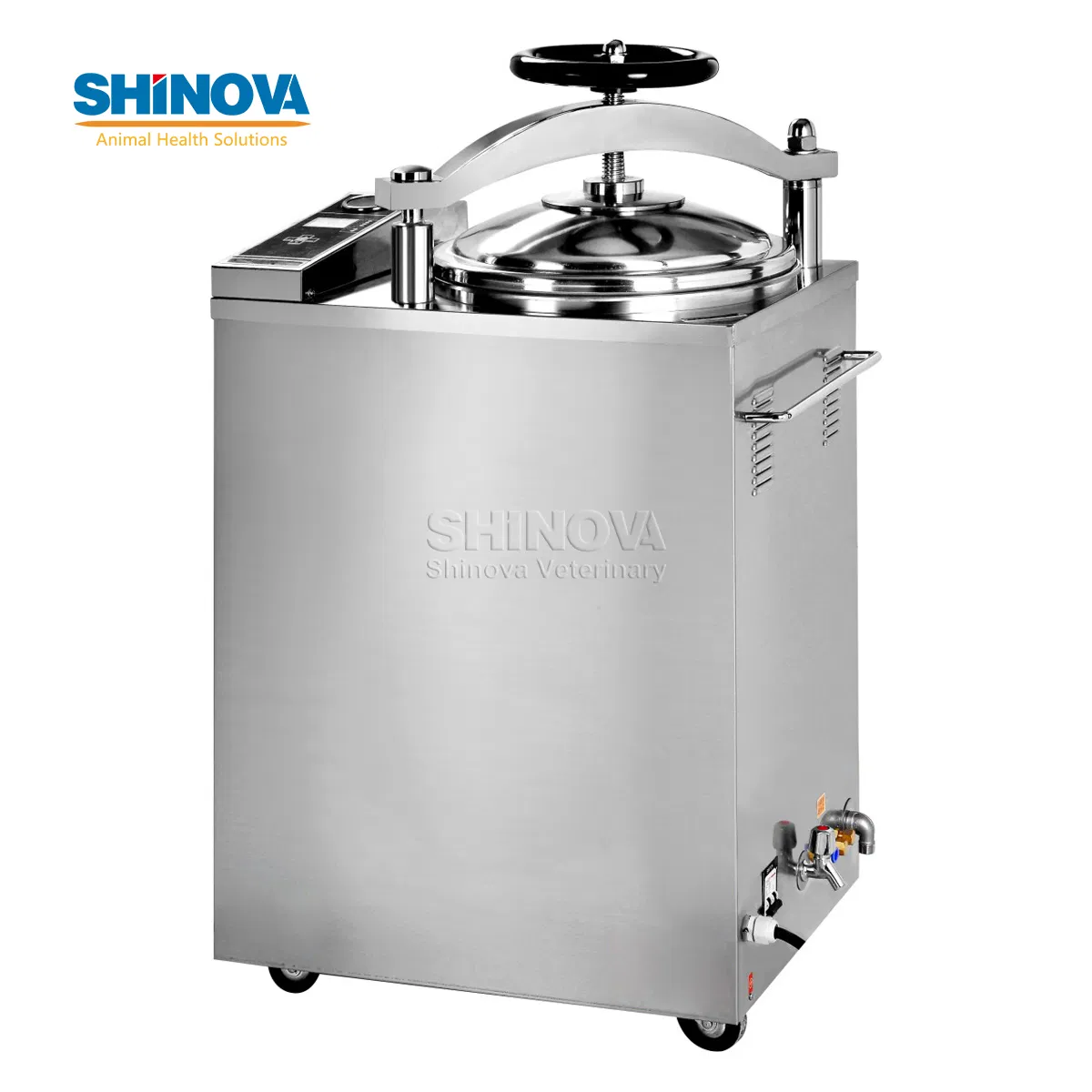

Vertical Steam Autoclave (Model: MS-V35HM)

Vertical Steam Autoclave

Key Features:

  • Vertical movable design with LCD display and steam sterilization.
  • Automatic inside circulation system prevents steam leakage, keeping the environment clean and dry.
  • Micro-computer controlled automatic circulation and sterilization programs.
  • Constructed from high-quality stainless steel for durability.
  • Handwheel quick-opening structure for easy access.
  • Integrated drying system and safety interlock device.
  • Automatic protection functions for over-temperature and over-pressure conditions.
  • Suitable for animal hospitals, research institutions, and veterinary laboratories for sterilizing surgical instruments, glassware, and culture media.
Product Specifications
Chamber Volume
35L (φ318×450mm)
Working Pressure
0.22Mpa (Max 0.23Mpa)
Working Temp.
134ºC
Timer Range
0-99min or 0-99h59min
Heat Average
≤±1ºC
Power / Voltage
2.5kw / AC220V/50Hz
Overall Dimension
600×410×1030mm
Net/Gross Weight
77kg / 96kg
Detailed Views
Frequently Asked Questions
1. What is the chamber capacity and material of the MS-V35HM? The chamber has a 35L volume (φ318×450mm) and is constructed from high-quality stainless steel.
2. Does this autoclave include a drying function? Yes, this model features an integrated drying system to ensure items are ready for use after sterilization.
3. What are the safety features for pressure and temperature? The unit includes automatic protection functions for over-temperature and over-pressure, along with a safety interlock system.
4. What is the maximum sterilization temperature? The maximum working temperature is 134ºC with a maximum working pressure of 0.23Mpa.
5. Is the operation automated? Yes, it uses a micro-computer to control the automatic circulation and sterilization programs, displayed on an LCD screen.
6. Where can this vertical sterilizer be used? It is ideal for animal hospitals, veterinary laboratories, and research institutions for sterilizing instruments, glassware, and media.
