🏥 Product Overview

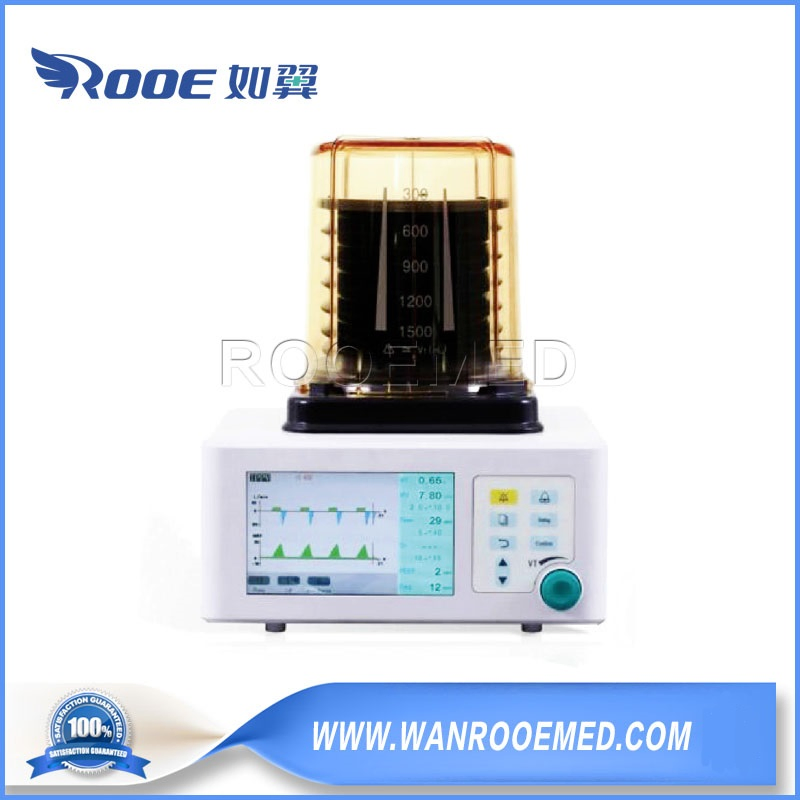

AV-1010 7 Inch TFT Screen Human Veterinary Life Support Anesthesia Ventilator
🌟 Key Features
- Provide A/C ventilation to the patient in the process of operation or in recovery after the operation.
- Applied for adult, pediatric, and veterinary applications.
- Microprocessor controlled, integrated anesthetic ventilation system.
- High-resolution 7-inch TFT display screen for clear monitoring.
- Superior air tightness and high clinical reliability.
⚙️ Technical Specifications
| Technical Details |
| Dimensions / Weight |
43cm*38cm*49cm / 10kg |
| Working Type |
Electronically controlled, pneumatic driven |
| Ventilation Modes |
IPPV, SIMV, MANUAL (BAG) |
| Tidal Volume Range |
40 - 1500ml |
| I:E Ratio |
4:1 - 1:8 |
| Frequency (IPPV/Manual) |
4 ~ 65bpm |
| Frequency (SIMV) |
1 - 40bpm |
| Monitoring Parameters |
VT, MV, BPM, Paw, FiO2, PEEP, Respiratory Frequency, I:E ratio, Ppeak |
| Waveforms |
Pressure-time, Flow-time |
| Power Supply |
AC 220V ± 10%, Built-in battery > 2hrs |
| Pressure Limit |
Safety valve at 6Kpa; Airway pressure monitoring 0-10KPa |
| Standard Accessories |
Oxygen sensor, Reusable silicon tubes, Tidal volume sampling sensor, High pressure hose |
❓ Frequently Asked Questions
💡 What patient types is this ventilator suitable for?
The AV-1010 is versatile and can be used for adult and pediatric patients, as well as in veterinary medicine for various animal sizes.
💡 Does it require an external power source to operate?
It primarily runs on AC 220V power, but it includes a built-in rechargeable battery that provides over 2 hours of backup operation for safety.
💡 What ventilation modes are integrated?
The system supports IPPV (Intermittent Positive Pressure Ventilation), SIMV (Synchronized Intermittent Mandatory Ventilation), and Manual (Bag) modes.
💡 Can the tidal volume be adjusted for small animals?
Yes, the tidal volume is adjustable from 40ml up to 1500ml, making it suitable for both smaller pediatric/animal patients and larger adults.
💡 What kind of safety alarms are included?
The ventilator is equipped with high/low pressure alarms, high/low minute volume (MV) alarms, and an AC power loss alarm to ensure patient safety.
💡 What parameters can be monitored on the 7-inch screen?
Users can monitor VT, MV, BPM, Paw, FiO2, PEEP, respiratory frequency, I:E ratio, and peak pressure, along with real-time pressure-time and flow-time waveforms.
