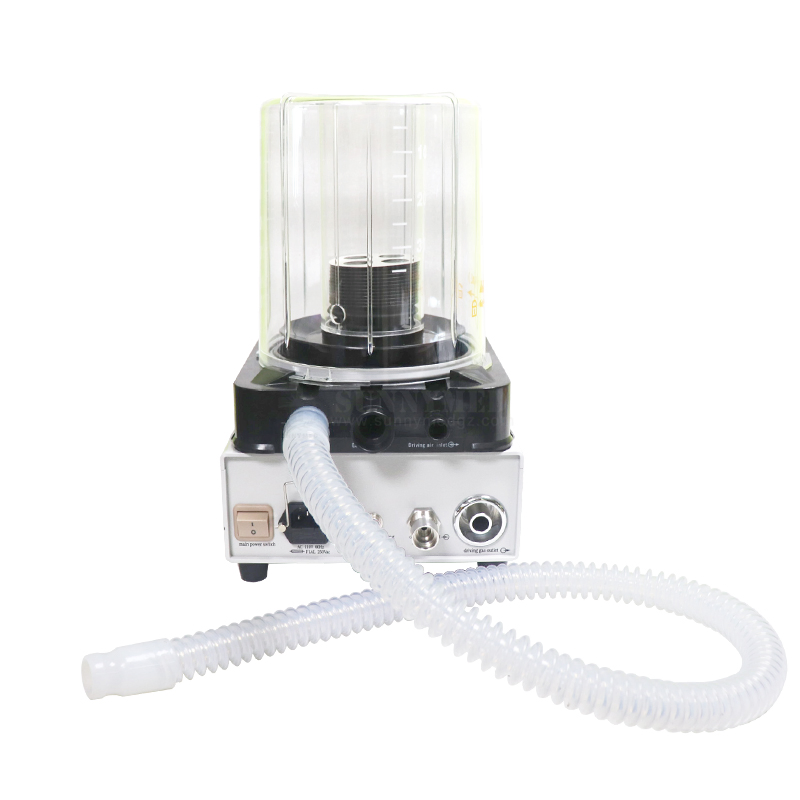

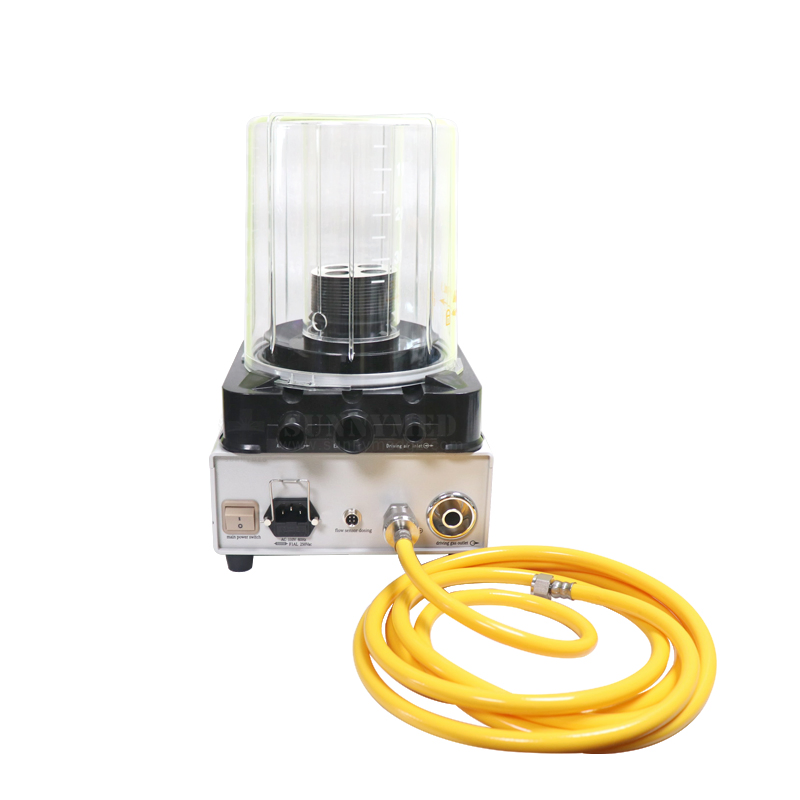

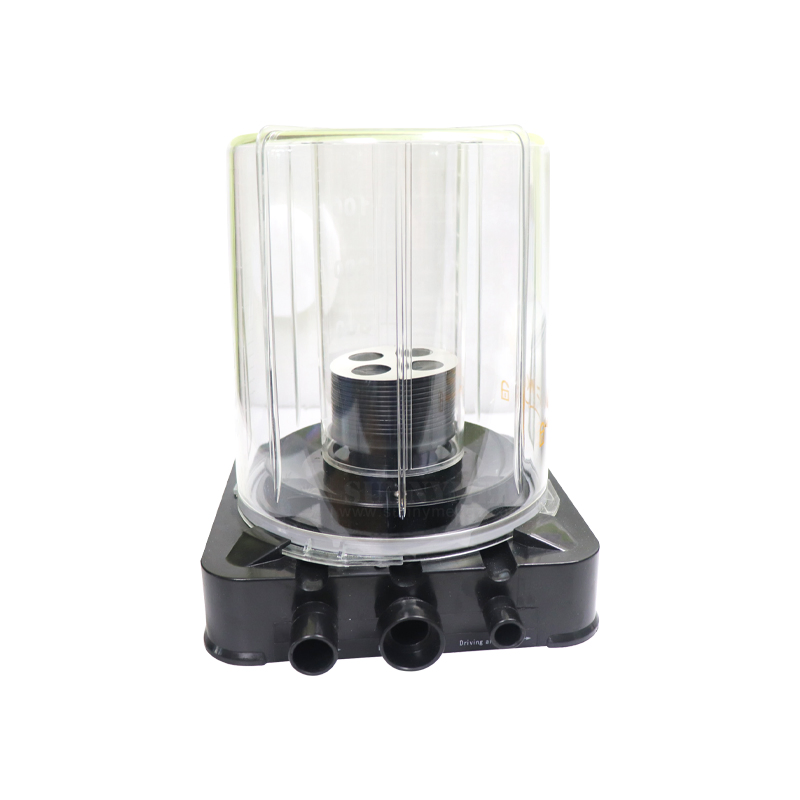

Sy-W006-2n Animal Anesthesia Machine Veterinary Pet Ventilator
Sy-W006-2n Animal Anesthesia Machine Veterinary Pet Ventilator
Sy-W006-2n Animal Anesthesia Machine Veterinary Pet Ventilator
Sy-W006-2n Animal Anesthesia Machine Veterinary Pet Ventilator
Sy-W006-2n Animal Anesthesia Machine Veterinary Pet Ventilator
1 / 5
Sy-W006-2n Animal Anesthesia Machine Veterinary Pet Ventilator
Sy-W006-2n Animal Anesthesia Machine Veterinary Pet Ventilator
Sy-W006-2n Animal Anesthesia Machine Veterinary Pet Ventilator
Sy-W006-2n Animal Anesthesia Machine Veterinary Pet Ventilator
Sy-W006-2n Animal Anesthesia Machine Veterinary Pet Ventilator

Sy-W006-2n Animal Anesthesia Machine Veterinary Pet Ventilator

Customization: Available
Power Source: Electricity
Material: Metal, Plastic, Steel
Send Inquiry

Product Description

i

Basic Information

Model NO.
SY-W006-2N
Safety Pressure
≤ 6 Kpa
Product Name
Veterinary Anesthesia Ventilator
Breath Frequency
1 ~ 90bpm
Tidal Volume Ratio
4:1 ~ 1:6
Tidal Volume
50ml - 1600ml
Gas Supply
O2 or Medical Air
Transport Package
Carton Box
★

Product Description

SY-W006-2N Animal Anesthesia Machine Veterinary Pet Ventilator
The Ventilator is a newly developed portable unit, specifically designed for the respiratory management of animals under full anesthetic conditions. It is light, compact, and easily movable, making it ideal for patients weighing more than 10 kg. It integrates seamlessly with anesthetic ventilation systems to perform tightly closed, semi-tightly closed, and semi-open respiratory management.
Animal Anesthesia Ventilator
Driven Mode Pneumatically driven electronically controlled
Display High light LED display
Ventilation Volume 50 ~ 1600ml
Breath Frequency 1 ~ 90BPM
I:E Ratio 4:1 ~ 1:6
Monitor Parameters Tidal volume, Breath frequency, MV, Airway pressure
Alarm System MV high/low alarm, TV high/low alarm
Gas Supply Pressure O2(Air): 0.25 ~ 0.65Mpa
Physical Specs Packing size: 33 x 27 x 41 cm | Gross weight: 8.0kgs
Environments Temp: -9~+35°C | Humidity: 20%~60% | Pressure: 700~1060hPa
P

Detailed Photos

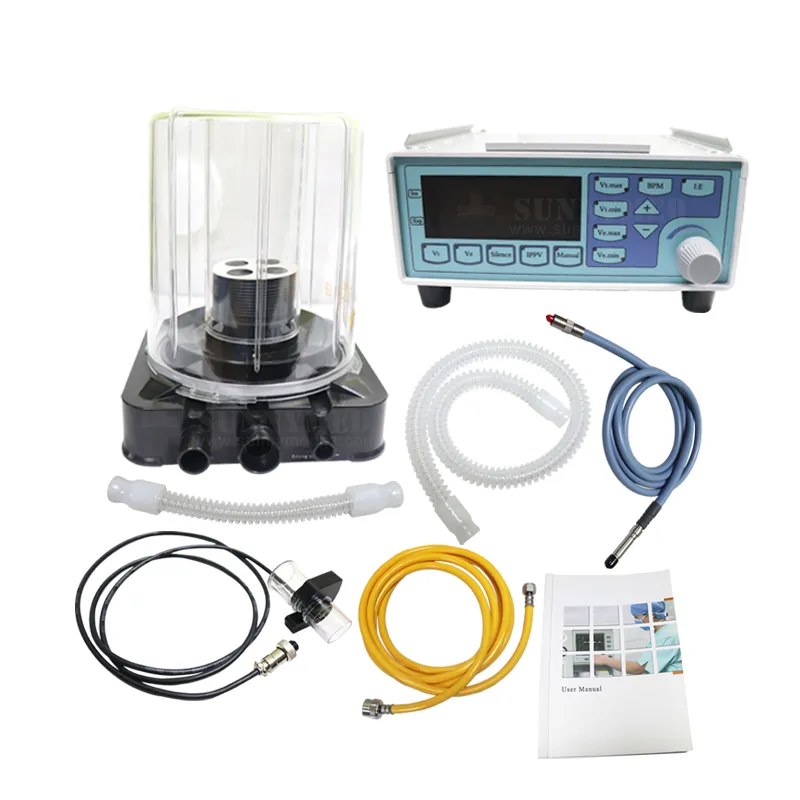

Detail 1

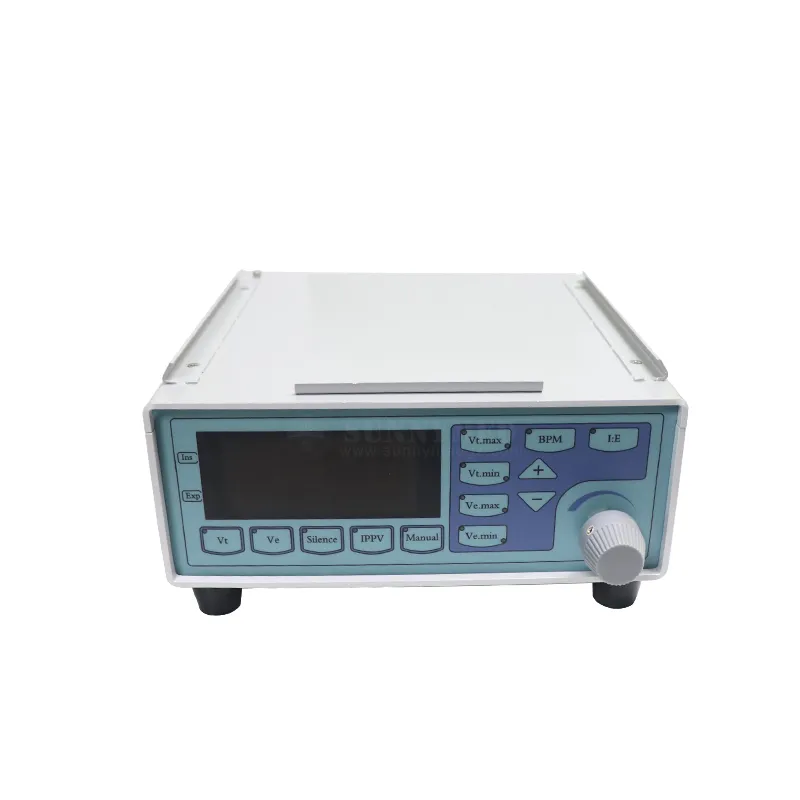

Detail 2

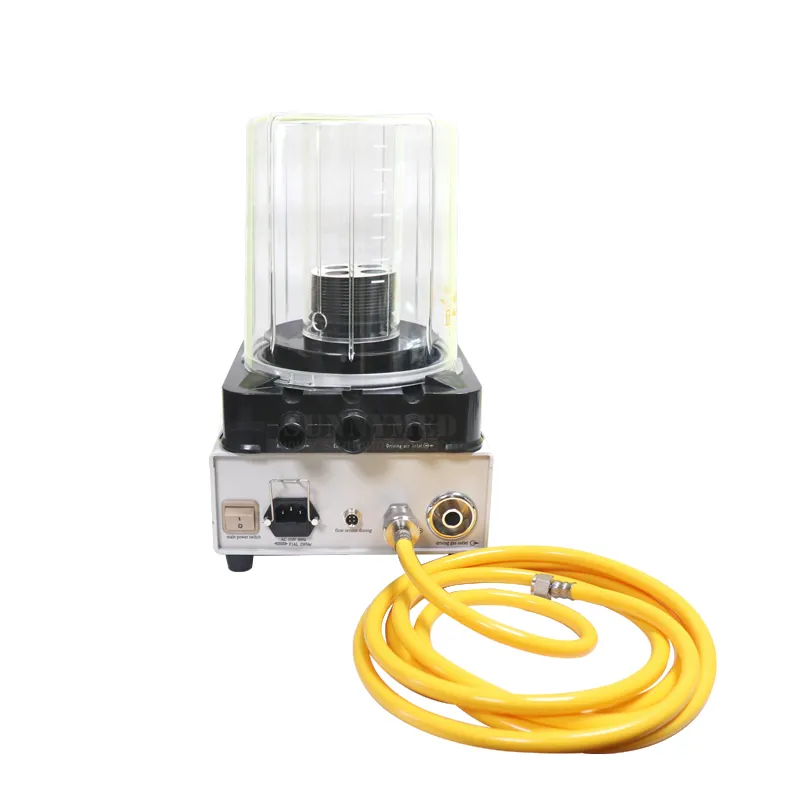

Detail 3
Detail 4

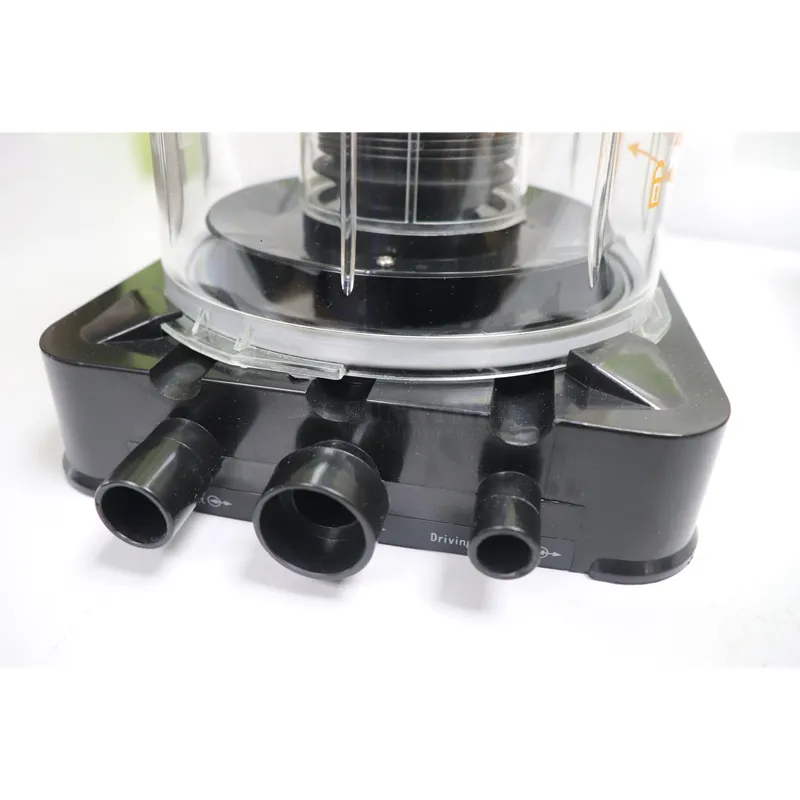

Detail 5

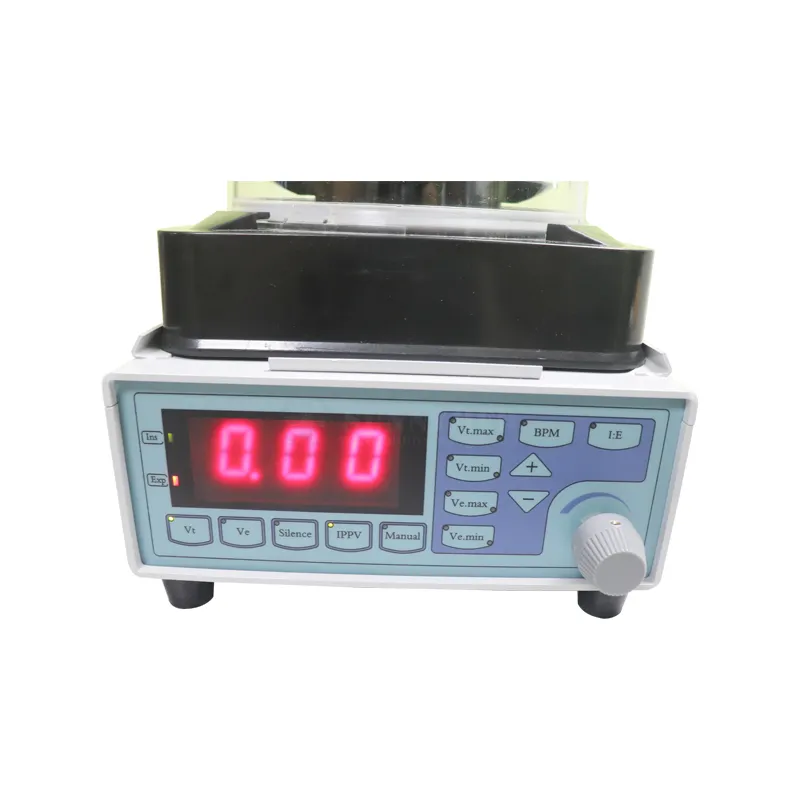

Detail 6

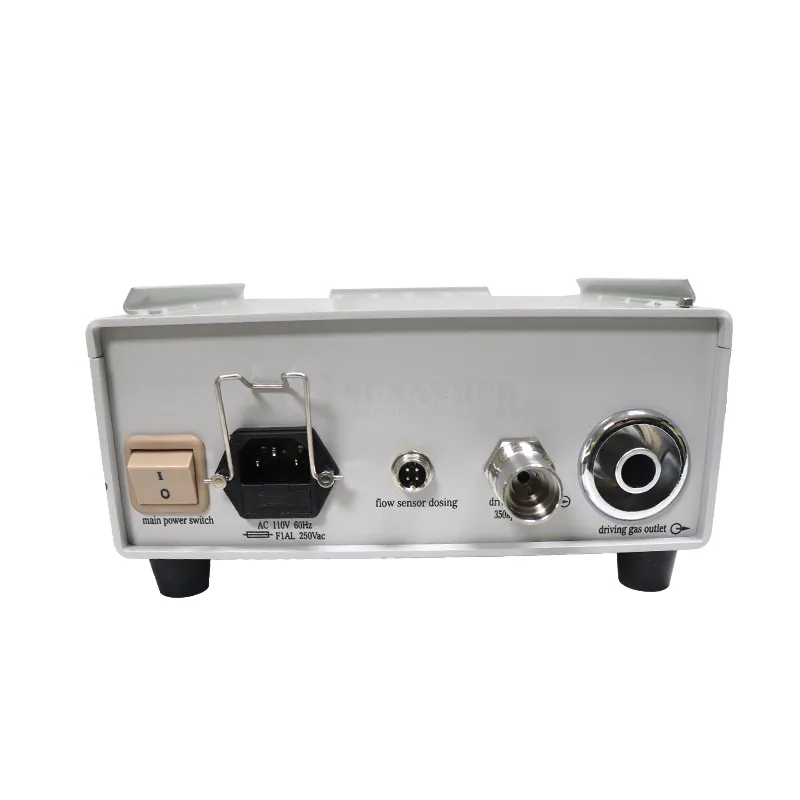

Detail 7
F

Production Showcase

Production 1
Production 2
Certificate
Factory 1
Factory 2
?

Frequently Asked Questions

What type of animals is this ventilator suitable for?
The SY-W006-2N is suitable for animals weighing more than 10 kg that require respiratory management during anesthesia.
What are the primary monitoring parameters?
The device monitors Tidal volume, Breath frequency, Minute Volume (MV), and Airway pressure in real-time.
Which gas supplies can be used with this machine?
It is compatible with Oxygen (O2) or Medical Air, with a required supply pressure between 0.25 and 0.65Mpa.
Is the display easy to read in surgical environments?
Yes, it features a high-light LED display that ensures clear visibility of all parameters during operation.
What are the available respiration management modes?
The system can perform tightly closed, semi-tightly closed, and semi-open respiratory management.
What safety alarms are included?
The ventilator includes high and low alarms for both Minute Volume (MV) and Tidal Volume (TV) to ensure patient safety.
