Type: Biochemical Analyzer
Syringe: N
Blood Sampling Needle: N
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
CCV-C168
Breathing Pattern
N
Control Method
N
Warranty
1 Year
Transport Package
Standard Export Package
Specification
Standard
Origin
China
Production Capacity
500 units/Month
Animal Hospital Clinic Semi-Automated Biochemistry Analyzer
Veterinary Laboratory Equipment Chemistry Analyzer
Model: CCV-C168

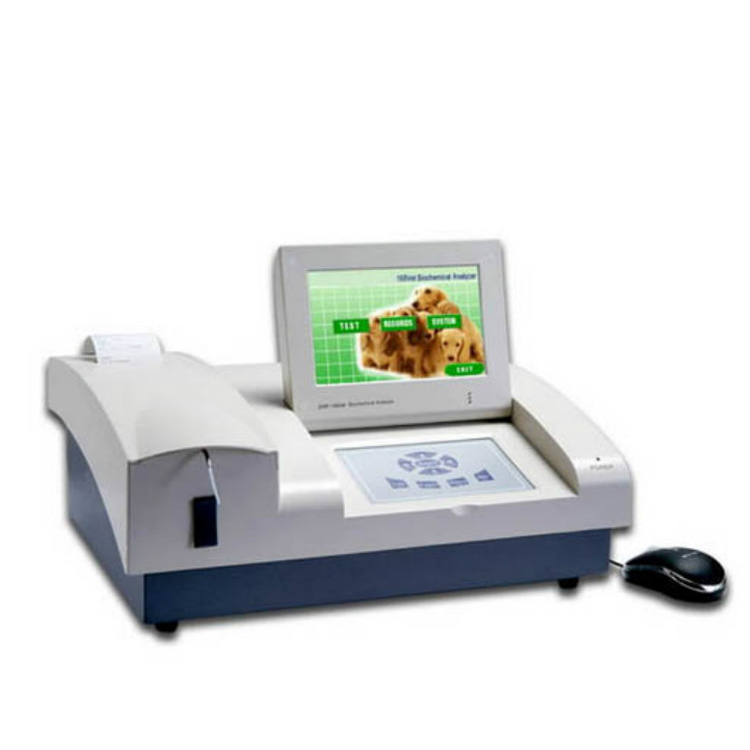

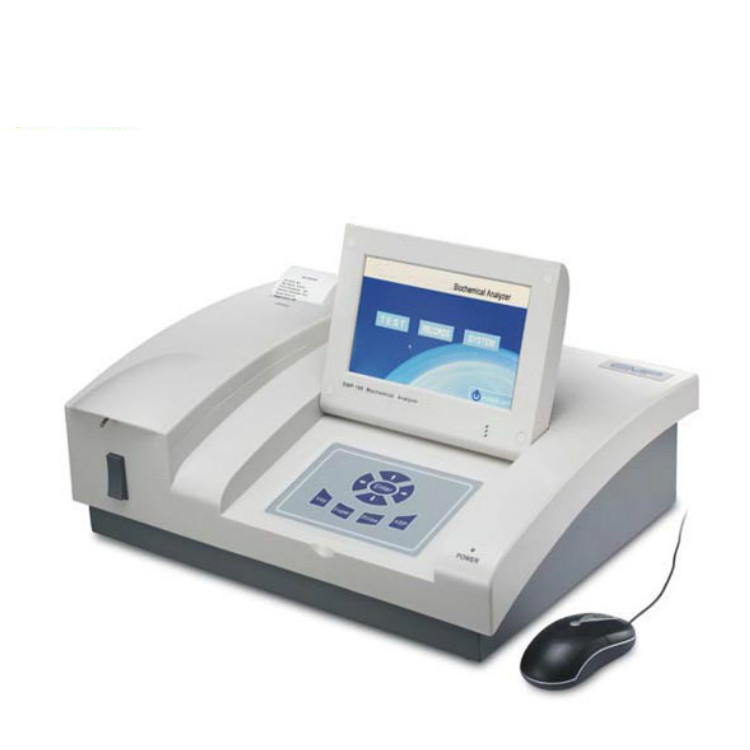

Chemistry Analyzer Main View
⚙️

Technical Parameters

Wavelengths: 340nm, 405nm, 505nm, 546nm, 578nm, 620nm, 670nm
Wavelength Accuracy: ±1nm
Band width: 8nm
Light source: Halogen-tungsten lamp, 6V/10W
Flow cell: 32ul quartz/metal flow cell
Absorption range: 0.000~3.000ABS
Resolution: 0.001ABS
Linearity: ≤1%
Cross Contamination Rate: ≤1%
Aspirate volume: >100μl
Absorbency repeatability: CV≤1%
Temperature: 25°C, 30°C, 37°C (±0.1°C)
Memory: 200 test programs, 100,000+ results
Display: 7-inch TFT touch screen
Interface: RS-232, USB, Ethernet, SD port
Dimensions: 420(W) x 310(D) x 150(H) mm
Net Weight: 8kg
🏥

Comprehensive Medical Equipment Solutions

Department Key Equipment
X-Ray RoomX-Ray Machine, Processor, Film, Cassette, Intensifying Screen, Lead Clothing
UltrasoundB/W 2D Ultrasound, 2D/3D/4D Color Ultrasound
LaboratoryChemistry Analyzer, Hematology Analyzer, Elisa Reader, Washer, Centrifuge, Pipette, Urine Analyzer
Operation RoomAnesthesia Machine, Ventilator, Operating Lamp, Table, ECG, Patient Monitor, Defibrillator, Infusion Pump, Oxygen Generator, Autoclave
🖼️

Product Details Gallery

Laboratory Setup
Equipment Specifications
Analyzer Interface
❓

Frequently Asked Questions

What types of wavelengths does the CCV-C168 support?
The device supports 7 standard wavelengths: 340nm, 405nm, 505nm, 546nm, 578nm, 620nm, and 670nm, with the option to add one additional filter.
How many test results can be stored in the device memory?
The internal memory is capable of storing over 100,000 test results and 200 distinct test programs.
Does the analyzer have a touch screen?
Yes, it features a 7-inch TFT pitch-adjustable touch screen for intuitive operation.
What is the required power supply for this laboratory equipment?
It requires 100-250 Volts AC at 50-60Hz, making it compatible with most global power standards.
Is this device portable enough for small clinics?
Absolutely. With a net weight of only 8kg and a compact footprint (420x310x150mm), it is ideal for animal hospitals and veterinary clinics.
What kind of maintenance does the light source require?
The analyzer uses a standard long-life 6V/10W Halogen-tungsten lamp, which is designed for stability and easy replacement when needed.
