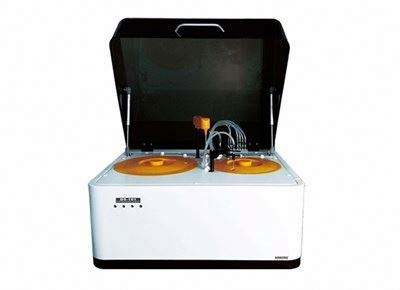

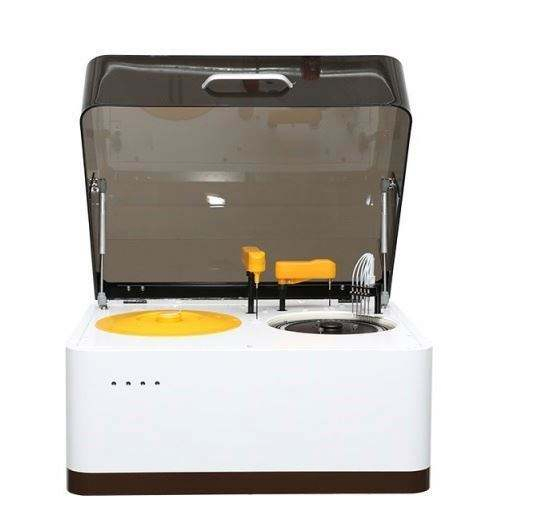

Clinical Analytical Instruments Vet Machines Open System Veterinary Dry Biochemistry Analyzer

Customization: Available
Classification: Biological Diagnostics
Type: Biochemical Analysis System

Product Description

📊 Basic Information
Model NO.
AM-DS401
Certification
CE
Design
OEM & ODM
Sample Position
60
Classification
Class II
Warranty
24 Months
After-Sale Service
Online Technical Support
Product Name
Automatic Biochemical Analyzer
Assay Item
40 Assay
Capacity
2000 Sets Per Month
🔬 Product Description
Automatic Biochemical Analyzer

The Automatic Biochemical Analyzer represents a new concept in clinical analytical instruments. Equipped with more friendly software, it is designed for efficiency and reliability in veterinary and clinical settings.

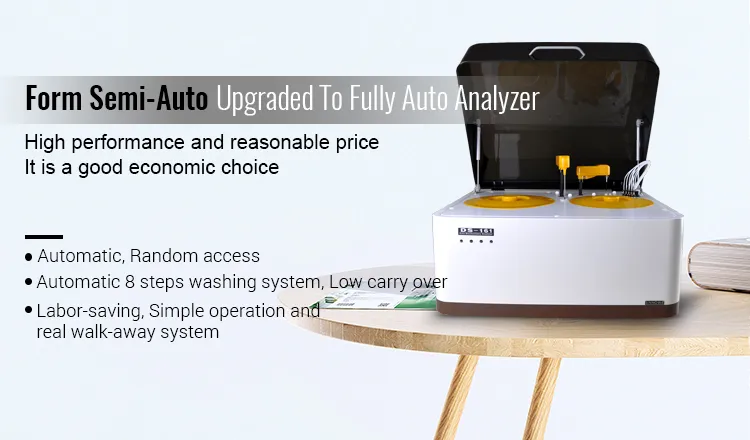

Clinical Analytical Instrument
  • New concept and more user-friendly software interface.
  • Automatic washing station for both sample and reagent probe.
  • Reliable cooling system for the reagent chamber.
  • Powerful reaction cuvette washing system.
  • Lower waste generation and more environmentally friendly design.
  • New concept test control system available upon request.
⚙️ Technical Specifications
Model DS-161 DS-261
Assay Item 36 assay 40 assay
Throughput 1 Reagent: 220 test/h (max); With ISE: +100 test/h 1 Reagent: 240 test/h (max); With ISE: +120 test/h
Sample Position 50 60
Sample Volume 1-100ul, 0.1ul/step
Reagent Position 36 40 or 80 (optional)
Wavelength 340-810nm
Method End point, Kinetic, Fixed time, Immunoturbidimetry, Multi-standard, etc.
📷 Details & Components

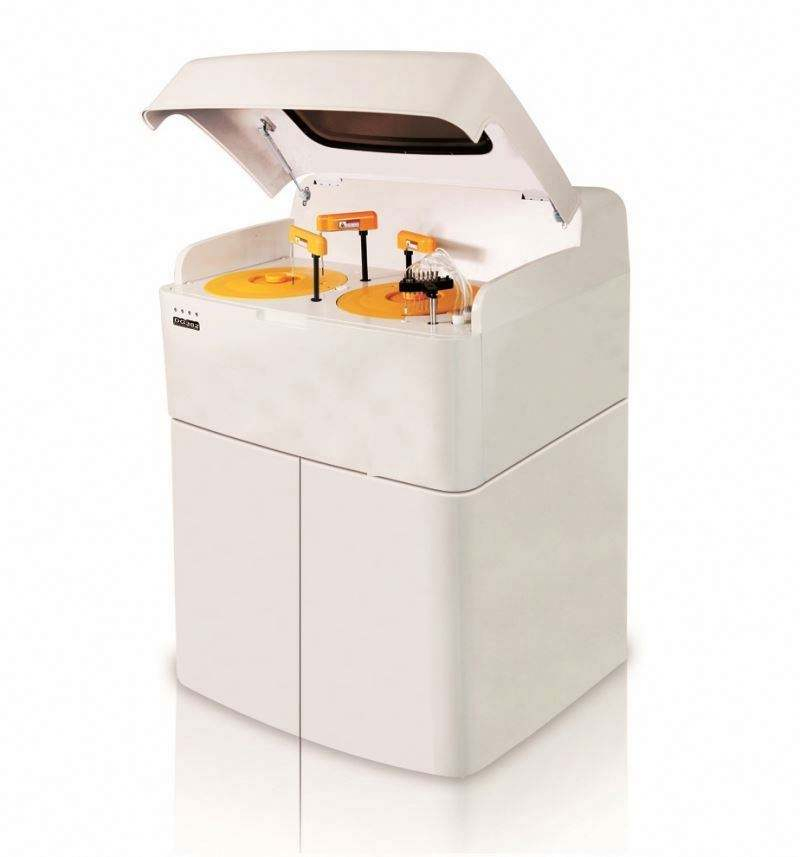

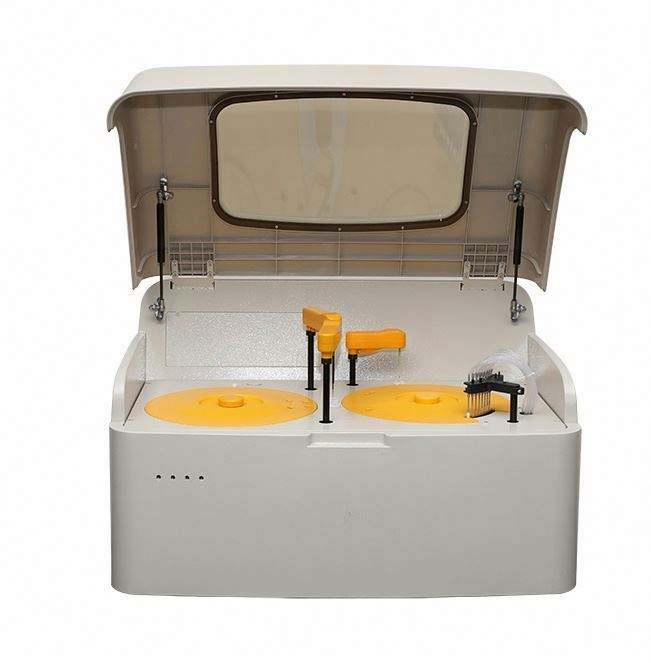

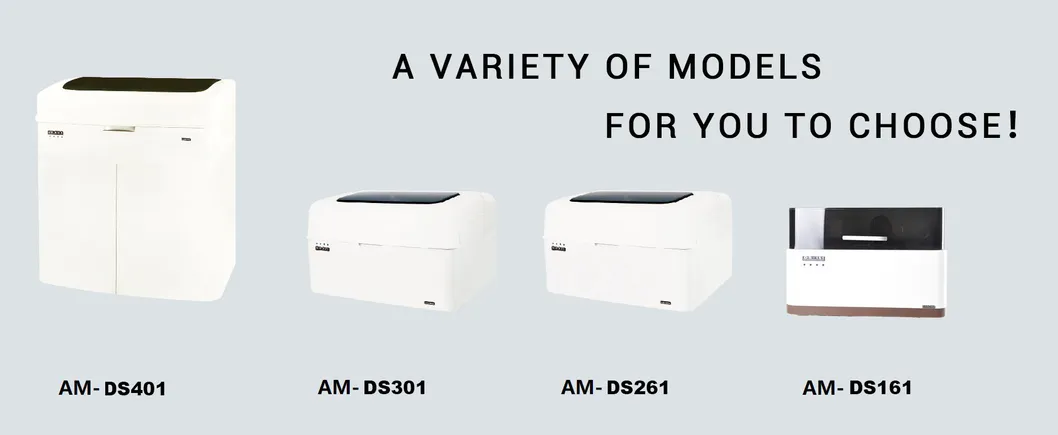

General View

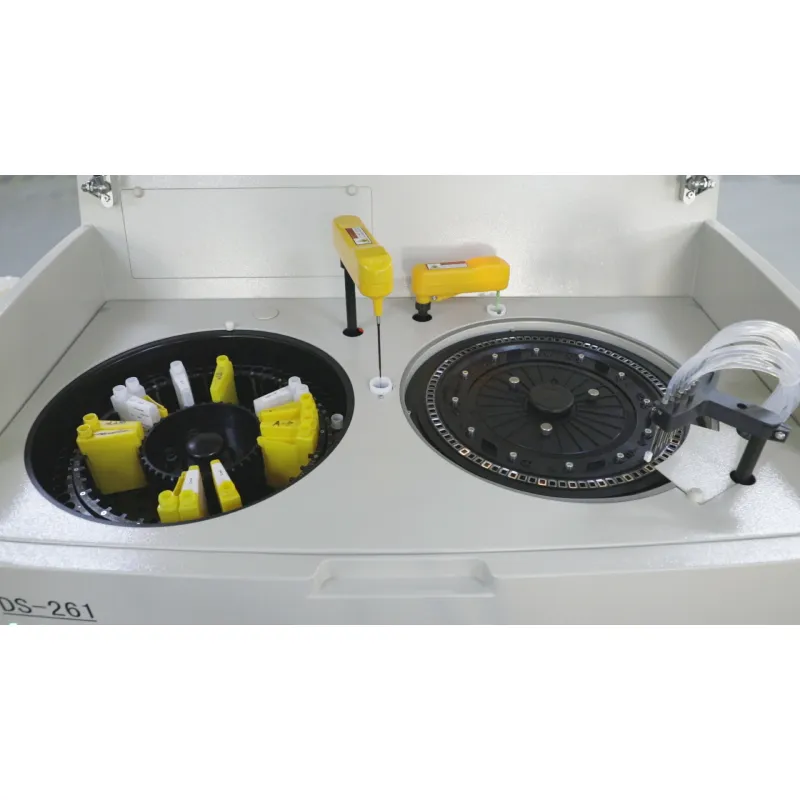

Reaction Tray
Reaction Tray: 37±0.1 real-time monitor

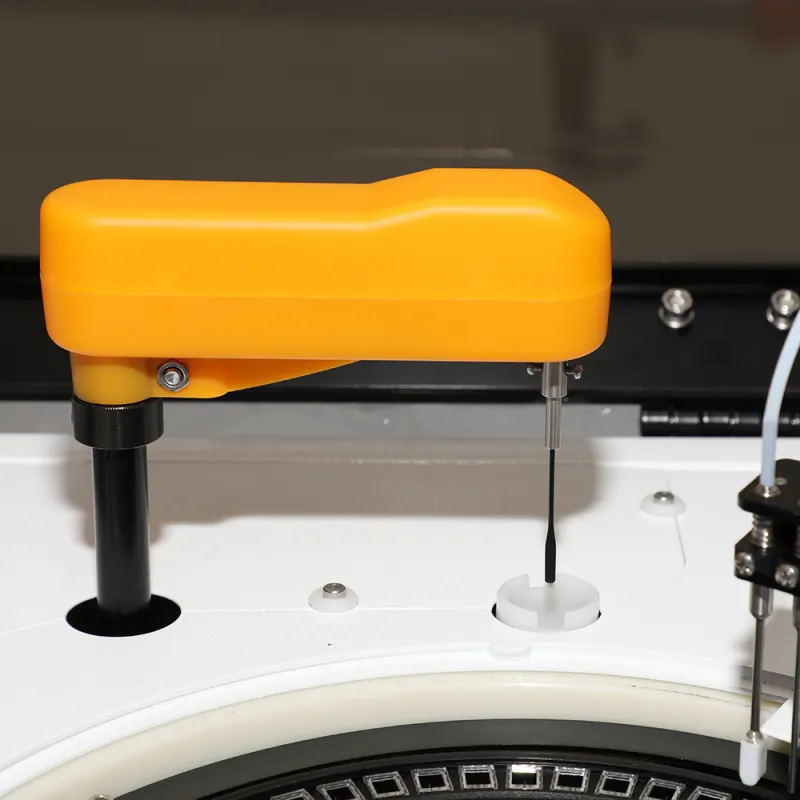

Mixer Probe
Mixer Probe: Teflon coating

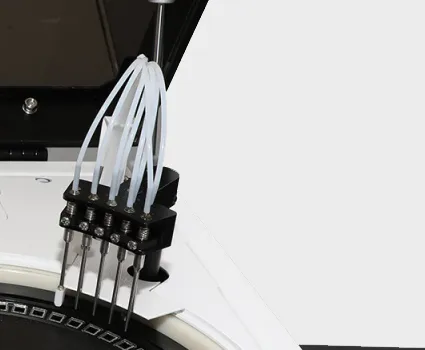

Washing Probe
Washing Probe: 4-step system

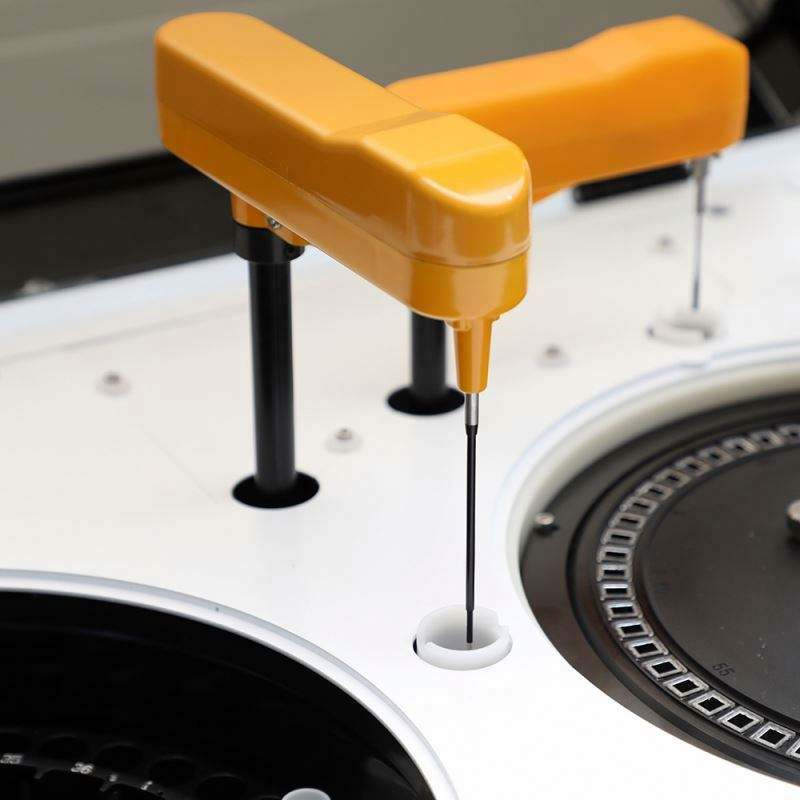

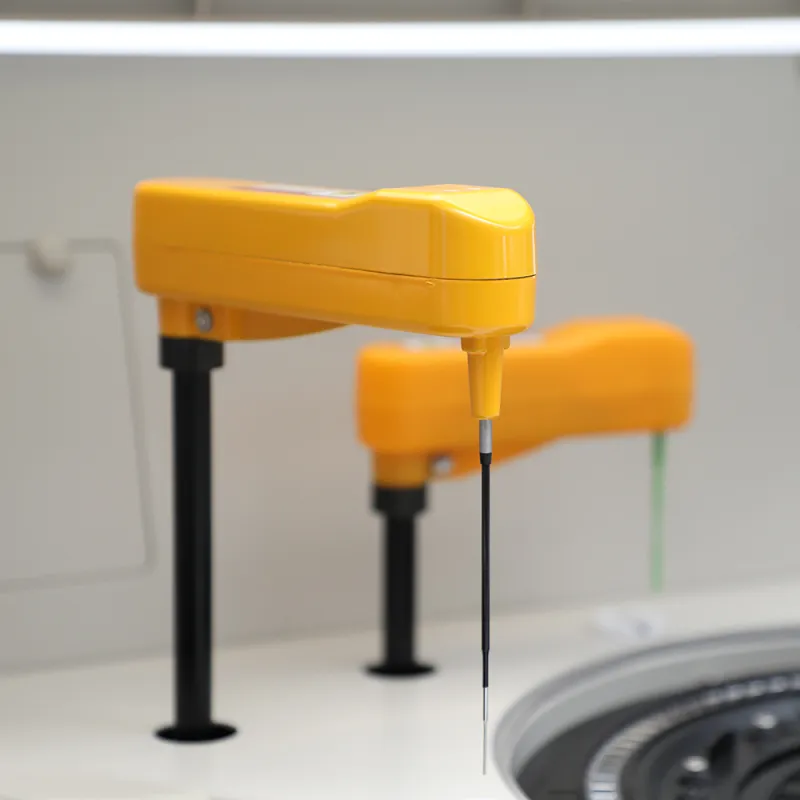

Sample Probe
Sample Probe: Liquid level sensor

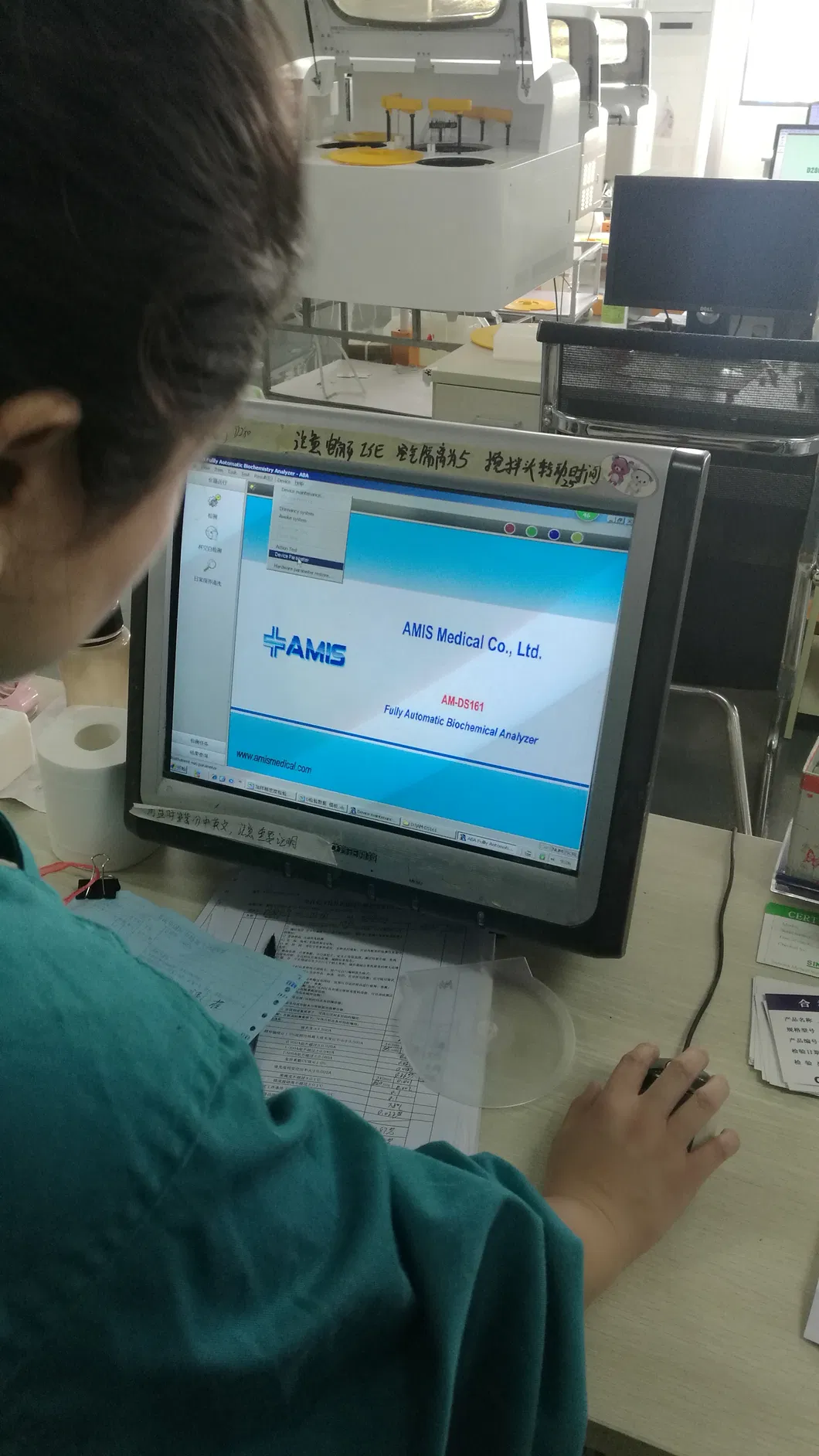

Software Interface
Software: User-friendly Interface
📦 Packing & Shipping

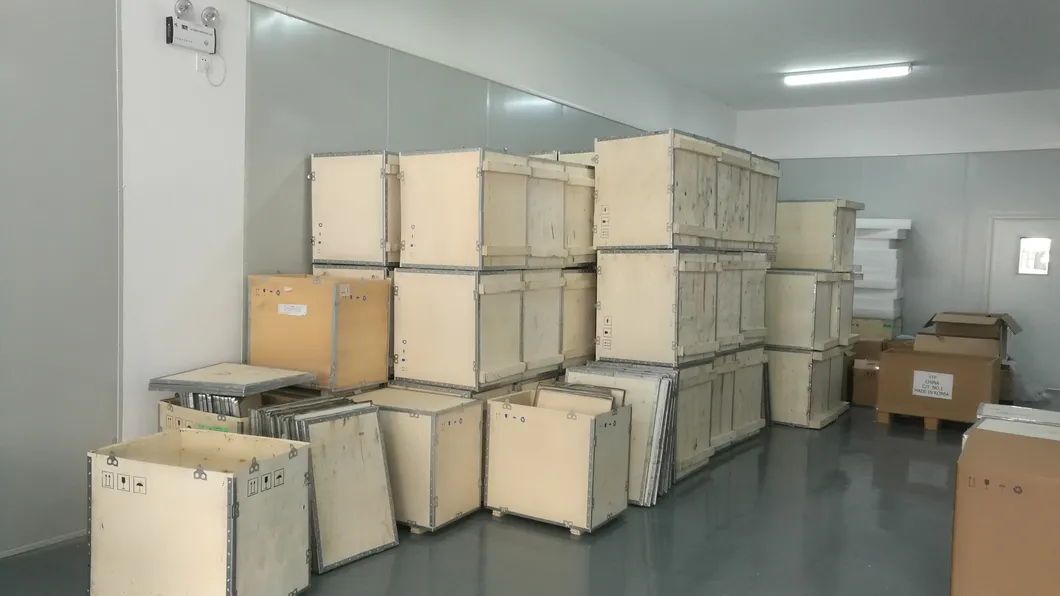

Packing 1

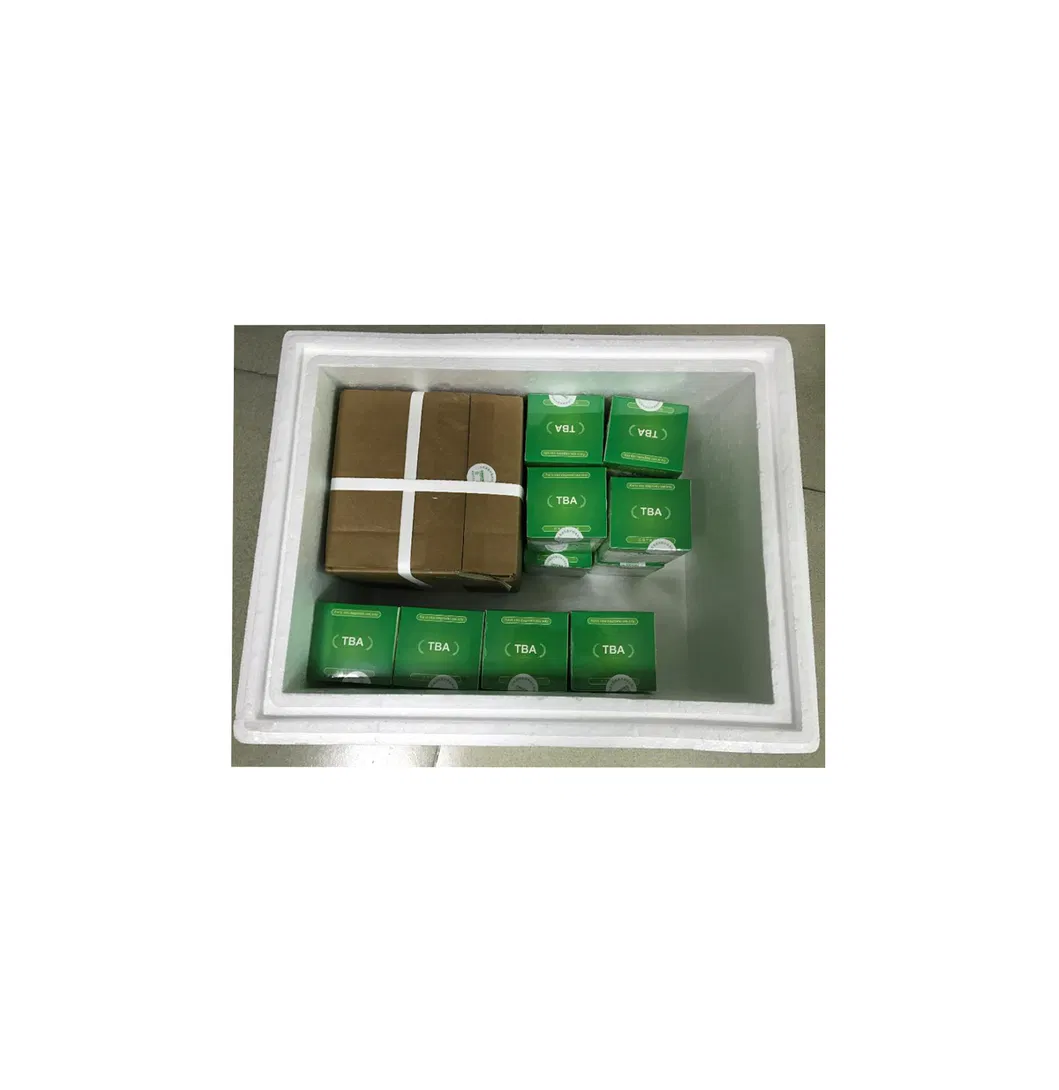

Packing 2

Packing Details: Accessories are packed separately. The main product is secured in a non-fumigation wooden box for safety during transit. Custom packaging requests are also accommodated.

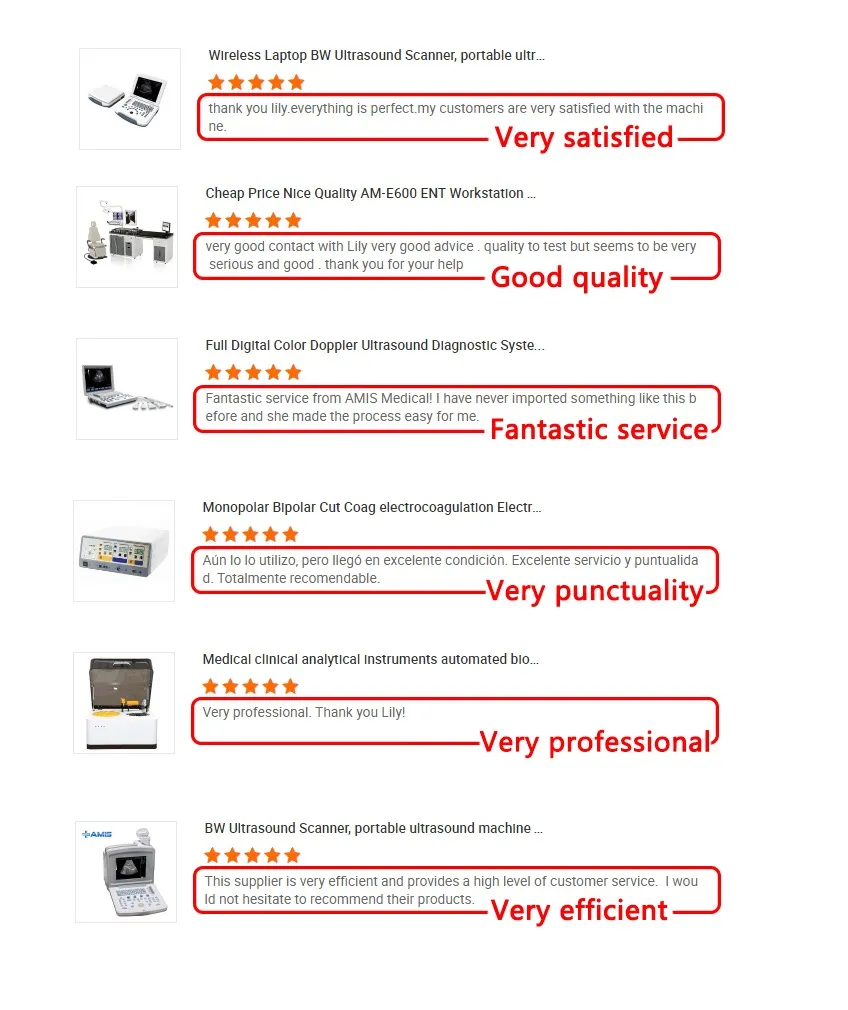

Customer Reviews
Performance Reviews
🏢 Production & Facilities

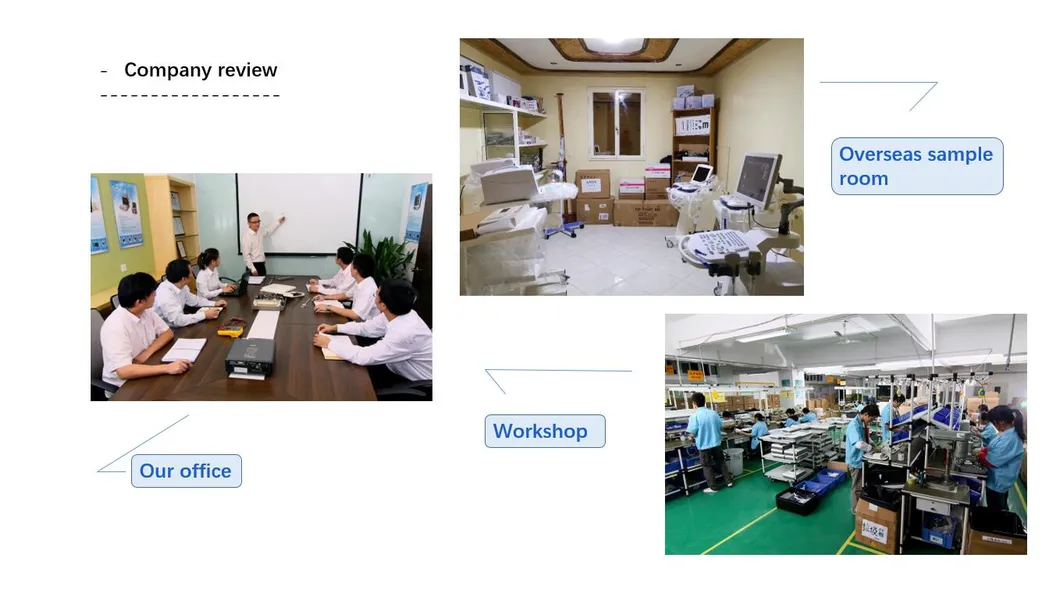

Facility 1

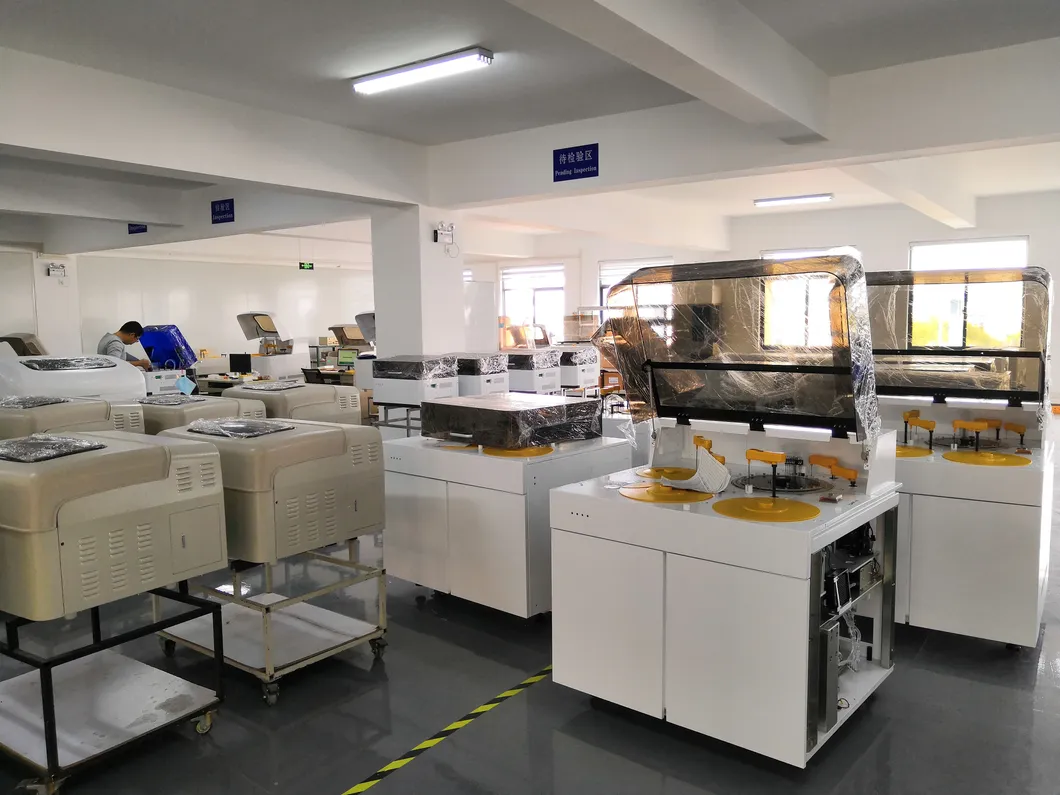

Facility 2

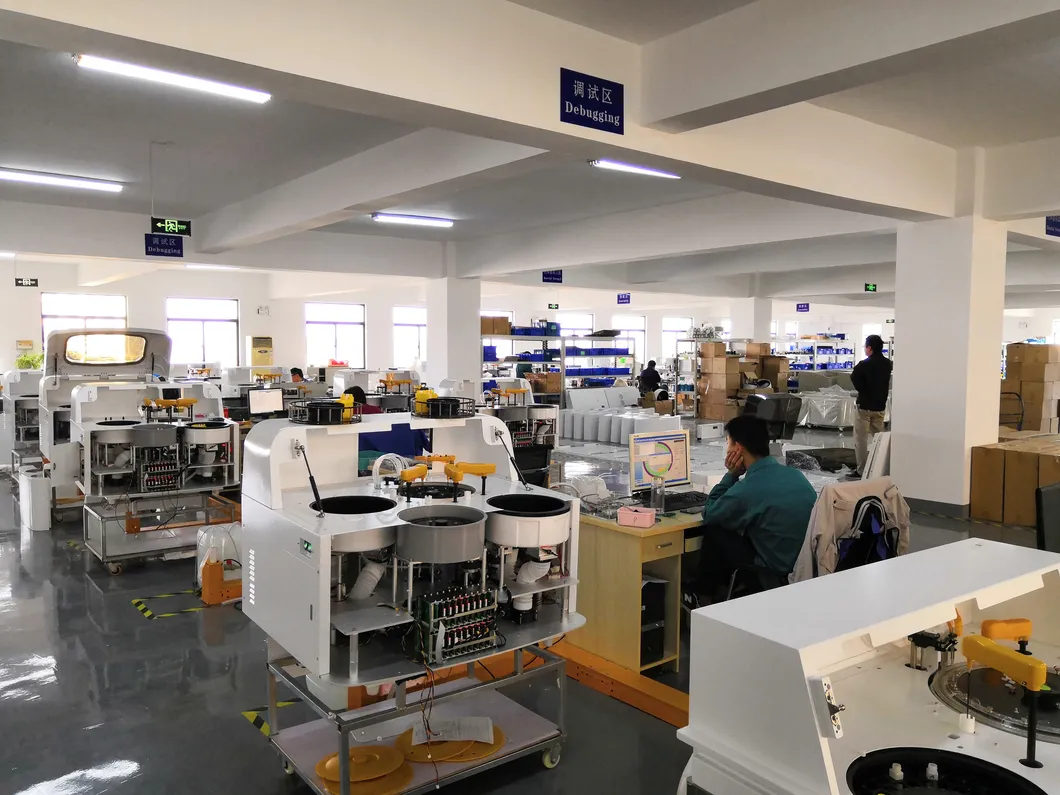

Maintenance Area

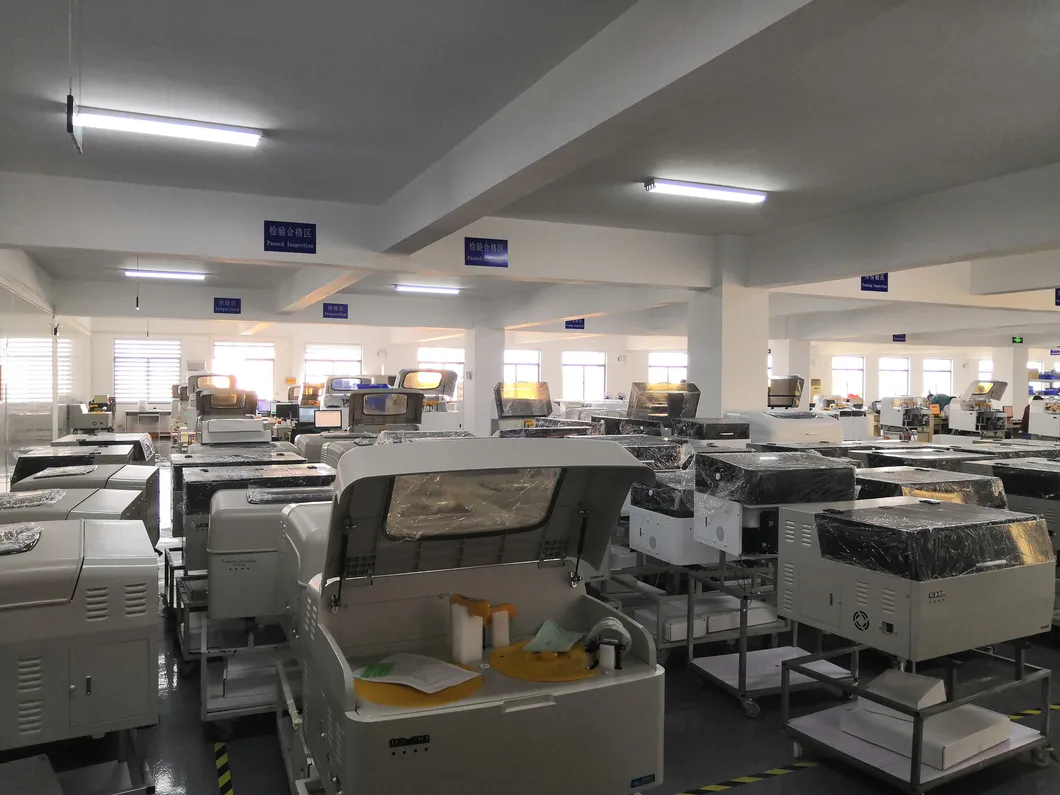

Packaging Workshop
Certificate Display
🛠️ Our Sales Service

1. Pre-Sale: We provide detailed plans and recommend product types based on budget and requirements, including full technical parameters.

2. In-Sale: We offer reasonable suggestions based on market conditions to help select the most suitable models and accessories.

3. After-Sale: Including online installation guides, video maintenance support, and engineer training sessions.

Global Service
Frequently Asked Questions
Q1: What is the maximum throughput of the analyzer? A: The DS-261 model reaches a maximum of 240 tests per hour for single reagent assays, and up to +120 tests per hour with the ISE module.
Q2: How many sample and reagent positions are available? A: Depending on the model, there are 50-60 sample positions and 36-80 reagent positions available.
Q3: Does the system include an automatic washing station? A: Yes, it features an automatic washing station for both sample and reagent probes, along with an independent 4-step washing system for cuvettes.
Q4: What are the cooling capabilities for reagents? A: The analyzer is equipped with a reliable 24-hour cooling system to maintain reagent stability.
Q5: What support is provided for international customers? A: We provide online technical support, video installation guidance, and training for local engineers to ensure smooth operation.
Q6: Is the system compatible with both OEM and ODM? A: Yes, we welcome OEM and ODM projects to meet specific market or branding requirements.
