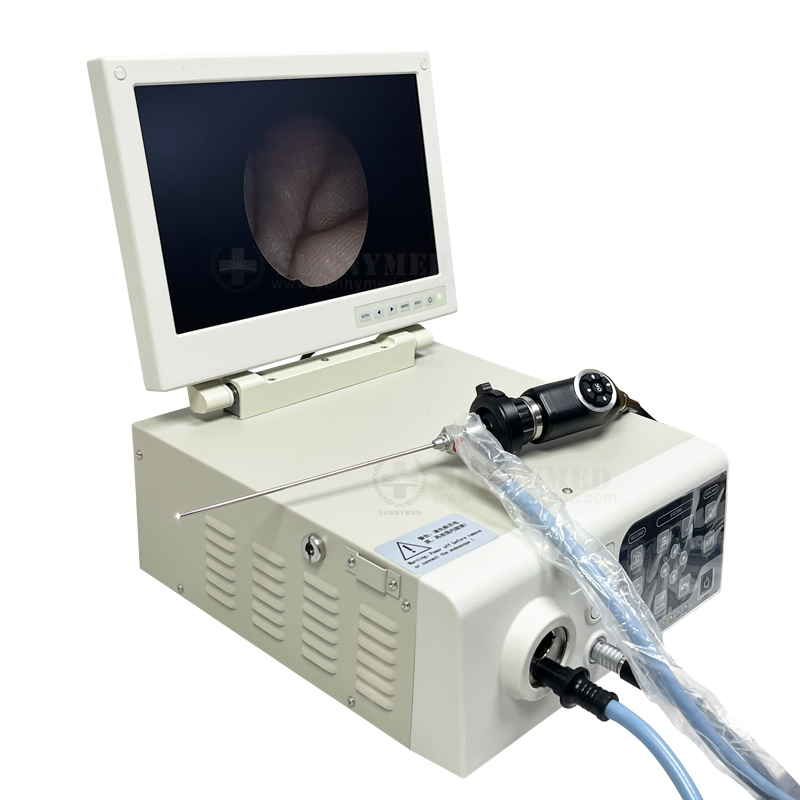

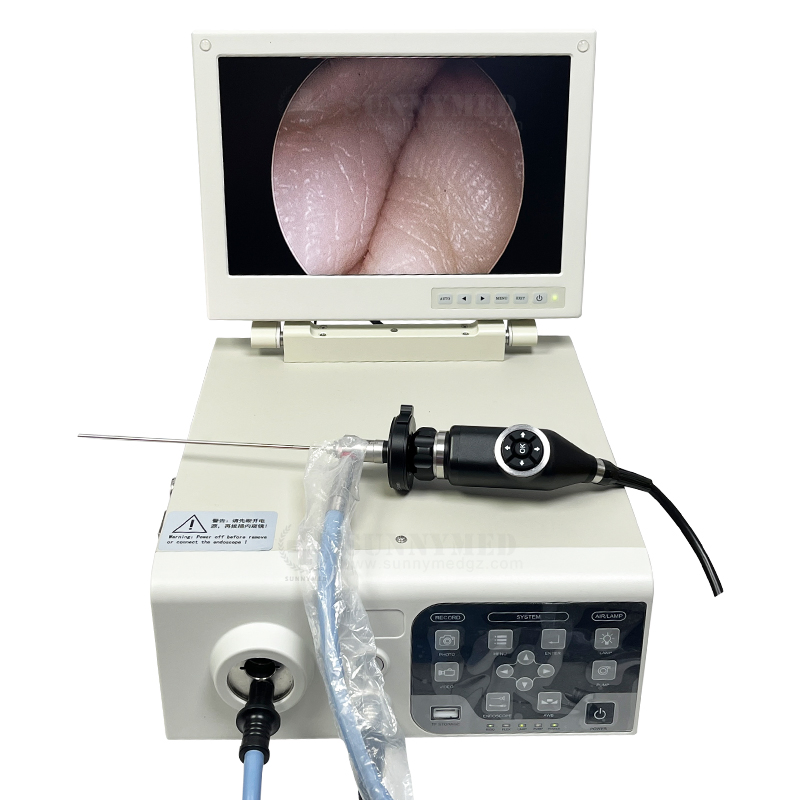

Sy-P033-2 Hospital Clinic Medical HD Monitor Endoscopy Camera System

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Certification: CE

Product Description

📊 Basic Information
Model NO.
SY-P033-2
Application
Animal Hospital
Image Definition
1080P
Field of View
120°
Insertion Tube Diameter
6.3mm, 8.3mm, 12.9mm
Product Name
Veterinary Endoscope
Transport Package
Carton Box
Origin
China
🔍 Product Description

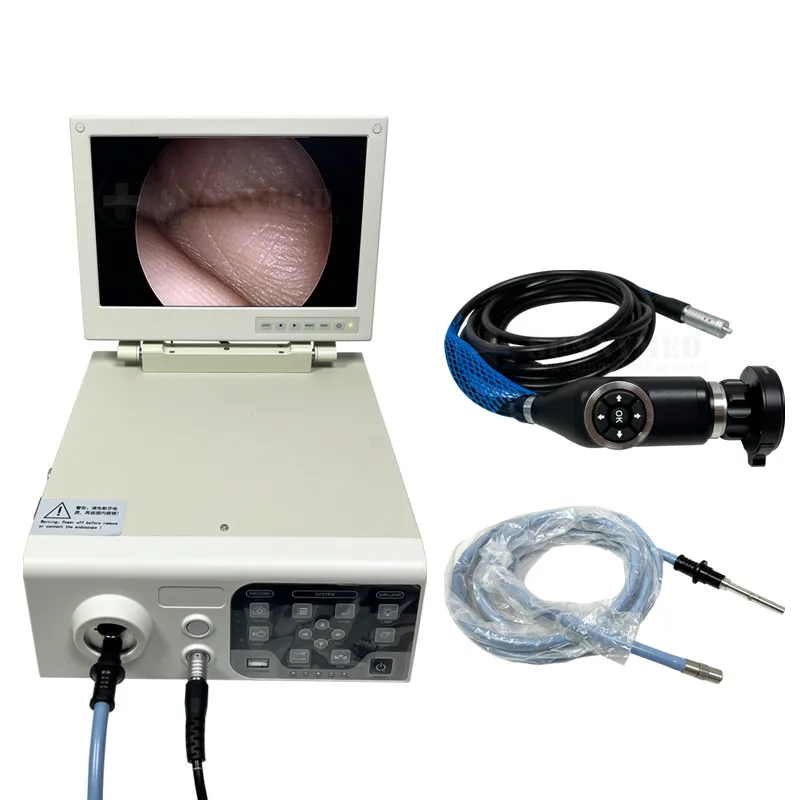

Hospital Clinic Medical HD Monitor Endoscopy Camera System HD Endoscopy System
Video Gastroscope Standard Optional
Type VET-1508 VET-1206 VET-3313
Insertion tube diameter Φ8.3mm Φ6.3mm Φ12.9mm
Working channel Φ2.8mm Φ2.0mm Φ3.7mm
Working length 1500mm 1200mm 3300mm
Tip Deflection U210°D90°L100°R100° U180°D180°L160°R160°
Field of view 120°
Depth of field 3-100mm
Image definition 1080P

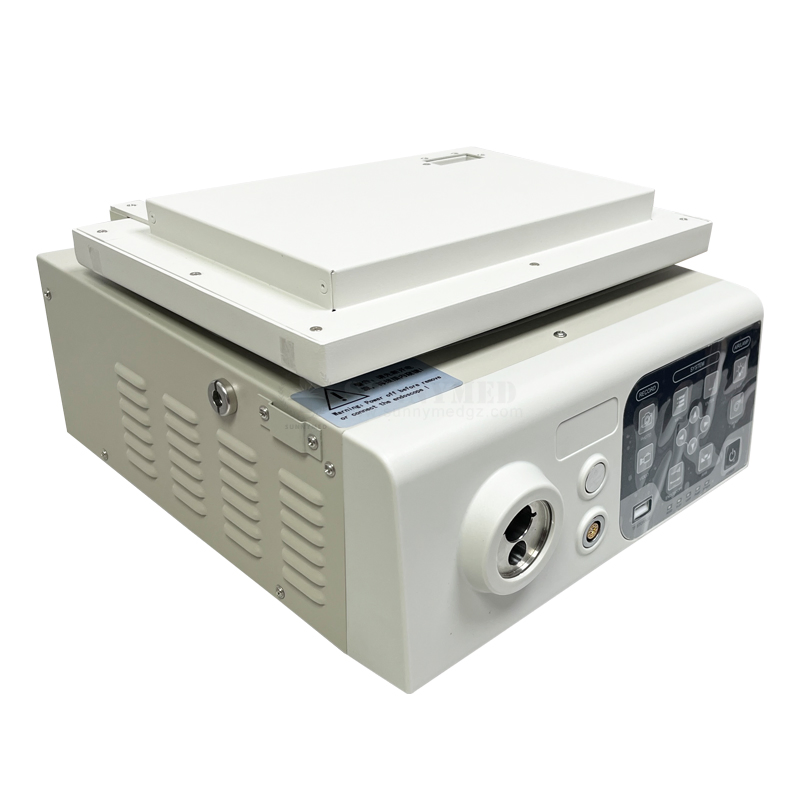

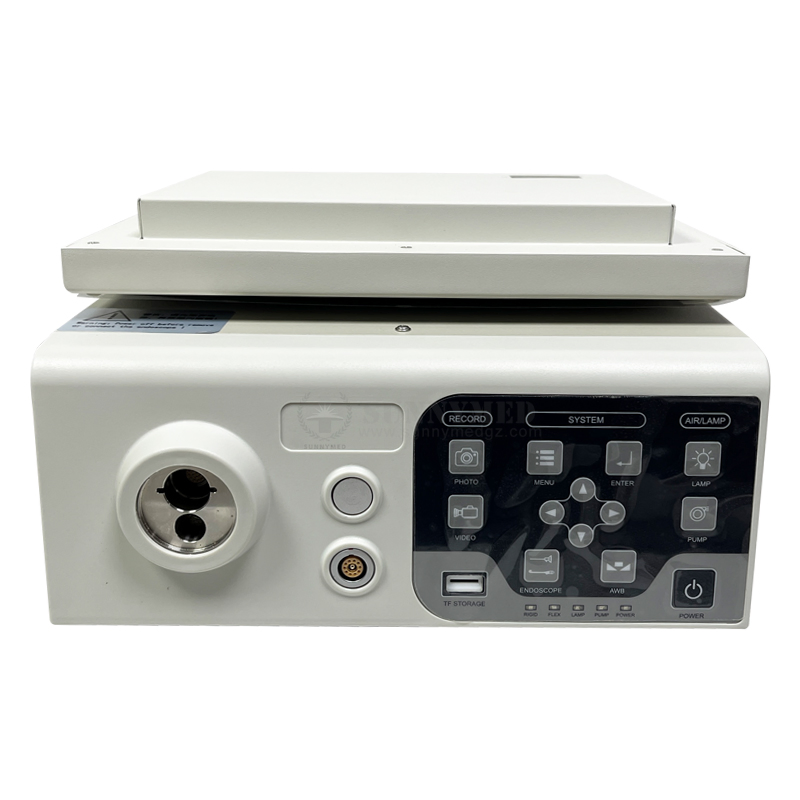

Endoscope Processor
TYPE VET-300F
White balance Automatic
RGB adjustment -50~+50
Cold light LED 40W
Luminance >800Lm
Air/Flow 0.05MPa, 0.75m³/h
Snap/Record 1080P/30Fps
Voltage ~100V-240, 50HZ/60HZ

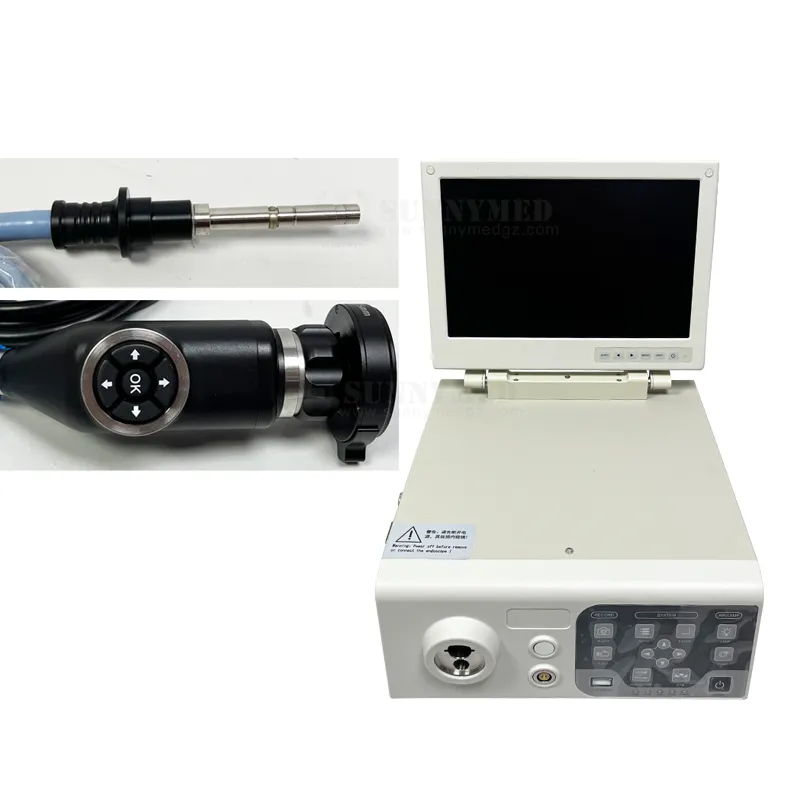

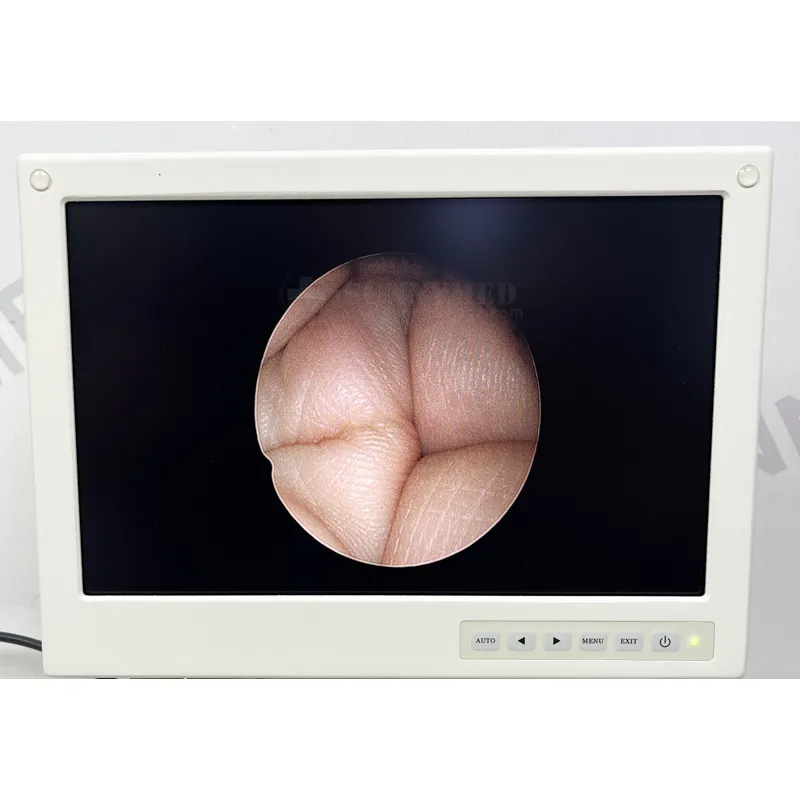

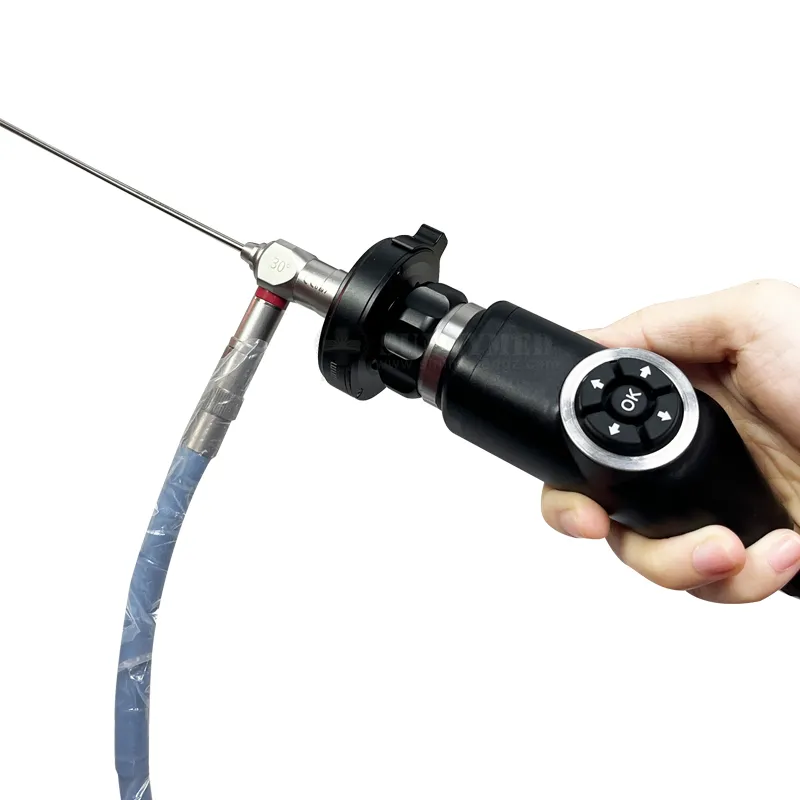

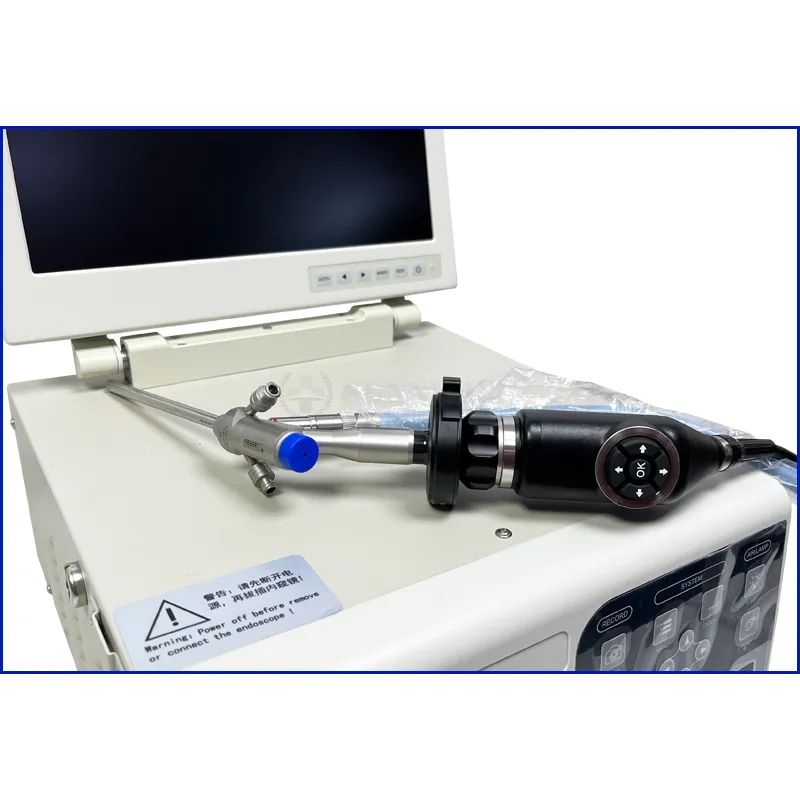

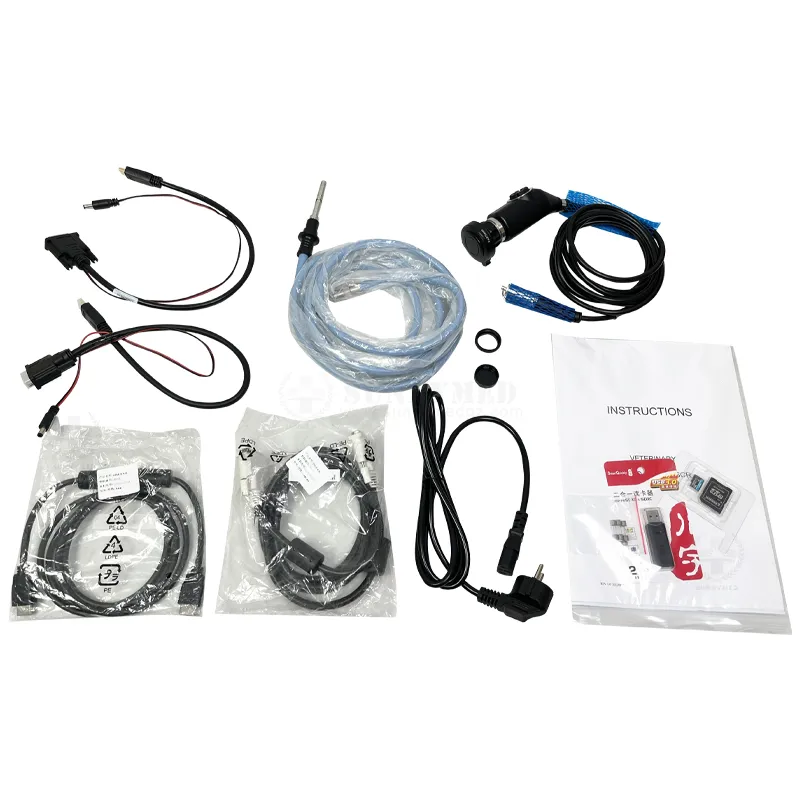

📷 Detailed Photos
🏢 Professional Setup
Facility 1 Facility 2 Certification
Frequently Asked Questions
What is the image resolution of this endoscopy system?
The system provides High Definition 1080P image definition for clear and precise clinical diagnosis.
What are the available insertion tube diameters?
We offer three options to suit different needs: 6.3mm (VET-1206), 8.3mm (VET-1508), and 12.9mm (VET-3313).
Does the system support video recording?
Yes, the endoscope processor supports both snapping photos and recording video at 1080P/30Fps.
What kind of light source is used?
The system utilizes a 40W LED cold light source with a luminance of over 800 Lumens for optimal visibility.
Is the white balance manual or automatic?
The VET-300F processor features an automatic white balance function for ease of use during procedures.
What is the field of view for the gastroscope?
The camera provides a wide 120° field of view, ensuring a comprehensive look at the examination area.
