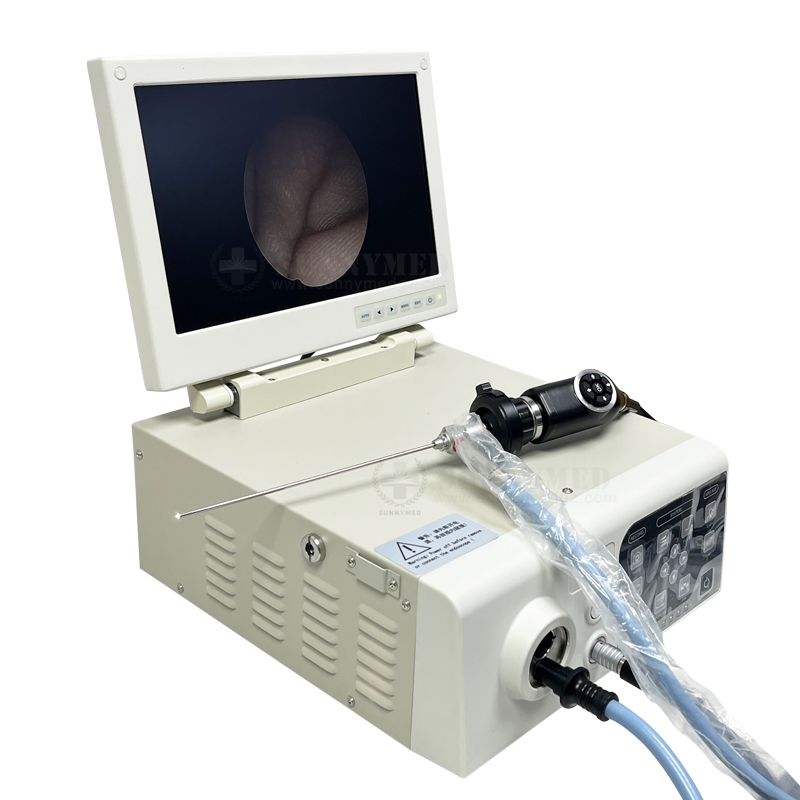

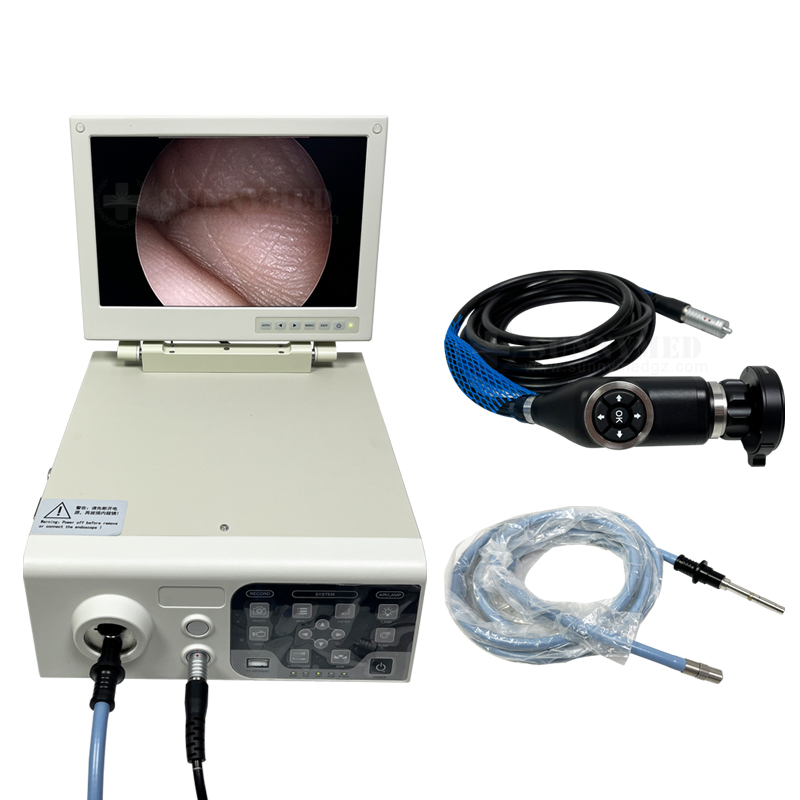

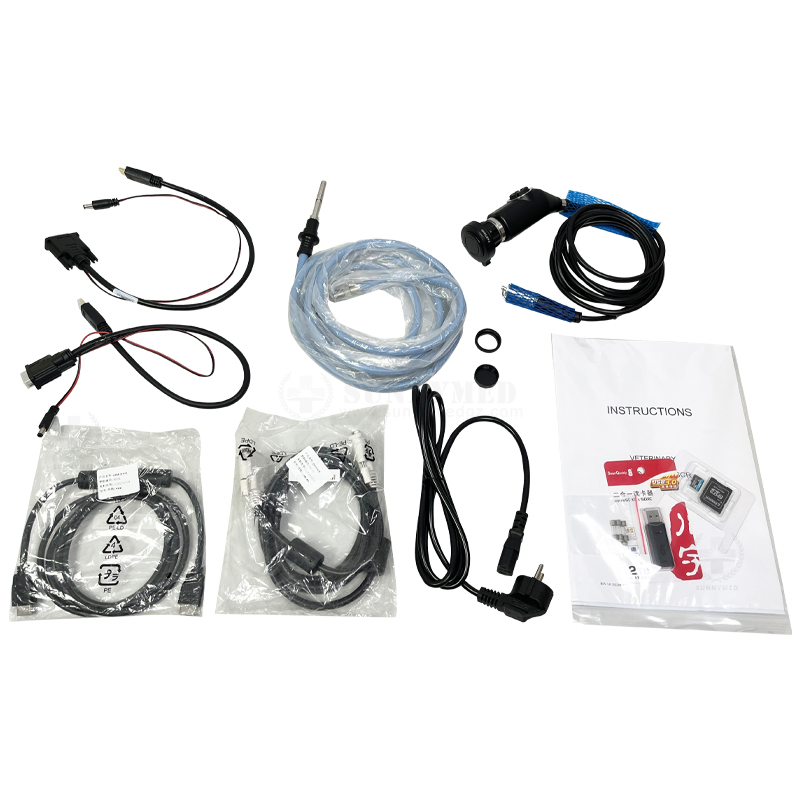

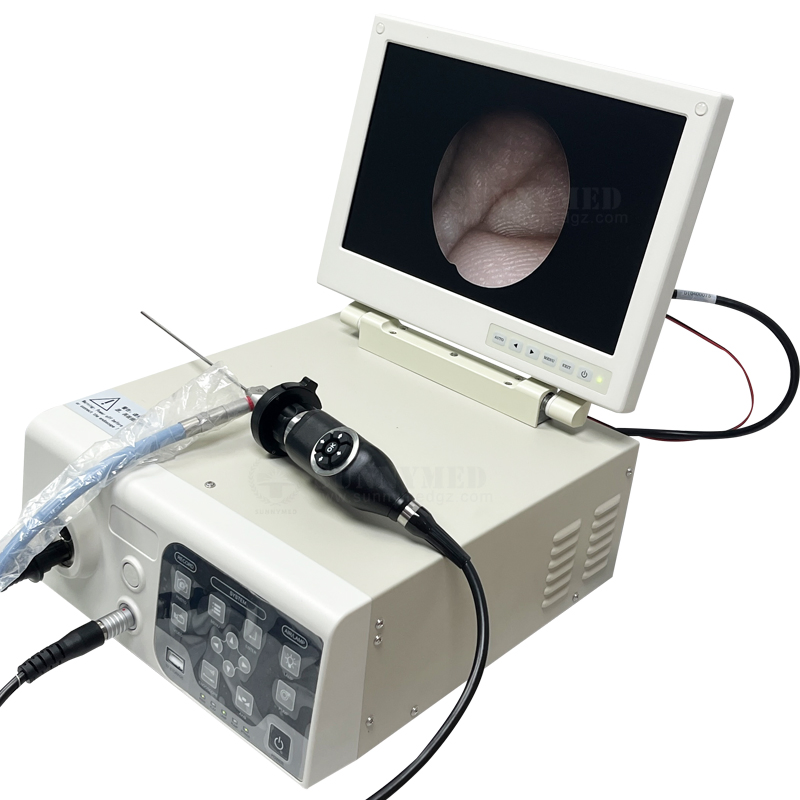

Sy-P033-2 Veterinary All-in-One Endoscope Processor Rigid & Flexible Endoscopy Camera System

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Certification: CE

Product Description

📋

Overview

Model NO.
SY-P033-2
Application
Animal Hospital
Image Definition
1080P
Field of View
120°
Tube Diameter
6.3mm, 8.3mm, 12.9mm
Product Name
Veterinary Endoscope
Transport Package
Carton Box
Origin
China
Production Capacity
200 Set/Month
🔬

Product Description

SY-P033-2 Veterinary All-in-one Endoscope processor Rigid & Flexible endoscopy camera system
Veterinary Endoscope System
Video Gastroscope Standard (VET-1508) Optional (VET-1206) Optional (VET-3313)
Insertion tube diameter Φ8.3mm Φ6.3mm Φ12.9mm
Working channel Φ2.8mm Φ2.0mm Φ3.7mm
Working length 1500mm 1200mm 3300mm
Tip Deflection U210°D90°L100°R100° U180°D180°L160°R160°
Field of view 120°
Depth of field 3-100mm
Image definition 1080P
Endoscope Processor Specifications (VET-300F)
White balance Automatic
RGB adjustment -50~+50
Cold light source LED 40W
Luminance >800Lm
Air/Flow 0.05MPa, 0.75m³/n
Snap/Record 1080P / 30Fps
Voltage ~100V-240V, 50HZ/60HZ
📸

Detailed Photos

Detail View 1

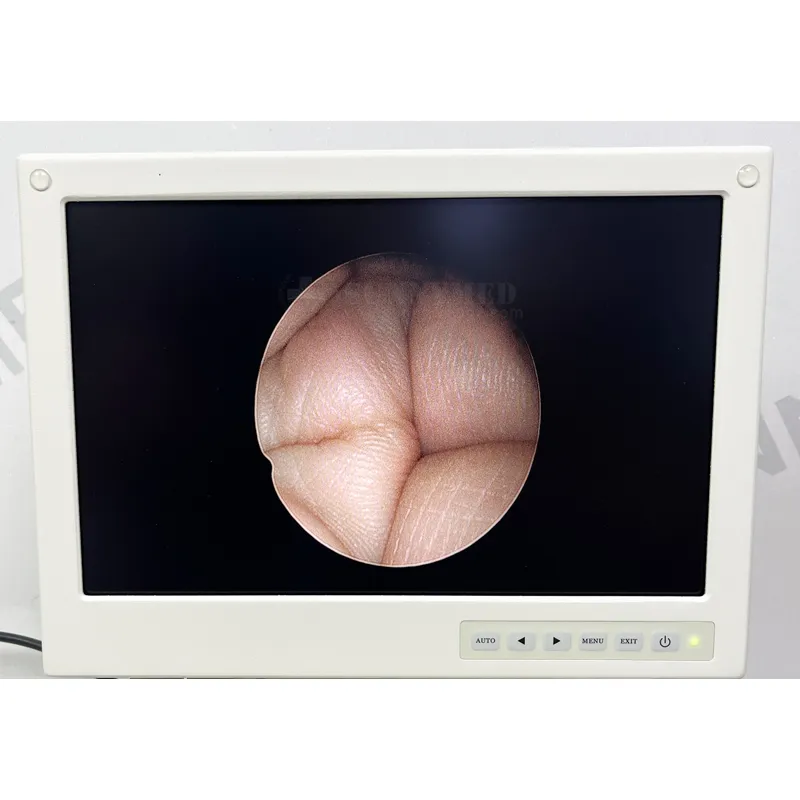

Detail View 2

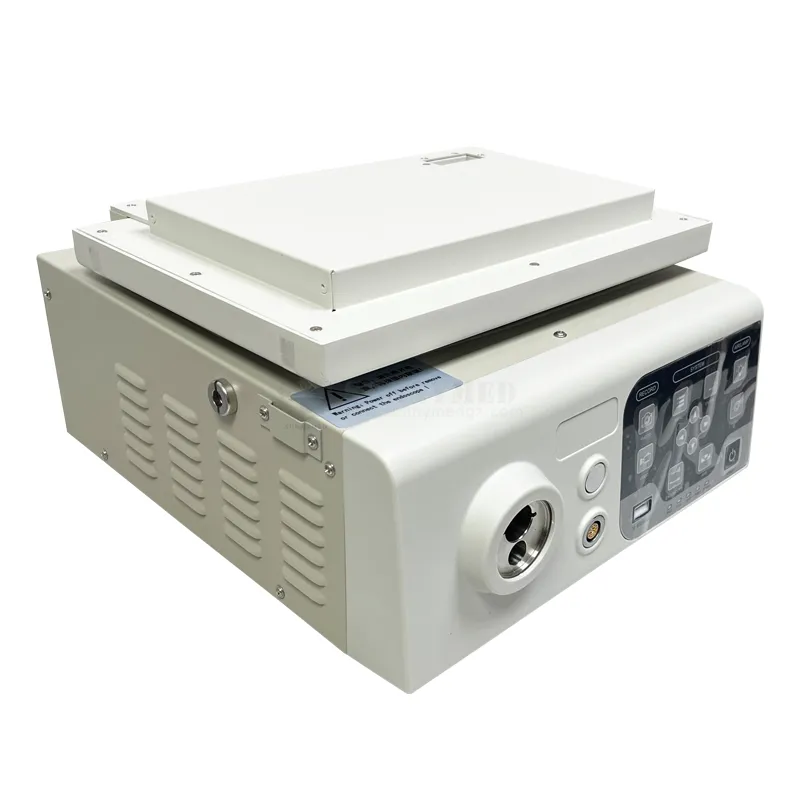

Detail View 3

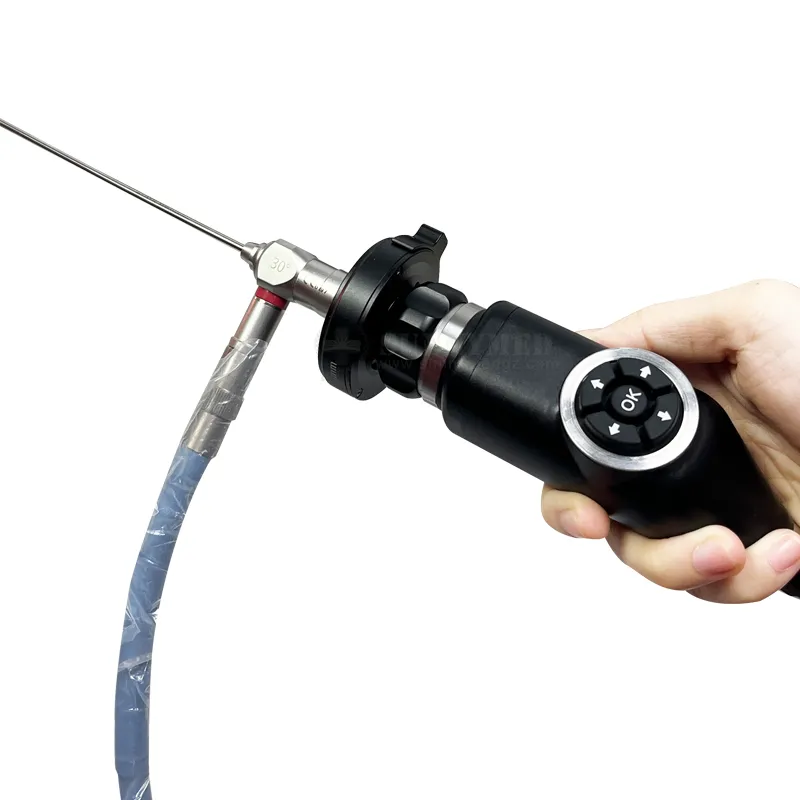

Detail View 4

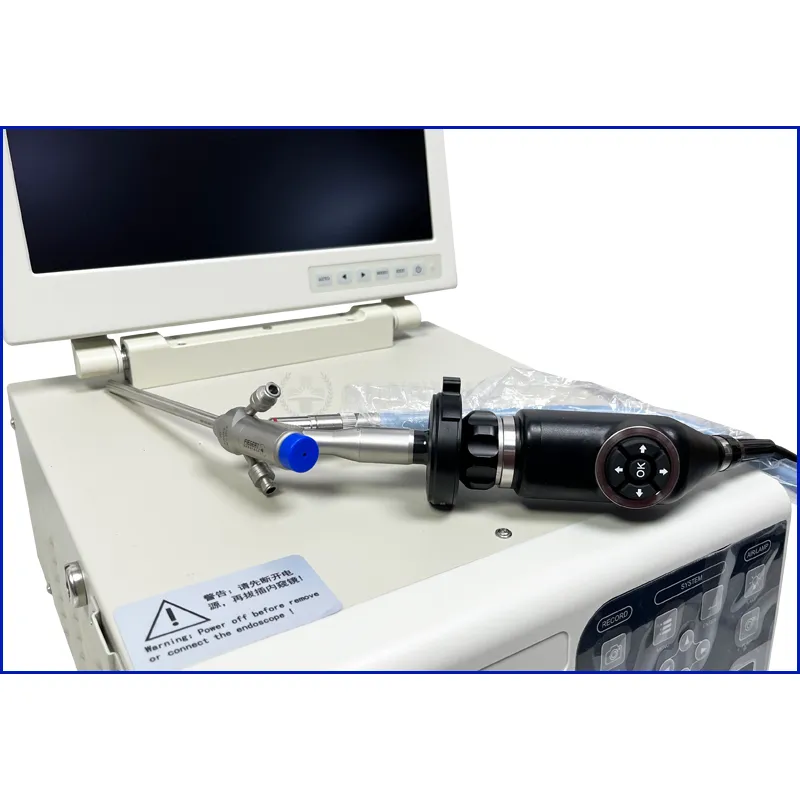

Detail View 5

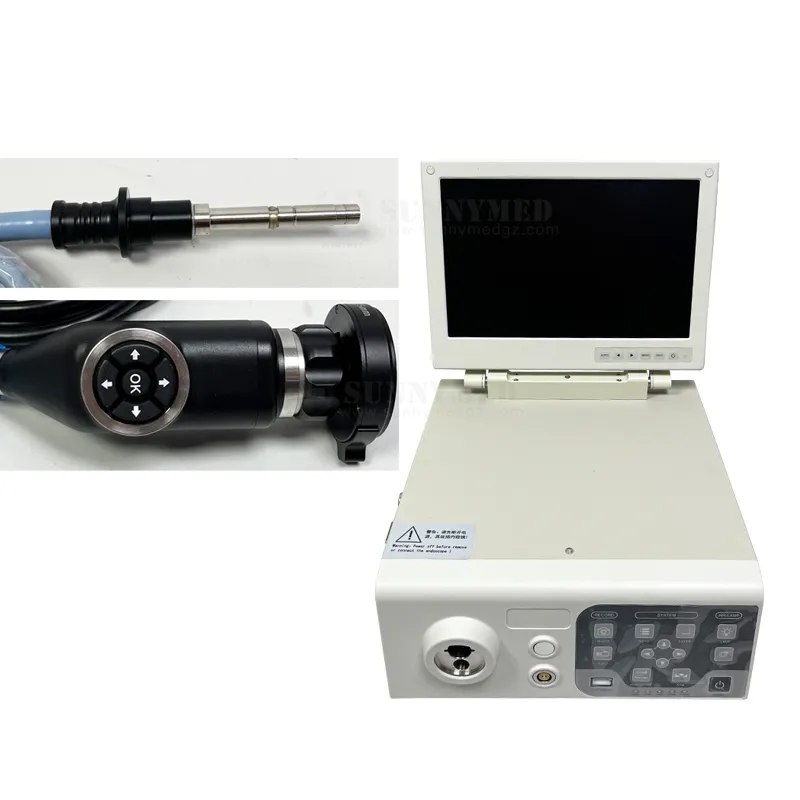

Detail View 6
🏢

Profile Overview

Production Facility

Manufacturing

Certification and Quality Control

Frequently Asked Questions

What applications is this endoscope suitable for?
This system is specifically designed for animal hospitals, suitable for both rigid and flexible endoscopy procedures in various veterinary cases.
What is the image resolution of the camera system?
The system provides high-definition 1080P image definition, ensuring clear and precise visualization for diagnostic purposes.
Does the system support different tube diameters?
Yes, there are multiple options available including Φ6.3mm, Φ8.3mm, and Φ12.9mm to suit different patient sizes and clinical needs.
Can the system record video and take snapshots?
Yes, the VET-300F processor supports snap and record functions at 1080P resolution at 30Fps.
What kind of light source is integrated into the processor?
The processor includes a powerful 40W LED cold light source with a luminance of over 800Lm for optimal visibility.
Is the white balance manual or automatic?
The system features an automatic white balance function for ease of use during surgical or diagnostic procedures.
