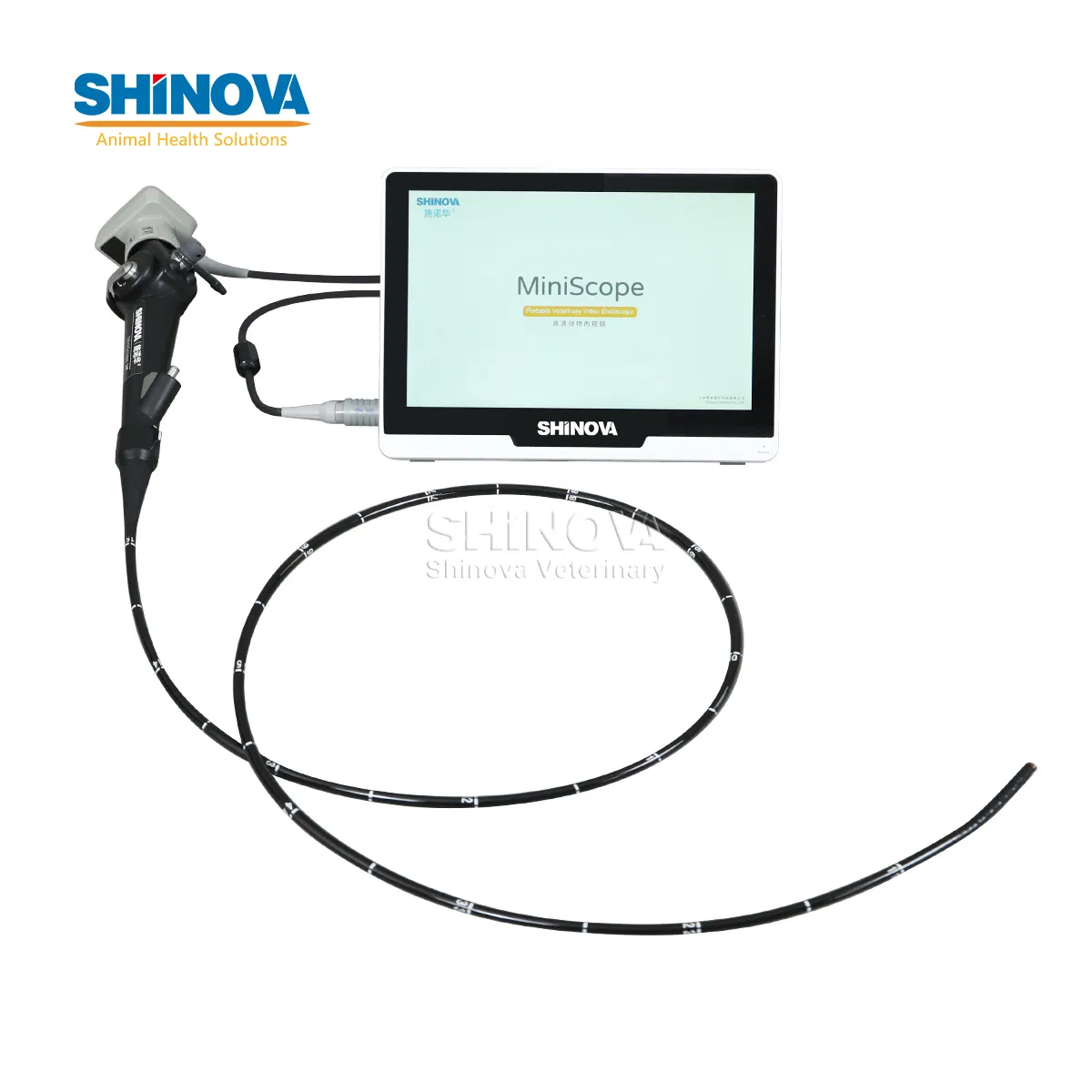

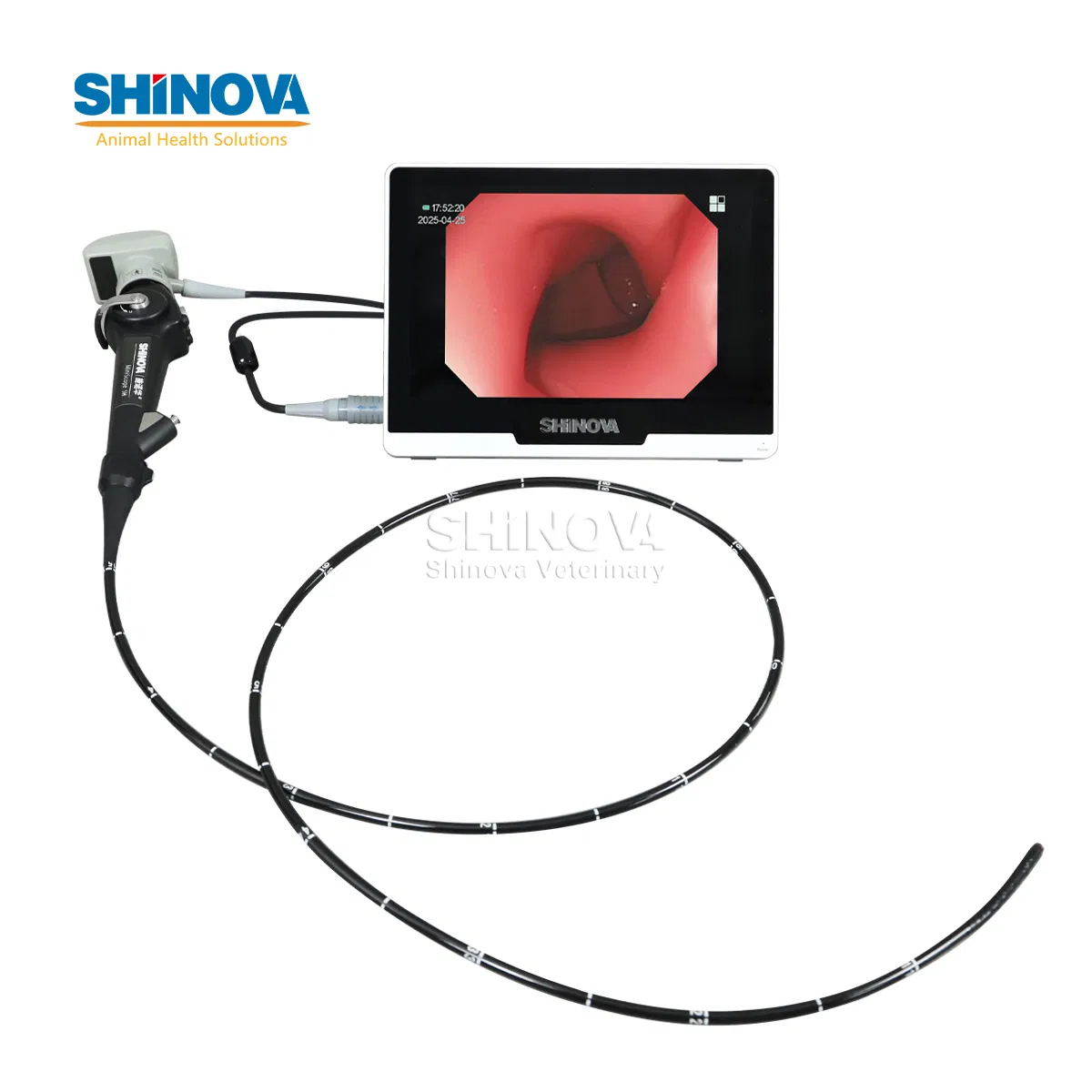

10" Veterinary Flexible Bronchoscope Video Medical Endoscopy Camera System with Monitor

Customization: Available
Type: Endoscope
Distal-End Diameter: 5.8mm

Product Description

Basic Information
Model NO.
MiniScope 5HG
Working Length
1500mm
Transport Package
Carton
Origin
China
Package Size
1.00cm * 1.00cm * 1.00cm
Gross Weight
11.000kg

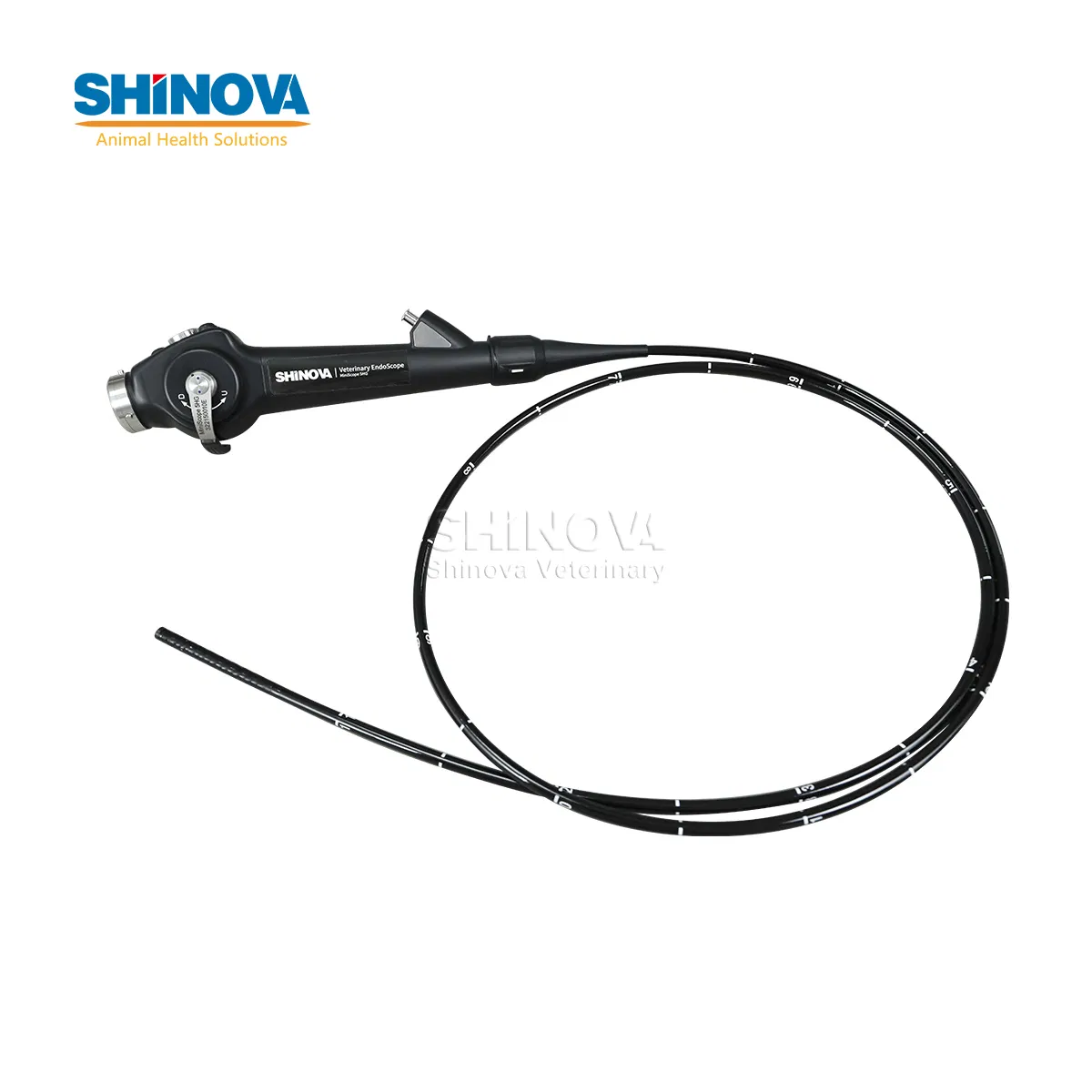

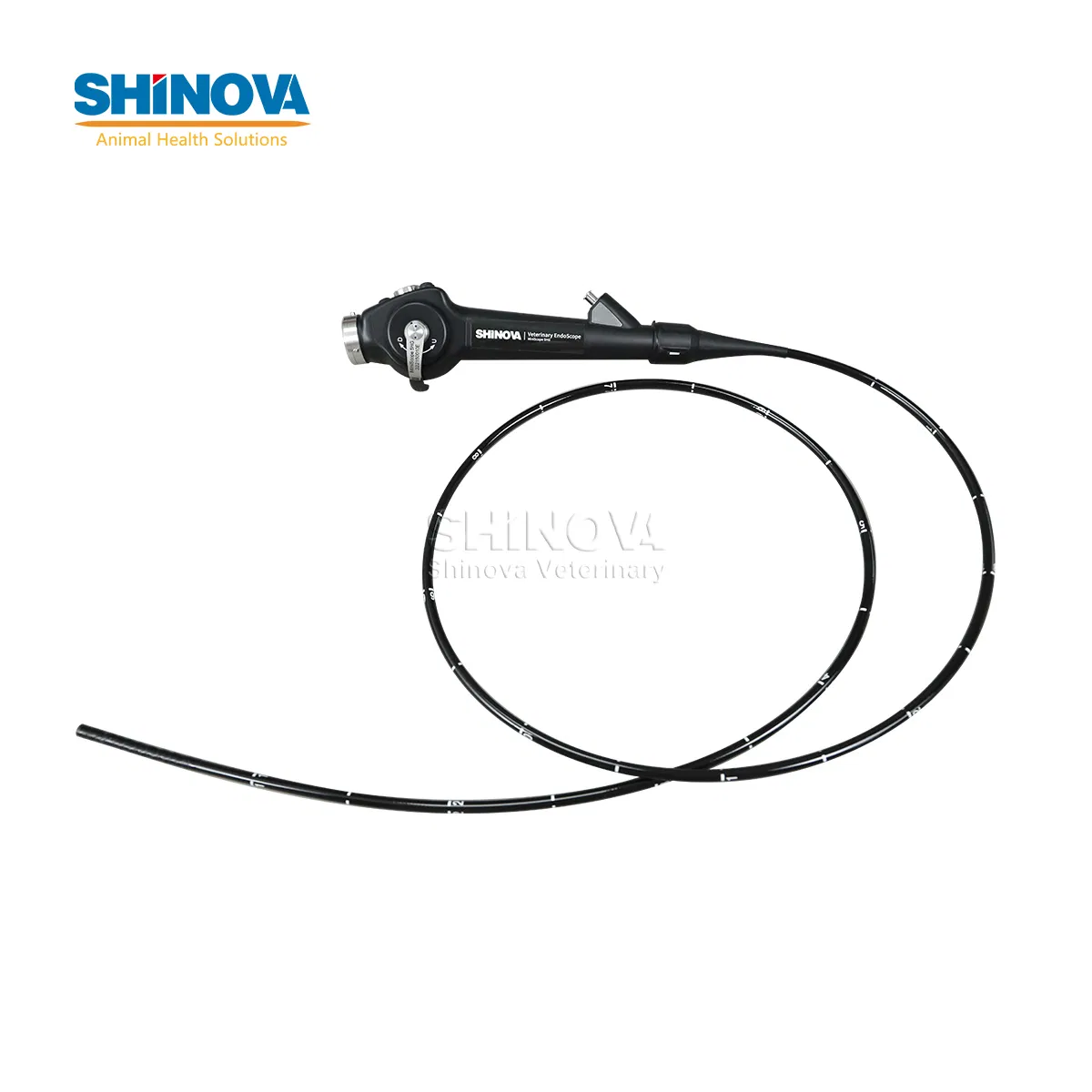

5.8mm Veterinary Bronchoscope

Model: MiniScope 5HG

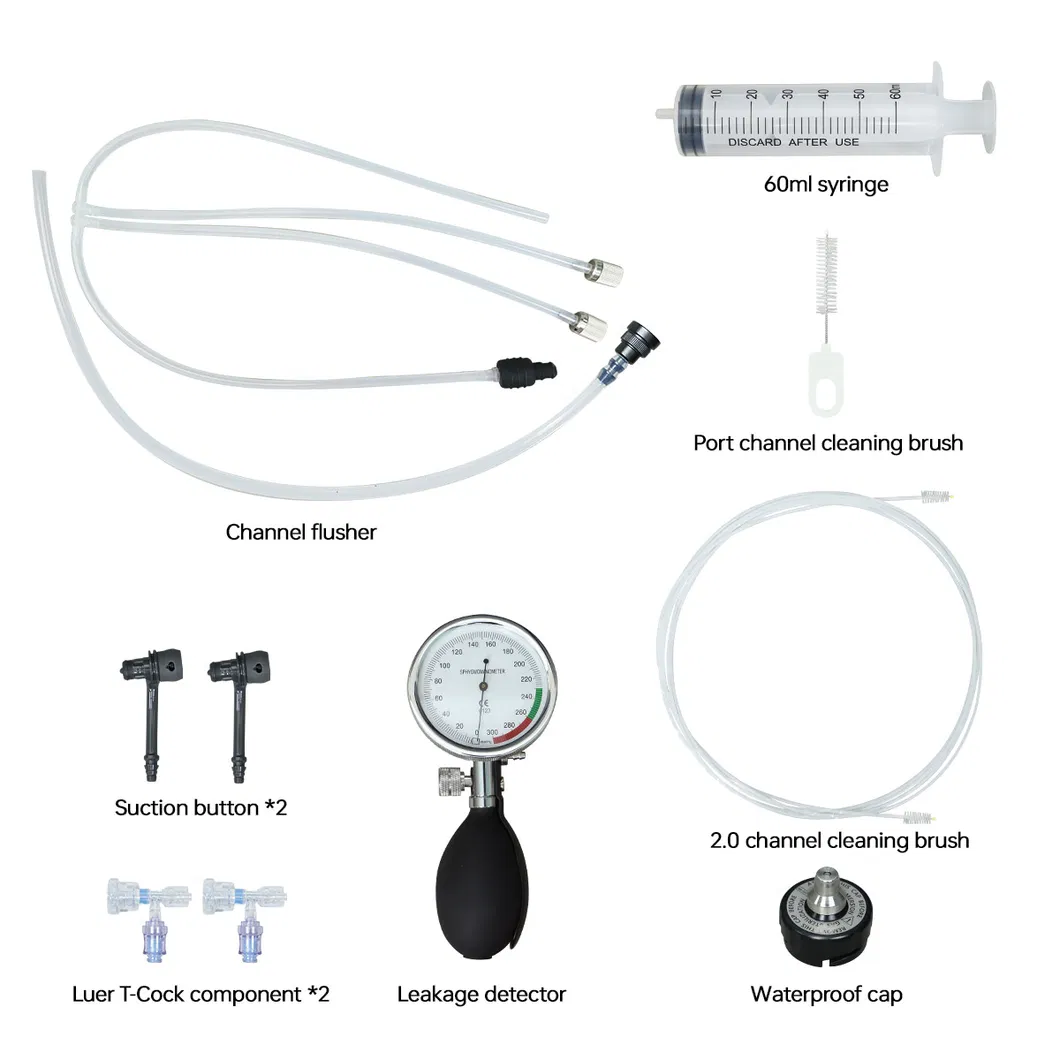

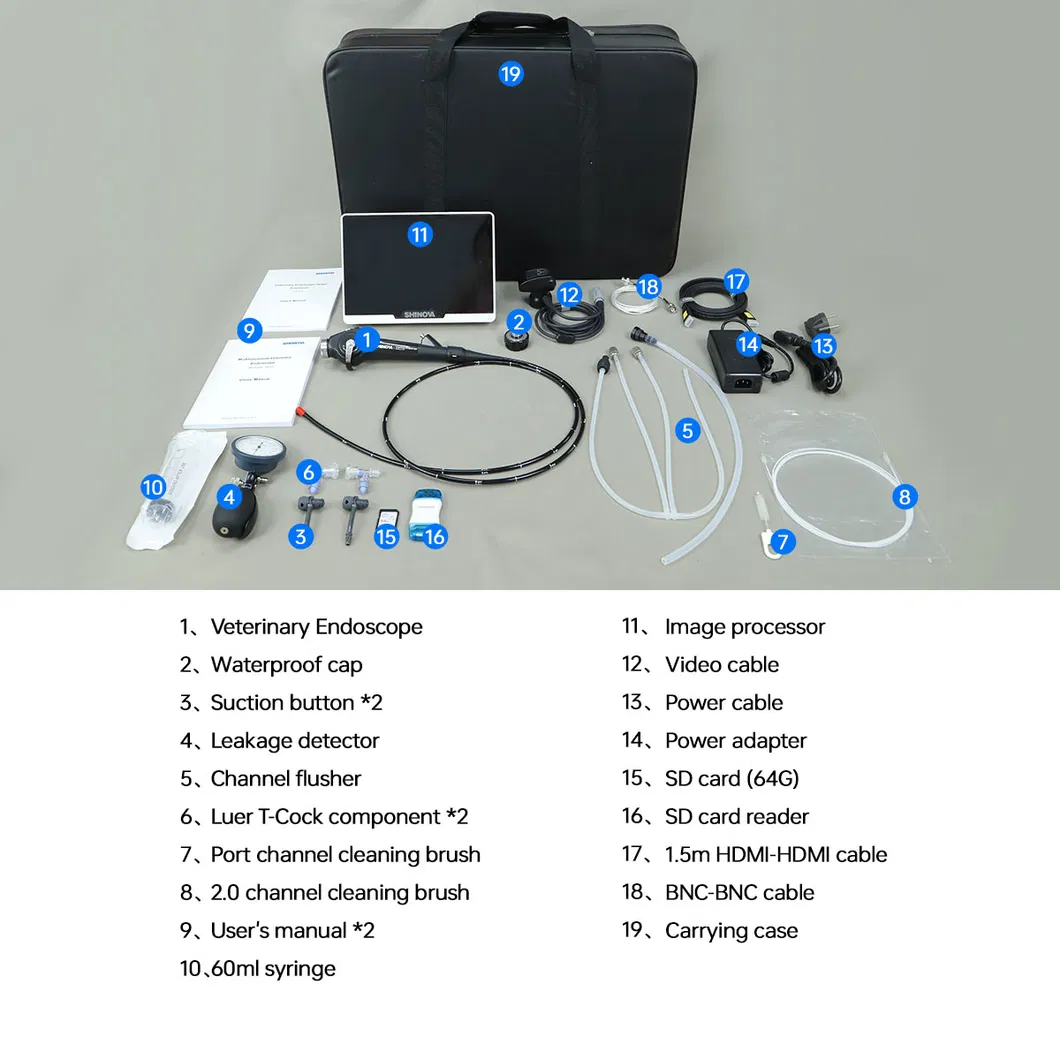

Accessories Diagram & Cleaning Set
Product Description

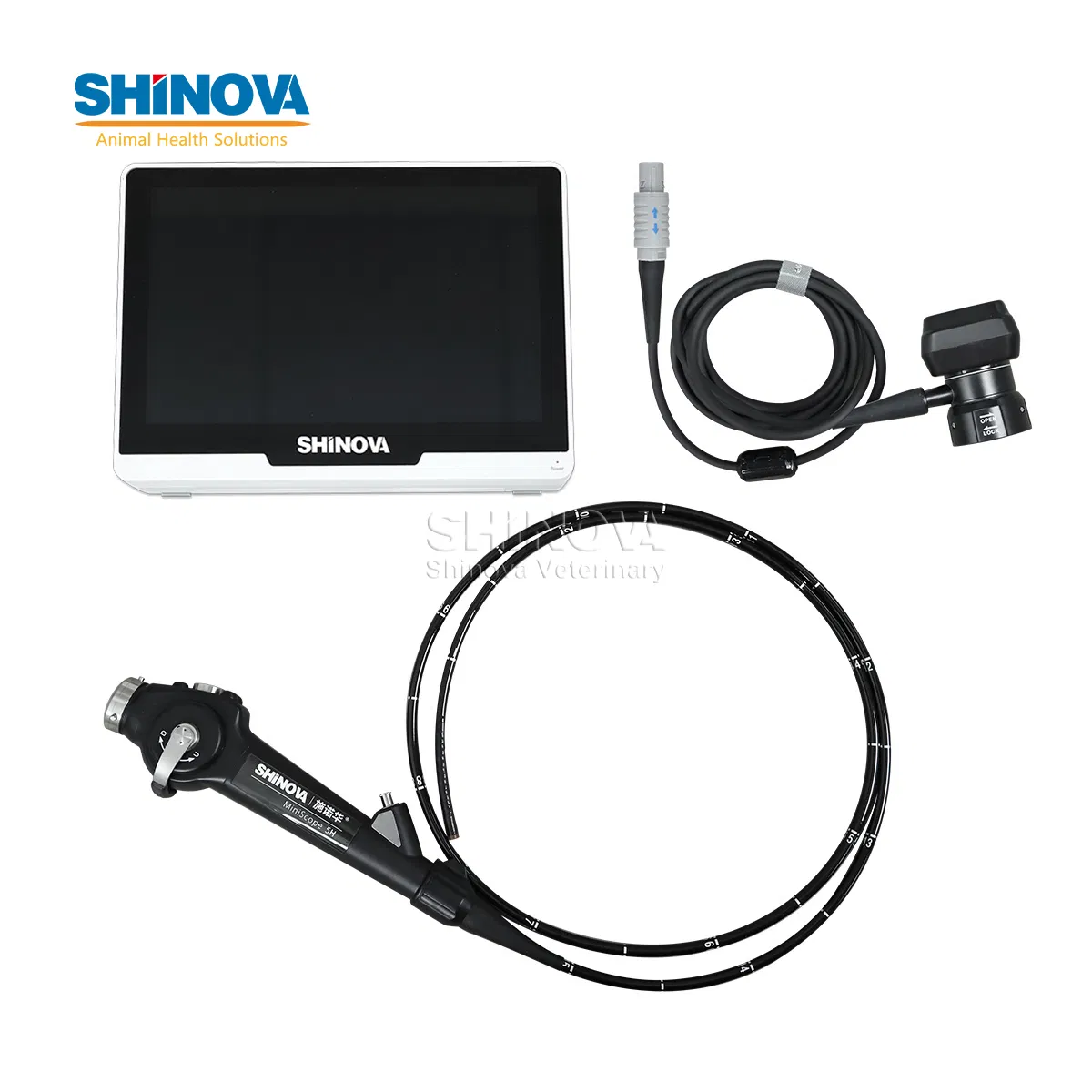

10-inch high-definition image processor with multi-function of display, recording, storage and light source.
High-resolution CMOS sensor performs clear image, real-time display and no transfer delay.
Durable LED light source integrated for optimal visibility.
Technical Specifications
Model Insertion Tube Dia. Working Channel Working Length View Angle View Depth Range of Bending
MiniScope 2V 2.8 mm 1.2 mm 610 mm 120° 3-200 mm 210° (U), 130° (D), 120° (R), 120° (L)
MiniScope 3V 3.8 mm 1.5 mm 1000 mm 120° 3-200 mm 180° (U), 130° (D), 120° (R), 120° (L)
MiniScope 4H (HD 720P) 4.8 mm 2.0 mm 1000 mm 120° 3-200 mm 180° (U), 130° (D), 120° (R), 120° (L)
MiniScope 5HG (HD 720P) 5.8 mm 2.8 mm 1500 mm 120° 3-200 mm 180° (U), 130° (D), 120° (R), 120° (L)
About Our Solutions

As a professional veterinary equipment manufacturer and solutions provider, we are dedicated to serving animal hospitals and clinics worldwide. With leading research, design, and service capabilities, we provide advanced techniques to help veterinarians solve complex diagnostic and treatment difficulties.

Our Purpose: Improve pet quality of life and create long-term value for our customers.

What We Provide:

  • ◈ Accurate veterinary diagnostic equipment and fast-test reagent kits.
  • ◈ Reliable anesthesia surgical equipment and treatment systems.
  • ◈ Professional fitness equipment and grooming tools.
Frequently Asked Questions
1. What is the primary use of the MiniScope 5HG? The MiniScope 5HG is a professional 5.8mm veterinary bronchoscope designed for high-definition visual inspection, diagnosis, and treatment within animal respiratory tracts and other compatible cavities.
2. Does the system include a built-in light source? Yes, the system features a durable integrated LED light source within the 10-inch high-definition image processor, ensuring clear visibility during procedures.
3. Can I record videos and capture images during an endoscopy? Absolutely. The 10-inch processor supports multiple functions including real-time display, video recording, and image storage for clinical review.
4. What is the bending range of the probe? The MiniScope 5HG offers a highly flexible tip with a bending range of 180° Up, 130° Down, and 120° to both Right and Left, providing excellent maneuverability.
5. Is the image quality high definition? Yes, both the 4H and 5HG models feature a high-resolution CMOS sensor that provides HD 720P images with no transfer delay.
6. What diameters are available for different animal sizes? The MiniScope series offers various insertion tube diameters including 2.8mm, 3.8mm, 4.8mm, and 5.8mm to suit different veterinary clinical needs.
