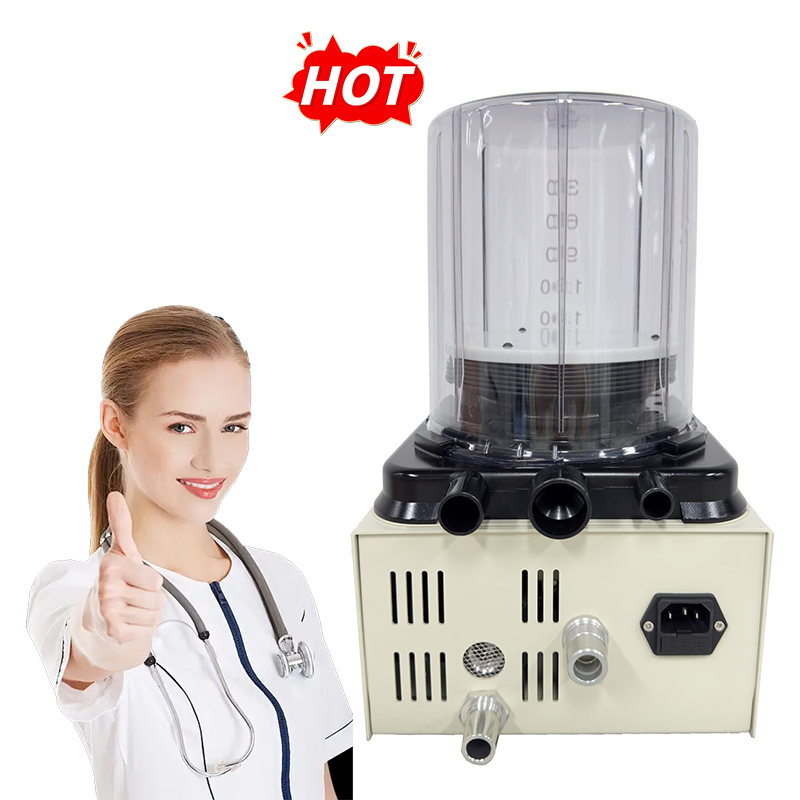

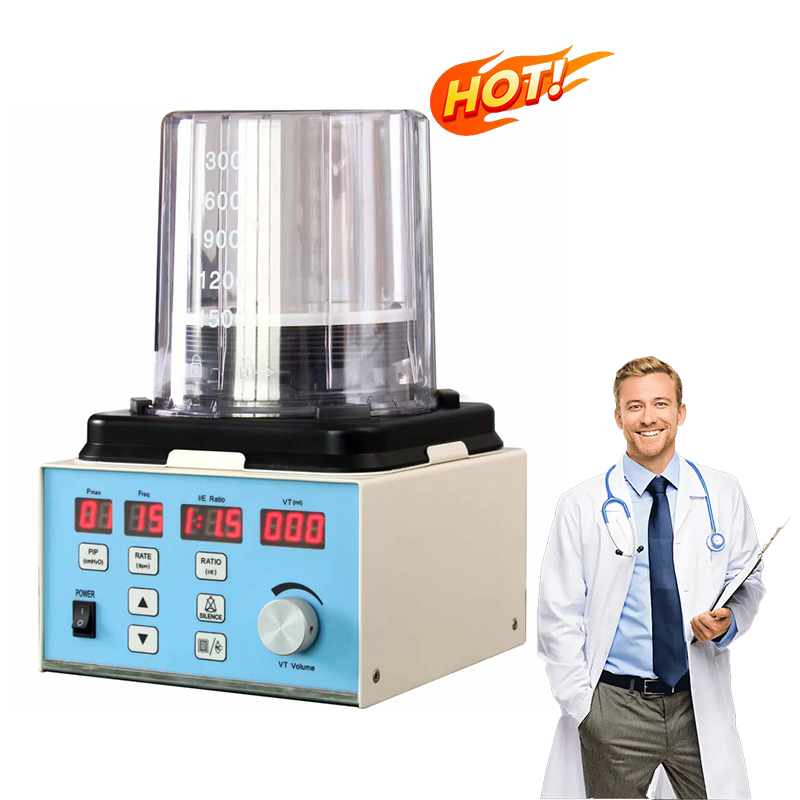

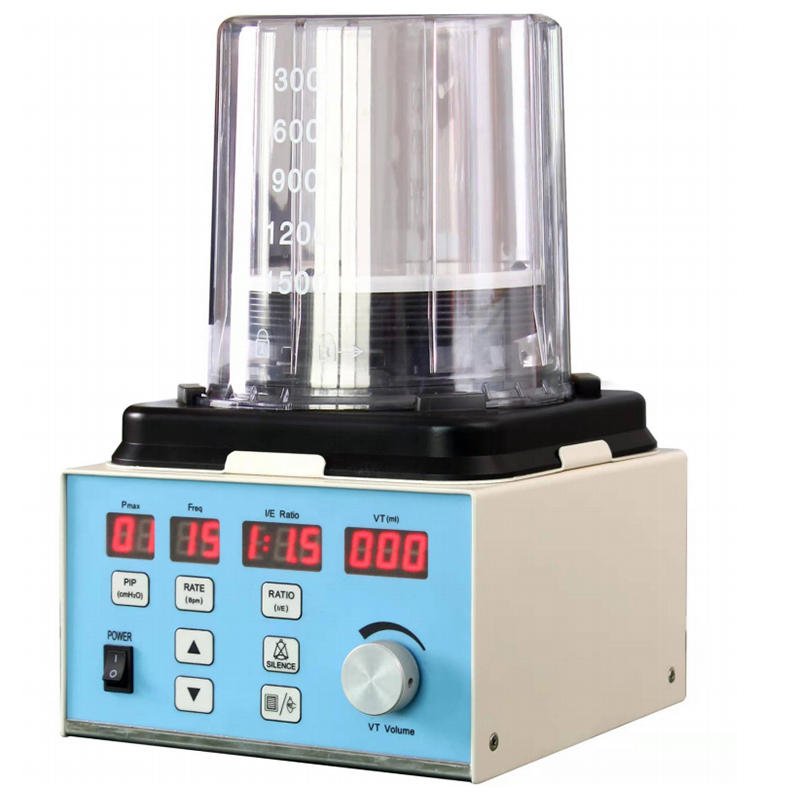

in-V Animal Hospital Anesthesia Machine for Veterinary Ventilator Use Product
in-V Animal Hospital Anesthesia Machine for Veterinary Ventilator Use Product
in-V Animal Hospital Anesthesia Machine for Veterinary Ventilator Use Product
in-V Animal Hospital Anesthesia Machine for Veterinary Ventilator Use Product
in-V Animal Hospital Anesthesia Machine for Veterinary Ventilator Use Product
1 / 5
in-V Animal Hospital Anesthesia Machine for Veterinary Ventilator Use Product
in-V Animal Hospital Anesthesia Machine for Veterinary Ventilator Use Product
in-V Animal Hospital Anesthesia Machine for Veterinary Ventilator Use Product
in-V Animal Hospital Anesthesia Machine for Veterinary Ventilator Use Product
in-V Animal Hospital Anesthesia Machine for Veterinary Ventilator Use Product

in-V Animal Hospital Anesthesia Machine for Veterinary Ventilator Use Product

Customization: Available
Type: Special Animal Anesthesia Machine
Breathing Pattern: Auto-Control
Send Inquiry

Product Description

📋
Basic Information
Model NO.
IN-V
Control Method
Electronic Control
Target Animals
Cat, Goat, Horse, Rabbit, Dog, Sheep, Cattle, Pig
Material
Metal
Feature
Reusable
Application
Veterinary Clinic
Production Capacity
2000 Sets/Month
HS Code
0101101010
🩺
Product Description

IN-V Animal Hospital Anesthesia Machine For Veterinary Ventilator Use

Key Features
  • Monitoring Display: High-definition digital tube display for clear visibility.
  • Monitored Parameters: Tidal volume, respiratory rate, inspiratory ratio, and peak airway pressure.
  • Breathing Modes: Supports both IPPV and MAN modes.
  • Respiratory Rate: Adjustable from 2 times/minute to 99 times/minute.
  • Respiration Ratio: 1:8 to 5:1, continuously adjustable.
  • Tidal Volume: 50~1500mL range using a precision turbine-type flow sensor.
  • Minute Ventilation: High capacity performance, not less than 16L/min.
Safety Performance
  • Maximum Safe Pressure: Breathing system limited to 6kPa.
  • High Pressure Limit: Automatic limitation when airway pressure exceeds set values to ensure patient safety.
  • Gas Source Alarm: High-priority audible alarm (>60dB) if oxygen supply pressure drops below 0.2MPa.
  • Airway Pressure Alarms: Continuously adjustable upper (2KPa-6KPa) and lower (0KPa-2KPa) limit alarms with immediate screen text display.
  • Alarm Mute & Recovery: Temporary mute function (up to 120s) with automatic restoration and stop once conditions normalize.

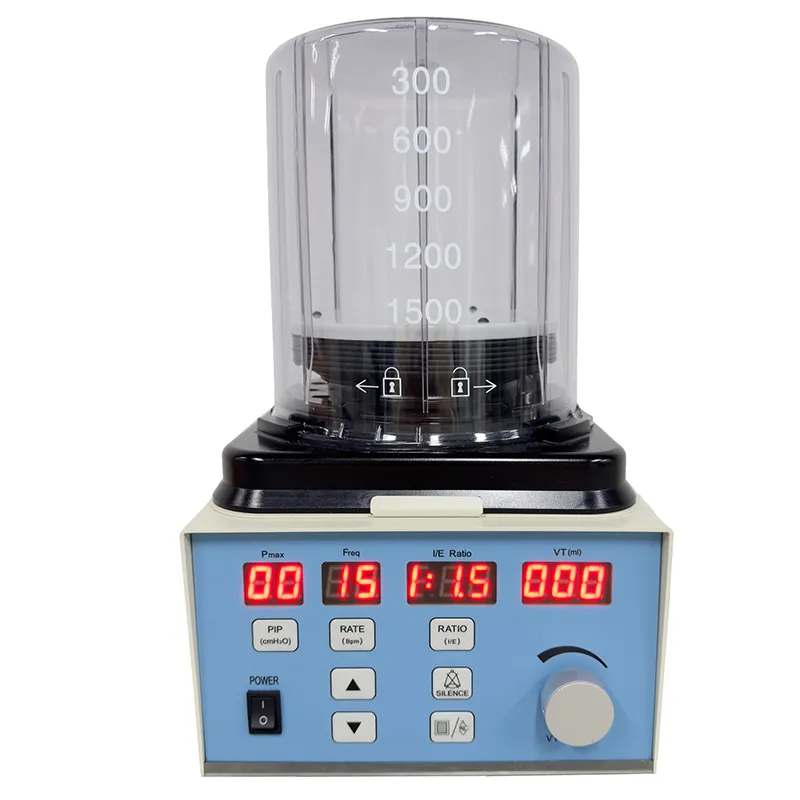

Anesthesia Machine View 1
Anesthesia Machine View 2

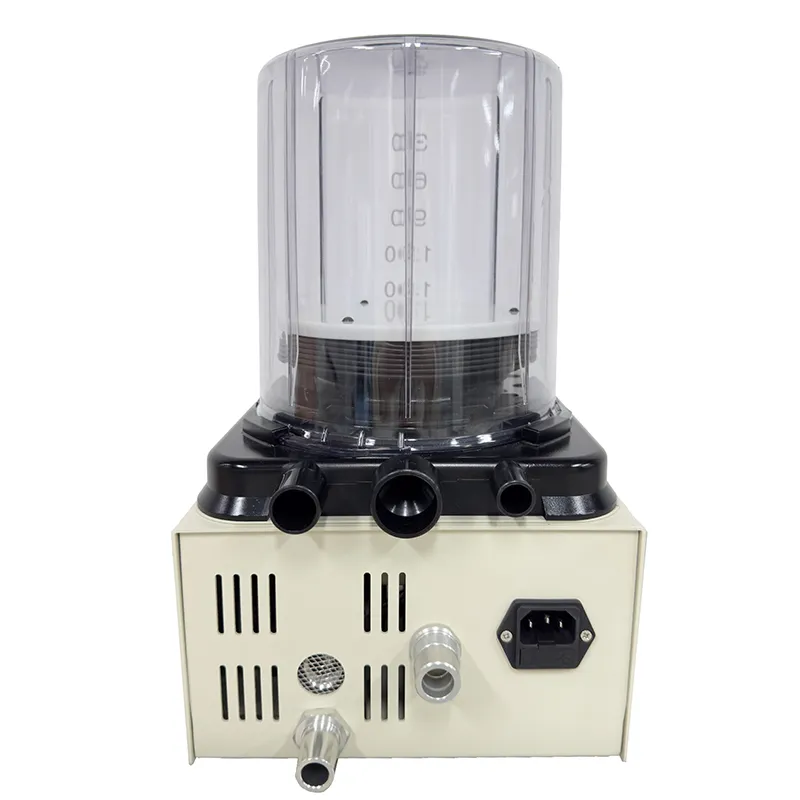

Anesthesia Machine View 3

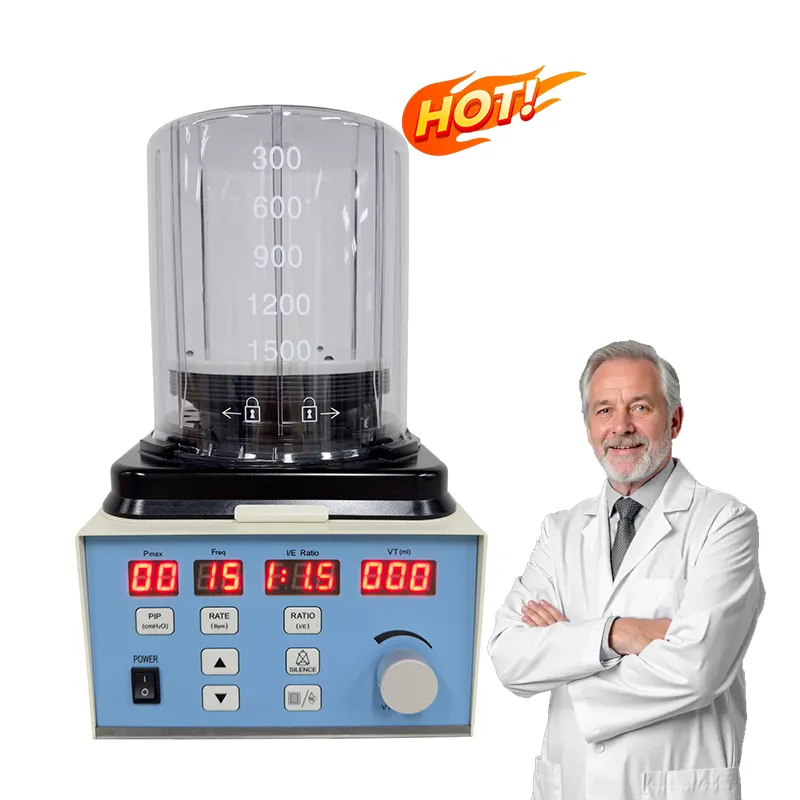

Anesthesia Machine View 4

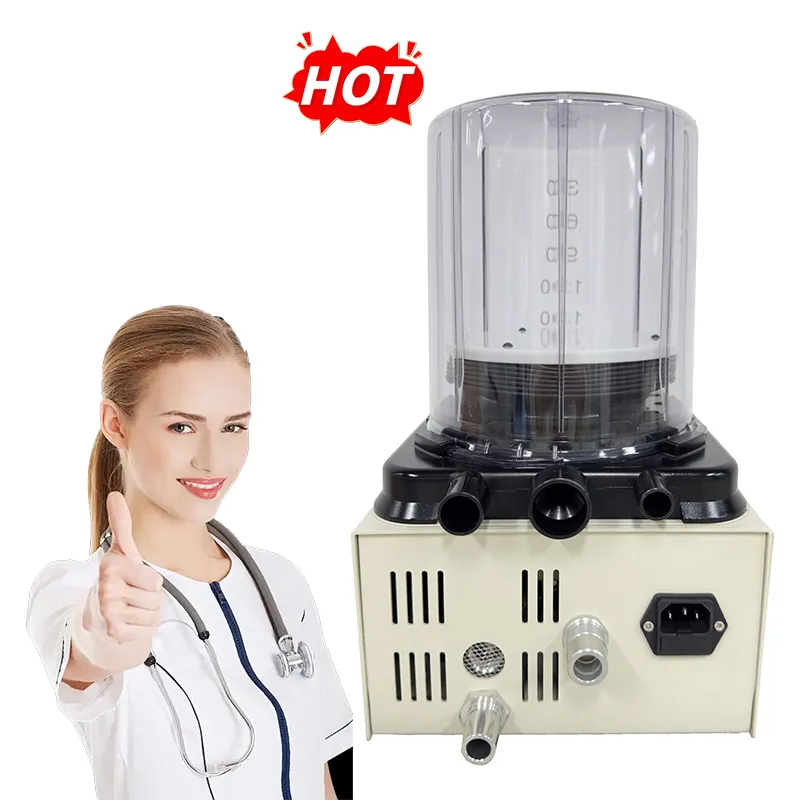

Anesthesia Machine View 5
Anesthesia Machine View 6
⚙️
Specifications
Item Value
Model Number IN-V
Power Source Electricity
Application Range Veterinary Hospital / Clinic
Material Quality Medical Grade Metal
Product Detail 1
Product Detail 2
Product Detail 3
Product Detail 4
Product Detail 5
Frequently Asked Questions
What types of animals is the IN-V anesthesia machine suitable for?
The machine is versatile and designed for use with a wide range of animals, including cats, dogs, rabbits, goats, sheep, pigs, cattle, and even horses.
What are the primary breathing modes supported by this device?
It supports two main breathing modes: IPPV (Intermittent Positive Pressure Ventilation) and MAN (Manual) mode, providing flexibility for different clinical scenarios.
How does the safety alarm system protect the patient?
The system includes multiple safety features: a high-pressure limit that automatically stops airway pressure from rising, audible alarms for low oxygen supply, and adjustable upper/lower airway pressure alarms.
What is the tidal volume range for the ventilator?
The tidal volume is adjustable from 50mL to 1500mL, utilizing a high-precision turbine-type flow sensor for accurate delivery.
What parameters can be monitored on the digital display?
The high-definition display allows real-time monitoring of tidal volume, respiratory rate, inspiratory ratio, and peak airway pressure.
What is the power source required for operation?
The IN-V anesthesia machine is powered by standard electricity, making it suitable for consistent use in veterinary clinics and hospitals.
