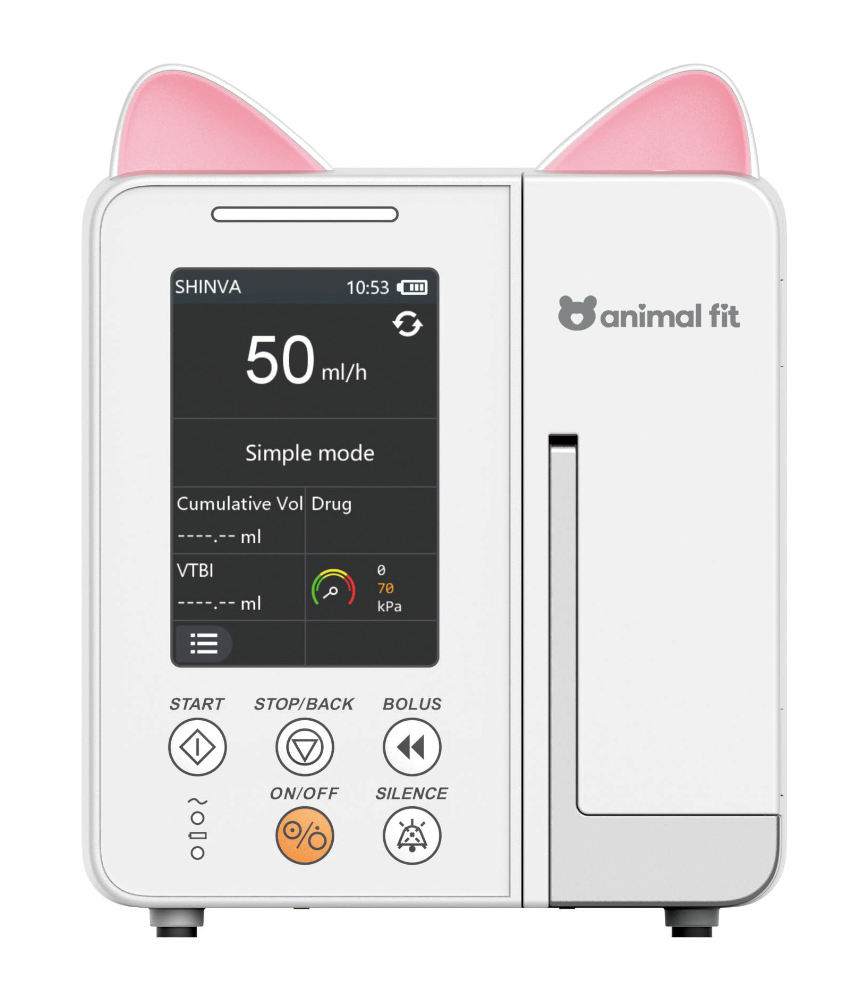

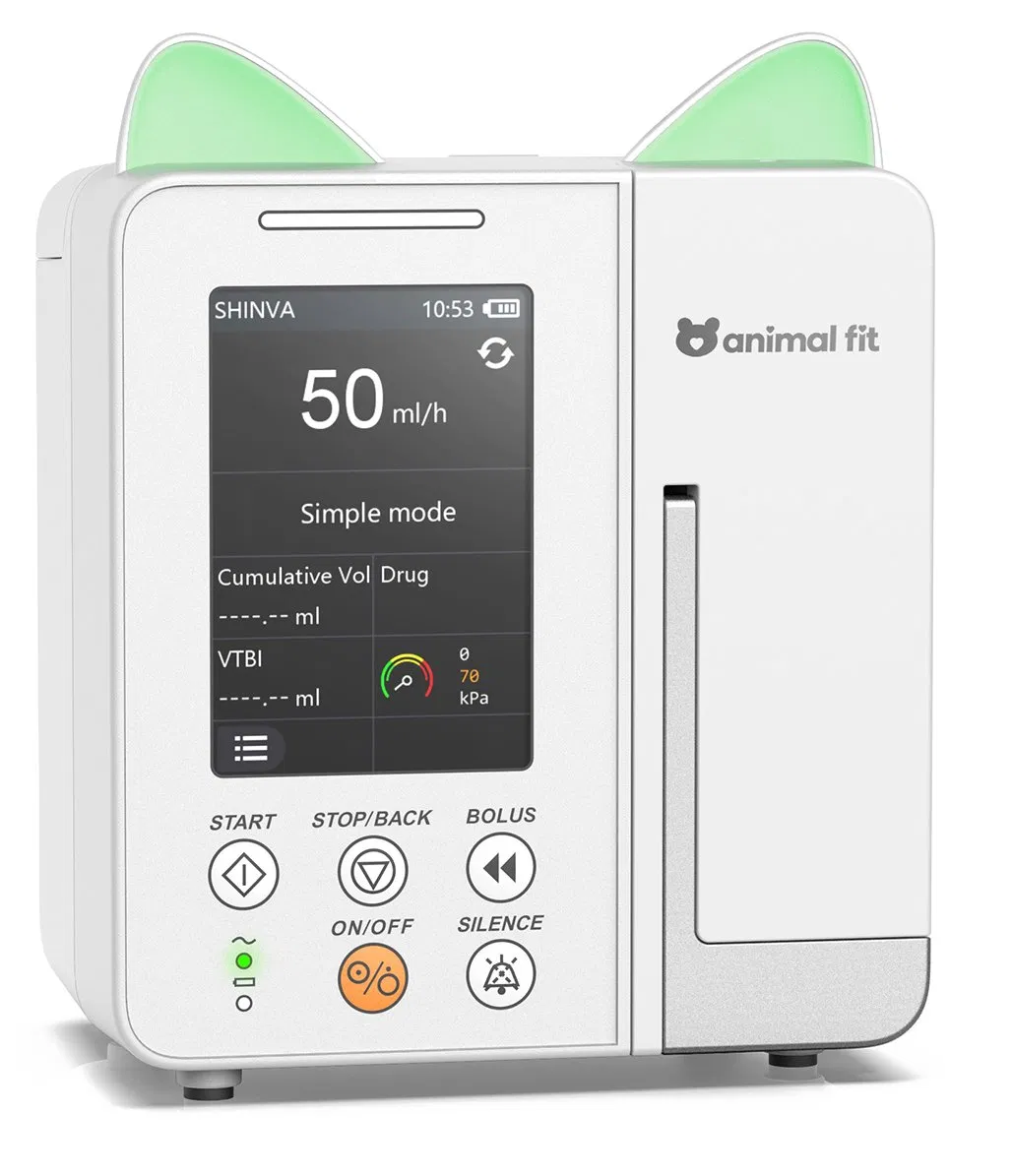

Portable 2.8 Inch LCD Veterinary Volumetric Infusion Pump

1 / 3

Portable 2.8 Inch LCD Veterinary Volumetric Infusion Pump

Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Infusion Pump
Certification:	CE, ISO13485

Send Inquiry

Product Description

Basic Information

Model NO.:

YH-SP750

Group:

Vet

Usage:

Transfusion

Properties:

Diagnosis & Injection

Transport Package:

Carton Packaging

Origin:

China

Production Capacity:

10000 Set/Sets Per Month

Product Description

Introduction

The product is a volumetric infusion pump, features in high safety, easy operation and long life. Flow control with high accuracy and comprehensive alarm measures ensure patient's safety and optimum therapeutic effect.

Specifications

Item	Value
Place of Origin	China
Model Number	YH-SP750
Properties	Diagnosis & Injection
Usage	Transfusion

Technical Features

Key Functions

Flow control with high accuracy ensures optimum therapeutic effect.
Be compatible with most standard IV Sets.
New IV sets can be calibrated and parameters input into the pump.
2.8'' TFT-LCD with easy key operation.
Real-time display of residual infusion time.
Multiple alarms: occlusion, air bubble, door open, and motor failure.
Adjustable threshold for pressure alarms.
A.B.S (ANTI BOLUS system) prevents instantaneous high-dose injection.
Power supply: AC/DC and built-in lithium battery.
Automatic data saving after power off.

Performance Parameters

Infusion rate:

1~699mL/h (1mL/h increment)

Total volume:

1~9999mL

Accuracy:

±5%

KVO rate:

1mL/h

Battery:

Li-polymer, 7.4 V/5000mAh

Waterproof:

IPX2

Product Gallery

Frequently Asked Questions

Q: What is the flow rate accuracy of the YH-SP750?

A: The pump maintains a high flow control accuracy of ±5% when using a calibrated IV set.

Q: Can this infusion pump be used without a direct power outlet?

A: Yes, it features a built-in rechargeable Li-polymer battery (7.4 V/5000mAh) for portable use and as a backup during power failures.

Q: Is the device compatible with standard IV sets?

A: Yes, it is designed to be compatible with most standard IV sets. Users can also calibrate new sets to ensure maximum accuracy.

Q: What safety features protect the patient from air bubbles?

A: The device includes a high-accuracy ultrasonic air bubble detector that prevents air from entering the patient's body by triggering an alarm and stopping the infusion.

Q: What is the "ANTI BOLUS" system?

A: The A.B.S (ANTI BOLUS) system prevents instantaneous high-dose injections that could occur if a sudden obstruction in the line disappears.

Q: Does the pump save settings if the power is turned off?

A: Yes, infusion parameters are automatically saved after the power is turned off, ensuring continuity in treatment.
