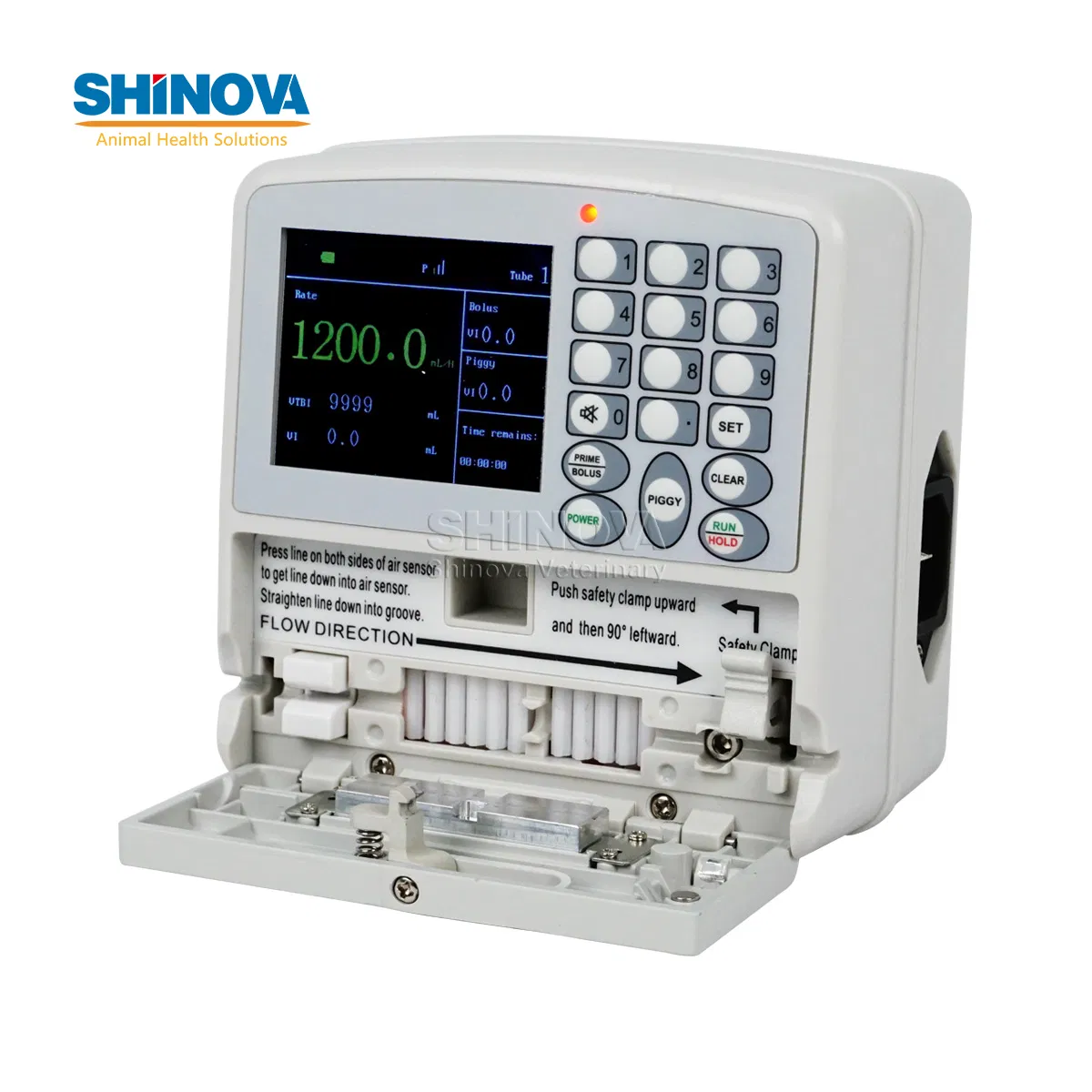

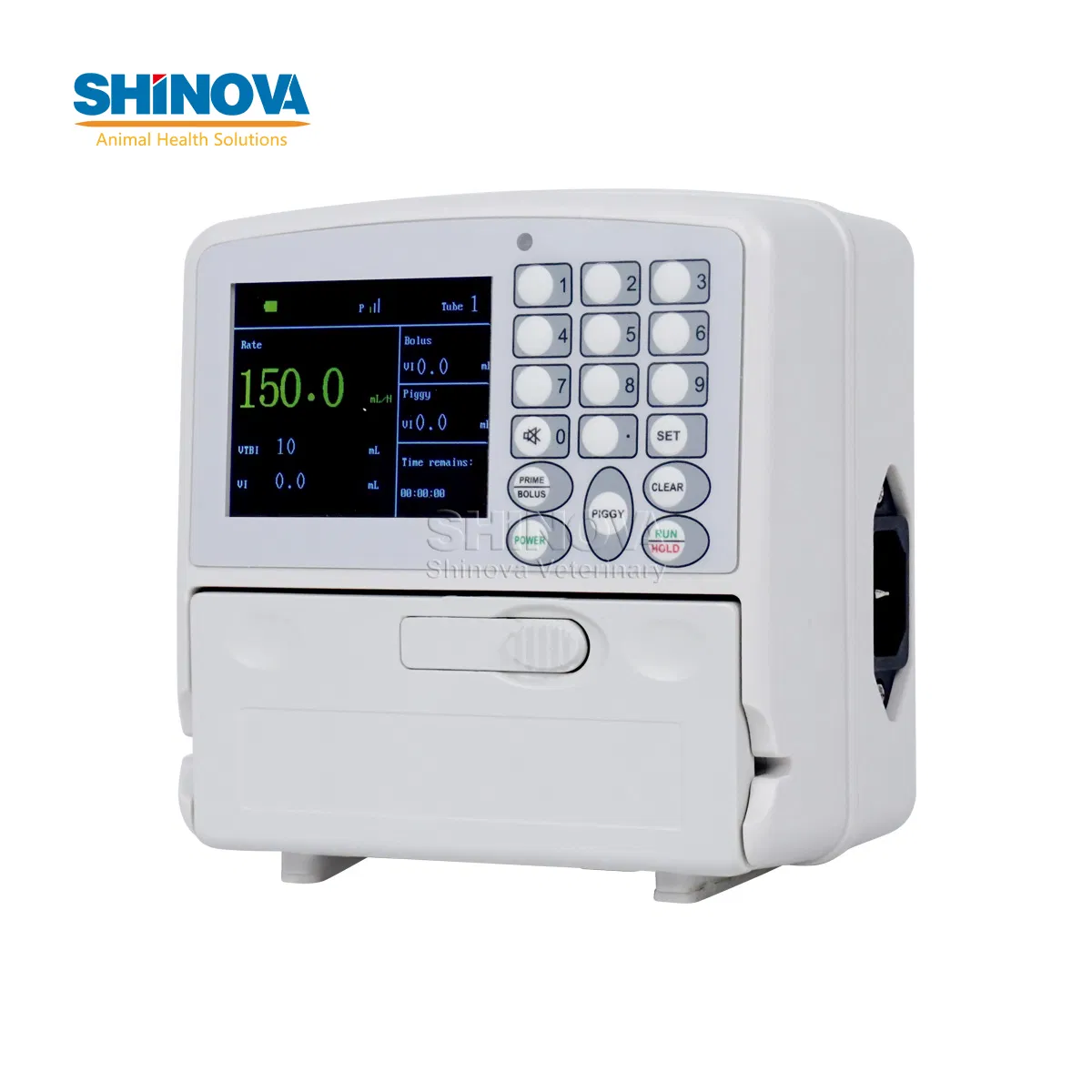

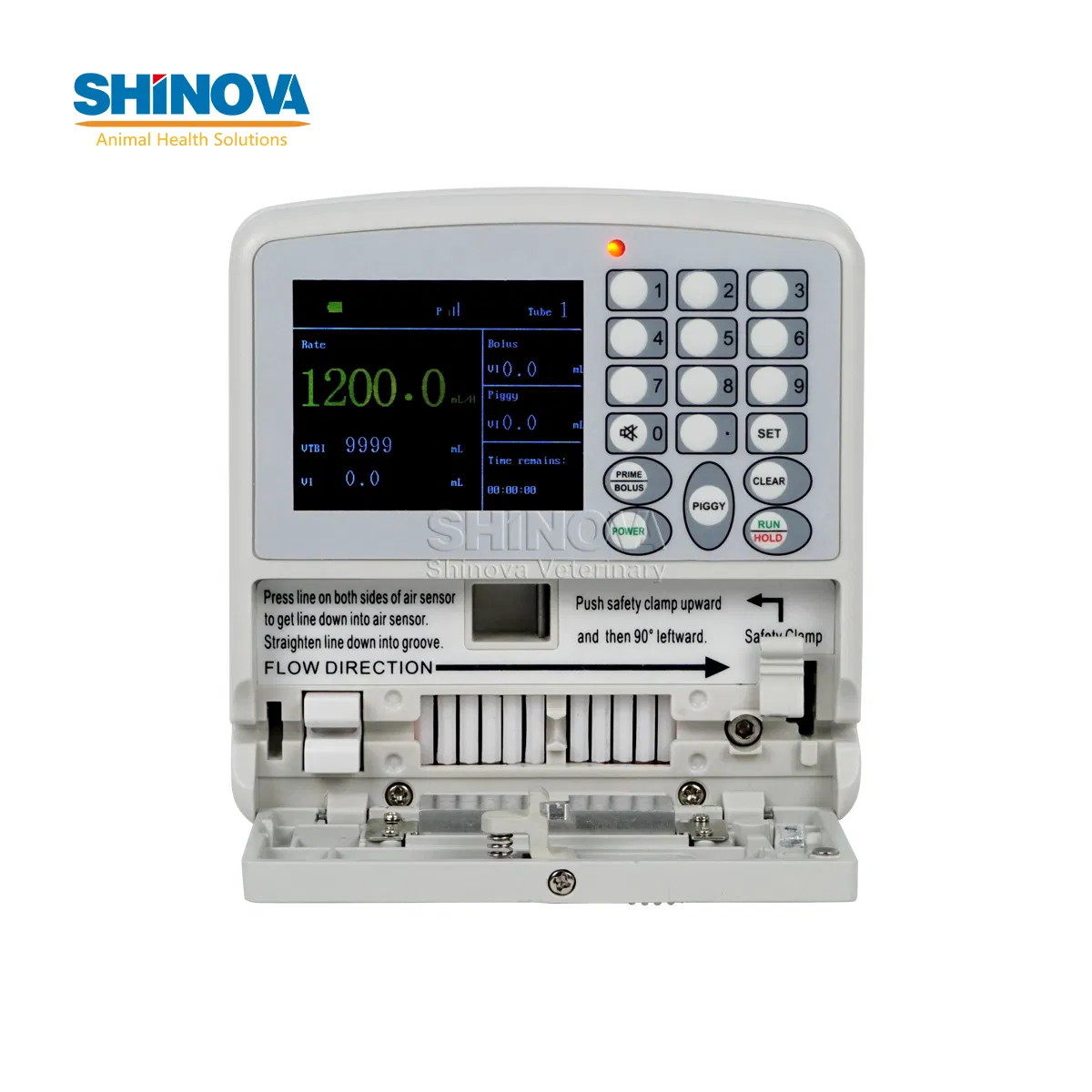

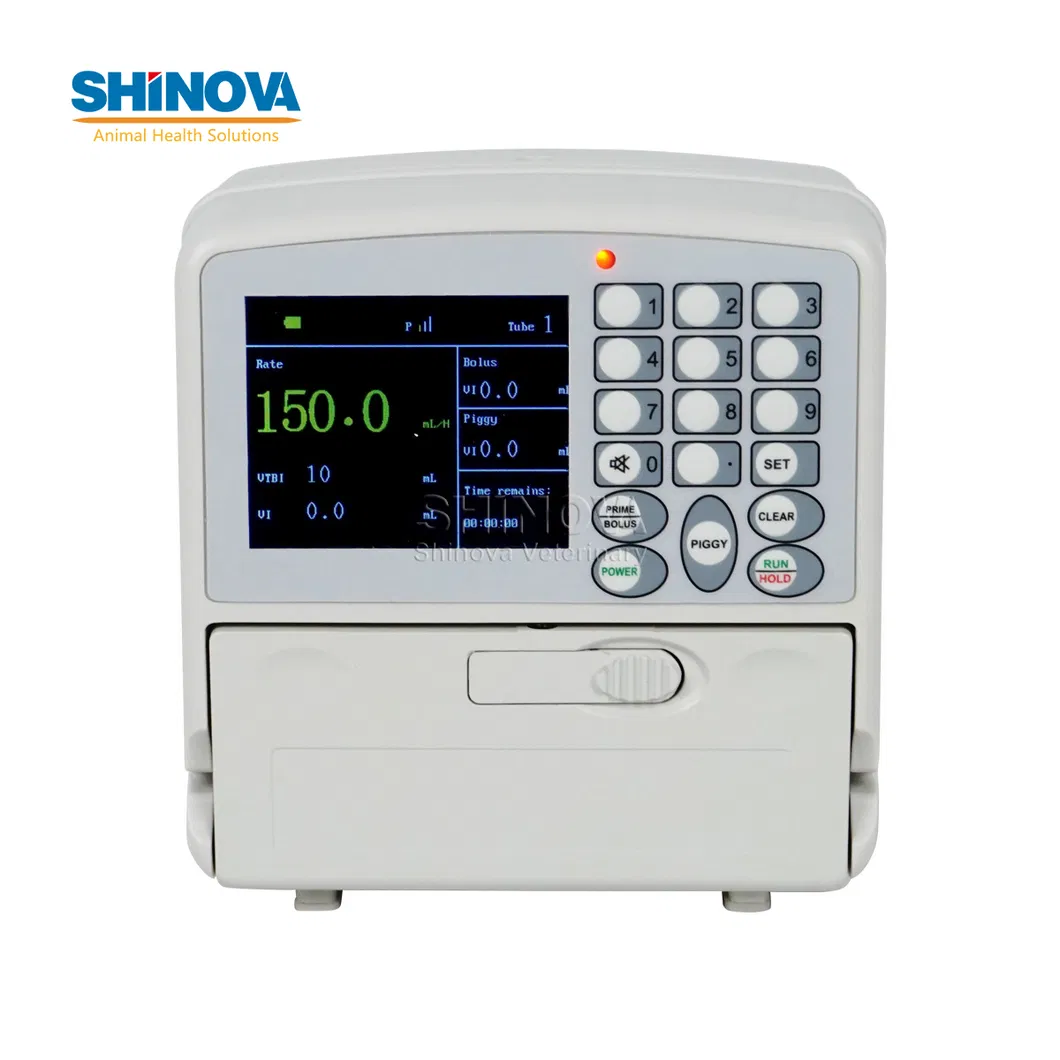

Hospital Equipment Veterinary Infusion Pump (Infula 106V)

1 / 5

Hospital Equipment Veterinary Infusion Pump (Infula 106V)

Customization:	Available
Type:	Infusion Pump
Infusion Modes:	Rate Mode, Drop Mode, Piggyback Mo

Send Inquiry

Product Description

Basic Specifications

Model NO.

Infula 106V

Rate

0.1-1200ml/H

Transport Package

Carton

Origin

China

Package Size

1.00cm * 1.00cm * 1.00cm

Gross Weight

1.000kg

Key Features

Small size, light weight design for portability

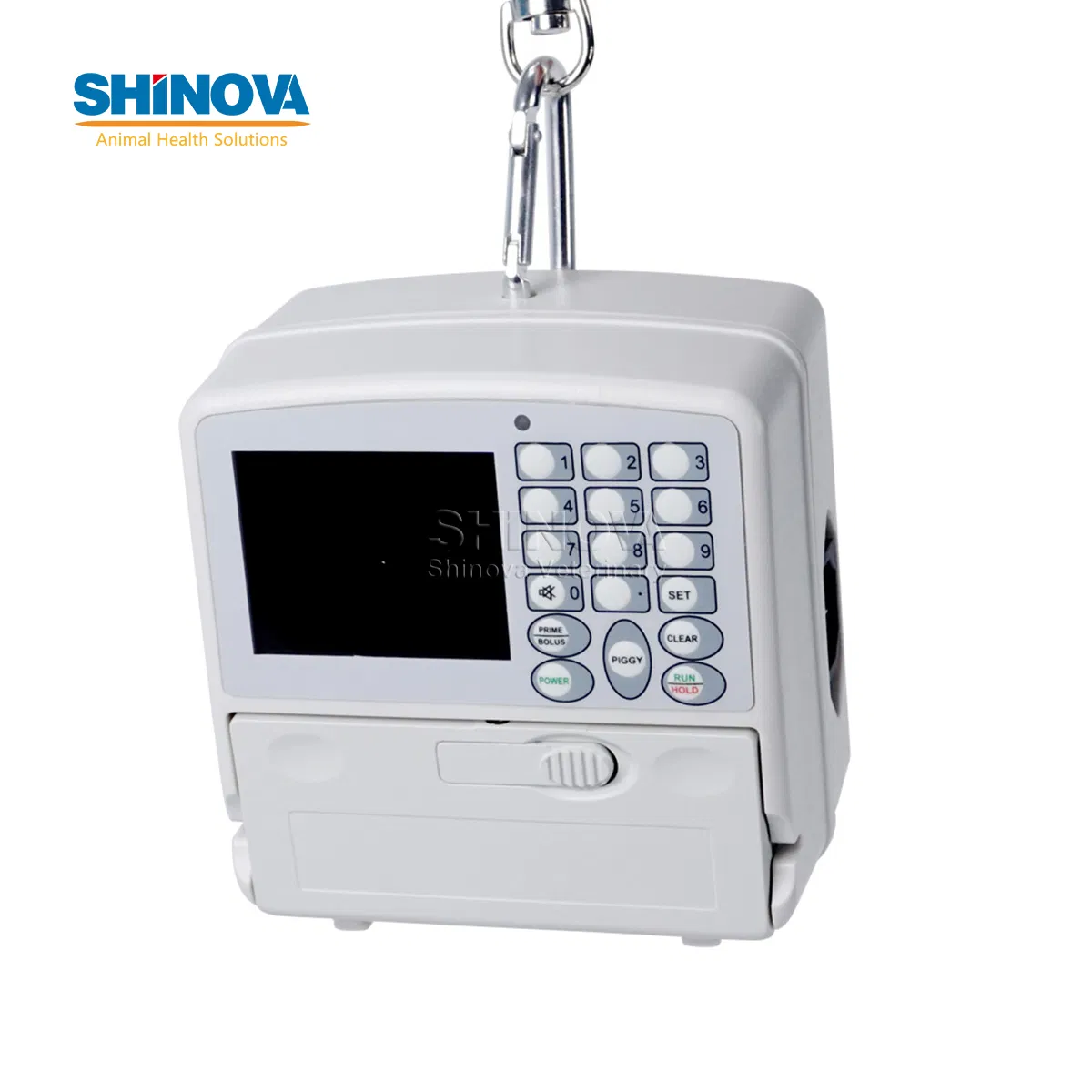

Dual mounting options: Fixed by either hook or clamp
User-friendly number keys for easy parameter setting
Multi-functional design for flexible clinical use
Double CPU architecture for enhanced safety
Adjustable accuracy and pressure levels

Technical Specifications

Infusion Modes	Rate Mode, Drop Mode, Piggyback Mode
Infusion Set Compatibility	Standard IV sets: 15/20/60 drops/ml (9 tube channels)
Accuracy Rate	±5% (±3% after calibration)
Flow Rate Range	0.1-1200ml/h
VTBI / VI	VTBI: 1-9999ml \| VI: 0-9999ml
Bolus / KVO Rate	Bolus: 600ml/h (Adjustable) \| KVO: 6ml/h (Adjustable)
Safety Alarms	Over, Air, Occl, Low Batt, AC Off, Door Open, Error
Power & Battery	AC 100-240V \| 8.4V 1600mAh Li-ion Battery
Physical Dimensions	13080130mm \| Net Weight: 1.15kg

Frequently Asked Questions

Q1: What infusion modes are available on the Infula 106V? The device supports three main modes: Rate Mode, Drop Mode, and Piggyback Mode for flexible clinical application.

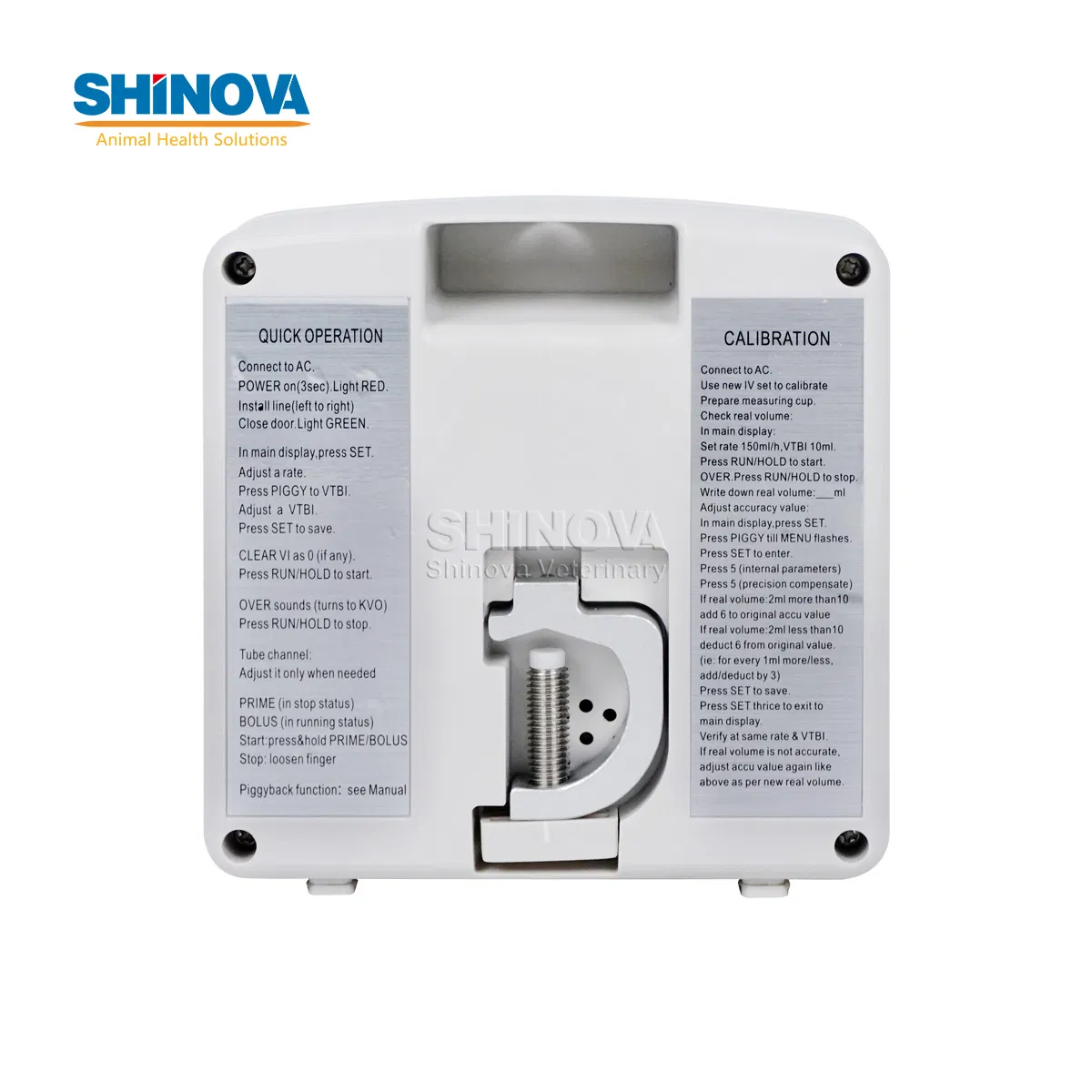

Q2: How accurate is the infusion flow rate? The standard accuracy error rate is ±5%, which can be improved to ±3% after calibration.

Q3: Does the pump have an internal battery for mobile use? Yes, it is equipped with a rechargeable lithium-ion battery (8.4V, 1600mAh), making it suitable for transport or power outages.

Q4: What types of alarms are integrated into the system? The pump includes comprehensive alarms for air-in-line, occlusion, low battery, AC power disconnect, door open, and general system errors.

Q5: Is this pump compatible with standard IV sets? Yes, it works with standard IV sets of 15, 20, or 60 drops/ml and allows for 9 custom tube channels to save specific accuracy values.

Q6: Can the KVO and Bolus rates be adjusted? Yes, both the Bolus rate (default 600ml/h) and the KVO rate (default 6ml/h) are adjustable by the user to meet specific patient needs.
