Product Description

Basic Information

Model NO.

OIP-900V

Display

TFT LCD Screen

Working Modes

Rate/Time/Volume Mode

Warranty

12 Months

Lead Time

Within 7 Days

Transport Package

Strong Packing

Origin

China

Production Capacity

6000 Pieces/Month

Veterinary Equipment Vet Infusion Pump (OIP-900V)

Key Features

✔ 4.3" color LCD screen, backlight display

✔ Three working modes: Rate/Time/Volume mode

✔ Purge, KVO function

✔ Heating function

✔ Remote controller function

✔ Audible and Visible alarms

✔ Calibration function for any brand IV set

Alarms Include: Infusion Complete, Empty, Faulty Signal, Misoperation, Occlusion, Door Open, Air Bubble, Low Battery, Setting Error, AC power off, Idle.

Technical Specifications

Infusion Rate Range	1 drop/min - 400 drops/min (step: 1)
Flow Rate Range	1ml/h - 1200ml/h (step: 0.1ml/h)
Purge Rate	800ml/h
KVO Rate	1-3ml/h based on flow rate
Infusion Volume Range	1ml ~ 9999.9ml
Infusion Time Range	1min ~ 9999min
Infusion Accuracy	Within ±3% (calibrated)
Mechanical Precision	Within ±2%
Dimensions	188 mm(L) × 198 mm(W) × 228 mm(H)
Net Weight	2.5kg

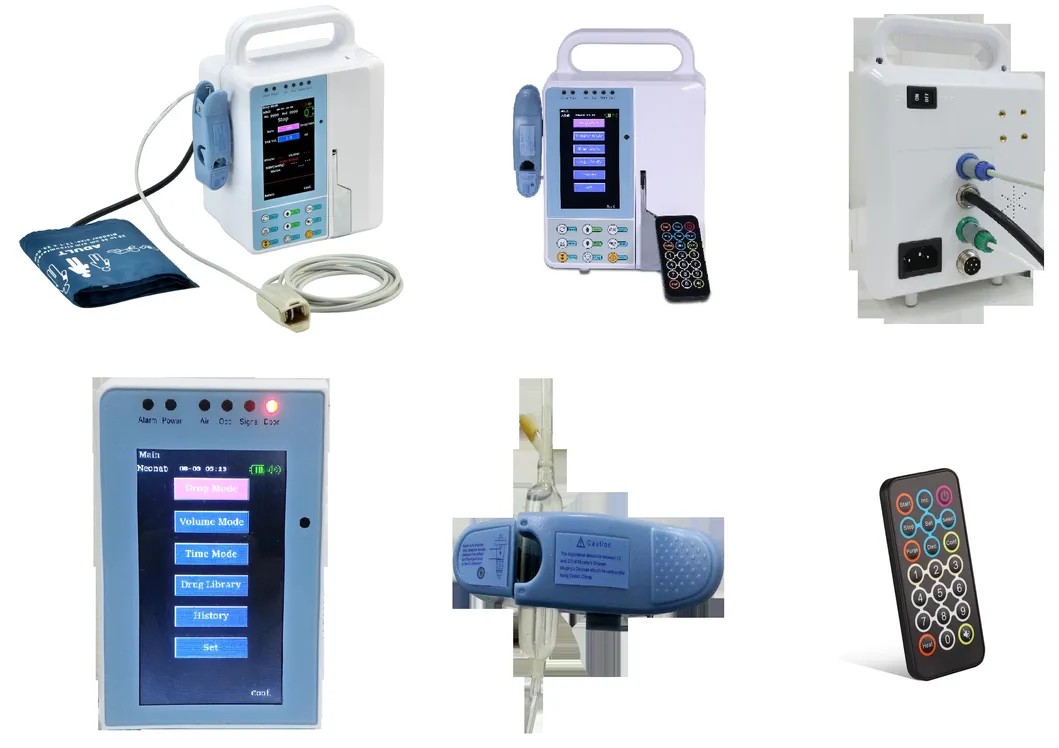

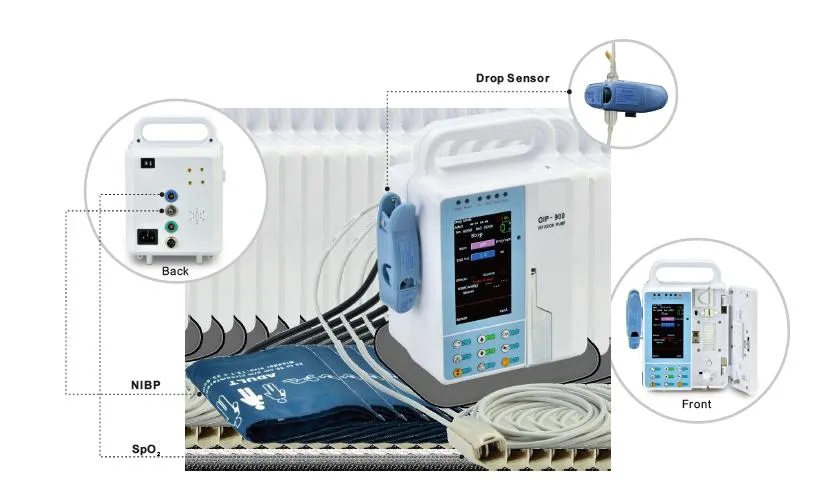

Detailed Images

Product Overview & Manufacturing

Frequently Asked Questions

What are the primary working modes of this infusion pump?

The OIP-900V supports three versatile working modes: Rate Mode, Time Mode, and Volume Mode to meet different clinical veterinary needs.

Is this pump compatible with standard IV sets?

Yes, it features a calibration function that makes it suitable for use with any brand of high-quality disposable IV sets.

Does the device include a heating function?

Yes, the standard configuration includes a heating function to ensure the comfort and safety of the animals during infusion.

How does the alarm system work?

The pump is equipped with audible and visible alarms for various conditions including infusion complete, occlusion, air bubbles, low battery, and door open.

What is the infusion accuracy of the OIP-900V?

The device provides high infusion accuracy within ±3% when using a calibrated high-quality IV set, with a mechanical precision of ±2%.

What is the KVO rate of this pump?

The KVO (Keep Vein Open) rate adjusts based on the flow: 1ml/h for flows < 100ml/h, 2ml/h for 100-300ml/h, and 3ml/h for flows > 300ml/h.
