Portable Clinical Blood Semi-Auto Veterinary Chemistry Analyzer Price Dry Chemistry Analyzer Biochemistry

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
BCH30 Vet
Certification
CE
Group
Animals
Weight
5kg
Sample Volume
0~3000UL
Data Storage
≥10000
Transport Package
Carton Box
Specification
340*270*160cm
Origin
China
HS Code
9027509090
Production Capacity
50000PCS
Product Description

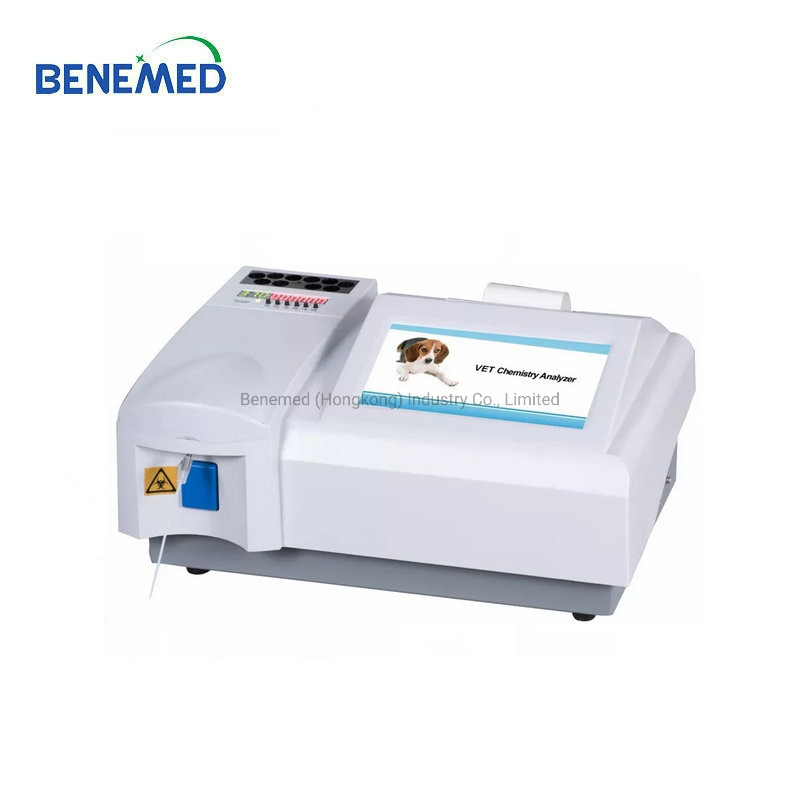

Portable Clinical Blood Semi-Auto Veterinary Chemistry Analyzer

Core Features

Wide Animal Support: Cat, dog, horse, mouse, rat, rabbit, pig, cow, monkey, sheep, and user-defined settings.

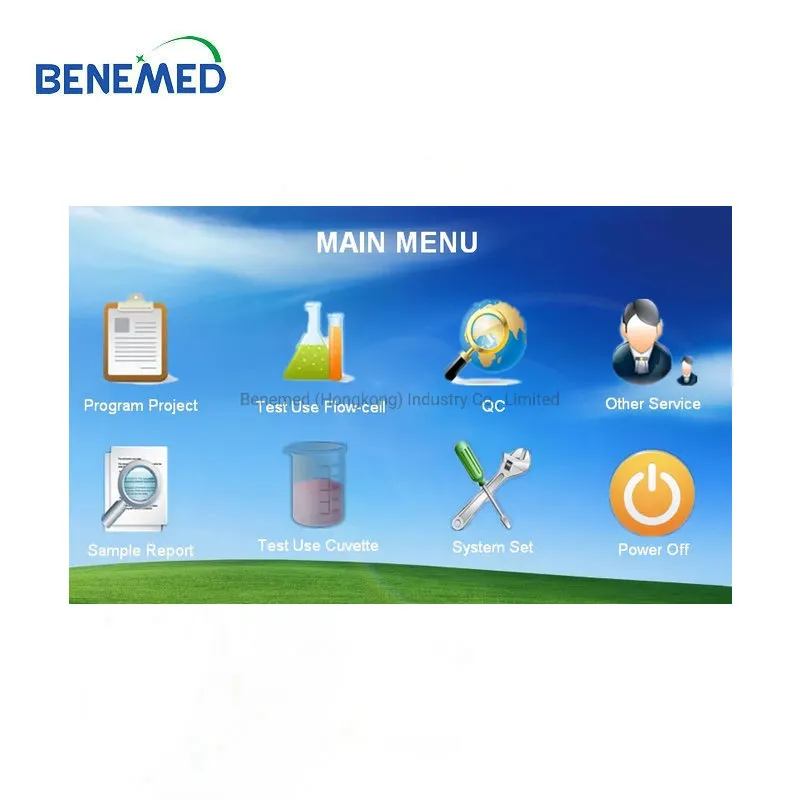

7 inch Color LCD touch screen for intuitive operation.
Flow cell and Cuvette test mode compatible.
Real time curve display for monitoring tests.
7 wavelength, 90 test item pre-programmed.
Large Memory for 10,000 sample results.
Light source hibernate function to extend lamp life.

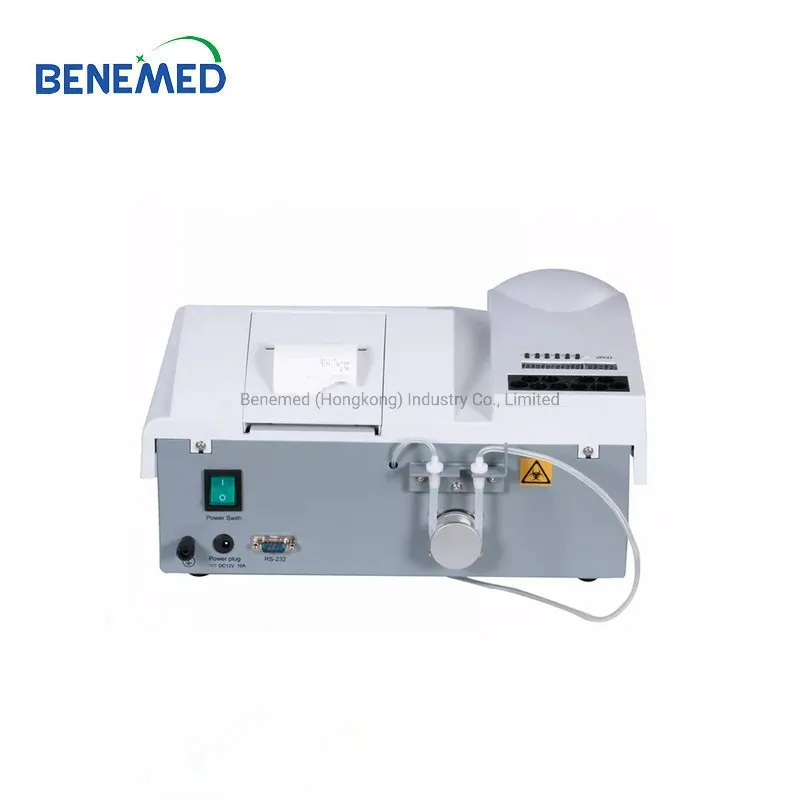

RS232 interface for PC connectivity.

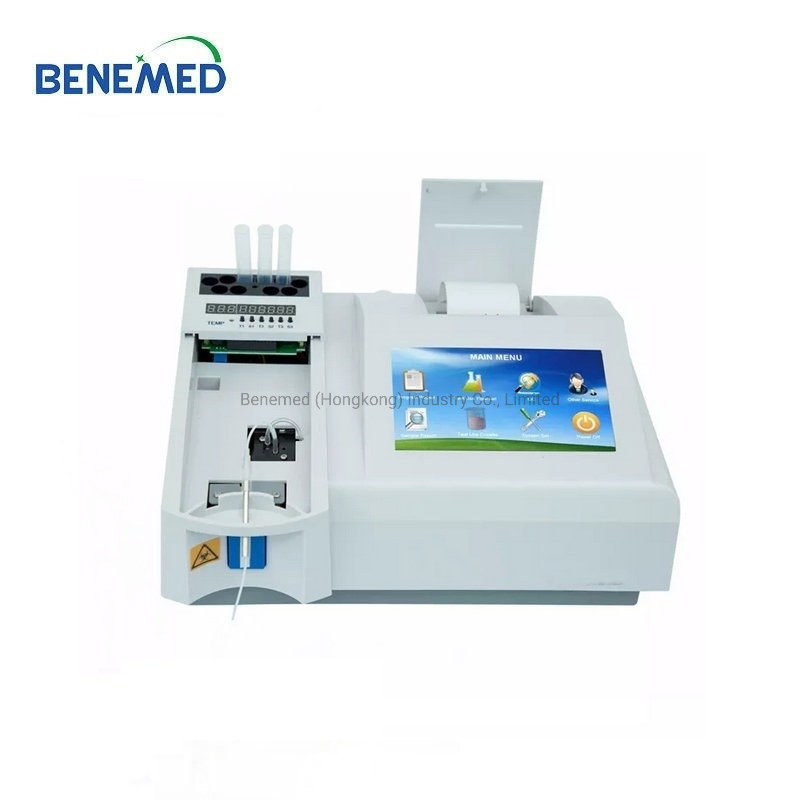

Built-in 10 incubator positions and 3 timers.
Technical Specification
Animal typecat, dog, horse, mouse, rat, rabbit, pig, cow, monkey, sheep, user-defined settings
Test modeKinetic, end point, two point, absorbance

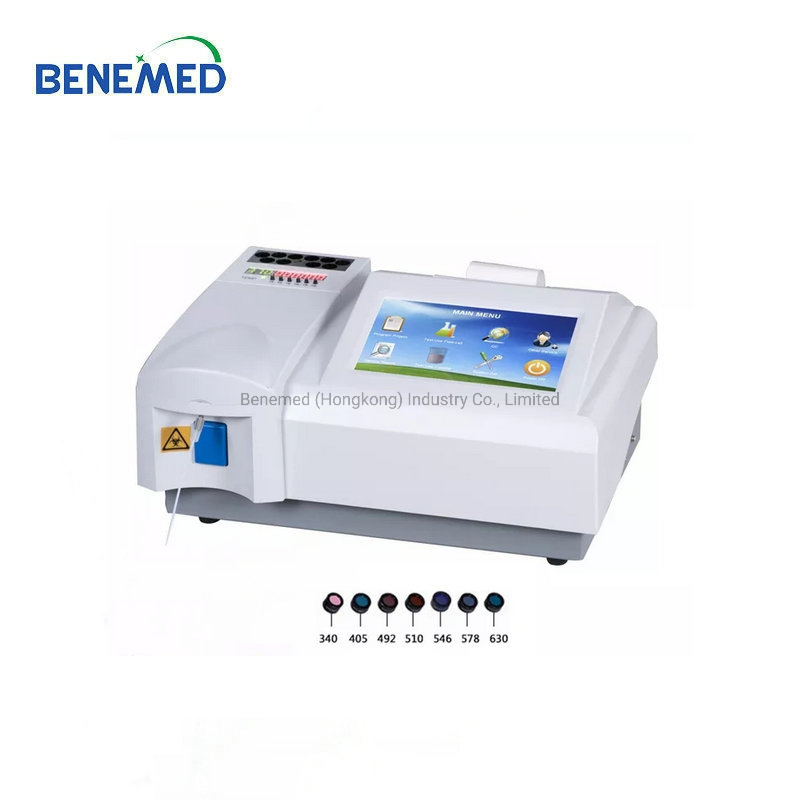

Wavelength7 standard filters, 340, 405, 492, 510, 546, 578, 630nm, 1 free position wavelength
Precision±2nm, width≤10nm
Absorbance range0~4.500Abs
Absorbance precisionoutside 0.0001 Abs, inside 0.00001 Abs
Carry over<1%
Repeatability CV<1%
Sample volume0~3000uL (≥500uL recommend)
Data storage≥10000
Flow cell32uL quartz glass
Quality controlX SD CV% L-J quality control curve for every test item
LampPhilips 6V 10W halogen lamp with long life
CPUARM series high speed micro CPU
PrinterInternal thermal sensitive printer
InterfaceRS-232
Environment0-40ºC, Humidity: 80%
Power supply100-240VAC, 50-60Hz, 100VA
Dimension/Weight340*270*160cm / 5kg
Product Display
Frequently Asked Questions
Q1: Which animal species can be tested with this analyzer? A1: The BCH30 Vet supports a wide range of animals including cats, dogs, horses, mice, rats, rabbits, pigs, cows, monkeys, and sheep. It also allows for user-defined settings for other species.
Q2: Does the device support touch screen operation? A2: Yes, it features a 7-inch high-resolution color LCD touch screen for easy and efficient navigation and operation.
Q3: What is the data storage capacity of the BCH30 Vet? A3: The analyzer can store results for over 10,000 samples, making it ideal for busy veterinary clinics.
Q4: Can I connect this analyzer to a computer? A4: Yes, the device is equipped with an RS232 interface, allowing for seamless PC connection and data management.
Q5: What test modes are available on this device? A5: The BCH30 Vet supports multiple test modes including Kinetic, End point, Two point, and Absorbance, offering flexibility for different diagnostic needs.
Q6: How does the hibernate function work? A6: The light source hibernate function automatically puts the lamp in a low-power state when not in use, significantly extending the life of the Philips halogen lamp.
