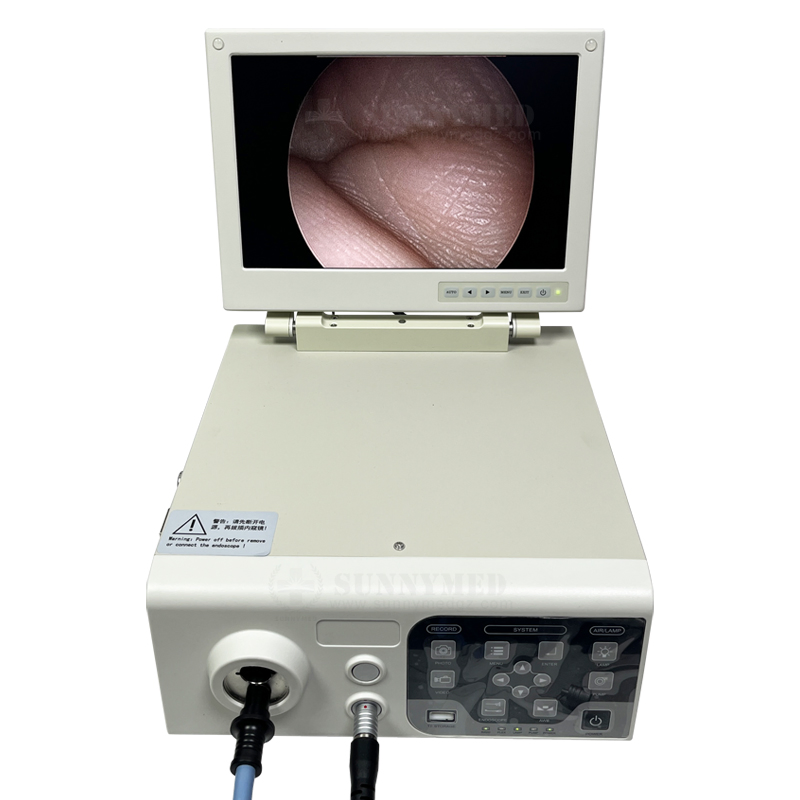

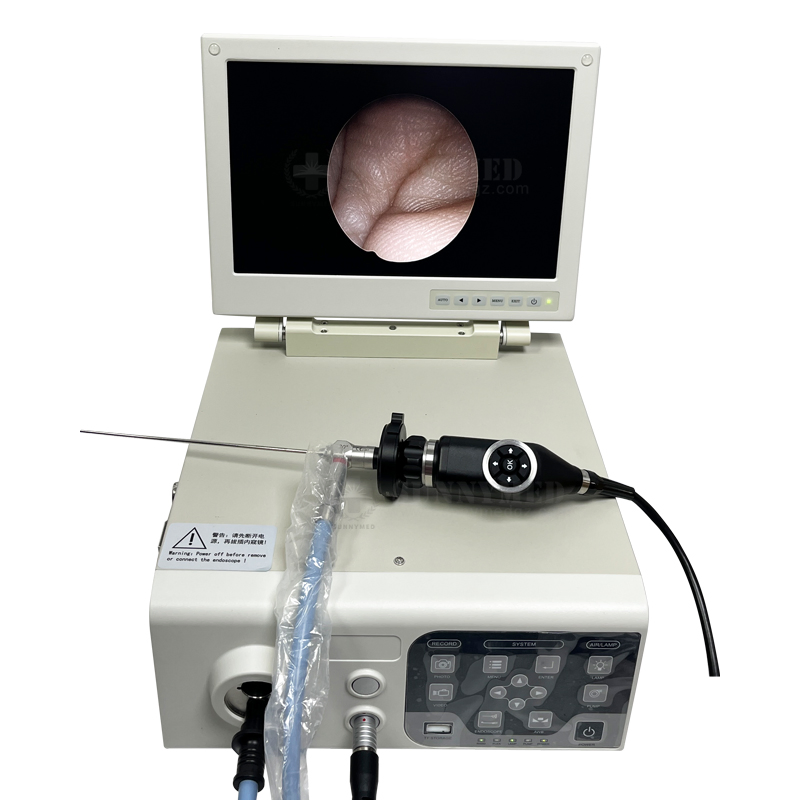

Sy-P033-2 Both Rigid and Flexible Endoscopy Camera System for Human and Animals
Sy-P033-2 Both Rigid and Flexible Endoscopy Camera System for Human and Animals
Sy-P033-2 Both Rigid and Flexible Endoscopy Camera System for Human and Animals
Sy-P033-2 Both Rigid and Flexible Endoscopy Camera System for Human and Animals
Sy-P033-2 Both Rigid and Flexible Endoscopy Camera System for Human and Animals
1 / 5
Sy-P033-2 Both Rigid and Flexible Endoscopy Camera System for Human and Animals
Sy-P033-2 Both Rigid and Flexible Endoscopy Camera System for Human and Animals
Sy-P033-2 Both Rigid and Flexible Endoscopy Camera System for Human and Animals
Sy-P033-2 Both Rigid and Flexible Endoscopy Camera System for Human and Animals
Sy-P033-2 Both Rigid and Flexible Endoscopy Camera System for Human and Animals

Sy-P033-2 Both Rigid and Flexible Endoscopy Camera System for Human and Animals

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Certification: CE
Send Inquiry

Product Description

📋 Basic Information
Model NO.
SY-P033-2
Application
Animal Hospital
Image Definition
1080P
Field of View
120°
Tube Diameter
6.3mm, 8.3mm, 12.9mm
Product Name
Veterinary Endoscope
🔍 Product Description
SY-P033-2 Both rigid and flexible endoscopy camera system for human and animals

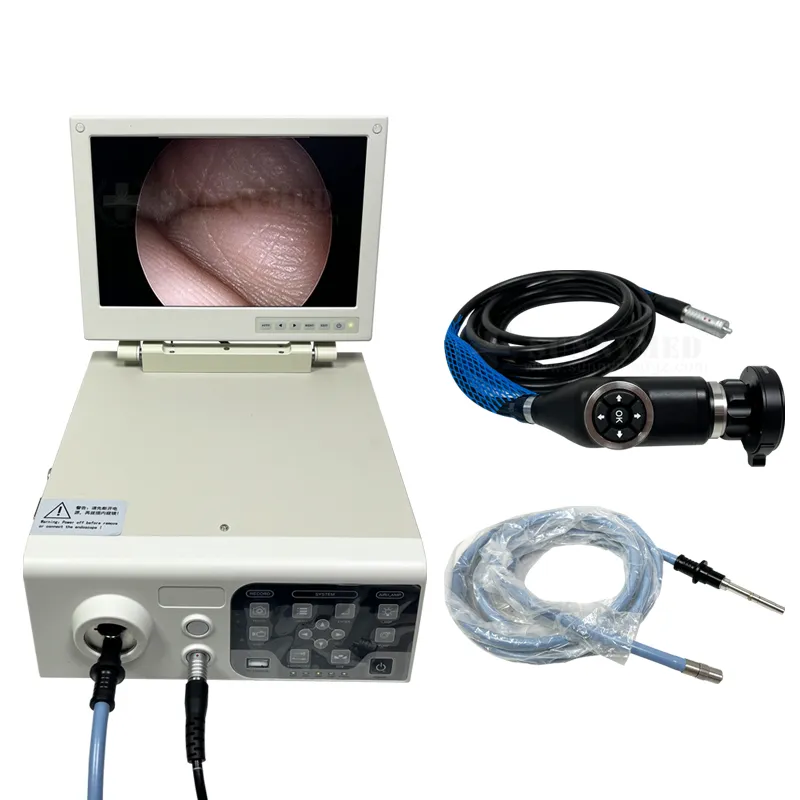

Endoscopy Camera System
Video Gastroscope Standard (VET-1508) Optional (VET-1206) Optional (VET-3313)
Insertion tube diameter Φ8.3mm Φ6.3mm Φ12.9mm
Working channel Φ2.8mm Φ2.0mm Φ3.7mm
Working length 1500mm 1200mm 3300mm
Tip Deflection U210° D90° L100° R100° U180° D180° L160° R160°
Field of view 120°
Image definition 1080P
Endoscope Processor Specifications (VET-300F)
White balance Automatic
Cold light LED 40W
Luminance >800Lm
Air/Flow 0.05MPa, 0.75m³/n
Snap/Record 1080P / 30Fps
Voltage ~100V-240V, 50HZ/60HZ
📷 Detailed Photos

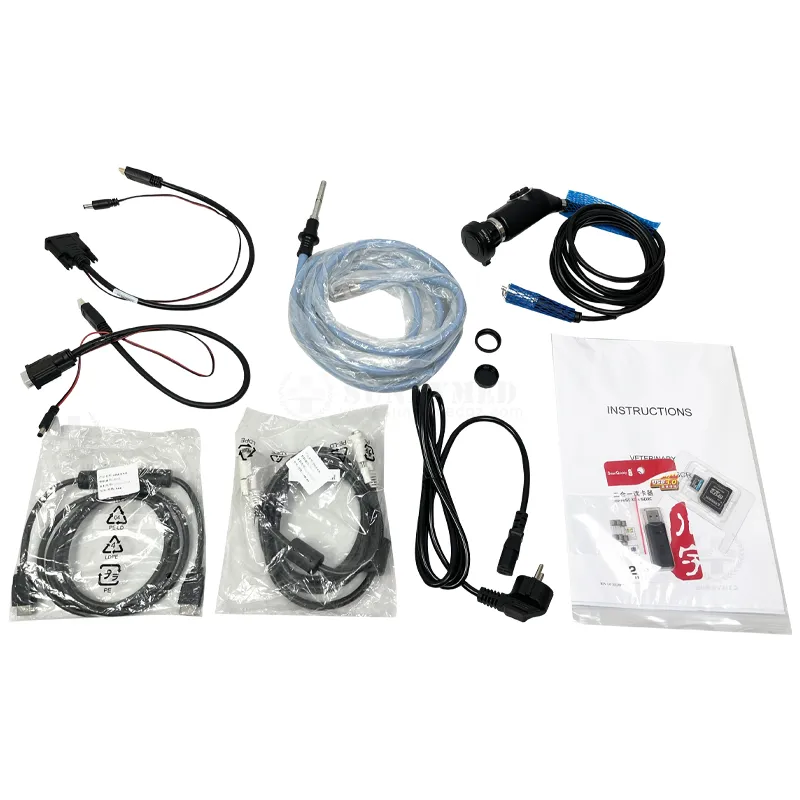

Detail 1

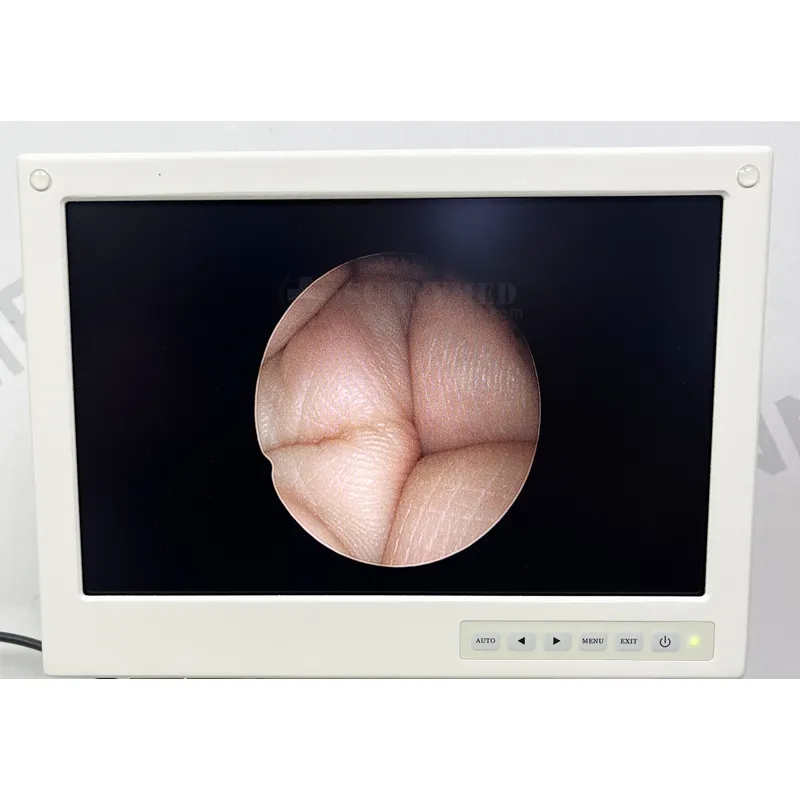

Detail 2

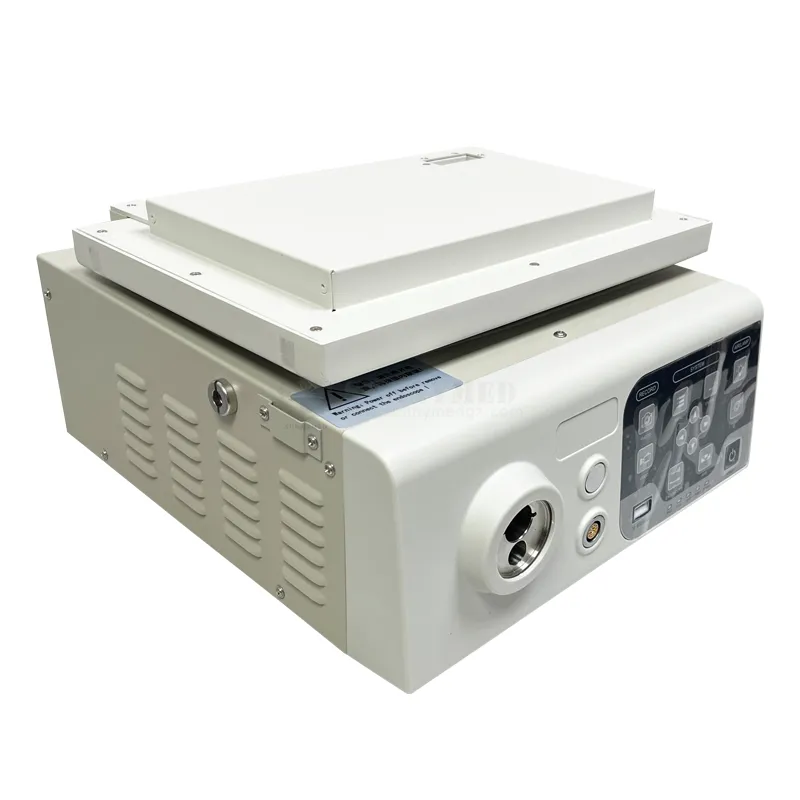

Detail 3

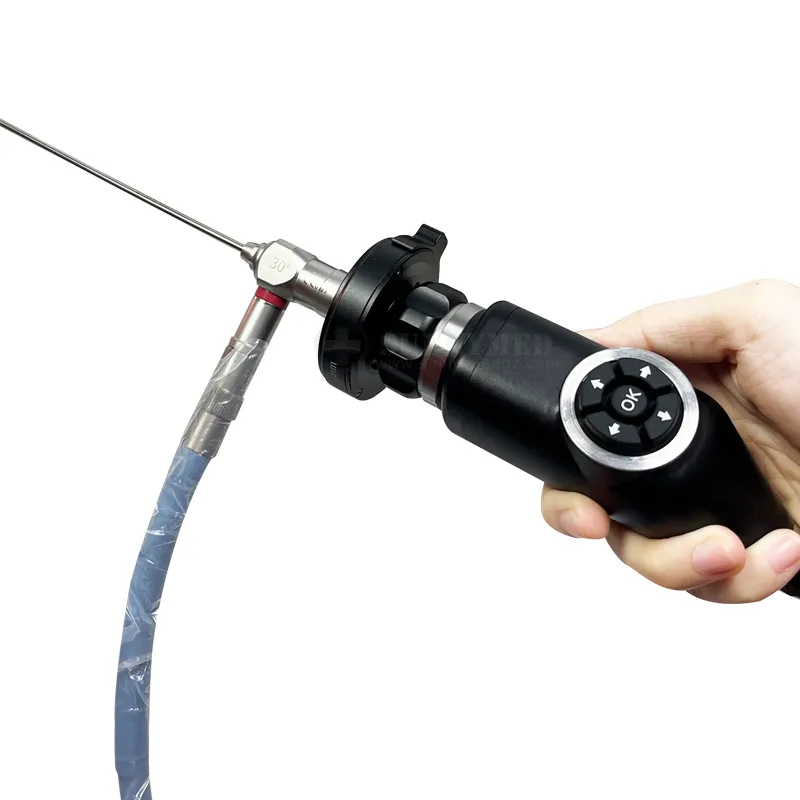

Detail 4

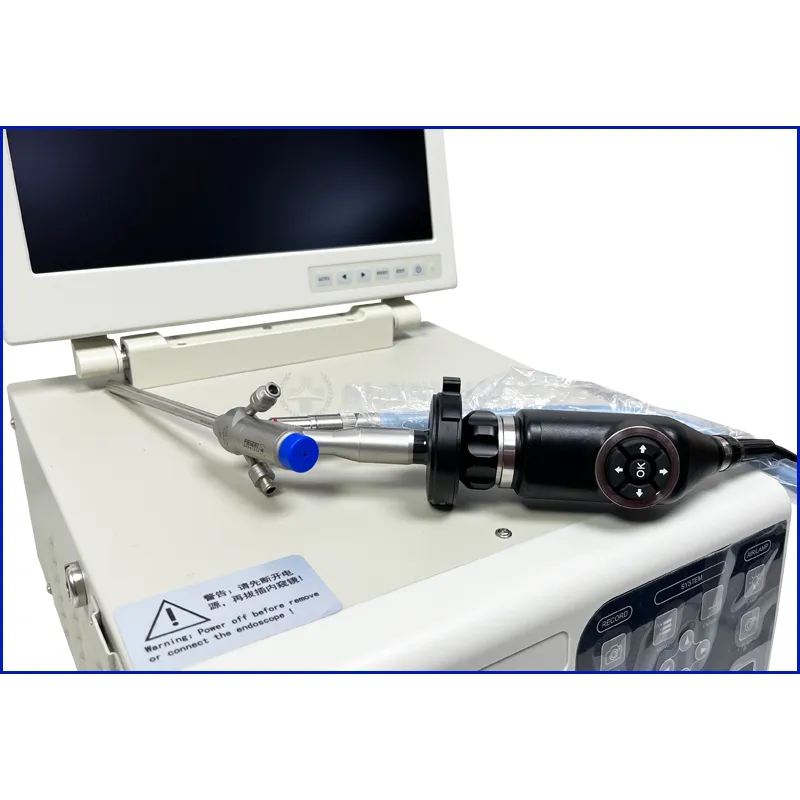

Detail 5

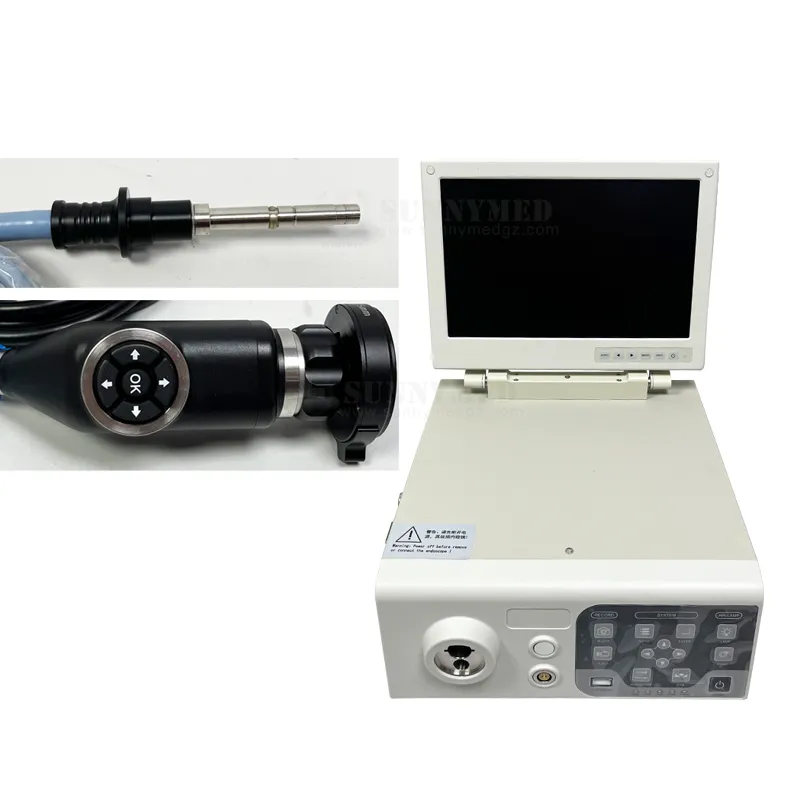

Detail 6
❓ Frequently Asked Questions
1. What is the image resolution of the SY-P033-2 system?
The system provides high-definition 1080P image resolution for clear and precise diagnostics.
2. What insertion tube diameters are available?
You can choose from three different diameters: 6.3mm, 8.3mm, and 12.9mm, depending on your specific requirements.
3. Can this endoscope be used for different types of animals?
Yes, it is specifically designed for animal hospitals and veterinary use, suitable for various animal sizes.
4. Does the system support video recording during procedures?
Yes, the VET-300F processor supports both image snapping and video recording at 1080P/30Fps.
5. What kind of light source does the processor use?
The system features a 40W LED cold light source with a luminance of over 800Lm for optimal visibility.
6. What is the bending range (Tip Deflection) of the gastroscope?
The standard VET-1508 model offers tip deflection of Up 210°, Down 90°, and Left/Right 100°.
