Product Description

Basic Information
Model NO.
SM-8800
Origin
China
Production Capacity
50000
Product Features
3-part differentiation of WBC, 23 parameters, up to 30 samples test per hour
Electrical resistance for counting and SFT method of Hemaglobin
Low sample consumption: venous 9.8ul, prediluted 20ul for twice testing one time

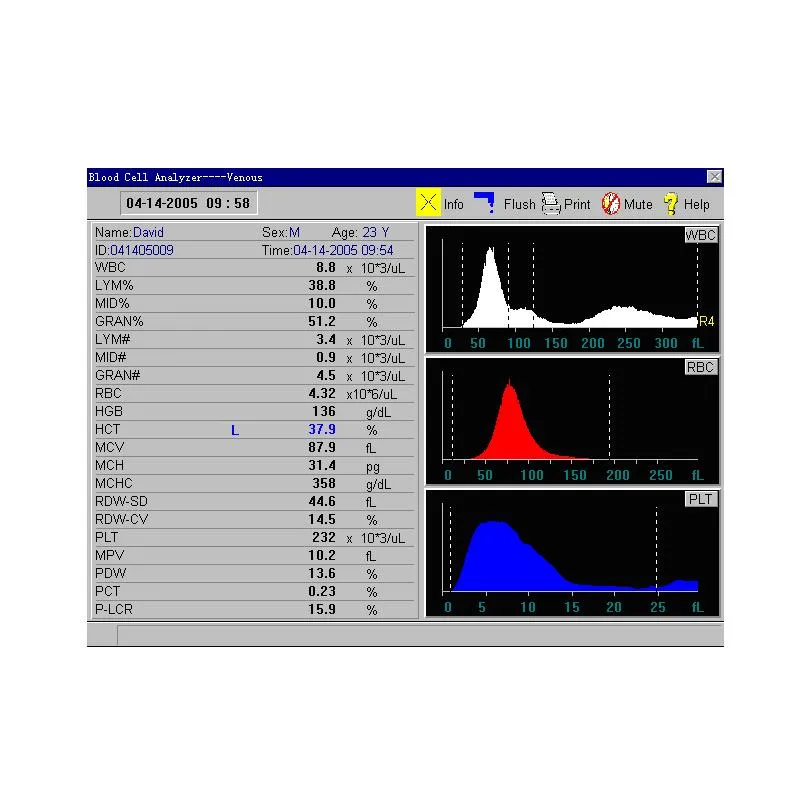

8.4'' color TFT, windows interface all testing parameter displayed simultaneously
Windows operation system graphical buttons mouse and keyboard operation
Automatic diluting, Mixing, rinsing and clog clearing
Automatically sample probe cleaning (inside and outside)
Large storage capacity: up to 100,000 samples + 3 histograms
Internal thermal-sensitive printer or external printer
RS232 interface, PC connecting
Technical Specifications
Methodology Electrical resistance for counting, hemiglobincyanide method and SFT method for hemoglobin
Parameter 3-part differentiation of WBC; 20 parameters and 3 color histograms (WBC, RBC, PLT)
Work mode Single Channel + unique Hemoglobin test system
Sample volume 9.8ul for Venous and capillary mode, 20ul for prediluted mode
Throughput More than 30 sample results including histograms can be stored per hour
Storage Up to 100,000 sample results including histograms can be stored
Operation language English
Reference value setting Male, Female, Children, Neonate
Input/output RS232, parallel printer and keyboard
Print Graphic thermal printer with various printing format, optional external printer
Temperature 18ºC-30ºC, wet ≤ 10-90%
Power supply 220V±22VAC, 50±1Hz
Dimension 33CM(L) * 38CM(W) * 43CM(H)
Weight 20kg
Product Display
Hematology Analyzer Display 1
Hematology Analyzer Display 2
Hematology Analyzer Display 3
Hematology Analyzer Display 4
Hematology Analyzer Display 5
Frequently Asked Questions
What is the testing capacity of the SM-8800?
The SM-8800 can process up to 30 samples per hour, providing efficient results for clinical environments.
How much blood sample is required for a single test?
It features low sample consumption, requiring only 9.8ul for venous and capillary modes, and 20ul for prediluted mode.
What kind of display and operating system does it use?
The device is equipped with an 8.4'' color TFT screen and runs on a Windows-based operation system with a graphical interface.
How many results can the analyzer store?
It has a large storage capacity that can save up to 100,000 sample results, including 3 color histograms for WBC, RBC, and PLT.
Does the machine handle cleaning automatically?
Yes, the system performs automatic diluting, mixing, rinsing, and clog clearing, along with internal and external probe cleaning.
What are the printing options for test results?
It includes an internal thermal-sensitive printer and also supports connection to an external printer via RS232 or parallel interface.
