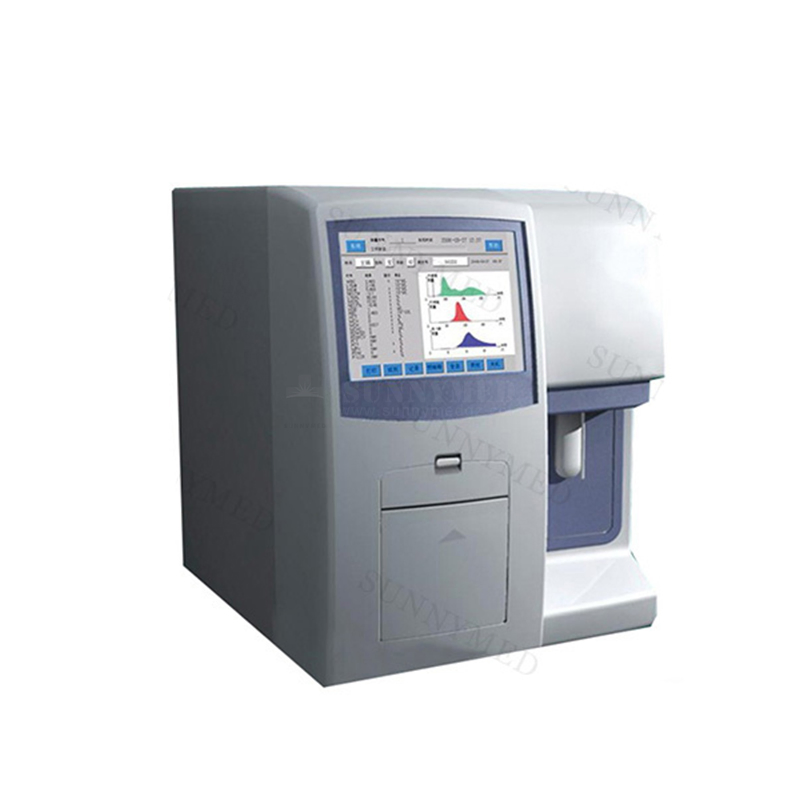

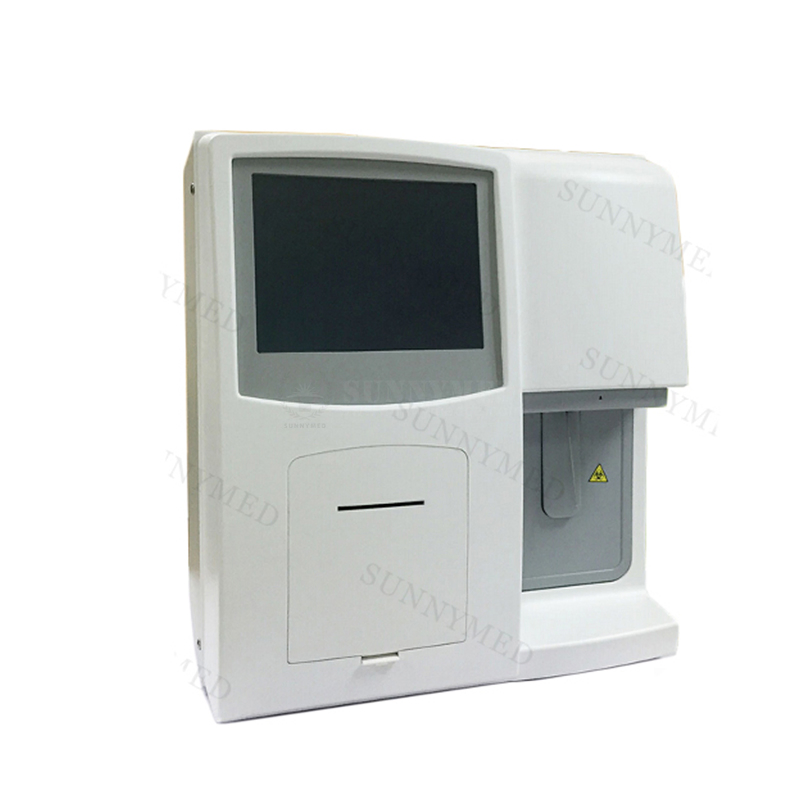

Sy-B004 High Quality Medical Auto 3 Parts Veterinary Hematology Analyzer Blood Analyzer Machine
Sy-B004 High Quality Medical Auto 3 Parts Veterinary Hematology Analyzer Blood Analyzer Machine
Sy-B004 High Quality Medical Auto 3 Parts Veterinary Hematology Analyzer Blood Analyzer Machine
Sy-B004 High Quality Medical Auto 3 Parts Veterinary Hematology Analyzer Blood Analyzer Machine
Sy-B004 High Quality Medical Auto 3 Parts Veterinary Hematology Analyzer Blood Analyzer Machine
1 / 5
Sy-B004 High Quality Medical Auto 3 Parts Veterinary Hematology Analyzer Blood Analyzer Machine
Sy-B004 High Quality Medical Auto 3 Parts Veterinary Hematology Analyzer Blood Analyzer Machine
Sy-B004 High Quality Medical Auto 3 Parts Veterinary Hematology Analyzer Blood Analyzer Machine
Sy-B004 High Quality Medical Auto 3 Parts Veterinary Hematology Analyzer Blood Analyzer Machine
Sy-B004 High Quality Medical Auto 3 Parts Veterinary Hematology Analyzer Blood Analyzer Machine

Sy-B004 High Quality Medical Auto 3 Parts Veterinary Hematology Analyzer Blood Analyzer Machine

Customization: Available
Certification: CE
Clinical Function: 3-Part Differential, 23 Parameters
Send Inquiry

Product Description

Basic Information
Model NO.
SY-B004
Chamber
Two Chambers
Warranty
1 Year
After-Sale Service
Online Technical Support
Throughput
60 T/H
Dimension
330mm X 420mm X 400mm
Transport Package
Carton Box
Origin
China
Production Capacity
100 Set/Month

SY-B004 High Quality Medical Auto 3 Parts Veterinary Hematology Analyzer

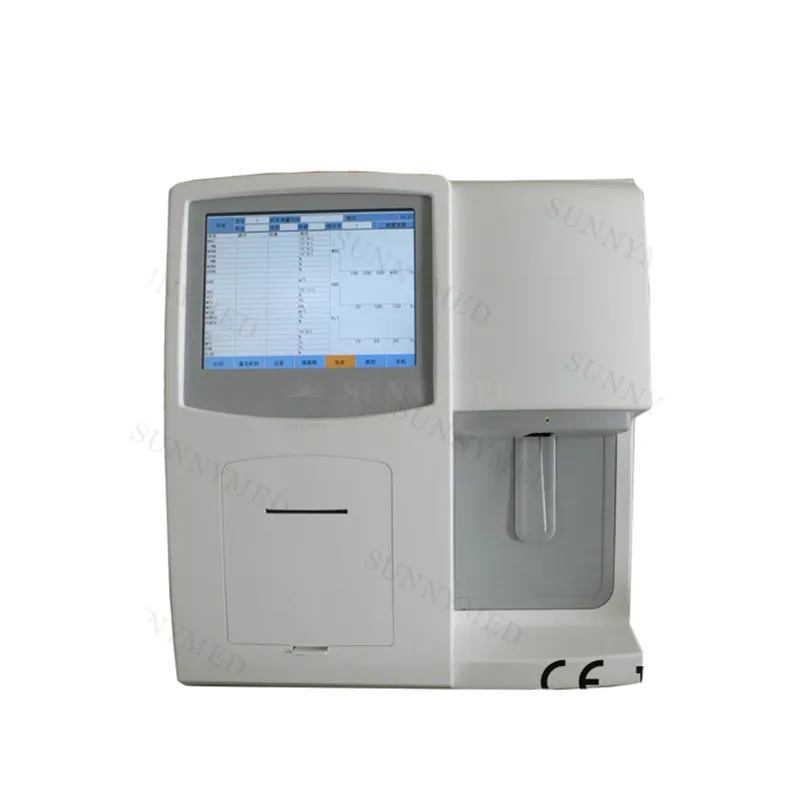

Veterinary Hematology Analyzer
Key Features & Specifications
Three classifications 23 items, include 3 histograms (RBC WBC PLT), wider test range and intuitive results.
One touch operation: Automatic suction sampling, convenient and quick detection.
Automatic blocking removal function: High-pressure removal, high-temperature burning, and recoil methods.
Flexible reporting: 5 Chinese/English print reports, including normal ranges and built-in standard formats.
High-resolution display: 8.4 inch 600*800 lattice TFT color touch LCD screen.
Dual sampling modes: 20μl peripheral blood or 9.7ml venous blood with simple "count" key operation.
Massive storage: Stores more than 30,000 samples (including histograms) with U disk expansion support.
Perfect modular design for easy maintenance.
Technical Parameters
Feature Specification Details
Clinical functionWBC, 23 items
Testing speed60 test/h
Testing itemsWBC, LYM#, MON#, GRA#, LYM%, MON%, GRA%, HGB, MCH, MCHC, RBC, MCV, HCT, RDWSD, RDWCV, PLT, PCT, MPV, PDW, PLCR, including WBC, RBC, PLT three histograms
Principle of operationRBC WBC double chamber cell technology; electrical impedance method; HGB colorimetry
Dilution ratioWBC/HGB 1/400; RBC/PLT 1/40000
Sample VolumeVenous blood 9.7μl, peripheral blood 20μl, anticoagulation peripheral blood 9μl
Operation screen8.4 inch TFT touch screen, English interface
Data storage>30000 sample results, including 3 histograms
Printing and output5 kinds of reports, built-in thermal printer, LQ-300K+2 support
Data interfaceStandard 232 interface, double USB interface for software updates
Dimensions/Weight370mm×350mm×450mm / 15KG
Product Display
Analyzer Detail 1
Analyzer Detail 2

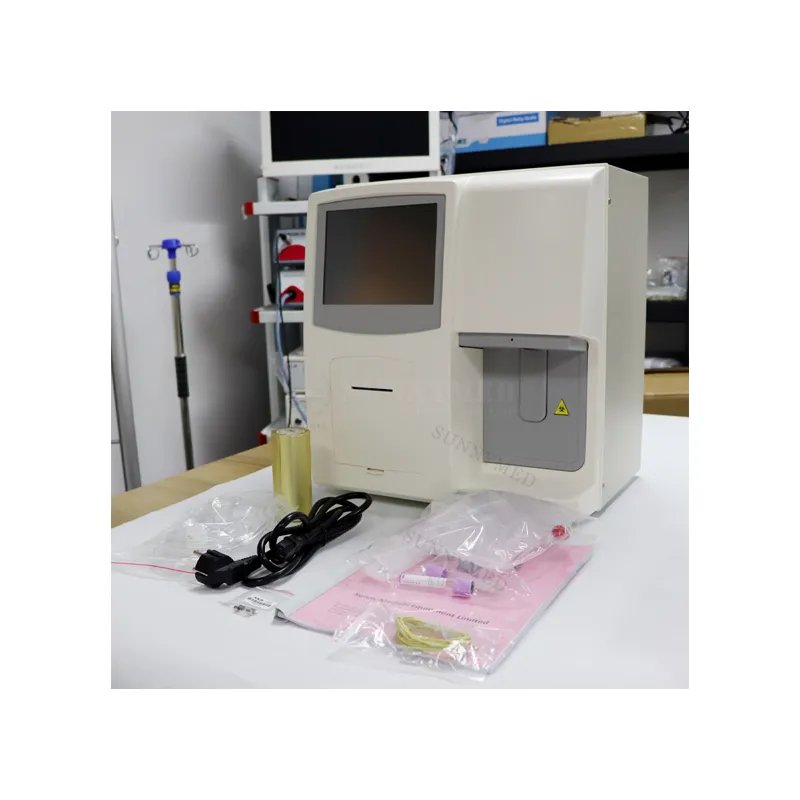

Analyzer Detail 3

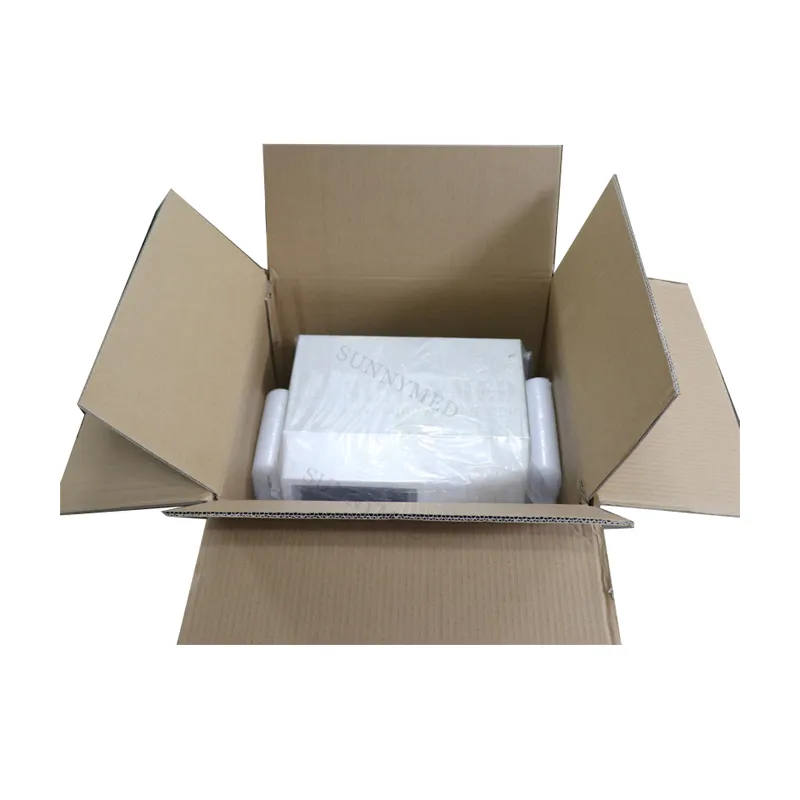

Analyzer Detail 4

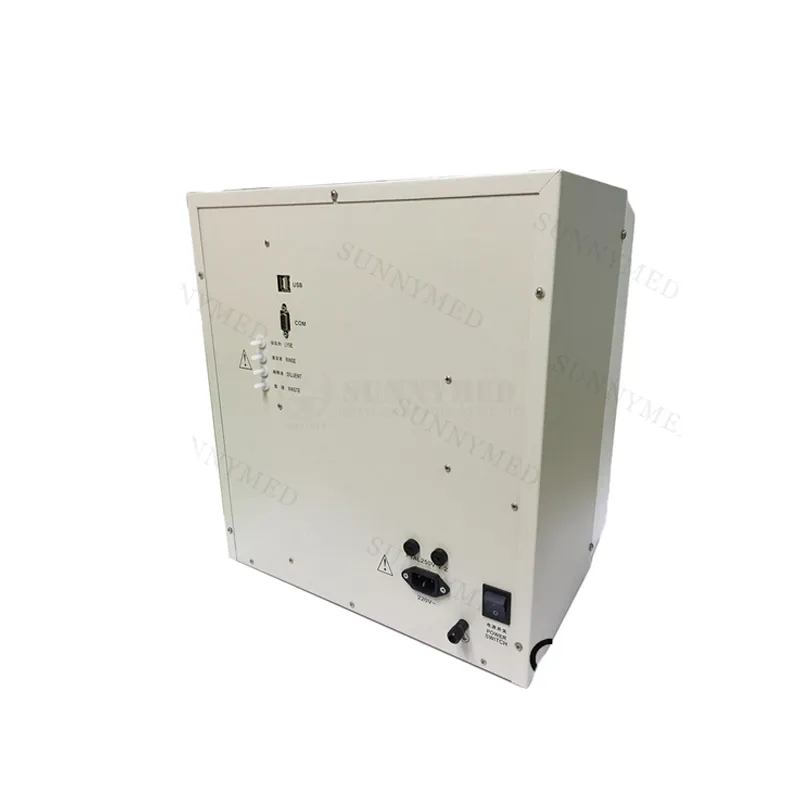

Analyzer Detail 5
Analyzer Detail 6
Analyzer Detail 7
Analyzer Detail 8

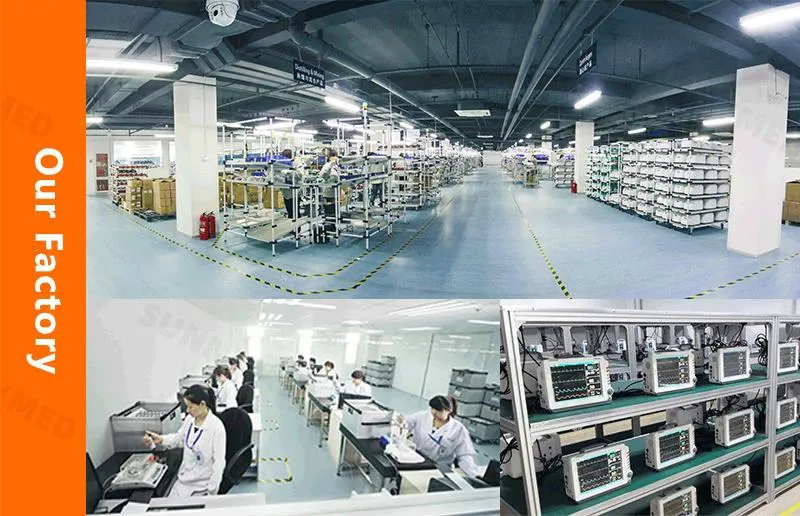

Analyzer Detail 9
Analyzer Full Height Chart
Frequently Asked Questions (FAQ)
What is the testing speed of the SY-B004 hematology analyzer?
The analyzer features a high throughput of 60 tests per hour, making it efficient for busy veterinary clinics.
How many parameters and histograms does the device provide?
It provides 23 items with 3-part classifications, including 3 detailed histograms for RBC, WBC, and PLT.
What sample volume is required for a standard blood test?
The device is highly efficient, requiring only 9.7μl for venous blood and 20μl for peripheral blood samples.
Does the machine have a built-in storage system for results?
Yes, the host automatically stores over 30,000 full sample results, including histograms, and supports unlimited expansion via U disk.
How does the analyzer handle potential tubing blockages?
It features an automatic blocking removal function using high-pressure removal, high-temperature burning, and positive/recoil stamping methods.
Is the operation screen user-friendly?
Yes, it is equipped with an 8.4-inch high-resolution TFT color touch LCD screen with an intuitive English operation interface.
