| Model NO. | TU-VC01A |

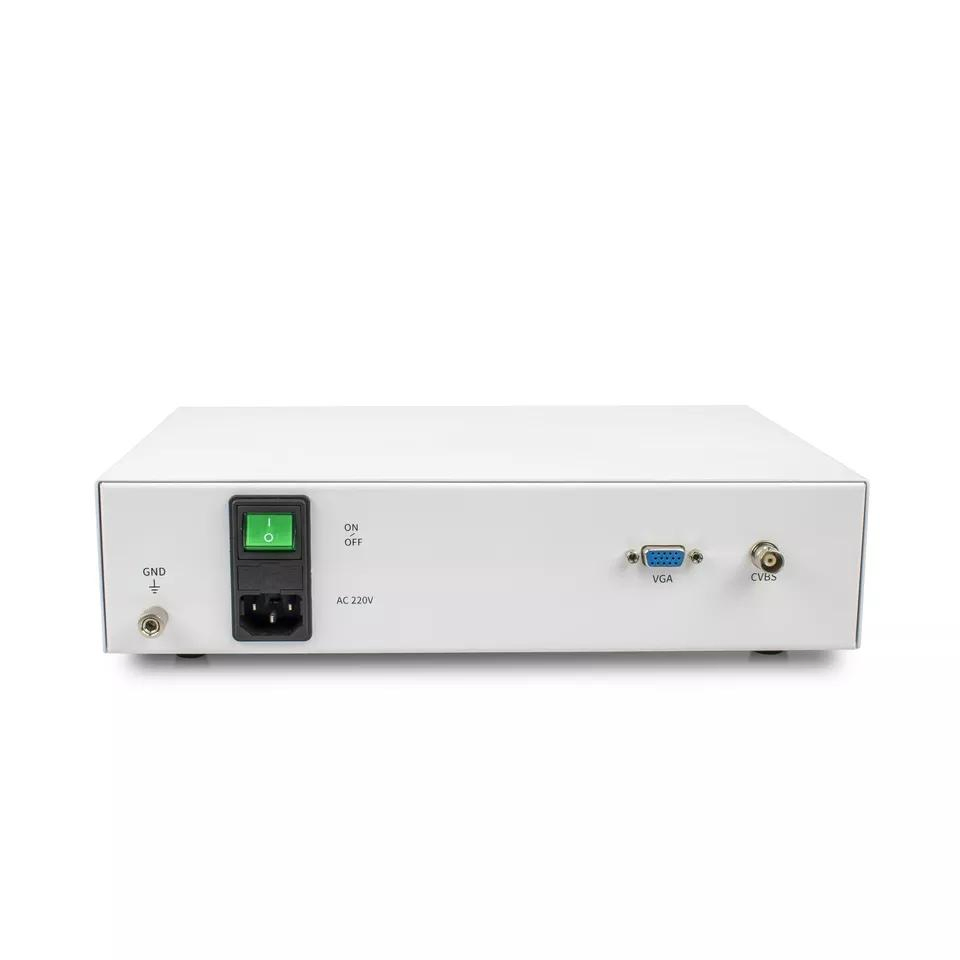

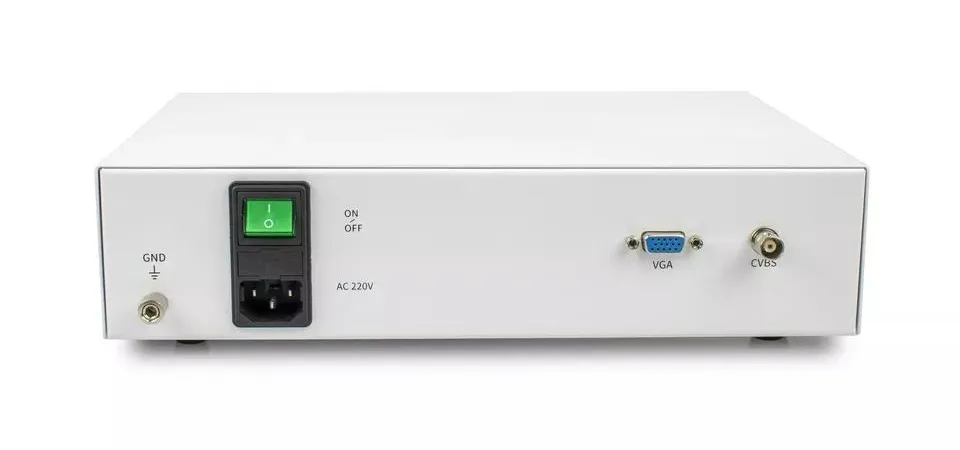

| Output Interface | VGA+CVBS |
| Resolution | 720p 60fps |
| Image Sensor | 1/2.8" Sony CMOS |
| OSD Menu | Up/Down/Left/Right/Menu Button |
| D-Zoom | 1-10X |
| Brightness | 1-20 Steps |

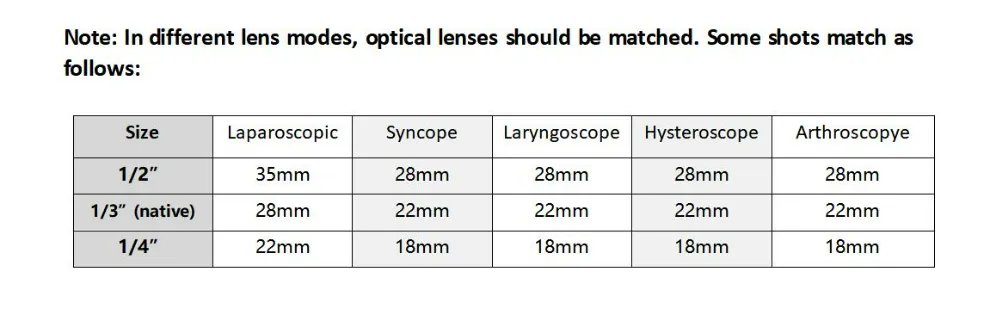

| Lens Mode | Transforaminal/Fiber/Arthroscope/Cystoscope/Hystero/Raparoscope/E.N.T |
| Power Supply | DC12V 150mA < 2W (Input: AC110V~240V) |
| Dimensions | 300*200*85mm |

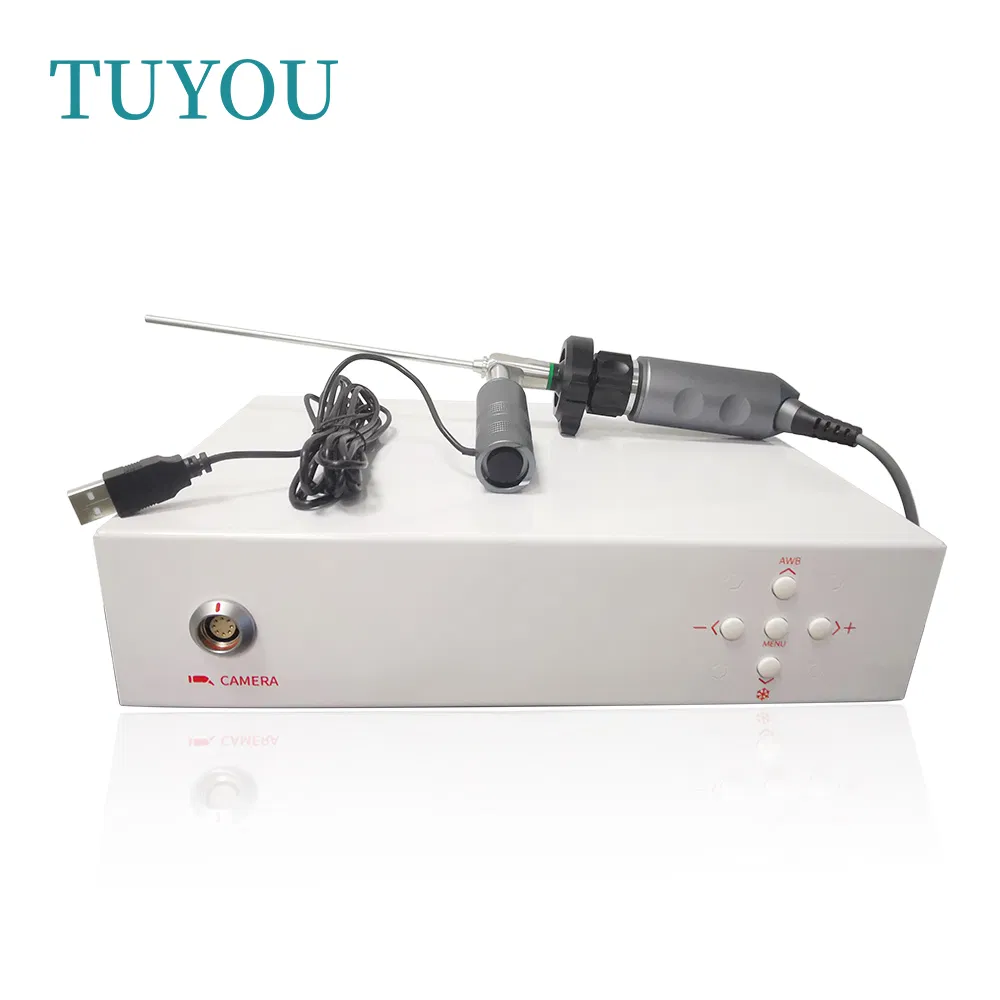

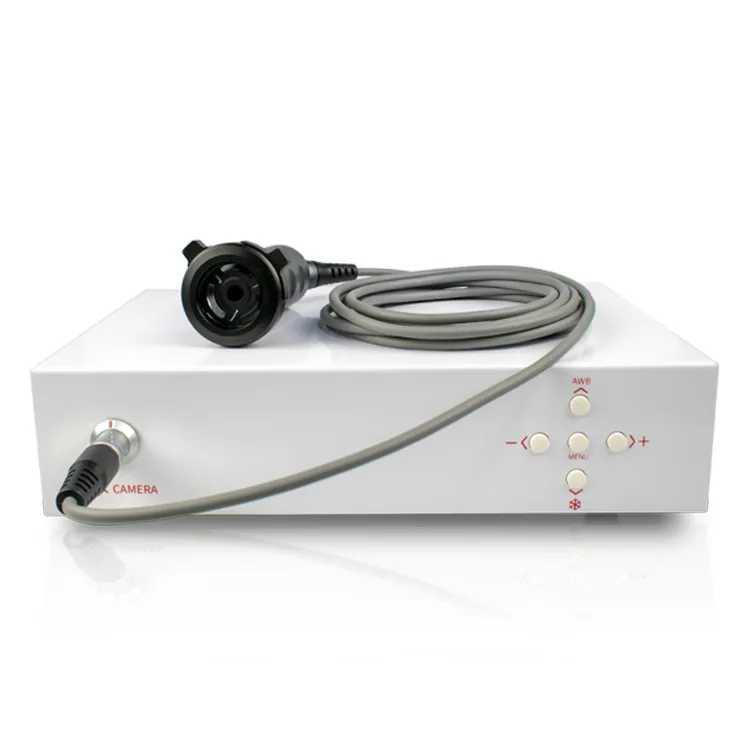

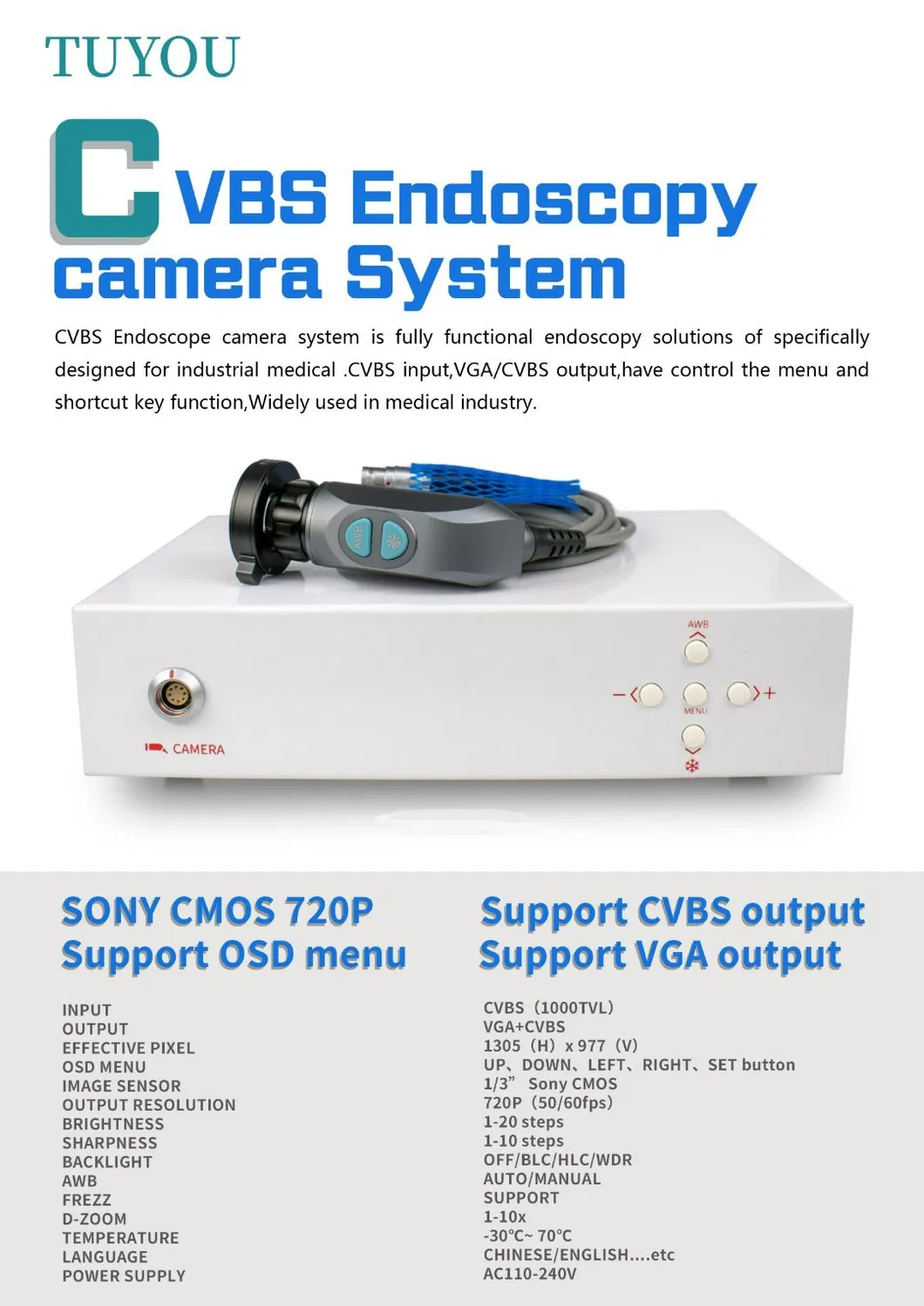

The CVBS endoscope camera system offers fully functional endoscopy solutions specifically designed for industrial and medical applications. Featuring CVBS input and versatile VGA/CVBA output, the system includes a comprehensive control menu and shortcut key functions for optimized workflow.

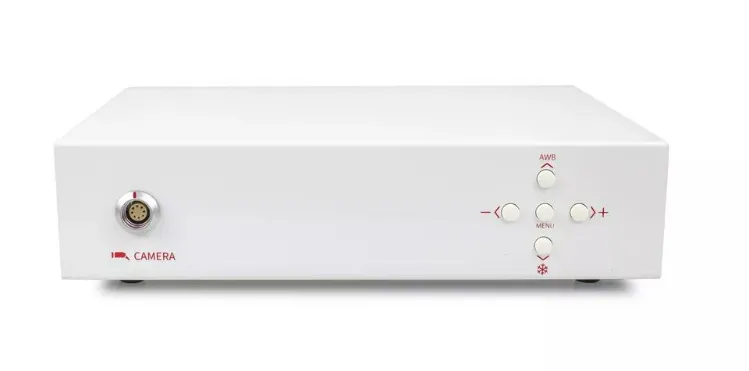

| Menu Navigation | Use MENU button to enter settings; confirm changes by pressing MENU again. Directional buttons for navigation. |
| Shortcut Keys |
UP: AWB (Auto White Balance) DOWN: Image Freeze LEFT: Zoom In RIGHT: Zoom Out |
| White Balance | Point the lens at white paper and press the AWB button to adjust before use. |
Recommended Medical Equipment
Our facility is a high-tech manufacturing enterprise integrating R&D, production, and service of medical endoscope camera systems. With over 20 years of expertise, we offer a complete range of imaging solutions including SD, HD, 2K, 4K, and fluorescence systems.
Operating within an advanced medical-grade environmental plant exceeding 2,000 square meters, we hold numerous patents and international certifications including CE, FCC, and RoHS, providing professional OEM/ODM services globally.

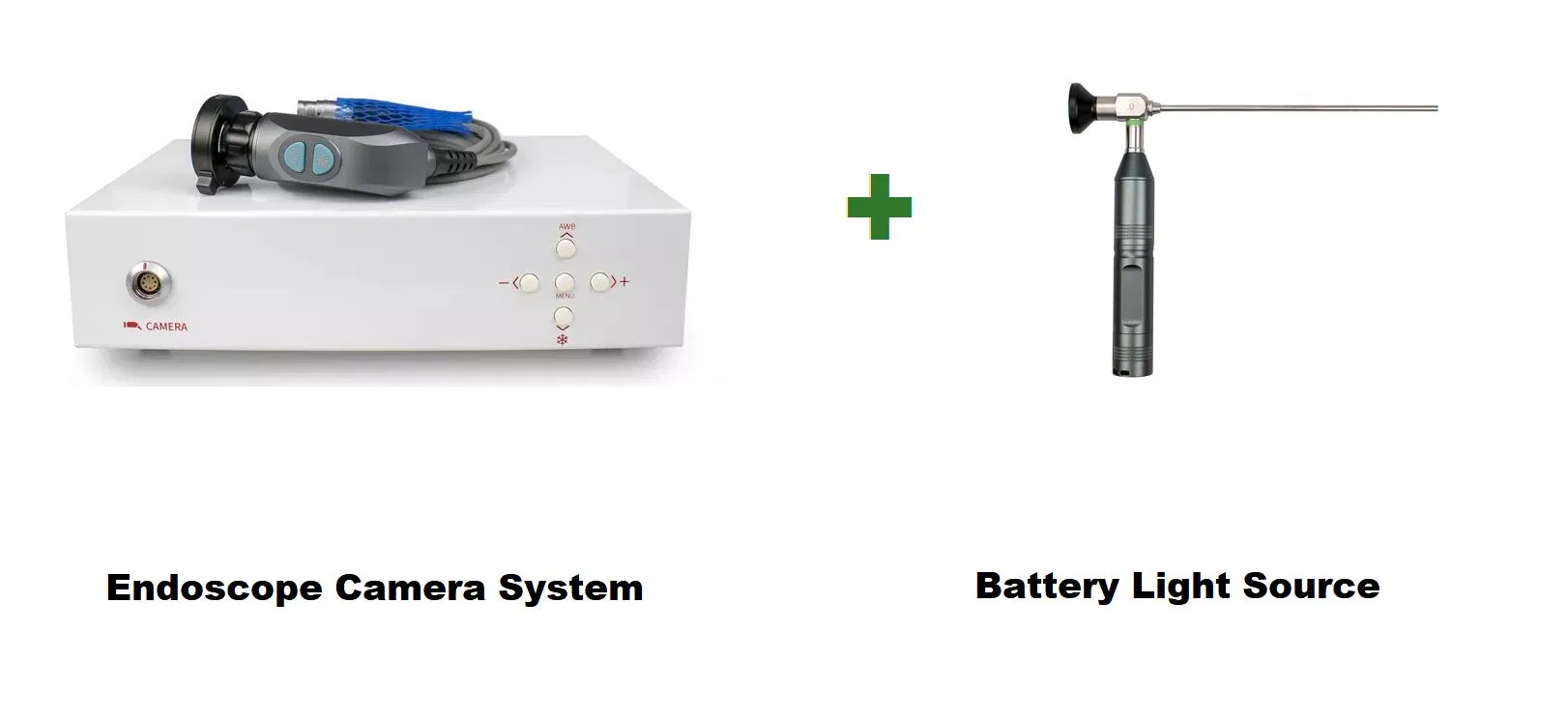

*Note: The handle camera is an optional part.
