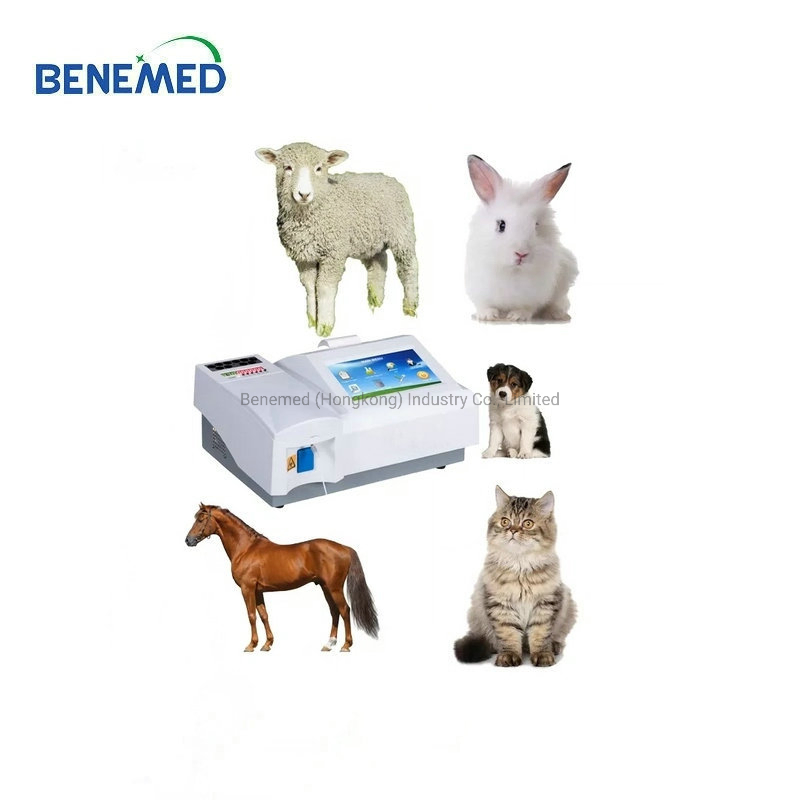

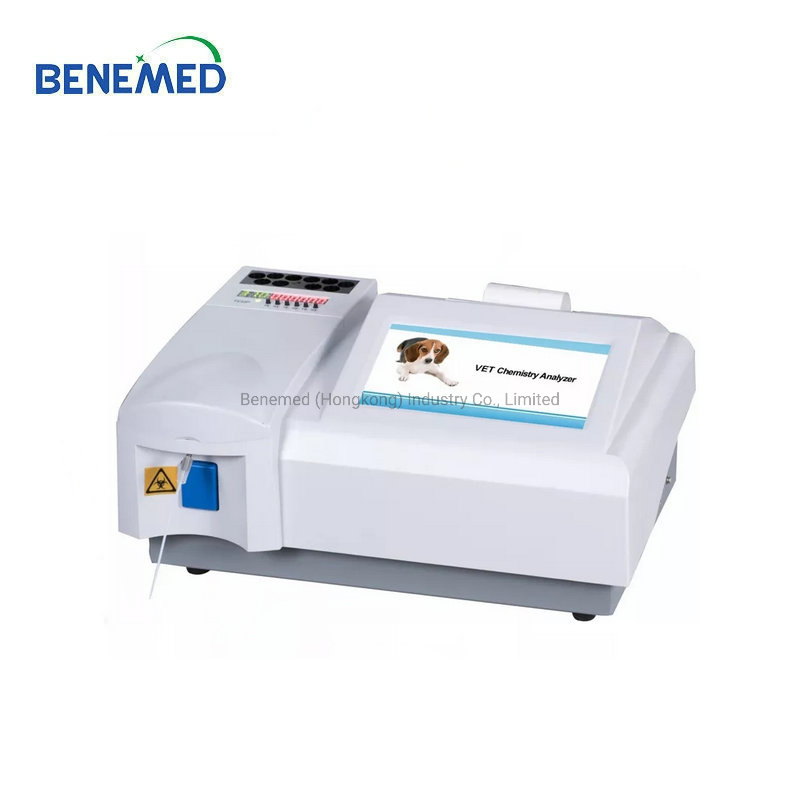

Semi Auto Veterinary Blood Chemistry Analyzer Veterinary Biochemistry Veterinary Analyzer
Semi Auto Veterinary Blood Chemistry Analyzer Veterinary Biochemistry Veterinary Analyzer
Semi Auto Veterinary Blood Chemistry Analyzer Veterinary Biochemistry Veterinary Analyzer
Semi Auto Veterinary Blood Chemistry Analyzer Veterinary Biochemistry Veterinary Analyzer
Semi Auto Veterinary Blood Chemistry Analyzer Veterinary Biochemistry Veterinary Analyzer
1 / 5
Semi Auto Veterinary Blood Chemistry Analyzer Veterinary Biochemistry Veterinary Analyzer
Semi Auto Veterinary Blood Chemistry Analyzer Veterinary Biochemistry Veterinary Analyzer
Semi Auto Veterinary Blood Chemistry Analyzer Veterinary Biochemistry Veterinary Analyzer
Semi Auto Veterinary Blood Chemistry Analyzer Veterinary Biochemistry Veterinary Analyzer
Semi Auto Veterinary Blood Chemistry Analyzer Veterinary Biochemistry Veterinary Analyzer

Semi Auto Veterinary Blood Chemistry Analyzer Veterinary Biochemistry Veterinary Analyzer

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
BCH30 Vet
Certification
CE
Target Group
Animals
Weight
5kg
Sample Volume
0~3000UL
Data Storage
≥10000 Results
Transport Package
Carton Box
HS Code
9027509090

Product Description

Semi Auto Veterinary Blood Chemistry Analyzer

  • Animal Type: Cat, dog, horse, mouse, rat, rabbit, pig, cow, monkey, sheep, user-defined settings
  • 7 inch Color LCD touch screen
  • Flow cell and Cuvette test mode compatible
  • Real time curve showing
  • 7 wavelength, 90 test item pre-programmed
  • Memory for 10,000 sample results
  • Light source hibernate function making lamp life longer
  • RS232 interface, PC connecting
  • 10 incubator positions and 3 timers

Technical Specifications

Animal typecat, dog, horse, mouse, rat, rabbit, pig, cow, monkey, sheep, user-defined settings
Test modeKinetic, end point, two point, absorbance

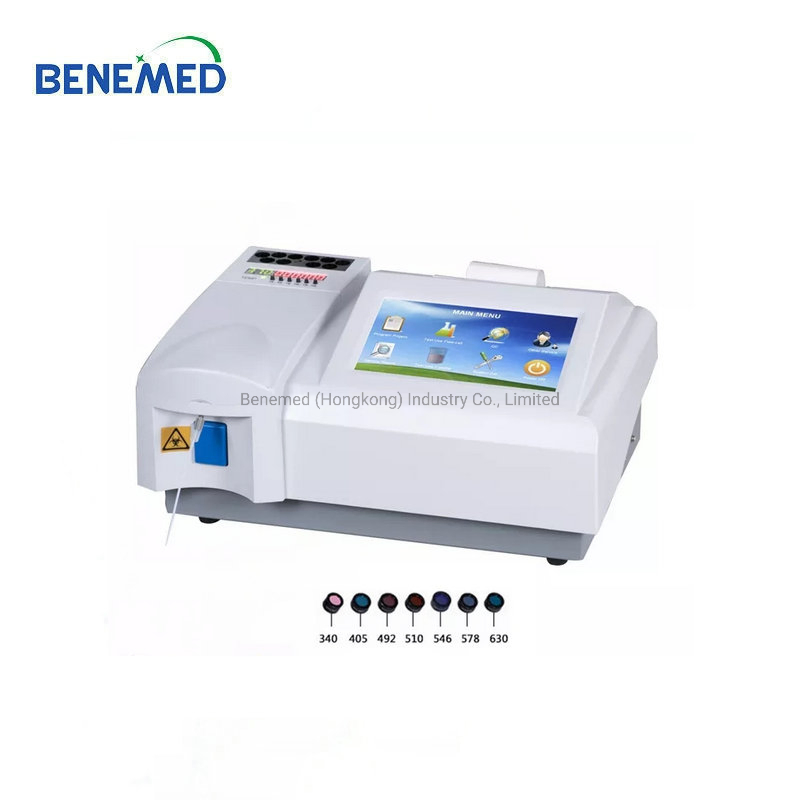

Wavelength7 standard filters, 340, 405, 492, 510, 546, 578, 630nm, 1 free position wavelength
Precision±2nm, width≤10nm
Absorbance range0~4.500Abs
Absorbance precisionoutside 0.0001 Abs, inside 0.00001 Abs
Carry over<1%
Repeatability CV<1%
Sample volume0~3000uL (≥500uL recommend)
Flow cell32uL quartz glass
LampPhilips 6V 10W halogen lamp with long life
CPUARM series high speed micro CPU
Dimension340*270*160cm
Power supply100-240VAC, 50-60Hz, 100VA

Product Visuals

Analyzer View 1
Analyzer View 2

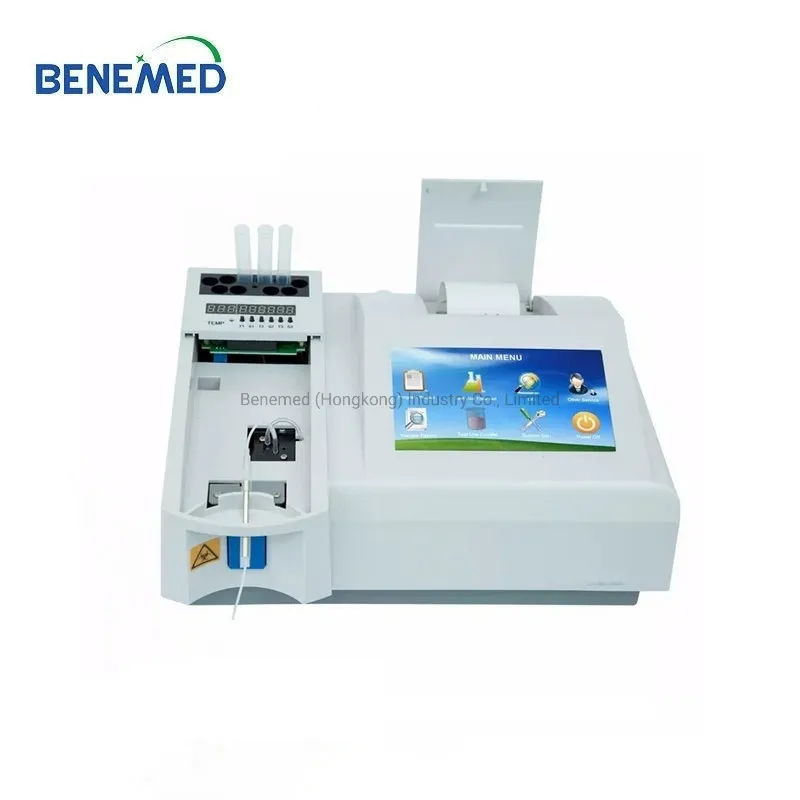

Analyzer View 3

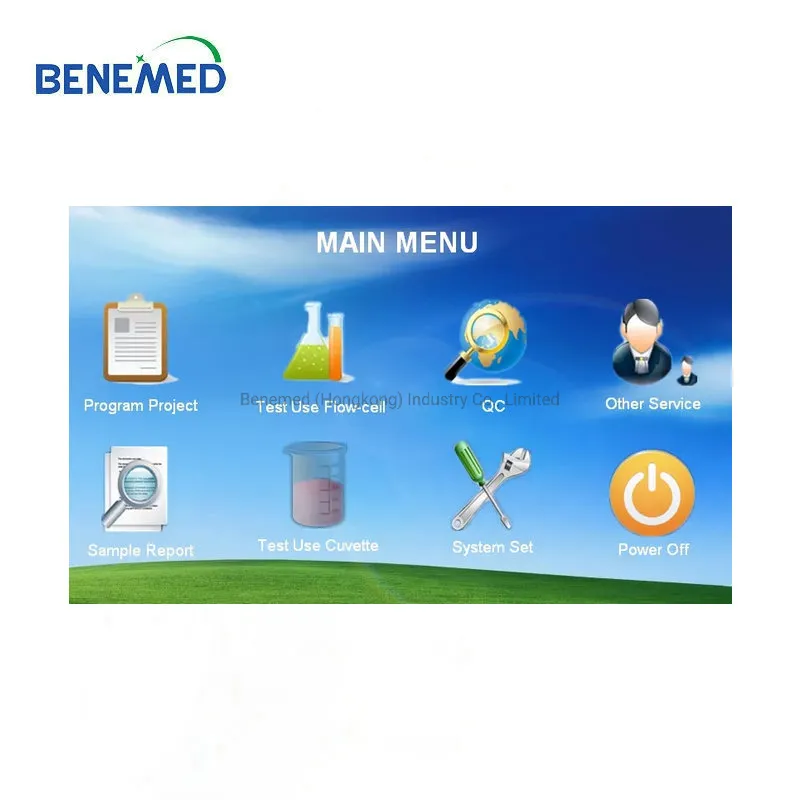

Analyzer View 4
Analyzer View 5

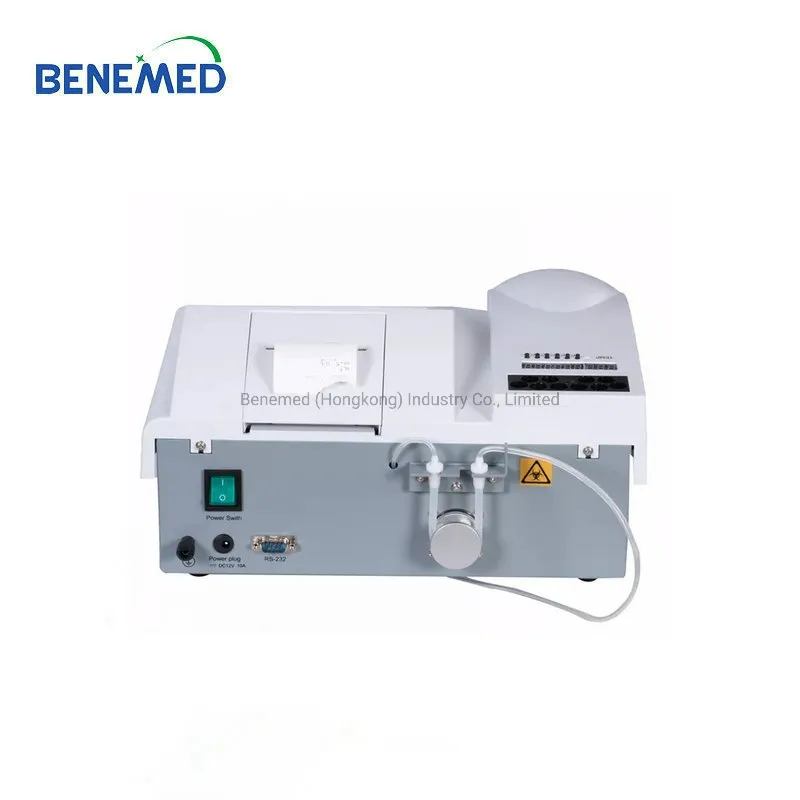

Analyzer View 6

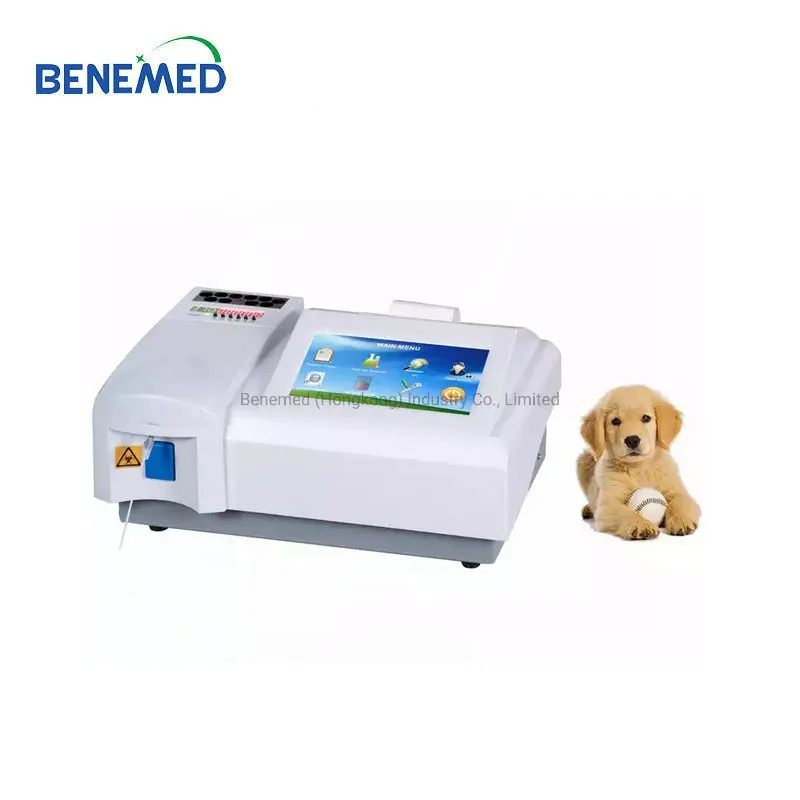

Display Screen Detail
Interface Layout
Technical Chart
Components

Frequently Asked Questions

What animal types can this chemistry analyzer test?
The analyzer is pre-programmed for cats, dogs, horses, mice, rats, rabbits, pigs, cows, monkeys, and sheep. It also allows for user-defined settings for other species.
How large is the display and is it easy to use?
It features a 7-inch color LCD touch screen that supports real-time curve display, making it highly intuitive for veterinary staff.
How much data can the device store?
The unit has an internal memory capable of storing at least 10,000 sample results, which can be accessed or transferred via the RS232 interface.
What test modes are compatible with this analyzer?
It is compatible with both Flow cell and Cuvette test modes, and supports Kinetic, End point, Two point, and Absorbance testing.
Does the device include an internal printer?
Yes, the analyzer comes with an internal thermal sensitive printer for immediate result reporting.
What is the light source and its expected longevity?
It uses a Philips 6V 10W halogen lamp. The device also features a light source hibernate function to extend the lamp's working life.
