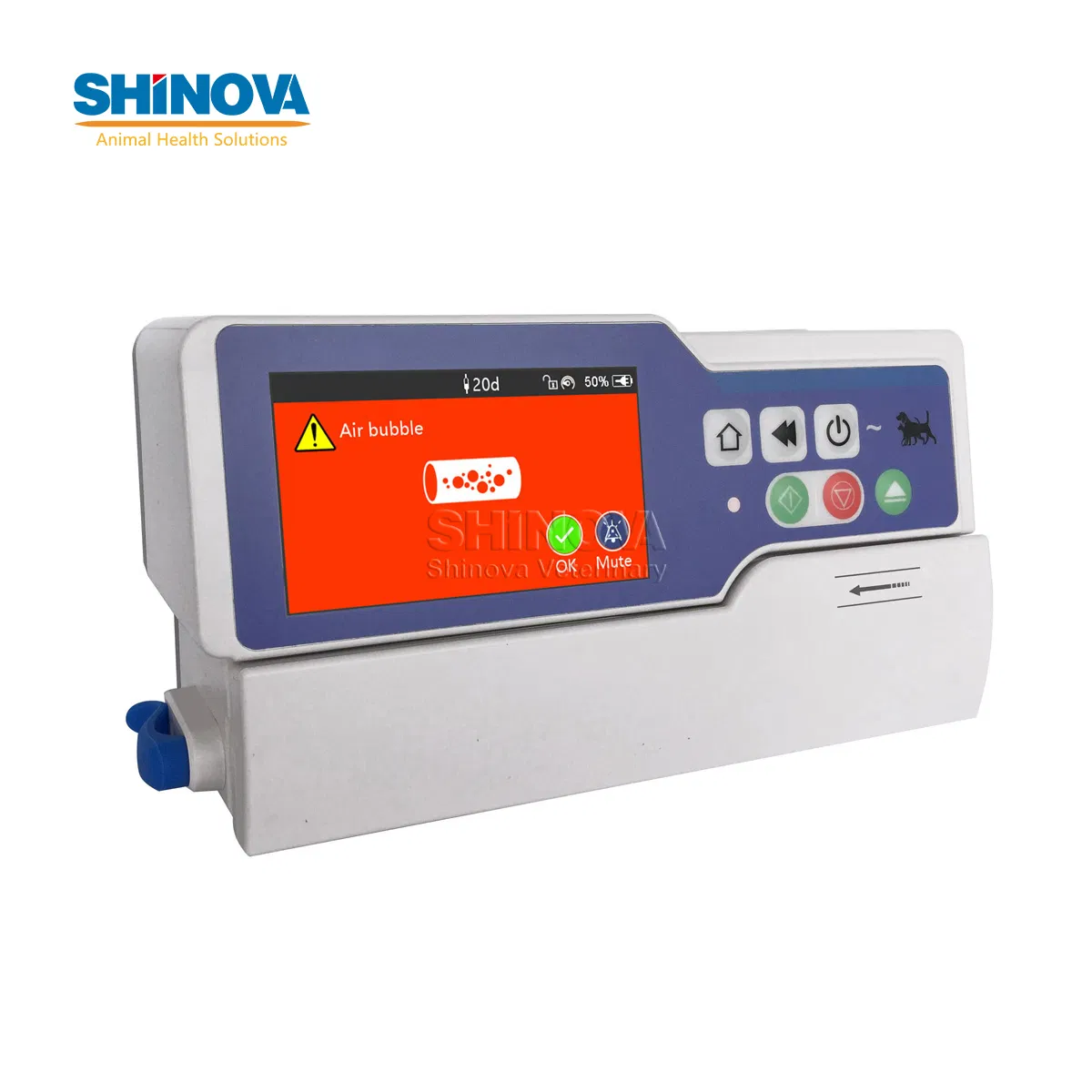

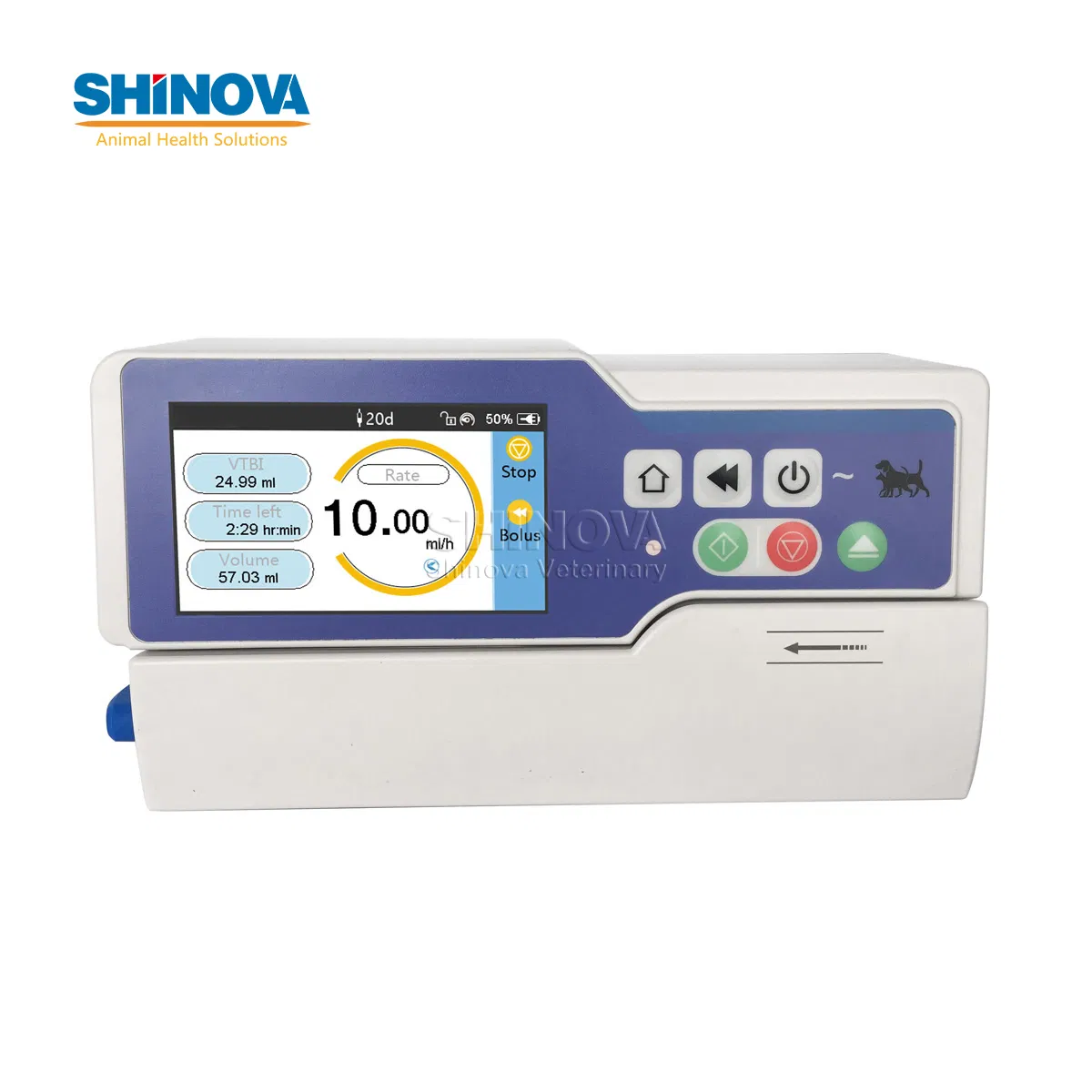

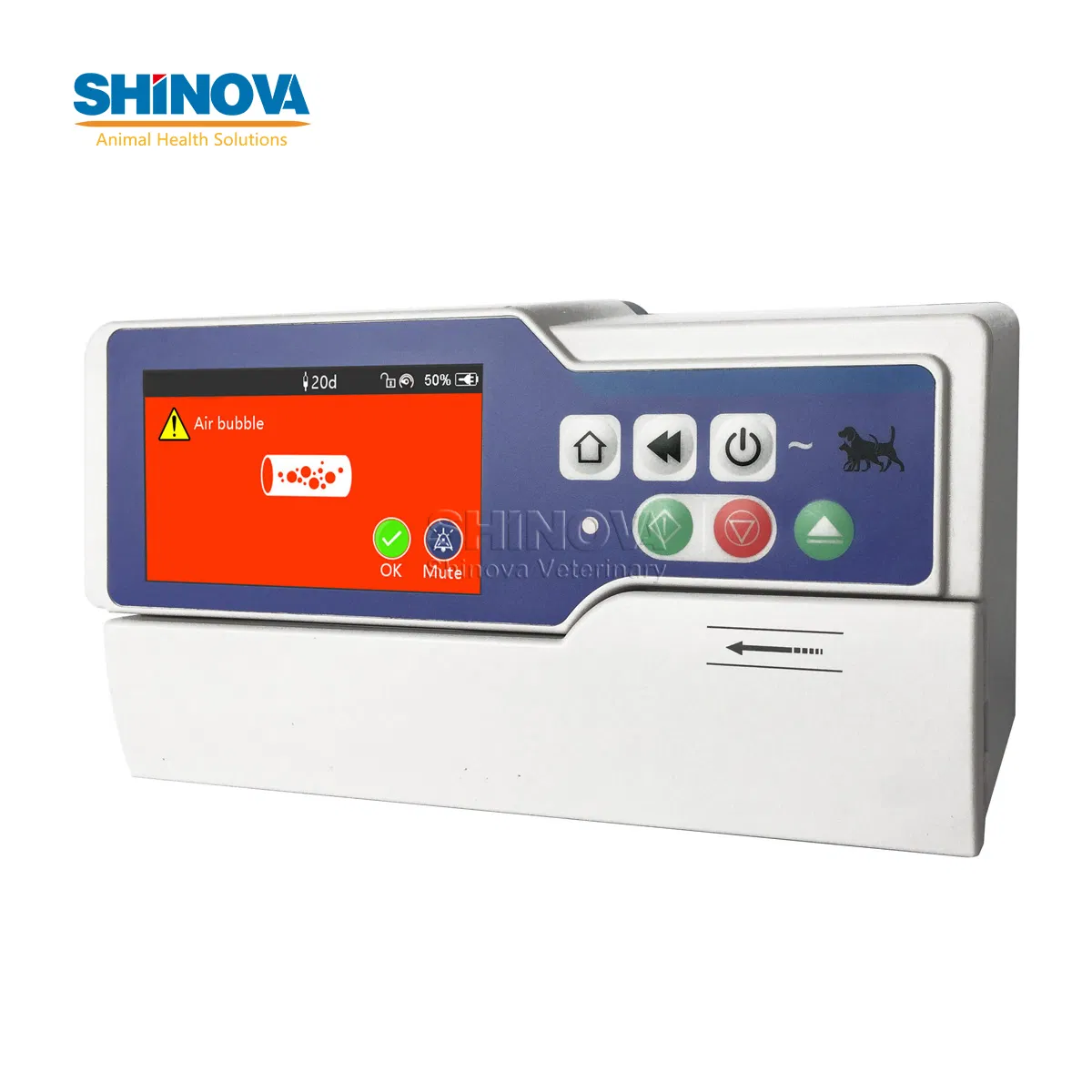

Veterinary Medical Equipment Veterinary Infusion Pump (Infula 800V)

Customization: Available
Type: Infusion Pump
Classification: Class 1, CF

Product Description

📋

Basic Specifications

Model NO.
Infula 800V
Interface
Mini USB
Transport
by Air or by Sea
Material
Plastic
Origin
China
HS Code
9018390000
💉

Product Description

Model: Infula 800V Veterinary Infusion Pump

This compact device works both on battery and mains supply, which is perfectly adapted for veterinary use. This multi-function infusion pump brings a whole new array of features and benefits for your day-to-day fluid therapy requirements.

Infusion Pump View 1
Infusion Pump View 2
Infusion Pump View 3
🌟

Key Features

  • Uses any standard lV sets and stores up to 20 editable brands.
  • 4.3 inch color touch screen, parameter setting and editing directly.
  • Multi-function operation with 3 modes: mI/h (time, rate mode); Body-weight mode and Micro-mode.
  • Electric door and anti-free flow clip patented design.
  • Flow rates range from 0.01ml/h to 1,200ml/h with increment of 0.01mI/h.
  • Double CPU for increased safety, Ultrasonic air-in-line detector.
  • Historic record more than 5000 logs.
  • 9 hours battery back-up.
  • IP24 waterproof and stackable design.
📊

Technical Parameters

Basic Parameters
Screen 4.3 inch LCD color touch screen
Infusion Mode ml/h (Rate/Time mode), Body weight, Drip mode
Accuracy ±5%
Flow Rate Range 0.01-1200ml/h
VTBI 0-9999 ml
KVO 0.01-5ml/h adjustable
Bolus Rate 0.1-1200ml/h (automatic & manual)
Waterproof IP24
Special & Safety Features
Drug Library No less than 30 drugs
Anti-Bolus Automatic drop line pressure reduction
History Record More than 5000 entries
Battery Lithium Polymer 11.1V 2600mAh (9+ hours operating time)
Dimensions 235(L)*95(W)*120(H) mm
Weight Approx. 1.6kg
🏢

Professional Veterinary Solutions

Providing advanced veterinary techniques for veterinarians to solve all the diagnostic and treatment difficulties of animal care. Our solutions are primarily designed for animal hospitals and clinics.

Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Detail 7

Frequently Asked Questions

What types of IV sets can be used with the Infula 800V?
The pump is compatible with any standard IV sets and can store up to 20 editable brands for user convenience.
How long does the battery last on a single charge?
The built-in Lithium Polymer battery provides more than 9 hours of operating time at a flow rate of 25ml/h.
Is the device suitable for small animals?
Yes, the device features a "Micro Mode" that limits the maximum infusion rate to ensure the safety of smaller patients.
Can I change the flow rate during operation?
Yes, the Titration feature allows you to change the flow rate without stopping the infusion process.
How does the device handle air bubbles in the line?
It includes an ultrasonic air-in-line detector with adjustable sensitivity and a purge function to safely remove air bubbles.
What is the waterproof rating of the pump?
The Infula 800V has an IP24 waterproof rating, protecting it against splashes from any direction.
