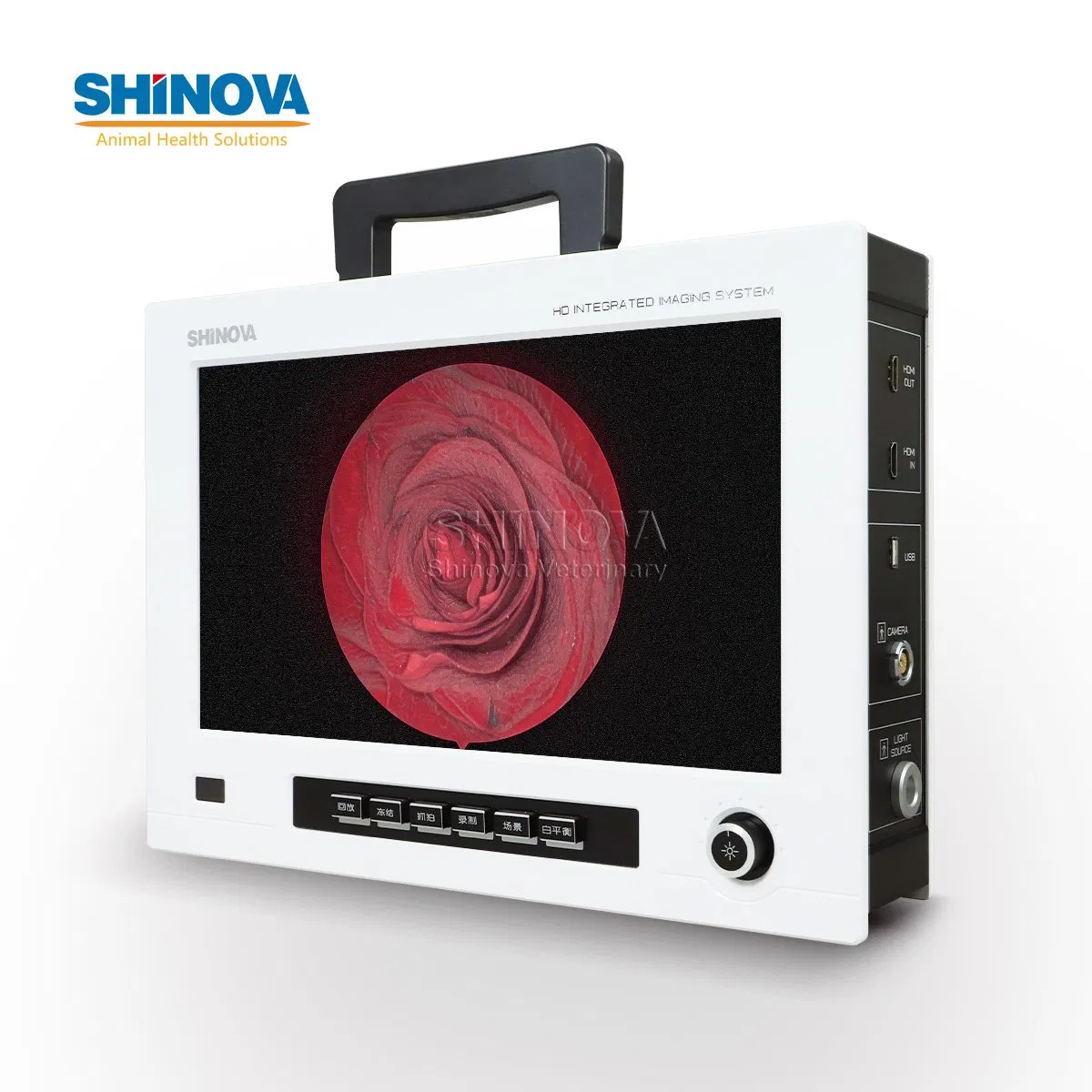

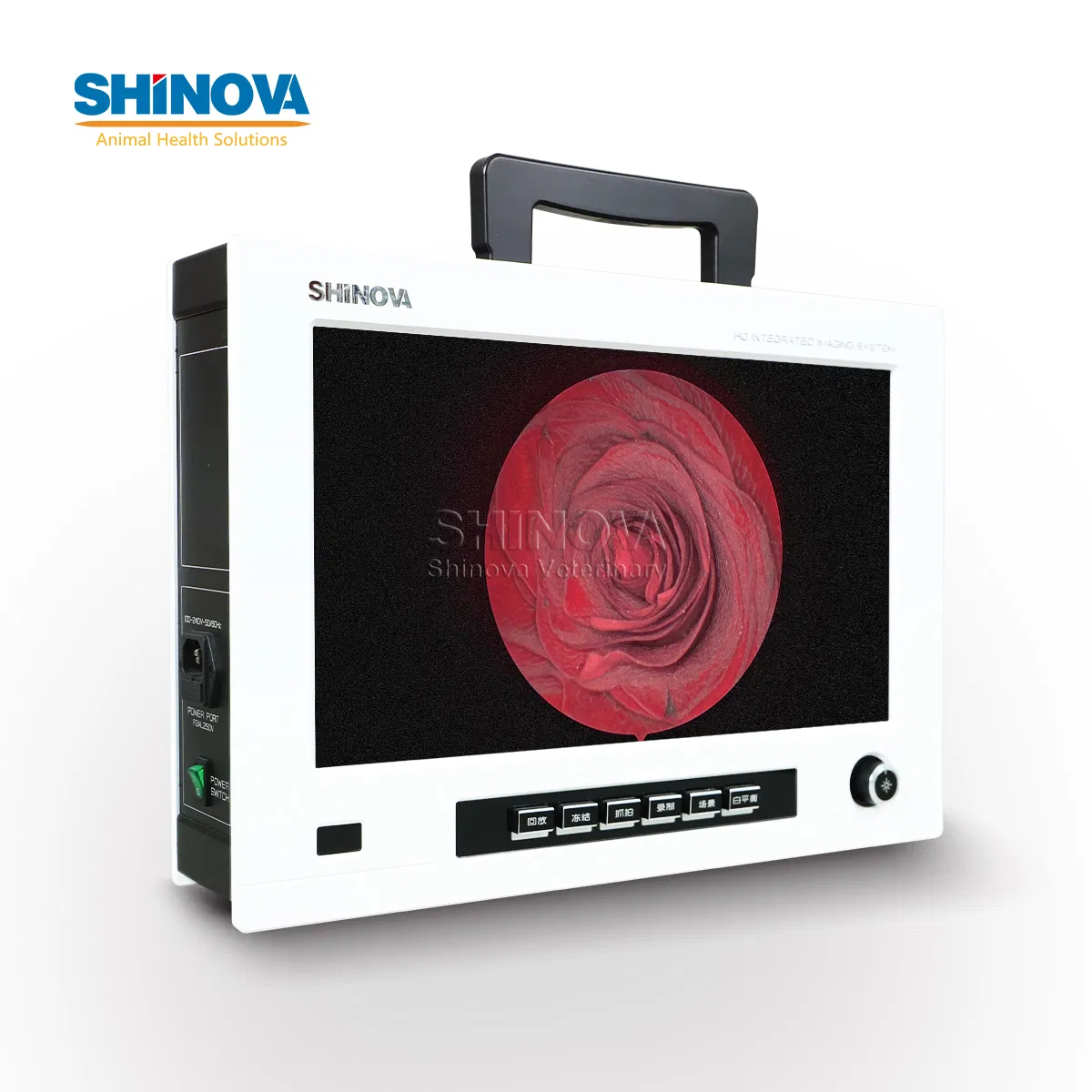

Veterinary Laparoscope Mobile High-Definition Endoscopic Imaging System HD Integrated Endoscopy Imaging System
Veterinary Laparoscope Mobile High-Definition Endoscopic Imaging System HD Integrated Endoscopy Imaging System
Veterinary Laparoscope Mobile High-Definition Endoscopic Imaging System HD Integrated Endoscopy Imaging System
Veterinary Laparoscope Mobile High-Definition Endoscopic Imaging System HD Integrated Endoscopy Imaging System
Veterinary Laparoscope Mobile High-Definition Endoscopic Imaging System HD Integrated Endoscopy Imaging System
1 / 5
Veterinary Laparoscope Mobile High-Definition Endoscopic Imaging System HD Integrated Endoscopy Imaging System
Veterinary Laparoscope Mobile High-Definition Endoscopic Imaging System HD Integrated Endoscopy Imaging System
Veterinary Laparoscope Mobile High-Definition Endoscopic Imaging System HD Integrated Endoscopy Imaging System
Veterinary Laparoscope Mobile High-Definition Endoscopic Imaging System HD Integrated Endoscopy Imaging System
Veterinary Laparoscope Mobile High-Definition Endoscopic Imaging System HD Integrated Endoscopy Imaging System

Veterinary Laparoscope Mobile High-Definition Endoscopic Imaging System HD Integrated Endoscopy Imaging System

Customization: Available
Type: Veterinary Endoscope Camera
Screen: 26 Inch (12~32 Inch Optional)
Send Inquiry

Product Description

Basic Product Specifications
Model
EndoBox-15
Sensor
1/3 Inch Full HD CMOS
Resolution
1920*1080
Frame Rate
60fps
HS Code
90189090
Capacity
10,000 PCS/Year
Package Size
1.00cm * 1.00cm * 1.00cm
Gross Weight
11.000kg
HD Veterinary Endoscope Camera System

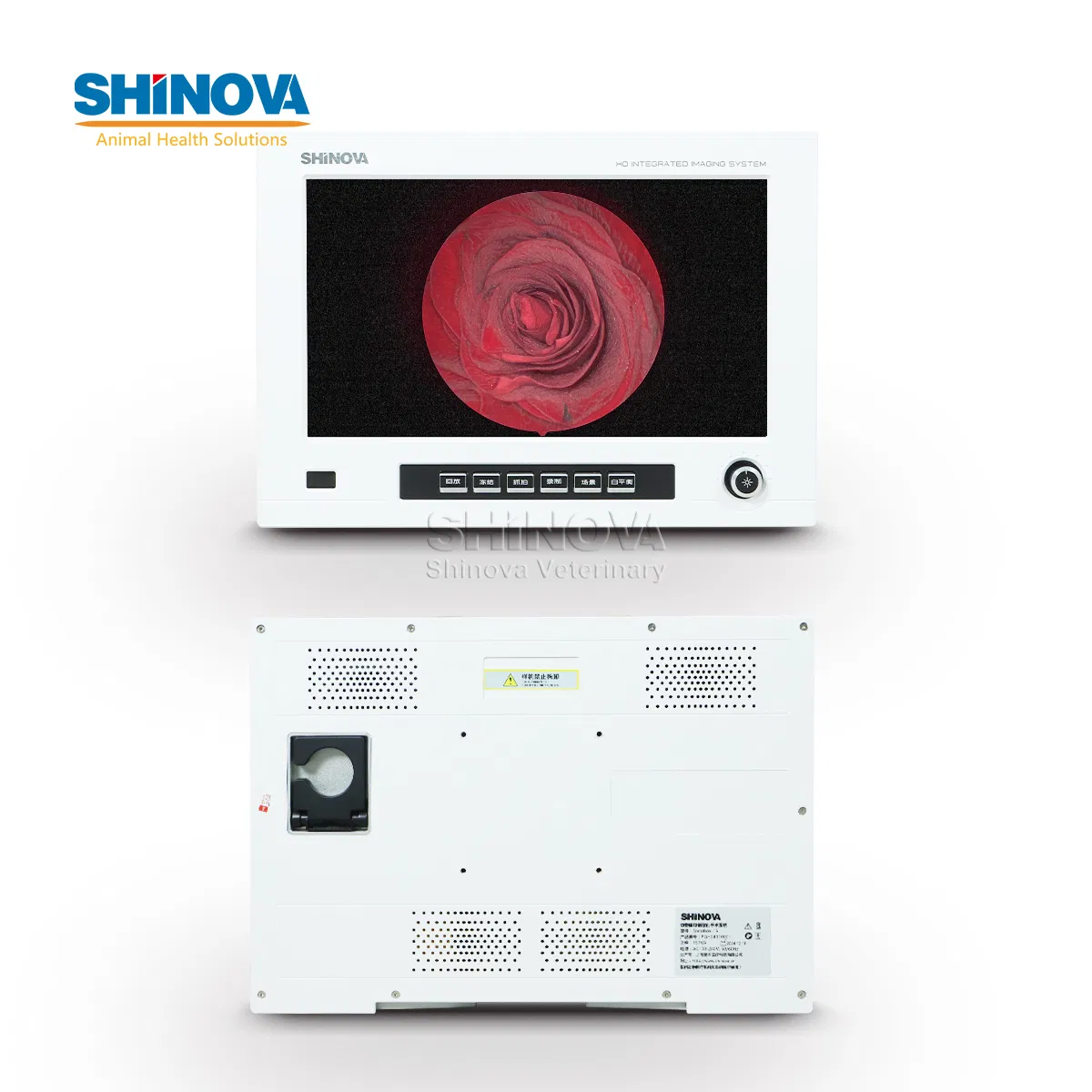

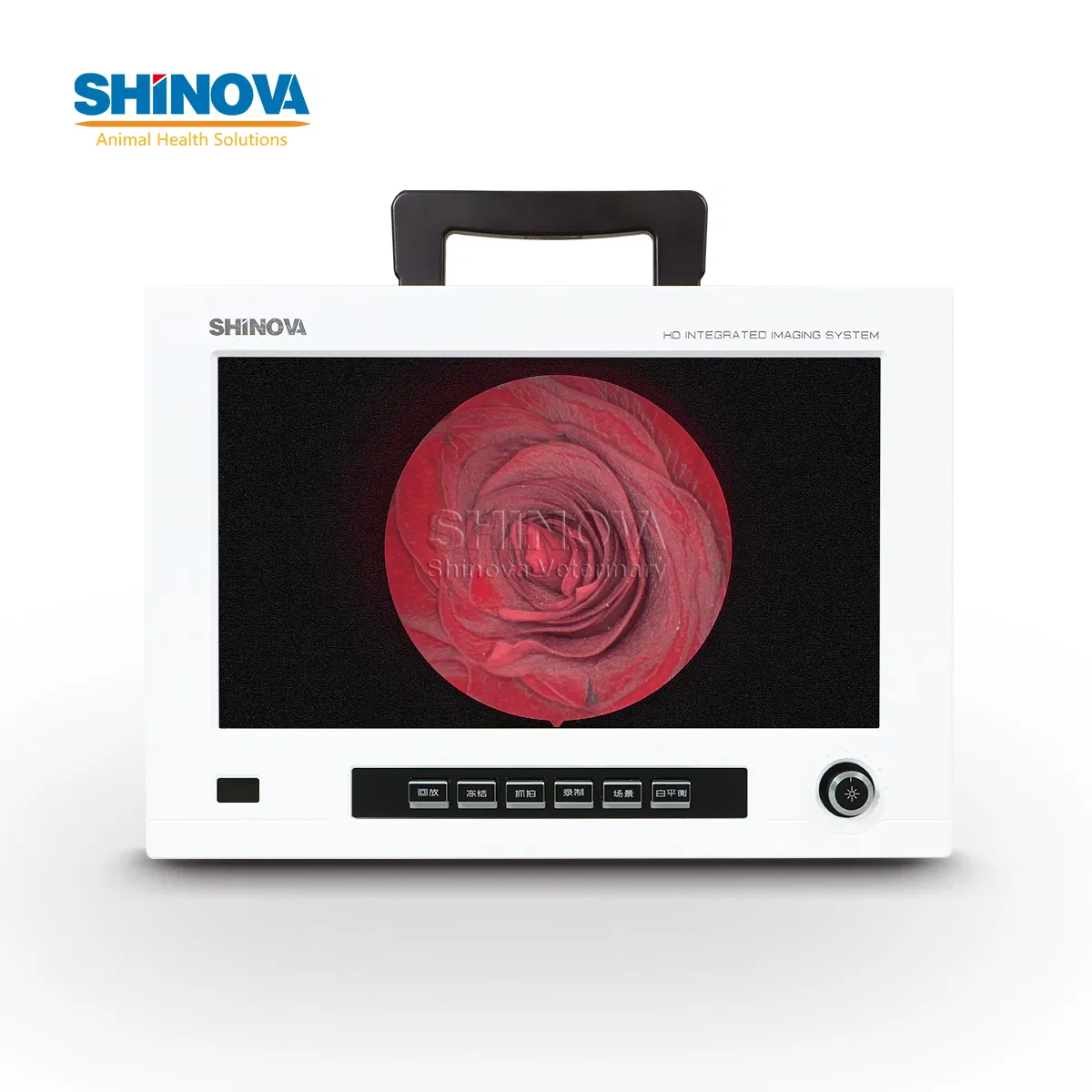

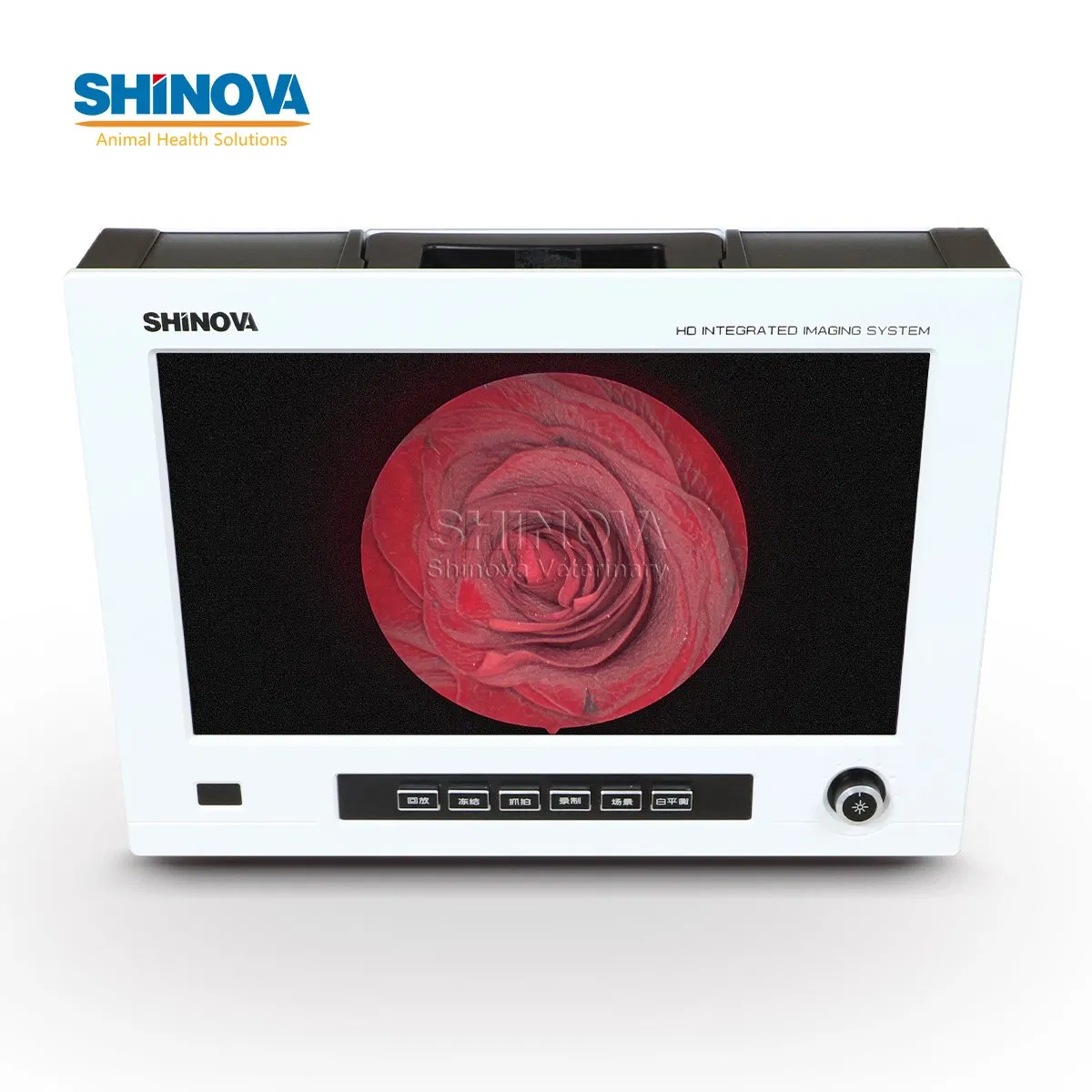

The EndoBox series (15/22/26) represents a breakthrough in veterinary imaging, integrating the monitor, camera, light source, and image recorder into a single, compact workstation.

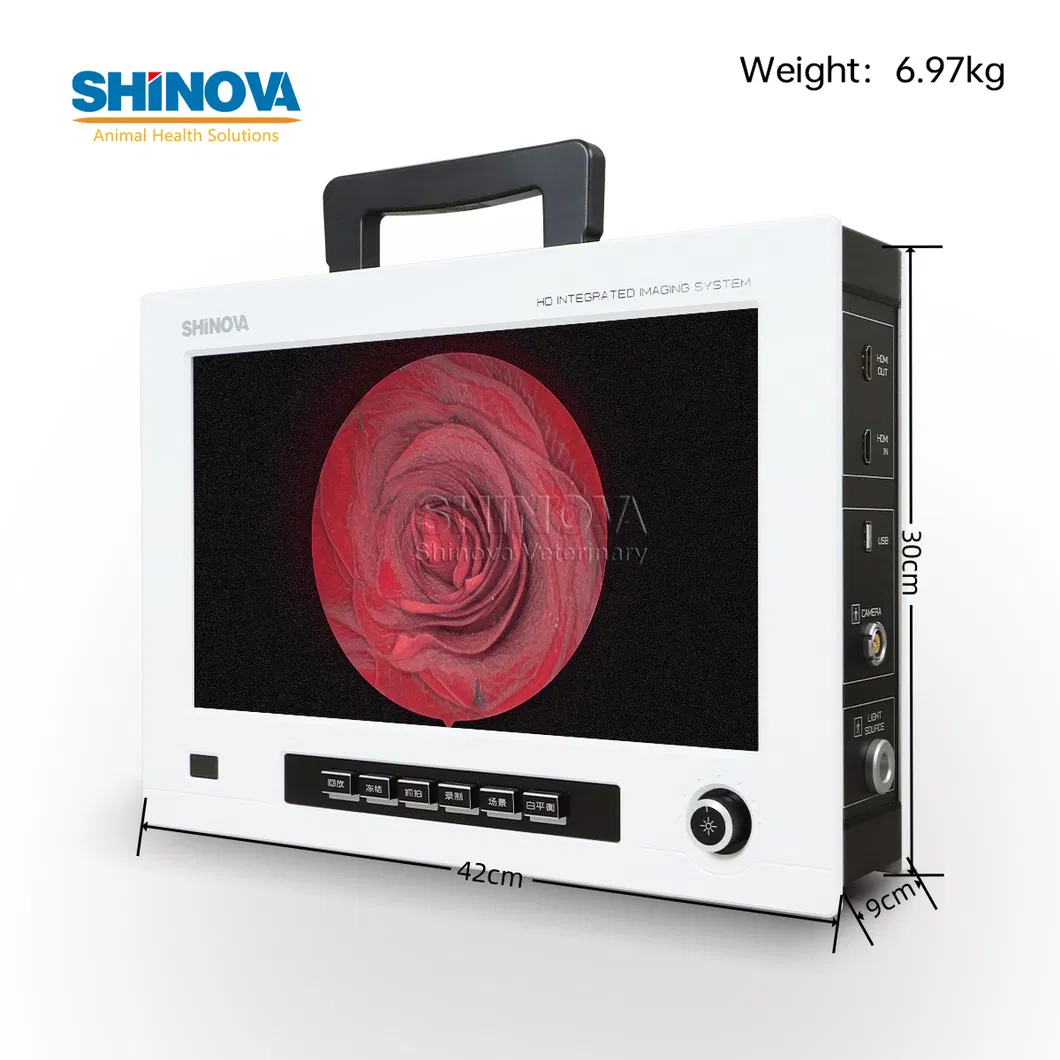

Integrated Endoscopy Imaging System
Core Features
All-in-One: Integrated monitor, camera, light source, and recorder.
Ultra Portable: Smaller size and lighter weight for easy mobility.
Flexible: Adjustable monitor positioning for operator convenience.
Compatible: Works with Optics, Electronic, and Fiber endoscopy.
Technical Parameters
Monitor Size Scale Resolution Contrast Ratio Luminance
12"16:91280*800800:1700nit
15"16:91920*10801000:1800nit
22"16:91920*10801000:1800nit
26"16:91920*10801000:1800nit
32"16:91920*10801400:1800nit
LED Light Source
Power: ≥30W
Color Temp: 6500K
Illumination: ≥700,000Lux
Index: 93
Camera Module
Sensor: 1/3" Full HD CMOS
Scanning: Progressive 60fps
Shutter: 1/60 ~ 1/10000s
Min Lux: 1Lux
Control & Storing
Input: Foot Switch / Remote
Format: H.264 (Video) / JPEG (Snapshot)
Storage: Internal Flash / SD Card
Detailed Product Views
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Frequently Asked Questions
What components are integrated into this system?
The system integrates a high-definition monitor, a medical-grade camera, a powerful LED light source, and a digital image recorder into a single mobile unit.
Does the system support high-speed video recording?
Yes, the system features a scanning frame rate of 60fps at Full HD (1920*1080) resolution, ensuring smooth and clear video capture.
Is the light source adjustable?
The medical LED light source offers stepless adjustment with a maximum illumination of over 700,000 Lux and a natural color temperature of 6500K.
What types of endoscopes is this system compatible with?
It is designed for high compatibility and works effectively with optics, electronic, and fiber-based endoscopy equipment.
How can I control the recording and snapshot functions?
Operators can control functions via the integrated control system using either a foot switch for hands-free operation or an infrared wireless remote control.
What video formats are supported for storage?
The system records video in H.264 format (1920*1080P60) and captures still snapshots in JPEG format to internal flash or external SD cards.
