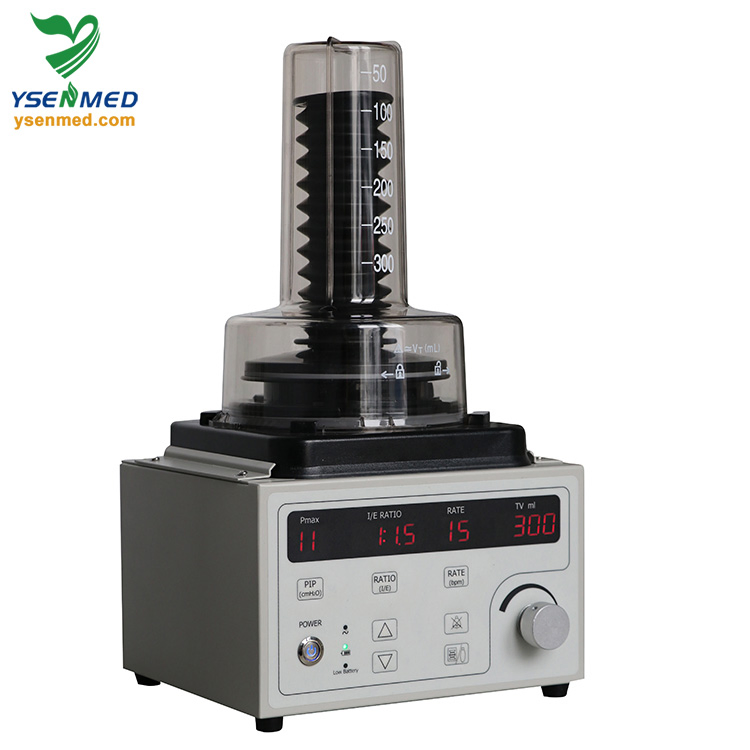

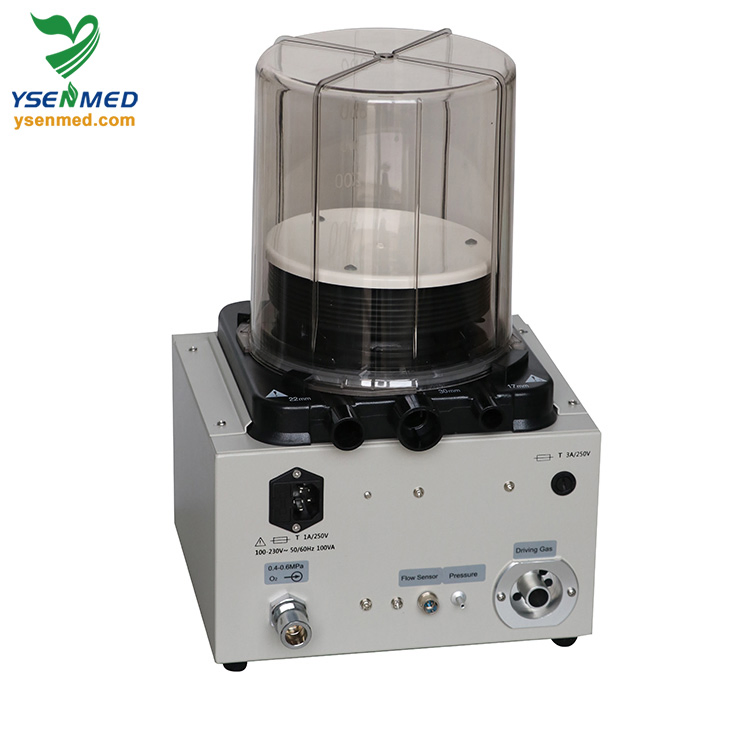

Ysav-R60V Vet Equipment Veterinary Anesthesia Ventilator
Ysav-R60V Vet Equipment Veterinary Anesthesia Ventilator
Ysav-R60V Vet Equipment Veterinary Anesthesia Ventilator
Ysav-R60V Vet Equipment Veterinary Anesthesia Ventilator
Ysav-R60V Vet Equipment Veterinary Anesthesia Ventilator
1 / 5
Ysav-R60V Vet Equipment Veterinary Anesthesia Ventilator
Ysav-R60V Vet Equipment Veterinary Anesthesia Ventilator
Ysav-R60V Vet Equipment Veterinary Anesthesia Ventilator
Ysav-R60V Vet Equipment Veterinary Anesthesia Ventilator
Ysav-R60V Vet Equipment Veterinary Anesthesia Ventilator

Ysav-R60V Vet Equipment Veterinary Anesthesia Ventilator

Customization: Available
out Looking: Portable
with Ventilator: Yes
Send Inquiry

Product Description

Basic Info
Model NO.
YSAV-R60V
Certificate
CE, ISO
Application
Animal / Veterinary
Bellow
300-2000ml (Optional)
PIP Scope
5-60kpa
Breathing Rate
2~150bpm
Small Animal
0-300ml
HS Code
9018909000

YSAV-R60V Vet Equipment Veterinary Anesthesia Ventilator

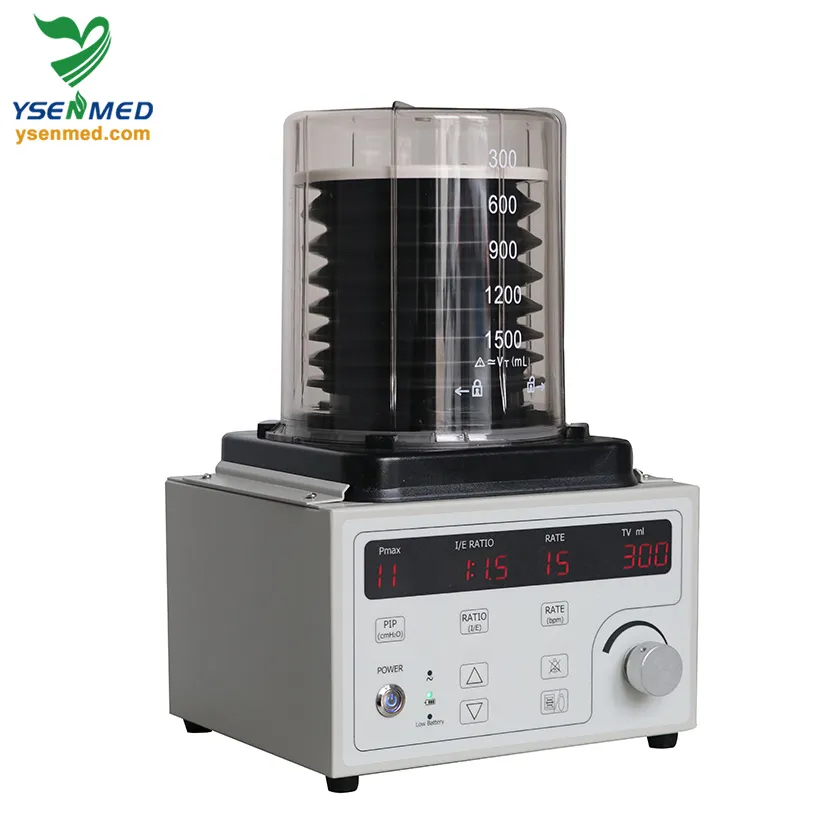

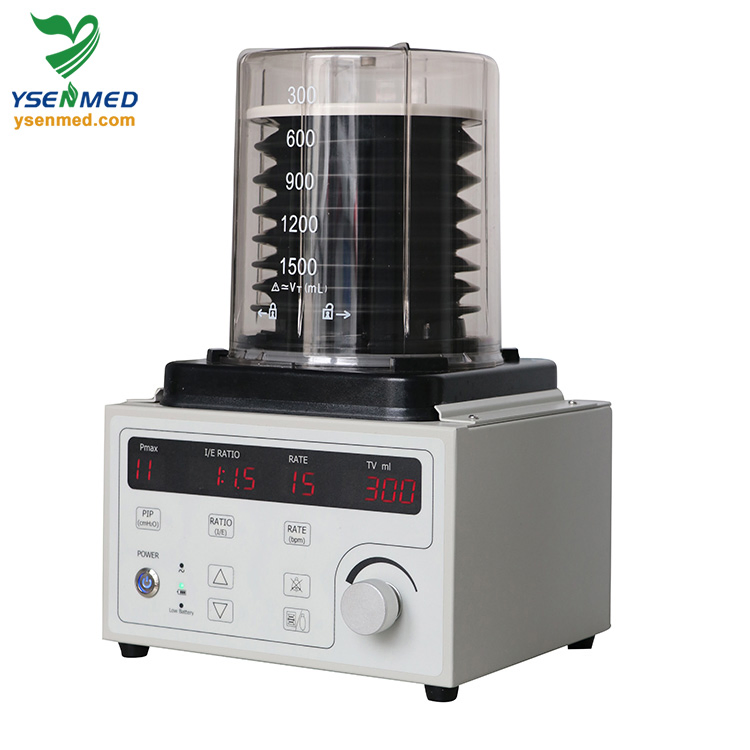

Veterinary Anesthesia Ventilator Main View

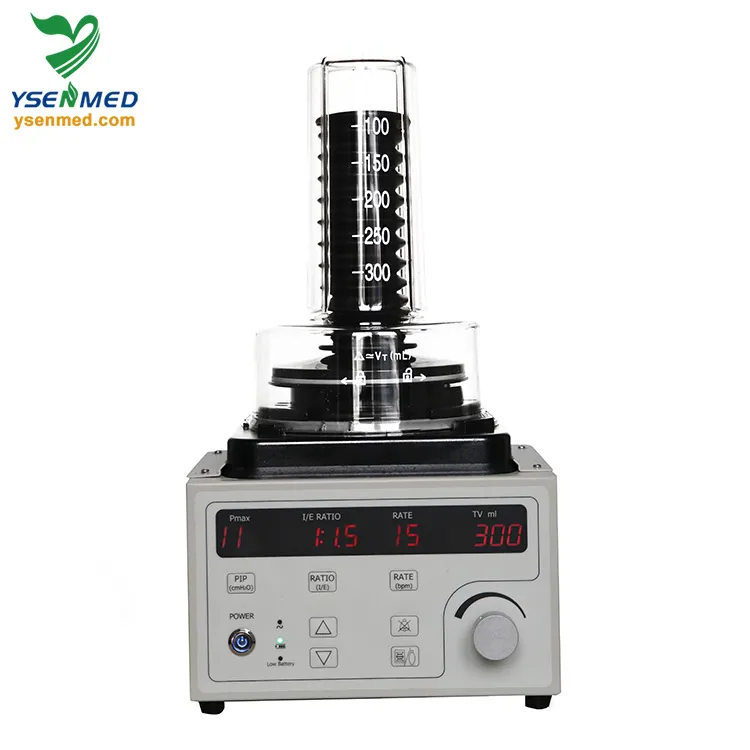

Vet Equipment Details
Anesthesia Ventilator Interface

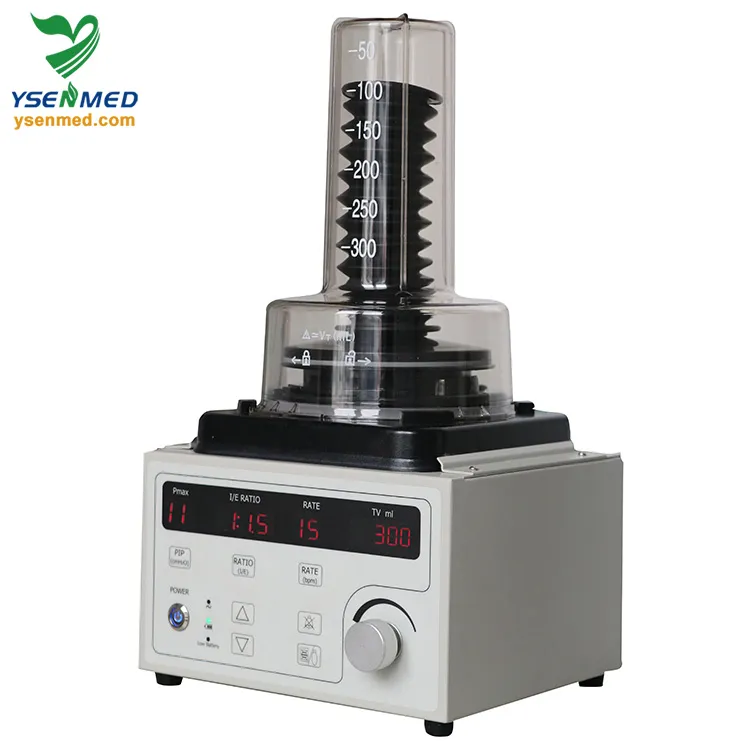

Ventilator Component View
Key Features
Versatile Application: Specially designed for big and small animal anesthesia, ideal for vet hospitals, animal R&D institutes, university laboratories, and animal clinics.
Compact design saves valuable space.
Lightweight and easy to move, reducing operational costs.
IPPV breathing mode for automatic, comfortable respiration.
Equipped with both big and small animal bellows.
High-precision gas source pipeline ensures zero leakage.
LCD digital display for monitoring critical parameters.
Simple key interface for easy parameter setting.
Built-in battery provides over 1 hour of backup power.
Compatible with various brands of veterinary anesthesia machines.
Technical Specifications
Drive Mode Pneumatically driven and electrically controlled
Display LCD digital display
Tidal Volume (TV) 0-300ml (Small), 300-1600ml (Large)
Breathing Rate 2 ~ 150 bpm
I:E Ratio Adjustable: 3:1, 2:1, 1.5:1, 1:1, 1:1.5, 1:2, 1:3
Airway Pressure Upper: 2~6kpa | Lower: 0.6~2kpa
PIP Scope 5-60kpa
Alarms Battery low, Power failure, Airway pressure high/low (with Silence function)
Standard Configuration

Main unit, bellows (0-300ml), foldable bag, bellow cover, medical corrugated pipelines, O2 supply pipeline, power cable, flow sensor. (Optional bellow: 300-2000ml).

Ventilator Configuration
Operation Details
One-Stop Solution Items

We provide a comprehensive range of items for hospital operation rooms:

Department Equipment List
Operation Room Anesthesia machine & Ventilator
Operating lamp & Operation table
Medical Pendant & Surgical drill/saw
ECG & Patient monitor
Defibrillator & Infusion pump
Electrocoagulation & Oxygen generator
Electric suction device & Autoclave sterilizer
OR Equipment Overview
Veterinary Solution
Frequently Asked Questions
1. What types of animals can use the YSAV-R60V ventilator? It is designed for both small and large animals. It includes a small animal bellow (0-300ml) and an optional large animal bellow (300-2000ml).
2. Does the ventilator have a battery backup? Yes, it features a built-in battery that can continue to operate for more than one hour in the event of a power failure.
3. What is the breathing rate range for this veterinary device? The breathing rate is adjustable from 2 to 150 bpm, making it highly versatile for different species and clinical needs.
4. What safety alarms are included? The device includes alarms for low battery, power failure, and high/low airway pressure to ensure patient safety during anesthesia.
5. Can this ventilator be used with other anesthesia machines? Yes, it is designed to be compatible and can be matched with various brands of veterinary anesthesia machines.
6. Is the operation interface complicated? No, the device features an LCD digital display and a simplified key interface, making it very easy and intuitive to operate.
