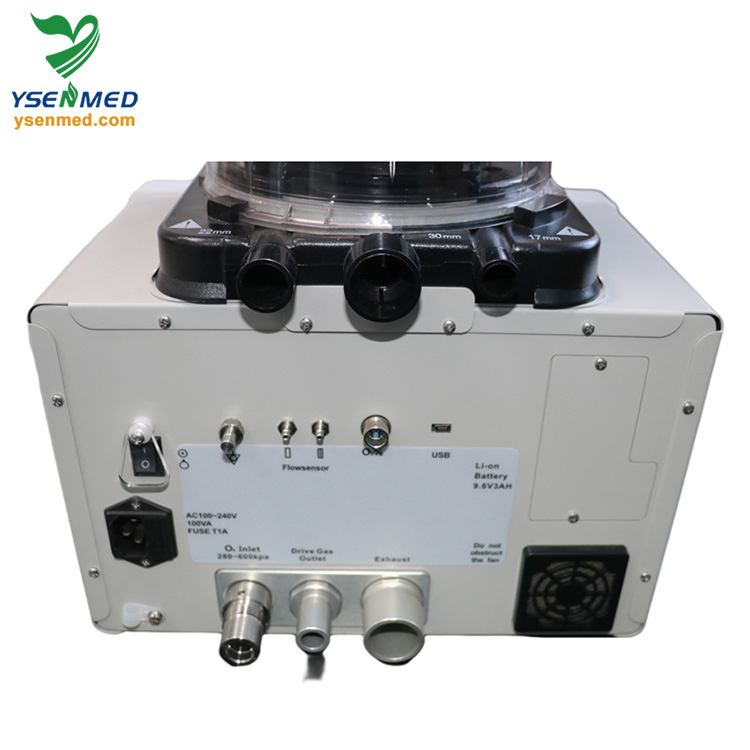

Ysav-R80V Vet Medical Equipment Veterinary Anesthesia Ventilator
Ysav-R80V Vet Medical Equipment Veterinary Anesthesia Ventilator
Ysav-R80V Vet Medical Equipment Veterinary Anesthesia Ventilator
Ysav-R80V Vet Medical Equipment Veterinary Anesthesia Ventilator
Ysav-R80V Vet Medical Equipment Veterinary Anesthesia Ventilator
1 / 5
Ysav-R80V Vet Medical Equipment Veterinary Anesthesia Ventilator
Ysav-R80V Vet Medical Equipment Veterinary Anesthesia Ventilator
Ysav-R80V Vet Medical Equipment Veterinary Anesthesia Ventilator
Ysav-R80V Vet Medical Equipment Veterinary Anesthesia Ventilator
Ysav-R80V Vet Medical Equipment Veterinary Anesthesia Ventilator

Ysav-R80V Vet Medical Equipment Veterinary Anesthesia Ventilator

Customization: Available
out Looking: Portable
with Ventilator: Yes
Send Inquiry

Product Description

🔹 Basic Information
Model NO.
YSAV-R80V
Certificate
CE, ISO
Application
Animal / Veterinary
Operating Mode
Vcv, Pcv, Spont, Manual, Demo
Battery Type
Li-ion (>2 Hours)
Origin
China
🔹 Product Description

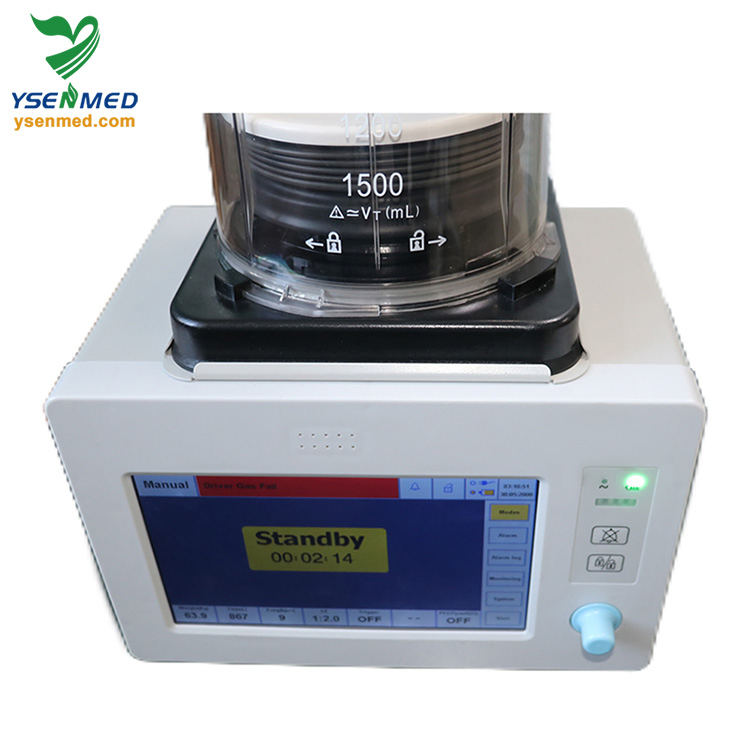

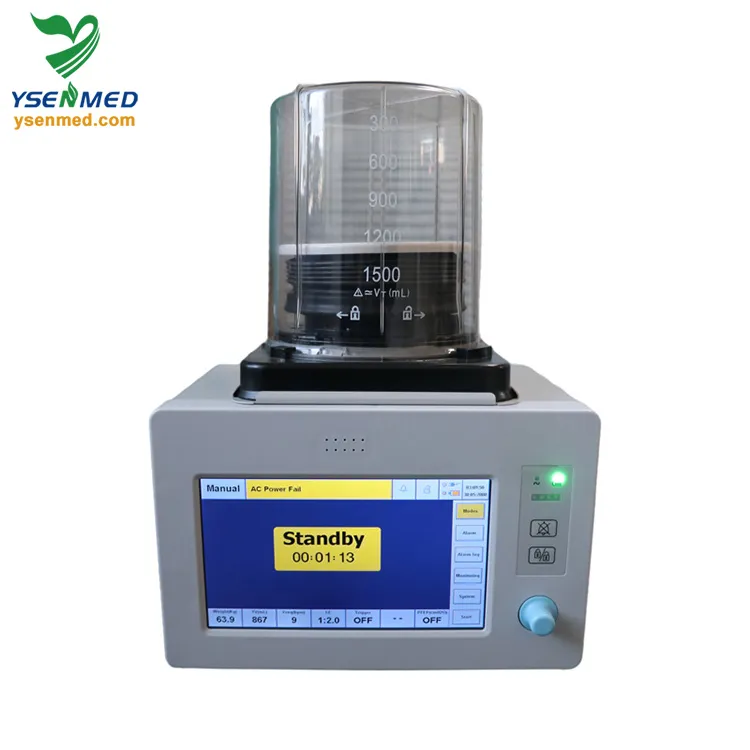

YSAV-R80V Veterinary Anesthesia Ventilator
Veterinary Anesthesia Ventilator Vet Medical Equipment

Specially designed for animal anesthesia ventilation, applicable in vet hospitals, R&D institutes, laboratories, and clinics. Compatible with any brand of anesthesia machine.

🚀 Key Features
  • Compact design to save space in the clinic.
  • Lightweight and easy to move.
  • Automatic calculation by weight for parameters.
  • PCV mode for more comfortable animal breathing.

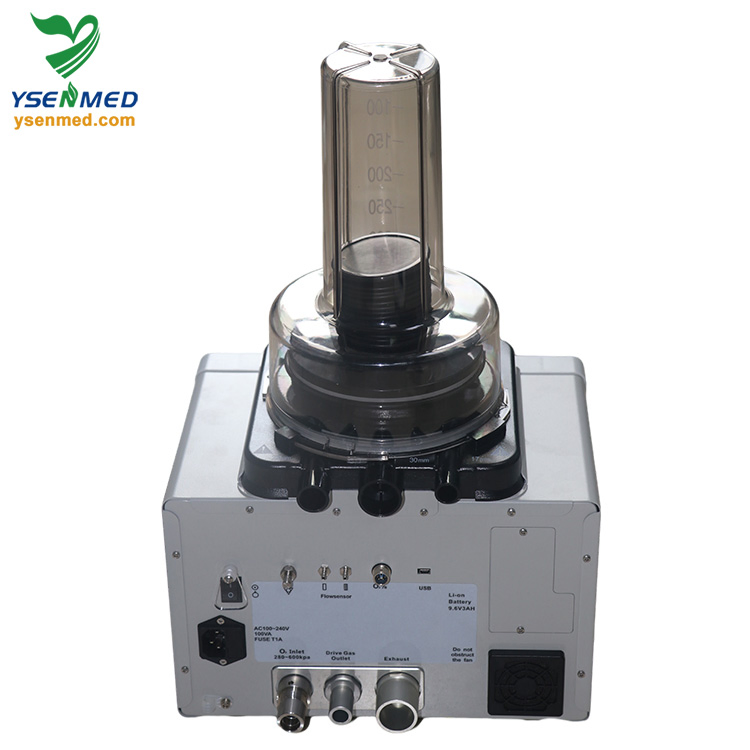

  • Equipped with both big and small animal bellows.
  • High-precision gas source pipeline ensures no leakage.

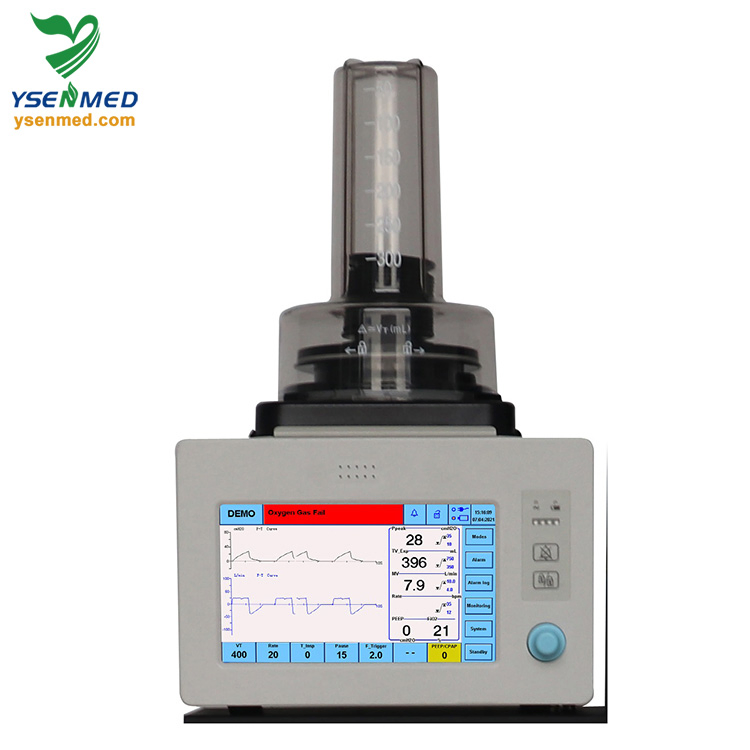

  • HD TFT Touch screen for easy operation.
  • Built-in battery for 2+ hours of power failure backup.
📊 Technical Specifications
Basic Parameter Description
Display9 inch TFT with touch screen
Drive Gas TypeO2 or Air
Inlet Pressure280-600 kPa
Max Flow≤ 120 L / min
Operating ModeVCV, PCV, SPONT, Manual, Demo
WaveformsPressure, Flow-rate, Volume; PV/PF/FV Loops
Safety PressureSystem pressure does not exceed 6 KPa
Setting Range
Tidal Volume20 - 1500ml
Respiratory Rate1 ~ 100 bpm
Inspiratory Time0.1 ~ 10.0 s
PEEPOFF, 3 ~ 20 cmH2O
Pressure Control5 ~ 60 cmH2O
🛠️ Operation Room Integrated Solutions

Comprehensive equipment for modern veterinary operation rooms:

  • Anesthesia Machine & Ventilator
  • Operating Lamp & Table
  • ECG & Patient Monitor
  • Medical Drill & Saw
  • Infusion & Oxygen Devices
  • Autoclave Sterilizer
Vet Equipment Details Operating Room Solution
Medical Monitor Veterinary Device Setup
❓ Frequently Asked Questions
Q1: Which types of animals can use this ventilator? A: The YSAV-R80V is designed for veterinary use and comes with both large and small animal bellows, making it suitable for a wide range of animals in clinics and hospitals.
Q2: Can this ventilator work with other anesthesia brands? A: Yes, it is designed to be highly compatible and can match with various brands of veterinary anesthesia machines.
Q3: How long can the battery last during a power failure? A: The built-in Li-ion battery provides a working time of more than 2 hours, ensuring patient safety during power outages.
Q4: What breathing modes does the YSAV-R80V support? A: It supports multiple operating modes including VCV, PCV, SPONT, Manual, and a Demo mode for training.
Q5: Is the interface user-friendly for vet technicians? A: Yes, it features a 9-inch HD TFT touch screen that allows for simple parameter settings and clear monitoring of waveforms.
Q6: What safety alarms are included? A: It includes alarms for Tidal Volume (High/Low), Airway Pressure, Apnea, Gas Deficiency, AC power failure, and Low Battery.
