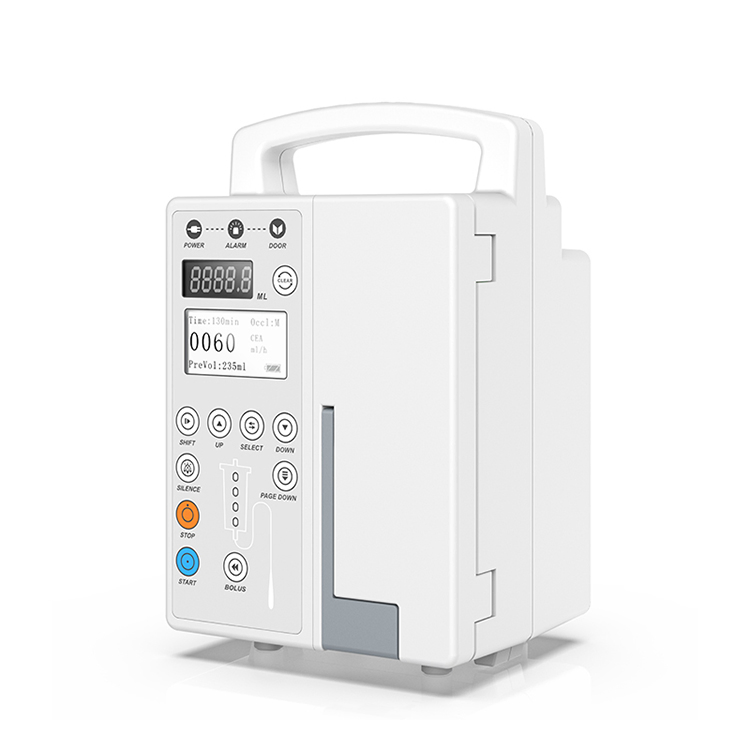

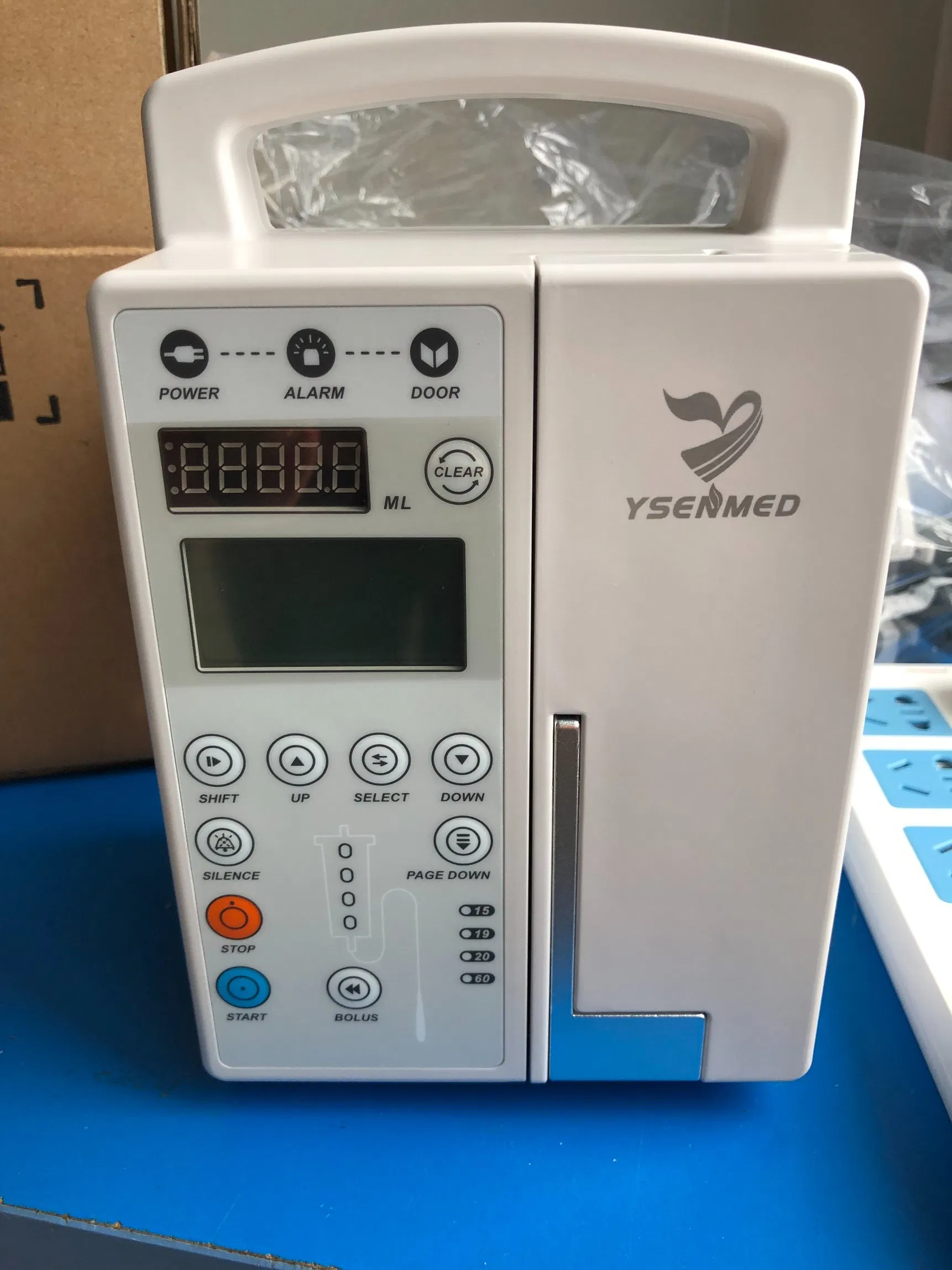

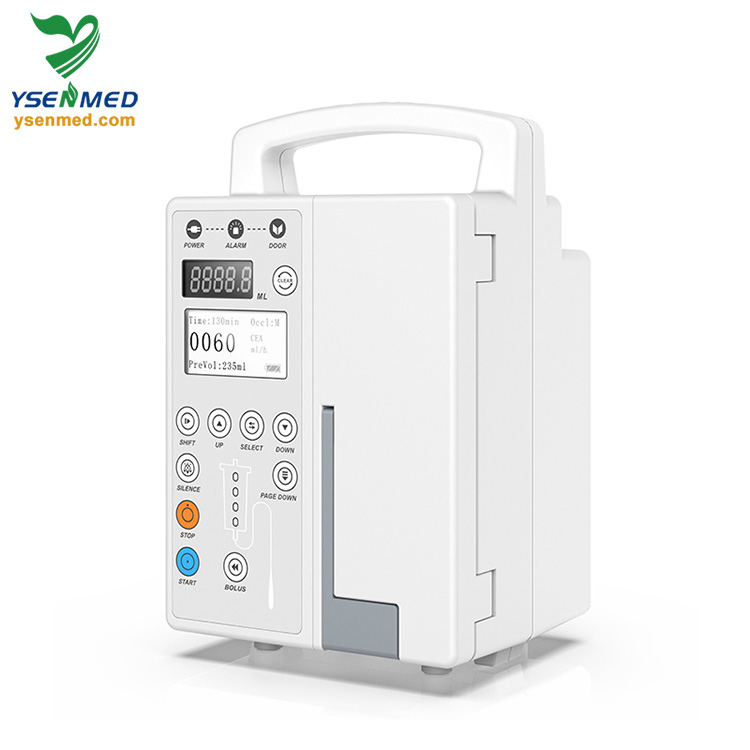

Medical Instrument Yssy-820V Portable Veterinary Infusion Pump
Medical Instrument Yssy-820V Portable Veterinary Infusion Pump
Medical Instrument Yssy-820V Portable Veterinary Infusion Pump
Medical Instrument Yssy-820V Portable Veterinary Infusion Pump
Medical Instrument Yssy-820V Portable Veterinary Infusion Pump
1 / 5
Medical Instrument Yssy-820V Portable Veterinary Infusion Pump
Medical Instrument Yssy-820V Portable Veterinary Infusion Pump
Medical Instrument Yssy-820V Portable Veterinary Infusion Pump
Medical Instrument Yssy-820V Portable Veterinary Infusion Pump
Medical Instrument Yssy-820V Portable Veterinary Infusion Pump

Medical Instrument Yssy-820V Portable Veterinary Infusion Pump

Customization: Available
Type: Veterinary Infusion Pump
Infusion Rate: 1ml/H~1,200ml/H
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
YSSY-820V
Purge Rate
100ml/H~1,200ml/H
KVO Rate
1ml/H~5 Ml/H
Accuracy
Within ±5%
Infusion Volume
1ml~9999ml
Transport Package
Standard Export Package

YSSY-820V Medical Portable Veterinary Infusion Pump

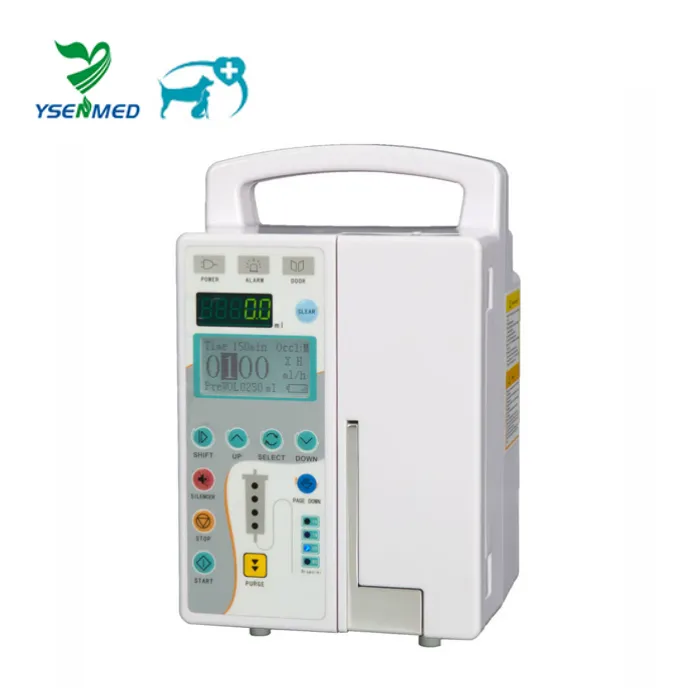

Portable Veterinary Infusion Pump
✨ Key Features & Functions
Bubble detector, drop sensor and pressure sensor for precise air bubble detection.
Unique Voice Alarm system for a safer and more reliable injection process.
HD LCD display for clear visualization of working status.
Compatible with any brand infusion sets with automatic calibration.
Dual Work modes: Switch freely between ml/h and drop/min.
Equipped with essential KVO and Bolus functions.
🛠️ Technical Parameters
Specification Details
Product Name YSSY-820 Infusion Pump
Voice Alarm System Triggers voice prompt and stops injection automatically upon malfunction.
Infusion Rate 1ml/h ~ 1,200ml/h
Purge Rate 100ml/h ~ 1,200ml/h (100 ml/h increment)
Occlusion Pressure High: 800±200 mmHg; Medium: 500±100 mmHg; Low: 300±100 mmHg
Bubble Detector Ultrasonic wave detector; sensitivity ≥25μL
Alarms End of injection, occlusion, door open, bubbles, wrong setting, low battery, AC disconnect.
Power Supply AC100V~240V; Internal rechargeable Li battery (≥1,600mAh, 4h backup)
Dimension & Weight 140mm×157mm×220mm; 1.8kg (Net Weight)
IP Grade & Class IPX1; Class II, Type BF
📷 Product Gallery
Veterinary Infusion Pump View 1
Veterinary Infusion Pump View 2
Veterinary Infusion Pump Details
Veterinary Infusion Pump Interface
❓ Frequently Asked Questions
What is the accuracy level of the YSSY-820V pump?
The device maintains an accuracy of within ±5% after correct calibration, ensuring precise delivery for veterinary patients.
Can I use different brands of IV sets with this pump?
Yes, the system features automatic calibration and is compatible with any brand of infusion sets, making it highly versatile for clinical use.
How long does the battery last during portable use?
The internal rechargeable Li battery provides at least 4 hours of backup time when fully charged.
What types of alarms are included for safety?
It includes a unique voice alarm system for various issues such as occlusion, end of injection, door open, low battery, and air bubbles.
Does it support multiple measurement modes?
Yes, the pump supports both ml/h and drop/min modes, which can be switched freely according to the clinical requirement.
Is the device protected against water ingress?
The device is rated IPX1, providing protection against vertically falling water drops.
