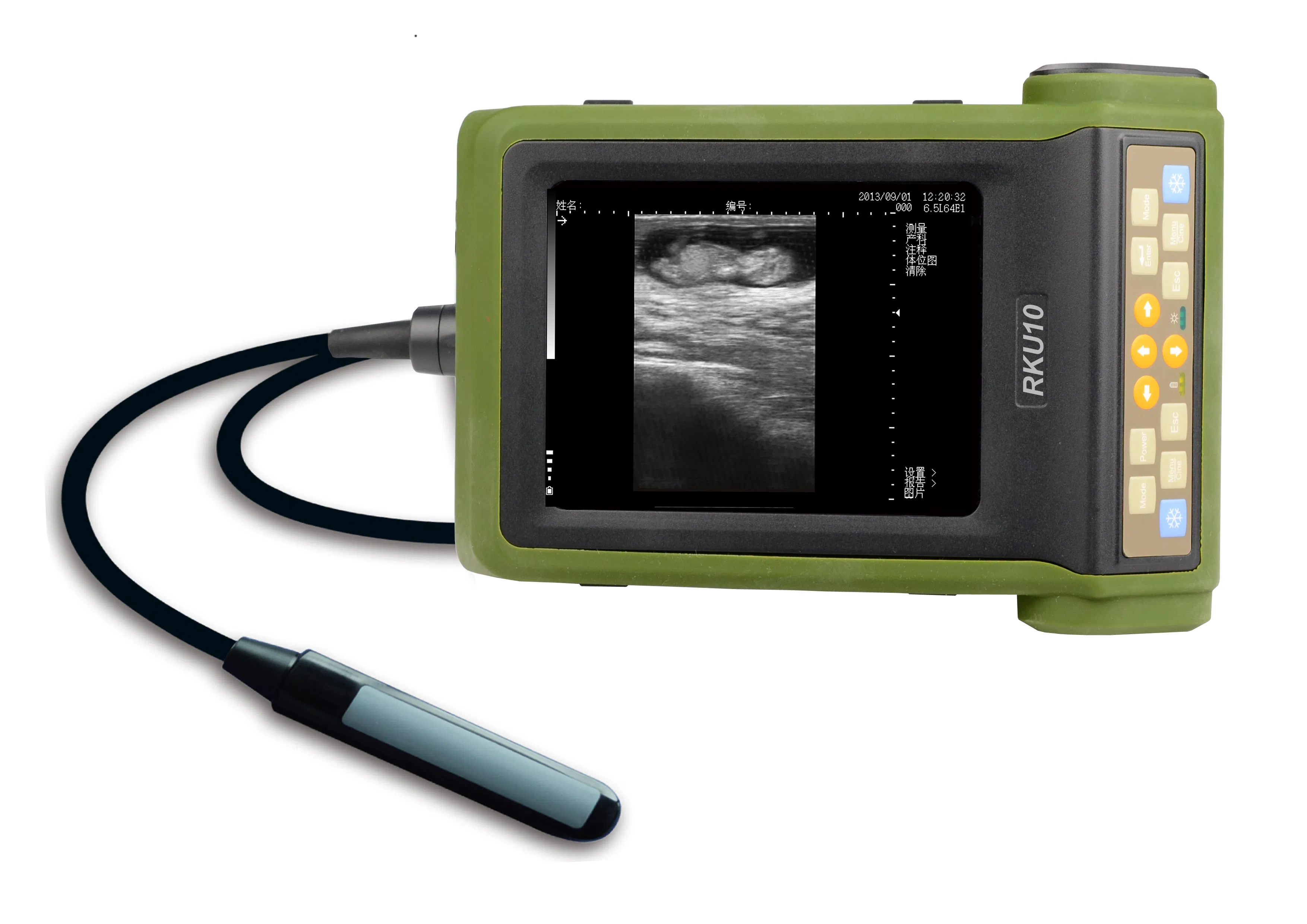

Veterinary Instrument for Bovine Pregnancy Test Palm Ultrasound Diagnostic Tool

1 / 5

Veterinary Instrument for Bovine Pregnancy Test Palm Ultrasound Diagnostic Tool

Customization:	Available
Certification:	ISO13485
Veterinary Instrument:	Use for Cow, Horse, Goat, Swine

Send Inquiry

Product Description

Basic Specifications

Model NO.

RKU10

Palm Ultrasonic

Ring Design, Smart and Light

Clinical Use

For Animal Diagnostics

Applications

Pregnancy Check, Urine Disease

Power Supply

Internal Li-Battery

Net Weight

1.1KG

Trademark

KAIXIN

Origin

China

HS Code

9018121000

Product Overview

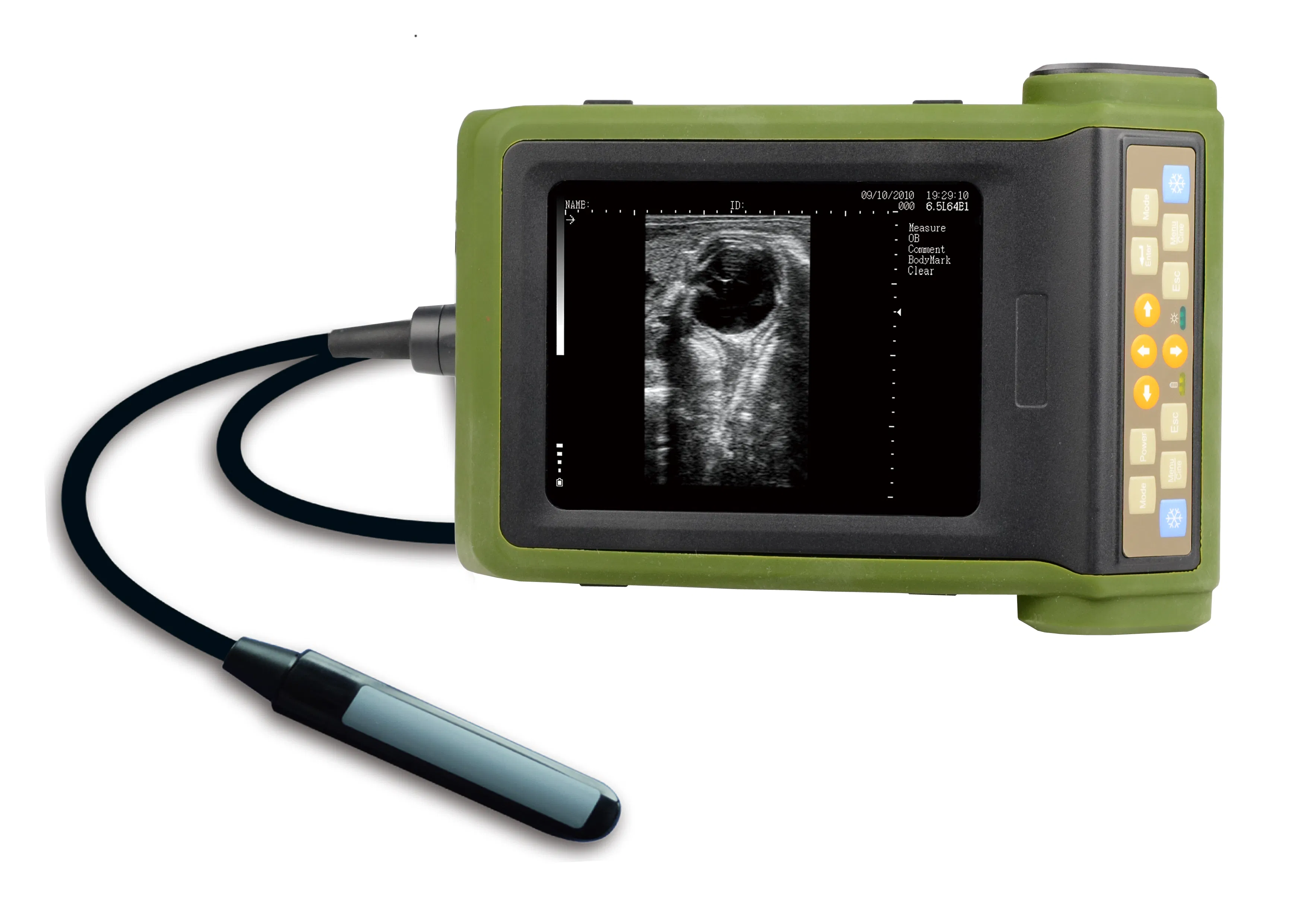

Introducing the RKU 10 Veterinary Ultrasound Scanner (RING KING ULTRASOUND), a professional-grade diagnostic tool designed for modern veterinary practice.

Primary Market: Optimized for pregnancy checks and follicular aspirations in bovine, equine, ovine, canine, feline, goat, swine, and llama.

Key Features

Ultra-Portable: Compact and lightweight at just 1.1kg.
Long Endurance: High-capacity lithium battery delivers over 6 hours of operation.

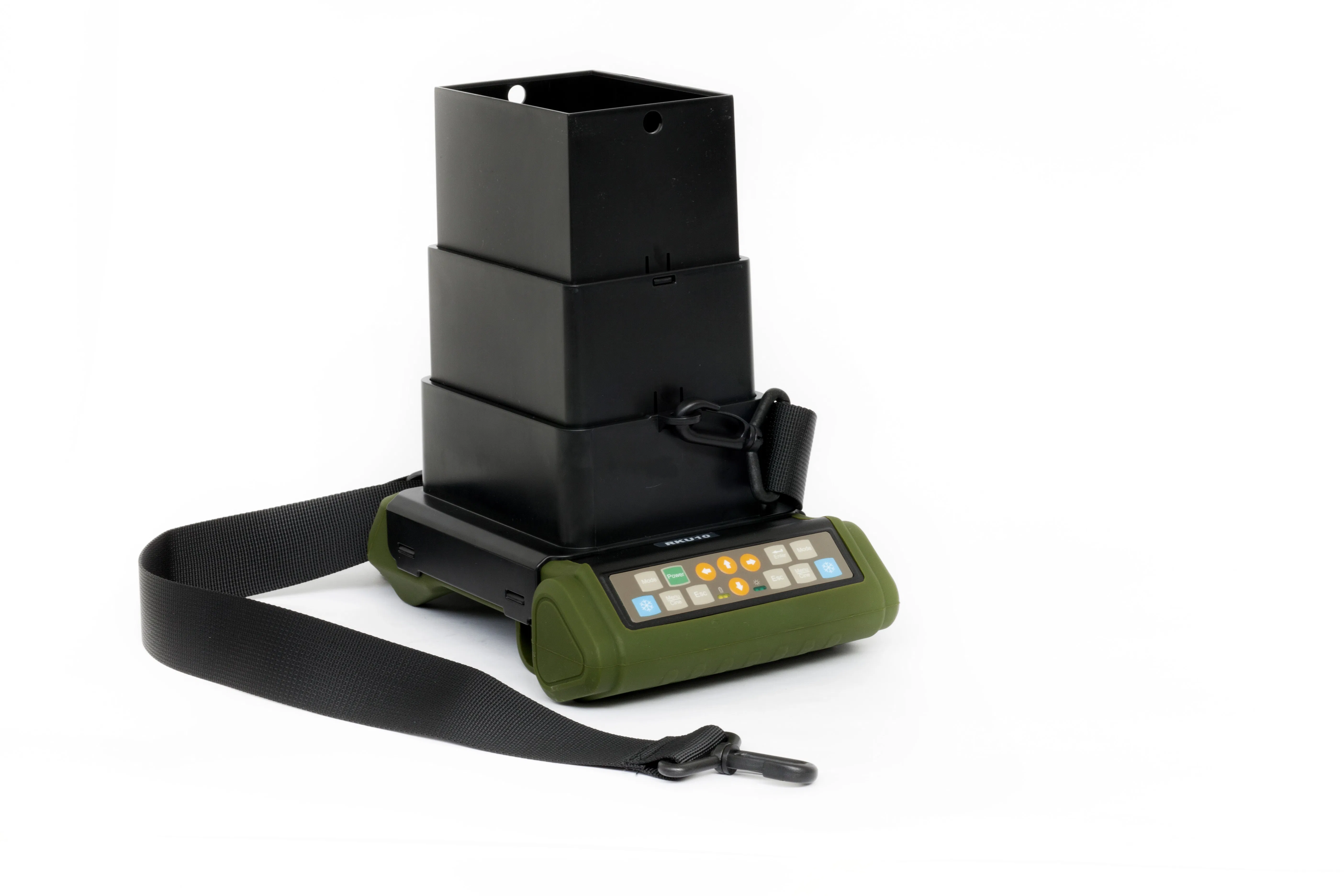

Outdoor Ready: Includes sunshield for bright conditions and optional ultrasound goggles.
Ergonomic Design: Ambidextrous use (left/right hand) to minimize operator fatigue.
Flexible Handling: Supports hand-held, chest-hanging, back-hanging, or waist-hanging.
Durable Build: Soft rubber coat provides splash-proof and dust-proof protection.
Advanced Processing: 256-frame cine loop, 100-frame permanent storage, and automatic calculation for swine back fat.

Technical Specifications

Parameter	Details
Monitor	5.7" high resolution LED, high brightness/contrast, wide viewing angle
Display Modes	B, 2B, 4B, B/M, M
Gain Range	0~127dB
Contrast	27~90dB
Magnification	Multiple levels from 0.8 to 3.0
Storage	100 frames permanent; 256 frames cine loop
Measurements	Distance, circumference, area, volume, heart rate, cycle
OB Measurement	Cattle, dogs, horses, pig, cats, goats, camels, sheep
Grid measurement	6 different types including point and line grids

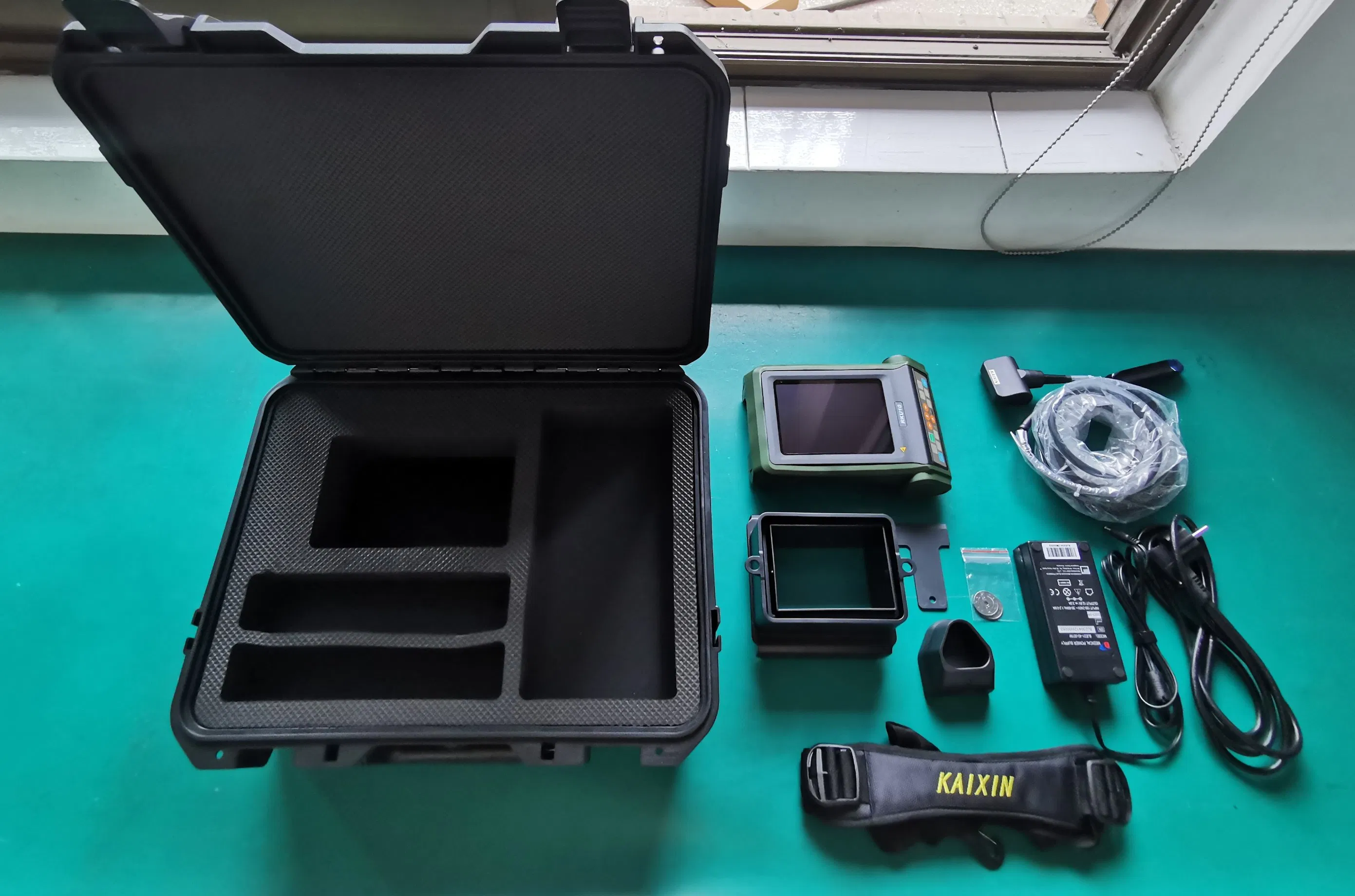

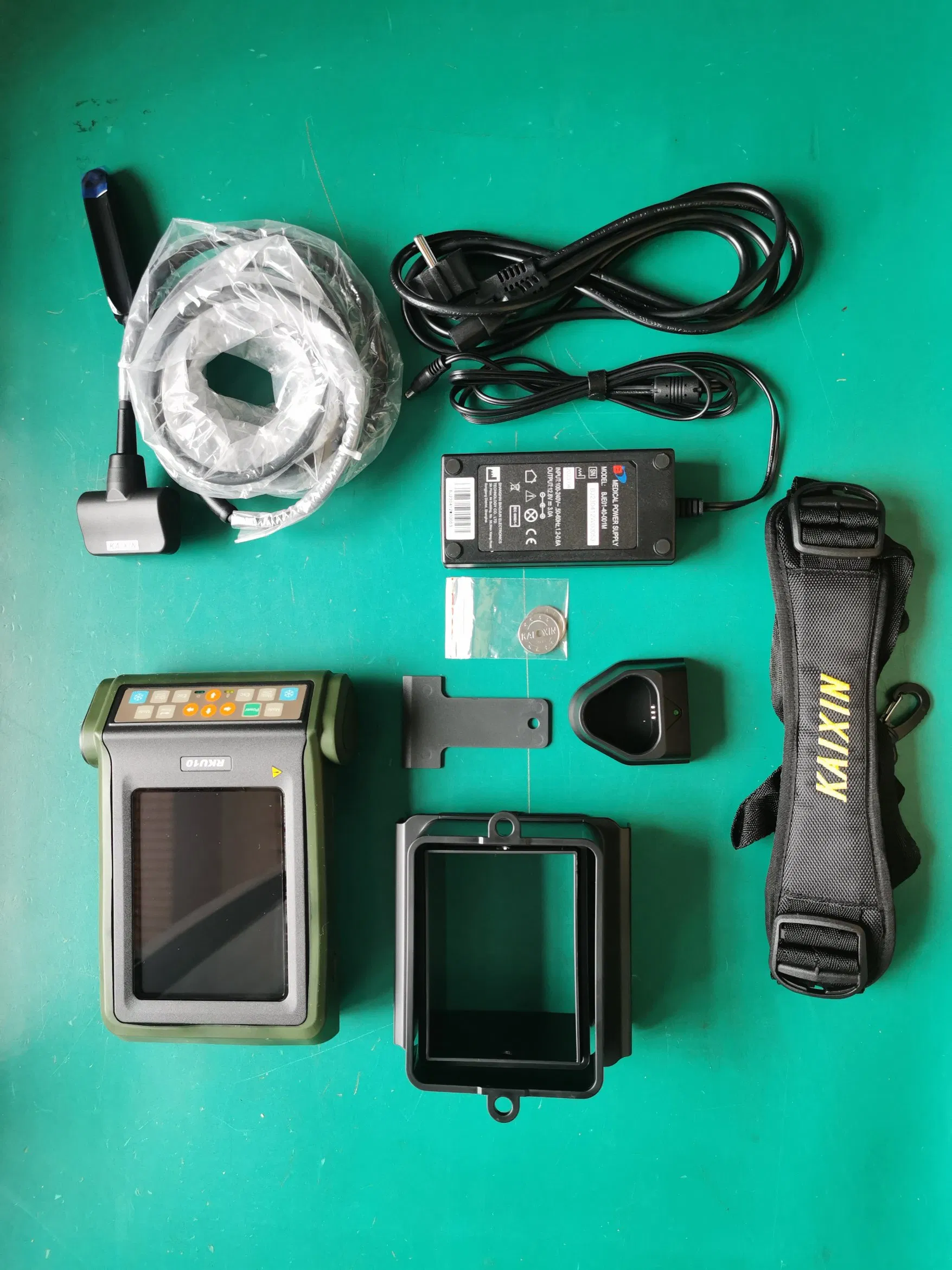

Standard Configuration

1Main Unit (1 pc)

26.5MHz linear rectal probe (1 pc)

3Power adapter & Li-battery (1 pc)

4Soft rubber coat & Sunshine cover

5Black plastic suitcase

6Base Charger, belt, probe socket spatula

Product Details

Frequently Asked Questions

? What animals can the RKU 10 be used for?

The RKU 10 is designed for a wide range of animals including bovine, equine, ovine, canine, feline, goat, swine, llama, and camels.

? How long can the device operate on a single charge?

Equipped with a high-capacity internal lithium battery, the device provides over 6 hours of continuous operation.

? Is the screen visible in bright sunlight?

Yes, it features a 5.7" high-brightness LED display and comes with a standard adjustable sunshield for outdoor use.

? What is the weight and portability of the unit?

The main unit is extremely portable, weighing only 1.1kg. It can be held by hand or worn via chest, back, or waist straps.

? Does it support specialized swine measurements?

Yes, it includes specialized functions for automatic calculation of swine back-fat and lean percentage.

? Is the device protected against farm environments?

The RKU 10 comes with a soft rubber coat that makes it splash-proof and dust-proof, ideal for clinic and field environments.
