Veterinary Ultrasonic Diagnostic Instrument for Pet Clinic and Farm Use

1 / 5

Veterinary Ultrasonic Diagnostic Instrument for Pet Clinic and Farm Use

Customization:	Available
Certification:	ISO13485
Type:	Veterinary Ultrasound Scanner

Send Inquiry

Product Description

Basic Specifications

ModelKX5600 VET

ApplicationPet Clinic / Farm

CompatibilityBovine, Equine, Swine, Goat, Canine

Net Weight4.5kg

Primary UsePregnancy & Disease Check

DesignPortable LED Model

HS Code90181210

Capacity6,000 PCS/Year

OriginChina

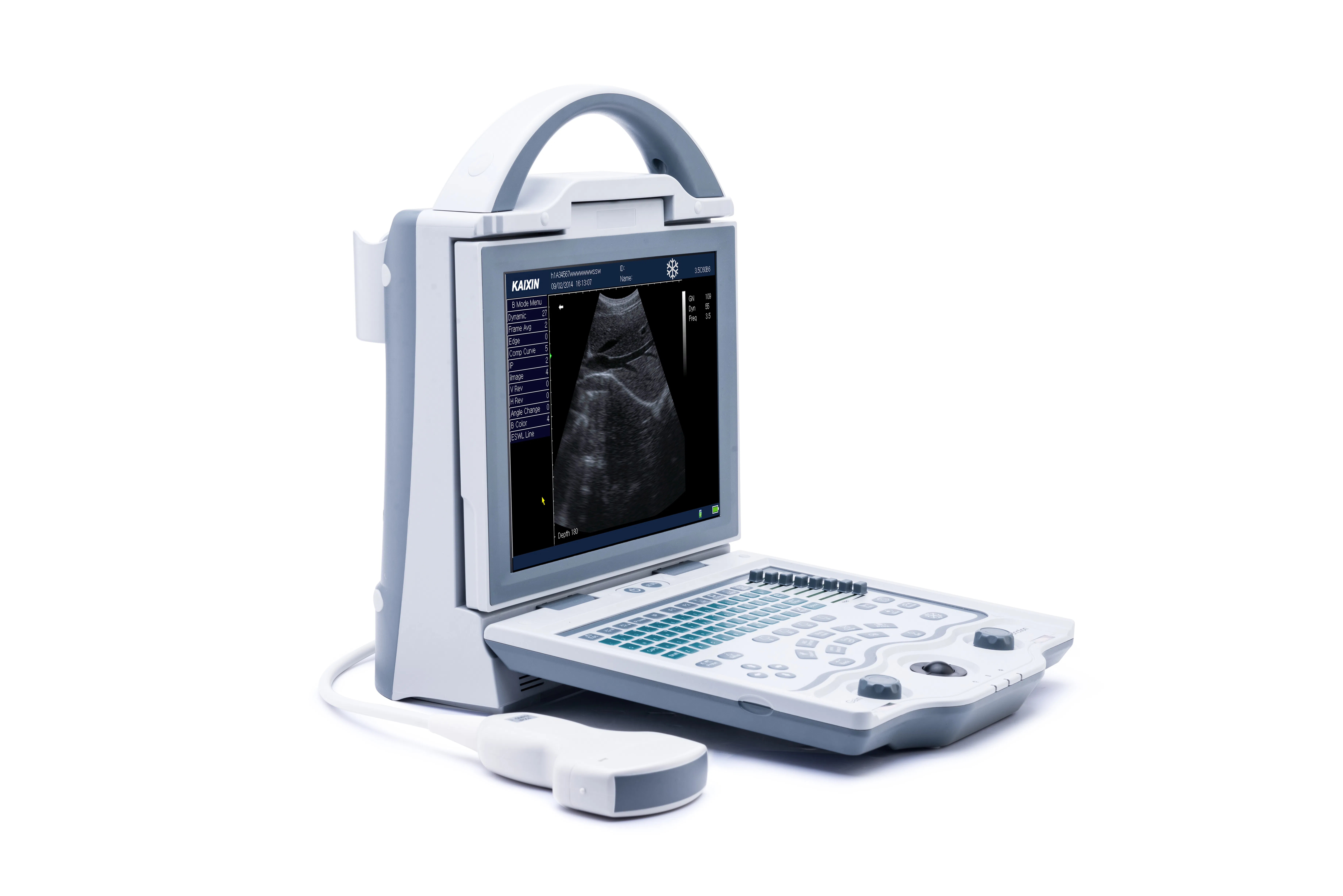

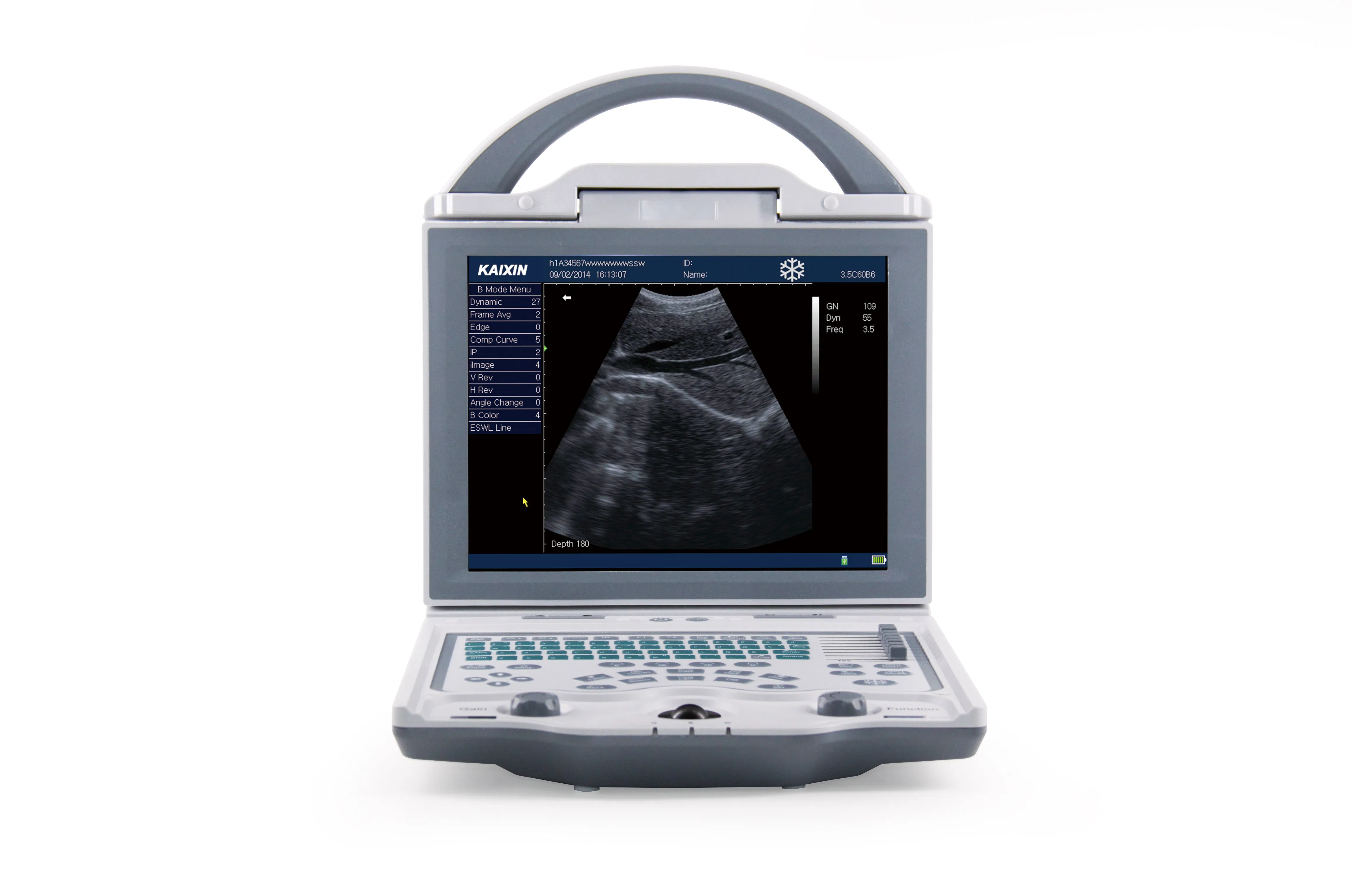

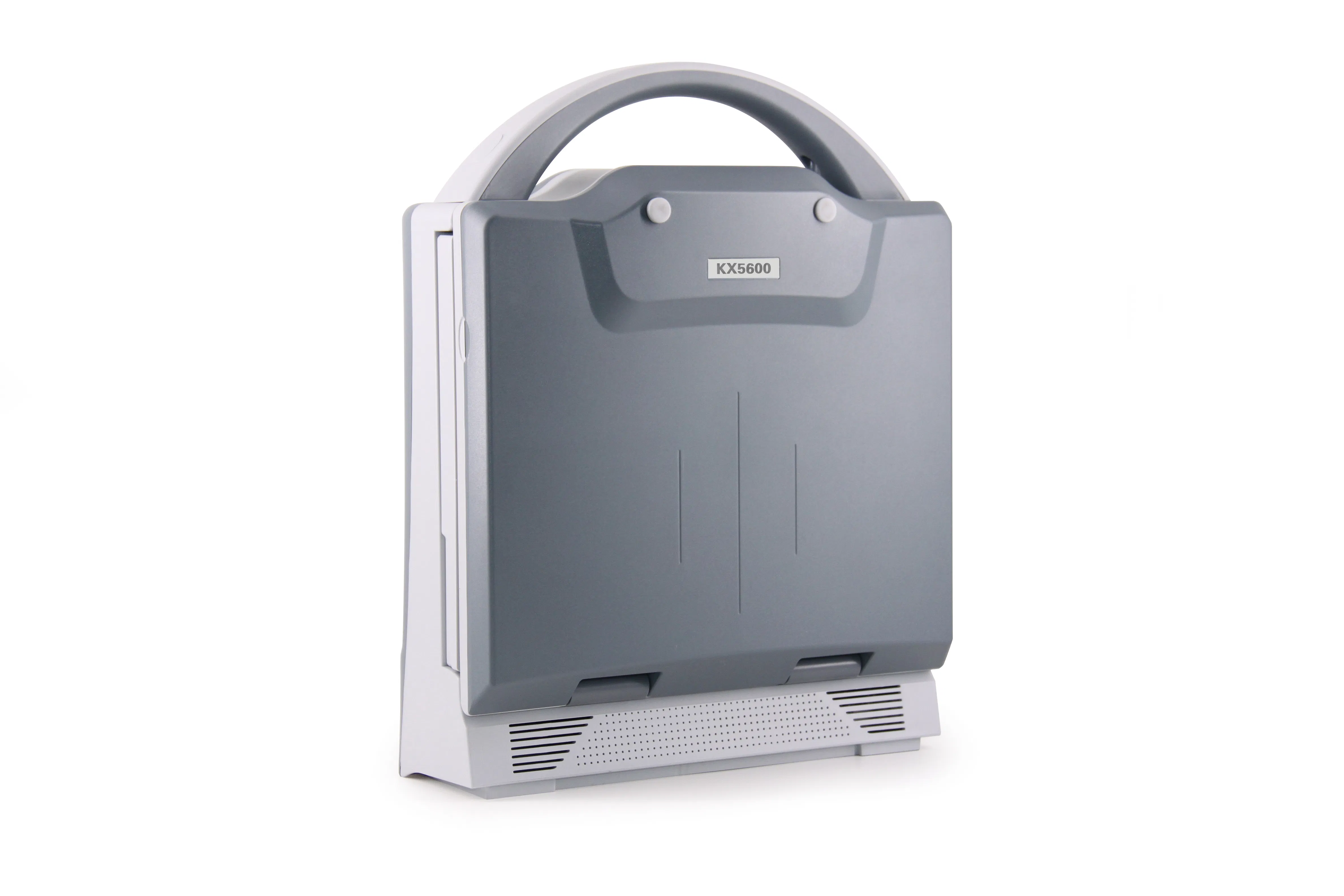

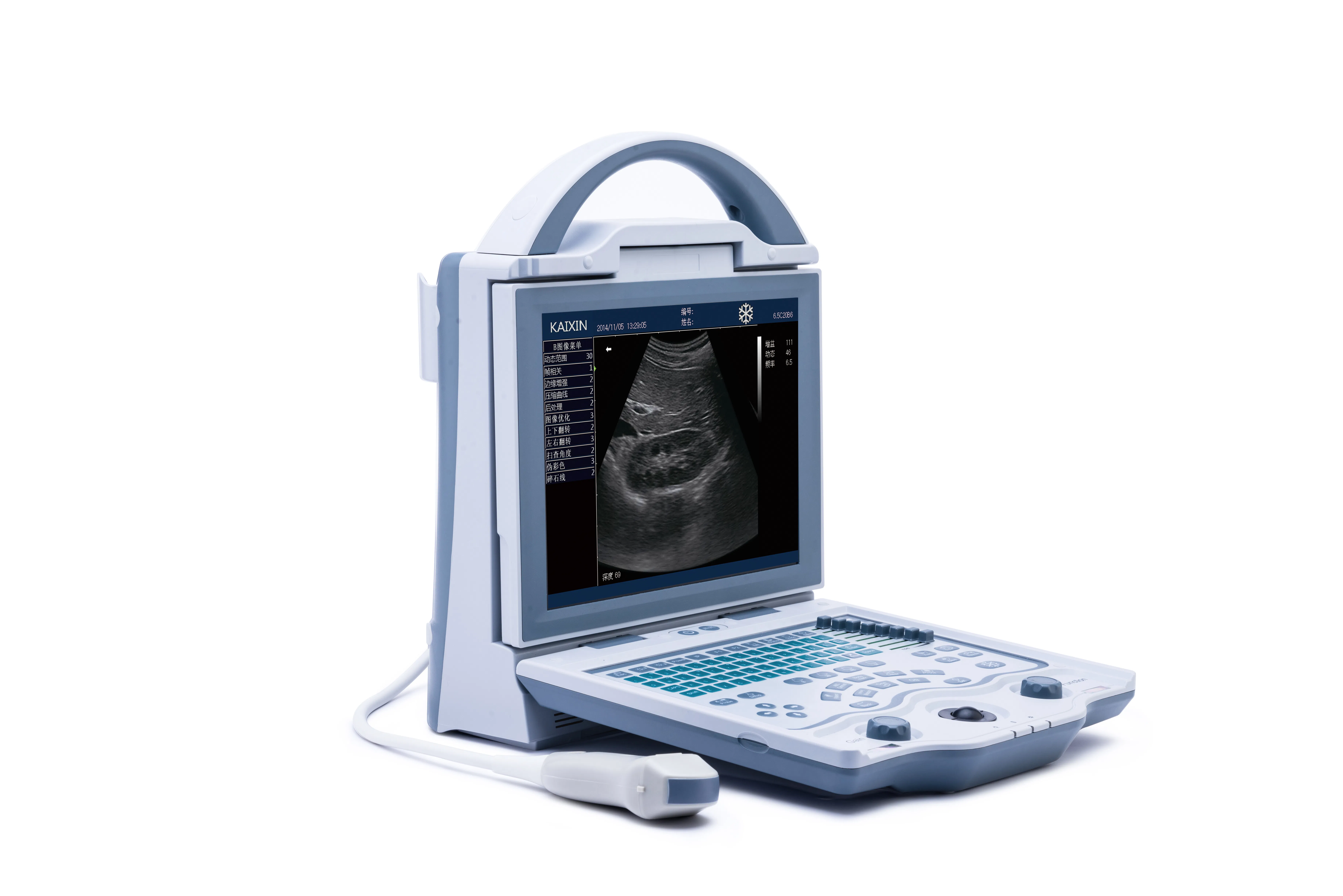

KX5600 Veterinary Ultrasound Scanner

Advanced New Portable LED Model designed for professional veterinary diagnostics with 10.4-inch high-resolution display.

Technical Parameters

10.4' High resolution color LED backlight display with wide viewing angles
Multilingual menu: English, Spanish, French, Russian, and Portuguese
Dual probe sockets with auto-identification technology
27 types of Body marks for General, Bovine, Canine, Equine, Feline, Cardio, and Swine
Multiple Display modes: B, 2B, 4B, B/M, M
Adjustable depth: 10 grades (Maximum depth 236mm)
Comprehensive measurement: Distance, circumference, area, volume, heart rate, and cycle
Advanced OB measurement for cattle, dogs, horses, cats, goats, camels, and sheep
4GB hard disk for permanent storage of ~5000 frames
One-key functions: Store, Review, Print, and Transfer
Intelligent TGC in 8 adjustable steps and 256 gray scale levels
Unique one-key-light keyboard for dark room operations

Standard Configuration

01	Main unit (1pc)
02	6.5MHz linear rectal probe (1pc)
03	Power supply adaptor (1pc)
04	Reticle (1pc)
05	Two probe sockets

Optional Configuration

A	6.5MHz micro-convex probe for small animals
B	3.5MHz linear probe for eye muscle
C	3.5MHz convex probe
D	7.5MHz high linear probe
E	Li-battery: HYLB-1614 11.1V-4400mAh 48.84Wh & Charger
F	Trolley & Video printer

Product Visuals

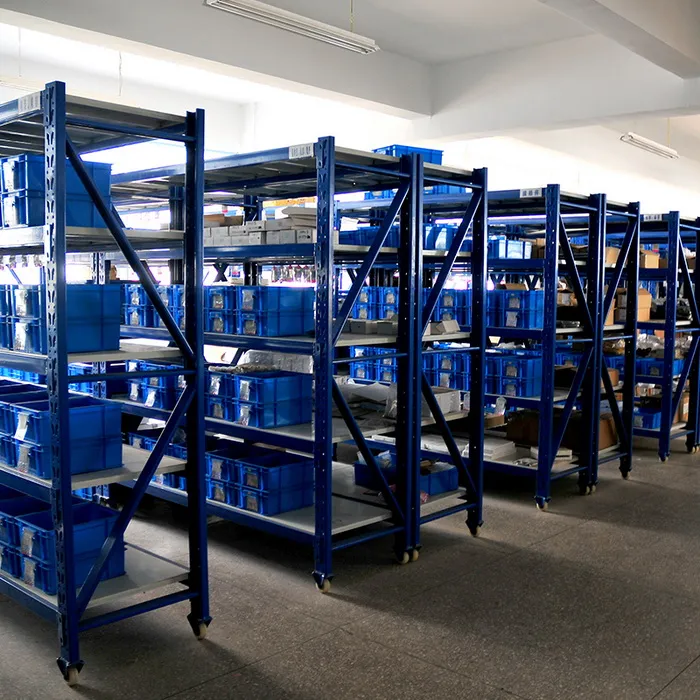

Veterinary Ultrasonic Diagnostic Instrument View 1

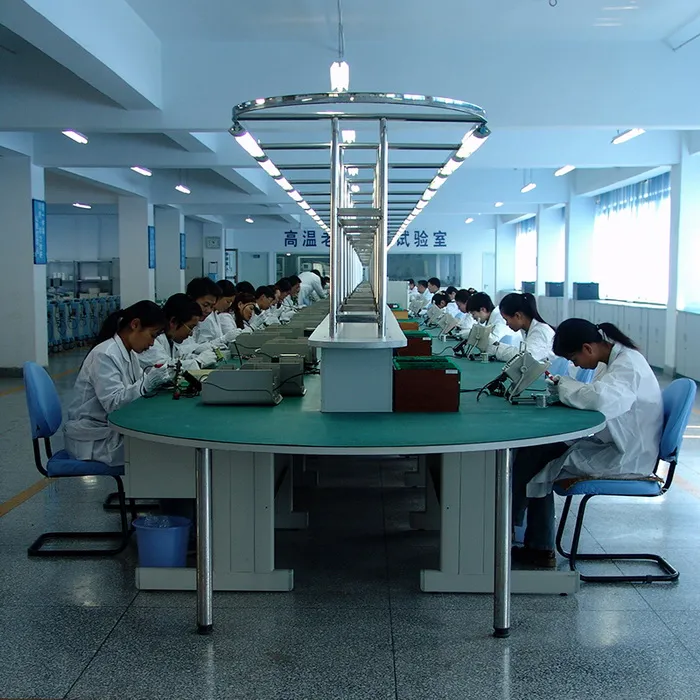

Veterinary Ultrasonic Diagnostic Instrument View 2

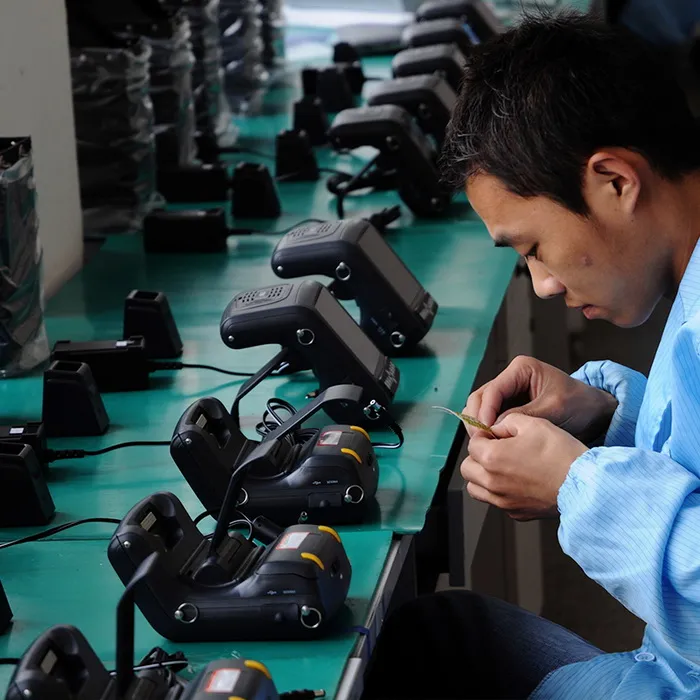

Veterinary Ultrasonic Diagnostic Instrument View 3

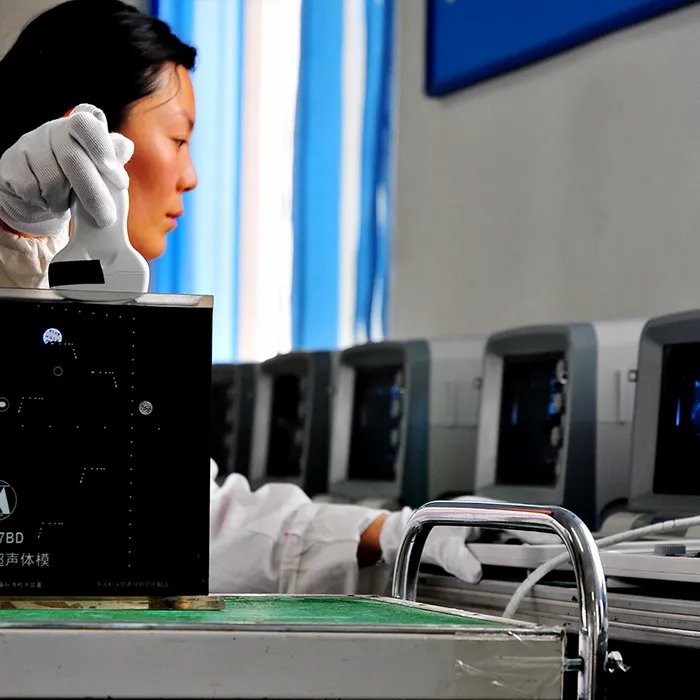

Veterinary Ultrasonic Diagnostic Instrument View 4

Frequently Asked Questions

What animals is the KX5600 VET suitable for?

It is specifically designed for a wide range of animals including Bovine (cattle), Equine (horses), Swine (pigs), Goats, Canines (dogs), Felines (cats), and even Camels.

Is this device portable for field use?

Yes, it features a portable design with a net weight of only 4.5kg and offers an optional Li-battery configuration, making it ideal for both clinic and farm environments.

What kind of display does it have?

The unit is equipped with a 10.4-inch high-resolution color LED backlight display, featuring high contrast and wide viewing angles for clear diagnostic imaging.

Can I store images directly on the machine?

Absolutely. It includes a 4GB internal hard disk capable of permanently storing approximately 5000 frames of images, along with a 256-frame cine loop feature.

Does the system support multiple languages?

Yes, the menu operation system supports English, Spanish, French, Russian, and Portuguese, allowing for easy operation by international professionals.

What are the "One-Key" functions?

The system is designed for efficiency with one-key shortcuts for storing images, reviewing archives, printing reports, and transferring data to workstations.
