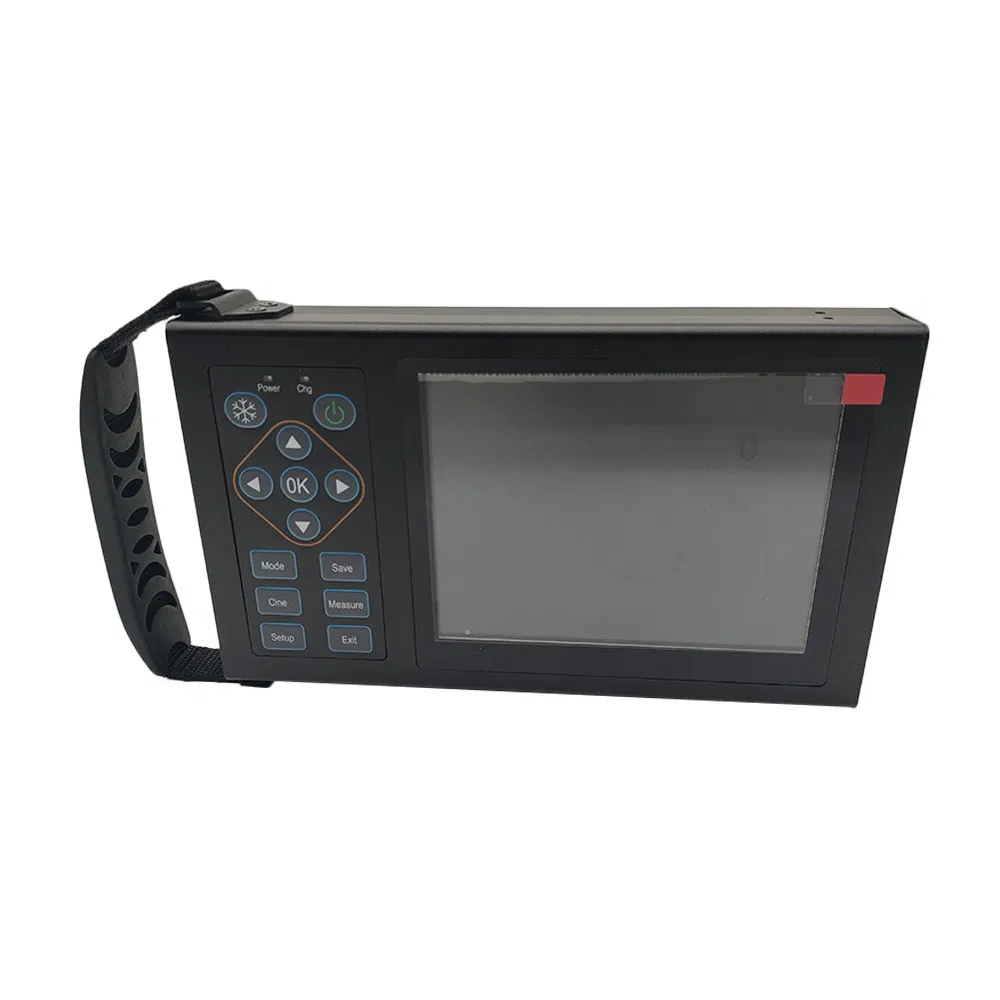

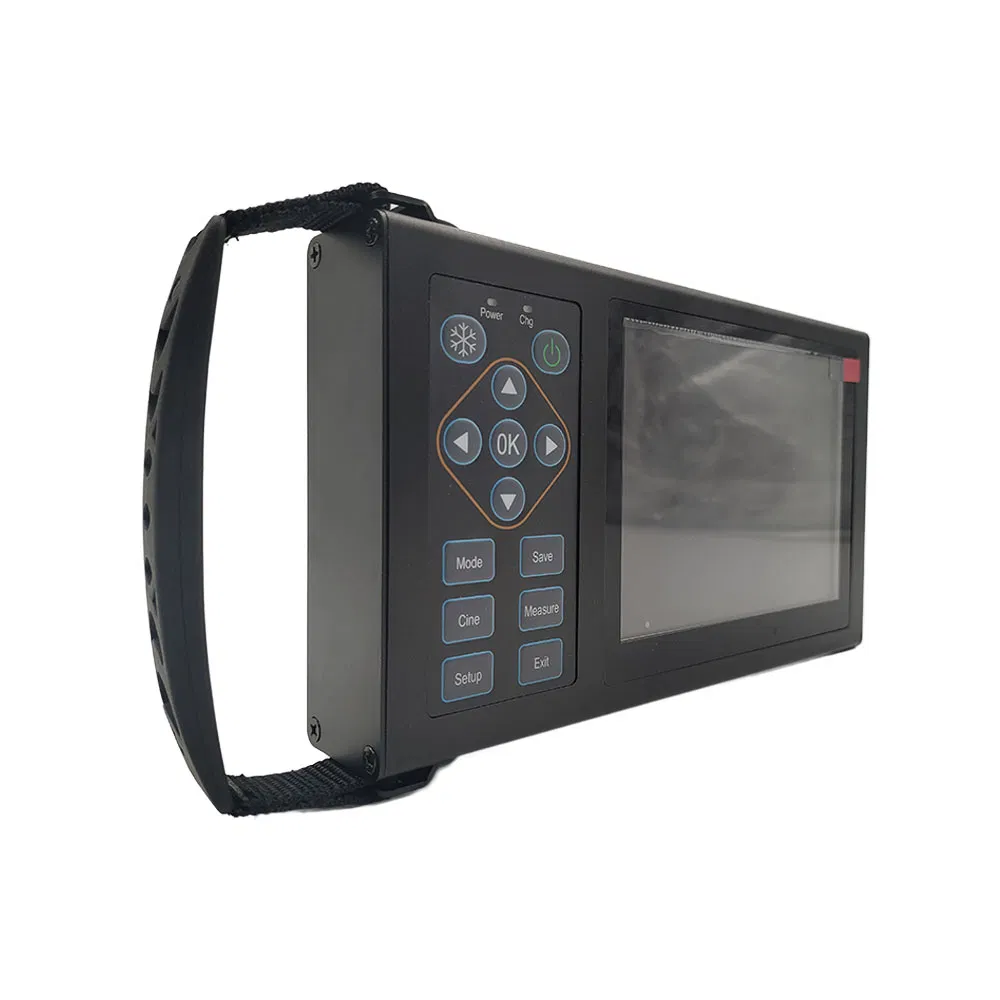

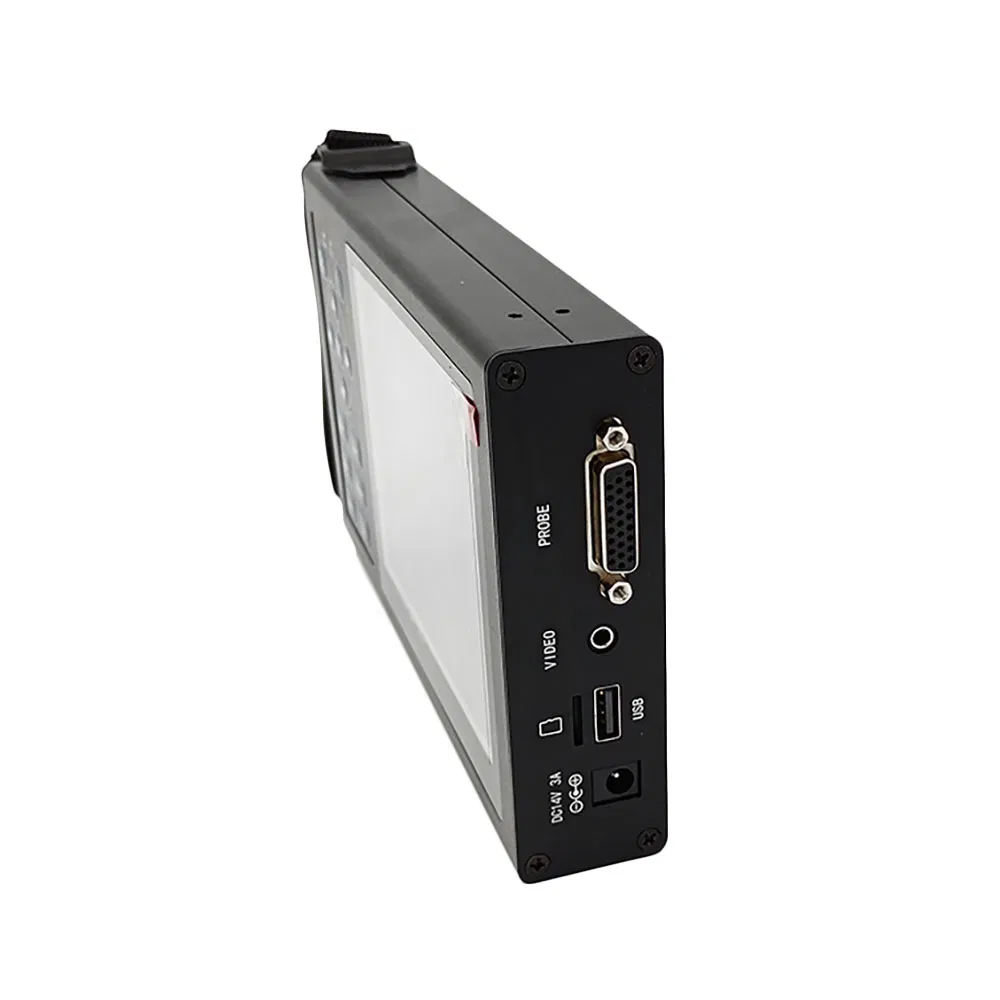

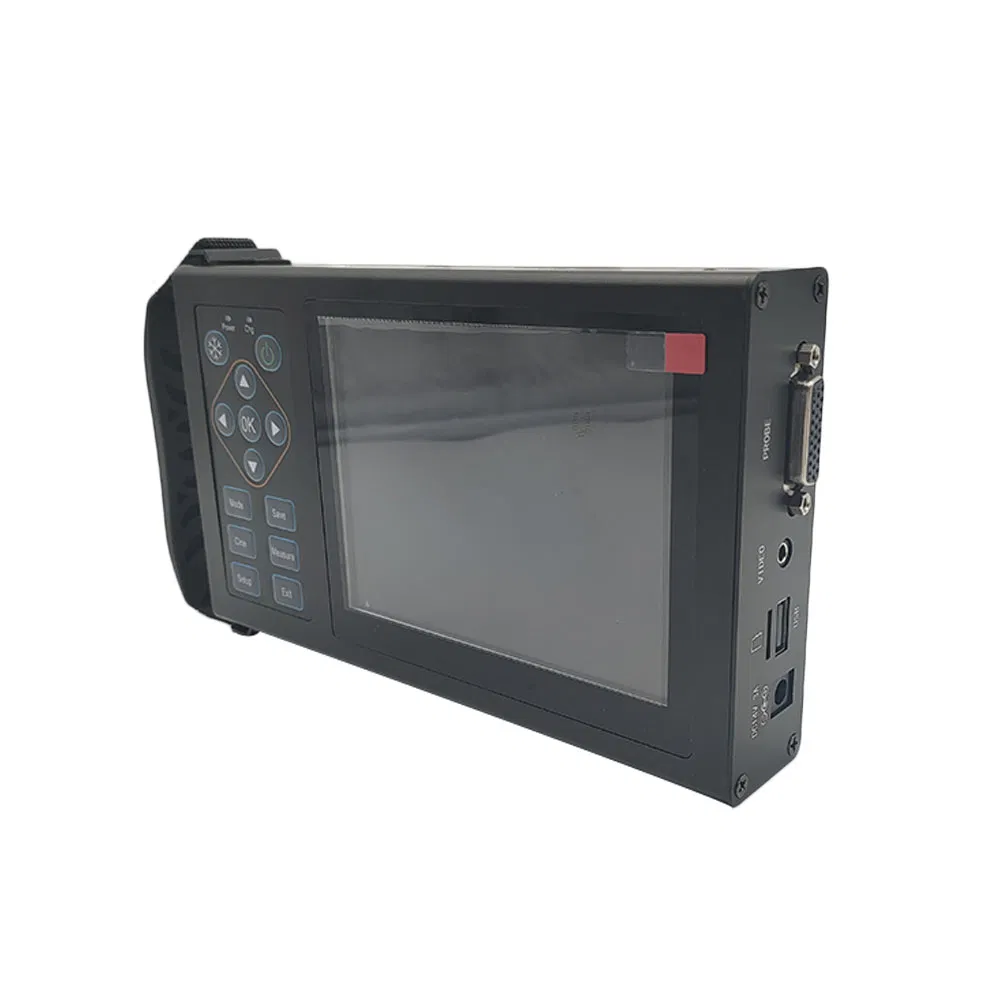

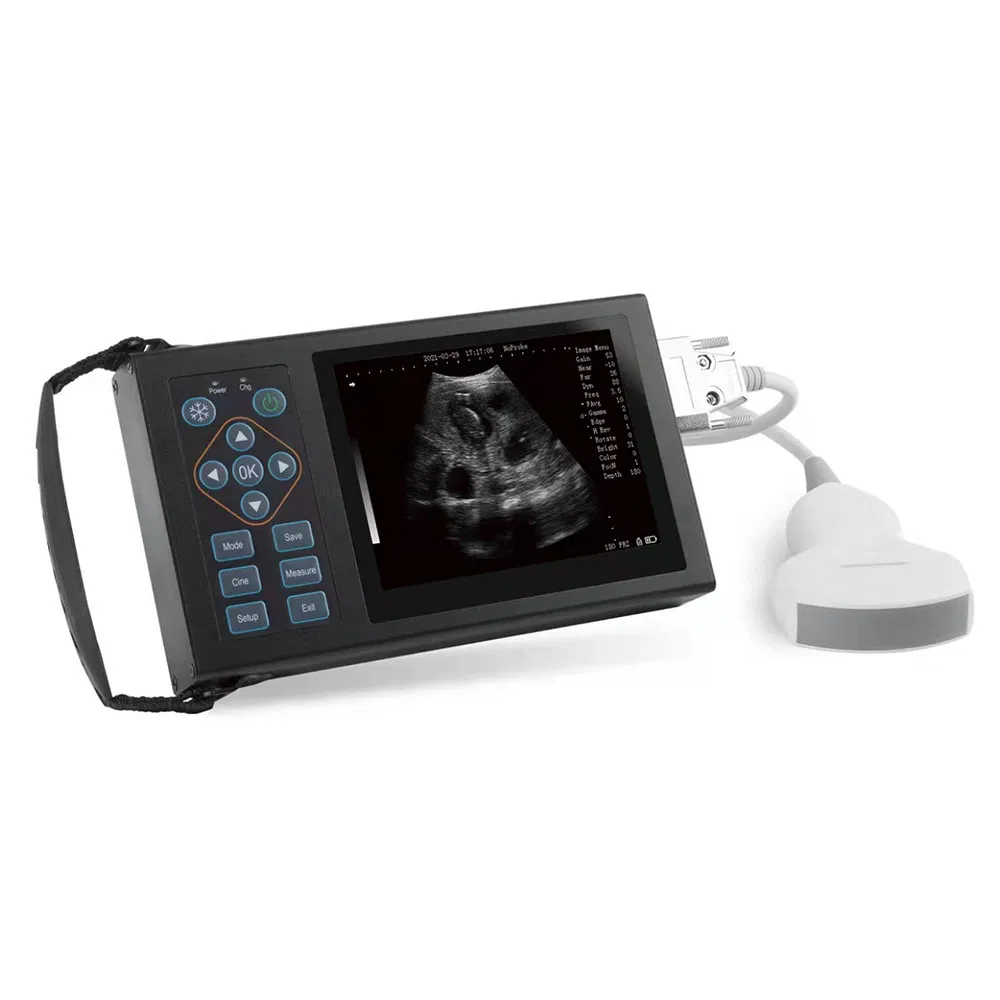

ICEN Vet Animal Use Ultrasound Equipment Veterinary Full Digital Ultrasonic Diagnostic Instrument

Customization: Available
Vet Use Ultrasonic Transducer: Handheld veterinary Pet ultrasound
Display screen: 5.6 inch

Product Description

Basic Specifications
Model NO.
IN-A10
Scanning mode
Convex array scanning
Display mode
B, B+B, 4B, B+M, M
Dynamic range
0-135db
Max Display Depth
270mm
Electron focusing
Four stage electron focusing
Character display
Gain, frequency, dynamic, date, time
Product Display

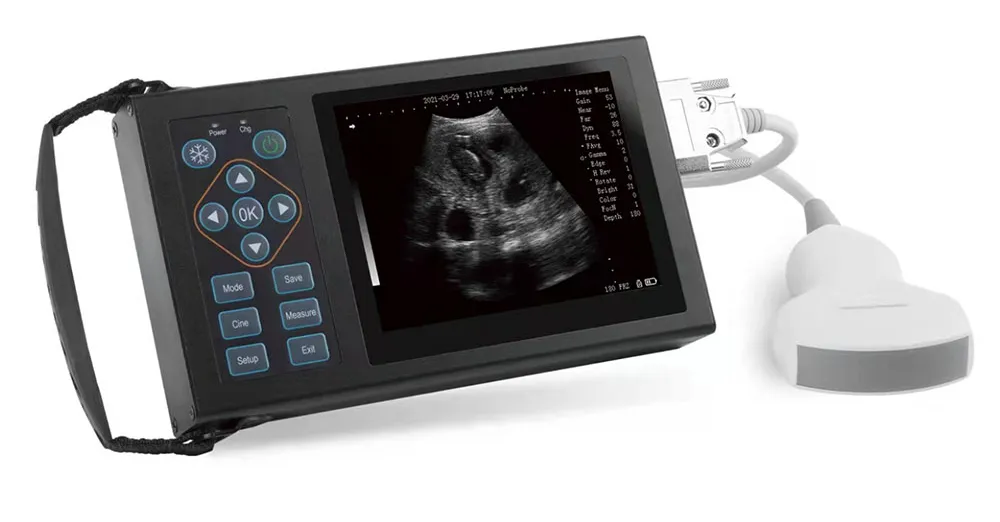

Ultrasound Equipment 1

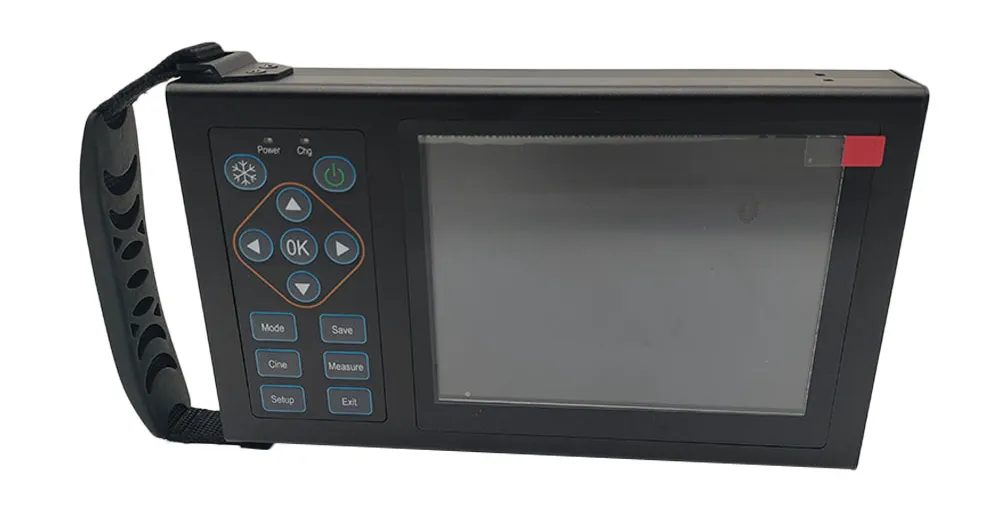

Ultrasound Equipment 2

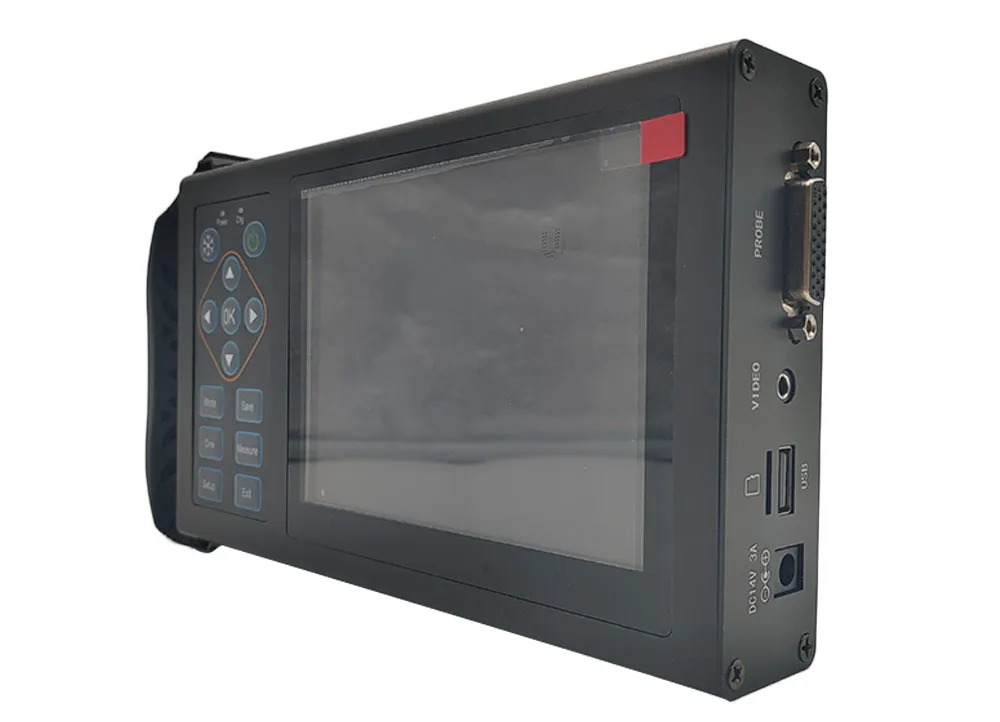

Ultrasound Equipment 3

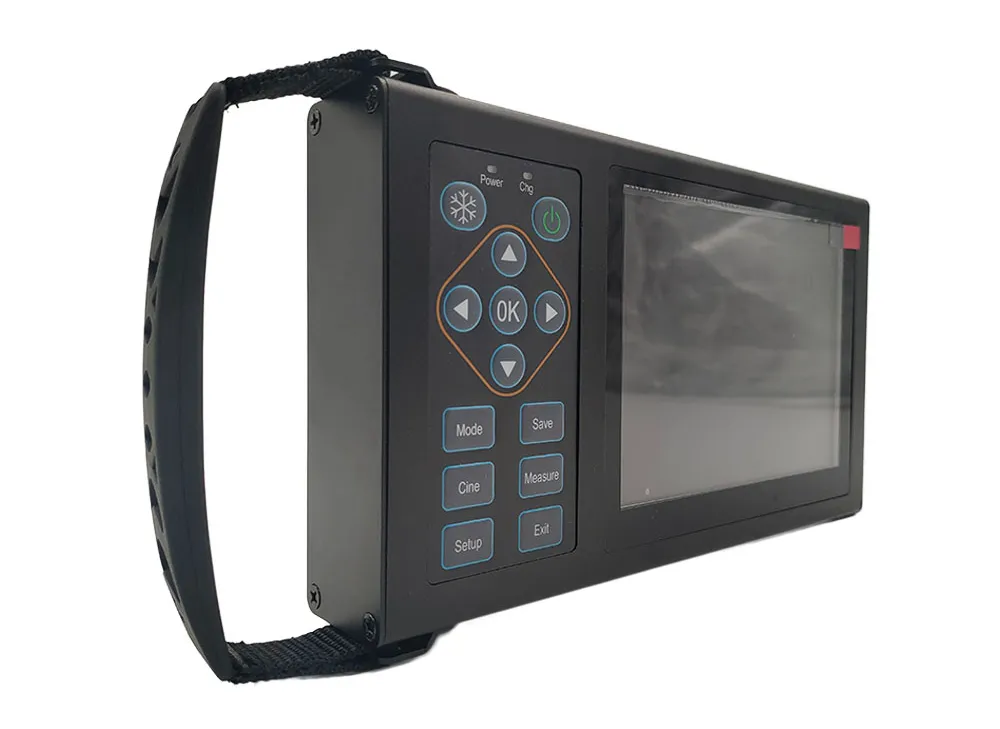

Ultrasound Equipment 4

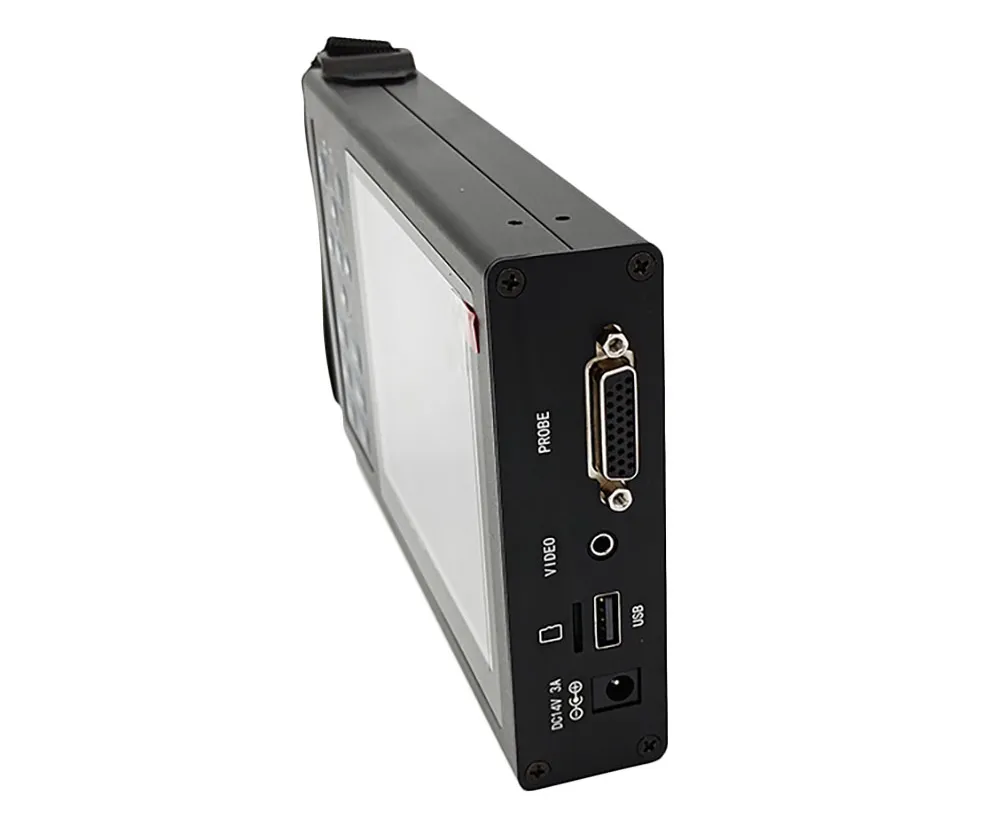

Ultrasound Equipment 5
Ultrasound Equipment 6

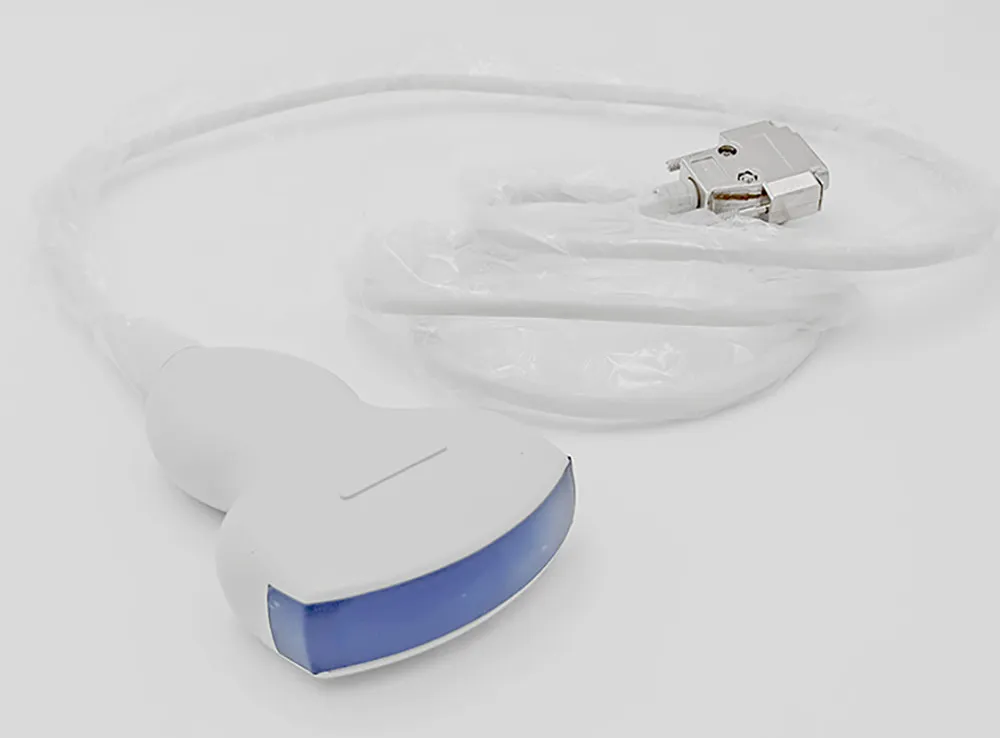

Ultrasound Equipment 7

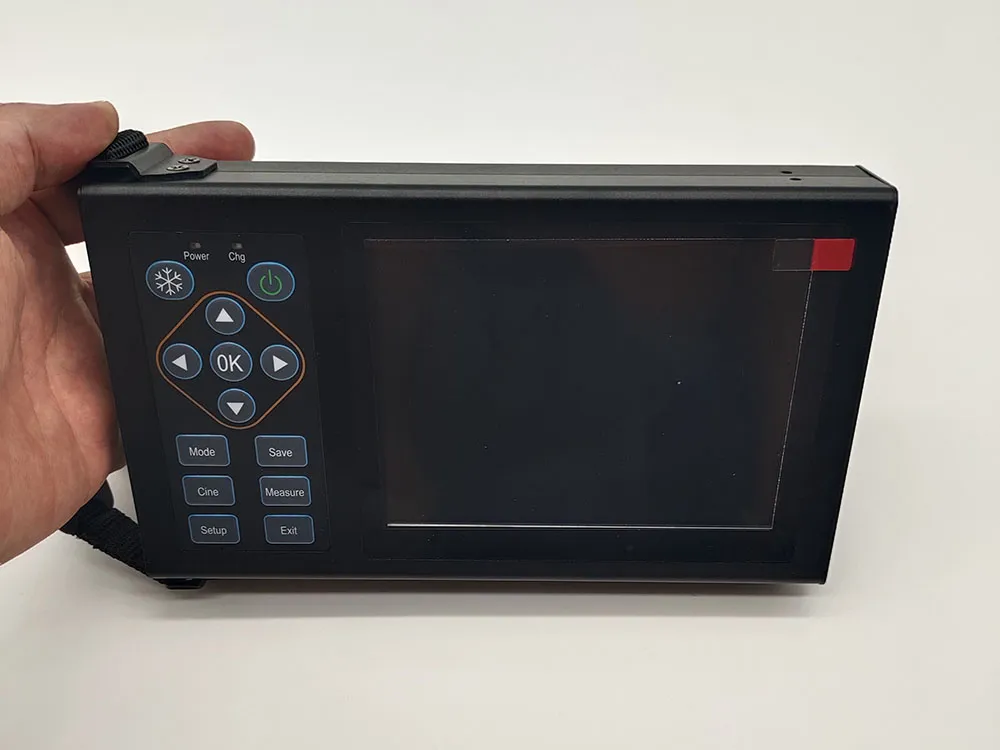

Ultrasound Equipment 8

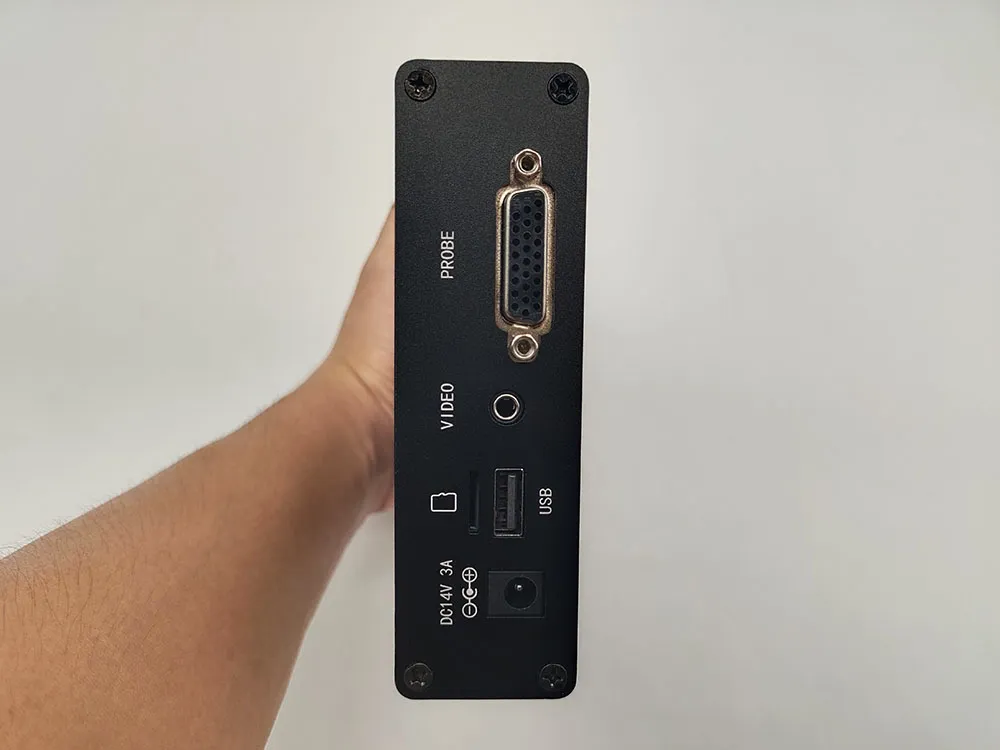

Ultrasound Equipment 9

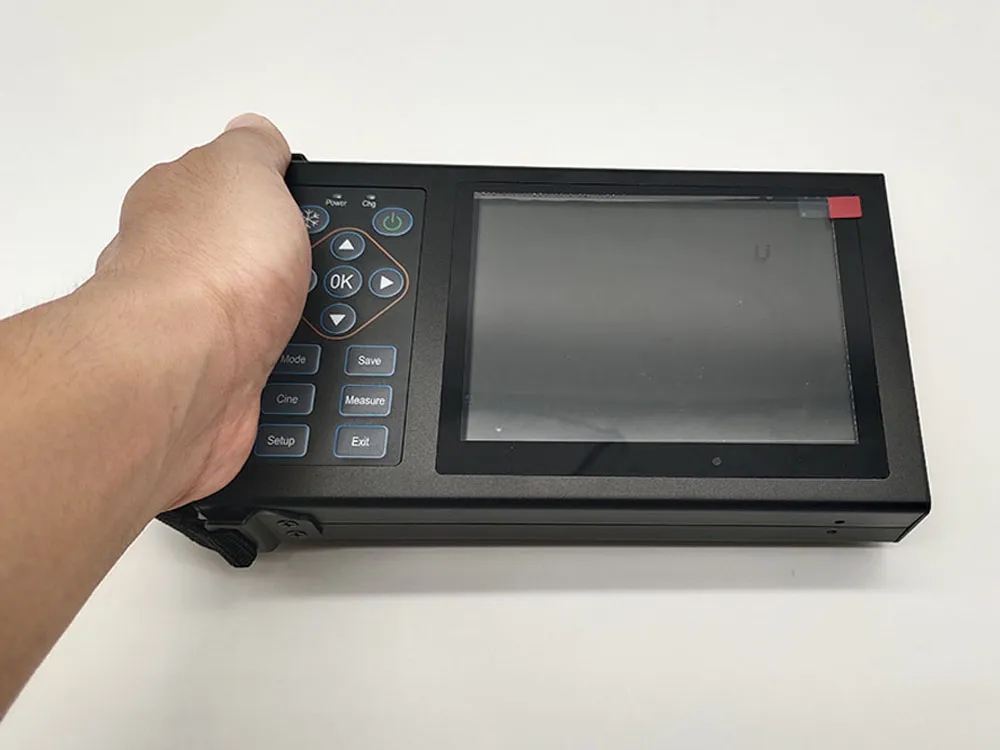

Ultrasound Equipment 10

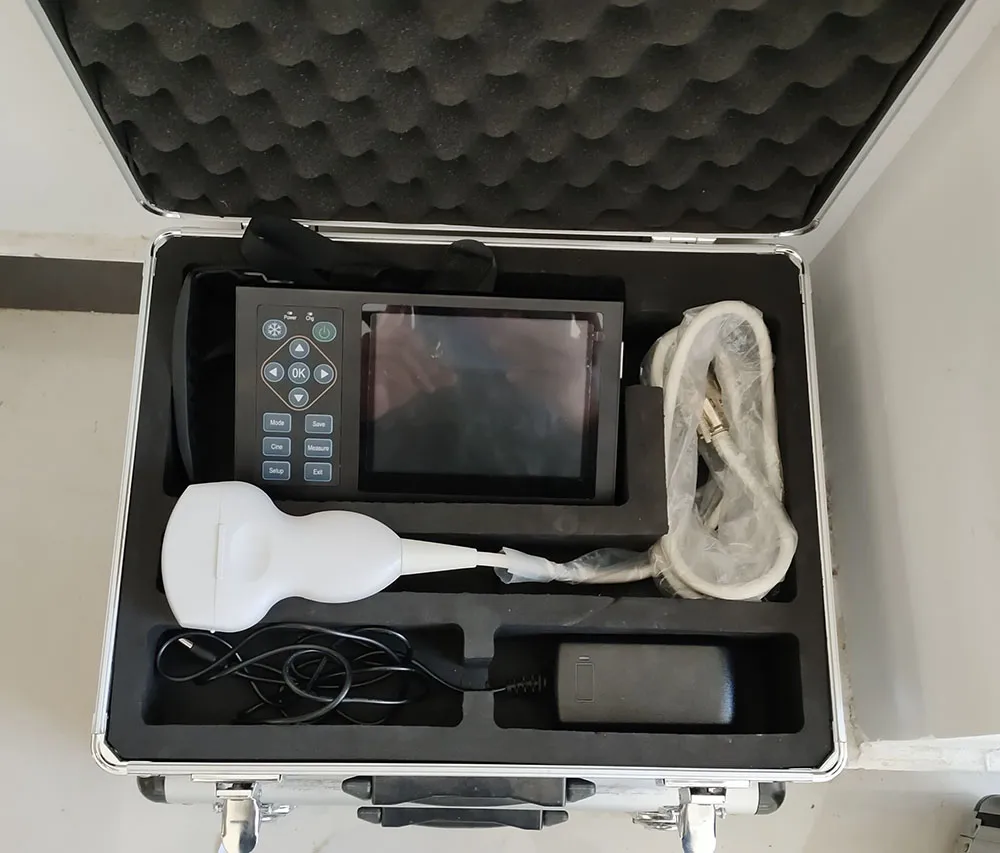

Ultrasound Equipment 11

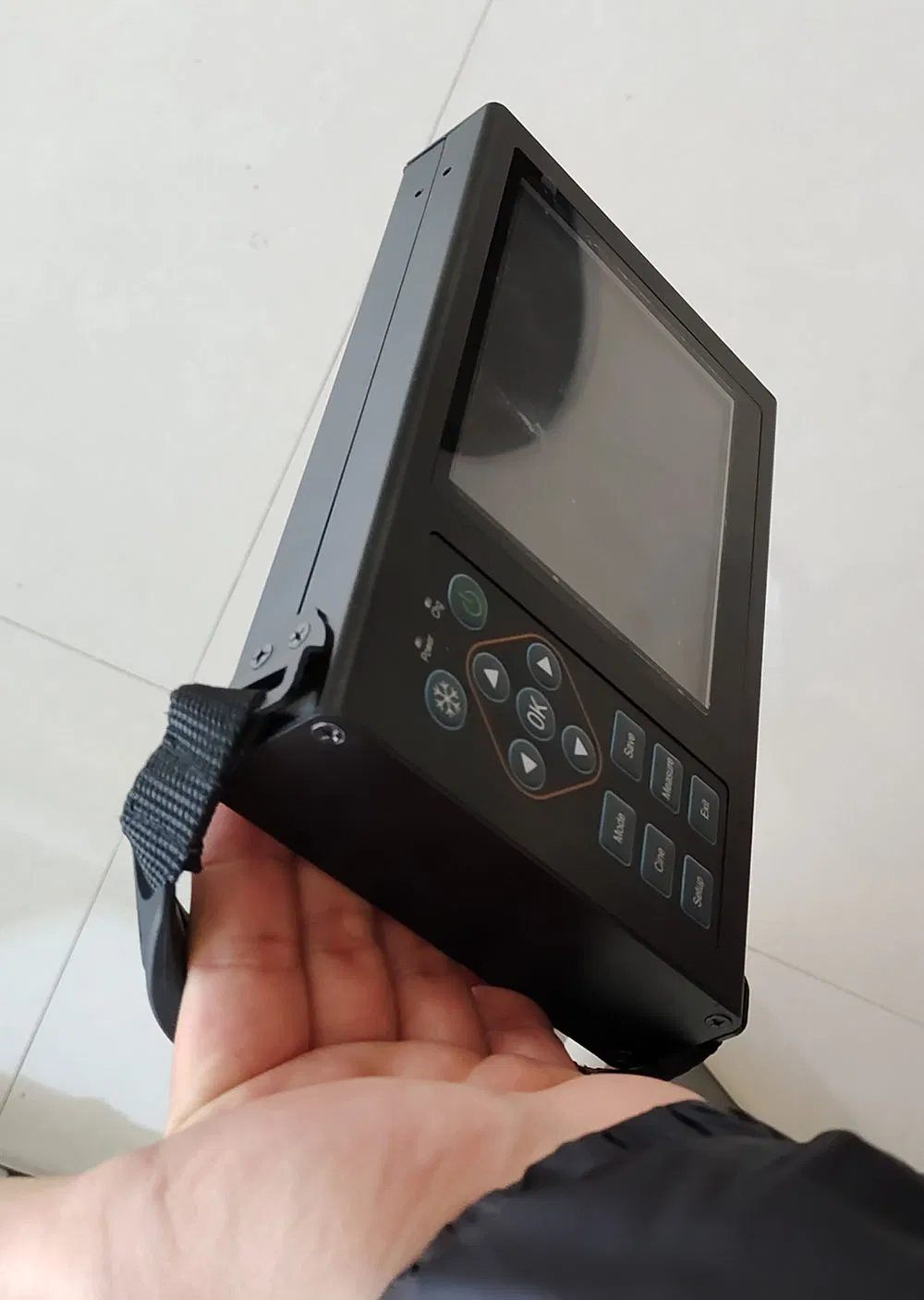

Ultrasound Equipment 12

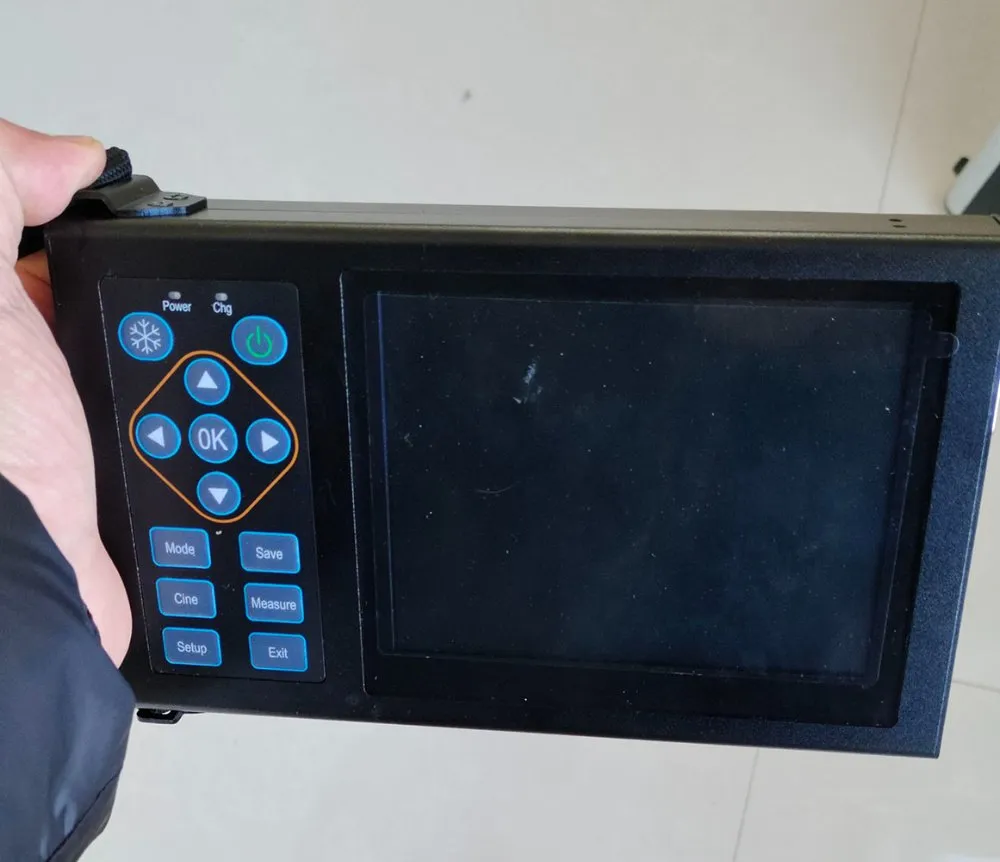

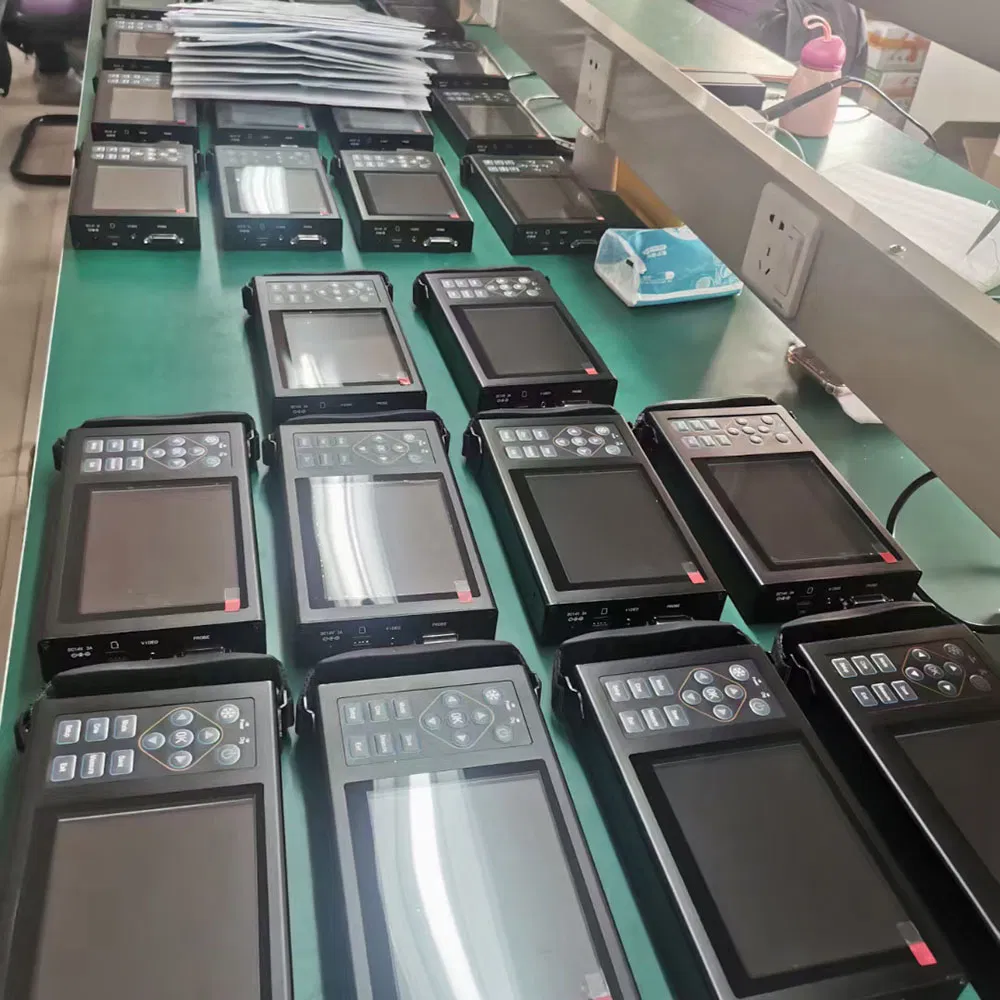

Ultrasound Equipment 13
Ultrasound Equipment 14

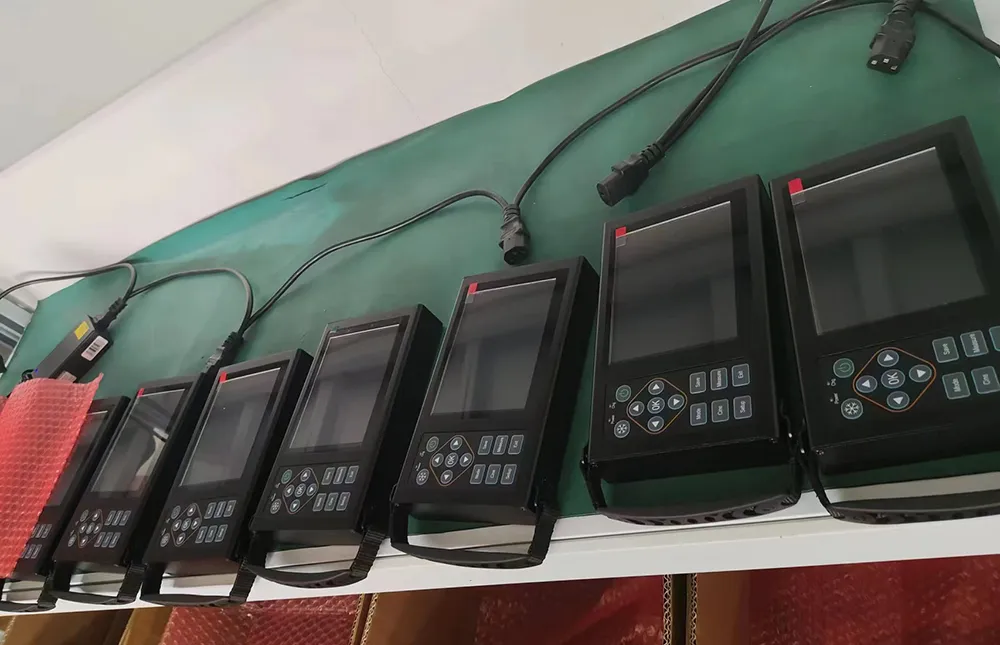

Ultrasound Equipment 15
Technical Features
1. Display: 5.6-inch LED display;
2. Scanning mode: convex array scanning;
3. Metal wire drawing fuselage, 35mm thick, high heat dissipation;
4. Automatic, fast, and manual backfat measurement functions;
5. Display modes: B, B+B, 4B, B+M, M;
6. Electron focusing: four stage electron focusing;
7. More than 18 body position markers;
8. Frequency conversion: five section frequency conversion;
9. Image rotation: up, down, left, right, and black/white flip;
10. Text and body mark annotation function;
11. Routine measurement: distance, perimeter, area, volume, and angle;
12. Specialty: heart measurement and lean meat rate measurement;
13. Obstetric measurement for 8 kinds of animals;
14. Grid ruler and point ruler for quick object sizing;
15. 256 frame movie playback function;
16. Storage: memory card and USB disk support;
17. Image processing: gamma correction, frame correlation, edge enhancement;
18. Pseudo color processing: 16 types;
19. Max display depth: 270mm;
20. Large capacity lithium battery (18650 cell), works for 4 hours;
21. Noiseless, high strength aluminum alloy heat dissipation design.
Frequently Asked Questions
What animals is this ultrasound equipment suitable for?
It includes specialized obstetric measurement software for 8 different kinds of animals, making it versatile for various veterinary clinical applications.
How long does the battery last during field use?
The device is equipped with a large-capacity imported 18650 standard lithium battery, providing approximately 4 hours of continuous working time.
Can I save and export diagnostic images?
Yes, the system supports both memory card and USB disk storage, allowing you to browse pictures on the machine or export them for further analysis.
What are the key image processing features?
It offers 16 kinds of pseudo-color processing, gamma correction, edge enhancement, and a 256-frame movie playback function for detailed diagnostic review.
Is the device durable for outdoor veterinary work?
Absolutely. It features a metal wire drawing fuselage with a high-strength aluminum alloy shell designed for natural heat dissipation and durability in various environments.
