Veterinary Ultrasonic Diagnostic Instrument for Comprehensive Pet Clinic Use

1 / 5

Veterinary Ultrasonic Diagnostic Instrument for Comprehensive Pet Clinic Use

Customization:	Available
Certification:	ISO13485
Type:	Veterinary Ultrasound Scanner

Send Inquiry

Product Description

Basic Information

Model NO.

KX5600 VET

Instrument Type

Veterinary Pet Clinic

Application

Bovine, Equine, Swine, Goat, Canine

Net Weight

4.5kg

Medical Use

Animal Pregnancy & General Disease Check

Design

Portable Design

Origin

China

HS Code

90181210

Capacity

6,000 PCS/Year

Product Description

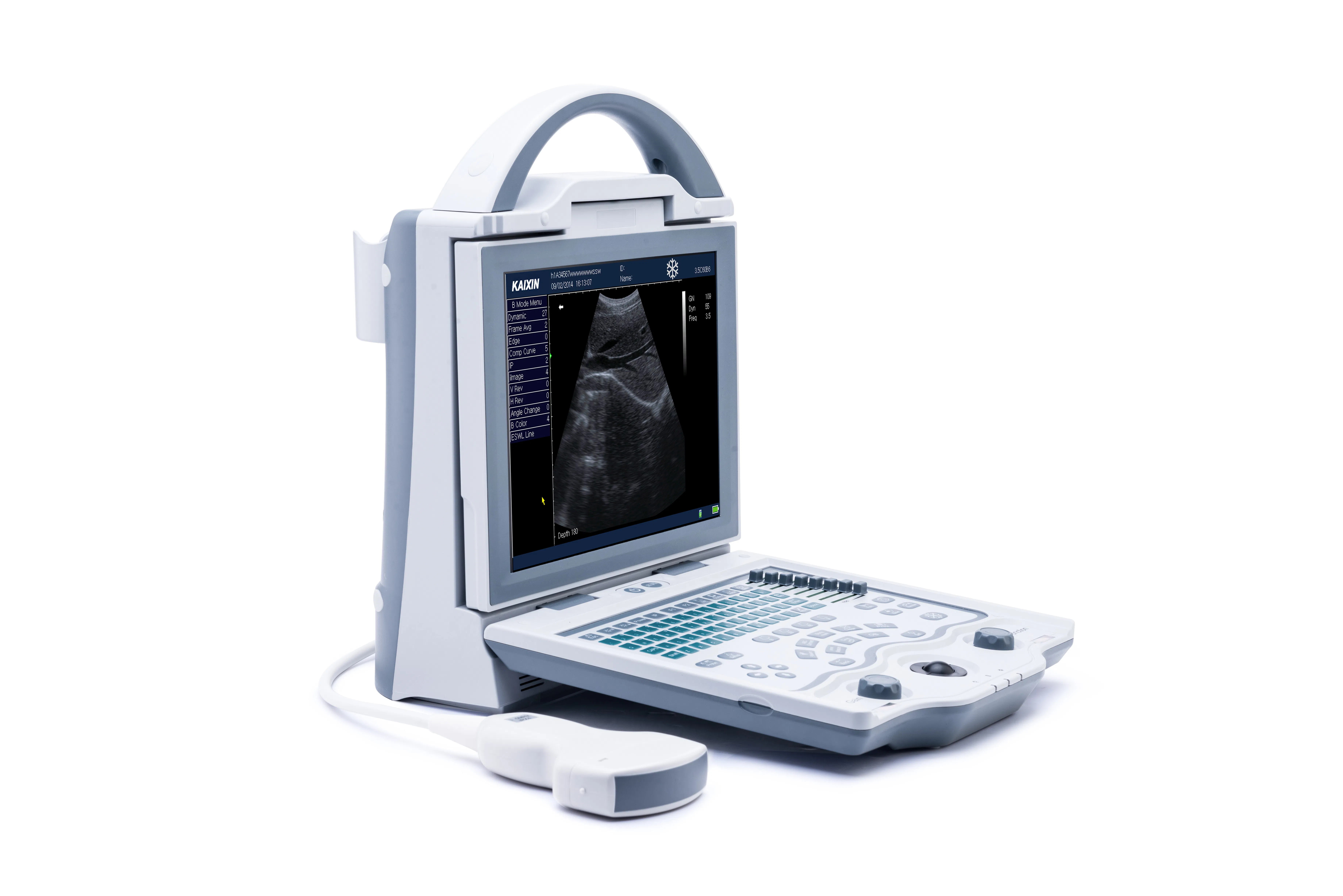

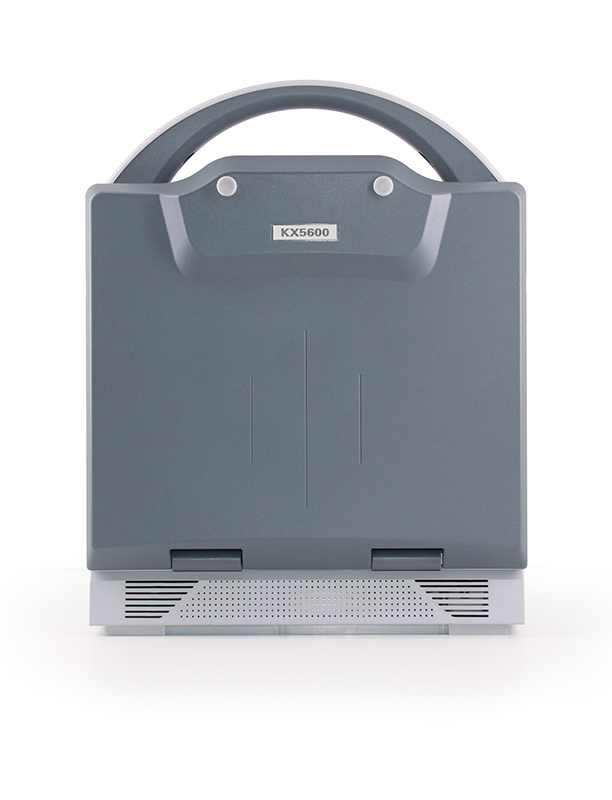

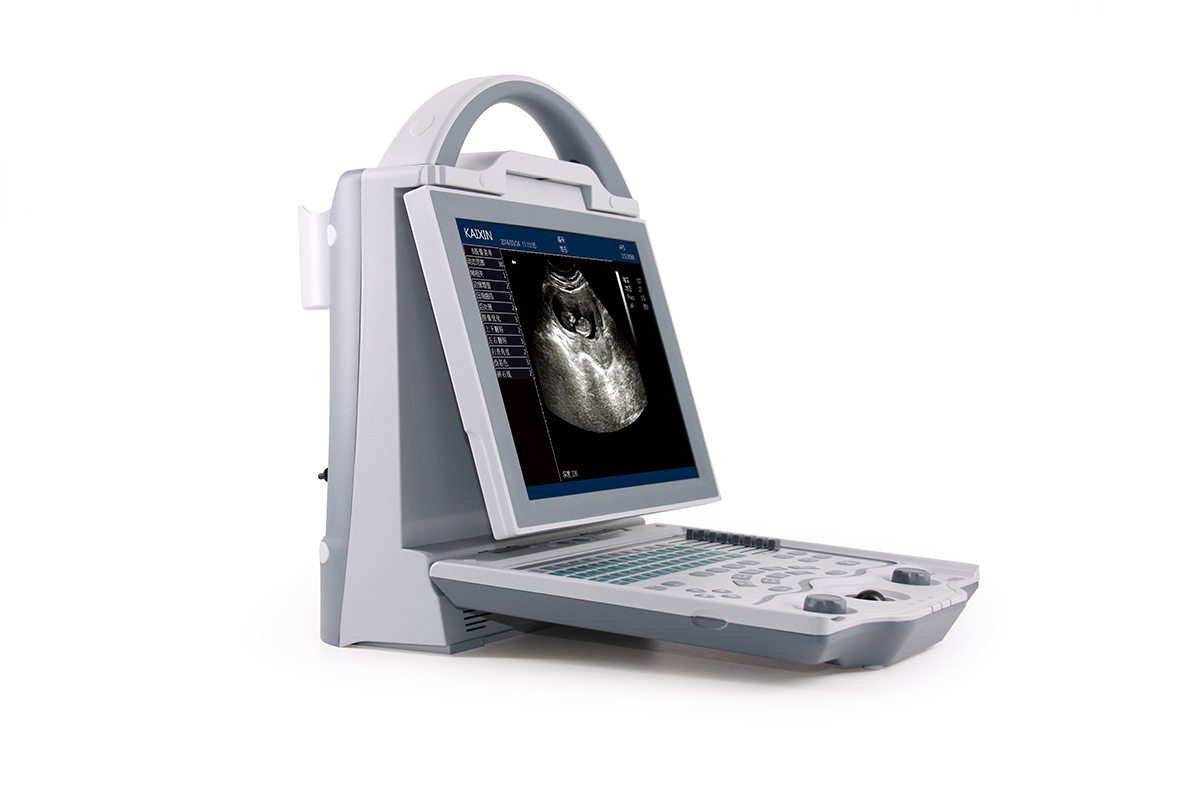

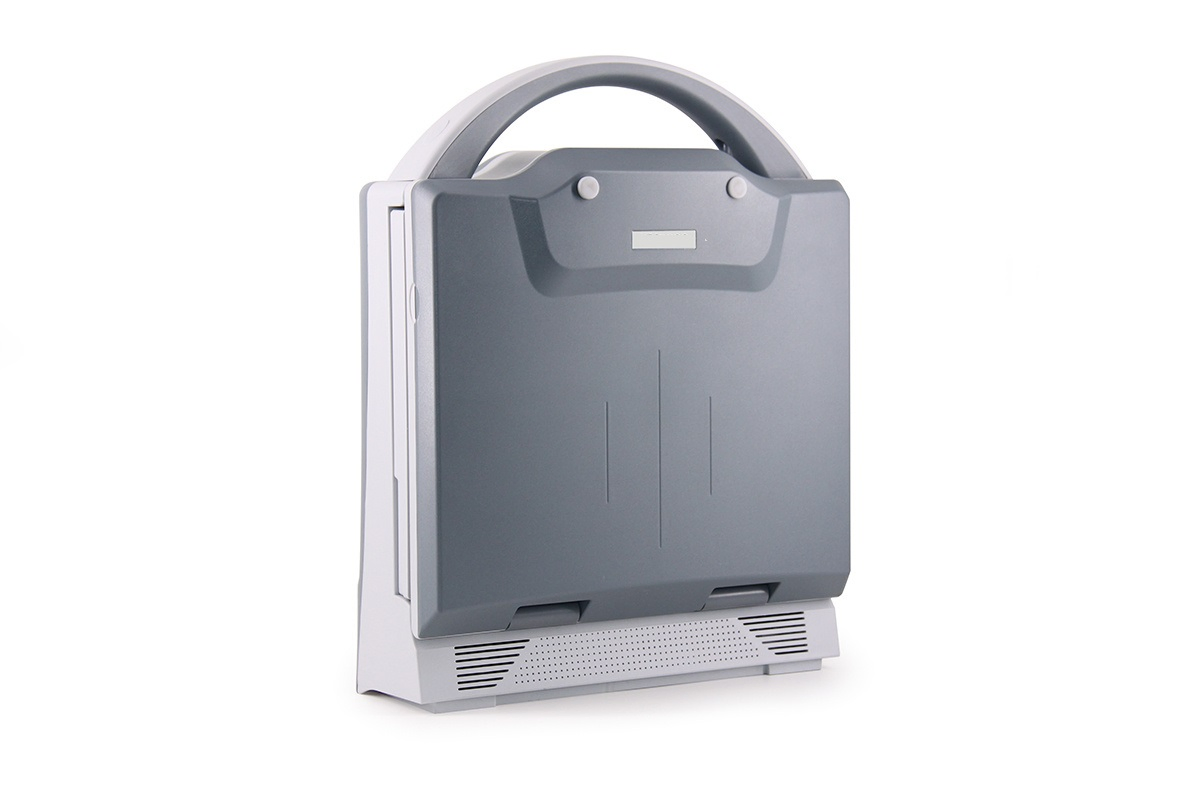

Introducing the KX5600 Veterinary Ultrasound Scanner

Your ultimate diagnostic partner for comprehensive pet clinic use. This new portable LED model features advanced technology parameters for precision diagnostics.

Technical Parameters & Key Features

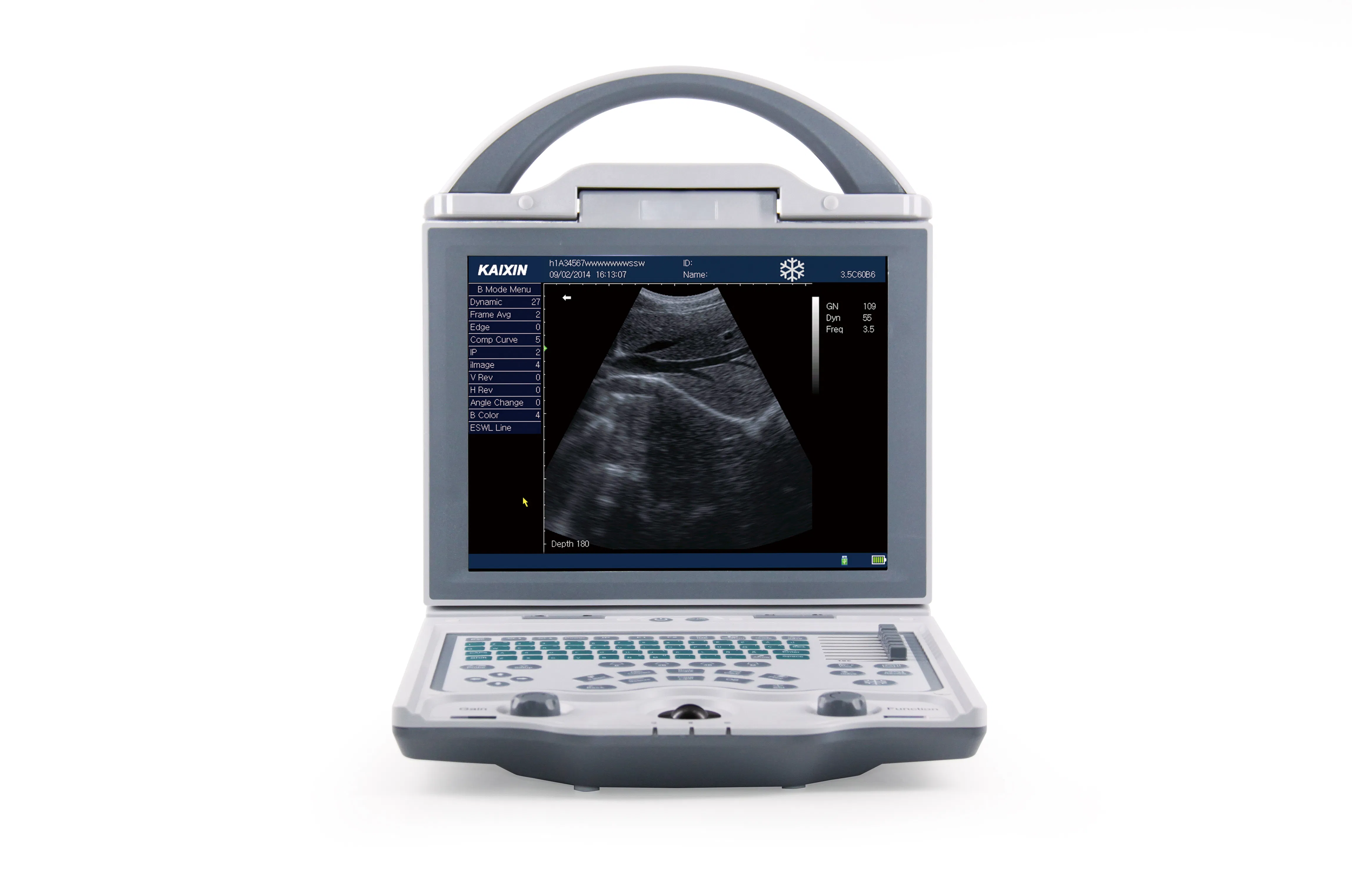

10.4" High-resolution color LED backlight display with wide viewing angle.
Multi-language menu: English, Spanish, French, Russian, and Portuguese.
Dual probe sockets with automatic identification.
27 Body Marks: Bovine, Canine, Equine, Feline, Cardio, Swine, etc.
Display modes: B, 2B, 4B, B/M, M.
Max scanning depth: 236mm (10 grades adjustable).
256 Gray scale levels for precise imaging.
8-step intelligent Time Gain Compensation (TGC).
Built-in 4GB hard disk storing approx. 5000 frames.
256-frame Cine loop feature.
Puncture guide function with adjustable lines.
OB measurements for cattle, dogs, horses, cats, goats, camels, and sheep.
Specialized measurement for pig's meat factor.
One-key-light keyboard for use in dark rooms.

Standard Configuration

1	Main unit - 1pc
2	6.5MHz linear rectal probe - 1pc
3	Power supply adaptor - 1pc
4	Reticle - 1pc
5	Two probe sockets

Optional Configuration

1	6.5MHz micro-convex probe for small animals
2	3.5MHz linear probe for eye muscle
3	3.5MHz convex probe
4	7.5MHz high linear probe
5	Battery charger & Li-battery (4400mAh)
6	Trolley & Video printer

Product Visuals

Veterinary Ultrasonic Diagnostic Instrument View 1

Veterinary Ultrasonic Diagnostic Instrument View 2

Veterinary Ultrasonic Diagnostic Instrument View 3

Veterinary Ultrasonic Diagnostic Instrument View 4

Frequently Asked Questions

What animals can the KX5600 VET be used for?

The device is highly versatile and includes specialized measurement software for Bovine (cattle), Equine (horses), Swine (pigs), Goats, Canines (dogs), Felines (cats), and even Camels.

What are the display features of the monitor?

It features a 10.4-inch high-resolution color LED backlight display that provides high contrast and a wide viewing angle for clear diagnostic imaging.

Is the device portable for field use?

Yes, it features a compact, portable design and the main unit weighs only 4.5kg, making it easy to transport between clinic and farm environments.

How much storage does the ultrasound have?

The unit comes with a built-in 4GB hard disk capable of storing approximately 5,000 frames of images, along with a 256-frame cine loop feature for review.

Does the keyboard support work in low-light conditions?

Yes, it includes a unique one-key-light keyboard function specifically designed for ease of use in dark or dimly lit examination rooms.

Can I connect multiple probes?

The KX5600 VET is equipped with dual probe sockets featuring auto-identification, allowing you to switch between various optional probes such as micro-convex, linear, or convex probes easily.
